USER MANUAL CMX44AB Blustream

Our Contractor CMX44AB 4K HDMI matrix features HDMI 2.0 chipsets with HDCP 2.2 support, allowing distribution of four HDMI sources to four displays. This enables all sources to be viewed seamlessly as required within a matrix configuration. The unit transmits all HDMI resolutions up to and including 4K 60Hz 4:4:4/HDR. The 4-Way matrix also includes audio breakout and EDID management.

Key Features:

• Features 4x HDMI inputs which can be independently routed to 4x HDMI outputs
  • Supports 4K UHD video (up to 4K @60Hz 4:4:4/HDR)
  • Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
  • Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
  • HDMI audio breakout to associated output analogue L/R audio and coaxial digital outputs concurrently
  • Control via front panel, IR and RS-232
• IR routing
  • Supplied with Blustream 5V IR receivers and emitters
  • 3rd Party drivers available for all major home control brands
  • Advanced EDID management
• HDCP 2.2 compliant

Panel Description

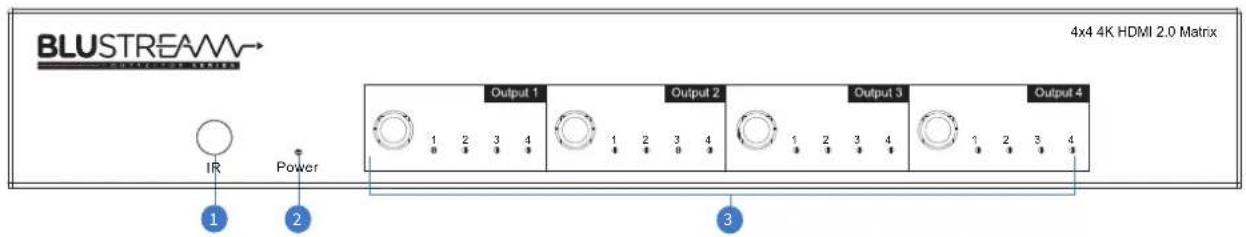

Front Panel:

1 IR receiver window for matrix control
2 Power LED indicator
3 HDMI output selection buttons 1-4. Press to scroll through source inputs per HDMI output

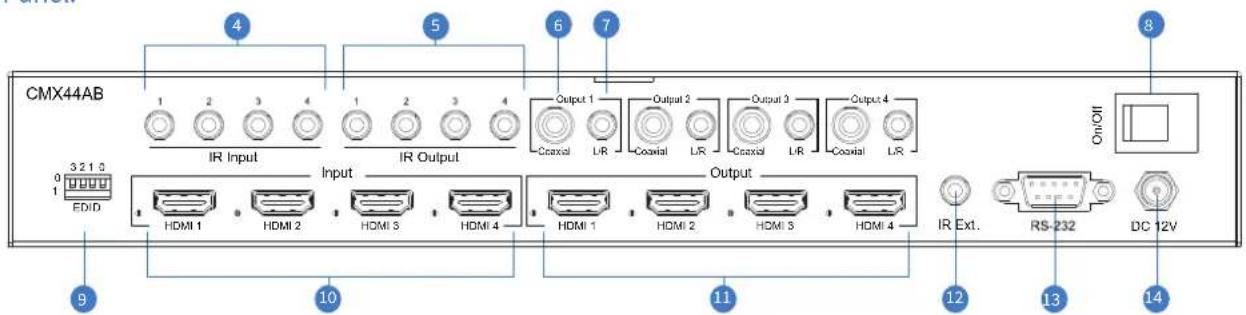

Rear Panel:

4 IR input - 3.5mm stereo jack provides zone specific routed IR receiver input
5 IR output - 3.5mm mono jack provides routed IR emitter output for discrete control of sources
6 Coaxial digital audio output - RCA (SPDIF)
7 Analog L/R audio output - 3.5mm stereo audio jack, Supports 2 channel PCM only
8 Power on/off switch

9 EDID DIP switch - Used to manage the video and audio resolution output by the connected source device.
10 HDMI inputs - connect to HDMI source devices
11 HDMI outputs - connect to HDMI display devices
12 IR control - IR input for switcher control. Connect 5V Blustream IR receiver.
13 RS-232 Serial port - For control of switcher by third party control devices
14 Power port - Use included 12V/2A DC power adaptor

Adjusting The EDID Settings

The EDID configuration can be altered using the dip-switches located on the rear panel of the matrix.

Please see adjacent table for EDID settings. Note: You must power-cycle the HDMI switcher after changes have been made in order for the EDID settings to update.

EDID Dip-switches

EDID Dip-switches

[DIP]=0000: HDMI 1080p@60Hz, Audio 2ch PCM
[DIP]=0001: HDMI 1080p@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0010: HDMI 1080p@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0011: HDMI 1080i@60Hz, Audio 2ch PCM
[DIP]=0100: HDMI 1080i@60Hz, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=0101: HDMI 1080i@60Hz, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=0110: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 2ch PCM
[DIP]=0111: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1000: HDMI 4K@60Hz 4:2:0+4K@30Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1001: HDMI 4K@60Hz 4:4:4, Audio 2ch PCM
[DIP]=1010: HDMI 4K@60Hz 4:4:4, Audio 5.1ch PCM/DTS/DOLBY
[DIP]=1011: HDMI 4K@60Hz 4:4:4, Audio 7.1ch PCM/DTS/DOLBY/HD
[DIP]=1100: DVI 1280x1024@60Hz, Audio None
[DIP]=1101: DVI 1920x1080@60Hz, Audio None
[DIP]=1110: DVI 1920x1200@60Hz, Audio None
[DIP]=1111: Software Control EDID

RS-232 Control Port

The Matrix can be controlled via 9-pin serial RS-232 cable.

BLUSTREAM RS-232 REMOTE CONTROL CONSOLE
PIN	Assignment	PIN	Assignment
1 NC	1 NC
2 Tx	2 Rx
3 Rx	3 Tx
4 NC	4 NC
5 GND	5 GND
6 NC	6 NC
7 NC	7 NC
8 NC	8 NC
9 NC	9 NC

Baud Rate: 57600 bps

Data Bit: 8-bit

Parity: None

Stop Bit: 1-bit

Flow Control: None

RS-232 COMMAND DESCRIPTION

? Print Help Information
HELP	Print Help Information
STATUS Print System Status And Port Status
PON	Power On, System Run On Normal Sta
POFF	Power Off, System Run On Power Save State
IRON/OFF	Set System IR Control On Or Off
KEYON/OFF	Set System KEY Control On Or Off
BEEPON/OFF	Set Onboard Beep On Or Off
LEDON/OFF	Set Front Panel LED Always On or Auto Turn Off in Power On State
RESET	Reset System To Default Setting (Type "Yes" To Confirm, "No" To Discard)
OUTxxFRON/OFF	Set OUTPUT:xx On or Off
OUTxxFRyy	Set OUTPUT:xx From INPUT:yyxx=00: Select All OUTPUT Portxx=[01...04]: Select One OUTPUT Portyy=[01...04]: Select One INPUT Port
EDIDxxCPyy	xx=00: Select All INPUT Port
EDIDxxDFzz	xx=[01...04]: Select One INPUT Portyy=[01...04]: Select One OUTPUT Portzz=00: HDMI 1080p@60Hz, Audio 2CH PCMzz=01: HDMI 1080p@60Hz, Audio 5.1CH DTS/DOLBYzz=02: HDMI 1080p@60Hz, Audio 7.1CH DTS/DOLBY/HDzz=03: HDMI 1080i@60Hz, Audio 2CH PCMzz=04: HDMI 1080i@60Hz, Audio 5.1CH DTS/DOLBYzz=05: HDMI 1080i@60Hz, Audio 7.1CH DTS/DOLBY/HDzz=06: HDMI 1080p@60Hz/3D, Audio 2CH PCMzz=07: HDMI 1080p@60Hz/3D, Audio 5.1CH DTS/DOLBYzz=08: HDMI 1080p@60Hz/3D, Audio 7.1CH DTS/DOLBY/HDzz=09: HDMI 4K@30Hz 4:4:4, Audio 2CH PCMzz=10: HDMI 4K@30Hz 4:4:4, Audio 5.1CH DTS/DOLBYzz=11: HDMI 4K@30Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HDzz=12: DVI 1280x1024@60Hz, Audio Nonezz=13: DVI 1920x1080@60Hz, Audio Nonezz=14: DVI 1920x1200@60Hz, Audio Nonezz=15: User EDID 1zz=16: User EDID 2zz=17: GUI Download EDIDzz=18: HDMI 4K@60Hz 4:2:0, Audio 2CH PCMzz=19: HDMI 4K@60Hz 4:2:0, Audio 5.1CH DTS/DOLBYzz=20: HDMI 4K@60Hz 4:2:0, Audio 7.1CH DTS/DOLBY/HDzz=21: HDMI 4K@60Hz 4:4:4, Audio 2CH PCMzz=22: HDMI 4K@60Hz 4:4:4, Audio 5.1CH DTS/DOLBYzz=23: HDMI 4K@60Hz 4:4:4, Audio 7.1CH DTS/DOLBY/HD

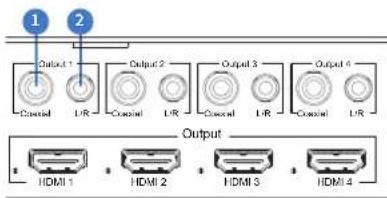

Audio Breakout

The Matrix includes audio breakout from the selected HDMI input to associated analogue L/R audio and coaxial digital outputs. Extracted audio will be concurrent with the corresponding HDMI video output. Note: Source input must be PCM 2ch audio for analogue audio outputs to work. The Matrix does not down-mix multichannel audio signals.

1oaxial digital output - Output 1
Analogue fixed line level output 3.5mm stereo jack - Output 1

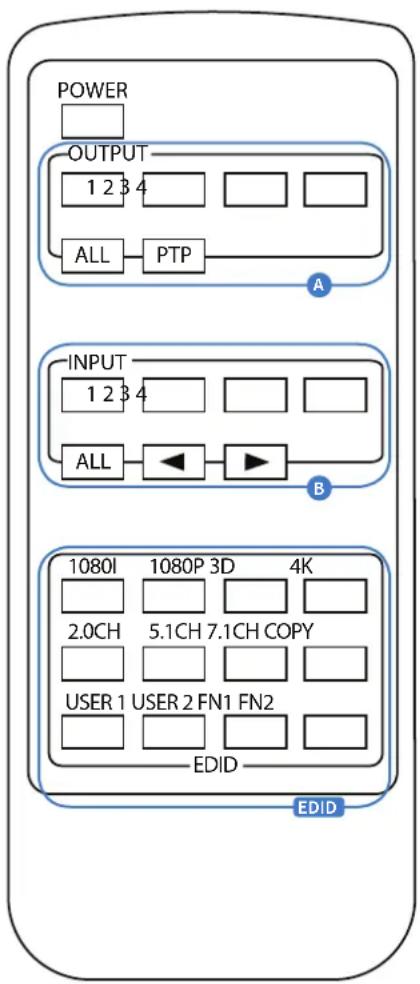

Remote Control Description
OUTPUT AND INPUT SELECTION

A Selects the zone OUTPUT you wish to change the source on (Numbers 1 - 4 correspond to the zone outputs 1 - 4)
B Selects the source INPUT you wish to change on the selected zone (Numbers 1 - 4 correspond to the source inputs 1 - 4)

EXAMPLE

To switch source 2 to zone 4 you would press 4 in the output section (A) followed by pressing 2 in the Input section (B).

ALL button: The all button selects all the inputs or outputs in its corresponding box. Example: (The "All" button in the Output box selects all the zones so all zones will change to what source input is selected next)

PTP: This button will align all the zone outputs with the like numbered source inputs. Example: Input 1 to output 1, input 2 to output 2, etc

EDID SET UP

The Matrix provides a comprehensive range of EDID settings. Below are three examples of how to deploy the desired EDID setting when using the supplied remote.

A. Fix EDID to an Input or ALL inputs: Press the desired video resolution button (1080I / 1080P / 3D / 4K), then select the desired audio format (2.0CH / 5.1CH / 7.1CH), then select the source input you want this EDID information allocated to by pressing the INPUT 1 – 4 or the ALL button

B. Copy EDID of Output-X to an Input or ALL: Press the COPY but-ton then select the OUTPUT you wish to copy the EDID information from, then select the source input you want to copy this EDID to by selecting the INPUT 1-4 or the ALL button.

C. User defined EDID to an Input or ALL inputs: Press USER1 / USER2 button then select the source you wish to assign this EDID to by selecting INPUT 1-4 or the ALL button

NOTE: THE BUTTON PRESS SEQUENCE SHOULD BE FINISHED IN 5 SECONDS, OTHERWISE THE OPERATION IS DISCARDED

Infrared (IR) Distribution

The Blustream range of matrix products include multiple options for control and routing of IR.

IMPORTANT: Blustream Infrared products are all 5v and NOT compatible with alternative manufacturers Infrared solutions. When using third party 12v IR control solutions please use supplied Blustream IRCAB cable for IR conversion.

Each Blustream Matrix and HDBaseT receiver is supplied with all necessary IR hardware required and includes:

IR Emitter - IR1 & IR2 (IR2 sold separately)

Blustream 5V IR Emitter designed for discrete IR control of hardware

Line drawing of two medical or electrical instruments with no text or symbols

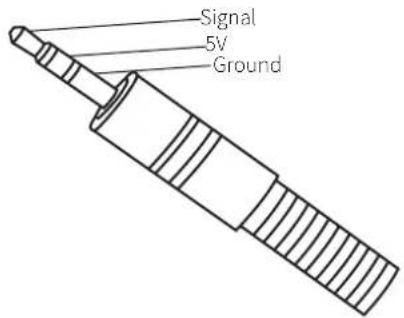

Infrared 3.5mm Pin-Out

IR Emitter - Mono 3.5mm

IR Receiver - IRR

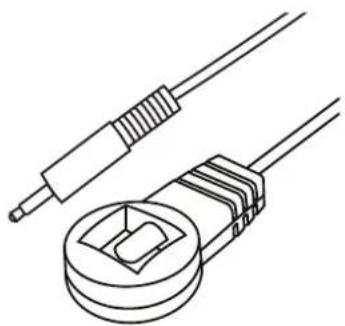

Blustream 5V IR receiver to receive IR signal and distribute through Blustream products

Line drawing of two electronic components: a wire with a terminal and a circular connector (no text or symbols)

IR Receiver - Stereo 3.5mm

IR Control Cable - IRCAB

Blustream IR Control cable 3.5mm Mono to 3.5mm Stereo for linking third party control solutions to Blustream products.

Compatible with 12v IR third party products.

Note: Cable is directional as indicated

Line drawing of two coaxial cables with connectors (no text or symbols)

4x4 Matrix IR Database

4X4 MATRIX PRODUCTS NEC IR: CUSTOMER CODE 1898 HEX IR
POWER 14		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 003F 0016 003 F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 003F 0015 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0015 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003 F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003 F 0016 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003 F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003F 0015 003 F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0015 003 F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0016 003F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003 F 0016 003F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0016 003 F 0015 003 F 0016 003 F 0015 003 F 0015 003 F 0015 55
OUTPUT PTP 18		OUTPUT PTP 18
INPUT 1.5		INPUT PTP 18
INPUT 2.5		INPUT PTP 2
INPUT 3.48		INPUT PTP 3
INPUT 4.4A		INPUT PTP 4
INPUT ALL.5E		INPUT ALL.5E
INPUT BACK.6		INPUT BACK.6
INPUT UP.95		INPUT UP.95

4x4 Matrix IR Database

1080I 18		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 00AC 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 00AC 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 00AC 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0014 00AC 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
1080P 44		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 0016 0016 0016 0016 0016 0015 00AC 0016 0016 0016 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 3F 0016 003F 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 3F 0016 003F 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016 0016
		0016 0016 0016 0016 0016 0016 0016 3F 0016 003F 0016 0016 0016
		003F 0016 0016 0016 0016 0016 003F 0016 003F 0016 0016 003F 0016 0016
		0016 003F 0016 0689
3D OF		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 0016 003F 0016 003F 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 3F 0016 003F 0016 0016
		0016 0016 0016 0016 0016 0016 0016 0016 0016 3F 0016 003F 0016 0016
		0016 0016 0016 003F 0016 003F 0016 0016 0016 0016 3F 0016 003F 0016 0016
		003F 0016 0016 0016 0016 003F 0016 003F 0016 0016 003F 0016 0016
		0016 003F 0016 0689
4K 51		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 003F 0016 003F 0016
		0016 0016 0016 0016 0016 0016 0016 3F 0016 003F 0016 0016
		0016 0016 0016 003F 0016 003F 0016 003F 0016 3F 0016 003F 0016 0016
		0016 0016 0016 003F 0016 003F 0016 003F 3F 0016 003F 0016 0016
		003F 0016 0016 0016 003F 0016 003F 0016 3F 0016 003F 0016 3F 0016
		0016 003F 0016 0689
2.0CH OA		0000 006D 0000 0022 0157 00AC 0016 0016 0016 0016 0016 3F 0016 003F 0016
		0016 0016 0016 0016 0016 3F 0016 3F 0016
		0016 0016 0016 3F 0016 3F 0016
		003F 0016 0016 3F 0016 3F 3F 3F 3F 3F 3F 3F 3F 3F
		0016 003F 0016 3F 3F 3F 3F 3F 3F 3F
		0016 003F 0016 3F 3F 3F 3F
5.1CH 1E		0000 006D 0000 0022 0157 00AC 0016 0016 3F 0016 3F 3F 3F 3F 3F 3F
		0016 0016 3F 3F 3F 3F 3F 3F 3F 3F 3F
		0016 0016 3F 3F 3F 3F 3F 3F
		7.1CH OE
		0016 0016 3F 3F 3F 3F 3F 3F 3F
		COPY IA
		0000 006D 0000 0022 0157 00AC 3F 3F 3F 3F 3F 3F 3F 3F
		0016 3F 3F 3F 3F 3F 3F 3F
		COPY IA
		USER 153
		USER 252
		USER 301
		USER 445

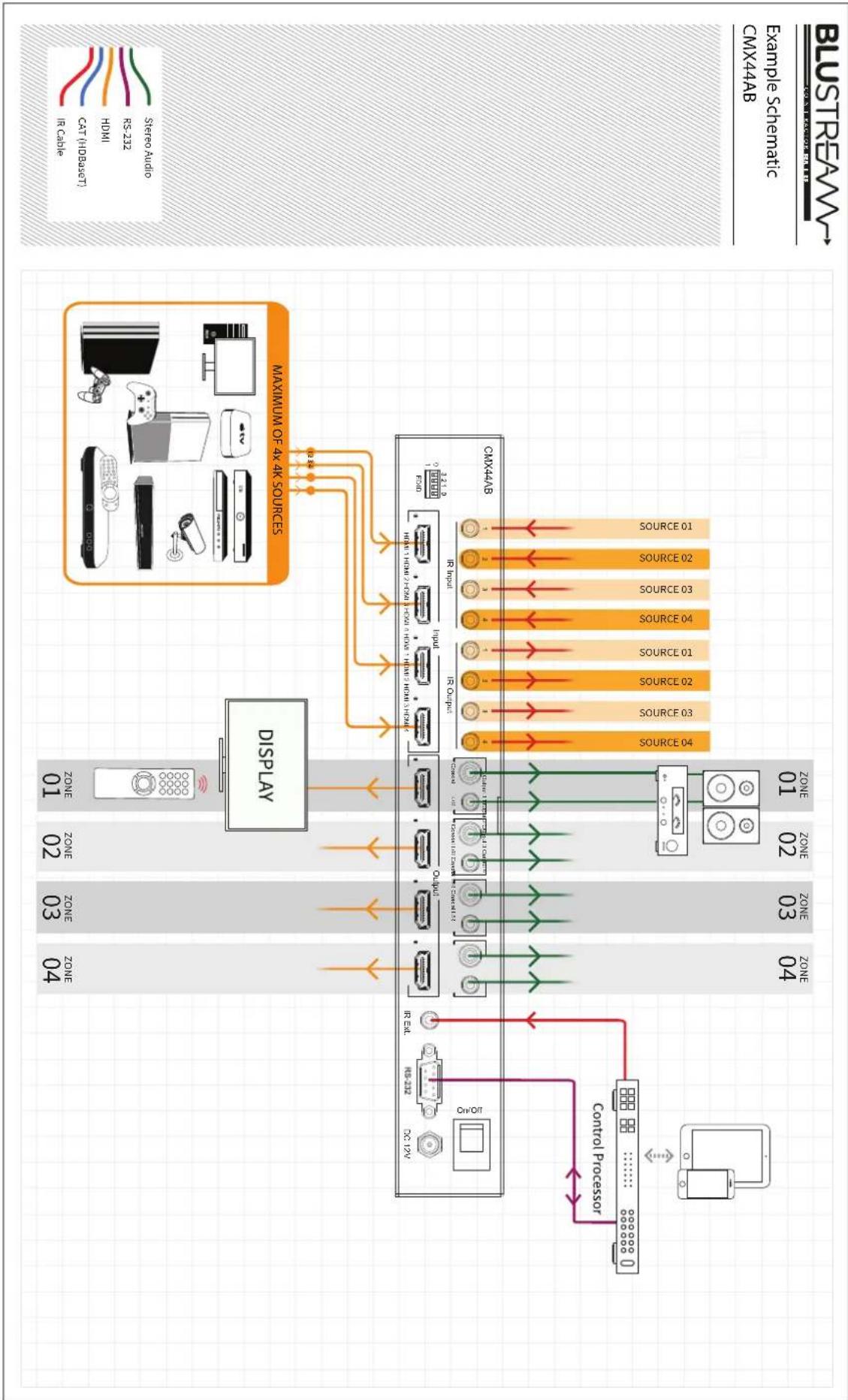


Specifications:

Video Input Connectors: 4x HDMI Type A, 19-pin, female

Video Output Connectors: 4x HDMI Type A, 19-pin, female

Audio Output Connectors: 4x RCA (SPDIF), 4x 3.5mm stereo jack (L/R)

RS-232 Serial Port: 1x DB-9, female

IR Input Ports: 5x 3.5mm stereo jack

IR Output Ports: 4x 3.5mm mono jack

EDID: 4-Pin DIP switch

Casing Dimensions (W x D x H): 313mm x 129mm x 45mm

Dimensions Inc. Connections (W x D x H): 313mm x 140mm x 52mm

Shipping Weight: 2.0kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Power Supply : 12V/3A DC

Package Contents:

• 1x CX44AB
• 1x 12V/3A DC power supply
• 1x Remote control
• 4x IR emitter
• 5x IR receiver
• 1x Mounting kit
• 1x Quick reference guide

Maintenance:

Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner or benzene to clean this unit.

Components inside this unit are not user serviceable. Do not remove the protective cover from the unit. Removing any panel from this product will invalidate the manufacturers warranty.
