USER MANUAL PXNGS-218 Ozito

MAINTENANCE

Cleaning
- Keep the ventilation slots of the tool clean at all times to ensure efficient operation.
- After each use, blow air through the tool housing to ensure it is free from all dust, dirt, etc. Build up of dust or dirt particles may cause the tool to overheat and shorten the life of the tool.
- If the housing of the tool requires cleaning, do not use solvents. Use of a cloth only is recommended.
- Never allow any liquid to get inside the tool, never immerse any part of the tool into liquid.

Storage

When not in use, the tool should be stored in a dry, frost free location, keep out of children's reach.

Note: Quito Industries will not be responsible for any damage or injuries caused by repair of the tool by an unauthorised person or by

mishandling

DESCRIPTION OF SYMBOLS

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders

Desk at your local Bunnings Warehouse. For further information, or any parts not listed here.

visit www.ozito.com.au or contact Ozito Customer

Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

ELECTRICAL SAFETY

Wealthful: When using electronic tools basic safety precautions should always be followed to reduce the risk of fire, electric shock and personal injury. Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool. Save these instructions and other documents supplied with this tool for future references. This appliance is not intended for use by persons (including children) with reduced physical, semi-physical, and other materials that lack of exposure and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. This appliance is compatible and only to be used with sell batteries & chargers from the Dato PVC battery to the PVC battery and charger manuals for information regarding charging, use and storage.

- Wallerhead Always remove the battery from the tool - when the batteries are to be charged, - when the tool is left unstanded. - when the tool is being checked, cleaned, or having maintenance work done, - when the tool is to be stored, - or if the tool vibrates abnormally. - Do not combine different types of batteries or new and used batteries. - Do not use modified or damaged batteries.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications required with this scope tool. Ensure to follow all instructions listed above may result in

provided with a small power tool. It will be to follow all basic concepts based on the help of basic electric shock, fire and/or serious injury.

Based on warnings and risks due to 100% reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or hettro-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable

liquids, gases or dust. Power tools create spans which may ignite the dust or fumes. c) Keep children and bystanders away while operating a power tool. Distractions can cause you

la lose control. 2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any device along with vertical lines to ensure tools. I modified steps and matching a plate will

bladder plugs with krotoei (griokhoic) solder balls. Ohnelloos plugs and matching holes will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or the risk of electric shock.

f1 Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled

cords increase the risk of electric shock. e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use

of a card suitable for outdoor use reduces the risk of electric shock.

(1) In operating a power color in a lamp box, it is unbovable, with a RCD (RCD) protected supply. Use of an RCD reduces the risk of electric sh

a) Personal safety Stay alert, watch what you are doing and use common sense when operating a power tool.

Do not use a power tool while you are tried or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal

injury. b) Use personal protective equipment. Always wear eye protection. Protective equipment such

sa a dust; make, non-skid safety shoes conditions will reduce personal injuries

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or batteries pack, picking up or carrying the tool. Carrying power tools with

your finger on the switch or energising power tools that have the switch an invites accidents. (1) Runway any adjusting key or wrench before turning the power trap on. A search or a key left

a) Reduce any squalling may of the other side of having the power tool are in addition to may be attached to a rotating part of the power tool may result in personal injury. b) Do not overview. Keep open footing and balance at all times. This enables better control of

the power tool in unexpected situations

1) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related

hazards. 1) Do not let familiarity gained from frequent use of teels allow you to become complacent and

[Non-Text]

I cannot enjoy that specialty care. A technique action can cause severe injury within a few of the most severe conditions. Other power use and care is used. The power use and care is used to ensure that the power use for your application is: The current power use for your application, the current power use for its job later at work as he has no effect on which it is designed. The current power use for its job later at work is also designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its job later at work is designed. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current power use system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. Thecurrent power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for its jobs may be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work will be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work is designed to ensure that the current power use for this job later at work will be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy system. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy systems. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy systems. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy systems. The current power use for this job later at work is designed to ensure that the current power use for this jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be used in the current energy systems. The current power use for these jobs may be using in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current energy system. The current power use for these jobs may be used in the current electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-of electricity work-oil (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or others (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or other (used) or more than 1000 gm/ton. The current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work will be used in the current energy system. The current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work is designed to ensure that the current power use for their job later at work will be used in the current energy system. The current power use for their job later at work is designed to ensure that the current power use for their role with an electric motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, but not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not has a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a specific motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, a motor, and a motor, will not have a special motor, the current power use for its job later at work is designed to ensure that the current power use for its job later at work is designed to ensure that the current power use for its job later at work is designed to ensure that the current power use for its job later at work is designed to ensure that the current power use for its job later at work is designed to ensure that the current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are able to operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The current power uses one of those who are ableto operate during maintenance during their operation. The currentpower uses one of those who are ableto operate during maintenance during their operation. The currentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operates during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. Thecurrentpower uses one of those who are ableto operate during maintenance during their operation. ThecurrentpowerUses one of these four units: 1. Current service usage: 2. Current service usage: 3. Current service usage: 4. Current service usage: 5. Current service usage: 6. Current service usage: 7. Current service usage: 8. Current service usage: 9. Current service usage: 10. Current service usage: 11. Current service usage: 12. Current service usage: 13. Current service usage: 14. Current service usage: 15. Current service usage: 16. Current service usage: 17. Current service usage: 18. Current service usage: 19. Current service usage: 20. Current service usage: 21. Current service usage: 22. Current service usage: 23. Current service usage: 24. Current service usage: 25. Current service usage: 26. Current service usage: 27. Current service usage: 28. Current service usage: 29. Current service usage: 30. Current service usage: 31. Current service usage: 32. Current service usage: 33. Current service usage: 34. Current service usage: 35. Current service usage: 36. Current service usage: 37. Current service usage: 38. Current service usage: 39. Current service usage: 40. Current service usage: 41. Current service usage: 42. Current service usage: 43. Current service usage: 44. Current service usage: 45. Current service usage: 46. Current service usage: 47. Current service usage: 48. Current service usage: 49. Current service usage: 50. Current service usage: 51. Current service usage: 52. Current service usage: 53. Current service usage: 54. Current service usage: 55. Current service usage: 56. Current service usage: 57. Current service usage: 58. Current service usage: 59. Current service usage: 60. Current service usage: 61. Current service usage: 62. Current service usage: 63. Current service usage: 64. Current service usage: 65. Current service usage: 66. Current service usage: 67. Current service usage: 68. Current service usage: 69. Current service usage: 70. Current service usage: 71. Current service usage: 72. Current service usage: 73. Current service usage: 74. Current service usage: 75. Current service usage: 76. Current service usage: 77. Current service usage: 78. Current service using one of these four units: 1. Current service using one of these four units: 1. Current service using two of these four units: 1. Current service using three of these four units: 1. Current service using four of these four units: 1. Current service using five of these four units: 1. Current service using six of these four units: 1. Current service using seven of these four units: 1. Current service using eight of these four units: 1. Current service using nine of these four units: 1. Current service using ten of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine of these four units: 1. Current service using nine / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / several / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / some / many

• Automotive this appliance is not required for use by petrains (including children) with reduced safety and safety capabilities, or lack of experience and knowledge unless they have been given supervision or instruction concerning one of the appreliably a person responsible for their safety. • Avoid using power tools for long periods of time without break. Vibration from tools can be related to your needs. • Where possible, use clamps or a vision to hold the workplace. It is safer than using your hand. • Always assume that the tool contains fasteners. Careless handling of the maker can result in unexpected firing of fasteners and personal injury. • Do not point the tool towards yourself or anyone nearby. Unexpected triggering will discharge the working environment in injury. • Do not accurate the tool unless the tool is placed firmly against the workplace. If the tool is not in contact with the workplace, the fastener may be deflated away from your target.

Disconnect the tool from the power source when the fastener jeans in the tool. While removing a jammed fastener, the nairer may be accidentally activated if it is plugged in. Use caution while removing a jammed fastener. The mechanism may be under compression and the fastener may be forcefully discharged while attempting to free a jammed condition. Do not use this nairer for fastening electrical cables. It is not designed for electric cable installation and may damage the insulation of electric cables thereby causing electric shock or fire hazards. Always use both hands to operate the tool. Your secondary hand should be used to press the back of the tool firmly down onto the surface to be fastened. Do not point the LED into the eyes of homers or animals.

Input: 18V Firing Rate: 60/min Magazine. Capacity: 100 x C1 Brad Nails Nail Size: 18 Gauge 15-50mm Weight: 2.8kg

ozito.com.au

5YEAR

STANDARD EQUIPMENT

Cordless 18GA Brad Finishing

广力云

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated text (underscores) where none should exist, violating the rule to ignore such lines. Hence, the OCR result is inconsistent with the Ground Truth.

1. 2017年1月1日

500 x 50mm 18 Gauge

CT Brad Nal

The Ground Truth image displays a single, solid horizontal line. According to Rule 2 (UNDERSCORE & LINE RULES), this is a stylistic or background line, not a placeholder underscore. Therefore, the OCR result must ignore it and output nothing or only meaningful text. The provided OCR content is "____", which consists of four underscores. This is an incorrect interpretation of the line as a placeholder, violating the rule that stylistic lines must be ignored. The OCR has hallucinated underscores where none should exist based on the GT's visual context. Hence, the OCR result is inconsistent with the Ground Truth.

-

Hex Key

图

-

PXNGS-218

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia 1800 069 486 New Zealand 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

WARNING

The following actions will result in the warranty being

- If the tool has been operated on a supply voltage other than that specified on the tool

- If the tool shows signs of damage or defects caused by or resulting from above, evidence or alterations

- Failure to perform maintenance as set out within the instruction manual.

- If the tool is disassembled or tampered with in any way.

OZITO INDUSTRIES PTY. LTD. 25 Fox Drive, Dandenong South, VIC 3175, Australia

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law. Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure. Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

5 YEAR REPLACEMENT WARRANTY Your Product is guaranteed for a period of 60 months from the original date of purchase and is intended for DIY (Do it Yourself) use only. If a product is defective it will be replaced in accordance with the terms of this warranty, Lithium Ion batteries and chargers are covered by a 35 month warranty and are excluded from the warranty extension. Warranty excludes consumable parts.

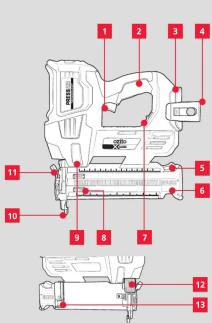

KNOW YOUR PRODUCT

CORDLESS 18GA BRAD

FINISHING NAILER

1. Fire Trigner

2. Sure Grip Handl

3. Battery Seating

4. Belt C5p

5. Bell Clip

6. Morning Panel

7. Magazine Helea

8. Naït M.

9. Mail Magazine

10. Nail Level Indicator

11. LED Worklight

12. Safety Striker Cap

11 .Jam Release Latch

1. Depth Adjustment Dial

2. Safety Stoker Can (extra)

BATTERY & CHARGER

This tool is compatible with all batteries & chargers from the Qito PXC range.

ONLINE MANUAL

Scan this OB Code with your

mobile device to take you to

the online manual.

Installing The Battery Pack

. Slide the battery into the battery seating until it clicks into place.

Removing The Battery Pack

. Hold down the battery release

button and then slide the battery

Seleting Nails

Accessories to suit this Staple Nail Gun can be purchased from Bunnings

Warehouse.

(No text)

Fastener Common Applications

Trim Moulding, Panelling, Picture Frames, Model Work

C1 Brad Nails Any Finish Nailing Application

（二）本次股东大会的决议

Nail Measurements

This tool accepts C1 Brad nails upto:

Note: These nail measurements are to scale, allowing you to measure the nail, ensuring the correct nail size is used. This is also positioned on the tool.

WARNING: ENSURE THE TOOL IS SWITCHED

OFF AND THE BATTERY IS REMOVED BEFORE

PERFORMING ANY OF THE FOLLOWING TASKS.

1. 2017年1月1日

Loading Nails

This staple nailer only accepts 15-50mm 18 gauge C1 Brad nails. Other

types of nails could jam the unit. For best results, load a full row of nails

before use.

[Non-Text]

1. Press the cartridge latch down

and pull the magazine slider out

of the tool

Note: Make sure the jam release latch is closed at all times except when

troubleshooting.

1. Insert a row of nails into the

opening behind the nose piec

Be sure to align them to the

lower left corner of the cartric

[Non-Text]

Note: Ensure nails are positioned correctly in the cartridge and not misaligned or inserted upside down.

[Non-Text]

[Non-Text]

1. Push the loaded magazine ba

into the unit until it clips into

place.

4. CONTROLS2. NAIL SELECTION 3. LOAD

WARNING ALWAYS USE BOTH HANDS WHEN

USING THE TOOL

1. 中国银行股份有限公司

Tie, 5:31/2

Firing A Nail

The Safety Striker System is a two step process where a staple or nail will

only fire when the safety striker tip is pushed against the material to be

fastene

[Non-Text]

1. Push down on the back of the

tool to press the safety striker

guard and nose piece down on

the worksurface to be fastened

[Non-Text]

[Non-Text]

[Non-Text]

1. To fi

souey

,

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

N.

Note:

[Non-Text]

[Non-Text]

Note:

Note:

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Nail Firing Force Adjustment

Tame jobs coming a light-to-touch than away producing the force that

some jobs require a tighter touch than others; reducing the force that

stapres delinato

Jencaio

20

Note:

[Non-Text]

1.2

1. 108

gun,

Incle

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

1. Turn

decre

[Non-Text]

[Non-Text]

[Non-Text]

[Non-Text]

Note:

2021

[Non-Text]

ace. Firmly hold down the nail gun with

see, firmly held down the hang

广力云智慧零售收银系统

THE CARTRIDGE

Selecting the Fire Type Adjustment Switch

The Fire Type Adjustment Switch helps to select the firing options between

a single shot and continuous shots.

。

1. Push the switch upwards for a

Single Shot adjustment. Place

the Nail gun with its Safety

Striker tip against the workpiece

ready for nailing. Pull the trigger

once and let it go again after

each shot.

[Non-Text]

1. Push the switch downwards for

2. Push the switch downwards for a Continuous Shot adjustment

Pull and hold the trigger with

its safety striker tip against the

workpiece. It will now shoot

every time the tip is depressed

until the trigger is released.

Note: To prevent the cordless nailer from overheating, it is suggested

to allow the tool to rest for 20mins after approx 500 shots in

continuous mode.

Note: Do not exceed a nail firing rate of 60 shots per minute. Thermal

protection would be activated if the motor overheated.

Note: If the nail goes in too far you can adjust the depth of penetration

with the depth adjustment dial

5 YEAR REPLACEMENT WARRANTY

PXNGS-218
