BVBA-002 - Uncategorized Ozito - Free user manual and instructions

Product Type	Corded Blower/Vacuum
Brand	Ozito
Model	BVBA-002
Dimensions (L x W x H)	45 x 20 x 30 cm
Weight	3.5 kg
Power Source	240V AC, 50Hz
Motor Power	3000 W (max)
Air Speed (blow)	250 km/h
Suction Capacity	15 L (collection bag)
Functions	Blow, vacuum, mulch
Speed Control	Variable speed trigger
Collection Bag Capacity	45 L
Mulching Ratio	16:1
Maintenance	Clean air filters regularly; empty bag after use
Safety Features	Overload protection, double insulated
Spare Parts Available	Collection bag, impeller, air filters, nozzle set
Repairability	Modular design; user-replaceable parts
Included Accessories	Blower tube, vacuum tube, collection bag, shoulder strap
Warranty	2 years

Frequently Asked Questions - BVBA-002 Ozito

How do I switch between blow and vacuum modes?

Turn off and unplug the unit. Remove the blower tube and attach the vacuum tube and collection bag. Ensure the lock is engaged before use.

What should I do if the motor stops suddenly during use?

This may be due to overload. Release the trigger, unplug the unit, and let it cool for 15 minutes. Check for blockages in the tube or impeller.

How do I clean the air filters?

Remove the filter cover and take out the foam filter. Wash with mild soap and water, dry completely before reinstalling. Replace if damaged.

Can I use an extension cord with this blower?

Yes, use a heavy-duty extension cord rated for outdoor use, minimum 14 AWG, and no longer than 30 meters to prevent voltage drop.

What type of debris can I vacuum?

Dry leaves, grass clippings, small twigs, and paper. Do not vacuum wet materials, stones, or metal objects as they may damage the impeller.

How do I empty the collection bag?

Unzip the bag and empty contents into a bin. For finer dust, tap the bag outside. Wash the bag occasionally with water and air dry.

The blower vibrates excessively. What's wrong?

Check the impeller for debris or damage. If broken, replace the impeller. Also ensure all screws are tight.

Is this blower suitable for heavy-duty use?

It is designed for domestic garden use. For continuous heavy-duty work, allow the motor to rest every 15 minutes.

Where can I purchase replacement parts?

Official spare parts are available from Ozito service centers and authorized retailers. Use only genuine parts to maintain safety and performance.

What safety precautions should I take while operating?

Always wear safety goggles and hearing protection. Keep bystanders at least 5 meters away. Do not use in rain or near flammable liquids.

USER MANUAL BVBA-002 Ozito

Fitting Instructions

(AUS) 1800 069 486

(NZ) 0508 069 486

www.ozito.com.au

BVBA-002

1. Bag adaptor for use with model BLV-2401

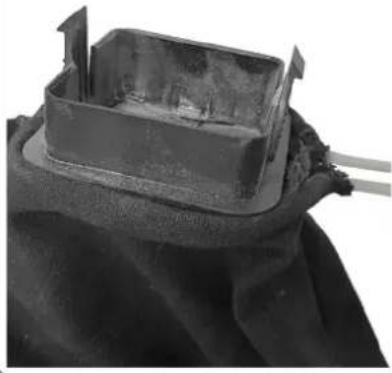

1. When placing the adaptor in the elastic opening, ensure the bag sits within the groove around all four sides.


Close-up of a black mechanical component with red arrows indicating force or movement, no visible text or symbols

1. Overlap the cable tie around the opening all the way around the adaptor, ensure the cable tie sits within the groove around all four sides.


Close-up of a dark rectangular object with a triangular protrusion, resting on a textured surface (no visible text or symbols)

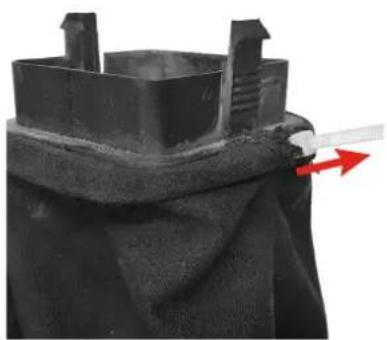

1. Pull the cable tie tight and cut off the excess.


Close-up of a black mechanical component with a red arrow pointing to a detail (no visible text or symbols)

IMPORTANT

• Always ensure the bag is correctly attached.
- When not in use, the blower vac should be stored in a dry, frost free location not within the reach of children.
• DO NOT leave wet debris inside the blower vacuum bag.
- In the interest of safety, always read the instruction manual for full details relating to safety instructions, assembly, operation and maintenance of your power tool.

1. Bag adaptor for use with model BLV-2402

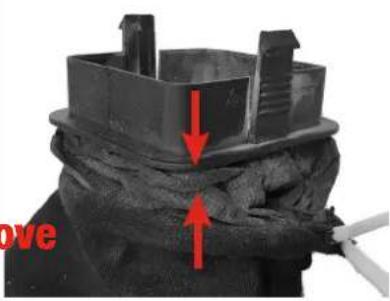

1. When placing the adaptor in the elastic opening, ensure the bag sits within the groove around all four sides.


1. Overlap the cable tie around the opening all the way around the adaptor, ensure the cable tie sits within the groove around all four sides.


Close-up of a dark fabric or material sample under compression, with no visible text or symbols.

1. Pull the cable tie tight and cut off the excess.


Close-up of a black mechanical component with a red arrow pointing to a detail (no visible text or symbols)
