Product Type	Deep Fryer
Brand	Healthy Choice
Model	AFDZ100
Dimensions (L x W x H)	Approx. 10.2 x 8.7 x 7.9 inches
Weight	Approx. 3.5 lbs (1.6 kg)
Power Supply	120 V ~ 60 Hz
Power Consumption	1500 W
Oil Capacity	1.5 L (approx. 6.3 cups)
Food Capacity	Up to 1.5 lbs (0.7 kg)
Temperature Range	150°C – 190°C (300°F – 375°F)
Adjustable Thermostat	Yes
Indicator Lights	Power and Ready lights
Frying Basket	Removable with cool-touch handle
Lid	With viewing window and steam vent
Safety Features	Overheat protection, auto shut-off, cool-touch housing
Non-stick Coating	Yes, on interior pot
Cleaning	Removable oil container, dishwasher-safe basket
Construction Material	Stainless steel and plastic
Warranty	1 year limited

Frequently Asked Questions - AFDZ100 Healthy Choice

How do I use the Healthy Choice AFDZ100 deep fryer?

Fill the oil container to the minimum or maximum line, set the temperature using the dial, wait until the ready light turns on, then lower the basket with food into the oil.

What type of oil should I use?

Use oils with a high smoke point such as canola, peanut, or vegetable oil. Avoid butter or olive oil as they burn at lower temperatures.

How do I clean the deep fryer?

Unplug and let it cool completely. Remove the oil container and basket. Wash them with warm soapy water or in the dishwasher (basket only). Wipe the exterior with a damp cloth.

Can I fry frozen food directly?

Yes, but expect a temperature drop. Do not overload the basket. Shake off excess ice before frying to prevent oil splatter.

Why does the ready light go off during frying?

This is normal. The thermostat cycles to maintain temperature. The light will turn on again when the oil heats back up.

How do I dispose of used oil?

Allow oil to cool completely, then pour it into a sealed container and throw it in the trash. Do not pour down the drain.

What is the maximum capacity for food?

Do not fill the basket more than half full. For best results, fry in small batches to maintain oil temperature.

Why does the deep fryer smell like burning plastic first use?

New appliances may emit a harmless odor during initial use. Run the fryer empty at high temperature for 10 minutes to burn off any residue.

Can I use the deep fryer without oil?

No, this is not an air fryer. It requires oil to function. The minimum oil level must be maintained.

Where can I find replacement parts?

Contact Healthy Choice customer service or check online retailers for compatible parts such as the basket or oil container.

USER MANUAL AFDZ100 Healthy Choice

Black and white electric air fryer with digital display and two side handles, no visible text or symbols on the device itself.

Model: AFDZ100 | Batch: PR4944

CAUTION: TO AVOID DAMAGE TO YOUR BENCHTOP AND SPLASHBACK, DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCHTOP.

HOUSEHOLD USE ONLY

Carefully read all instructions before use and save for future reference.

CAUTION: TO AVOID DAMAGE TO YOUR BENCHTOP AND SPLASHBACK, DO NOT PLACE THE AIR FRYER DIRECTLY ON BENCHTOP.

Please use the air fryer on a heat-proof material and on a dry, level and even surface. Leave a minimum distance of 20cm from walls and other heat-sensitive materials.

Do not place the appliance against a wall or other appliances. Hot air up to 160 Degrees expels through the rear vent of the appliance. Leave at least 20cm clearance around the entire appliance, including directly above it. Additional care should be taken when placing appliances on benchtop surfaces or near splashbacks where such materials (acrylics, timber, stone etc.) do not have high heat-resistant properties.

IMPORTANT SAFEGUARDS

PLEASE READ AND SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE

When using the appliance, basic safety precautions should be followed, including:

1. Remove and safely discard any packaging material and labels before using this product for the first time. Ensure children and babies do not play with plastic bags or any packaging materials.
2. Before use, check that your local voltage corresponds with the specifications shown on the appliance nameplate located under the appliance.
3. Always operate the appliance on a horizontal surface that is level, stable and non-combustible. Do not operate the appliance on or near combustible materials such as tablecloths or curtains.
4. Do not place the appliance on or near a hot gas or electric burner, or in a heated oven.

5. Never connect this appliance to an external timer or a separate remote-control system.

6. Never use this appliance with an extension cord or power board. Ensure it is plugged into a dedicated power point and without any other appliances on the same outlet.

7. Do not turn on the power until the appliance and parts are in place as required.

8. To protect against electric shock, do not immerse the cord, plug, or appliance in water or any other liquid. Do not expose the appliance to dripping or splashing and ensure that no objects filled with liquids such as vases are placed on the appliance. Do not put any water or other liquid into the main housing of the appliance through the vents. Do not rinse it under the tap.

9. Do not touch the appliance, power cord or power plug with wet hands.

10. Unplug from the outlet when not in use and before cleaning. Allow the appliance to cool down before putting on or taking off the parts, and before cleaning.

11. The appliance does not contain any serviceable parts inside. Do not attempt to open and repair the appliance yourself. All components should only be serviced by a qualified technician.

12. Do not use the appliance if the plug, power cable or unit itself are damaged. If the power cord is damaged, you must have it replaced at a service centre by qualified persons in order to avoid a hazard.

13. Do not use the appliance for anything other than the intended use. It is for household use only. It is not to be used outdoors or for commercial purposes.

14. Close supervision is necessary when the appliance is used near children. Keep the appliance and power cord out of reach of children when it is in operation or during the cooling process.

15. This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- farmhouses;

- by clients in hotels, motels and other residential-type environments;

- bed and breakfast type environments.

1. Extreme caution must be used when moving an air fryer containing hot food.

2. Leave enough open space from other objects while in use. Do not block air intakes or exhausts.

3. Do not place the appliance against a wall or against other appliances. Leave at least 20 centimetres of free space on the back and sides and above the appliance. Do not place anything on top of the appliance.

4. When the appliance is in operation, hot air is released through the air outlet vent. Keep your hands and face at a safe distance from the air outlet vent.

5. Do not touch the hot surfaces. The appliance's outer surfaces may become hot during use. The rotisserie basket and rotisserie fork set will be hot. Wear oven mitts or use the rotisserie remover tool to remove them. Wear oven mitts when handling the crisper trays and drip tray.

6. Do not cover the appliance while in use.

7. Do not let the cord hang over the edge of the table or counter.

8. Do not unplug the appliance by pulling on the cord.

9. This appliance can be used by children 8 years and above and people with a physical, sensory or mental impairment, or people without knowledge or experience if they are supervised or given prior instructions concerning the use of the appliance by someone responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

10. Do not leave the appliance operating while unattended.

11. The appliance may emit light smoke during its first use. It is not defective, and the smoke will burn off within a few minutes.

12. Should the appliance emit black smoke, unplug it immediately. Wait for the smoke to stop before removing the contents inside.

13. To prevent the food from contacting the inner upper wall and heating element, do not overfill the rotisserie fork or crisper trays.

14. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children younger than 8 years.

Technical Parameters

Model

AFDZ100

Voltage

220-240V\~

50/60Hz

Capacity

10 Litre (6L + 4L)

Adjustable temperature

80 ^irc C - 200 ^irc C

Timer

1 - 60 min

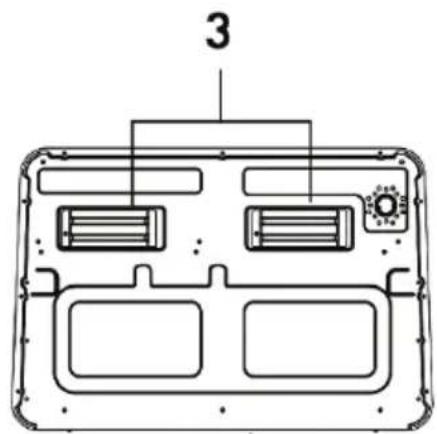

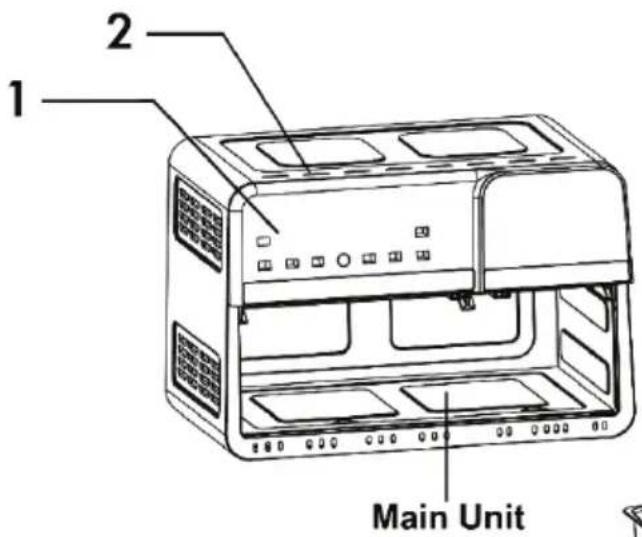

Appliance overview

Technical line drawing of two plastic container units with a handle, labeled with number 5 (no text or symbols on the diagrams)

1. Control Panel

2. Air Inlet

3. Air Outlet

4. Grill Inserts

5. Cooking Baskets

AIR FRYER COOKING & MAINTENANCE TIPS

• Press the POWER icon to unlock the control panel. You can either select a pre-set cooking program using the MENU button or manually set the temperature and time.
• Clean accessories with hot water, dish soap, and a non-abrasive sponge before first use. Cooking baskets and grill inserts are also dishwasher safe. Wipe inside and outside of the appliance with a clean, dry cloth. Make sure all stickers and packing labels are removed.
• Cooking baskets, grill inserts and the inside of the appliance have a non-stick coating. Do not use metal utensils or abrasive cleaning materials to clean them, as this may damage the non-stick coating.
• Before first use, preheat the appliance without any food for 15 minutes.

Note: When your air fryer is heated for the first time, it may emit slight smoke or odour. This is normal with many brand-new appliances. This does not affect the safety of your appliance.

• Before use, place the grill inserts inside the cooking baskets.
• After use, clean the top heating element and any internal grease. Residual grease may result in smoke.
• Smaller ingredients require a slightly shorter cooking time than larger ingredients. Shaking or flipping foods during cooking can help prevent uneven cooking.
• Do not fill the cooking baskets with oil or grease. This appliance uses hot air circulation to cook food.
  • Overheating protection: The appliance will not function if overheating protection is activated. Unplug and wait for an appliance to completely cool before restarting.

PREPARING FOR USE

1. Place the appliance on a stable, horizontal, and even surface. Do not place the appliance on a non-heat-resistant surface.
2. Place the grill inserts inside the baskets. Do not fill the baskets with oil or any other liquid. Do not put anything on top of the appliance, the airflow will be disrupted and affect the air frying result.
3. Put the food to be cooked inside the baskets.
4. Slide the baskets back into the air fryer.
5. Plug in the appliance.

DIGITAL CONTROL PANEL

1. Power 2. Time/Temperature 3. SYNC finish 4. Start/Stop
   5.LED Digital Display 6. Decrease 7. Increase 8-15. Cooking Presets
2. Zone 1 17. Zone 2 18. Menu

OPERATING INSTRUCTIONS

Power

Once the unit is plugged in, the Power Button will light up. Selecting the Power Button once will unlock and illuminate the control panel.

Temperature/Time

Press to change the temperature or time setting and adjust using the ⏻ or ⚠ buttons.

SYNC Finish

Synchronise the cooking time finish for both baskets.

Select Zone 1, followed by the Menu button to set the chosen program. Select Zone 2, followed by the Menu button to set the chosen program for the Zone 2 basket. When both zones are set, press the SYNC finish button.

Start/Stop

Press this button to start or stop the program.

LED Digital Display

The digital numeric display will show the temperature and time remaining during the cooking process.

Decrease/Increase

Press the - or + button to adjust the time/temperature.

Cooking Presets

Selecting any of these will set Time and Temperature to a default setting for that particular food.

Zone 1

Press ① to select zone 1.

Zone 2

Press ② to select zone 2.

Menu

Press the MENU button repeatedly to select one of the 8 preset cooking

programs. This will allow you to cycle through the menus from left to right in sequence. The menu button will light up when Zone 1 or 2 are selected.

Keep in mind that the pre-programmed settings are an indication only. As ingredients differ in origin, size, shape as well as brand, we cannot guarantee the best setting for your ingredients.

Do not pull out the basket to shake/check on food for an extended period of time. Try to be as brief as possible to not disturb the cooking process.

Note: Add 3 minutes to the preparation time before you start frying if the appliance is cold.

COOKING WITH MANUAL SETTING

Once you are familiar with the appliance, you may want to experiment with your own recipes. You do not need to select a preset program, simply choose the time and temperature that suits your personal taste.

To change the temperature, use the + and - buttons in temperature setting mode. Each press changes the temperature by 5^irc . Keeping the button held down will rapidly change the temperature. Temperature control range: 80^irc-200^irc .

For changing the cooking time, use the + and - buttons in time setting mode. Each press changes the time by 1 minute. Keeping the button held down will rapidly change the time. Time control range: 1 min to 60 minutes.

COOKING TIPS

• Smaller ingredients usually require a slightly shorter cooking time than larger ingredients.
• A larger amount of ingredients only requires a slightly longer cooking time, and a smaller amount of ingredients only requires a slightly shorter cooking time.
• Shaking smaller ingredients halfway through the preparation time optimizes the result and can help prevent unevenly fried ingredients.
• Add some oil to fresh potatoes for a crispy result. Fry your ingredients in the air fryer within a few minutes after you add the oil.
• Snacks that can be prepared in an oven can also be prepared in the air fryer.
• Use pre-made dough to prepare filled snacks quickly and easily. Premade dough also requires a shorter cooking time than homemade dough.
• Place a baking tin or oven dish in the air fryer basket if you want to bake a cake or quiche or if you want to fry fragile ingredients or filled ingredients.

HOW TO SHAKE?

Some ingredients require shaking halfway through the cooking time.

1. To shake the ingredients, pull the cooking basket out of the fryer by the handle (the fryer will automatically pause) and carefully shake the ingredients.

2. Slide the basket back into the air fryer. The fryer will automatically continue to work.

HOMEMADE CHIPS

For best results, we advise to use pre-made frozen chips. If you want to make homemade chips, follow the steps below:

1. Peel the potatoes and cut them into sticks.
2. Soak the potato sticks in a bowl for at least 30 minutes, take them out and dry them with a paper towel.
3. Pour 12 tablespoon of olive oil in a bowl, add the potato sticks on top and mix until the sticks are coated with oil.
4. Remove the sticks from the bowl with your fingers or a kitchen utensil so that excess oil stays behind in the bowl. Put the sticks in the basket.

* Note: Do not tilt the bowl to put all the sticks in the cooking basket in one go, to prevent excess oil from ending up on the bottom of the pan.

1. Fry the potato sticks according to the instructions.

CLEANING AND MAINTENANCE

Unplug the appliance and allow it to cool down completely before handling, cleaning or storing.

Wash all accessories in warm soapy water after every use.

Note: the basket and the grill insert are dishwasher safe.

The inside of the air fryer can be cleaned with hot water, a mild detergent and a non-abrasive sponge. Wipe the outer housing body with a soft, damp cloth. Do not use detergents or cleaners on the outside of the appliance.

Tip: If food is stuck to the grill insert or the bottom of the basket, fill the basket with hot water and some washing-up liquid. Put the grill insert in the basket and let them soak for approximately 10 minutes.

STORING

Allow the appliance to cool down completely before storing it. Store the appliance in an upright position in a dry location. Do not place any heavy items on top of the appliance during storage as this may result in possible damage to the appliance.
