| Product Type | TV Mount and Stand |
| Brand | Sanus |
| Model | BSTV1 |
| Maximum TV Weight Capacity | 60 lbs (27.2 kg) including accessories |
| Maximum TV Screen Size | 60 inches diagonal |
| VESA Compatibility | 75x75, 100x100, 200x200, 300x300, 400x400, 600x400 mm |
| Base Plate Dimensions | 27 x 16.45 inches (685.8 x 417.8 mm) |
| Fully Assembled Height (Extended) | 28.97 inches (735.9 mm) |
| Swivel Range | ±20 degrees (40 degrees total) |
| Tilt Range | 5 degrees up |
| Level Adjustment | ±1.5 degrees |
| Height Adjustment | Yes, via vertical height adjustment bracket |
| Material | Steel |
| Cable Management | Yes, with cable cover |
| Installation Tools Required | Phillips screwdriver, wrench (supplied) |
| Weight of Mount (approx.) | 25 lbs (11.3 kg) |
| Warranty | Limited lifetime warranty |
| Customer Service | 1-800-359-5520 (US), 0800-056-2853 (UK) |
| Safety Compliance | Tested to exceed UL standards |
| Suitable for Flat, Round, or Irregular Back TVs | Yes, with spacers included |
| Mounting Pattern | Horizontal and vertical brackets |
Frequently Asked Questions - BSTV1 SANUS
User questions about BSTV1 SANUS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your TV Stand in PDF format for free! Find your manual BSTV1 - SANUS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. BSTV1 by SANUS.
USER MANUAL BSTV1 SANUS
We'll Make It Stress-Free
If you have any questions along the way, just give us a call. 1-800-359-5520. We're ready to help!
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
Before getting started, let's make sure this mount is perfect for you!
1
Does your TV weigh more than 60 lbs. (27.2 kg) including accessories?

No — Perfect!
Yes— This mount is NOT compatible. Visit sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to find a compatible mount.
2
Do you have the tools needed?

3
Ready to begin?
Please read through these instructions completely to be sure you're comfortable with this easy install process. Also check your TV owner's manual to see if there are any special requirements for mounting your TV.
If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact Customer Service at 1-800-359-5520.
CAUTION: Avoid potential personal injuries and property damage! Manufacturer is not responsible for damage or injury caused by incorrect assembly or use.
⚠ WARNING: Exceeding the weight capacity can result in serious personal injury or damage to equipment! It is the installer's responsibility to make sure the combined weight of the BSTV1 and the display does not exceed 60 lbs (27.2 kg). Use with heavier televisions may result in instability causing tip over resulting in death or serious injury!
⚠ WARNING: Use this mounting system only for its intended use as described in these instructions. Do not use attachments not recommended by the manufacturer.
▲ WARNING: Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on the furnishing may encourage a child to climb on the furnishing and as a result the furnishing may tip over onto the child.
▲ WARNING: Relocating audio and/or video equipment to furniture not specifically designed to support audio and/or video equipment may result in death or serious injury due to the furnishing collapsing or overturning onto a child.
NOTE: The BSTV1 can support screen sizes up to a maximum of 60" diagonal.
NOTE: The BSTV1 has no user serviceable parts.
Dimensions
TV INTERFACE
![[600mm] 23.62 in. [300mm] 11.81 in. [400mm] 15.75 in. [100mm] 3.94 in. [300mm] 11.81 in. [200mm] 7.87 in. [400mm] 15.75 in. [200mm] 7.87 in. [100] 3.94 in. [75mm] 2.95 in.](/content/2026/05/940346/images/dea391861997df7920ab9162391c5bcff527f445eba6d6b39b89477a15d4df75.jpg)
3-D
![[685.8mm] 27.00 in. [417.8mm] 16.45 in.](/content/2026/05/940346/images/ede7f6dc93207b92a8133c5453408db4e6f206f480788ddd0faf6fca92e6e7cd.jpg)
TOP VIEW - EXTENDED
SIDE VIEW - EXTENDED
![[243.9mm] 9.60 in.](/content/2026/05/940346/images/8d27bb55b367e140cdd383a87e9c4fdf6daeb7685c92a2f6ed88609dbe8c2d41.jpg)
![5deg UPTILT [519.7mm] 20.46 in.](/content/2026/05/940346/images/1e94db17a5e387603c4f480d0003727747a66be3fb5d97400601516ac60c6828.jpg)
FULLY ASSEMBLED MOUNT

TOP VIEW - RETRACTED

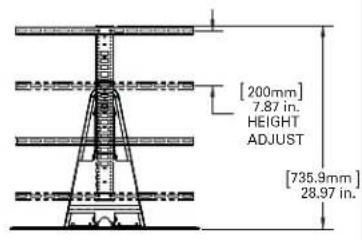

FRONT VIEW - HEIGHT ADJUST
![[200mm] 7.87 in. HEIGHT ADJUST [735.9mm] 28.97 in.](/content/2026/05/940346/images/3c79958c06990eb944f9b079a625117f249523388ff416a90b143b296e267217.jpg)
Dimensions - TV Interface

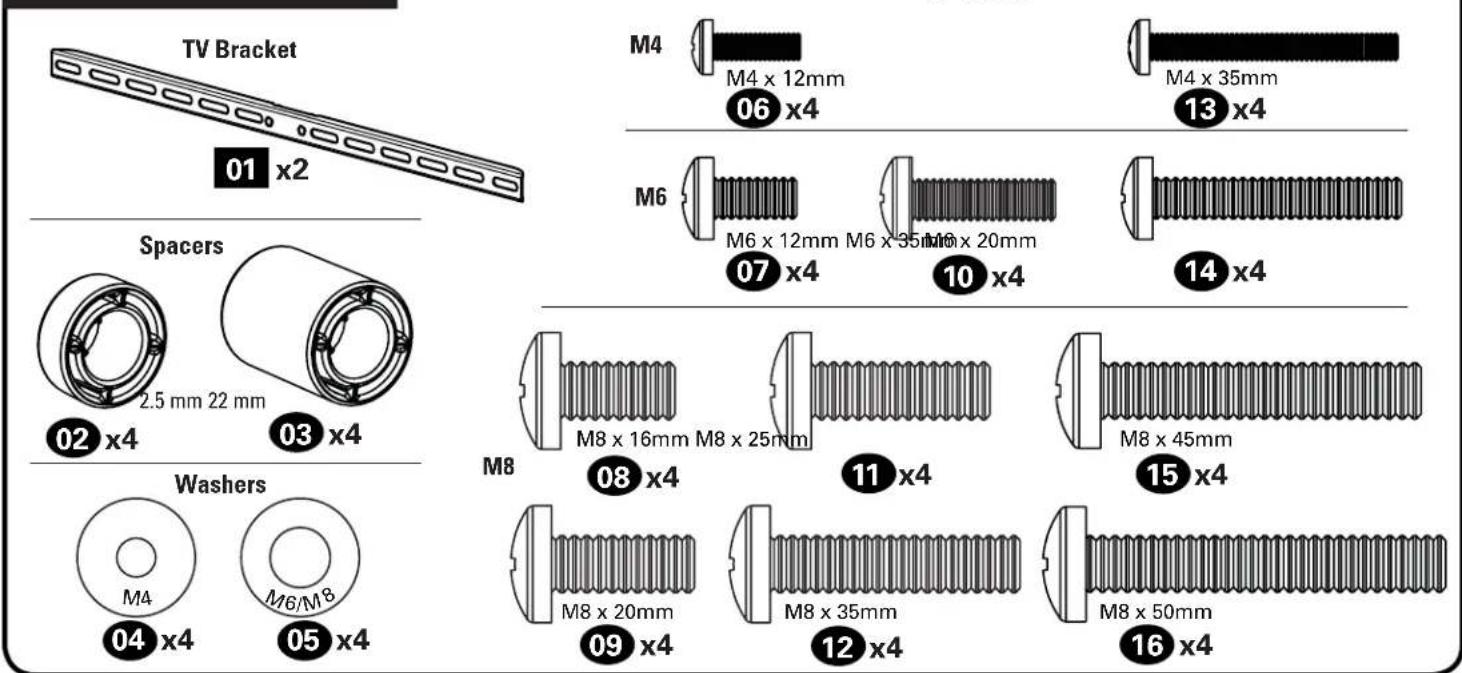

Supplied Parts and Hardware
⚠ WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: Not all hardware included will be used.
STEP 1 Parts and Hardware

TV Screws
STEP 2 Parts and Hardware STEP
Vertical Height Adjustment Bracket
(Vertical Height Adjustment Bracket)

10-32×3/8 in.
18 x4
PSTE8 Partsared Hardware


Attachment Nuts


Swivel Head

Lock Screws

1/4-20 × 3/8 in.
24 x4
STEP 1 Attach TV Brackets to TV
1.1 Select TV Screw Diameter
Hand thread screws into the threaded inserts on the back of your TV to determine which screw diameter (M4, M6, or M8) to use.

1.2 Select TV Screw Length
If your TV has a flat back AND you want your TV closer to the swivel head of the mount, use the shorter screws.
Spacers and longer screws are supplied to accommodate:
• Round/irregular back TVs
• TVs with inset mounting holes
• Extra space needed for cables

Standard configurations are shown. For special applications, or if you are uncertain about your hardware selection, contact Customer Service at 1-800-359-5520.

1.3 Attach Horizontal Brackets
Position your TV brackets 01 over your TV hole pattern - making sure the brackets are centered and level. Secure TV brackets 01 using your selection for screw/washer (Flat Back) or screw/washer/spacer (Round Back / Extra Space). (See 1.2 on PAGE 7).
IMPORTANT: Ensure TV brackets are securely fastened before moving on to the next step.

STEP 2 Attach Vertical Bracket
Make sure the vertical height adjustment bracket 17 is centered on the TV.
Secure vertical height adjustment bracket 17 with interface screws 18.
IMPORTANT: Ensure all brackets are securely fastened before moving on to the next step.

STEP 3 Attach Neck to Base

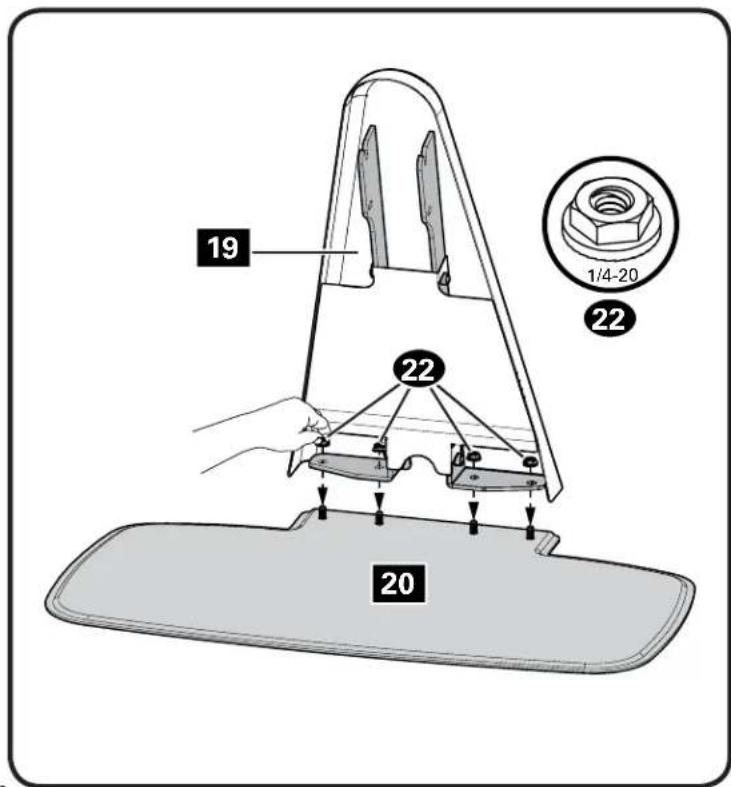

Attach neck 19 to base 20 with nuts 22. Start by hand tightening the nuts 22 then complete the tightening by using supplied wrench 21. IMPORTANT: Ensure neck 19 is securely fastened to base 20 before moving on to the next step.


STEP 4 Swivel Head to Neck
- Hang swivel head 23 onto neck 19.
- Secure with two lock screws 24.

STEP 5 Attach TV to Swivel Head

STEP 5 Attach TV to Swivel Head (continued)
- Determine the height from the base that you would like to hang your TV (see examples Page 11).
- Secure the TV/bracket assembly to the swivel head 23 with the two lock screws 24.
IMPORTANT: Keep the base clear while installing TV.
IMPORTANT: Ensure TV/bracket assembly is securely fastened to swivel head 23 before moving on to the next step.


Cable Management
Remove the cable cover CC. Route cables down the cable channel of the neck and through the opening in the base of the neck. Replace the cable cover CC.
± 1.5 degrees using the adjustment screw AS in the swivel head 23.

TV can be swiveled ±20° (40° total) for best viewing angle. Post install level in

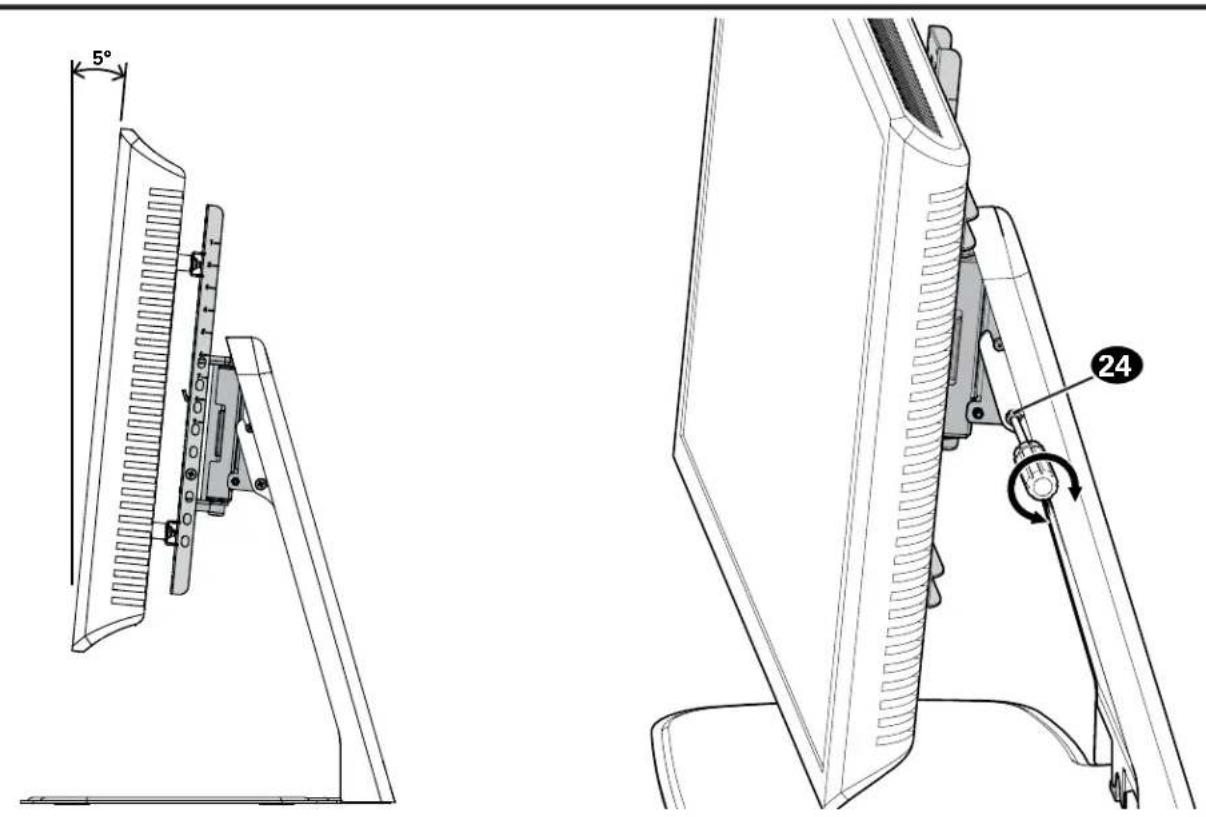

TV can be tilted back 5° for a better viewing angle or to compensate for deflection caused by a heavy TV. To adjust tilt, loosen both lock screws 24, adjust tilt, then tighten both lock screws 24.
