USER MANUAL RS6W ARC
White front fascia panel with white
end caps
440m3/hr
Twin motor
Ducted operation
3 speed fan, controlled by slide switches
Aluminium grease filters washable
2 x 40 watt halogen lamps
2 Year Warranty
Specifications
Airflow: 440m3/hr
Noise level: 56 dBA maximum
Lighting: 2 x 40 watt halogen
Carbon filter:CF110
Power:
Total wattage: 120 Watts
Fitted with 10amp, 3 pin plug
Power Cord: 1.5 metre cable
Ducting: 120mm
Product Dimensions:
600mm (W) x 175mm (H) x 280mm* (D) (*not
including 20mm front fascia panel)
Cut Out Dimensions:
551mm (W) x 135mm (H) x 280mm# (D) (#
cabinet only)


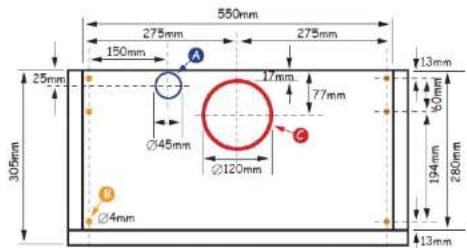

A Hole × 1 = position and size (45mm dia.) in shelf above rangehood for power cord
Holes x 6 = position and size (4mm dia.) in shelf above for fixing of hood with washers and screws supplied
C Hole × 1 = position and size (120mm dia.) in shelf above for ducting pipe
