| Product Type | Portable Air Conditioner |
| Model | OAPC9W |
| Brand | Omega Altise |
| Cooling Capacity | 9000 BTU/h |
| Energy Efficiency Ratio (EER) | 2.95 (cooling) |
| Power Supply | 220-240V ~ 50Hz |
| Power Consumption (Cooling) | 1050 W |
| Air Flow (High) | 320 m³/h |
| Refrigerant | R290 (300 g) |
| Noise Level (Low/High) | 52 / 55 dB(A) |
| Dimensions (W x D x H) | 355 x 345 x 700 mm |
| Net Weight | 23 kg |
| Controls | Touch panel + remote control |
| Operating Modes | Cool, Fan, Dehumidify, Auto |
| Fan Speeds | 3 speeds + auto |
| Timer | 24-hour on/off programmable |
| Air Filter | Washable mesh filter |
| Drainage | Continuous drain hose or manual drain |
| Installation Accessories | Window sealing kit, exhaust hose, remote control |
| Repairability Index | 5.5 / 10 |
Frequently Asked Questions - OAPC9W Omega Altise
How do I install the Omega Altise OAPC9W air conditioner?

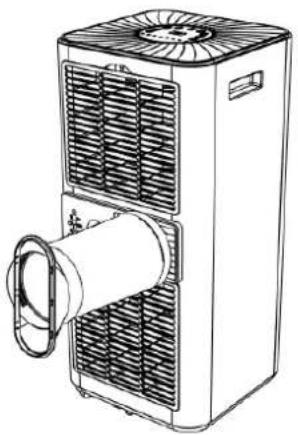

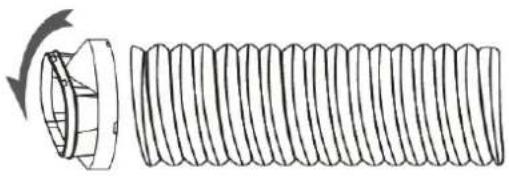

The unit comes with a window sealing kit and exhaust hose. Follow the manual: extend the hose from the back of the unit to the window, seal the window opening with the kit, and plug in. For permanent installation, consult a professional.
How do I clean the air filter?
Turn off and unplug the unit. Locate the filter behind the front grille, slide it out, and wash with lukewarm water and mild detergent. Let it dry completely before reinstalling. Clean every 2 weeks for optimal performance.
What do the error codes mean?
Common codes: E1 - room sensor fault, E2 - coil sensor fault, E4 - compressor failure, FF - full water tank. Refer to the manual for detailed troubleshooting.
How do I use the dehumidifier mode?
Press the Mode button until the dehumidify icon appears. The fan will run at low speed, and water will be collected in the tank or drained via hose. Empty the tank when full or connect a drain hose.
Why is the air conditioner not cooling?
Check the filter for dirt, ensure the room is not too large for the unit, the exhaust hose is not blocked or kinked, and the window is properly sealed. Also verify that the set temperature is lower than room temperature.
How do I drain the water tank?
When the water tank is full, a warning will show. Unplug the unit, remove the drain plug at the back, and let water flow into a pan. Alternatively, you can attach a continuous drain hose (not included) to the drain outlet.
Can I use the air conditioner while sleeping?
Yes, use Sleep mode: press the Sleep button to gradually raise the temperature and reduce fan noise for a comfortable night's rest. The unit will also dim the display.
What is the warranty period?
Omega Altise typically offers a 1-year warranty on the unit and 5 years on the compressor. Keep your purchase receipt. For warranty claims, contact Omega Altise customer service.
How do I set the timer?
Press the Timer button. Use + and - to set the desired hours (1-24). Press Timer again to confirm. The unit will turn on (or off) after the set time. You can program both an on and off timer.
What does the 'Auto' mode do?
Auto mode selects the optimal fan speed and operation mode based on the difference between set temperature and room temperature. It automatically switches between cool, fan, or dehumidify as needed.
