CSP60 - Range hood ILVE - Free user manual and instructions

Product Type	Slide-out Range Hood
Brand	ILVE
Model	CSP60
Installation Type	Under-cabinet or wall-mounted
Exhaust Method	Suction (ducted) or Recirculation (carbon filter)
Number of Speeds	3
Lighting	2 bulbs (halogen or LED compatible)
Duct Diameter	150 mm (recommended) or 120 mm min
Control Type	Push button
Material	Stainless steel (typical)
Width	60 cm (23.6 in)
Depth	Approx. 50 cm (19.7 in)
Height (minimum clearance)	65 cm above gas cooktop
Weight	Approx. 15 kg (33 lb)
Voltage / Frequency	220-240 V / 50 Hz
Power Plug	3-pin (standard)
Grease Filters	Washable metal mesh (clean monthly)
Carbon Filter	Replaceable (replace every 2 months)
Noise Level	Not specified (typical < 65 dB)
Warranty	24 months (domestic use)
Certifications	CE, Low Voltage Directive 2006/95/EC, EMC 2004/108/EC
Usage	Household use only

Frequently Asked Questions - CSP60 ILVE

What are the recommended installation clearances for the CSP60 range hood?

For gas cooktops, maintain a minimum distance of 65 cm between the cooking surface and the hood. For electric cooktops, the minimum distance is typically 50 cm, but always refer to local regulations. The hood should be installed in a cabinet or on a wall, following the provided template.

How do I clean the grease filters?

Remove the grease filters and wash them with hot water and mild detergent. You can also place them in a dishwasher, positioning them vertically to prevent food residue from settling. Clean them at least once a month to avoid fire hazard.

When should I replace the carbon filter?

If you use the hood in recirculation mode, replace the activated charcoal filter every 2 months. If you use the hood for more than 2 hours per day, replace it more frequently. Always use genuine filters from the manufacturer.

How do I replace the light bulbs?

Switch off the electricity supply and let the bulbs cool down. Remove the old bulbs and insert new ones of the same type and wattage as indicated on the rating plate. Use bulbs with an aluminum reflector; do not use dichroic bulbs to avoid overheating.

Can I use the hood without ducting to the outside?

Yes, you can install the hood in recirculation mode. In this case, you must install a carbon filter (not supplied) to purify the air before releasing it back into the room. Follow the instructions in the manual for proper setup.

What should I do if the hood stops working after a power surge?

If the hood stops due to electrostatic discharge (e.g., lightning), switch off the electricity supply completely, wait for a few seconds, and then reconnect. This will reset the control board and should restore normal operation.

Is it safe to use the hood while cooking with oil?

Yes, but you should never leave hot oil unattended. The hood helps remove fumes, but do not flambé food under the hood to prevent fire. Always supervise pans containing hot oil.

How do I adjust the spacer to close the gap between the hood and the wall?

Use the provided spacers (F) and screws (C) to fix the hood. Adjust the spacer so that it fills the remaining space between the hood and the wall, ensuring a secure fit.

What type of duct should I use for external venting?

Use a rigid PVC pipe with a minimum diameter of 120 mm (150 mm recommended for better performance and lower noise). Ensure the duct is properly connected to the outlet piece (A) supplied with the hood.

How long is the warranty, and what does it cover?

The warranty lasts 24 months from the date of purchase and covers manufacturing defects. It does not cover misuse, normal wear, light bulbs, or damage from improper installation. You must keep the proof of purchase to make a claim.

USER MANUAL CSP60 ILVE

Technical line drawing of a mechanical or electronic component with layered structure and mounting holes (no text or symbols)

INSTRUCTION MANUAL & USER GUIDE FOR CSP SERIES SLIDE OUT RANGE HOOD

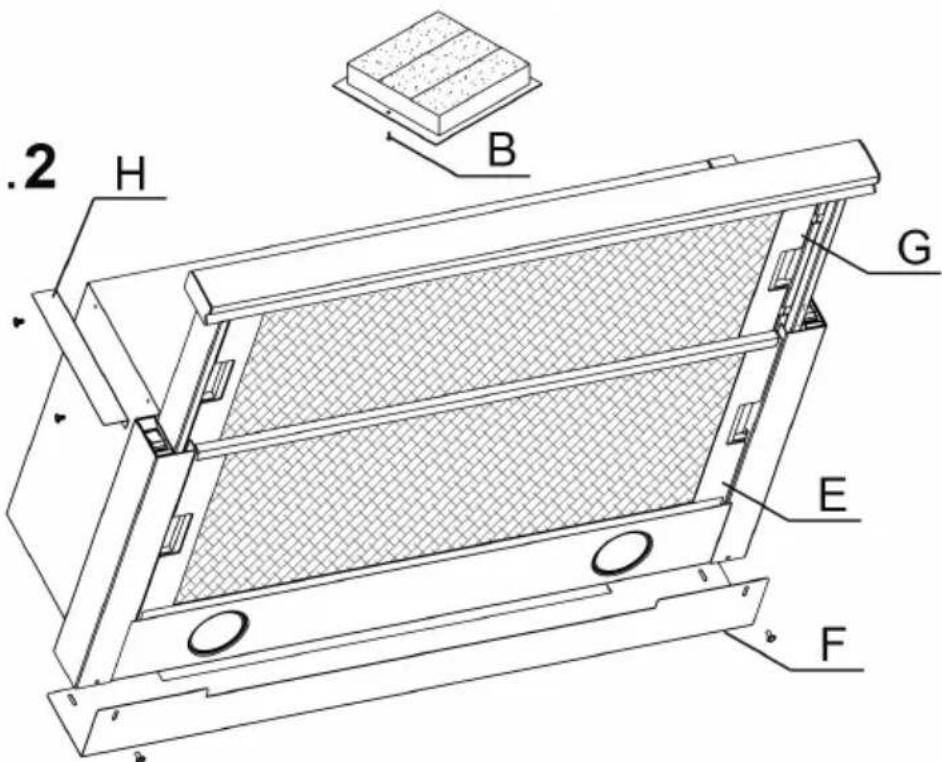

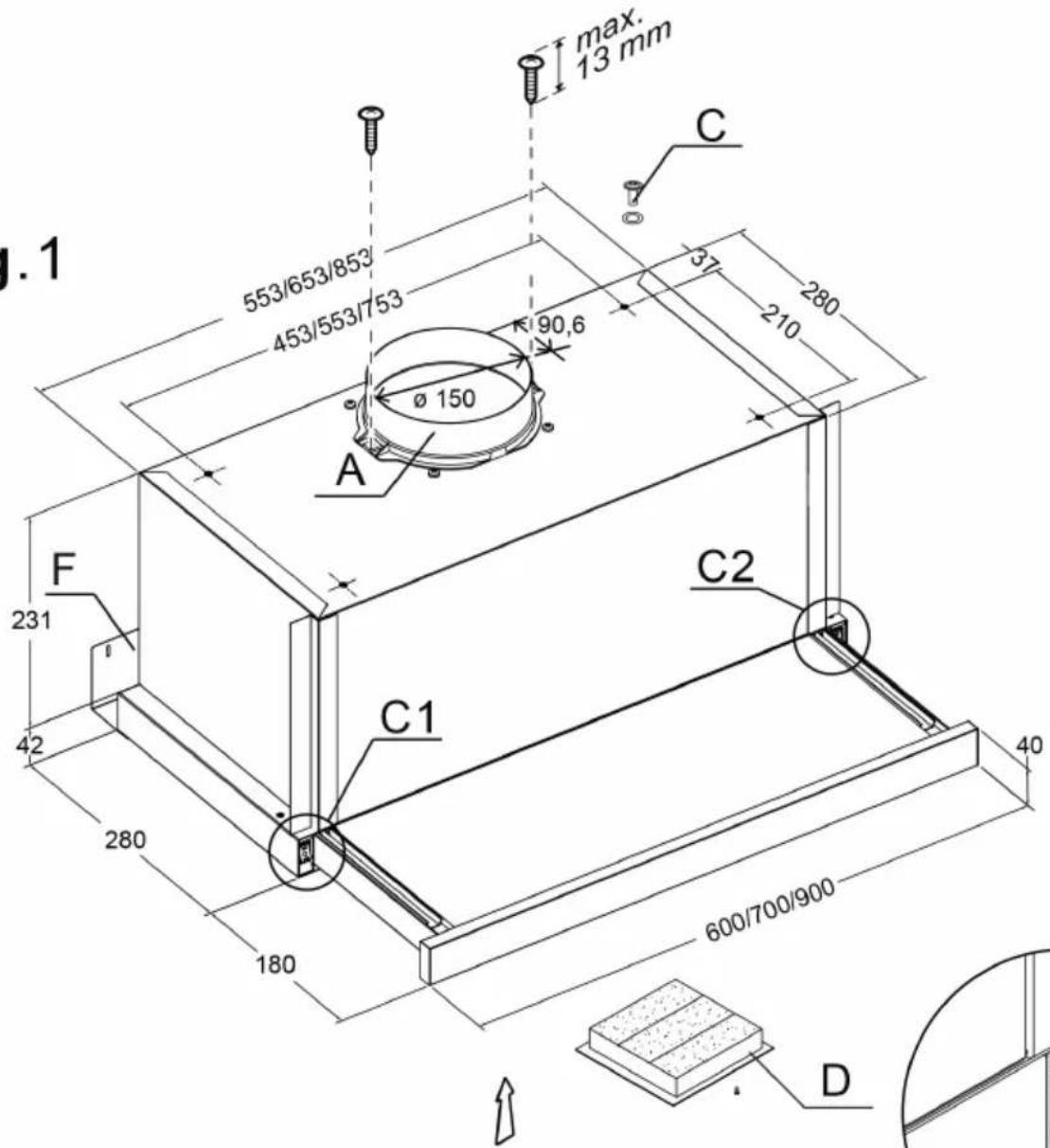

Fig.1

Fig.2

Illustration of hands using a tool to adjust a component, showing a circular component being rotated with a curved arrow (no text or symbols)

EXTRACTOR HOOD

Dear Customer,

Thank you for buying our hood. Please read these instructions carefully for its optimum installation, use and maintenance.

Notes: The figures mentioned in this manual are in the first pages.

This hood is designed for fitting in a cabinet or on some other support.

Warning: consult local regulations regarding fumes outlets. Do not connect the hood to a fume, ventilation or hot air duct. Confirm that room ventilation is appropriate with the local authorities.

Make sure

the maximum air extraction flow rate for the appliances in the room does not exceed 4 Pa (0.04 mbar). The room must have adequate ventilation if an extractor hood is used simultaneously with appliances that run on gas or other fuels. The evacuated air must be extracted through ducts that are used for evacuating fumes from appliances that run on gas or other fuels. Regulations regarding air extraction must be complied with.

This product in intended for HOUSEHOLD USE only.

Use a rigid PVC pipe with a min. ∅ 120 mm to evacuate fumes outside.

The above restrictions do not apply to hoods with no fumes outlet to outside (recirculation system with activated charcoal filter).

Install the hood in line with the instructions on the template.

For gas cooking appliances only: the minimum distance to the hood must be at least 65 cm.

Warning: Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

INSTALLATION

The cooker hood is supplied with

3 Spacer (F, H)

4 Screws (C)

2 Bulbs

To fixing the Hood, use the 4 screws (C) ∅6mm supplied with the hood.

Close the space that remains between the hood and the wall, adjusting the spacer (F).

Before completing any connection, make sure the house voltage corresponds with the voltage indicate on the data label.

Connecting the hood to the grid

Warning: before connecting the hood: switch off the electricity supply and check that the supplied voltage and frequency coincide with that indicated on the appliance nameplate.

If the extractor hood has a plug, connect it to a power socket in line with applicable regulations, located in an accessible area.

If the hood does not have a plug, connect it directly to the electrical grid, protected by a separator device accessible for disconnection, in line with local regulations.

The connection to the electrical mains must be made as follows:

BLUE....."N" NEUTRAL

BROWN....."L" LIVE

GREEN AND YELLOW.....(simbolo tierra) EARTH

If the terminals of the plug are unmarked or if you are in any doubt consult a qualified electrician.

If it is not supplied fit a plug normalized in the cord for the load showed on the rating plate.

USE OF THE HOOD – SAFETY

Warning: the hood may stop working during an electrostatic discharge (e.g. lightning). This involves no risk of damage. Switch off the electricity supply to the hood and reconnect after one e.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

To avoid the risk of fire, clean the metal filter regularly, permanently control pans containing hot oil and do not flambé food underneath the hood.

Do not use the hood if it shows signs of damage or imperfection.

Contact an official distributor or authorised dealer.

Accessible parts may heat up when using cooking appliances.

Air Intake Speed (Fig 2)

The front panel has to be pulled its maximum extension so as to optimise the extraction capacity.

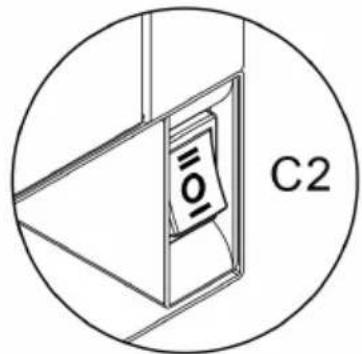

The three setting switch (C-2) has the following functions:

0 Stop

1 Low Speed

2 High Speed

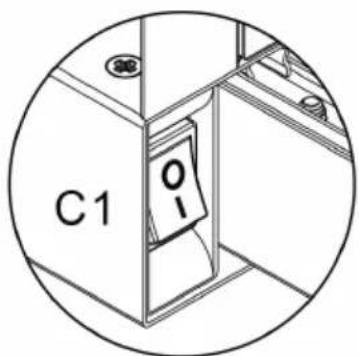

Switch on the Lamps (C-1 Fig 2)

Pull out the grill (G) more than 50mm

SUCTION VERSION

If the hood is to be installed as a SUCTION hood, connect the plastic outlet piece (A) supplied with the hood (150mm diameter pipe for better performance and lower noise levels.

FILTERING VERSION (INTERNAL RE-CYCLING)

When there is no exhaust duct for venting out-door, you can use a carbon filter (D). The air is depurate by the filter and put again in the surrounding.

The air is released in the room through a connecting pipe, which goes through the hanging cupboard and us connected to the connecting ring supplied (A) Fig 1.

To use the appliance in this version, proceed as follows:

Open the grids (E)

To proceed to change the charcoal filter (D), the screw (B) has to be removed.

Reinstall the grids.

HOOD MAINTENANCE

Warning: always switch off the electricity supply before carrying out maintenance work on the hood. In the event of a fault, contact an official distributor or authorised dealer.

Exterior cleaning: use non-corrosive, liquid detergent and avoid the use of abrasive cleaning products.

Grease filters: to avoid fires, clean thoroughly once a month. To do so, remove the filters and wash with hot water and detergent. If using a dishwasher, position the filters vertically to prevent solid remains from depositing on them.

Activated charcoal filters: replace the every 2 months.

Important: increase the filter cleaning/replacement frequency if the hood is used for more than 2 hours a day. Always use genuine filters from the manufacturer.

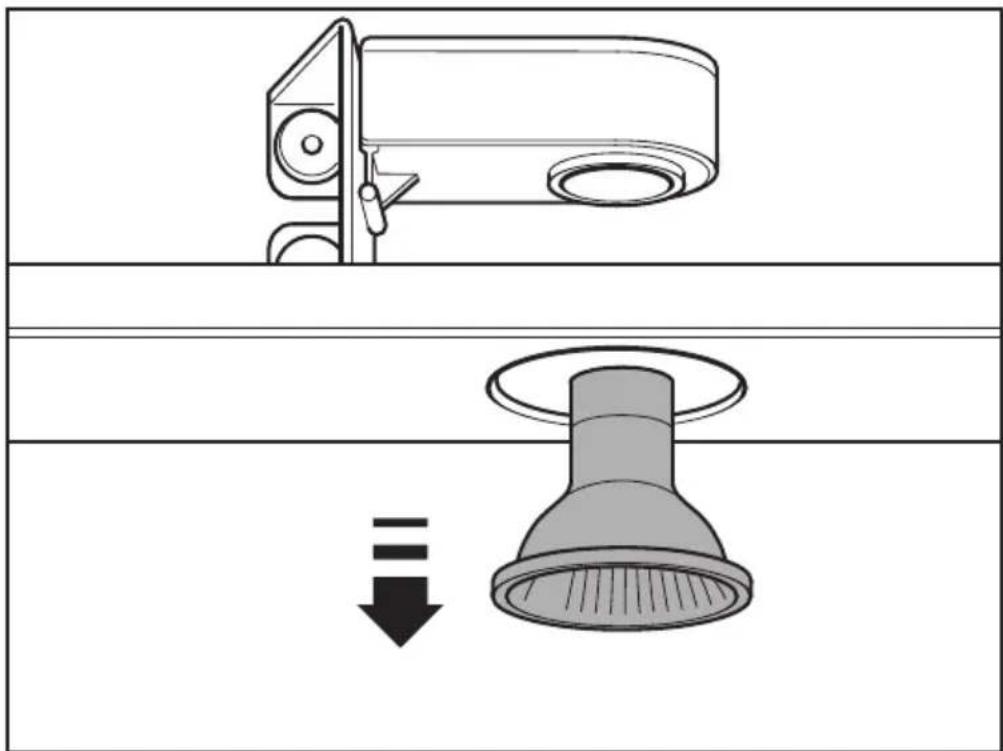

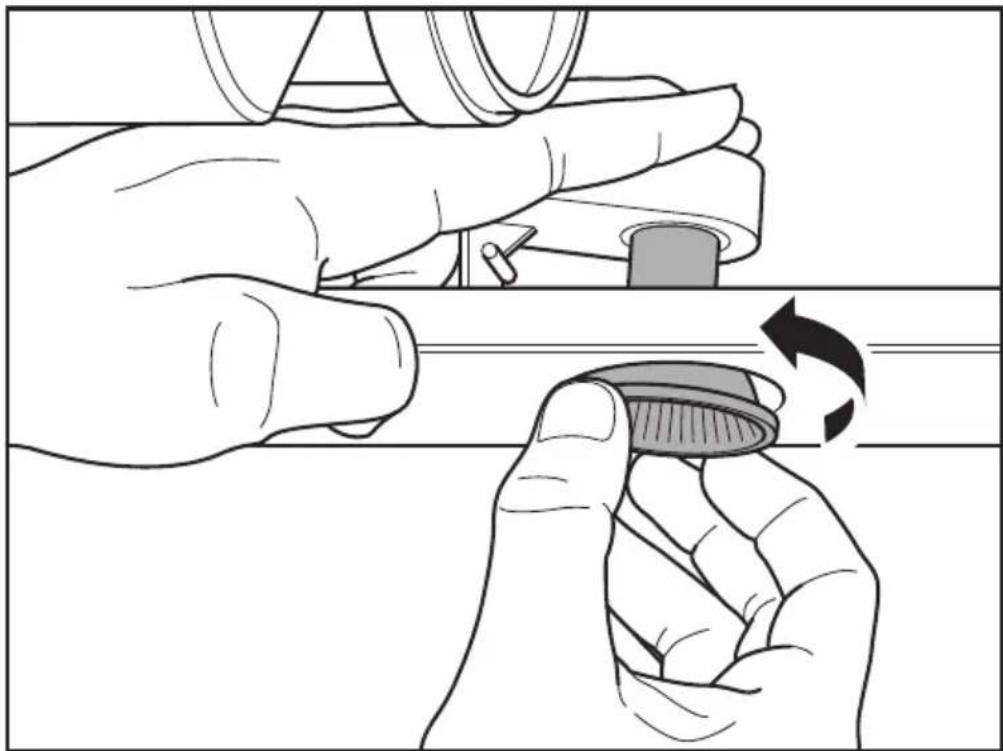

Bulb replacement (look for the symbol in the figures)

Warning: do not handle the bulbs until the electricity supply has been switched off and they have cooled.

Important: use new bulbs according to that indicated on the hood nameplate.

Use bulbs with an aluminium reflector to replace halogen bulbs. Do use dichroic bulbs - risk of overheating.

On cooker hoods equipped with tungsten lamps, the lights should only be used during operation of the motor. They should not be left on permanently and used as a light source.

Legal information

The manufacturer:

- Declares that this product meets all basic requirements regarding low-voltage electrical equipment established in Directive 2006/95/EC of 12 December 2006 and electro-magnetic compatibility established in Directive 2004/108/EC of 15 December 2004.

- Is not responsible for any failure to observe the instructions given in this manual and current safety regulations for the correct use of the equipment.

- Reserves the right to make any modifications to the equipment or this manual without prior notice.

Contact our official distributor should you require technical assistance or additional information on our products.
