USER MANUAL IV605BV ILVE
Read the Instructions carefully and Keep for Future Reference
Important safety instructions
When using electrical appliance basic safety precautions should be followed, including the following:
warning: to reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive microwave energy:
- Read all instructions before using the appliance.
- Use this appliance only for its intended use as described in this manual. Do not use corrosive chemicals or vapors in this appliance. This type of oven is specifically designed to heat, cook or dry food. It is not designed for industrial or laboratory use.
3.Do not operate the oven when empty.
-
Do not operate this appliance if it has a damaged cord or plug, if it is not working properly or if it has been damaged or dropped. If the supply cord is damaged, it must be replaced by the manufacturer or its service gent or a similarly qualified person in order to avoid a hazard.
-
Warning: when the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.
-
Warning: only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use.
-
To reduce the risk of fire in the oven cavity:
a. When heating food in plastic or paper container, keep an eye on the oven due to the possibility of ignition.
b. Remove wire twist-ties from paper or plastic bags before placing bag in oven.
c. If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames.
d. Do not use the cavity for storage purposes. Do not leave paper products, cooking utensils or food in the cavity when not in use.
-
Warning: liquid or other food must not be heated in sealed containers since they are liable to explode.
-
Microwave heating of beverage can result in delayed eruptive boiling, therefore care has to be taken when handle the container.
-
Do not fry food in the oven. Hot oil can damage oven parts and utensils and even result in skin burns.
-
Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode even after microwave heating has ended.
-
Pierce foods with heavy skins such as pota toes, whole squashes, apples and chestnuts before cooking.
-
The contents of feeding bottles and baby jars should be stirred or shaken and the temperature should be checked before serving in order to avoid burns.
-
Cooking utensils may become hot because of heat transferred from the heated food. Potholders may be needed to handle the utensil.
-
Utensils should be checked to ensure that they are suitable for use in microwave oven.
- Warning: it is hazardous for anyone other than a trained person to carry out any service or repair operation which involves the removal of any cover which gives protection against exposure to microwave energy.
- This product with the class I equipment, the definition of class I which protection against electric shock does not rely on basic insulation only but which includes an additional safety precaution, in that conductive accessible parts are connected to the protective earthing conductor in the fixed wiring of the installation in such a way that conductive accessible parts cannot become live in the event of a failure of the basic insulation. For class b equipment is equipment suitable for use in domestic establishments. For domestic purpose.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
- The microwave oven is only used in freestanding.
- Warning: do not install oven over a range cooktop or other heat-producing appliance. If installed could be
damaged and the warranty would be avoid .
- The accessible surface may be hot during operation.
- The microwave oven shall not be placed in a cabinet.
- The door or the outer surface may get hot when the appliance is operating.
- The temperature of accessible surfaces may be high when the appliance is operating.
- The appliance shall be placed against a wall.
- Appliance is not to be used by children or persons with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, Unless they have been given supervision or instruction.
- Children being supervised not to play with appliance
- Warning: if the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person
- The instructions shall state that appliances are not intended to be operated by means of an external timer or separate remote-control system.
- The microwave oven is for household use only and not for commercial use.
- Never remove the distance holder in the back or on the sides, as it ensures a minimum distance from the wall for air circulation.
- Please secure the turn table before you move the appliance to avoid damages.
- Caution: it is dangerous to repair or maintain the
appliance by no other than a specialist because under these circumstances the cover have to be removed which assures protection against microwave radiation. This applies to changing the power cord or the lighting as well.
Send the appliance in these cases to our service central.
- The microwave oven is intended for defrosting, cooking and steaming of food only.
- Use gloves if you remove any heated food.
- Caution! Steam will escape, when opening lids or wrapping foil.
- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle.
This appliance can be used by children aged from 8 years and above and persons with educated physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.
Keep the appliance and its cord out of reach of children less than 8 years.
SPECIFICATIONS
Power consumption:
Output:
Grill Heater:
Operating Frequency:
Outside Dimensions:
Oven Cavity Dimensions:
Oven Capacity:
Uncrated Weight:
220-240V\~50Hz,1400W
900W
1200W
2,450MHz
592mm(L) X 380mm(W) X 390mm(H)
330mm(L) X 330mm(W) X 230mm(H)
25 litres
Approx. 16.5kg
BEFORE YOU CALL FOR SERVICE
- If the oven will not perform at all, the display does not appear or the display disappears:
a) Check to ensure that the oven is plugged in securely. If it is not, remove the plug from the outlet, wait 10 seconds and plug it in again securely.
b) Check the premises for a blown circuit fuse or a tripped main circuit breaker. If these seem to be operating properly,
test the outlet with another appliance.
- If the microwave power does not function:
a) Check to see whether the timer is set.
b) Check to make sure that the door is securely closed to engage the safety interlocks. Otherwise, the microwave energy will not flow into the oven.
IF NONE OF THE ABOVE RECTIFIES THE SITUATION, THEN CONTACT THE AUTHORIZED SERVICE AGENT.
Note:
The appliance is for household use for heating food and beverages using electromagnetic energy and for indoor use only.
RADIO INTERFERENCE
Microwave oven may cause interference to your radio, TV, or similar equipment. When interference occurs, it may be eliminated or reduced by the following procedures.
a. Clean the door and sealing surface of the oven.
b. Place the radio, TV, etc. as far away from your microwave oven as possible.
c. Use a properly installed antenna for your radio, TV, etc. to get a strong signal reception.

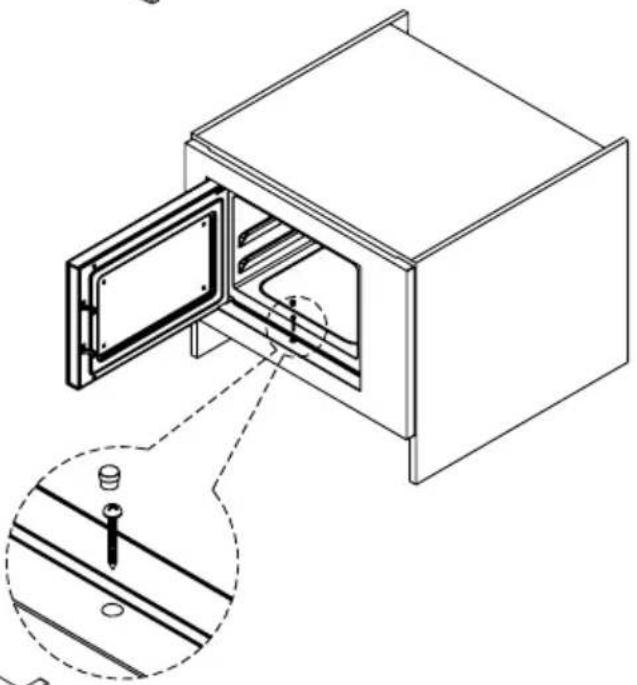

INSTALLATION
-
Make sure all the packing materials are removed from the inside of the door.
-
Inspect the oven after unpacking for any visual damage such as:
Misaligned Door
Damaged Door
Dents or Holes in Door Window and Screen
Dents in Cavity
If any of the above are visible, DO NOT use the oven.
-
This Microwave Oven weighs 17.6 kg and must be placed on a horizontal surface strong enough to support this weight.
-
The oven must be placed away from high temperature and steam.
-
DO NOT place anything on top of the oven.
-
DO NOT remove the turn -table drive shaft.
-
As with any appliance, close supervision is necessary when used by children.
WARNING-THIS APPLIANCE MUST BE EARTHED.
-
The plug socket should be within easy reach of the power cord
-
This oven requires 1.5 KVA for its input. consultation with service engineer is suggested when installing the oven.
CAUTION: This oven is protected internally by ac 250V,10 Amp Fuse.
IMPORTANT
The wires in this mains lead are coloured in accordance with the following code:
Green-and-yellow : Earth
Blue : Neutral
Brown : Live
As the colours of the wires in the mains leads of the appliance may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:
The wire which is coloured green-and-yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol coloured green of green-and-yellow.
The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black.
The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IMPORTANT SAFETY INSTRUCTIONS
-WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated; (Only for the model with grill function)
-WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person;
-WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy;
-WARNING: liquids and other foods must not be heated in sealed containers since they are liable to explode.
-WARNING: Only allow children to use the oven without supervision when adequate instructions have been given so that the child is able to use the oven in a safe way and understands the hazards of improper use;

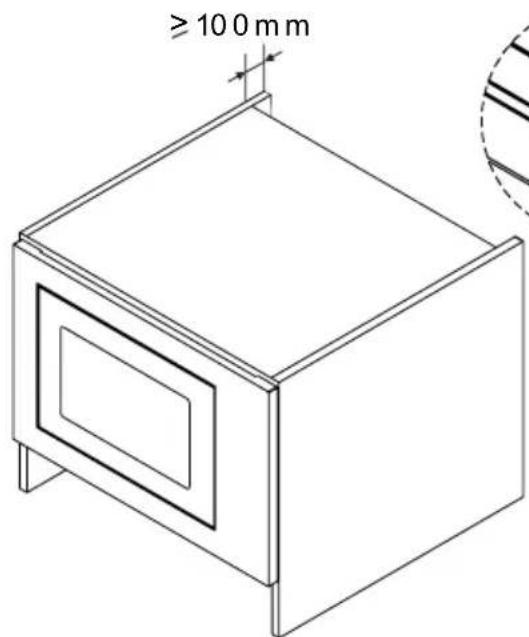

- The oven must have sufficient air flow. Keep 10 cm space at back; 15 cm at both sides and 30cm from top of the oven. Don't remove oven's feet, do not block air events of the oven.
- Only use utensils that are suitable for use in microwave ovens.
- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition;
- If smoke is observed, switch off or unplug the appliance and keep the door closed in order to stifle any flames;
- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container;
- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns;
- Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended;
- When cleaning surfaces of door, door seal, cavity of the oven, use only mild, nonabrasive soaps, or detergents applied with a sponge or soft cloth.
- The oven should be cleaned regularly and any food deposits removed;
- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation;
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
SAFETY INSTRUCTIONS FOR GENERAL USE
Listed below are, as with all appliances, certain rules to follow and safeguards to assure top performance from this oven:
- Always have the glass tray, roller arms, coupling and roller track in place when operating the oven.
- Do not use the oven for any reason other than food preparation, such as for drying clothes, paper, or any other nonfood items, or for sterilizing purposes.
- Do not operate the oven when empty. This could damage the oven.
- Do not use the oven cavity for any type of storage, such a papers, cookbooks, etc.
-
Do not cook any food surrounded by a membrane, such as egg yolks, potatoes, chicken livers, etc without first being pierced several times with a fork.
-
Do not insert any object into the openings on the outer case.
- Do not at any time remove parts from the oven such as the feet, coupling, screws, etc.
- Do not cook food directly on the glass tray. Place food in/on proper cooking utensil before placing in the oven.
- IMPORTANT-COOKWARE NOT TO USE IN YOUR MICROWAVE OVEN
Do not use metal pans or dishes with metal handles. Do not use anything with metal trim.
Do not use paper covered wire twist-ties on plastic bags. Do not use melamine dishes as they contain a material which will absorb microwave energy. This may cause the dishes to crack or char and will slow down the cooking speed.
Do not use Centura Tableware. The glaze is not suitable for microwave use. Corelle Livingware closed handle cups should not be used.
Do not cook in a container with a restricted opening, such as a pop bottle or salad oil bottle, as they may explode if heated in a microwave oven.
Do not use conventional meat or candy thermometers. There are the thermometers available specifically for microwave cooking. These may be used.
- Microwave utensils should be used only in accordance with manufacturer's instructions.
- Do not attempt to deep-fry foods in this oven.
- Please remember that a microwave oven only heats the liquid in a container rather than the container itself. Therefore, even though the lid of a container is not hot to the touch when

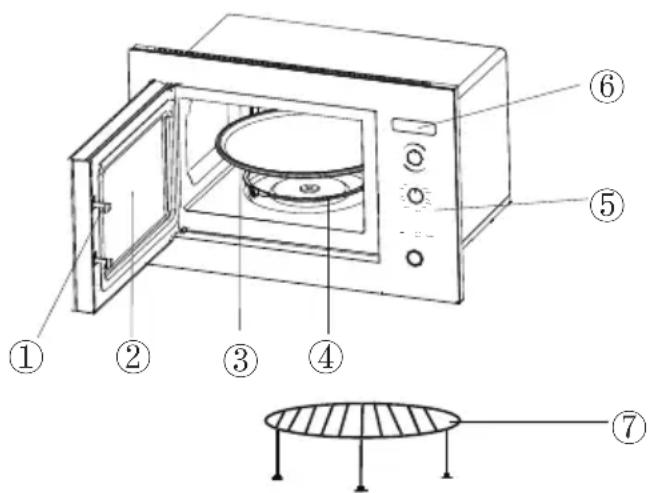

FEATURE DIAGRAM
removed from the oven, please remember that the food/liquid inside will be releasing the same amount of steam and/or spitting when the lid is removed as in conventional cooking.
- Always test the temperature of cooked food yourself especially if you are heating or cooking food/liquid for babies. It is advisable never to consume food/liquid straight from the oven but allow it to stand for a few minutes and stir food/liquid to distribute heat evenly.
- Food containing a mixture of fat and water, e.g. stock, should stand for 30-60 seconds in the oven after it has been turned off. This is to allow the mixture to settle and to prevent bubbling when a spoon is placed in the food/liquid or a stock cube is added.
- When preparing/cooking food/liquid and remember that there are certain foods, e.g. Christmas puddings, jam and mincemeat, which heat up very quickly. When heating or cooking foods with a high fat or sugar content do not use plastic containers.
- Cooking utensil may become hot because of heat transferred from the heated food. This is especially true if plastic wrap has been covering the top and handles of the utensil. Potholders may be needed to handle the utensil.
- To reduce the risk of fire in the oven cavity:
(a) Do not overcook food. Carefully attend microwave oven if paper, plastic, or other combustible materials are placed inside the oven to facilitate cooking.
(b) Remove wire twist-ties from bags before placing bag in oven.
(c) If materials inside the oven should ignite, keep oven door closed, turn the oven off at the wall switch, or shut off power at the fuse or circuit breaker panel.
(1) Door Safety Lock System
(2) Oven Window
(3) Glass Tray
(4) Roller Ring
(5) Control Panel
(6) Window Display
(7) Grill Rack

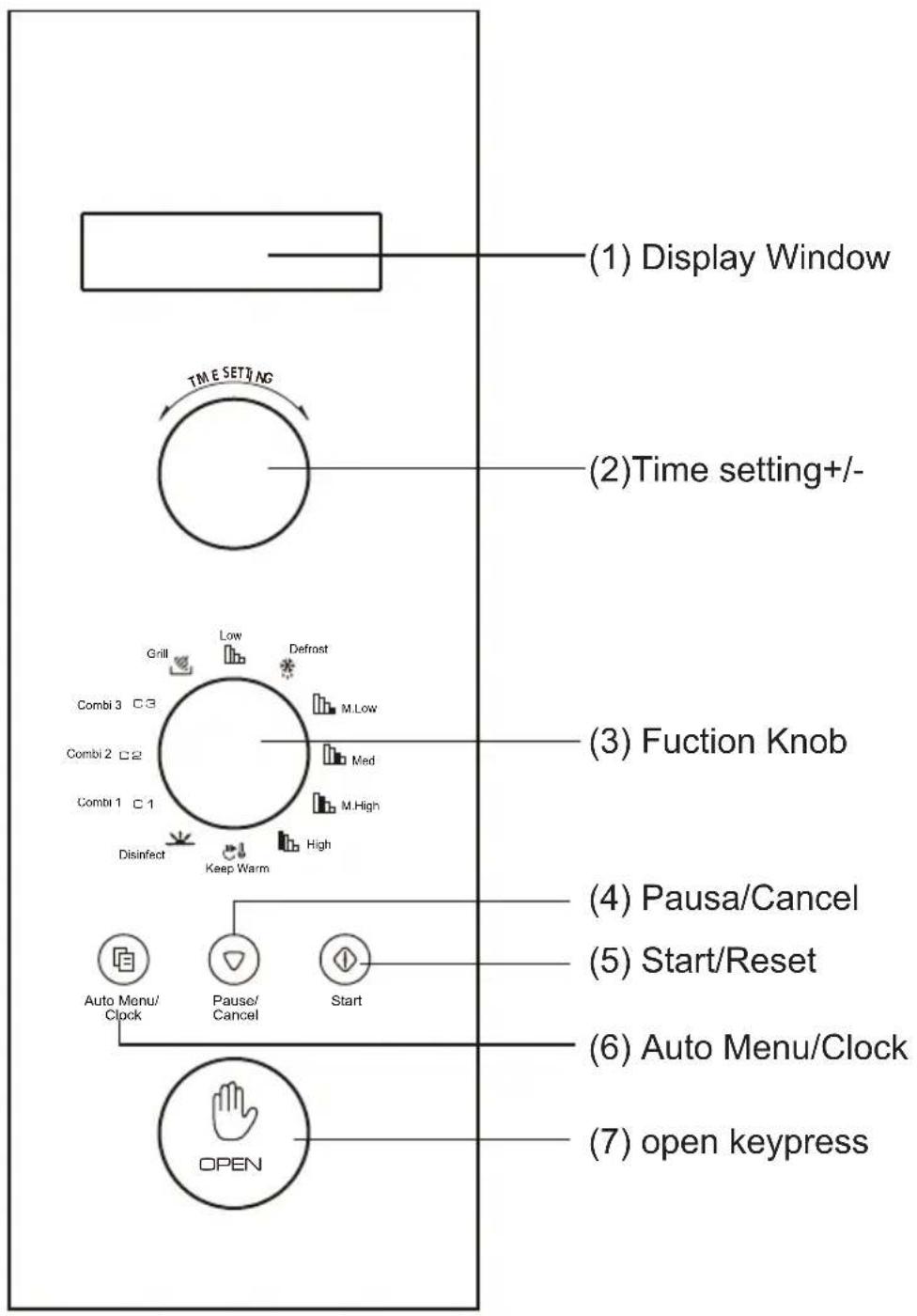

COMPUTER CONTROL PANEL
Operation Instruction
1. Single Button Heating
Only with a single of a button, you can start simple cooking, it is very convenient and quick to heat a glass of water etc.
Example: To heat a glass of milk
a) Put a glass of milk onto the glass turntable, and close the door.
b) Press the button "Start", the microwave oven will work on P-H1 power for 30 seconds.
c) You will hear 5 beeps when cooking is completed.
2. Microwave Heating
This function has two options.
1) Quick microwave heating (P-H1 power)
Example: to heat food on P-H1 power for 5 minutes
a) Set time to "5:00"
b) Press "Start"
2) Manual-operation microwave heating
Example: To heat food on P-60 power for 10 minutes
a) Rotate the "Med" function knob and Display "P-60";
b) Rotate "Time setting" and set time to "10:00";
c) Press "Start"
The longest microwave heating time is 60 minutes;
Microwave power have 5 settings, and it's P-HI、P80、P60、P40、P30 and P20 from high to low power.
3. Defrost
a) Rotate the fuction knob and select "Defrost" function ;
b) Rotate "Time setting" to set the time;
c) Press "Start".
4. Auto-Menu
You only need to select the food type and weight, it will help you to automatically adjust the power and time.
Example: Auto cooking 400g fish
a) Press "Auto Menu" button until "A-07" displayed.
b) Rotate "Time setting" to set the weight 400g.
c) Press "Start"
Unit:g
| Touching Times\Weight Menu | Rice (A-01) | Vegetable (A-02) | Coffee (A-03) | Popcorn (A-04) | Patato (A-05) | Pizza (A-06) | Fish (A-07) | Bread (A-08) | Chicken (A-09) | Beef (A-10) | Meat (A-11) |
| 1 | 100 | 100 | 1cup | 150 | 200 | 150 | 100 | 100 | 200 | 200 | 200 |
| 2 | 200 | 200 | 2cup | 200 | 300 | 300 | 200 | 200 | 400 | 400 | 300 |
| 3 | 300 | 300 | 3cup | 250 | 400 | 300 | 300 | 600 | 600 | 400 | |
| 4 | 400 | 400 | 500 | 400 | 400 | 800 | 800 | 500 | |||
| 5 | 500 | 500 | 600 | 500 | 500 | 1000 | 1000 | 600 | |||
| 6 | 600 | 700 | 600 | 1200 | 1200 | ||||||
| 7 | 900 | 700 | 1400 | 1400 | |||||||
| 8 | 1100 | 800 | |||||||||
| 9 | 1300 | 900 | |||||||||
| 10 | 1500 | 1000 |
5. Keep warm
Example: Keep warm food for 30 minutes
a) Rotate the fuction knob and select "Keep warm" fuction
b) Set time "30:00"
c) Press "Start"
6. Disinfect
a) Rotate the faction knob and select "Disinfect" function, Display "dl";
b) Press "Start"
7 Combination Cooking
This appliance offers you a choice of three methods of combination cooking.
Option 1 : Combination cooking
It will display "G0-1"
Option 2 : Combination cooking
It will display "G0-2".
Option 3 : Combination cooking
It will display "G0-3".
Example : Cooking food using option 2 for 15 minutes.
a) Rotate "Combi 2" function knob and the LED displayed "G0-2";
b) Rotate "Time setting" and Set cooking time for "15:00"
c) Press "Start"
8 Grill
a) Rotate the function knob and select "Grill" function Display "GrL";
b) Set keeping warm time "20:00"(the longest time of Gsil60 minutes);
c) Press "Start"
9 Child-Safety-Lock
Under oven standby situation, to active the child safety lock, Press "Pause/Cancel" button for 3 seconds, then press "Pause/Cancel" button for 3 seconds again, it will unlock this function.
10 Clock
The oven can be used as a clock
Example: To input current time 16:30
a) Press "Auto menu/Clock" for 3 seconds, the clock symbol will flash in display;
b) Rotate "Time setting" knob to set "16:00";
c) Press "Auto menu/Clock" again, Rotate the "Time setting" knob to set "16:30";
d)Press"Auto menu/Clock"again,the clock setting is finisted,the time start togon working;
- Turn the oven off and remove the power plug from the wall socket before cleaning.
- Keep the inside of the oven clean. When food splatters or spilled liquids adhere to oven walls, wipe with a damp cloth. The use of harsh detergent or abrasives is not recommended.
- The outside oven surface should be cleaned with a damp cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to seep into the ventilation openings.
- Do not allow the Control Panel to become wet. Clean with a soft, damp cloth, Do not use detergents, abrasives or spray-on cleaners on the control Panel.
- If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This may occur when the microwave oven is operated under high humidity conditions and in no way indicates malfunction of the unit.
- It is occasionally necessary to remove the glass tray for cleaning. Wash the tray in warm sudsy water or in a dishwasher.
- The roller ring and oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom surface of the oven with mild detergent, water or window cleaner and dry. The roller ring may be washed in mild sudsy water or dish washer. Cooking vapour collect during repeated use but in no way affect the bottom surface or roller ring wheels.
When removing the roller ring from cavity floor for cleaning, be sure to replace it in the proper position. - Remove odors from your oven by combining a cup of water with the juice and skin of one lemon in a deep microwaveable bowl. Microwave for 5 minutes, wipe thoroughly and dry with a soft cloth.
- When it becomes necessary to replace the oven light, please consult a dealer to have it replaced.

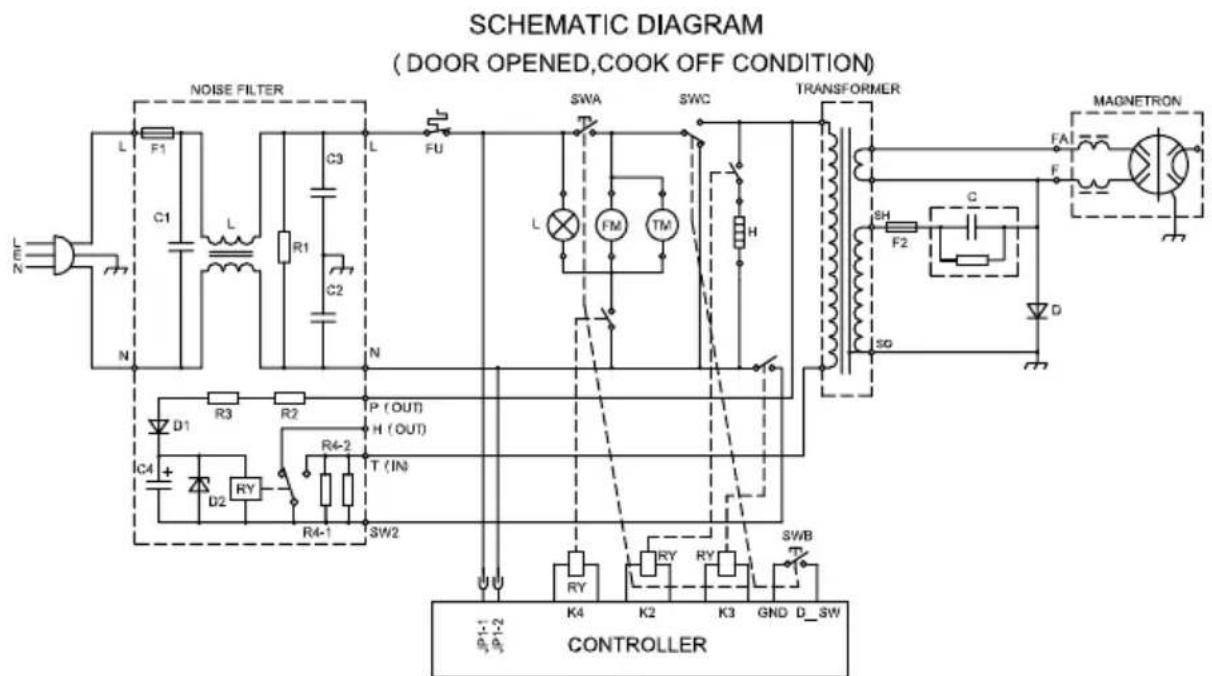

SWA: PRIMARY INTERLOCK SWITCH
SWB: SECONDARY INTERLOCK SWITCH
SWC: THE MONITOR INTERLOCK SWITCH
*CIRCUIT SUBJECT TO CHANGE WITHOUT NOTICE
L: LAMP
FM: FAN MOTOR
TM: TURNTABLE MOTOR
H:HEATER
INSTALLATION

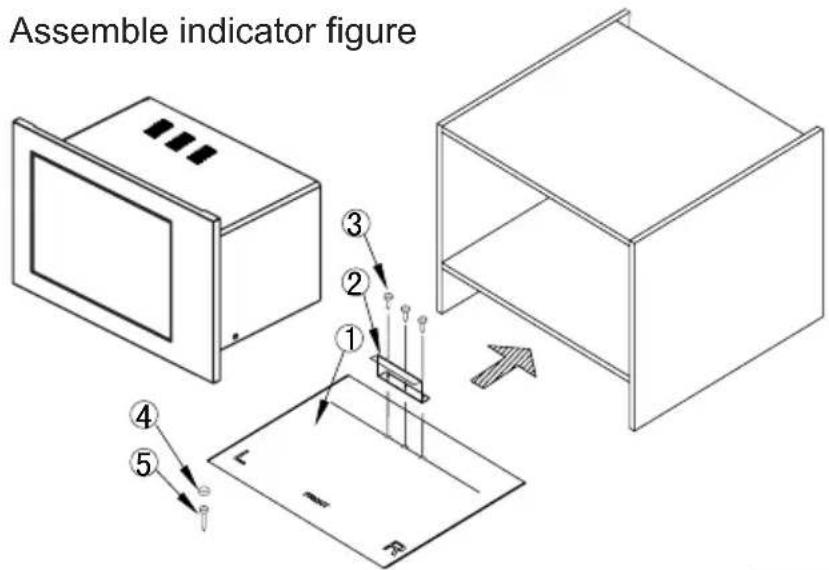

Assemble indicator figure
- The indicator chart paper
- Orientation
- Bolt 4x10
- Screw cover
- Bolt 4×35
INSTALLATION METHOD

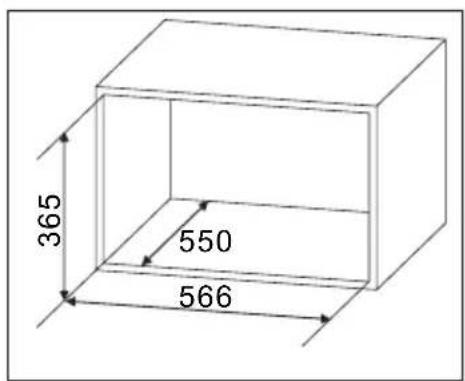

1: Make sure the cabinet demision
as:550(Depth)x566 m(Width)x365 mm(Height)

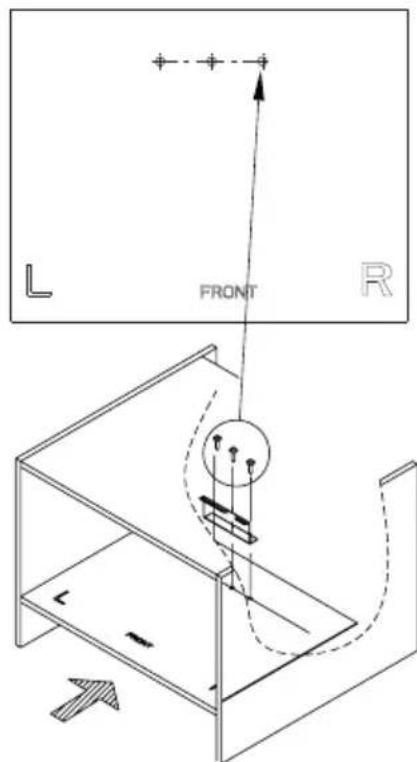

2 : Put the indicator chart paper into the cabinet, and assemble the orientation in the position with three screw, this position has marked in the indicator chart paper
Attention:
- Indicator chart should aligned with the left edge, right edge and front edge
- The orientation show fixed as picture 3

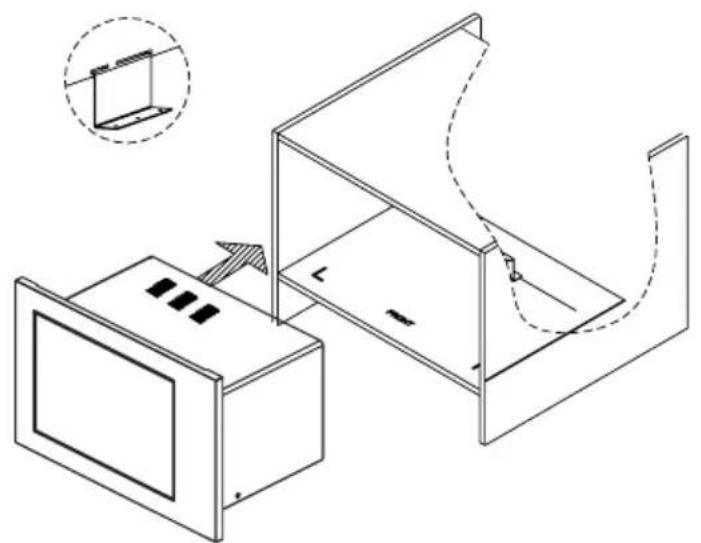

3: Put the microwave oven into the cabinet. Please keep the microwave oven the same distance with the left side and right side of the cabinet, and make sure the orientation insert the hold on the back of the microwave oven
4: After the position fixed, then open the door of the microwave oven, then you can find a hole in the front of the cavity, assemble the screw (4x35mm) to fix the microwave oven tightly in the cabinet, fill the hold on the screw pin with the cap to finish the last step
Attention: cabinet back and bottom should keep a distance of not less than 100mm with the wall and floor in the kitchen


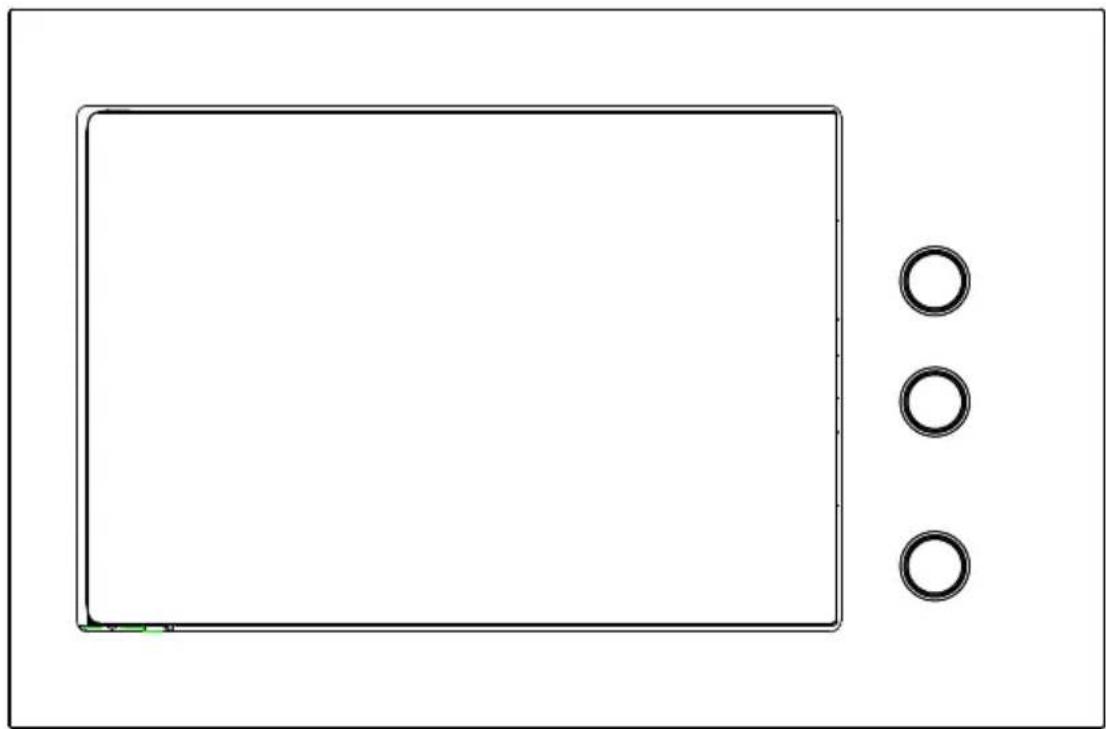

Technical line drawing of a microwave oven with a close-up inset showing the exterior panel (no text or symbols)
ATTENTION: The following steps are for the Microwave Oven models with the Built-in Trim Kit Frame Only.
- After taking all the accessories out of the microwave oven, turn the microwave oven over on its back and keep the base of the microwave oven facing towards you.

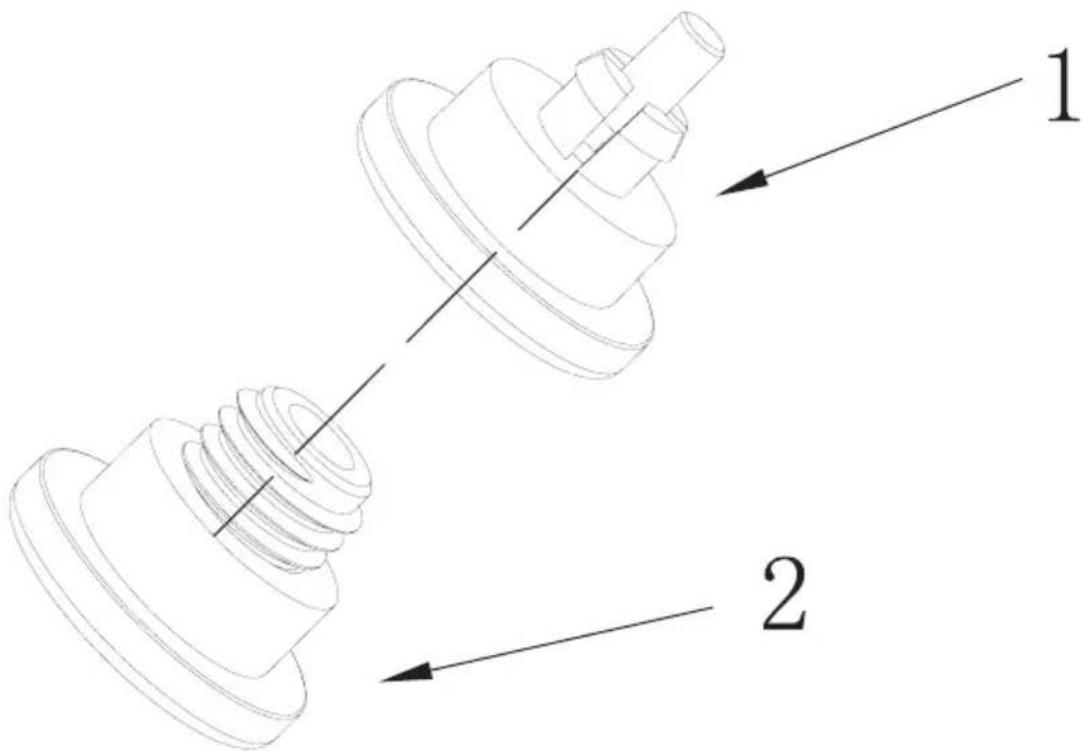

- Remove the adjustable feet (Fig. No. 2) from the plastic bag and screw them into the holders (Fig. No. 1), one by one.
- Once all 4 feet are fitted, turn the microwave oven back over onto its feet to check if the adjustable feet are level. If the microwave oven is unstable, adjust the feet by screwing them up or down accordingly.
Eurolinx Pty Limited A.B.N. 50 001 473 347 trading as ILVE ("ILVE")
Office: 48-50 Moore Street, Leichhardt N.S.W 2040
Post: Locked Bag 3000, Annandale, N.S.W 2038
P: 1300 MY ILVE (694 583)
WARRANTY REGISTRATION
Your ongoing satisfaction with your ILVE product is important to us. We ask that you complete the enclosed Warranty Registration Card and return it to us so that we have a record of the ILVE products you purchased. Alternatively you can register on line (see registration card for details)
PRIVACY
ILVE respects your privacy and is committed to handling your personal information in accordance with the National Privacy Principles and the Privacy Act 1988 (Cth). A copy of the ILVE Privacy Policy is available at www.ilve.com.au. ILVE will not disclose any personal information set out in the Warranty Registration Card (“Personal Information”) without your consent unless required by:
- law;
- any ILVE related company;
- any service provider which provide services to ILVE or assist ILVE in providing services (including repair and warranty services) to customers. Our purpose in collecting the Personal Information is to keep a record of the ILVE product purchased by you, in order to provide a better warranty service to you in the unlikely event that there is a problem with your ILVE product. ILVE may contact you at any one or more of the address, email address or telephone numbers set out in the Warranty Registration Card. Please contact ILVE on 1300 694 583 should you not wish to be contacted by ILVE.
WARRANTY
1. Warranty
ILVE warrants that each ILVE product will remain, for a period of twenty four (24) months computed from the date of purchase of the ILVE product, free from defects arising in the manufacture of the ILVE product (“Warranty”). Except for consumer guarantees set out in the Competition and Consumer Act 2010 (Cth) (“Act”), ILVE does not make any further warranties or representations in relation to ILVE products.
2. What is not Covered by the Warranty.
The Warranty does not apply if an ILVE product is defective by a factor other than a defect arising in the manufacture of the ILVE product, including but not limited to:
(a) damage through misuse (including failure to maintain, service or use with proper care), neglect, accident or ordinary wear and tear (including deterioration of parts and accessories and glass breakage);
(b) use for purpose for which the ILVE product was not sold or designed;
(c) use or installation which is not in accordance with any specified instructions for use or installation;
(d) use or operation after a defect has occurred or been discovered;
(e) damage through freight, transportation or handling in transit (other than when ILVE is responsible);
(f) damage through exposure to chemicals, dusts, residues, excessive voltage, heat, atmospheric conditions or other forces or environmental factors outside the control or ILVE;
(g) repair, modification or tampering by the purchaser or any person other than ILVE, an employee of ILVE or an authorised ILVE service contractor;
(h) use of parts, components or accessories which have not been supplied or specifically approved by ILVE.
(i) damage to surface coatings caused by cleaning or maintenance using products not recommended in the ILVE product handbook provided to the purchaser upon purchase of the ILVE product;
(j) damage to the base of an electric oven due to items having been placed on the base of the oven cavity or covering the base, such as aluminium foil (this impedes the transfer of heat from the element to the oven cavity and can result in irreparable damage); or
(k) damages, dents or other cosmetic imperfections not affecting the performance of the ILVE in respect of an ILVE product purchased as a “factory second” or from display. The Warranty does not extend to light globes used in ILVE products.
3. Domestic Use
Each ILVE product is made for domestic use. This Warranty may not extend to ILVE products used for commercial purposes; under those circumstances the warranty period is limited to 3 month.
4. Time for Claim under the Warranty
You must make any claim under this Warranty within twenty eight (28) days after the occurrence of an event which gives rise to a claim pursuant to the Warranty, by booking a service call on the telephone number below.
5. Proof of Purchase
Customers must retain proof of purchase in order to be eligible to make a warranty claim in respect of an ILVE product.
6. Claiming under the Warranty
Customers will bear the cost of claiming under this Warranty unless ILVE determines the expenses are reasonable, in which case the customer must claim those expenses by providing written evidence of each expense to ILVE at the address on the Warranty Registration Card.
7. Statutory Rights
(a) These terms and conditions do not a ect your statutory rights.
(b) The limitations on the Warranty set out in this document do not exclude or limit the application of the consumer guarantees set out in the Act or any other equivalent or corresponding legislation in the relevant jurisdiction where to do so would:
(i) contravene the law of the relevant jurisdiction; or (ii) cause any part of the Warranty to be void.
(c) ILVE excludes indirect or consequential loss of any kind (including, without limitation, loss of use of the ILVE product) and (other than expressly provided for in these terms and conditions) subject to all terms, conditions and warranties implied by custom, the general law, the Act or other statute.
(d) The liability of ILVE to you for a breach of any express or non-excludable implied term, condition or warranty is limited at the option of ILVE to:
(i) replacing or repairing the defective part of the ILVE product;
(ii) paying the cost of replacing or repairing the defective part of the ILVE product;
(iii) replacing the ILVE product; or
(iv) paying the cost of replacing the ILVE product.
(e) Our goods come with guarantees that cannot be excluded under the Australian Consumer Law.
You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
8. Defects
Any part of an ILVE product deemed to be defective and replaced by ILVE is the property of ILVE. ILVE reserves the right to inspect and test ILVE products in order to determine the extent of any defect and the validity of a claim under the Warranty.
*To locate your closest ILVE authorised service agent please contact ILVE on 1300 649 583, customercare@eurolinx.com.au or visit
http://ilve.com.au/support/service/
IMPORTANT!
All warranty service calls must be booked via the customer care department. The team can be contacted on 1 300 85 64 11 option 1 or customercare@eurolinx.com.au
Service is delivered through a network of Service Agents. If the Appliance is located outside our normal Service Area of our agents you, t he Customer will need to bear the cost of travel outside that area.
If you are unable to provide proof of purchase, the fault is not covered under warranty or the product is found to be working to specification you may be required to bear the full cost of the service visit
08042016
WARRANTY REGISTRATION CARD
08042016
Please complete and send to ilve at: REPLY PAID 83617 LEICHHARDT NSW 2040
| Last Name: First Name: | ||
| Address: | ||
| State: Postcode: Email: | ||
| Home Phone: Mobile: | ||
| Purchase Date: / / (Please attach proof of purchase to validate warranty) | ||
| MODEL NUMBER | SERIAL NUMBER(if you cannot locate the serial number please call ILVE on 1300 85 64 11) |
| 1 | |
| 2 | |
| 3 | |
| 4 |
- Important safety instructions
- CAUTION: Hot surface.
- SPECIFICATIONS
- BEFORE YOU CALL FOR SERVICE
- RADIO INTERFERENCE
- INSTALLATION
- WARNING-THIS APPLIANCE MUST BE EARTHED.
- IMPORTANT
- SAFETY INSTRUCTIONS FOR GENERAL USE
- COMPUTER CONTROL PANEL
- Operation Instruction
- Single Button Heating
- Microwave Heating
- Defrost
- Auto-Menu
- Keep warm
- Disinfect
- Combination Cooking
- Grill
- Child-Safety-Lock
- Clock
- INSTALLATION METHOD
- Attention:
- WARRANTY REGISTRATION
- PRIVACY
- WARRANTY
- Warranty
- What is not Covered by the Warranty.
- Domestic Use
- Time for Claim under the Warranty
- Proof of Purchase
- Claiming under the Warranty
- Statutory Rights
- Defects
- IMPORTANT!
Brand : ILVE
Model : IV605BV
Category : Microwaves
