USER MANUAL BE-MLTILT Best Buy

ENGLISH....3

ESPAÑOL....20

BEST BUY essentials™

BEST BUY essentials™

Contents/Contenido

ENGLISH 3

Features....3

Safety information and specifications ....3

Tools needed 4

Package contents. 4

Installation instructions....6

STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back. 6

STEP 2 - Select screws, washers, and spacers ....7

STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back . . 8

STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs. 9

STEP 4 - Determine wall-mount location. 10

STEP 5 - Option 1: Installing on a wood stud wall....11

STEP 5 - Option 2: Installing on a solid concrete or concrete block wall. . . . . . . 13

STEP 6 - Securing the TV to the wall mount ..... 15

STEP 7 - Adjusting the tilt ..... 16

Managing cables 16

Removing the TV from the wall mount ....17

ONE-YEAR LIMITED WARRANTY ....18

ESPAÑOL....20

• Supports TVs between 47–84" and up to 110 lbs. (49.8 kg)
• Compatible with VESA patterns from 200 × 200 to 600 × 400 (with all common sizes in between)
• Tilts to reduce glare and improve viewing angle
• Hangs less than 2 in. from the wall
  • Prevents accidental tip-overs
• Years of dependable use with our sturdy steel construction
  • Built and backed by Best Buy

Safety information and specifications

IMPORTANT SAFETY INSTRUCTIONS - SAVE THESE INSTRUCTIONS

CAUTION: Do not use this product for any purpose not explicitly specified by Best Buy Essentials.

Improper installation may cause property damage or personal injury. If you do not understand these directions, or have doubts about the safety of the installation, contact Customer Service or call a qualified Maximum TV weight: 110 lbs. (49.8 kg)

TV screen size: 47 in. to 84 in. diagonal

Wall mount dimensions (H × W × D):

17.7 × 27.9 × 1.8 in. (45 × 71 × 4.6 cm)

Wall mount weight: 4.5 lbs. (2 kg)

VESA patterns: 200 × 200 to 600 × 400 (with all

common sizes in between)

We're here for you

www.bestbuy.com/bestbuyessentials

For customer service, call: 1-866-597-8427

contractor. Best Buy Essentials is not responsible for damage or injury caused by incorrect installation or use.

The weight of your TV must not exceed 110 lbs. (49.8 kg). The wall must be capable of supporting five times the weight of your TV and wall mount combined.

This product contains small items that could be a choking hazard if swallowed. Keep these items away from young children!

Tools needed

You will need the following tools to assemble your new TV wall mount:

Phillips screwdriver

Level

Edge-to-edge stud finder

Socket wrench with 7/16" (11 mm) socket or adjustable wrench

Drill

5/32" (4 mm) wood drill bit (for wood stud wall)
OR 5/16" (8 mm) masonry drill bit (concrete only)

Measuring tape

Pencil

Hammer

Tape

Package contents

Make sure that you have all the hardware necessary to assemble your new TV wall mount:

A Wall mount

B TV brackets (2)

C Wall Mount Template

TV Hardware Kit

LABEL	HARDWARE QTY.
A		4
B	Lag bolt washer	4
C	Concrete anchor	4
D	M4 × 12 screw	4
E	M4 × 30 screw	4
F	M5 × 12 screw	4
G	M5 × 30 screw	4
H	M6 × 12 screw	4

LABEL	HARDWARE QTY.
I		M6 × 20 screw	4
J		M6 × 35 screw	4
K		M8 × 12 screw	4
L		M8 × 35 screw	4
M		M8 × 50 screw	4
N		M6 washer	4
O		M8 washer	8
P		Spacer	8

Installation instructions

STEP 1 - Determine whether your TV has a flat back or an irregular or obstructed back

1 Carefully place your TV face-down on a cushioned, clean surface to protect the screen.
2 If your TV has a stand installed, remove it. See the documentation that came with your TV for instructions.
3 Temporarily lay the TV brackets (B), oriented vertically, on the back of your TV.
4 Align the screw holes in the TV brackets with the mounting screw holes on your TV.
5 Identify which type of back your TV may have:

- Flat back: The TV brackets lay flush against the back of your TV and do not block any jacks. You do not need spacers when assembling the wall mount.

- Obstructed back: The TV brackets block one or more of the jacks on the back of your TV. You will need spacers (P).

- Irregularly-shaped back: There is a gap between the TV brackets and some part of the back of your TV. You will need spacers (P).

6 Remove the TV brackets.

STEP 2 - Select screws, washers, and spacers

1 Select the hardware for your TV (screws, washers, and spacers). If your TV came with mounting hardware, the screws are usually in the holes on the back of the TV. If you don't know the length of the mounting screws you need, hand-thread different screws to find the correct length.

A Select one of the following types of screws:

Flat back Obstructed back

M4 × 12 mm screws (D)	M4 × 30 mm screws (E)
M5 × 12 mm screws (F)	M5 × 30 mm screws (G)
M6 × 12 mm screws (H)	M6 × 20 mm screws (I)
M8 × 12 mm screws (K)	M6 × 35 mm screws (J)
	M8 × 35 mm screws (L)
	M8 × 50 mm screws (M)

B If you use M4, M5, or M6 screws, select the M6 washer (N), or if you use M8 screws, select the M8 washer (O).
C If the TV has an irregular or obstructed TV back, also use the spacers (P).

CAUTION: Make sure that the screws (and spacers, if used) are the correct length. If the screw or screw/spacer combination is too long, it may damage the TV. If the screw or screw/spacer combination is too short, the TV may fall from the mount damage the TV or injure someone. If you encounter resistance when testing screws, immediately and try another combination. If none of the screws or screw/spacer nations work, contact customer service.

Screw is too long

Screw is too short

4 Remove the screws.
5 For a flat back TV, go to "STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back" on page 8.

-OR-

For an irregular or obstructed back, go to "STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs" on page 9.

STEP 3 - Option 1: Attaching the mounting hardware to TVs with a flat back

1 Align the TV brackets (B) with the screw holes on the back of the TV. Make sure that the brackets are level and that the tilt adjustment screws face out (away from the middle of the TV).
2 Place washers (N or O) over the holes in the TV brackets. Insert screws (D, F, H, or K) through the washers and TV brackets.
3 Tighten the screws until they are snug against the TV brackets. Do not over tighten.

You'll need

B TV brackets (2)

N M6 washer

OR

0 M8 washer

Phillips screwdriver

M4 × 12 screw

OR OR

M5 × 12 screw

H M6 × 12 screw

K M8 × 12 screw

STEP 3 - Option 2: Attaching the mounting hardware to TVs with irregular or obstructed backs

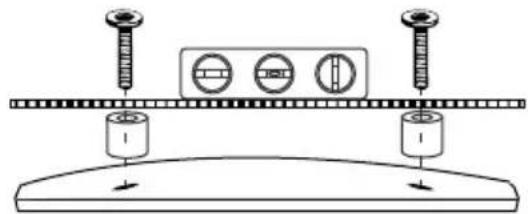

1 Place spacers (P) over the holes on the back of the TV. You may need to stack two spacers.
2 Align the left and right TV brackets with the screw holes on the back of the TV. Make sure that the brackets are level and that the tilt adjustment screws face out (away from the middle of the TV).
3 Place washers (N or O) over the holes in the TV brackets. Insert screws (E, G, I, J, L or M) through the washers, TV brackets, and spacers.
4 Tighten the screws until they are snug against the TV brackets. Do not over tighten.

You'll need

B TV brackets (2)

N
M6 washer

0
M8 washer

P
Spacer

E
M4 × 30 screw

G
M5 × 30 screw

|
M6 × 20 screw

J
M6 × 35 screw

L
M8 × 35 screw

M
M8 × 50 screw

STEP 4 - Determine wall-mount location

Notes:

• For more detailed information on determining where to drill your holes, visit our online height-finder at: http://mf1.bestbuy.selectionassistant.com/index.php/heightfinder
• Your TV should be high enough so your eyes are level with the middle of the screen. Normally, this is 40 to 60 inches from the ground.

The center of your TV will be offset .8 in. lower than the center of the wall mount on the wall-mount. Before you drill holes in the wall:

1 Measure the distance from the bottom of your TV to the middle (half of the height of the TV). This is measurement a.
2 Measure the distance from the floor to where you want the bottom of the TV to be placed on the wall. Keep in mind that the bottom of the TV should be placed above any furniture (such as entertainment centers or TV stands). The TV should also be above items placed on top of the furniture (like a Blu-ray player or cable box). This measurement is b.
3 Add a + b. The total measurement is the height where you want the center of the wall mount to be on the wall.
4 Use a pencil to mark this spot on the wall.

You'll need

Measuring tape

Pencil

STEP 5 - Option 1: Installing on a wood stud wall

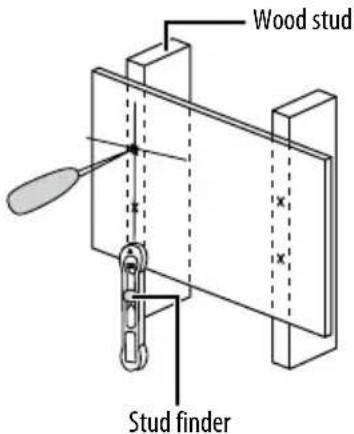

1 Locate the center of a stud with a stud finder.

2 Align the center of the wall mount template at the height (a + b) you determined in the previous step, make sure that the template is level, then tape it to the wall.
3 Drill two pilot holes through the template to a depth of 2.75 in. (70 mm) using a 5/32 in. (4 mm) drill bit, then remove the template.

4 Align the plate with the pilot holes, insert the lag bolts (A) through the lag bolt washers (B), then through the holes in the wall mount. Make sure that the wall mount is level.

5 Tighten the lag bolts with a socket wrench only until they are firm against the wall mount.

Notes:

• Minimum wood stud size: common 2 × 4 in. (51 × 102 mm) nominal 1-1/2 × 3-1/2 in. (38 × 89 mm).
• Minimum horizontal spacing between fasteners cannot be less than 16 i n. (406 mm).

You'll need

A Wall mount

Edge-to-edge stud finder

Level

Socket wrench with 7/16" (11 mm) socket or adjustable wrench

C Wall Mount Template

A
Lag bolts (4)

B
Lag bolt washers (4)

Drill

5/32" (4 mm) wood drill bit

Tape

STEP 5 - Option 2: Installing on a solid concrete or concrete block wall

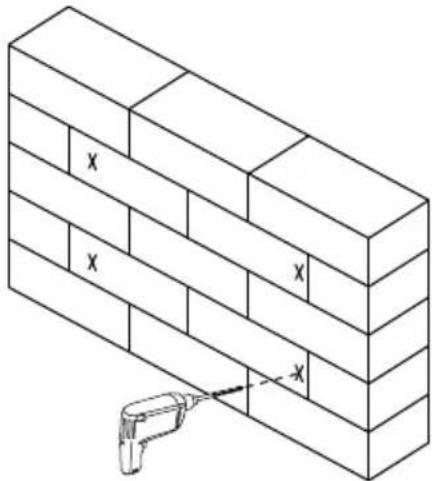

CAUTION: To prevent property damage or personal injury, never drill into mortar between blocks. Mount the wall mount directly onto the concrete surface.

1 Align the center of the wall mount template at the height (a+b) you determined in the previous step, make sure that it is level, then tape it to the wall.

2 Drill two pilot holes through the template to a depth of 2.75 in. (70 mm) using a 5/16 in. (8 mm) diameter masonry drill bit, then remove the template.

3 Insert the concrete wall anchors (C) into the pilot holes and use a hammer to make sure that the anchors are flush with the concrete surface.

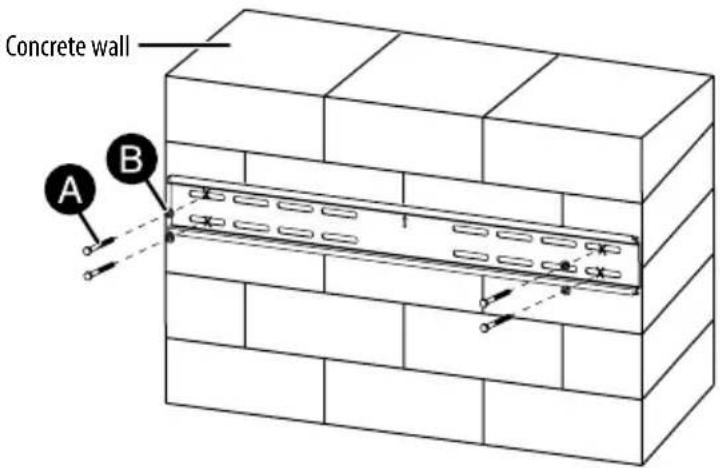

4 Align the plate with the anchors, insert the lag bolts (A) through the lag bolt washers (B), then through the holes in the wall mount. Make sure that the wall mount is level. Tighten the lag bolts with a socket wrench only until they are firm against the wall mount.

Notes:

• Minimum solid concrete thickness: 8 in. (203 mm)
• Minimum concrete block size: 8 × 8 × 16 in. (203 × 203 × 406 mm)
• Minimum horizontal spacing between fasteners cannot be less than 16 in. (406 mm).

You'll need

A Wall mount

C
Concrete anchors (4)

Level

Socket wrench with 7/16" (11 mm) socket or adjustable wrench

C Wall Mount Template

B
Lag bolt washers (4)

Drill

5/16" (8 mm) masonry drill bit

A
Lag bolts (4)

Tape

Hammer

STEP 6 - Securing the TV to the wall mount

1 Holding the TV with the top of the screen tilted toward the wall, slide the upper edges of the right and left TV brackets into the notches on the upper lip of the wall mount.

2 Gently pull down the straps on the wall mount so that the clips lock into place.

CAUTION: Do not release the TV until the TV brackets are securely locked onto the wall mount.

HEAVY! You will need assistance with this step.

STEP 7 - Adjusting the tilt

1 Firmly hold the TV with one hand, then loosen the tilt adjustment screw.

2 Tilt the TV to the angle you want, then tighten the tilt adjustment screw.

Note: If you cannot loosen or fully tighten the tilt adjustment screw by hand, use a Phillips screwdriver.

You'll need

Phillips screwdriver

Congratulations! Installation is done. Now it's time to watch some TV.

Managing cables

Move your TV as needed in order to attach the cables to the connection points on the back of the TV, then adjust the TV as needed.

Removing the TV from the wall mount

1 Grasp the TV by the bottom edge, then pull down on the locking cords and pull the bottom of the TV out from the wall.

2 Release the locking cords and lift the top of the TV from the wall mount.

HEAVY! You will need assistance with this step.

ONE-YEAR LIMITED WARRANTY

Definitions:

The Distributor* of Best Buy Essentials branded products warrants to you, the original purchaser of this new Best Buy Essentials-branded product ("Product"), that the Product shall be free of defects in the original manufacturer of the material or workmanship for a period of one (1) year from the date of your purchase of the Product ("Warranty Period").

For this warranty to apply, your Product must be purchased in the United States or Canada from a Best Buy branded retail store or online at www.bestbuy.com or www.bestbuy.ca and is packaged with this warranty statement.

How long does the coverage last?

The Warranty Period lasts for 1 year (365 days) from the date you purchased the Product. Your purchase date is printed on the receipt you received with the Product.

What does this warranty cover?

During the Warranty Period, if the original manufacture of the material or workmanship of the Product is determined to be defective by an authorized Best Buy Essentials repair center or store personnel, Best Buy Essentials will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Best Buy Essentials and are not returned to you. If service of Products or parts are required after the Warranty Period expires, you must pay all labor and parts charges. This warranty lasts as long as you own your Best Buy Essentials Product during the Warranty Period. Warranty coverage terminates if you sell or otherwise transfer the Product.

How to obtain warranty service?

If you purchased the Product at a Best Buy retail store location or from a Best Buy online website (www.bestbuy.com or www.bestbuy.ca), please take your original receipt and the Product to any Best Buy store. Make sure that you place the Product in its original packaging or packaging that provides the same amount of protection as the original packaging.

To obtain warranty service, in the United States and Canada call 1-866-597-8427. Call agents may diagnose and correct the issue over the phone.

Where is the warranty valid?

This warranty is valid only in the United States and Canada at Best Buy branded retail stores or websites to the original purchaser of the product in the country where the original purchase was made.

What does the warranty not cover?

This warranty does not cover:

• Customer instruction/education
• Installation
• Set up adjustments
• Cosmetic damage
• Damage due to weather, lightning, and other acts of God, such as power surges
• Accidental damage
• Misuse
• Abuse
• Negligence
• Commercial purposes/use, including but not limited to use in a place of business or in communal areas of a multiple dwelling condominium or apartment complex, or otherwise used in a place of other than a private home.

• Modification of any part of the Product, including the antenna

• Display panel damaged by static (non-moving) images applied for lengthy periods (burn-in).

• Damage due to incorrect operation or maintenance
• Connection to an incorrect voltage or power supply
• Attempted repair by any person not authorized by Best Buy Essentials to service the Product
• Products sold "as is" or "with all faults"
• Consumables, including but not limited to batteries (i.e. AA, AAA, C etc.)
• Products where the factory applied serial number has been altered or removed
• Loss or Theft of this product or any part of the product
• Display panels containing up to three (3) pixel failures (dots that are dark or incorrectly illuminated) grouped in an area smaller than one tenth (1/10) of the display size or up to five (5) pixel failures throughout the display. (Pixel based displays may contain a limited number of pixels that may not function normally.)
• Failures or Damage caused by any contact including but not limited to liquids, gels or pastes.

REPAIR REPLACEMENT AS PROVIDED UNDER THIS WARRANTY IS YOUR EXCLUSIVE REMEDY FOR BREACH OF WARRANTY. BEST BUY ESSENTIALS SHALL NOT BE LIABLE FOR ANY INCIDENTAL OR CONSEQUENTIAL DAMAGES FOR THE BREACH OF ANY EXPRESS OR IMPLIED WARRANTY ON THIS PRODUCT, INCLUDING, BUT NOT LIMITED TO, LOST DATA, LOSS OF USE OF YOUR PRODUCT, LOST BUSINESS OR LOST PROFITS. BEST BUY ESSENTIALS PRODUCTS MAKES NO OTHER EXPRESS WARRANTIES WITH RESPECT TO THE PRODUCT, ALL EXPRESS AND IMPLIED WARRANTIES FOR THE PRODUCT, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTIES OF AND CONDITIONS OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED IN DURATION TO THE WARRANTY PERIOD SET FORTH ABOVE AND NO WARRANTIES, WHETHER EXPRESS OR IMPLIED, WILL APPLY AFTER THE WARRANTY PERIOD. SOME STATES, PROVINCES AND JURISDICTIONS DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE OR PROVINCE TO PROVINCE.

Contact Best Buy Essentials:

1-866-597-8427

www.bestbuy.com/bestbuyessentials

BEST BUY ESSENTIALS is a trademark of Best Buy and its affiliated companies.

* Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2023 Best Buy. All rights reserved.

ESPAÑOL

Características

www.bestbuy.com/bestbuyessentials

Taladro

A Montaje en pared

Detector de vigas de borde a borde

Nivel

Taladro

A Montaje en pared

C

Nivel

Taladro

Broca de taladro de pared de 5/16" (8 mm)

Perno de retraso (4)

Cinta adhesiva

Martillo

Necesitará

Destornillador Phillips

www.bestbuy.com/bestbuyessentials

For product inquiries, please contact us with the information below:

1-866-597-8427

www.bestbuy.com/bestbuyessentials

BEST BUY ESSENTIALS is a trademark of Best Buy and its affiliated companies.

Distributed by Best Buy Purchasing, LLC

7601 Penn Ave South, Richfield, MN 55423 U.S.A.

©2023 Best Buy. All rights reserved.

www.bestbuy.com/bestbuyessentials
