Product Type	30cm Drum Style Desk Fan
Model Number	GCDF220B (Black) / GCDF220W (White)
Fan Diameter	30 cm (12 inches)
Dimensions (Approx.)	45 cm (H) x 30 cm (W) x 25 cm (D)
Weight	2.5 kg
Power Supply	220-240 V AC, 50/60 Hz
Power Consumption	45 W
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, with oscillation pin on top of motor
Tilt Adjustment	Yes, via tilt adjustment knob and bolt
Control Type	Rotary dial (On/Off and speed)
Base Type	Sturdy round base with thumb screw
Material	Plastic and metal components
Cord Length	1.5 m (approx.)
Assembly Required	Yes (base, post, head assembly)
Cleaning	Wipe with soft damp cloth; do not immerse
Safety Features	Overheating protection via dust removal; keep 1m clearance; no immersion
Usage	Indoor household use only
Warranty	1 year (domestic use)
Manufacturer	Goldair / CDB Goldair (NZ & Australia)

Frequently Asked Questions - GCDF220B GoldAir

How do I assemble the GoldAir GCDF220B fan?

Start by attaching the post to the base using the base washer and thumb screw. Then attach the fan head assembly to the post using the tilt adjustment bolt, tilt range screw, and tilt adjustment knob. Refer to the assembly diagrams in the manual for proper orientation.

How do I adjust the fan speed?

Turn the control dial clockwise to select from three speeds: 1 (Low), 2 (Medium), and 3 (High). To stop, turn to the 0 (Off) position.

How do I enable oscillation?

Push down the oscillation pin located on the top of the motor housing. The fan will oscillate left and right. Pull the pin back up to stop oscillation.

How do I adjust the tilt angle?

Loosen both the larger tilt adjustment knob and the smaller tilt range knob, then tilt the fan head to the desired angle. Tighten both knobs to secure the position.

How should I clean the fan?

Always unplug the fan before cleaning. Use a soft, damp cloth (not wet) to gently wipe the surfaces. Do not immerse the fan in water or allow water to enter the motor housing. Avoid harsh chemicals.

What safety precautions should I follow?

Keep all objects at least 1 metre from the front, sides, and rear of the fan. Never cover the fan. Do not use near water, outdoors, or in confined spaces. Ensure hands are dry when handling the plug. Regularly vacuum the air vents to prevent overheating.

Can I use an extension cord?

Yes, a correctly specified, undamaged extension cord may be used if used in a safe manner. It is recommended to plug the fan directly into a wall socket whenever possible.

What does the warranty cover?

Goldair provides a one-year warranty for domestic use against manufacturing faults. It does not cover damage from misuse, neglect, shipping accidents, or repairs by unqualified persons. Keep your receipt as proof of purchase.

Why is the fan not turning on?

Check that the power cord is plugged in securely and the speed dial is not at 0. Ensure the power socket is working. If the fan still does not work, contact the place of purchase or a qualified electrician. Do not attempt to repair yourself.

Can I use this fan outdoors?

No, this fan is intended for indoor household use only. Never use it outdoors, in wet areas, or near water sources such as baths, showers, or pools.

USER MANUAL GCDF220B GoldAir

Operating Instructions

30cm Drum Style Desk Fan

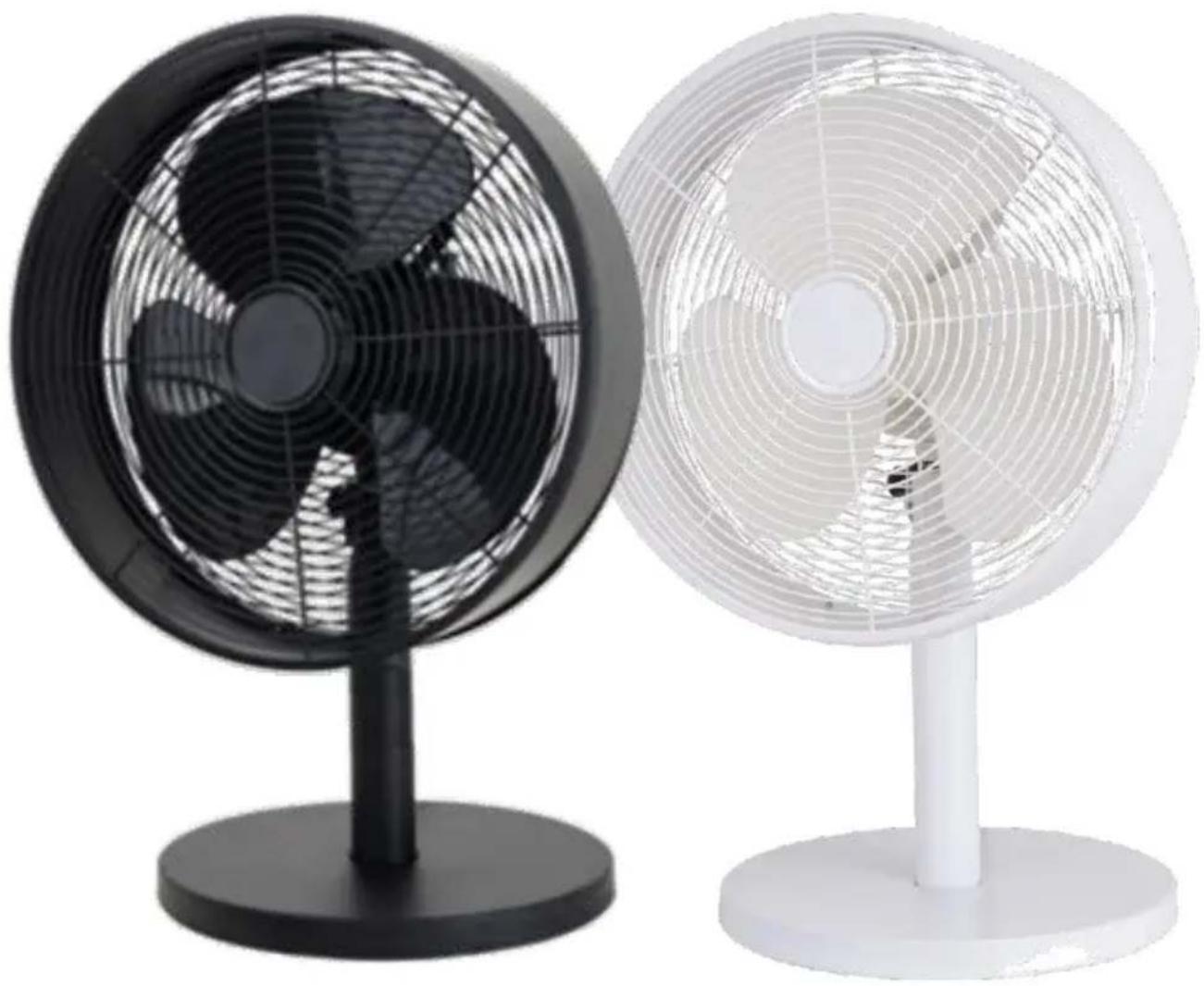

Two desktop fans, one black and one white, displayed against a plain background (no text or symbols visible)

Item: GCDF220B / GCDF220W

General Care and Safety Guide

Thank you for choosing this Goldair product. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully and keep them for future reference.

1. Use only the voltage specified on the rating plate of the appliance.
2. Keep all objects at least 1 Metre from the front, sides and rear of the appliance
3. This appliance is intended for household use only and not for commercial or industrial use.
4. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
5. The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.
6. Always unplug appliance when not in use.
7. When the appliance has been unpacked, check it for transport damage and ensure all parts have been delivered. If parts are missing or the appliance has been damaged, contact the CDB Customer Services Team.
8. If your appliance does not work, or is not working properly, contact the place of purchase. Repair work on the appliance by unqualified persons can cause serious risk to the user.
9. Ensure hands are dry before handling the plug or the main unit.
10. Carry out regular checks of the supply cord to ensure no damage is evident.
11. Children should be supervised to ensure that they do not play with the appliance.
12. Ensure that the cord is fully extended (not coiled) while in use.
13. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade of the fan during operation to reduce the risk of injury to person and/or damage to the unit.
14. Switch off and use handles provided when moving.
15. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge, unless they are supervised or have been given instruction concerning the use of the fan by a person responsible for their safety.
16. It is recommended that this fan is plugged directly into the wall socket.

17. A correctly specified, undamaged extension cord may be used with this fan provided it is used in a safe manner.

18. Never place appliance close to radiant heat source.

19. Never operate in areas where petrol, paint or other flammable liquids are used or stored.
20. Never use the appliance to dry clothes.
21. Never insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
22. Never use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only.
23. Ensure that the fan is switched off from the supply mains before removing the guard.
24. Never connect the appliance to mains supply until completely assembled and adjusted.
25. Never remove plug from power socket until the appliance has been switched off.
26. Never remove plug from power socket by pulling cord – always grip plug.
27. Never twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that all cord has been removed from any cord storage area and is unrolled before use.
28. Never use this appliance in the immediate surrounds of a bath, a shower, or a swimming pool or other liquids. The appliance must not be immersed in any liquids.
29. Due to the risk of injury, never use this appliance for any purpose other than its intended use. This appliance is intended for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses, by clients in hotels, motels, bed and breakfast type environments and other residential type environments
30. Never use this appliance outdoors.
31. Never operate the appliance with a damaged cord or plug, after it malfunctions, or if it has been damaged in any manner. Have the appliance checked and repaired by a qualified electrician if repair is necessary. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
32. Never place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

Components

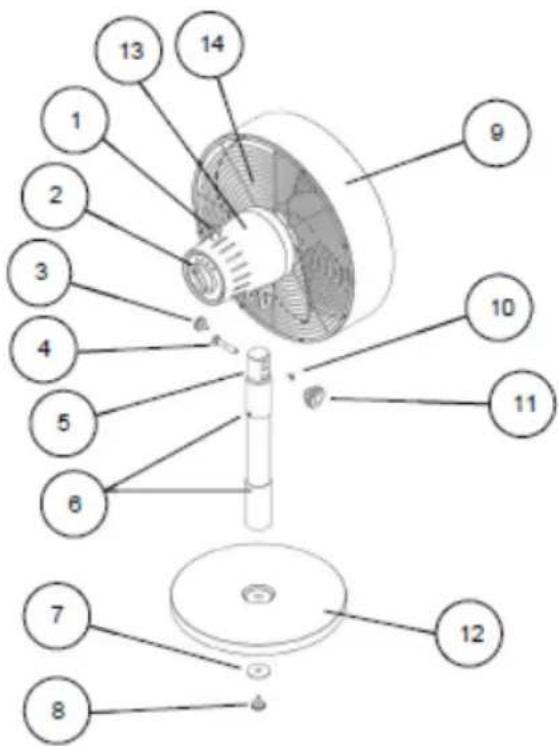

1. Oscillating knob
2. On / Off / Speed Control
3. Tilt range knob
4. Tilt adjustment bolt
5. Post top
6. Post
7. Base washer
8. Base thumb screw
9. Fan head assembly
10. Tilt range screw
11. Tilt adjustment knob
12. Base

Assembly

Your fan has been boxed unassembled to minimise packaging waste. Each part is designed to fit together and be disassembled easily for cleaning and storage.

Start with the base and post as follows.

Remove the tilt adjustment knob by unscrewing the knob and slide the tilt adjustment bolt out. Remove the base thumb screw and the base washer by unscrewing as shown.

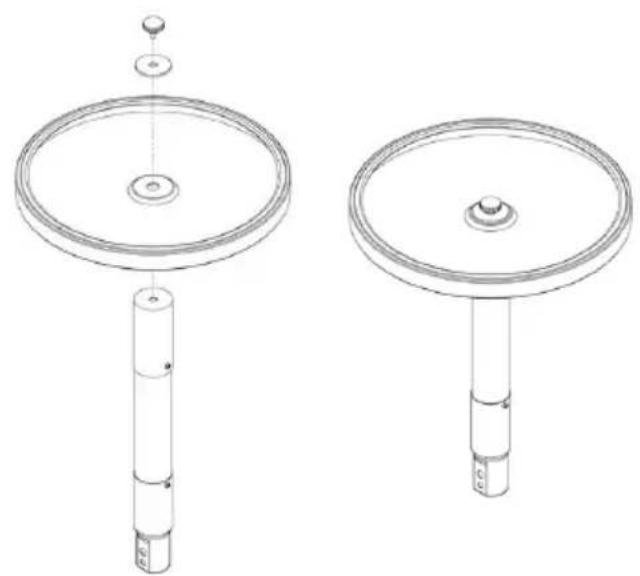

Fit the post into the recess in the top of the base and whilst holding it in place, turn over to access underneath. Place the washer over the hole and then insert the base thumb screw. Tighten securely, then turn the assembly the right way up and sit on a flat surface.

Technical line drawing of two cylindrical mechanical components with mounting flanges (no text or symbols)

Technical line drawing of two circular mechanical components with cylindrical bases and mounting holes (no text or symbols)

Assembly (cont.)

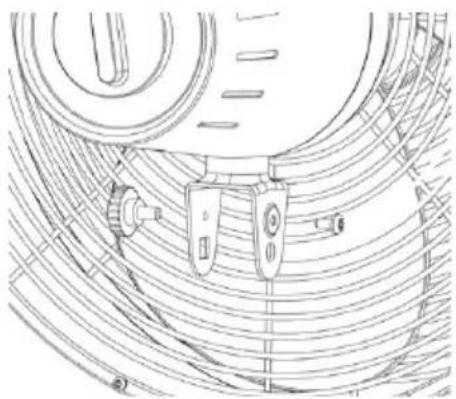

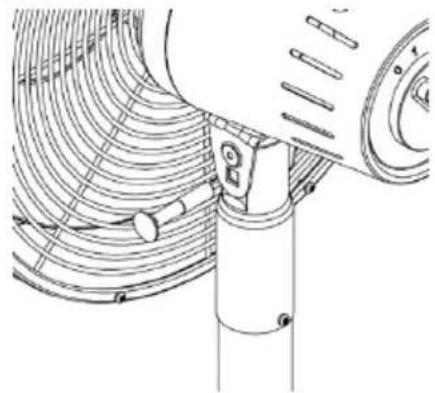

Using a Philips screwdriver, remove the small tilt range screw from the coupling bracket on the fan neck and then unscrew the tilt range knob.

Technical line drawing of a mechanical component with curved surfaces and mounting holes (no text or symbols)

NOTE: It is important that the post and fan head are in the correct orientation when assembled.

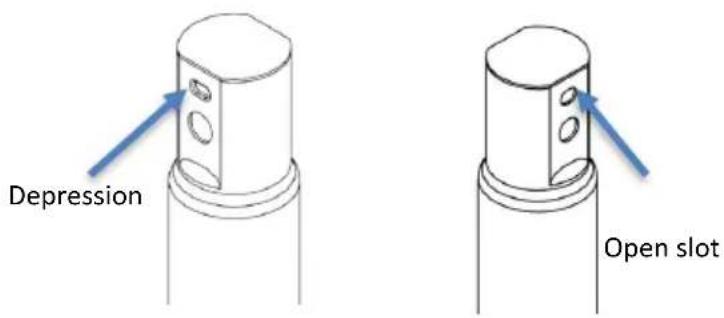

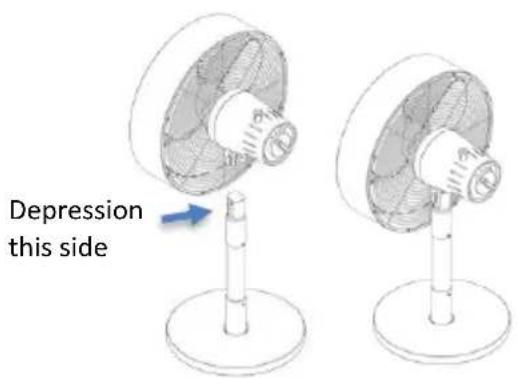

The top section of the post has a small horizontal open slot on one side and a small horizontal depression on the other side as shown.

The side with the open slot is for the small tilt range screw. The side with the small depression is for the tilt range knob to tighten up onto.

Take the head assembly and position the mating section over the post end as shown.

Slide the tilt adjustment bolt all the way through as shown.

Technical line drawing of a mechanical component with coiled cable and mounting bracket (no text or symbols)

Screw in the tilt range knob to loosely secure.

Technical line drawing of a mechanical component with coiled tubing and a cylindrical shaft (no text or symbols)

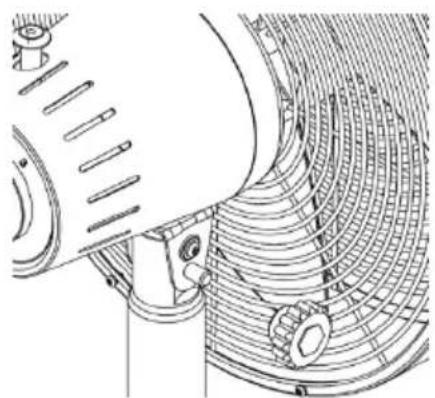

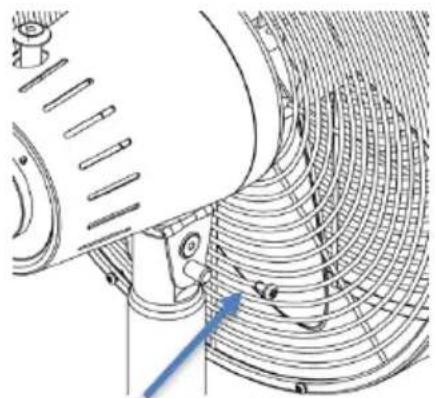

Using a Philips head screwdriver, screw in the small tilt range screw and tighten.

Technical line drawing of a mechanical component with no visible text or symbols

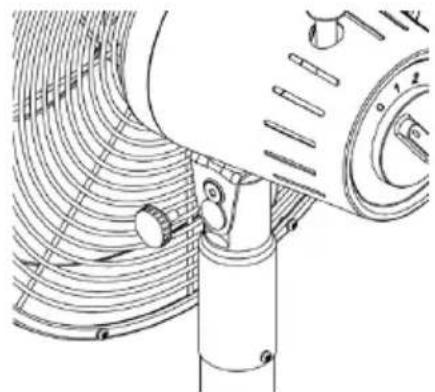

Screw on the tilt adjustment knob and tighten.

Technical line drawing of a mechanical component with internal gears and tubing (no text or symbols)

Operating your Fan

Always choose a safe location for the Fan, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance.

WARNING Keep all objects at least 1 metre from the front, sides and rear of the appliance.

IMPORTANT! NEVER COVER THIS APPLIANCE!

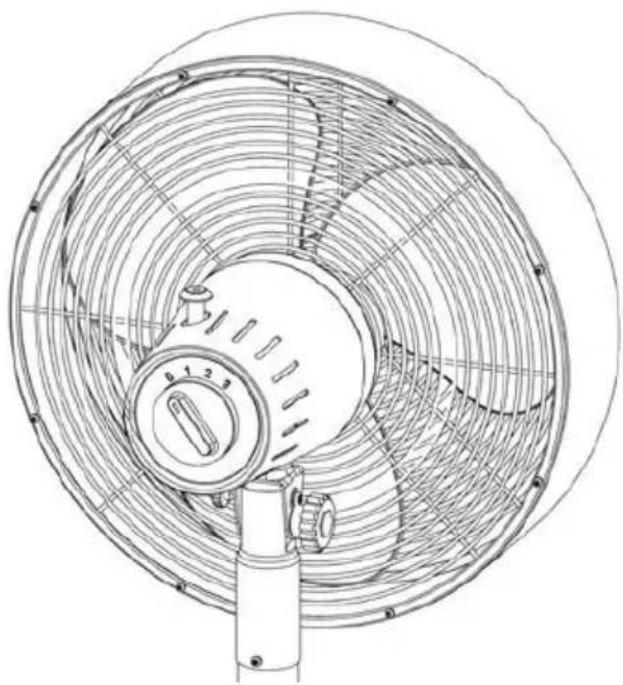

Fan control switch

The control switch positions are:

• 0 = OFF
  • 1 = Low Speed
• 2 = Medium Speed
  • 3 = High Speed

Technical line drawing of a circular fan with internal blades and central hub (no text or symbols)

Place the fan on a dry, level and sturdy surface.

Plug the power cord into the socket, making sure the speed control is at OFF position.

To operate the fan, turn speed control dial clockwise until desired wind speed is achieved.

To adjust the tilt angle, loosen both the larger tilt adjustment knob and the smaller tilt range knob, then tilt the head to the desired angle and tighten both knobs.

To activate the oscillation function, push down the oscillation pin on the top of the motor. The fan will then oscillate until the pin is pulled back up.

Technical line drawing of a fan with an attached spiral fan and a blue directional arrow indicating airflow or movement (no text or symbols)

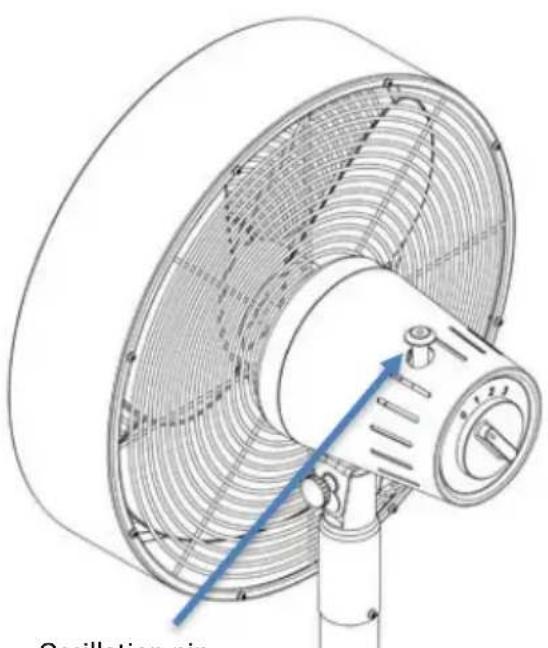

Oscillation pin

Cleaning

To avoid risk of electric shock, before cleaning, you MUST ALWAYS switch off and unplug the fan before cleaning.

Use only a soft, damp cloth to gently wipe the fan and dry well.

Do not immerse the fan in water and never allow water to enter the motor housing.

Do not use harsh chemicals to clean the fan.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).

GOLDAIR

SUPPORT AND TECHNICAL ADVICE

Goldair – New Zealand

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

Goldair – Australia

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

CDB GOLDAIR

One Year Warranty

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal domestic use for a period of one year. In non-domestic use Goldair limits the voluntary warranty to three months.

Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to the goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).

Goldair – New Zealand

CDB Goldair

PO Box 100-707

N.S.M.C

Auckland, 0745

Phone [phone]

Phone [phone]

www.goldair.co.nz

Goldair – Australia

CDB Goldair Australia Pty

PO Box 574

South Morang

Victoria, 3752

Phone [phone]

Phone 1300 GOLDAIR (1300 465 324)

www.goldair.com.au

Goldair One Year Warranty (IMPORTANT: Please complete and retain this warranty card)

Name

Address

Place Of Purchase Date of Purchase

Name Of Product Model Number

Attach a copy of the purchase receipt to this warranty card
