USER MANUAL GCHV300T GoldAir

Operating Instructions

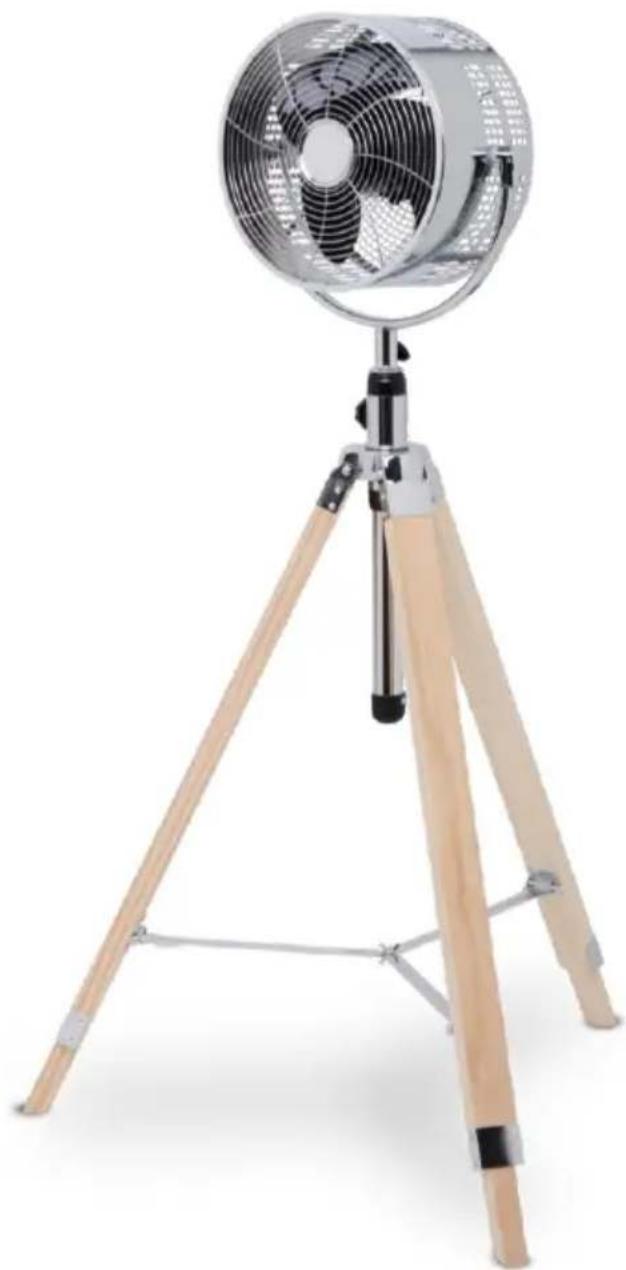

Navigator Tripod Pedestal Fan

Modern office fan mounted on a tripod stand, featuring a metallic fan and wooden legs (no text or symbols visible)

Item: GCHV300T

General Care and Safety Guide

Thank you for choosing this Goldair product. This Goldair appliance has been designed and manufactured to high standards of engineering and with proper use and care, as described in this leaflet, will give you years of useful service. Please read these instructions carefully and keep them for future reference.

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2. Children should be supervised to ensure that they do not play with the appliance.
3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
4. Ensure that the fan is switched off from the supply mains before removing the guard.
5. Use only the voltage specified on the rating plate of the appliance.
6. Keep all objects at least 1 Metre from the front, sides of the appliance
7. This appliance is intended for household use only and not for commercial or industrial use.
8. Use this appliance only as described in this manual. Any other use is not recommended by the manufacturer and may cause fire, electric shock or injury.
9. The common cause of overheating is deposits of dust or fluff in the appliance. Ensure these deposits are removed regularly by unplugging the appliance and vacuum cleaning the air vents and grills.
10. Always unplug appliance when not in use.
11. When the appliance has been unpacked, check it for transport damage and ensure all parts have been delivered. If parts are missing or the appliance has been damaged, contact the Goldair Customer Services Team.
12. If your appliance does not work, or is not working properly, contact the place of purchase. Repair work on the appliance by unqualified persons can cause serious risk to the user.
13. Ensure hands are dry before handling the plug or the main unit.
14. Carry out regular checks of the supply cord to ensure no damage is evident.
15. Ensure that the cord is fully extended (not coiled) while in use.
16. Avoid contact with the moving parts. Keep hands, hair, clothing, away from blade of the fan during operation to reduce the risk of injury to person and/or damage to the unit.
17. Switch off and use handles provided when moving.
18. It is recommended that this fan is plugged directly into the wall socket.
19. A correctly specified, undamaged extension cord may be used with this fan provided it is used in a safe manner.

General Care and Safety Guide

1. Never place appliance close to radiant heat source.
2. Never operate in areas where petrol, paint or other flammable liquids are used or stored.
3. Never use the appliance to dry clothes.
4. Never insert or allow foreign objects to enter any ventilation or exhaust opening, as this may cause an electric shock, fire or damage to the appliance.
5. Never use abrasive cleaning products on this appliance. Clean with a damp cloth (not wet) rinsed in hot soapy water only. Always remove plug from the mains supply before cleaning.
6. Never connect the appliance to mains supply until completely assembled and adjusted.
7. Never remove plug from power socket until the appliance has been switched off.
8. Never remove plug from power socket by pulling cord – always grip plug.
9. Never twist, kink or wrap the cord around the appliance, as this may cause the insulation to weaken and split. Always ensure that all cord has been removed from any cord storage area and is unrolled before use.
10. Never use this appliance in the immediate surrounds of a bath, a shower, or a swimming pool or other liquids. The appliance must not be immersed in any liquids.
11. Due to the risk of injury, never use this appliance for any purpose other than its intended use. This appliance is intended for use in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses, by clients in hotels, motels, bed and breakfast type environments and other residential type environments
12. Never use this appliance outdoors.
13. Never operate the appliance with a damaged cord or plug, after it malfunctions, or if it has been damaged in any manner. Have the appliance checked and repaired by a qualified electrician if repair is necessary.
14. Never place the unit in wardrobes or other enclosed spaces as this may cause fire hazards.

Components

1. Fan Housing
2. Fan Blade
3. Front Fan Grill
4. 'U' Bracket
5. Neck locking knob
6. Shaft
7. Height Adjustment Knob
8. Tripod Connector
9. Wooden Legs
10. Wooden leg links
11. Butterfly screw & nut
12. Control Switch

Technical diagram of a tripod-mounted fan with numbered parts for identification

Technical line drawing of a fan with labeled component 12 (no text or symbols beyond label)

Assembly

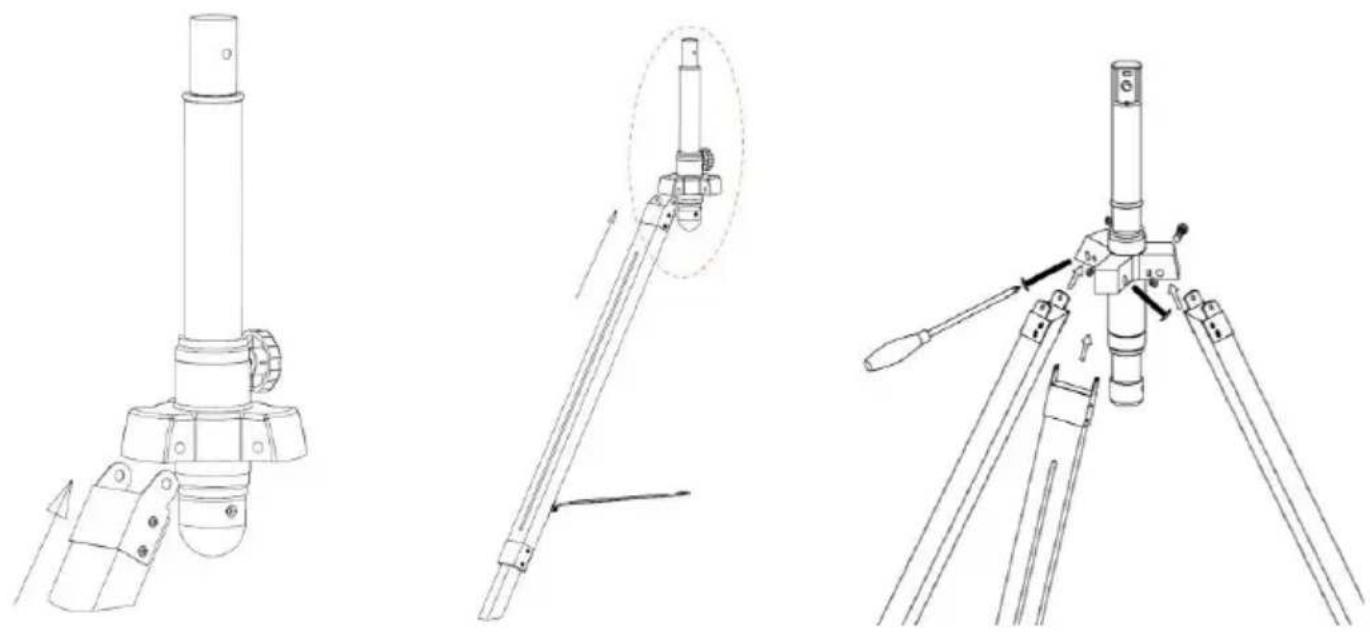

Remove the securing screws for base from the tripod connector. Use a screwdriver to install the wooden legs onto the tripod connector. Insert the securing screws for base through the holes of the connectors and then lock by tightening the securing nuts. Each wooden leg has one securing screw for base and one securing nut.

Technical line drawings of three mechanical device configurations: a cylindrical mount, a vertical rod with adjustment, and a tripod-mounted tripod with a lever (no text or symbols present)

Assembly (cont.)

Install the wooden leg links by using the butterfly screws. Join all 3 pieces together in the middle and secure.

Install the fan housing onto the shaft. Position the screws as per the image below and tighten.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).

GOLDAIR

SUPPORT AND TECHNICAL ADVICE

Goldair – New Zealand

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

Goldair – Australia

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

Operating your Fan

Always choose a safe location for the fan, keeping in mind the safety precautions outlined. Ensure all packaging has been removed from the unit before use. This appliance requires no installation, it should be used solely as a portable appliance.

WARNING Keep all objects at least 1 metre from the front, sides and rear of the appliance

Fan control switch

The control switch positions are:

• 0 = OFF
• 1 = Low Speed
• 2 = Medium Speed
• 3 = High Speed

Check that the fan control switch is set to the off position before plugging into the mains supply.

Place the fan on a dry, level and sturdy surface.

Plug the power cord into the socket, making sure the speed control is at off position.

To operate the fan, turn the speed control to the desired setting.

Tilt the fan angle by moving the fan body to your desired angle.

To adjust the height of the fan, loosen the height adjustment knob and raise/lower the pole to the desired height. Secure by tightening the knob.

Cleaning and Maintenance

To avoid risk of electric shock, before cleaning, you MUST ALWAYS switch off and unplug the fan.

Use only a soft, damp cloth to gently wipe the fan and dry well.

Do not immerse the fan in water and never allow water to enter the motor housing.

Do not use harsh chemicals to clean the fan.

PROOF OF PURCHASE

To receive warranty retain receipt as proof of purchase. (Refer to back of booklet).

GOLDAIR

SUPPORT AND TECHNICAL ADVICE

Goldair – New Zealand

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

Goldair – Australia

Monday – Friday 8am-5pm

Phone [phone]

Phone [phone]

[e-mail]

CDB GOLDAIR

One Year Warranty

Thank you for purchasing this Goldair product. Your product is warranted against faults and manufacture when used in normal domestic use for a period of one year. In non-domestic use Goldair limits the voluntary warranty to three months.

Goldair undertake to repair or replace this product at no charge if found to be defective due to a manufacturing fault during the warranty period.

This warranty excludes damage caused by misuse, neglect, shipping accident, incorrect installation, or work carried out by anyone other than a qualified electrical service technician.

PLEASE KEEP YOUR RECEIPT AS THIS WILL HELP VERIFY YOUR WARRANTY.

The benefits to you given by this warranty are in addition to other rights and remedies available to you under a law in relation to the goods or services to which this warranty relates.

In Australia, our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

In New Zealand this warranty is additional to the conditions and guarantees of the Consumers Guarantee Act (1993).
