ILFRZ217I - Freezer ILVE - Free user manual and instructions

Product Type	Freezer (Built-in)
Brand	Ilve
Model	ILFRZ217I
Climatic Class	SN, N, ST, T (+10°C to +43°C)
Refrigerant	R600a (isobutane)
Insulating Gas	Cyclopentane
Defrost Type	Manual (static)
Door Reversibility	Yes (reversible opening)
Temperature Control	Mechanical knob (no display)
Installation Type	Built-in column
Power Supply	220-240 V, 50/60 Hz (estimated)
Energy Saving Features	Manual defrost, proper ventilation, avoid frequent door openings
Cleaning Instructions	Use water and baking soda or neutral soap; unplug before cleaning
Safety Certifications	CE marked, complies with EU directives
User Age Recommendation	Children 8+ with supervision; persons with reduced abilities must be supervised
Waste Disposal	WEEE directive 2012/19/EU; separate collection required

Frequently Asked Questions - ILFRZ217I ILVE

How do I adjust the temperature on my Ilve ILFRZ217I freezer?

Turn the thermostat knob (Fig. 1) clockwise towards 5 for colder temperatures or counterclockwise towards OFF for less cold. The knob controls both compartments. The product switches off when turned fully counterclockwise (click).

How do I defrost the freezer?

When the frost layer exceeds 3 mm, turn the knob to 0, unplug the appliance, remove frozen food, leave the door open, and collect the defrost water. Dry thoroughly, then plug back in and set desired temperature. Never use sharp objects or open flames.

Can I reverse the door opening direction?

Yes, the door is reversible. Remove the upper hinge and plate, lift off the upper door, then move the bottom hinge and plastic plugs to the opposite side. Reassemble from bottom to top. Refer to the manual for diagrams.

How should I clean the freezer?

Unplug the appliance first. Clean the interior and exterior with water and baking soda or neutral soap. Do not pour water directly onto the surfaces. Avoid abrasive cleaners. Dry all parts before reconnecting power.

What should I do if the freezer is making unusual noises?

Normal noises include humming (compressor), rumblings (refrigerant flow), and clicks (compressor shutdown). To reduce vibrations, ensure containers do not touch each other, check that shelves and drawers are properly installed, and verify the appliance is level. Gas expansion clicks are normal even when the compressor is off.

What precautions should I take during a power outage?

Keep the freezer door closed as much as possible to maintain cold temperature. If the outage is prolonged, food may thaw. Once power returns, check food condition. Do not refreeze thawed food; consume it promptly.

How much food can I freeze at once?

The maximum freezing capacity is indicated on the rating plate inside the appliance. Freeze small amounts at a time for quick freezing. Do not exceed the specified limit to ensure proper freezing quality.

What should I do if the freezer is not cooling enough?

Check that the door is fully closed and the gasket seals properly. Avoid frequent door openings. Verify the temperature setting is not too warm. Ensure the appliance is not overfilled and ambient temperature is within the climatic range (see nameplate). If the problem persists, contact service.

How do I install the freezer in a built-in column?

Place the appliance in the column leaving a 3–5 mm gap opposite the hinges. Secure the upper part to the cabinet, then the lower part. Fit the seal and cut if necessary. Ensure rear ventilation (chimney) is unobstructed. Refer to the manual for detailed dimensions and panel coupling instructions.

Is the freezer safe for use around children?

Children aged 8 and above can use the appliance under supervision. Cleaning and maintenance should not be done by children without supervision. Keep children away from the refrigerant circuit. Do not allow them to play with the appliance.

USER MANUAL ILFRZ217I ILVE

GUIDA RAPIDA DI MANUTEZIONE E D'USO	IT
MAINTENANCE AND USER'S GUIDE	EN
MANUEL D'ENTRETIEN ET D'UTILISATION	FR

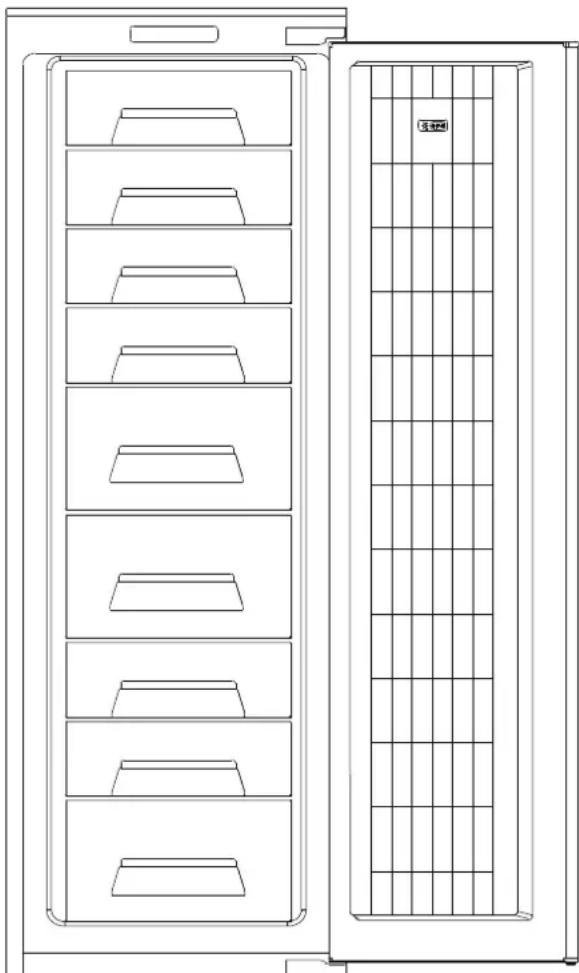

Technical line drawing of a dual-chamber refrigerator with shelves and girders (no text or symbols)

CONTENTS

EN

SAFETY INFORMATION 12--12

INSTALLATION 13--13

OPERATION 13--13

CONSERVATION 14--14

FREEZING 15--25

DEFROSTING 15--15

MAINTENANCE AND CLEANING 16--16

ENERGY SAVINGS 16--16

AVOIDING NOISES 16--16

REVERSIBILITY OF THE DOOR 16--17

PRODUCT DIMENSION AND BUILT-IN COMPARTMENT.. 17--18

INSTALLATION OF THE APPLIANCE IN THE COLUMN.... 18--18

COPLING OF THE PANELS OF THE BUILT-IN COLUMN

OF THE APPLIANCE DOORS 19--19

PRECAUTIONS FOR THE CORRECT OPERATION ...... 19--19

SUSPENDING USE OF THE APPLIANCE 19--19

TROUBLESHOOTING 20--20

Thank you for purchasing this product.

Before using your refrigerator, please carefully read this instruction manual in order to maximize its performance. Store all documentation for subsequent use or for other owners. This product is intended solely for household use or similar applications such as:

- the kitchen area for personnel in shops, offi ces and other working environments

- on farms, by clientele of hotels, motels and other environments of a residential type

- at bed and breakfasts (B & B)

- for catering services and similar applications not for retail sale.

This appliance must be used only for purposes of storage of food, any other use is considered dangerous and the manufacturer will not be responsible for any omissions. Also, it is recommended that you take note of the warranty conditions.

SAFETY INFORMATION

The refrigerator contains a refrigerant gas (R600a: isobutane) and insulating gas (cyclopentane), with high compatibility with the environment, that are, however, inflammable.

We recommend that you follow the following regulations so as to avoid situations dangerous to you:

• Before performing any operation, unplug the power cord from the power socket.
• The refrigeration system positioned behind and inside the refrigerator contains refrigerant. Therefore, avoid damaging the tubes.
• If in the refrigeration system a leak is noted, do not touch the wall outlet and do not use open flames.
  Open the window and let air into the room. Then call a service centre to ask for repair.

- Do not scrape with a knife or sharp object to remove frost or ice that occurs. With these, the refrigerant circuit can be damaged, the spill from which can cause a fire or damage your eyes.

- Do not install the appliance in humid, oily or dusty places, nor expose it to direct sunlight and to water.

- Do not install the appliance near heaters or inflammable materials.

- Do not use extension cords or adapters.

- Do not excessively pull or fold the power cord or touch the plug with wet hands.

- Do not damage the plug and/or the power cord; this could cause electrical shocks or fires.

- It is recommended to keep the plug clean, any excessive dust residues on the plug can be the cause fire.

- Do not use mechanical devices or other equipment to hasten the defrosting process.

- Absolutely avoid the use of open flame or electrical equipment, such as heaters, steam cleaners, candles, oil lamps and the like in order to speed up the defrosting phase.

- Do not use or store inflammable sprays, such as spray paint, near the refrigerator. It could cause an explosion or fire.

- Do not use electrical appliances inside the food storage compartments, unless they are of the type recommended by the manufacturer.

- Do not place or store inflammable and highly volatile materials such as ether, petrol, LPG, propane gas, aerosol spray cans, adhesives, pure alcohol, etc. These materials may cause an explosion.

- Do not store medicine or research materials in the refrigerator. When the material that requires a strict control of storage temperatures is to be stored, it is possible that it will deteriorate or an uncontrolled reaction may occur that can cause risks.

- Maintain the ventilation openings in the appliance enclosure or in the built-in structure, free of obstruction.

- Do not place objects and/or containers filled with water on the top of the appliance.

- Do not perform repairs on this refrigerator. All interventions must be performed solely by qualified personnel.

- This appliance can be used by children aged from 8 years and above and by persons with reduced physical, sensory or mental capabilities or with a lack of experience and knowledge, provided that they have been given adequate supervision or instruction concerning how to use the appliance in a safe way and understand the hazards involved.

Children should not play with the appliance. Cleaning and user maintenance should not be made by children without supervision.

Turning the knob fully counterclockwise, you will hear a click which corresponds to the switch-off of the product.

When the appliance is installed, the electrical cord and the current socket must be easily reached. The socket is compatible with the plug of the appliance. If not, request replacement of the plug by an authorized technician; do not use extension cords and/or multiple connectors.

Do not touch the internal parts or frozen food with moist or wet hands as it can cause burns.

Scrapping old appliance

This appliance is marked according to the European directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE). WEEE contains both polluting substances (which can cause negative consequences for the environment) and basic components (which can be re-used). It is important to have WEEE subjected to specific treatments, in order to remove and dispose properly all pollutants, and recover and recycle all materials. Individuals can play an important role in ensuring that WEEE does not become an environmental issue; it is essential to follow some basic rules:

- WEEE should not be treated as household waste;

- WEEE should be handed over to the relevant collection points managed by the municipality or by registered companies. In many countries, for large WEEE, home collection could be present.

In many countries, when you buy a new appliance, the old one may be returned to the retailer who has to collect it free of charge on a one-to-one basis, as long as the equipment is of equivalent type and has the same functions as the supplied equipment.

Conformity

By placing the C mark on this product, we are confirming compliance to all relevant European safety, health and environmental requirements which are applicable in legislation for this product.

INSTALLATION

WARNINGS:

• Do not install the appliance in a damp or wet location as this could compromise the insulation and result in leakage.
  Furthermore, on the exterior of the same, condensate could accumulate
• Do not place the appliance in locations outside or near sources of heat or exposed to direct sunlight.

The appliance operates properly within the range of environmental temperatures indicated:

+10 +32'C for the climatic class SN
+16 +32°C for the climatic class N
+16 +38'C for the climatic class ST
+16 +43'C for the climatic class T

(See the nameplate of the product)

- Do not place containers with liquids on top of the appliance.

- Wait at least 3 hours after final placement before placing the appliance in operation.

Electrical connection

After shipping, place the appliance vertically and wait at least 2 - 3 hours before connecting it to the electrical system. Before inserting the plug into the electrical socket, make sure that:

• The socket is earthed and in compliance with the law.
• The socket can withstand the maximum power load of the appliance, as indicated on the nameplate of the refrigerator.
• The power supply voltage is within the amounts indicated on the nameplate of the refrigerator.
• The cord must not be folded or compressed.
• The cord must be checked regularly and replaced solely by authorized technicians.
• The manufacturer declines any liability whenever these safety measures are not respected.

Appliance start-up

Remove all wrapping/packaging present inside the appliance and clean with water and baking soda or neutral soap.

After the installation, wait 2 - 3 hours to allow time for the refrigerator/freezer to stabilize at normal working temperature, before placing fresh or frozen foods inside.

If the power cord becomes disconnected, wait at least five minutes before restarting the refrigerator/freezer. At this point, the appliance is ready for use.

OPERATION

Temperature adjustment (no display)

Fig. 1

- The temperature adjustment of both compartments is effected by rotating the thermostat knob (Fig. 1).

Select the desired position:

• For colder temperature in the freezer, by turning towards 5.
• For temperature less cold in the refrigerator and in the freezer, by rotating in the direction of OFF.

ENERGY SAVINGS

For better energy savings, we suggest:

• Installing the appliance away from heat sources and not exposed to direct sunlight and in a well ventilated room.
• Avoid putting hot food into the refrigerator to avoid increasing the internal temperature and therefore causing continuous functioning of the compressor.
• Do not excessively stuff foods so as to ensure proper air circulation.
• Defrost the appliance in case there is ice (see DEFROSTING) to facilitate the transfer of cold.
• In case of absence of electrical energy, it is advisable to keep the refrigerator door closed.
• Open or keep the doors of the appliance open as little as possible
• Avoid adjusting the thermostat to temperatures too cold.
• Remove dust present on the rear of the appliance (see CLEANING).

AVOIDING NOISES

During its operation, the refrigerator emits some absolutely normal noises, such as:

• HUMMING, the compressor is running.
• RUMBLINGS, RUSTLINGS and HISSING, the refrigerant is flowing through the tubes.
• TICKS and CLICKS, the operation shutdown of the compressor.
  Small measures to red uce the vibration noises:
• Containers touch each other: Avoid contact between containers and glass recipients.
• Drawers, shelves, bins vibrate: Check the proper installation of internal accessories.

NOTE:

The refrigerant gas produces noise even when the compressor is off; it is not a defect, it is normal.

If you hear a clicking sound inside the appliance, it is normal as due to expansion of the various materials.

MAINTENANCE AND CLEANING

Cleaning

NOTICE:

• Before each operation, remove the refrigerator plug from the power socket to prevent electric shocks.
• Do not pour water directly on the outside or inside of the refrigerator itself. This could lead to oxidation and damaging of the electrical insulation.

DEFROSTING AND FREEZING

The rating plate states the maximum quantity of foods that can be frozen, (see figure 2).

(Figure 2)

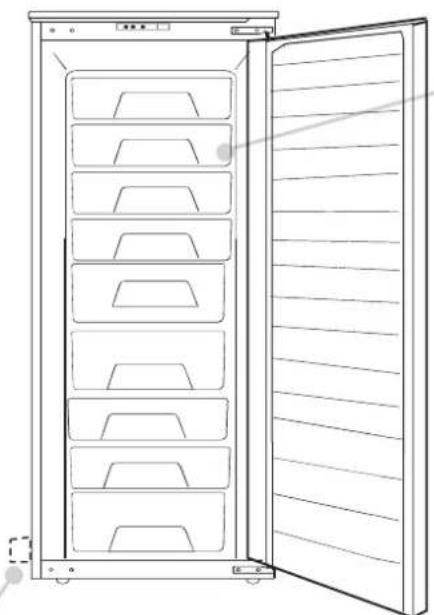

Line drawing of a refrigerator with open door and side compartments (no text or symbols)

We recommend you defrost the freezer area when the layer of frost is more than 3 mm thick.

N.B. Here you will find your appliance rating plate: it includes all the data to be transmitted to the Customer Service should a fault arise.

Freezer zone

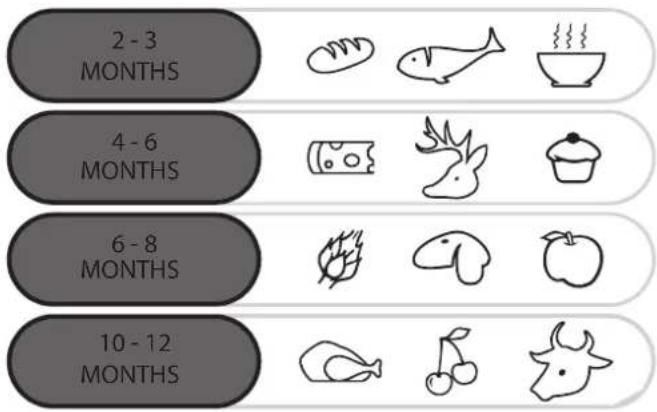

Use the table below for the compartments

Freezing process can only occur in the compartments

Practical recommendations

Place food on the shelves in a homogeneous manner to allow air to circulate properly and to cool it.

• Avoid contact between the food and the far end walls of the refrigerator compartment.
• Do not introduce hot foods as they can cause deterioration of existing ones and increase energy consumption.
• Do not put in dishes or other containers unless previously washed.
• Do not obstruct the cold air ventilator openings with food.
• Do not store bottles in the freezer compartment as they can burst when frozen.
• In the case of prolonged power outage, keep the doors closed so that foods remain cold as long as possible.
• The installation of the appliance in a hot and humid location, with frequent door openings and storing large amounts of vegetables can cause the formation of condensate and affect the performance of the unit itself.
• To prevent excessive energy consumption, the frequent or prolonged opening of the doors is not recommended.

FREEZING

• Foods must be fresh.
• Freeze small amounts of food at a time in order to freeze quickly. Never exceed the maximum amount indicated on the rating label.
• During freezing, do not open the freezer door.
• Food must be sealed, airtight.
• Separate food to be frozen by those already frozen.
• Label bags or containers to keep an inventory of frozen foods.
• Once defrosted, do not ever refreeze foods and consume them promptly.

Defrosting the freezer compartment

(static products without NO-FROST technology)

When the layer of frost present in the freezer compartment exceeds 3mm, it is recommended to proceed with the defrosting as it increases energy consumption.

1) Rotate the knob to the „0“ position (Fig .3)

2) Disconnect the power cord.
3) Remove the frozen food and temporarily place them in a cool place.
4) Leave the freezer door open to speed defrosting.
5) Collect the water on the bottom of the product.
6) Dry the freezer.
7) Reconnect the power cord and set the desired values.
8) Wait a moment and reintroduce the frozen foods.

WARNING:

Absolutely avoid the use of open flames or electrical appliances, such as heaters, steam cleaners, candles, oil lamps and the like to accelerate the defrosting phase.

Do not scrape with a knife or sharp object to remove frost or ice present. These can damage the refrigerant circuit, the leakage of which can cause a fire or damage your eyes.

REVERSING THE OPENING OF THE DOORS

Remove the upper plate and hinge by screw driver.

Simple line drawing of a roof structure with no text or symbols

Remove the upper door.

Simple line drawing of a garage with doors and a triangular structure, no text or symbols present

Remove the right bottom hinge and left plastic plugs, and refit them onto the opposite side.

Simple line drawing of a rectangular object with arrows indicating direction, no text or symbols present

Use the opposite hinge and cover and fit into the left bottom.

Line drawing of a flat-screen monitor with mounting feet and directional arrows indicating motion (no text or symbols)

Reassemble the doors and hinges workings from bottom to top, from 1-2.

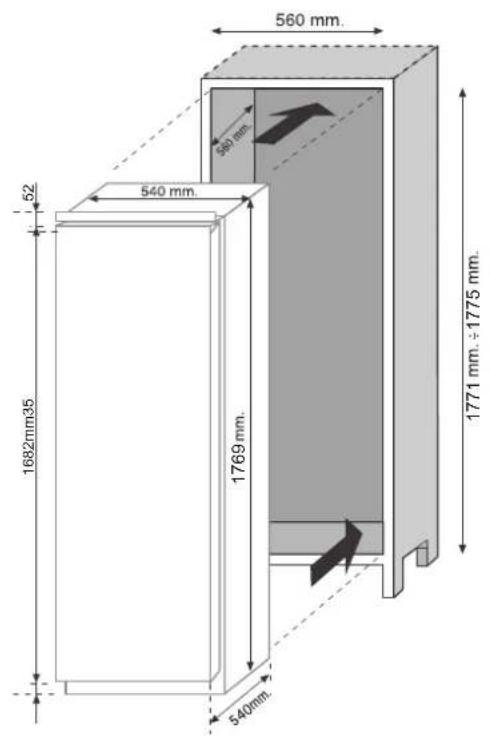

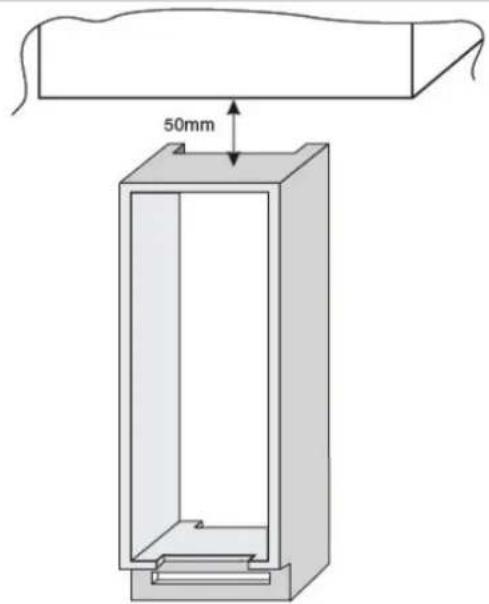

PRODUCT DIMENSIONS AND BUILT-IN COMPARTMENT

Insert the appliance into the column, placing it on the opposite site of the hinges, and make sure 3-5 mm distance gap.

1

After ensuring the match between appliance door and column door, then screw the appliance upper part to the cabinet

2

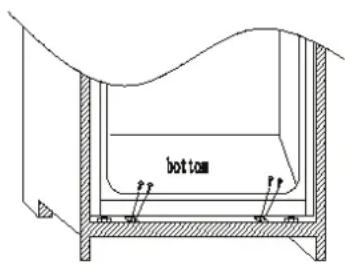

Screw the appliance lower part. Fit the seal to the appliance, cut off the

excessive part if necessary. Fit the bottom parts with plastic covers.

3

4

Technical line drawing of a rectangular frame with internal components and directional arrows (no text or symbols)

COUPLING OF THE PANELS OF THE BUILT-IN COLUMN OF THE APPLIANCE DOORS

The appliance is equipped with coupling devices for the appliance doors with the column panels (loader slide).

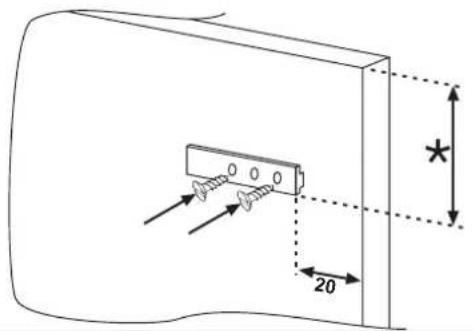

Secure the slide in the inner part of the panel of the built-in column at the desired height and at approx. 20 mm. From the outer wire of the door.

Open the doors of the built-in column and the fridge. Position the built-in loader in the slide, then fit it into the fridge door.

Technical line drawing of a mechanical component with a fastener or connector (no text or symbols)

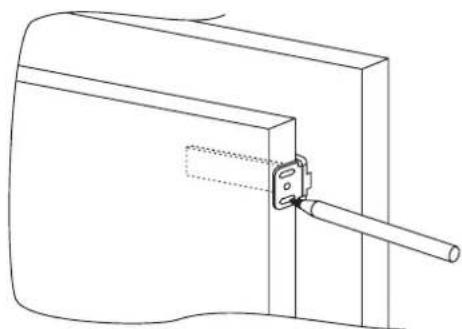

Mark the fixing points for the screws and drill with a bit of a diameter of 2.5mm.

Technical line drawing of a mechanical assembly with a rod inserted into a housing (no text or symbols)

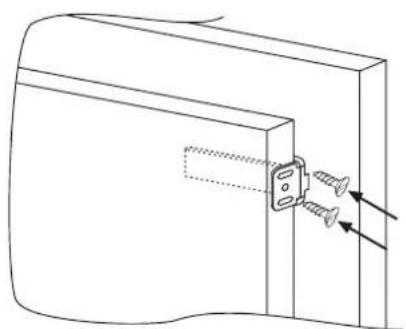

Connect the appliance door to the cabinet panel keeping the loader slots as guidelines.

Technical line drawing of a mechanical bracket with screws inserted, showing alignment and mounting detail (no text or symbols)

PRECAUTIONS FOR THE CORRECT OPERATION

Once the product has been embedded, place the rear part of the column in contact with the wall so as to prevent access to the compressor compartment.

For the product to operate correctly it is essential to allow adequate air circulation so as to cool down the condenser located in the rear part of the appliance.

For this reason, the column must be equipped with a rear chimney, whose upper opening must not be blocked and with a front slot which will be covered with a ventilation grill.

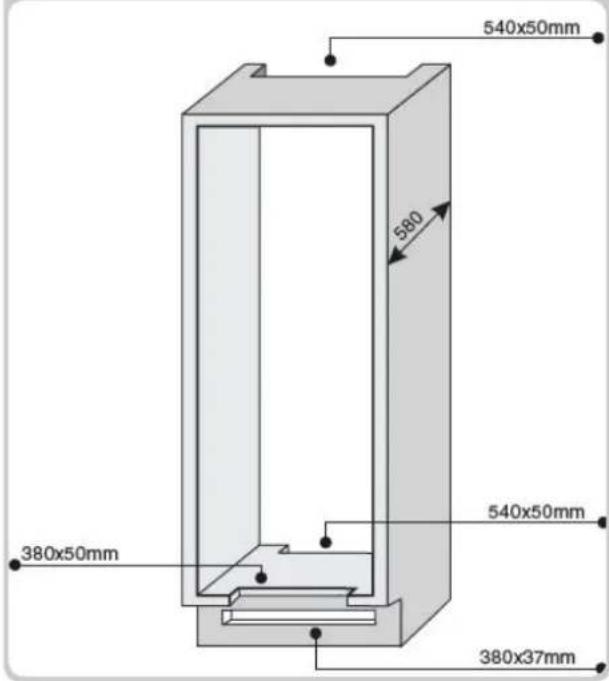

Size of ther unit cut outs.

Room to leave between the unit and ceiling.

SUSPENDING USE OF THE APPLIANCE

If the appliance is not to be used for a long time:

1) Turn the appliance OFF (see Operation)
2) Extract the plug or remove the safety device.
3) Clean the appliance
4) Leave the doors of the appliance open.

CAUSEPROBLEM REMEDY

The refrigerator and freezer do not sufficiently cool.	· The doors are not closed.	· Check that the door and gaskets close properly.
	· The doors are frequently opened	· Avoid unnecessary opening of the doors for a period of time.
	· Erroneous setting of the temperature.	· Check the temperature setting and, if it is possible, cool even more (see Temperature adjustment)
	· The refrigerator and freezer have been excessively filled.	· Wait for the stabilization of the temperature of the refrigerator or freezer.
	· Surrounding temperature is too low.	· Check that the ambient temperature is in accordance with what is indicated on the nameplate (see Installation).
	· No electrical power.	· The power cord is not properly plugged in.
		· Check whether the appliance is switched off (see Temperature adjustment)
		· Ensure that in the home there is current.
The motor runs continuously. · The doors are not closed.		· Make sure the doors are closed and if the seals close properly.
		· Avoid unnecessary open ports for a certain period.
		· Verify that the ambient temperature is in accordance with the specifications on the nameplate (see Installation).
		· Set the display/thermostat a warmer temperature.
		· Defrost the unit (see Defrosting).
The frozen food is thawing. · The ambient temperature range below climate class of the product.		· Move the unit to a warmer or heat the room.
		· Make sure the door is closed and that the gasket is sealing properly.
		· Make sure the door is closed and that the gasket is sealing properly.

IF YOU ARE NOT SOLVED THE PROBLEM, CONTACT THE SERVICE CENTER, PLEASE GIVE THE TYPE OF FAULT AND THE INFORMATION ON THE PLATE OF THIS APPARATUS TO INSIDE THE REFRIGERATOR COMPARTMENT:

• The model of equipment.
• The number of series.
