MHC60SS - Range hood MIDEA - Free user manual and instructions

Brand	Midea
Model	MHC60SS
Product Type	Range hood (cooker hood)
Width	60 cm
Installation Type	Ducted or recirculating
Minimum Distance from Hob	65 cm (for gas hob)
Exhaust Connection Diameter	120 mm or 150 mm
Motor Speeds	Low, medium, high
Light Type	LED module, 1.5 W, DC 12 V
Grease Filter Type	Metal self-supporting, washable
Grease Filter Cleaning Interval	Every 2 months (more frequently for heavy use)
Charcoal Filter Type	Activated charcoal, replaceable (optional)
Charcoal Filter Replacement Interval	Every 4 months (more frequently for heavy use)
Power Supply	220-240 V (typical), check rating plate
Class	Class I (requires earthing)
Max Number of Hob Elements	4
Weight (estimated)	Approx. 10-15 kg
Spare Parts Available	LED light module, grease filter, charcoal filter
Service Interval	Every 3 years for peak performance
After-Sales Service (Australia)	1800 88 60 10

Frequently Asked Questions - MHC60SS MIDEA

How do I install the Midea MHC60SS range hood?

Installation requires drilling and fixing brackets at specific heights. The minimum distance from the hob is 65 cm for gas. Refer to the manual for detailed step-by-step instructions and wall drilling diagrams.

How often should I clean the grease filter?

Clean the metal grease filter every 2 months of operation, or more frequently for heavy use. It can be washed in a dishwasher or by hand with neutral detergent. Ensure it is completely dry before reinstalling.

How do I replace the charcoal filter?

Remove the grease filters, then remove the saturated charcoal filter and insert a new one. Charcoal filters are not washable; replace every 4 months or more often with heavy use.

What should I do if the light stops working?

The LED light module must be replaced entirely. Unplug the hood, remove the grease filter, unscrew the front plate, disconnect the terminal, press out the old module, and install a new one (1.5W, DC 12V, 70 mm diameter).

Can the hood be used in recirculating mode?

Yes, you can use it in recirculating mode by installing activated charcoal filters (sold separately). The hood can be ducted outside or recirculated.

What does the speed switch do?

The speed switch controls the motor: low, medium, and high speeds. There is also a separate light on/off switch. The motor off switch stops the fan.

Why is my hood vibrating or making noise?

Vibration can be caused by a damaged blade, loose motor or hood mounting. Tighten screws or replace the blade if damaged. Ensure the hood is firmly fixed to the wall.

How do I connect the ducted version?

Connect the hood to the chimney using a flexible or rigid pipe of 120 mm or 150 mm diameter. Use the reducer flange for 120 mm connection and secure with pipe clamps (not supplied). Remove charcoal filters if present.

What safety precautions should I take?

Ensure earthing, never leave high flames under the hood, monitor deep fat fryers, and comply with local air discharge regulations. The hood is for home use only.

Where can I get spare parts or service?

Contact Midea Home Appliances Australia at 1800 88 60 10 or find a state spare parts centre. Routine service every 3 years is recommended.

USER MANUAL MHC60SS MIDEA

Midea Cooker Hood Instructions

Two stainless steel kitchen furn�ers shown from different angles (no text or symbols visible)

SAVE THESE INSTRUCTIONS CAREFULLY Read the instructions carefully before using your cooker hood, and keep them carefully. If you follow the instructions, your cooker hood will serve you many years well.

The instructions apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your appliance.

INSTALLATION

• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the cooker hood. (When the cooker hood is located above a gas appliance, the distance shall be at least 65 cm. If the installation instructions for the gas hob specify a greater distance, it has to be taken into account. The distance of 65 cm can be reduced for non-combustible parts of the cooker hood and parts operating at safety extra low voltage, provided these parts do not give access to live parts if deformed.)

- Check that the mains voltage corresponds to that indicated on the rating plate fixed to the inside of the hood.

- For Class I appliances, check that the domestic power supply guarantees adequate earthing.

- Connect the extractor to the exhaust flue through a pipe with the minimum diameter of 120 mm.

- The route of the flue must be as short as possible.

- The air must not be discharged into a flue that is used for exhausting fumes from appliances, burning gas or other fuels.

- If the extractor is used in conjunction with non-electrical appliances (e.g. gas burning appliances), a sufficient degree of aeration must be guaranteed in the room in order to prevent backflow of the exhaust gas. The kitchen must have an opening communicating directly with the open air in order to guarantee the entry of clean air.

- When the cooker hood is used in conjunction with appliances supplied with energy other than electric, the negative pressure in the room must not exceed 0.04 mbar to prevent fumes being drawn back into the room by the cooker hood.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• Regulations concerning the discharge of air have to be fulfilled.

Simple line drawing of a laboratory setup with a funnel, thermometer, and Bunsen burner (no text or symbols)

USE

- The cooker hood is only for home use, not suitable for barbecue, roast shop and other commercial purposes.

- Never use the hood for purposes other than those intended.

- Never leave high naked flames under the hood when it is in operation.

- Adjust the flame intensity to direct the flame upto the bottom of a pan only, making sure that it does not engulf the sides.

- Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.

- Do not flame under the cooker hood, with a risk of fire.

- This appliance can be used by children aged 8 and above and persons with reduced physical, sensory or mental capabilities or lacking experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understood the hazards involved.

- Children should be supervised to ensure that they do not play with the appliance.

- Cleaning and maintenance shall not be made by children without supervision.

- "CAUTION: Accessible parts may become hot when used with cooking appliances".

MAINTENANCE

- The cooker hood and its filter should be cleaned regularly according to the instructions.

- Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.

- Clean and/or replace the filters after the specified period (fire hazard).

- Clean the hood using a damp cloth and a neutral liquid detergent.

- The appliance uses 4 hob elements at most.

Simple line drawing of a heating setup with a stove, smokestack, and sunburst background (no text or symbols)

The symbol 📄 is a packaging indication that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste disposing of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased your product.

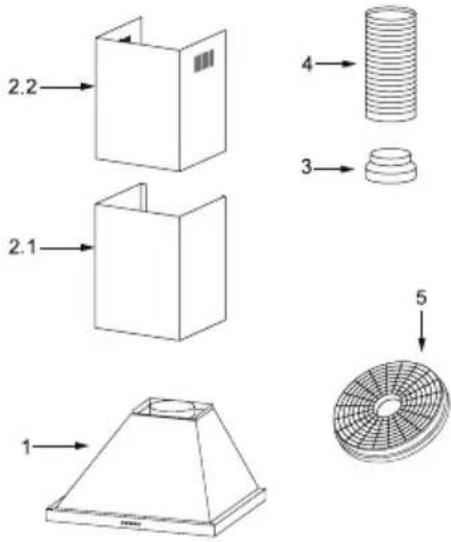

Ref. Qty. Product Components

1	1	Hood Body, complete with Control, Light, Blower, Filter.
2.1	1	Lower Decorative Chimney
2.2	1	Upper Decorative Chimney
3	1
4	1	Exhaust Pipe
5	2	Activated Charcoal Filter (optional)
Qty. Documentation
1 Instruction Manual

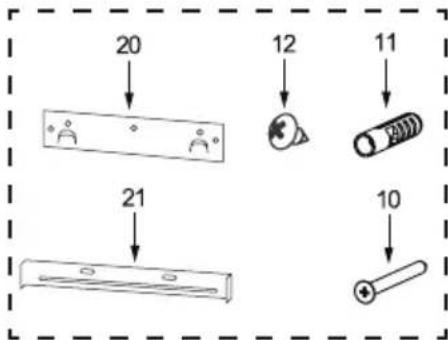

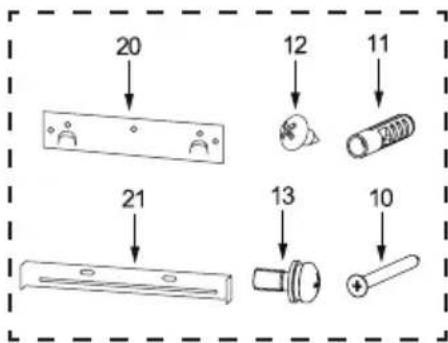

Ref. Qty. Standard Installation Components

10 5 Screws 5 x 50

11 5 Wall Plug

12 4 Screws 4,2 x 9,5

13 2 Screws 5 x 12

20 1 Hood Fixing Bracket

21 1 Chimney Fixing Bracket (optional)

If choose the below installation components, see as (solution2)

Ref. Qty. Optional Installation Components

10 7 Screws 5 x 50

11 7 Wall Plugs

12 6 Screws 4,2 x 9,5

20 1 Hood fixing bracket

21 1 Chimney fixing bracket (optiona)

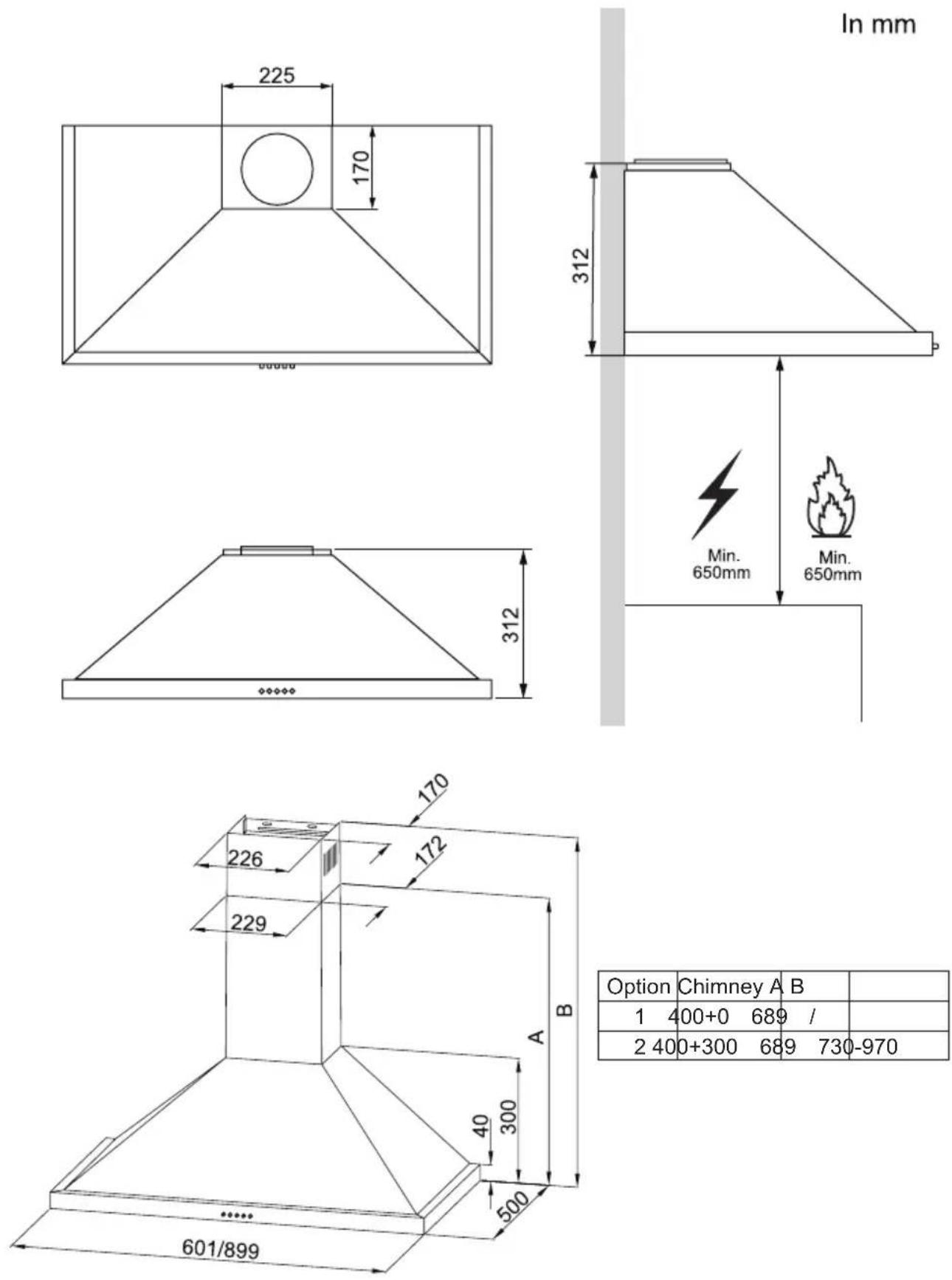

Option	Chimney A	B
1	400+0	689 /
2	400+300	689	730-970

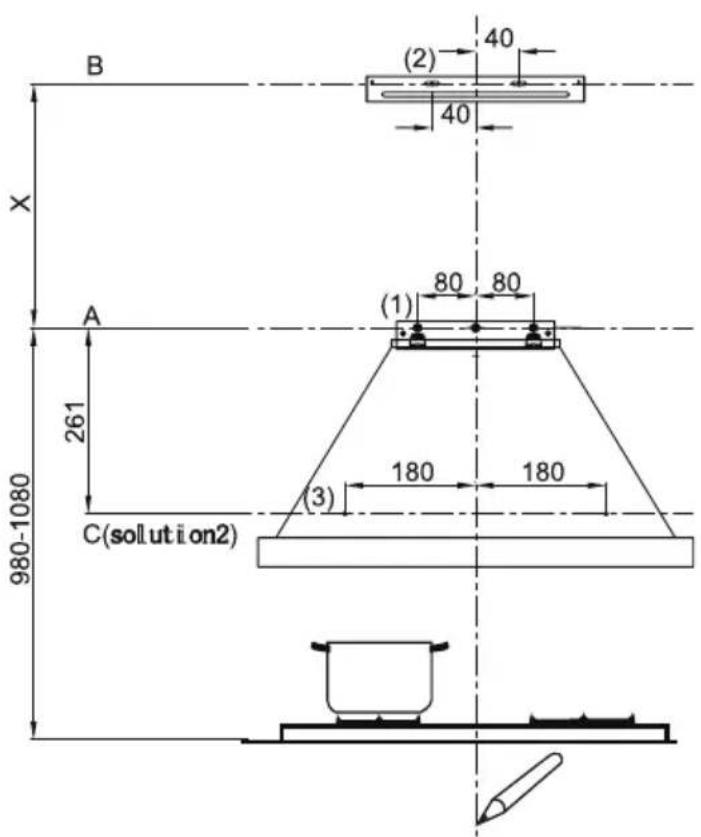

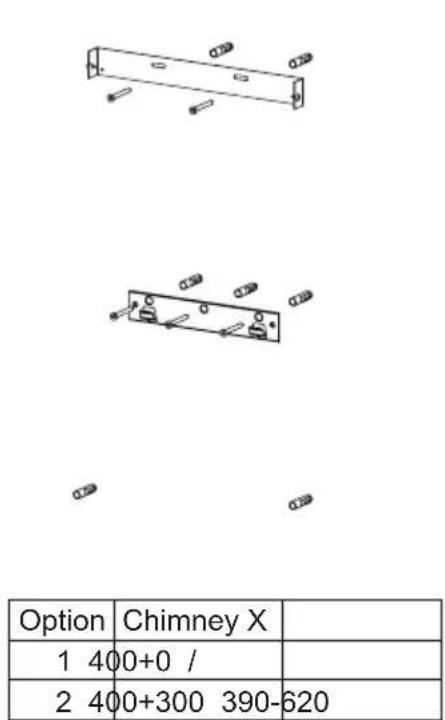

WALL DRILLING AND BRACKET FIXING

As the first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
• A horizontal line A at 980 – 1080 mm above the cooker top.
• A horizontal line B at X mm above the horizontal line A.
• A horizontal line C at 261 mm below the horizontal line A (solution 2).

Mark points:

• Mark a point (1) on the horizontal line A, 80 mm to the right of the vertical reference line.
• Repeat this operation on the other side and on the vertical reference line, checking that the three marks are on one horizontal line.
• Mark a point (2) on the horizontal line B, 40 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are on one horizontal line.
• Mark a point (3) on the horizontal line C, 180 mm to the right of the vertical reference line (solution 2).
• Repeat this operation on the other side, checking that the two marks are on one horizontal line.

Fix the brackets:

• Drill at the marked points (1), (2), (3) (solution 2), using a 10 mm drill bit. Insert the wall plugs 11 into the holes (1), (2), (3) (solution 2).
• Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) at the horizontal line A. Fix the chimney fixing bracket 21 with 2 screws 10 (5 x 50) at the horizontal line B.

Hook the hood body

- Hook the hood body to the bracket 20.

- Level the hood body itself.

- Lock screws (M5*12) into the hood fixing bracket to prevent the hood body from accidentally sliding off.

- Remove the filter from the inside of the hood body, and fix the screw 10 to wall plug 11 at the point (3) (optional).

Line drawing of a conical exhaust chimney with dashed vertical line indicating height (no text or symbols)

Right

Line drawing of a conical exhaust chimney (no text or symbols)

Wrong

CONNECTIONS

DUCTED VERSION AIR EXHAUST SYSTEM

When installing the ducted version, connect the hood to the chimney using either a flexible or a rigid pipe of 150 or 120 mm, the choice of which is left to the installer.

• Insert the reducer flange 3 onto the hood body outlet to install a 120 mm air exhaust connection.
• Fix the pipe 4 in place using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Two 3D geometric shapes with dashed outlines, no text or symbols present

The chimney can only be installed with an exhausting hood.

Lower decorative chimney

- Fix the lower decorative chimney to the hood body with 2 screws 12 (4.2 x 9.5) supplied with the hood.

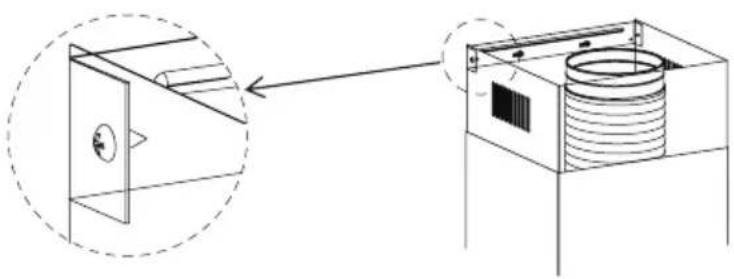

Upper Decorative Chimney

• Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the lower decorative chimney.
• Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical diagram of a mechanical device with a magnified inset showing internal components (no text or symbols)

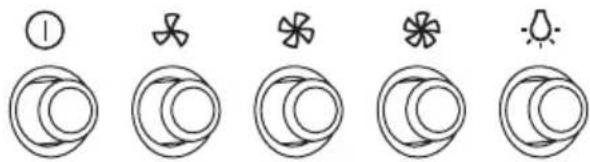

Speed adjustment

1	MOTOR OFF SWITCH: Press this switch to stop the motor.
	SPEED SWITCH: Press this switch, and the motor runs at LOW speed.
	SPEED SWITCH: Press this switch, and the motor runs at MEDIUM speed.
	SPEED SWITCH: Press this switch, and the motor runs at HIGH speed.
	LIGHT ON/OFF SWITCH: Press this switch to turn on the light, and press again to turn it off.

GREASE FILTER

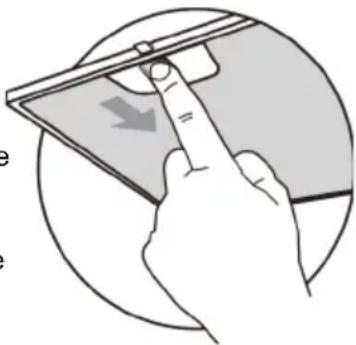

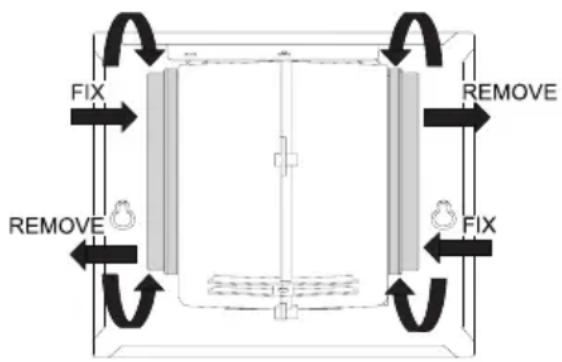

METAL SELF-SUPPORTING GREASE FILTER CLEANING

• The filters must be cleaned every 2 months of operation or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Pull the comfort panel to open them.

- Remove the filters one by one by pushing them towards the back side of the hood unit and simultaneously pulling downwards.

• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood, make sure that they are completely dry. (The color of the filter surface may change over time, but this has no influence to the filter efficiency).
• When fitting the filters into the hood, pay attention that they should be mounted in correct position with the handle facing outwards.

Illustration of a hand interacting with a device, showing a finger pointing at a screen (no text or symbols present)

ACTIVATED CHARCOAL FILTER (RECIRCULATION VERSION)

These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation or more frequently for heavy usage.

ACTIVATED CHARCOAL FILTER REPLACEMENT

• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
• Fit the new filters.
• Replace the metal grease filters.

LED LIGHT REPLACEMENT

LED LIGHT MODULE DISMANTLEMENT

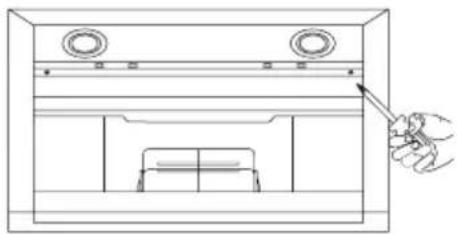

Replacing the light module

• You should not replace the light bulb but the entire light module.
• When changing the light module, the contacts are live.
• Before changing the light module, unplug the appliance from the mains or switch off the circuit breaker in the fuse box.

- Remove the grease filter, and carefully remove 2 screws from the front plate (a cross headed screwdriver will be needed to remove the screws).

• Disconnect the terminal of LED light.
• Press LED light at the back of the front plate, and take it out.
• Replace the light (commercially available LED light (max. 1.5 w))

Technical line drawing of a cabinet or enclosure with two circular components and a hand pointing to the interior (no text or symbols)

Line drawing of a hand holding a small object, possibly a tool or device, with no visible text or symbols.

Hand inserting a circular component into a rectangular device (no text or symbols visible)

	Max Power Voltage Picture Light Cap ILCOS D Code
Round/ Diameter: 70 mm	1.5 W DC	12 V		— — DSR	-1.5-S-70

Reinstalling LED light module

- Press LED light in the front of the front plate, and install the LED light onto the front plate.

• Connect the terminal of LED light and light leads.
• Carefully fasten 2 screws on the front plate, and reinstall the grease filter.

Fault Cause	Solution
Light is on, but motor does not work	The blade is blocked. Check the blade.
	The capacitor is damaged. Replace the capacitor.
	The motor is damaged. Replace the motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace the motor.
Both light and motor do not work	Apart from the above mentioned, check the following:
	Light is damaged. Replace the light.
	Power cord is loose.	Connect the cord as per the elec-tric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibration.	Replace the blade.
	The motor is not tightly fastened. Fasten	the motor tightly.
	The cooker hood is not tightly fixed. Fix the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
Machine incline	The fixing screw is not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screw is not tight enough	Tighten the hanging screw and make it horizontal.

OLD ELECTRICAL APPLIANCE DISPOSAL

The European Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE), requires that old household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. Old appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain and reduce the impact on human health and the environment.

The crossed out “Wheeled Bin” symbol on the product reminds you of your obligation, that when disposing the appliance, you need separately collect them.

Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Maintenance schedule:

To ensure the appliance continues to operate at peak performance, we recommend a routine service call every 3 years for the life of the appliance.

FOR SPARE PARTS OR TO FIND THE ADDRESS OF YOUR NEAREST STATE SPARE PARTS CENTRE IN AUSTRALIA

MIDEA HOME APPLIANCES AUSTRALIA PTY LTD

11/75 Lorimer Street, Docklands, Melbourne, 3008

After-sales service No.: 1800 88 60 10
