E90MEW2A09 - Range hood MIDEA - Free user manual and instructions

Product Type	Range Hood
Brand	MIDEA
Model	E90MEW2A09
Voltage	220-240 V ~ 50/60 Hz
Rated Power	213 W
Motor Power	210 W
Lighting Power	2 x 1.5 W (LED)
Max Airflow	600 m³/h
Noise Level	≤ 68 dB
Air Outlet Diameter	150 mm
Minimum Installation Height	650 mm above cooking surface
Control Type	Electronic push buttons
Speed Settings	3 speeds (Low, Mid, High) with delay-off
Grease Filter Type	High-density aluminum (dishwasher safe)
Carbon Filter	Optional, replace every 2-3 months
Cleaning Frequency	Every 2 months with non-corrosive detergent
Safety Features	Overheat protection, 3-min delay shutdown
Disposal	Recycle at local facility; cut power cord

Frequently Asked Questions - E90MEW2A09 MIDEA

What is the minimum distance between the range hood and the hob?

The minimum distance is 650 mm from the supporting surface for the cooking vessels to the lowest part of the hood. This ensures safe and effective operation.

How do I clean the grease filters?

The aluminum grease filters can be removed and cleaned in a dishwasher at a temperature below 60°C. Do not use abrasive detergents. Alternatively, wash by hand with hot water and non-corrosive detergent every two months.

Can I use the range hood with a gas stove or other fuel-burning appliances?

Yes, but ensure adequate ventilation in the room. The air must not be discharged into a flue used for exhausting fumes from gas or other fuel appliances. Always follow local regulations.

How do I replace the carbon filters?

Carbon filters are optional. Remove the grease filters first, then turn the carbon filters until they lock into place (see Fig.12 in the manual). Replace them every 2-3 months of use. They cannot be washed or recycled.

What should I do if the hood does not turn on?

First check the power cord and plug. If the light works but the motor doesn't, the blades may be blocked, the capacitor damaged, or the motor itself faulty. If neither works, check the light bulbs and wiring. Contact a qualified technician for repairs.

Why is my range hood vibrating or noisy?

Vibration can be caused by a damaged blade, loose motor, or loose mounting. Tighten all screws and ensure the hood is level. If noise persists, check the blade for damage and replace if necessary.

How do I adjust the fan speed?

Use the control buttons: Low, Mid, High for fixed speeds, or +/- keys for variable speeds (depending on model). Press Stop to turn off the motor. The Power button activates a 3-minute delay shutdown.

Is there a delay-off function?

Yes. While the hood is running, press the Power button to activate a 3-minute delay shutdown. The motor will continue at low speed and then turn off automatically. Press Power again to cancel the delay and shut down immediately.

What is the maximum airflow of this range hood?

The maximum airflow is 600 m³/h (tested at 230V~50Hz without carbon filters). Actual performance may vary depending on installation and ducting.

How should I dispose of the range hood at the end of its life?

Do not throw it in household waste. Take it to a local community waste collection or recycling center. Cut off the power cord and make the plug useless to prevent misuse. Follow local regulations for disposal.

USER MANUAL E90MEW2A09 MIDEA

Read this manual carefully before operation

Pictures in this manual are for reference only, the product in kind prevail.

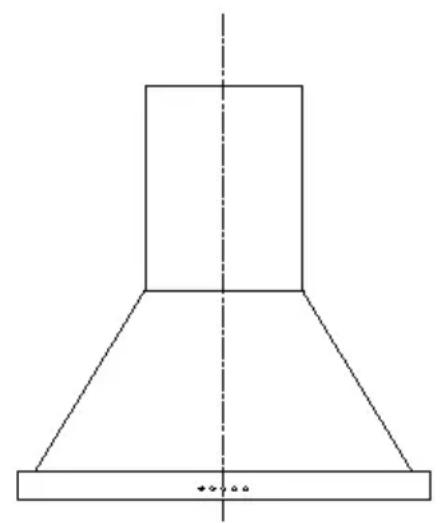

MODEL:E60MEW2A09

E90MEW2A09

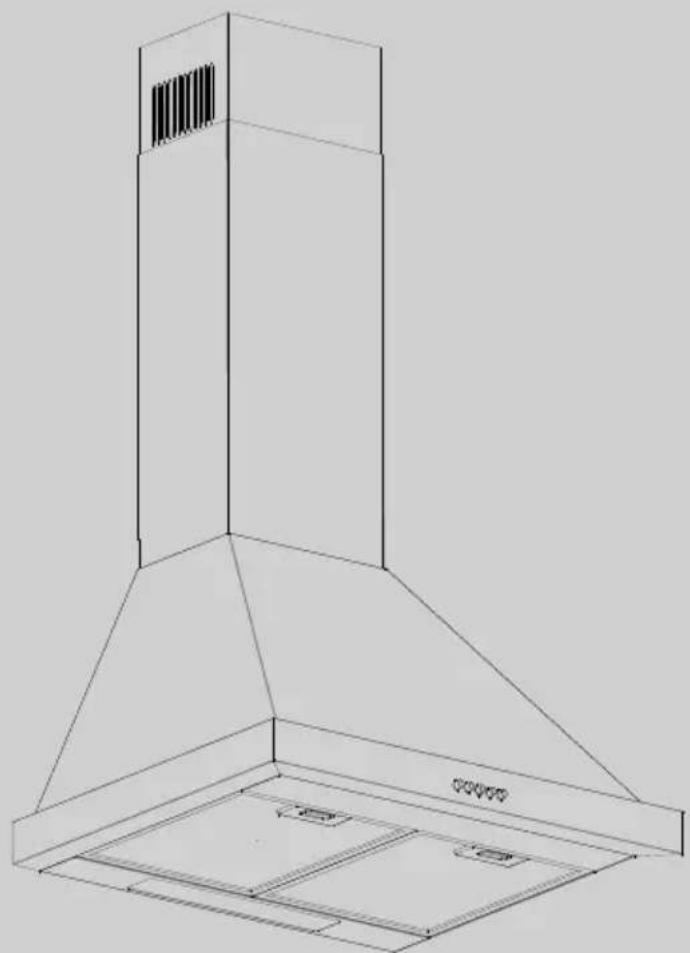

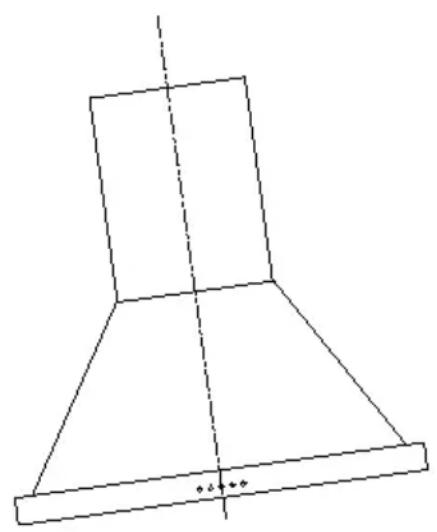

Line drawing of a double-bell kitchen chimney with ventilation grilles and mounting base (no text or symbols)

Contents

01 Contents....1
02 Warnings.... 2
03 Safety Warning....3
04 Notice of Installation.... 4
05 Use.... 7
06 Maintenance.... 10
07 Trouble Shooting.... 11
08 Main Parameters.... 12
09 Disposal.... 12

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels.
  ● The filter is made of high density aluminum.
• Please do not use corrosive detergent for cleaning. The proper function of the unit is conditioned by the regularity of the maintenance.
• To protect the main body from corrosive of the long time accumulation of dirt, the cooker hood should be cleaned with hot water with non-corrosive detergent every two months.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.
• Do not flame under the range hood.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels.
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood is 650 mm.
  ● Regulations concerning the discharge of air have to be fulfilled.
  ● The appliance uses 4 hob elements at most.

• CAUTION :Accessible parts may become hot when used with cooking appliances.

• The appliance is not intended for use by young children or infirm persons without supervisions.

• Young children should be supervised to ensure they do not play with the appliance.
• Plug the power cord to socket outlet with earthing continuity terminal.
• The cooker hood is for home use only, not suitable for barbecue, roast shop and other commercial purposes.
• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Do not use open flame, or allow oil to go beneath the appliance.
• If there is any fault occurred with the appliance, please call after-sale service department.
• Please keep the kitchen room ventilated.
• Prior to any maintenance, cleaning operation, ensure the power is cut off.
• If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified person in order to avoid a hazard. The replaced power cord should be provided by manufacturer or seller.
• If the plug or cord is damaged, please call after-sale service center.
• There is a fire risk if cleaning is not carried out in accordance with the instruction.
• In case of damaged connecting wire, please refer to the manufacturer, after-sale service personnel or other qualified technicians.
• Use the unit according to the instructions to avoid any fire hazard.
• The exhaust air must not be introduced into a smoke flue or chimney that is used for exhausting fumes from appliances burning gas.

• Follow the local laws applicable for external air evacuation.

• It can not share the same air ventilation tube with other appliance such as gas tube, warmer tube, and hot wind tube. There will be hazard of underpressure, combustion impaired and harmful gases drawn back.

• The bending of ventilation tube should be ≥ 120^ , parallel or above the start point/should be connected to the external wall.
• pPlacelehorizontally the aviosdallation plate is grease collection at one end. See Fig.1.

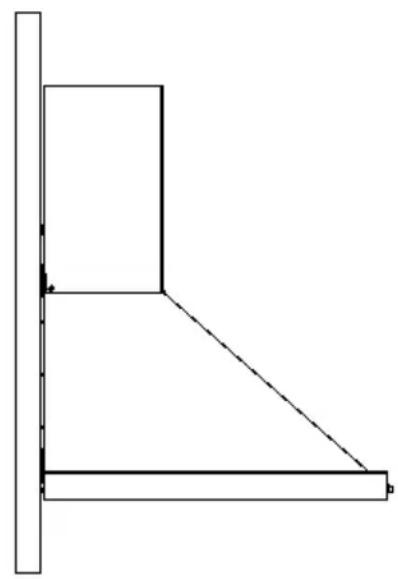

Simple line drawing of a conical chimney or fan shape with no text or symbols

Right

Pure technical line drawing of a conical shape with no text, numbers, or symbols

Wrong

Pure geometric line drawing of a right-angled structure with no text, numbers, or symbols

Fig.1

● After installation, make sure that plug can be pulled out if necessary.

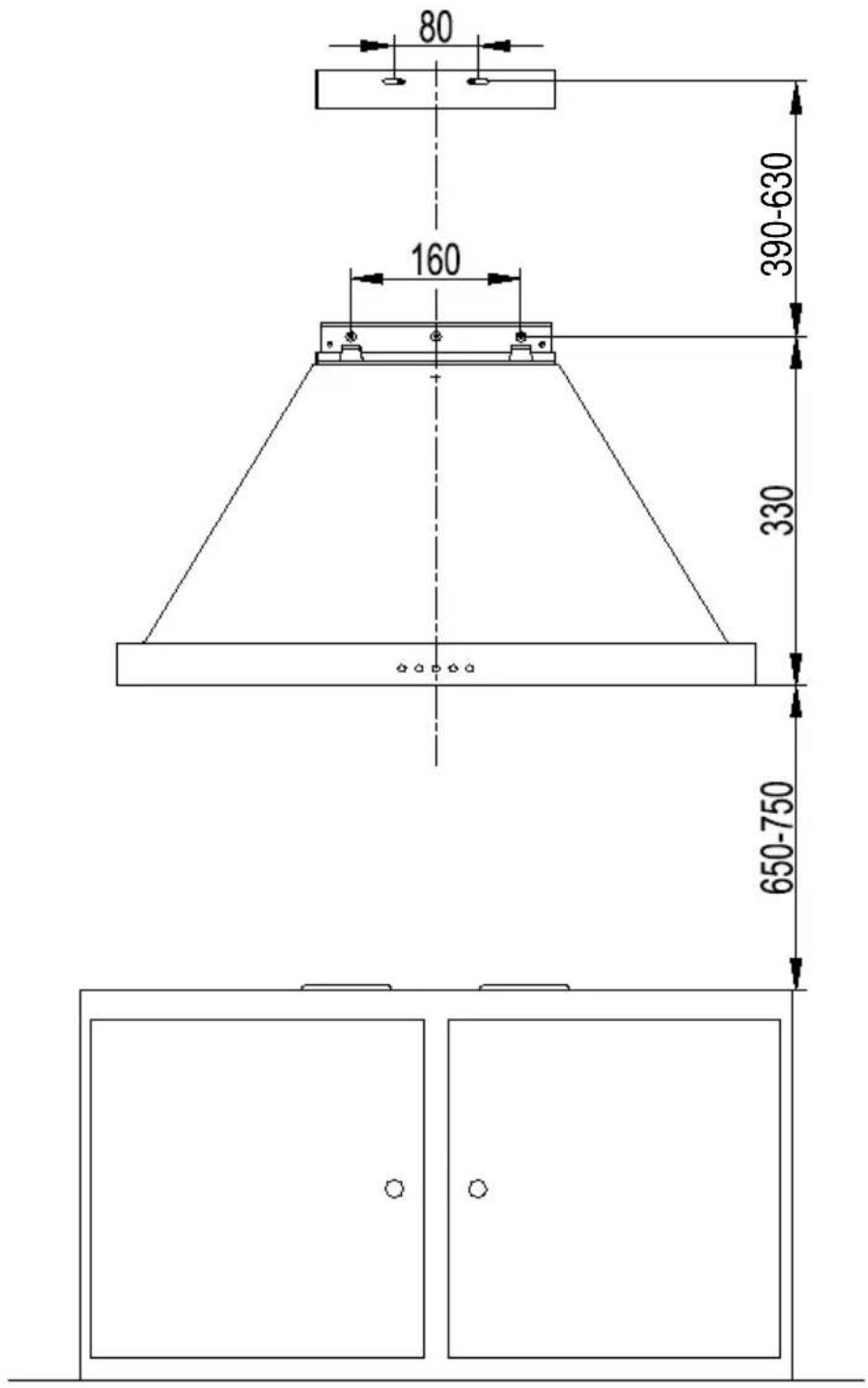

- ed 650e75Remhoop should be plac cooking plane for safe and a good effect. See Fig.2.
- There shall be adequate ventilation of the room when the cooker hood is working.

Fig.2

Fig.3

Installation

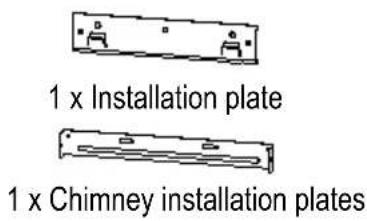

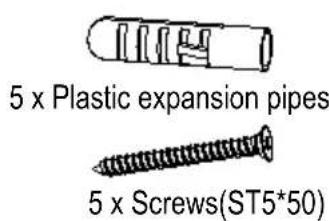

• Accessories. See Fig.3. (Type and quantity of accessories is subject to actual demand.)

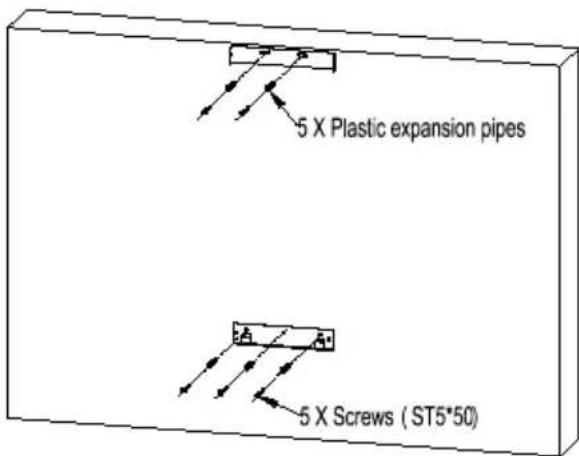

  ● Fix installation plate and extension chimney installation plate, See Fig.4.

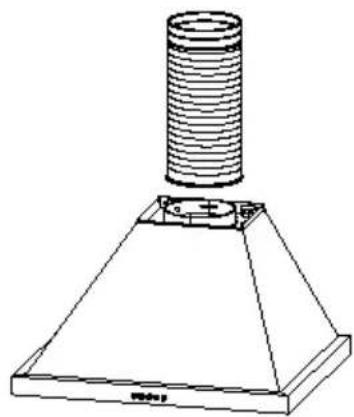

  ● Fix the exhaust pipe, See Fig.5.

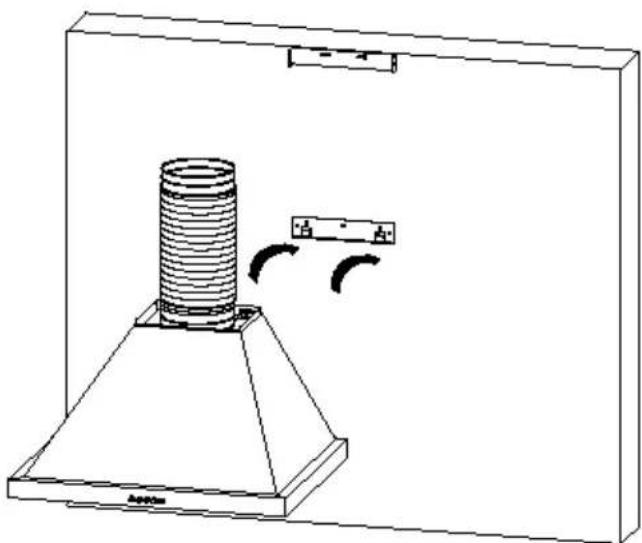

  ● Hang range hood on the installation plate. See Fig.6.

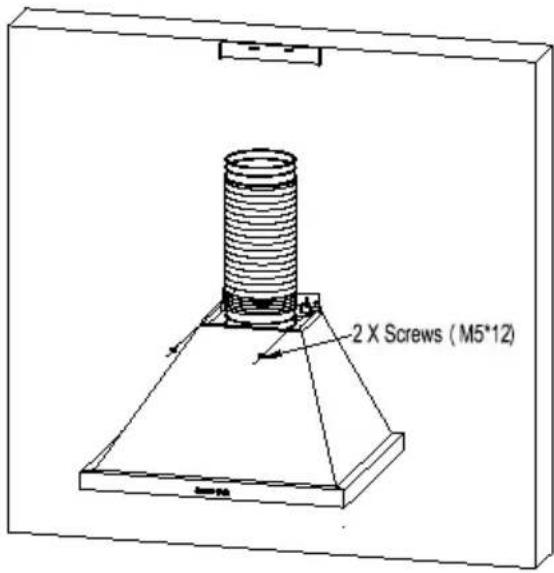

• After connecting the exhaust pipe well, lock screws (M5*12) to prevent the range hood from accidentally sliding off the installation plate. See Fig.7.

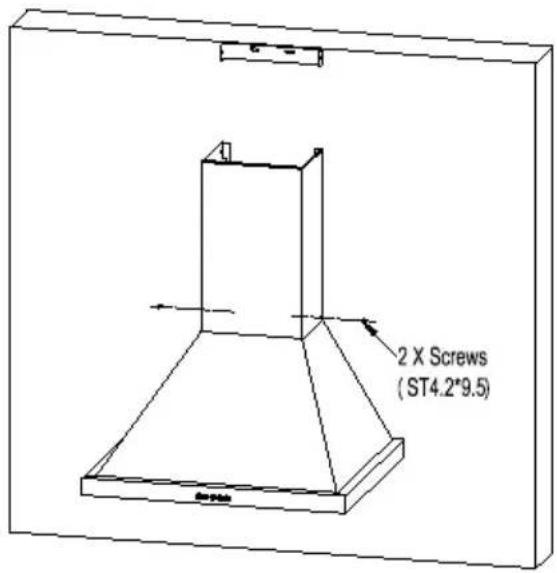

● Fix the chimney. See Fig.8.

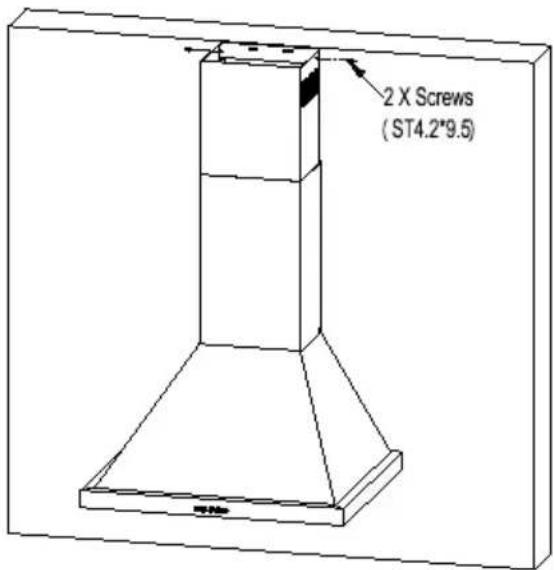

- Fix the extension See Fig. .

Fig.4

Technical line drawing of a mechanical component with a cylindrical top and base (no text or symbols)

Fig.5

Technical line drawing of a mechanical component with a spring-like base and cooling mechanism, shown without any text or symbols.

Fig.6

Fig.7 Fig.8

Fig.9

Fig.10.1

Use

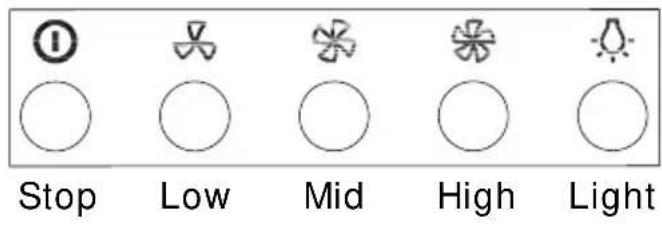

Speed adjustment. See Fig.10.1.(For some models)

• Press Stop button, the motor will stop running.
• Press the Low (speed) button, the motor runs at low speed.
• Press the Mid (speed) button, the motor runs at mid speed.
• Press the High (speed) button, the motor runs at high speed.
• Press the Light button, the two lighting lamps will come on.
• Press it again and the lamps will be turned off.

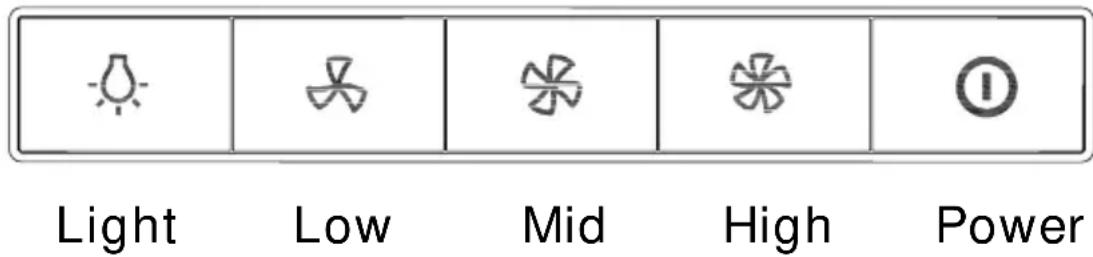

Speed adjustment. See Fig.10.2. (For some models)

- After telegraph, isuzonorecedo wdrcl

electricity. After the connection:

- Pess the Power output: condo standby state,

press this button, motor will run at low speed, and light for power and low speed button will be on; under power-on state, press this button, hood will enter 3-min-delay-shutdown state, press power button again under this state, the hood will turn off( motor stops running).

- Press the Light button, control light being on and off independently without any other buttons' help. Press it once, lights will be on.

Press again, they will be off.

- Press the High button, valid under power-on state. While running at middle or low speed mode, press this button, the hood will enter high speed mode. If already running at high speed, pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood cancels delay shutdown mode and enter high speed running state.

- Press the Low button, valid under power-on state. While running at high or middle speed mode, press this button, the hood will enter low speed mode. If already running at low speed, pressing this button takes no effect. In 3-min-delay-shutdown state, press it, the hood cancels delay shutdown mode and enter low speed running state.

Fig.10.2

Speed adjustment. See Fig.10.3. (For some mode)

After the hood is switched on, a beep sound heard and all key lights are lightened for 1 s, indicating the hood has been powered on. Under the condition of hood power-on:

• Power Key: control the motor power, under standby state, press the “power” button, “power” key light is on, the motor starts up at low speed, digital screen displays setting 1; under power-on state, press the “power” button, enter 3-min-delay-shutdown state, setting switched to low speed, the power key flashes at one second interval, which means entering delay-shutdown state; under delay-shutdown state, press the “power” button, it’s shut down immediately (motor stops running).
  ● Light Key: independently control the light on and off free from the effect of other keys. Press it once, the light is on, meanwhile the light key light is on; press again, the light is off and light key light is off too.
• Plus (+) Key: valid under power-on state, press plus (+) key once, motor speed increased one setting, digital tube displays corresponding setting. When the plus (+) key is pressed down, plus (+) key light is on. When at the highest setting, only give out key touch sound, the setting no longer changes.
• Minus (-) Key: valid under power-on state, press “minus (-)” key once, motor speed decreased one setting, digital tube displays corresponding setting. When the “minus (-)”key is pressed down, “minus (-)”key light is on. When at the lowest setting, only give out key touch sound, the setting no longer changes.

Light

Minus

Digital screen

Plus

Power

Fig.10.3

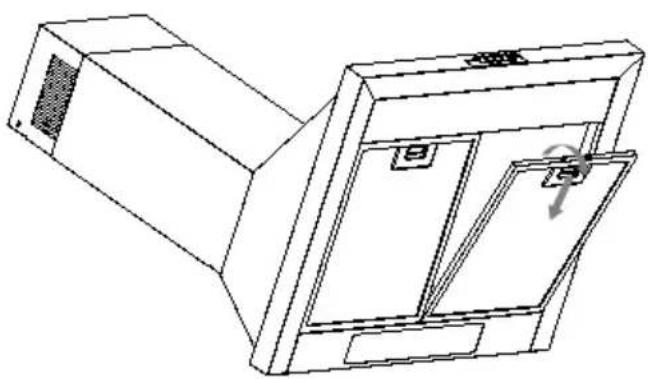

Cleaning of the filters

• Removing the filters according to Fig.11.
• Put into a dishwasher with detergent, set the temperature below 60 degrees.
• Please do not use abrasive detergent for it will damage the hood.
  ● Make sure that the hood is shut off before cleaning.

Technical line drawing of a mechanical device with a door and panel, showing internal components (no text or symbols)

Fig.11 Fig.1

2

Replacement of the carbon filters (Optional

• Remove the filters see Fig.11.
  ● The carbon filters are located at both end of the motor.

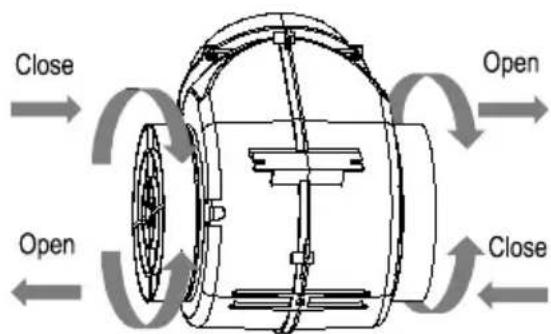

  Turn the carbon filters until they are locked. ee Fig.12
• Apply reverse procedure to remove the carbon filter.
• It should be replaced after approximately 2-3 months of use.
  ● The carbon filer cannot be washed or recycled.
  ● Carbon filter is not supplied with your appliance.

Fault	Cause Solution
Light on, but does not work.	The blades are blocked.
	The capacitor is damaged.	Replace capacitor.
	motorThe motor is damaged. Replace motor.
	The internal wiring of motor is cut off / disconnected. An unpleasant smell may be produced.	Replace motor.
Both light and do not work.	Apart from the above mentioned, check the following:
	light damaged. Replace lights.
	Power cord loose.	Connect the wires as per the electric diagram.
Oil leakage.	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
	Leakage from the connection of U-shaped section and cover.	Take U-shaped section down and seal with soap or paint.
Vibration.	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened. Fasten the motor tightly.
	The cooker hood is not tightly fixed. Fixed the cooker hood tightly.
Insufficient suction.	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines.	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tight enough.	Tighten the hanging screw and make it horizontal.

Electrical Diagram

● Electrical diagram see label on main body of the actual product.

egatloV	220-240V~50/60Hz
Rated Power	213W
Lighting Power	2 X 1.5W
Motor Power	210W
Diameter of air tube	150mm
wolf riA	600m3/h
esioN	≤68dB

The air flow parameter is tested under conditions of 230V\~ 50Hz when the voltage is 220-240V\~ 50/60Hz and without carbon filters.

Disposal

Please dispose of it at your local community waste collection / recycling center and ensure it presents no danger to children while being stored for disposal. The plug must be rendered useless and the cable cut off to prevent misuse.

The manufacturer shall decline all responsibility if the foregoing recommendations and instruction regarding installation, maintenance and use are not observed and respected when using the cooker hood.
