WR 32 - Wine cellar Equator - Free user manual and instructions

Product Type	Wine Cellar
Brand	Equator
Model	WR 32
Bottle Capacity	32 bottles (standard 750 ml)
Installation Type	Freestanding / Built-in
Dimensions (H x W x D)	820 x 595 x 575 mm
Net Weight	Approximately 30 kg
Power Supply	220-240 V, 50 Hz, 100 W
Energy Consumption	0.75 kWh/24h
Temperature Range	5°C to 18°C (41°F to 64°F)
Cooling System	Compressor with vibration-free technology
Defrosting	Automatic defrost
Interior Lighting	LED lighting with on/off switch
Shelves	5 adjustable wooden shelves
Door Lock	Yes, with key
Door Hinge	Reversible (left or right)
Temperature Control	Digital thermostat with LED display
Noise Level	< 40 dB
Climate Class	N/ST (16°C - 38°C ambient)
Refrigerant	R600a
Cleaning	Wipe interior with mild soap and water; avoid abrasive cleaners
Maintenance	Regularly dust condenser coils; check door seal
Safety Features	Overheat protection, child lock, automatic shut-off
Spare Parts	Available from Equator service centers: shelves, handles, LED lamps
Warranty	2 years limited warranty

Frequently Asked Questions - WR 32 Equator

How many bottles can the WR 32 hold?

The Equator WR 32 wine cellar can hold up to 32 standard 750 ml wine bottles when arranged properly on its adjustable shelves.

What is the temperature range of this wine cellar?

The temperature can be set from 5°C to 18°C (41°F to 64°F), making it suitable for both red and white wines.

Can the door be reversed?

Yes, the door hinge is reversible. You can change the opening direction from left to right or vice versa by following the instructions in the manual.

How do I clean the wine cellar?

Unplug the unit and wipe the interior with a soft cloth and mild soapy water. Avoid abrasive cleaners. The exterior can be cleaned with a damp cloth. Dry thoroughly before powering on.

Is the wine cellar noisy?

No, the compressor is designed for low vibration and noise. The noise level is typically below 40 dB, quieter than a refrigerator.

Does it have a lock?

Yes, the WR 32 comes with a door lock and two keys to secure your wine collection.

What is the power consumption?

The energy consumption is approximately 0.75 kWh per 24 hours, making it energy-efficient for a wine cellar of its size.

Can I install it under a counter?

Yes, the WR 32 is designed for freestanding or built-in installation. Ensure proper ventilation gaps (at least 5 cm at rear and sides) for airflow.

What should I do if the wine cellar is not cooling?

Check if it is plugged in and the temperature setting is correct. Also ensure the condenser coils are clean and the door is sealing properly. If the issue persists, contact Equator support.

How long is the warranty?

Equator provides a 2-year limited warranty on parts and labor. Register your product online to activate warranty coverage.

USER MANUAL WR 32 Equator

Pure diagram of a multi-tiered storage or rack structure with no text, numbers, or symbols

OWNER'S MANUAL

Warranty

Equator Appliances undertakes to the consumer-owner to repair or, at our option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use, in USA and Canada, for a period of one year from the date of original purchase. During this period, we will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been assembled and operated in\accordance with the written instructions with the appliance.

Exclusions

In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service call which does not involve defective workmanship or materials will be the responsibility of the consumer-owner

Specifically, the following work is not covered under warranty and does not constitute warranty work:

Installation - Insufficient spacing around appliance Maintenance - e.g. Cleaning the appliance using solvents Mishandling - e.g. Breakage of shelves

Most work is covered. The defining factor is, has the machine malfunctioned (Equator Appliances is responsible) or has the customer omitted or done something to cause the appliance to malfunction (customer is responsible). Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

WARRANTY SERVICE

This warranty is given by:

Equator Appliances

10222 Georgibelle Drive, Suite 200,

Houston, Texas 77043-5249

For Customer Service:

Appliance Desk

Business hours: 9:00 am to 5:00 pm weekdays

You can register your Warranty by either of the following methods:

1. Scan the QR Code

1. Register online at ApplianceDesk.com/Warranty
2. Cut out and mail the Warranty Card located on the last page.

GENERAL

Since it is a responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

All rights reserved. Manual subject to change without notice.

Safety

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Refrigerant and foaming material is flammable. Take precautions during handling, installation, and maintenance.

Ensure that the refrigerant circuit is not damaged.

Keep ventilation openings clear of obstructions.

When positioning the appliance, ensure the electrical cord is not trapped or damaged.

Do not place multiple portable socket-outlets at the rear of the appliance.

Never unplug the appliance by pulling on the power cord. Grip the plug firmly and pull straight out to remove from wall socket.

Do not use a damaged power cord.

Do not use an extension cord.

Children should be supervised to ensure that they do not climb on or play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Safe Disposal

Before discarding the appliance, remove the door in order to prevent risk of child entrapment.

Please dispose of this appliance in accordance with local regulations.

Installation

Do not tilt the Wine Refrigerator at an angle of more than 45^ when moving it.

Do not move the appliance while it is loaded with bottles.

Place the appliance away from sources of heat and high humidity, and also away from areas or moisture and exposure to cold temperatures.

After moving the Wine Refrigerator in place, let it stand upright for 10 minutes before turning it on.

Plug the appliance into a dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Check the plug and cable before you connect the power and ensure the correct voltage is 115V / 60Hz.

Ensure that the plug is accessible.

Place the Wine Refrigerator on a flat level surface, leaving 2 inches (5 cm) on either side and at least 3 inches (8 cm) between back of appliance and the wall.

The feet of the appliance can be adjusted to make it level.

Before use, clean the outside and inside surfaces with a damp soft cloth.

Operation

This appliance is intended for storage of wine and for household use only.

General Use

Store wine in sealed bottles.

Do not overload the cabinet and ensure that the door can be closed firmly.

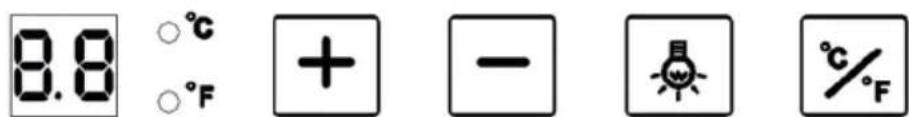

Temperature Setting

The power of the appliance is On when it is plugged in.

The appliance should be placed in a room where the temperature is between 32^^-101F (0 to 38 C).

The temperature range of the appliance is 41^ - 72F (5 C - 22 C).

Increase or decrease the temperature by pressing the + and - buttons.

Press the Light ON/OFF button to turn on the LED light inside the appliance.

Press the °C/ F button to change between C and F.

Maintenance

Make sure the power cord is unplugged before moving or cleaning the back of the appliance.

Clean the outside and inside of the appliance regularly, using water and mild detergent.

Troubleshooting

Problem	Possible Cause and Solution
Not Working	Check the power source.Check if it is plugged in correctly to the power source.
Not Cooling	Temperature is not set correctly. Adjust the temperature.Move unit if it is near heat source or direct sunlightCheck for proper ventilation and that air inlet or outlet is not blocked.Door opened frequently or not shut properly.Door seal is damaged.Too many bottles stored on the same shelf.
Too much noise	Appliance not placed on flat surface or not level.Adjust the feet to level it.Some parts are loose causing rattling.The appliance is against a wall.
Door does not close properly	Check the seal.Shelves are not positioned properly.Adjust the shelves.Check that bottles are stored correctly and fit in the cabinet.

The following are normal:

• Moisture on the glass door – wipe with dry cloth
  • Sound of fluid is the compressor when it is starting or stopping
• Flowing sound of refrigerant in the refrigeration system
• Condensation forming inside the cabinet – wipe with dry cloth

Specification Table

Model	WR 32
Capacity	32 Bottles (3.3 cu.ft)
Electrical	115V / 60Hz
Refrigerant	R600a
Temperature	41°F – 71.6°F
Net Weight	55.1 lbs
Product Dimensions (HxWxD)	39” x 19” x 20”

California Proposition 65

WARNING: This product contains chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Warranty Registration Card

Name (Mr/Mrs/Ms):
Address:		Apt#
City:	State:	Zip:
Phone 1:	Phone 2:
Email*:
Product:	Model#:
Purchased At:		Purchase Date:
Used in: □House □Apt/Condo □Office □Vacation Home □RV/Boat □Other

Place Stamp Here

To: Warranty Registration 10222 Georgibelle Drive, Suite 200 Houston, TX 77043-5249
