BR 140 - Wine cellar Equator - Free user manual and instructions

Product Type	Wine Cellar
Brand	Equator
Model	BR 140
Capacity	140 bottles (standard 750ml)
Dimensions (H x W x D)	85 cm x 60 cm x 70 cm
Weight	55 kg
Power Supply	220-240 V, 50 Hz
Energy Consumption	180 kWh per year
Temperature Range	5 °C to 18 °C
Temperature Control	Electronic thermostat with digital display
Cooling System	Compressor-based, vibration-free
Interior Light	LED, automatically on when door opens
Door	Reversible, double-glazed glass with UV protection
Shelves	6 wooden sliding shelves
Humidity Control	Passive, maintained via natural convection
Noise Level	< 42 dB
Installation	Freestanding or built-in (ventilation required)
Lock	Key lock included
Climate Class	SN-ST
Cleaning	Interior: mild soap and water; exterior: soft cloth
Safety	Automatic defrost, child lock (via control panel)
Spare Parts	Available from authorized service centers
Repairability	Modular design, accessible components
Warranty	2 years
Certifications	CE, RoHS

Frequently Asked Questions - BR 140 Equator

What is the capacity of the Equator BR 140 wine cellar?

The Equator BR 140 holds up to 140 standard 750 ml bottles.

What is the temperature range of this wine cellar?

The temperature can be set from 5 °C to 18 °C for optimal wine storage.

Is the door reversible?

Yes, the door is reversible for left or right opening.

Does it have a lock?

Yes, it includes a key lock for security.

How do I clean the wine cellar?

Use mild soap and water for the interior and a soft cloth for the exterior. Avoid abrasive cleaners.

Can this wine cellar be built-in?

Yes, it can be used as freestanding or built-in, but ensure proper ventilation.

What is the noise level?

The noise level is below 42 dB, suitable for quiet environments.

Does it have interior lighting?

Yes, it features LED interior lighting that turns on automatically when the door is opened.

How many shelves does it have?

It comes with 6 wooden sliding shelves for easy access.

What is the energy consumption?

The estimated yearly energy consumption is 180 kWh.

USER MANUAL BR 140 Equator

Front view of a simple kitchen appliance with a double door and side panel (no text or symbols)

OWNER'S MANUAL

Warranty

Equator Appliances undertakes to the consumer-owner to repair or, at our option, to replace any part of this product which proves to be defective in workmanship or material under normal personal, family or household use, in USA and Canada, for a period of one year from the date of original purchase. During this period, we will provide all labor and parts necessary to correct such defect, free of charge, if the appliance has been assembled and operated in\accordance with the written instructions with the appliance.

Exclusions

In no event shall Equator Appliances be liable for incidental or consequential damages or for damages resulting from external causes such as abuse, misuse, incorrect voltage or acts of God. This warranty does not cover service calls which do not involve defective workmanship or materials covered by this warranty. Accordingly, diagnosis and repair costs for a service call which does not involve defective workmanship or materials will be the responsibility of the consumer-owner

Specifically, the following work is not covered under warranty and does not constitute warranty work:

Installation - Insufficient spacing around appliance Maintenance - e.g. Cleaning the appliance using solvents Mishandling - e.g. Breakage of shelves

Most work is covered. The defining factor is, has the machine malfunctioned (Equator Appliances is responsible) or has the customer omitted or done something to cause the appliance to malfunction (customer is responsible). Some States do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

WARRANTY SERVICE

This warranty is given by:

Equator Appliances

10222 Georgibelle Drive, Suite 200,

Houston, Texas 77043-5249

For Customer Service:

Appliance Desk

Business hours: 9:00 am to 5:00 pm weekdays

You can register your Warranty by either of the following methods:

1. Scan the QR Code

1. Register online at ApplianceDesk.com/Warranty

2. Cut out and mail the Warranty Card located on the last page.

GENERAL

Since it is a responsibility of the consumer-owner to establish the warranty period by verifying the original purchase date, Equator Appliances recommends that a receipt, delivery slip or some other appropriate payment record be kept for that purpose.

This warranty gives you specific legal rights, and you may also have other rights which vary from State to State.

All rights reserved. Manual subject to change without notice.

Safety

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

Refrigerant and foaming material is flammable. Take precautions during handling, installation, and maintenance.

Ensure that the refrigerant circuit is not damaged.

Keep ventilation openings clear of obstructions.

When positioning the appliance, ensure the electrical cord is not trapped or damaged.

Do not place multiple portable socket-outlets at the rear of the appliance.

Never unplug the appliance by pulling on the power cord. Grip the plug firmly and pull straight out to remove from wall socket.

Do not use a damaged power cord.

Do not use an extension cord.

Children should be supervised to ensure that they do not climb on or play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Safe Disposal

Before discarding the appliance, remove the door in order to prevent risk of child entrapment.

Please dispose of this appliance in accordance with local regulations.

Installation

Do not tilt the Refrigerator at an angle of more than 45^ when moving it.

Do not move the appliance while it is loaded with bottles or cans.

Place the appliance away from sources of heat and high humidity, and also away from areas or moisture and exposure to cold temperatures.

After moving the Refrigerator in place, let it stand upright for 10 minutes before turning it on.

Plug the appliance into a dedicated, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord.

Check the plug and cable before you connect the power and ensure the correct voltage is 115V / 60Hz.

Ensure that the plug is accessible.

Place the Refrigerator on a flat level surface, leaving 2 inches (5 cm) on either side and at least 3 inches (8 cm) between back of appliance and the wall.

The feet of the appliance can be adjusted to make it level.

Before use, clean the outside and inside surfaces with a damp soft cloth.

Operation

This appliance is intended for storage of beverages and for household use only.

General Use

Do not overload the cabinet.

Ensure that the door can be closed firmly.

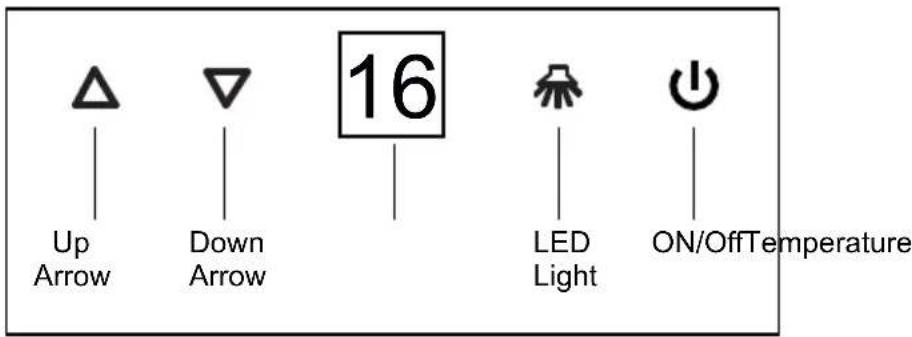

Temperature Setting

Press the Power On/Off button to turn the appliance on.

Press the Light On/Off button to turn on the LED light inside the refrigerator.

The appliance should be placed in a room where the temperature is between 32^ F - ^ 101 F (0 C - 38 C).

The temperature range of the appliance is 34°F - 72 F (1 C - 22 C).

Increase or decrease the temperature by pressing the Up and Down arrows. The temperature is shown on the display screen.

Pressing the Up and Down arrows for 5 seconds will display the temperature as °F or C.

Maintenance

Ensure the power cord is unplugged before moving or cleaning the back of the appliance.

Clean the outside and inside of the appliance regularly, using water and mild detergent.

Troubleshooting

Problem	Possible Cause and Solution
Not Working	Check the power source.Check if it is plugged in correctly to the power source.
Not Cooling	Temperature is not set correctly. Adjust the temperature.Move unit if it is near heat source or direct sunlightCheck for proper ventilation and that air inlet or outlet is not blocked.Door opened frequently or not shut properly.Door seal is damaged.Too many bottles/cans stored on the same shelf.
Too much noise	Appliance not placed on flat surface or not level.Adjust the feet to level it.Some parts are loose causing rattling.The appliance is against a wall.
Door does not close properly	Check the seal.Shelves are not positioned properly.Adjust the shelves.Check that bottles are stored correctly and fit in the cabinet.

The following are normal:

• Moisture on the glass door – wipe with dry cloth
  • Sound of fluid is the compressor when it is starting or stopping
• Flowing sound of refrigerant in the refrigeration system
• Condensation forming inside the cabinet – wipe with dry cloth

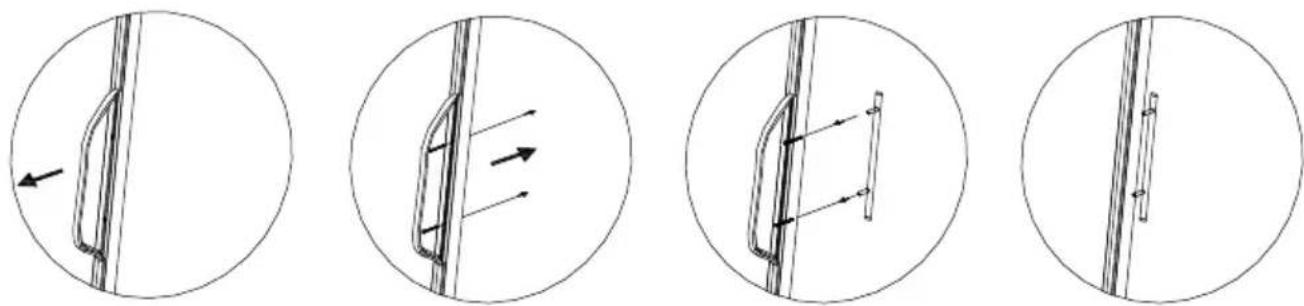

Installing the Door Handle

Install the handle according to the following steps:

1. Pull out the door seal where the handle is to be installed.

2. Using the screws provided and a screwdriver, fasten the door handle.

3. Replace the door seal back in position.

Four-panel diagram showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Specification Table

Model	BR 140
Capacity	1.4 cu.ft
Electrical	110V / 60Hz
Refrigerant	R600a
Temperature	34°F - 72°F
	53 / 66 lbsWeight Net / Gross
Product Dimensions (HxWxD)	17.3" x 25" x 15"

California Proposition 65

WARNING: This product contains chemical known to the State of California to cause cancer and birth defects or other reproductive harm.

Warranty Registration Card

Name (Mr/Mrs/Ms):
Address:		Apt#
City:	State:	Zip:
Phone 1:	Phone 2:
Email*:
Product:	Model#:
Purchased At: Purchase Date:
Used in: □House □Apt/Condo □Office □Vacation Home □RV/Boat □Other

Place Stamp Here

To: Warranty Registration 10222 Georgibelle Drive, Suite 200 Houston, TX 77043-5249
