Product Type	Built-in fridge-freezer
Brand	Liebherr
Model	ICNh 5123
Total Net Capacity	350 L
Fridge Net Capacity	250 L
Freezer Net Capacity	100 L
Energy Efficiency Class	E
Annual Energy Consumption	250 kWh
Noise Level	35 dB(A)
Climate Class	SN-T
Dimensions (H x W x D)	177.0 x 55.9 x 54.6 cm
Weight	65 kg
Power Supply	220-240 V, 50 Hz
Star Rating	4 stars
Freezing Capacity	10 kg/24h
Storage Time in Power Failure	20 h
NoFrost Technology	Yes (freezer)
Control Type	Electronic with display
Door Alarm	Yes
Defrosting	Automatic (fridge), manual (freezer)
Cleaning	Use mild detergent, avoid abrasive cleaners
Safety Features	Child lock, temperature alarm
Repairability Index	8.5/10

Frequently Asked Questions - ICNh 5123 LIEBHERR

How do I adjust the temperature on my Liebherr ICNh 5123?

Use the electronic control panel on the front. Press TEMP to cycle through zones (fridge/freezer) and use +/- to set desired temperature. Recommended settings: fridge 4°C, freezer -18°C.

Why is my fridge not cooling properly?

Check if the appliance is level, doors are fully closed, and ventilation grills are not blocked. Also ensure the temperature settings are correct. If problem persists, contact Liebherr customer service.

How often should I clean the condenser?

Clean the condenser (located at the back or bottom) every 6-12 months using a vacuum cleaner or soft brush to ensure efficient operation.

What does the NoFrost feature mean?

NoFrost automatically prevents ice build-up in the freezer. The unit periodically defrosts itself, so you never have to manually scrape ice. It also maintains a constant temperature.

Can I install the ICNh 5123 in a garage?

The climate class is SN-T, meaning it can operate in ambient temperatures from 10°C to 43°C. For garages, ensure the temperature stays within this range.

How do I change the door hinge?

The appliance allows reversible door mounting. Follow the instructions in the manual: remove screws, exchange hinges, and reattach door on the opposite side. Use caution due to weight.

What is the power failure storage time?

The freezer can keep food frozen for up to 20 hours after a power cut if the door remains closed. The fridge compartment stays cool for several hours.

How do I activate the child lock?

Press and hold the SUPERCOOL and SUPERFROST buttons simultaneously for 5 seconds until the lock icon appears on the display. Repeat to disable.

Where can I get spare parts for my Liebherr fridge?

Original spare parts are available through Liebherr authorized service centers or online via the Liebherr store. Use the model number ICNh 5123 when ordering.

What should I do if the display shows an alarm?

An alarm (visual or audible) usually indicates a door left open, high temperature, or power failure. Check the display for error codes and refer to the manual troubleshooting section. Press ALARM/OFF to mute.

USER MANUAL ICNh 5123 LIEBHERR

Abstract graphic with three gray blocks: a padlock, a snowflake with asterisks, and a power button symbol (no text or labels)

Solid dark blue background with no visible text, symbols, or patterns.

User Guide

Quality, Design and Innovation

home.liebherr.com/fridge-manuals

Abstract graphic with three white icons: a bell, a starburst symbol, and a Wi-Fi signal symbol, set against a light gray background (no text or labels)

LIEBHERR

Contents

1 Appliance at a glance.... 3

1.1 Scope of delivery.... 3

1.2 Overview of the appliance and equipment...... 3

1.3 SmartDevice.... 3

1.4 Appliance range of use.... 4

1.5 Conformity.... 4

2 General safety instructions.... 4

3 Functionality of the Touch display.... 6

3.1 Navigation and symbol explanation.... 6

3.2 Menus....6

3.3 Sleep mode....7

4 Putting into operation....7

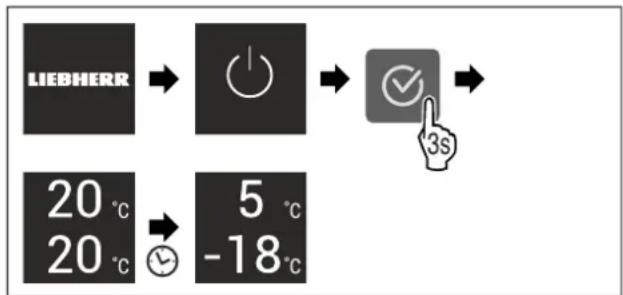

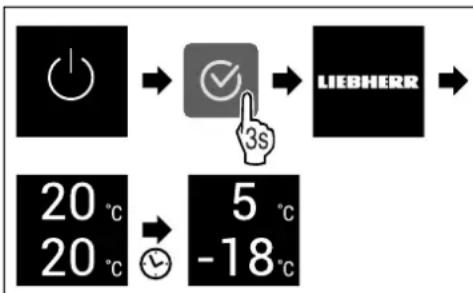

4.1 Switching on appliance (first use)...... 7

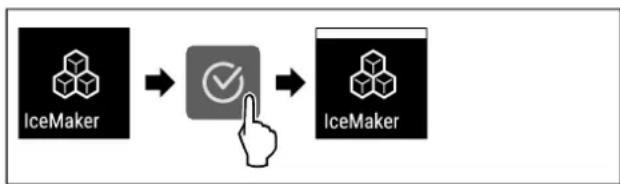

4.2 Starting the IceMaker for the first time*....7

5 Storage....8

5.1 Information regarding storage....8

5.2 Fridge compartment....8

5.3 EasyFresh 8

5.4 Freezer compartment....8

5.5 Storage times....9

6 Saving energy....9

7 Controls....9

7.1 Controls and displays.... 9

7.1.1 Status display....9

7.1.2 Display symbols....9

7.2 Appliance functions.... 9

7.2.1 Notes on the appliance functions....9

Switching the appliance off and on....9

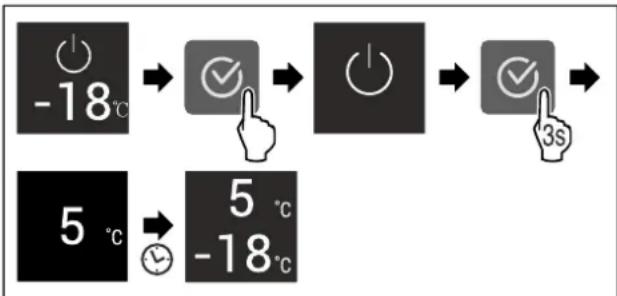

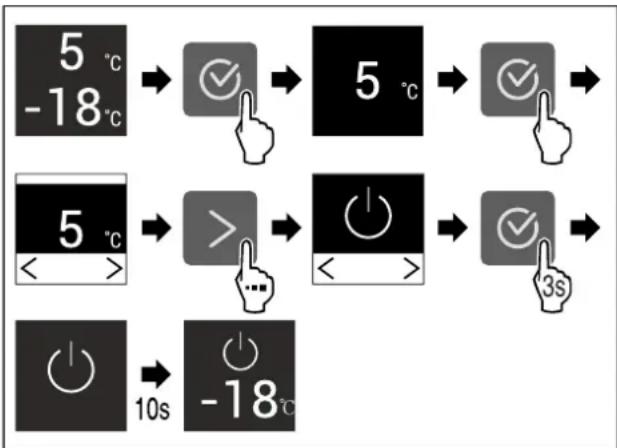

Switching temperature zone off and on....10

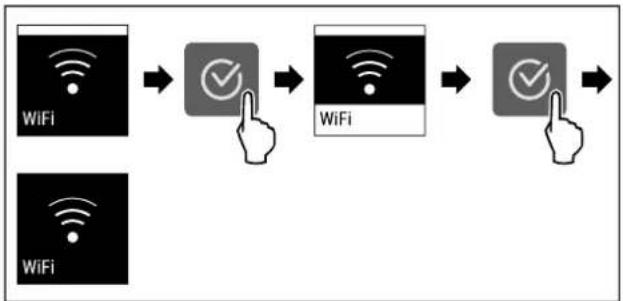

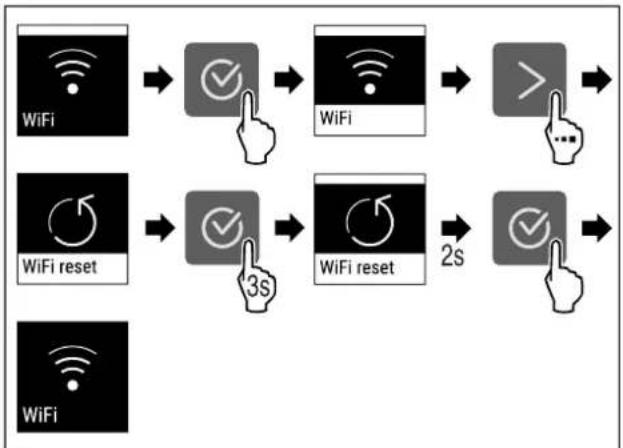

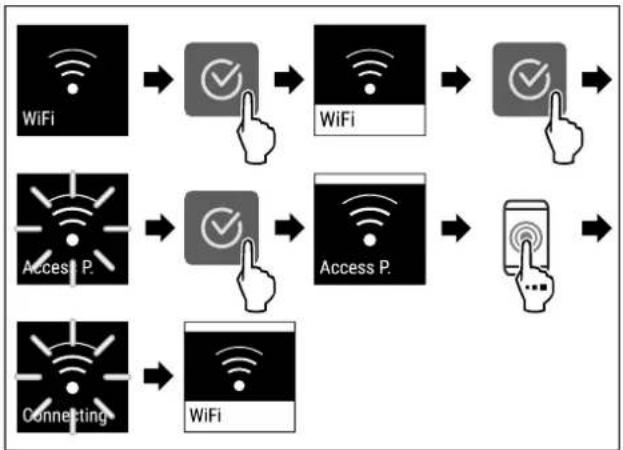

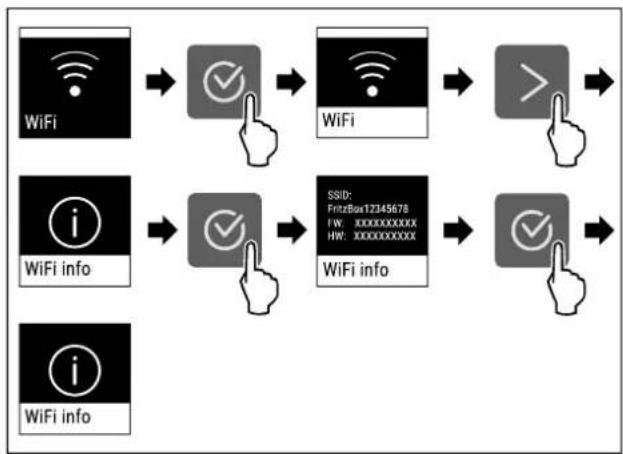

WiFi....10

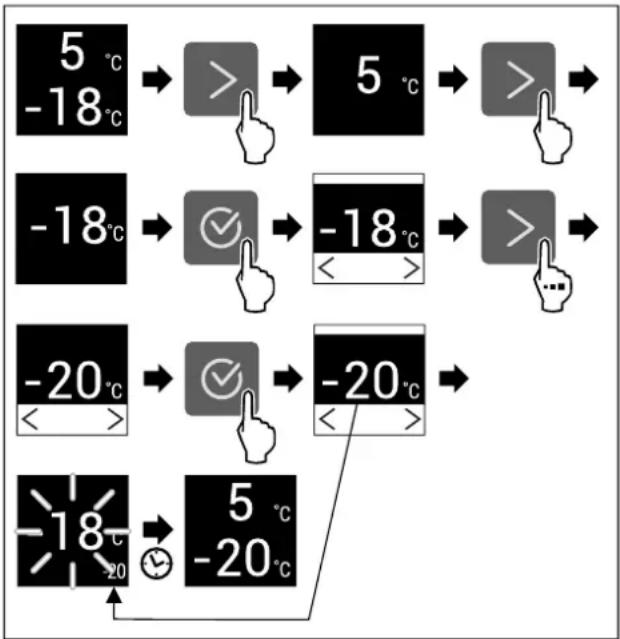

Temperature....11

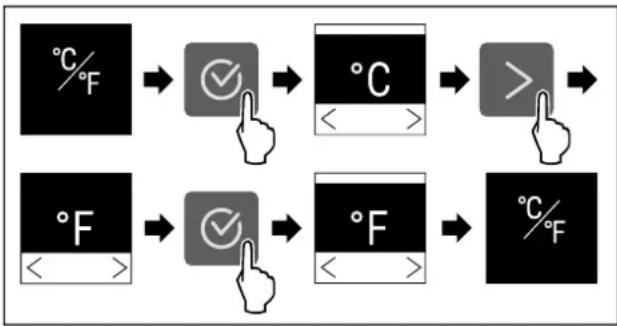

°C/ Temperature unit....12

D-Value*....12

SuperCool....12

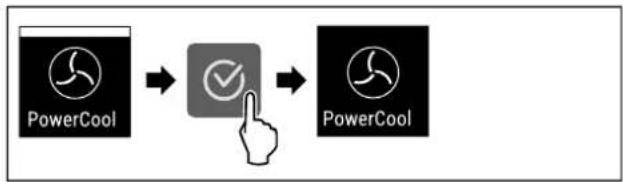

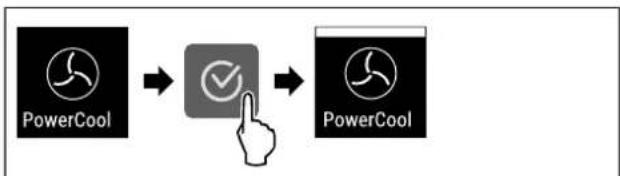

PowerCool 13

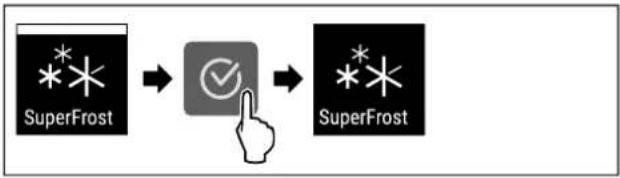

* , SuperFrost....13

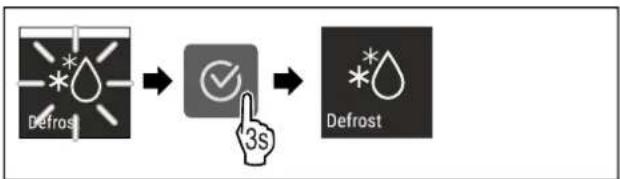

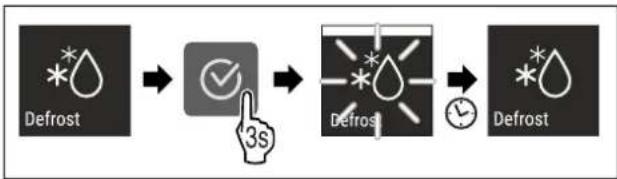

Start defrosting cycle....14

PartyMode 14

HolidayMode....14

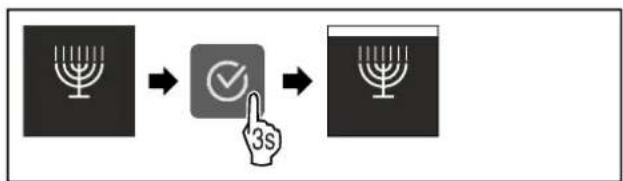

SabbathMode....15

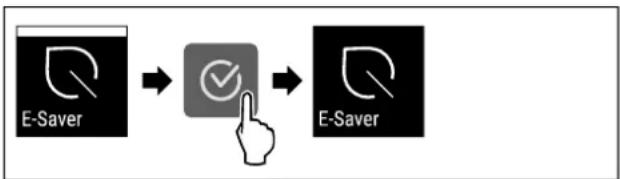

E-Saver 16

IceMaker * 16

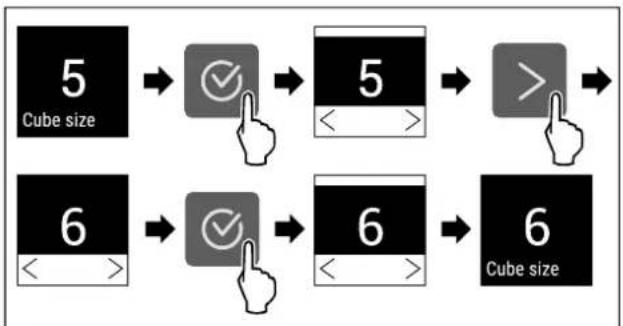

IceMaker water supply*....16

7.3 Messages.... 21

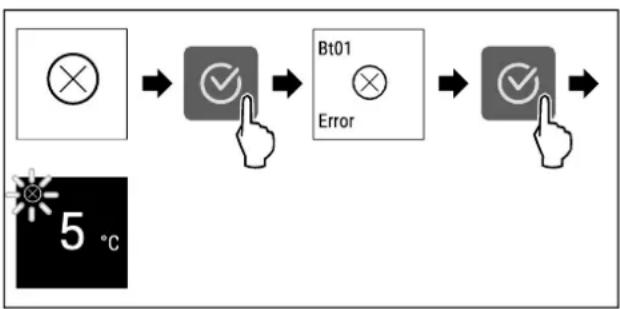

7.3.1 Overview of warnings....21

7.3.2 Ending warnings....21

7.3.3 Overview of reminders....22

7.3.4 Ending reminders....22

8 Features.... 23

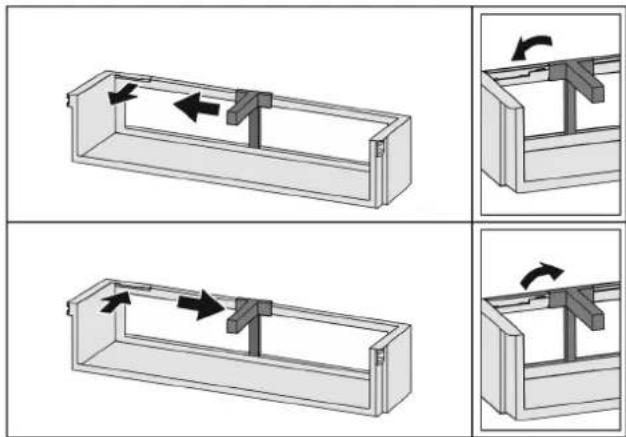

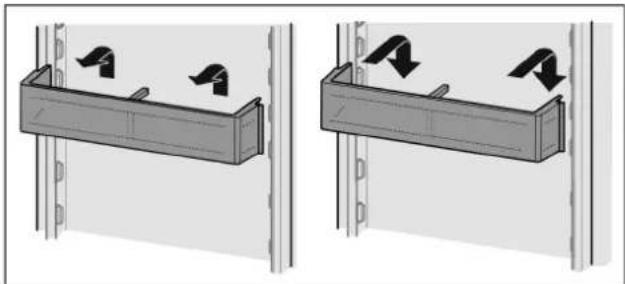

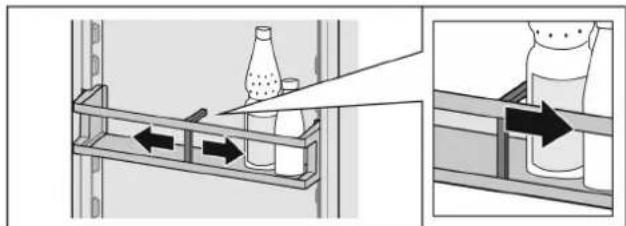

8.1 Door rack 23

8.2 Shelves 23

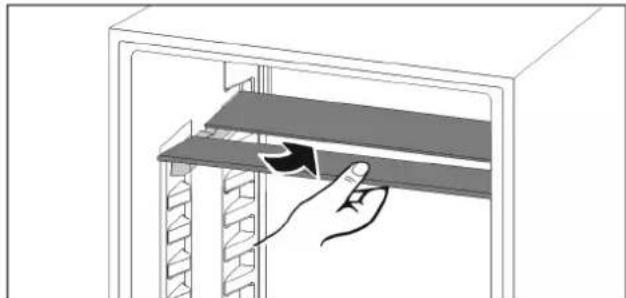

8.3 Dividing shelf* 24

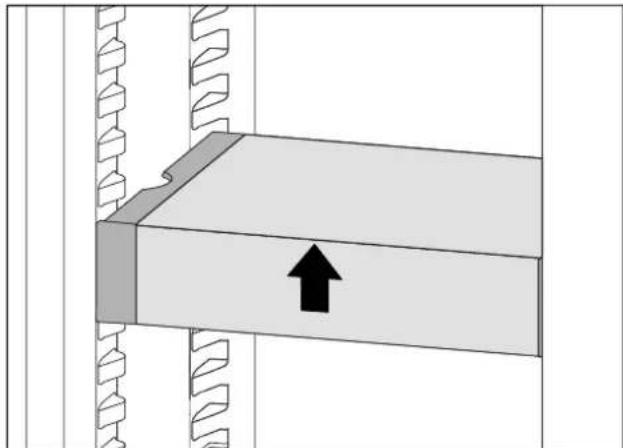

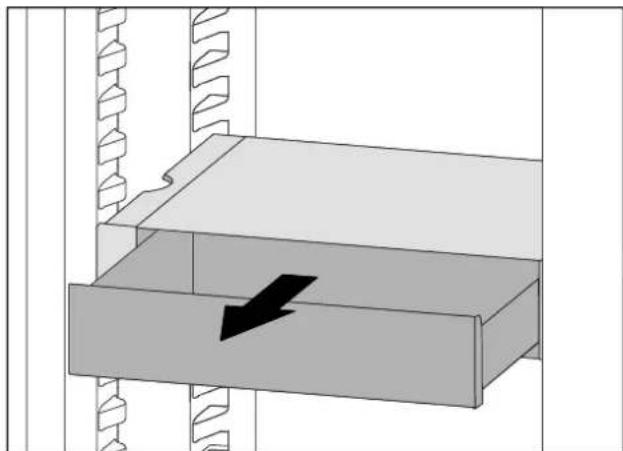

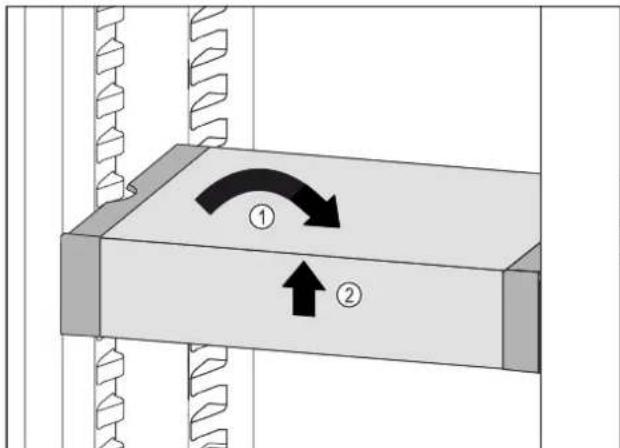

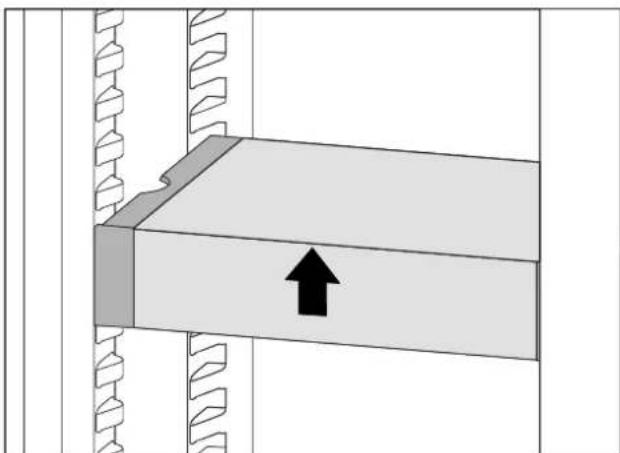

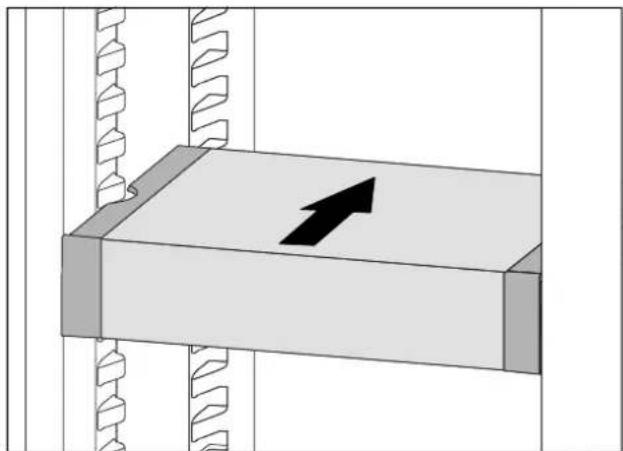

8.4 VarioSafe * 24

8.5 Space for baking tray.... 26

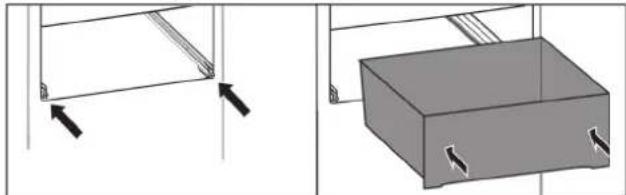

8.6 Drawers.... 26

8.7 EasyFresh-Safe cover 28

8.8 Adjusting the moisture levels.... 28

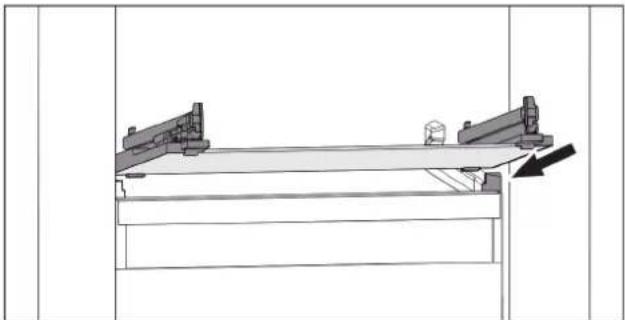

8.9 Glass shelves.... 28

8.10 IceMaker* 29

8.11 VarioSpace.... 30

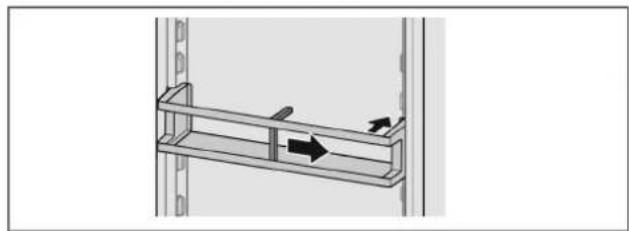

8.12 Bottle holder.... 30

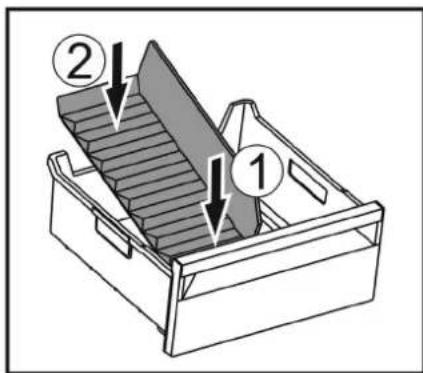

8.13 Flexible ice compartment divider* 30

9 Maintenance.... 30

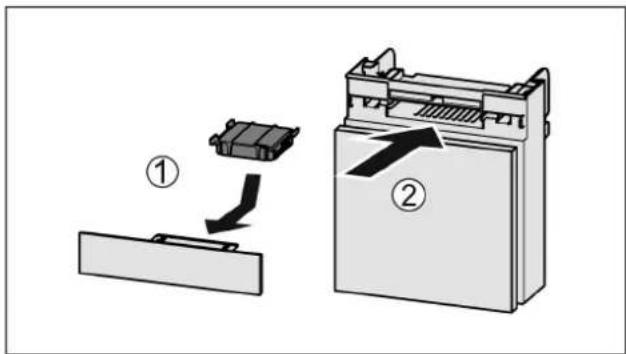

9.1 FreshAir carbon filter 30

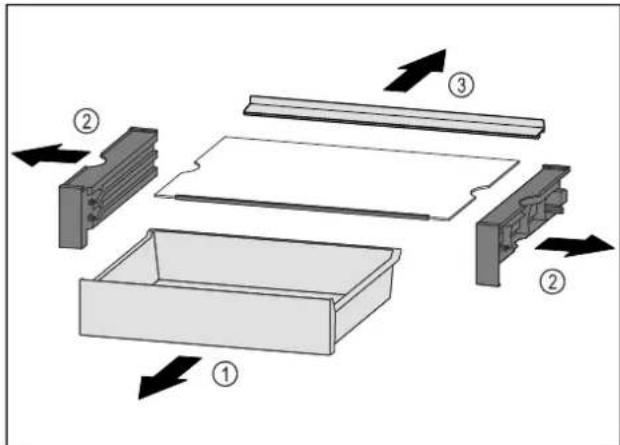

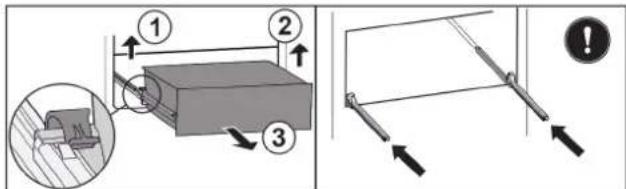

9.2 Disassembling / assembling pull-out systems..... 31

9.3 Defrosting the appliance.... 31

9.4 Cleaning the appliance.... 31

10 Customer help.... 33

10.1 Technical specifications.... 33

10.2 Operating noises.... 33

10.3 Technical fault.... 33

10.4 Customer Service 35

10.5 Model plate 35

11 Shutting down.... 35

12 Disposal.... 35

12.1 Preparing appliance for disposal.... 35

12.2 Disposing of the appliance in an environmentally friendly manner.... 35

The manufacturer is continually working on the further development of all types and models. Please be aware that we reserve the right to make changes to the shape, equipment and technology.

Symbol Explanation

Read instructions

Please read the information in these instructions carefully to understand all of the benefits of your new appliance.

Additional information on the Internet

The digital manual with additional information can be found via the QR code on the front of the manual or by entering the service number at home.liebherr.com/fridge-manuals.

The service number can be found on the serial tag:

Check all parts for transport damage. If you have any complaints, please contact your agent or customer service.

Differences

These instructions apply to a range of models, so differences are possible. Sections that apply to certain models only are marked with an asterisk (*).

Instructions and results

Instructions are marked with a ▶

Results are marked with a ▷

Videos

Videos about the appliances are available on the YouTube channels of Liebherr-Hausgeräte.

These operating instructions apply to:

ICN(h) 51..

Note

If your appliance has an N in its appliance designation, it is a NoFrost appliance.

1 Appliance at a glance

1.1 Scope of delivery

Check all parts for transport damage. Contact your dealer or customer service in the event of complaints. (see 10.4 Customer Service)

Your new appliance comes with the following parts:

• Built-in appliance
• Features (depending on the model)
• Installation materials (depending on the model)
• "Quick Start Guide"
• "Installation Guide"

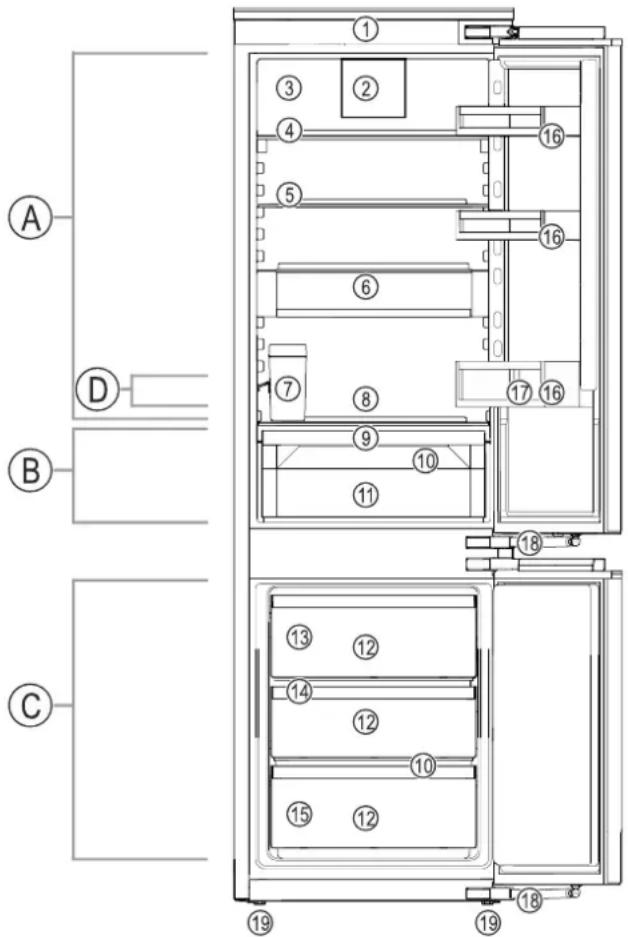

1.2 Overview of the appliance and equipment

Fig. 1 Example illustration

Temperature range

(A) Fridge section (C) Freezer section
(B) EasyFresh (D) Coldest area

Equipment

(1) Controls (11) EasyFresh-Safe
(2) Fan with FreshAir activated charcoal filter (12) Freezer drawer
(3) Dry rear wall* (13) IceMaker*
(4) Divisible shelf* (14) VarioSpace
(5) Shelf (15) Type plate
(6) VarioSafe* (16) Door racks

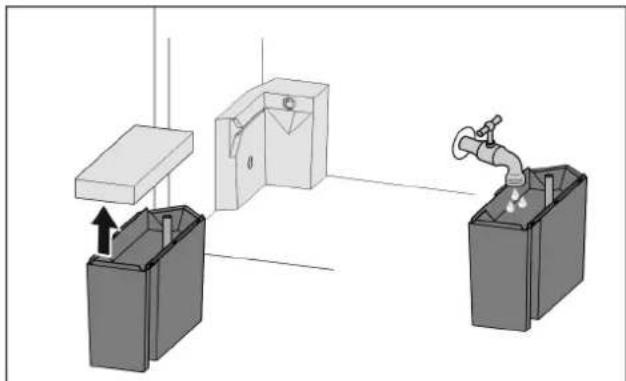

(7) IceMaker water tank* (17) Bottle holder
(8) Space for baking tray (18) Closing damper*
(9) Lid for EasyFresh-Safe (19) Adjustable feet
(10) Drain opening

Note

▶ Shelves, drawers and baskets are arranged for optimum energy efficiency when the appliance is delivered. Changing how the shelves, for example, are inserted in the fridge compartment does not have any impact on energy consumption.

1.3 SmartDevice

SmartDevice is the networking solution for your fridge-freezer.

If your appliance SmartDevice-enabled or compatible, you can quickly and easily connect your appliance to your WiFi. With the SmartDevice app, you can operate your appli-

ance from a mobile device. Additional functions and setting options are available in the SmartDevice SmartDevice app.

SmartDevice-compatible appliance:

Your appliance is compatible for use with the SmartDeviceBox. You must first purchase and install the SmartDeviceBox. In order to connect your appliance to the WiFi, you need to download the SmartDevice app.

More information smartdevice.liebherr.com about SmartDevice:

Purchasing the home.liebherr.com/shop/de/deu/smartDeviceBox smartdevicebox.html in the Liebherr- Hausgeräte store:

Downloading the SmartDevice app:

After installing and configuring the SmartDevice, you can connect your appliance to the WiFi using the SmartDevice app and the WiFi appliance function (see WiFi).

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

1.4 Appliance range of use

Intended use

The appliance is only suitable for cooling food products in a domestic or household-like environment. This includes, for example, use:

• in staff kitchens, bed and breakfast establishments,
• by guests in country houses, hotels, motels and other accommodation,
• for catering and similar services in the wholesale trade.

All other types of use are not permitted.

Foreseeable misuse

The following applications are expressly forbidden:

• Storing and refrigerating medicines, blood plasma, laboratory preparations or similar substances and products based on the Medical Device Directive 2007/47/EC
• Use in outdoor areas with very high humidity *
• Use in areas at risk of explosions

Misusing the appliance may lead to damage to the goods stored or they may spoil.

Climate classifications

Depending on the climate classification the appliance is designed to operate in restricted ambient temperatures. The climate classification applying to your appliance is printed on the rating plate.

Note

▶ Keep to the specified ambient temperatures in order to guarantee that the appliance works properly.

Climate classification	for ambient temperatures of
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C

1.5 Conformity

The refrigerant circuit has been tested for leaks. When installed, the appliance complies with the applicable safety regulations and with the corresponding directives.

The full text of the EU Declaration of Conformity is available on the following website: www.Liebherr.com

2 General safety instructions

Please keep these instructions in a safe place and pass them on to any subsequent owners.

Read these operating instructions carefully before use to ensure safe and correct use of the appliance. Follow the instructions, safety instructions and warning messages included at all times. They are important for ensuring you can operate and install the appliance safely and without any problems.

Danger for the user:

- This device can be used by children and people with impaired physical, sensory or mental abilities or with a lack of experience and knowledge provided that they are supervised or have received instruction in the safe use of this device, and about the resulting hazards. Children must not play with this appliance. Cleaning and user maintenance work must not be carried out by children without adult supervision. Children aged between 3 and 8 are allowed to load and unload the appliance. Children below the age of 3 must be kept away from

the appliance unless they are under continuous adult supervision.

• The socket must be easily accessible so that the appliance can be disconnected quickly from the electricity in an emergency. It must not be located in the area behind the appliance.
• When disconnecting the appliance from the supply, always take hold of the plug. Do not pull the cable.
• In the event of a fault pull out the mains plug or deactivate the fuse.
• Do not damage the mains power cable. Do not operate the appliance with a defective mains power cable.
• If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
• Only customer service or other specially trained staff may repair or perform other operations on the appliance.
• Only install, connect and dispose of the appliance according to the instructions.
• Only use the appliance when is installed.
• Special lights, such as LED lights on the appliance, are used to illuminate the interior of the appliance and are not suitable for room lighting.

Fire hazard:

• This appliance contains a refrigerant which is environmentally friendly, but flammable. Leaking refrigerant may ignite. It is hazardous for anyone other than an Authorised Service Person to service this appliance. In Queensland, the authorised Service Person MUST hold a Gas Work Authorisation for hydrocarbon refrigerants, to carry out Servicing or repairs where the gas system is being opened or charged.

• The coolant used (information on the model plate) is ecofriendly but also flammable. Any leaking coolant may ignite.

• Do not damage the refrigerant circuit pipes.

• Do not handle ignition sources inside the appliance.
• Do not use electrical appliances inside the appliance (e.g. steam cleaners, heaters, ice cream makers, etc.).
• If the refrigerant leaks: remove any naked flames or ignition sources from the vicinity of the leakage point. Properly air the room. Inform customer services.
• Do not store explosives or sprays using combustible propellants such as butane,

propane, pentane, etc. in the appliance. To identify these spray cans, look for the list of contents printed on the can, or a flame symbol. Gases possibly escaping may ignite due to electrical components.

• Keep burning candles, lamps and other items with naked flames away from the appliance so that they do not set the appliance on fire.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• Please be sure to store alcoholic drinks or other packaging containing alcohol in tightly closed containers. Any alcohol that leaks out may be ignited by electrical components.

Danger of tipping and falling:

- Do not misuse the plinth, drawers, doors etc. as a step or for support. This applies particularly to children.

Danger of food poisoning:

- Do not consume food which has been stored too long.

Danger of frostbite, numbness and pain:

• Avoid prolonged skin contact with cold surfaces or refrigerated/frozen goods or take protective measures, e.g wear gloves.
• Do not consume ice cream, water ice or ice cubes immediately and do not consume them too cold.

Danger of injury and damage:

• Hot steam can lead to injury. Do not use electrical heating or steam cleaning equipment, open flames or defrosting sprays to defrost.
• Do not use sharp implements to remove the ice.

Risk of crushing:

- Do not hold the hinge when opening and closing the door. Fingers may get caught.

Symbols on the appliance:

This symbol may be located on the compressor. It relates to the oil in the compressor and makes reference to the risk that: Swallowing or inhaling can be fatal. This advice is only relevant to recycling. There is no danger in normal operation.

This symbol is located on the compressor and indicates the danger of flammable materials. Do not remove the sticker.

This or a similar sticker may be located on the rear of the appliance. This sticker indicates that there are vacuum insulation panels (VIP) or perlite panels in the door and/or housing. This advice is only relevant to recycling. Do not remove the sticker.

Please note the warning messages and other specific advice in the other chapters:

	DANGER	indicates an immediately hazardous situation which will lead to death or serious injuries if it is not avoided.
	WARNING indicates a hazardous situation which may lead to death or serious injuries if it is not avoided.
	CAUTION indicates a hazardous situation which may lead to minor or moderate injuries if it is not avoided.
	NOTICE indicates a hazardous situation which may lead to damage to property if it is not avoided.
	Note indicates useful instructions and tips.

3 Functionality of the Touch display

You operate your appliance using the Touch display. You select appliance functions in the Touch display (hereafter referred to as display) by tapping them. If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.

3.1 Navigation and symbol explanation

In the illustrations, different symbols are used to navigate the display. The following table describes these symbols.

Symbol		Description
		Press the Next navigation arrow:Navigates to the next option in the menu.
		Press the Back navigation arrow:Jumps back one option in the menu.

Symbol Description
		Press the navigation arrow several times in succession:Navigates in the menu to the desired function.
		Press the Confirm symbol:Activates/deactivates function.Open submenu.
		Press the Confirm symbol together with the back icon:Jumps back one menu level.
		Arrow with clock:It takes more than 10 seconds for the following message to appear in the display.
		Arrow with a time indication:It takes the specified amount of time until the following message appears in the display.
		"Open Settings menu" symbol:Navigates to the Settings menu and opens the settings menu.If necessary: Navigate to the desired function in the Settings menu.(see 3.2.1 Opening the Settings menu)
		"Open Advanced menu" symbol:Navigates to the Advanced menu and opens the advanced menu.If necessary: Navigate to the desired function in the Advanced menu.(see 3.2.2 Opening the Advanced menu)
No action for 10 seconds		If you do not perform any action on the display for 10 seconds, the display either jumps back to the higher-level menu or directly to the status display.
Opening door and closing it again		If you open the door and immediately close it again, the display jumps directly back to the status display.

Note: Illustrations of the display are shown in the English version.

3.2 Menus

The appliance functions can be found in various menus.

Menu	Description
Main menu When you switch the appliance on, you are automatically in the main menu.From here you can navigate to the most important appliance functions, to the Settings menu and to the Advanced menu.
Menu Description
Settings Settings menu	The Settings menu contains additional appliance functions for setting up your appliance.(see 3.2.1 Opening the Settings menu)
Advanced menu	The advanced menu contains special appliance functions for setting up your appliance. Access to the Advanced menu is protected by the numerical code 151.(see 3.2.2 Opening the Advanced menu)

3.2.1 Opening the Settings menu

Fig. 2 Example illustration

▶ Carry out action steps according to the illustration.

▷ Settings menu is open.

▶ If necessary: Navigate to the desired function.

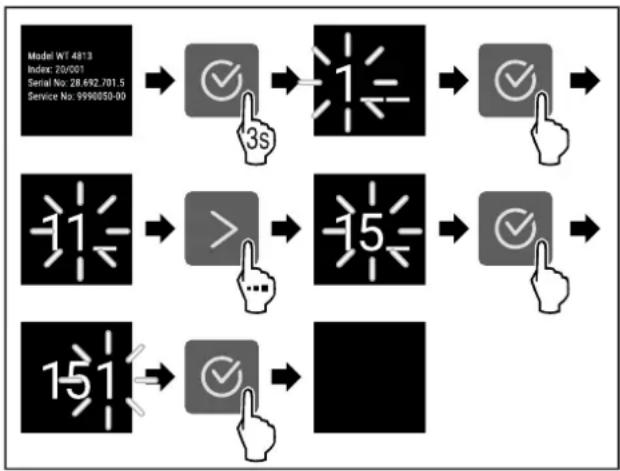

3.2.2 Opening the Advanced menu

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 3

Fig. 4 Example illustration, access with numerical code 151

▶ Carry out action steps according to the illustration.

▷ The expanded menu is open.

▶ If necessary: Navigate to the desired function.

3.3 Sleep mode

If you do not touch the display for 1 minute, the display switches to sleep mode. In sleep mode, the display brightness is dimmed.

3.3.1 Ending sleep mode

▶ Press any navigation key.

▷ Sleep mode is ended.

4 Putting into operation

4.1 Switching on appliance (first use)

Make sure that the following requirements are fulfilled:

☐ The appliance is properly installed and connected according to the installation instructions.

☐ All adhesive strips, adhesive and protective films and transport locks are removed from inside and on the appliance.

☐ All marketing leaflets are removed from the drawers.

☐ You are familiar with the functionality of the Touch display. (see 3 Functionality of the Touch display)

Switch on the appliance using the Touch display:

▶ If the display is in sleep mode: Briefly touch the display.

▶ Carry out action steps according to the illustration.

Fig. 5 Example illustration

▷ The status display appears.

▷ The appliance cools to the temperature set at the factory.

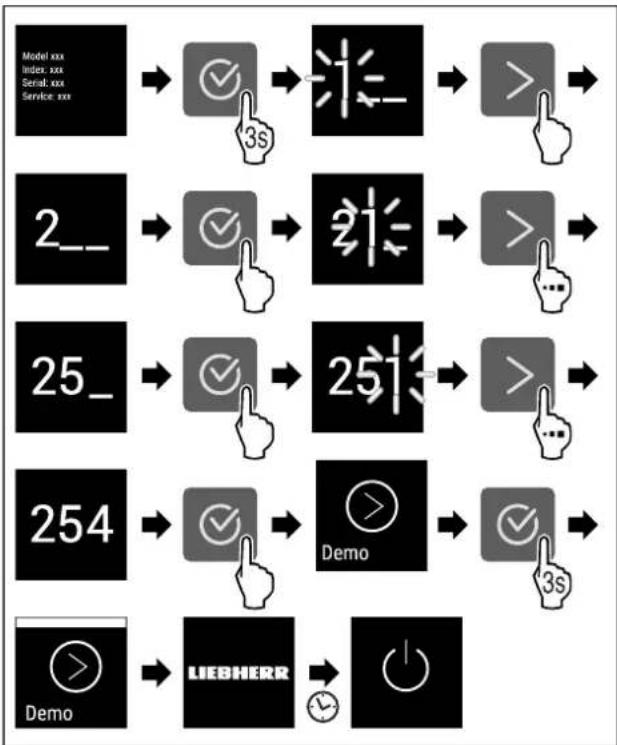

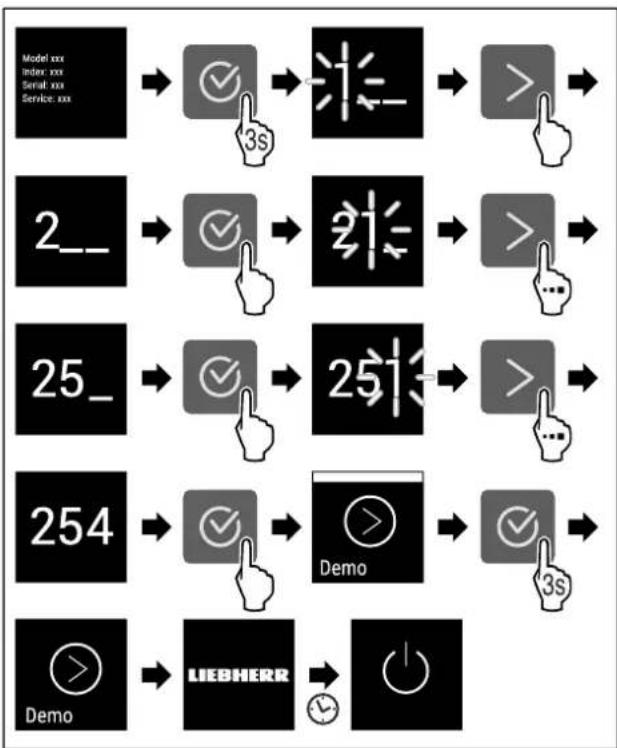

The appliance starts in demo mode (status display with DEMO appears): If the appliance starts in demo mode, you can deactivate demo mode within the next 5 minutes. (see Demo mode)

More information:

- Start the IceMaker for the first time. (see 4.2 Starting the IceMaker for the first time*) *

- Start the SmartDevice for the first time. (see 1.3 SmartDevice) and (see WiFi)

Note

The manufacturer recommends:

▶ Stock with food: Wait for around 6 hours until the set temperature is reached.

▶ Store frozen foods at -18 °C or colder.

▶ Observe the notes on storing food. (see 5.1 Information regarding storage)

Note

Accessories can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

4.2 Starting the IceMaker for the first time\*

If your appliance is equipped with IceMaker, you must clean the IceMaker before using it for the first time.

Make sure that the following requirements are fulfilled:

☐ The appliance is properly installed and connected.

▶ Clean the IceMaker and water tank. (see 9.4.5 Cleaning the IceMaker*) *

▶ Fill the water tank. (see 8.10.1 Fill the water tank*) *

5 Storage

5.1 Information regarding storage

WARNING

Risk of fire

▶ Do not use any electrical appliances in the food area of the appliance unless recommended by the manufacturer.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Always keep air slots clear.

Observe the following specifications for storage:

• In the freezer compartment: Package food properly.
• Package or cover foods that readily take on or give off odours or taste in closed containers.
• Package raw meat or fish in clean, closed containers. This will prevent meat or fish from touching or dripping onto other food.
• Keep liquids in closed containers.
• Leave space between goods to ensure good air circulation.
• Store food according to the instructions on the packaging.
• Always observe the best-before date indicated on the packaging.

Note

Failure to follow these guidelines can lead to foodstuffs spoiling.

5.2 Fridge compartment

The air circulation in the appliance creates different temperature zones. You will find the different temperature zones in the appliance and equipment overview. (see 1.2 Overview of the appliance and equipment)

5.2.1 Arranging your food properly

▶ Upper area and door: Store butter, cheese, tinned food and tubes.
▶ Coldest temperature zone: Store perishable foods such as pre-cooked meals, meat and lunch meats.
▶ Bottom shelf: Store raw meat or fish.

5.3 EasyFresh

EasyFresh is great for non-packaged foods, such as fruit and vegetables.

The humidity in the compartment depends on the moisture content of the chilled goods placed in it, and also depends on how often the compartment is opened. You can regulate the humidity level. (see 8.8 Adjusting the moisture levels)

5.3.1 Arranging your food properly

▶ Store unpackaged fruit and vegetables. If the humidity is too high:
▶ Regulate the humidity. (see 8.8 Adjusting the moisture levels)

5.4 Freezer compartment

Here, a dry, frosty storage climate is created at -18 °C. The frosty storage climate is suitable for storing frozen food for several months, for making ice cubes or freezing fresh food.

5.4.1 Freezing food

Freezing quantity

The maximum amount of fresh food that you can freeze within 24 hours is specified on the type plate (see 10.5 Model plate) under "Freezing capacity ... kg/24h".

To ensure that food quickly freezes through, adhere to the following quantities per package:

• Fruit and vegetables up to 1 kg
• Meat up to 2.5 kg

Freezing food using SuperFrost

Depending on the quantity to be frozen, you can activate SuperFrost before freezing in order to achieve lower freezing temperatures. (see SuperFrost)

▶ Activate SuperFrost if the amount of food you have to freeze is more than approx. 2 kg.

The time at which you activate SuperFrost depends on the amount of food you have to freeze:

Freezing quantity	Time at which you should activate SuperFrost
Small amount of food to freeze	Activate SuperFrost about 6 hours before freezing.You can place the food in the freezer as soon as the appliance automatically deactivates SuperFrost.
Maximum amount of food to freeze	Activate SuperFrost about 24 hours before freezing.You can place the food in the freezer as soon as the appliance automatically deactivates SuperFrost.

Arranging your food properly

CAUTION

Risk of injury from broken glass!

Bottles and cans with beverages can burst during freezing. This applies in particular to carbonated beverages.

▶ Only freeze bottles and cans with beverages if you have activated the BottleTimer function in the SmartDevice app.

Freezing quantity A	Arranging your food properly
Small amount of food to freeze	Distribute packaged groceries throughout all drawers.If possible, place groceries at the back of the drawer near the rear wall.
Maximum amount of food to freeze	Distribute packaged groceries throughout all drawers.If possible, place groceries at the back of the drawer near the rear wall.

5.4.2 Defrosting food

WARNING

Risk of food poisoning!

▶ Do not re-freeze thawed food.

▶ Use defrosted foodstuff as soon as possible.

You can defrost food in several ways:

- In the fridge compartment

- In the microwave

• In the oven/fan-assisted oven
• At room temperature
  ▶ Take out only as much food as necessary.

5.5 Storage times

Refer to the specified storage times as a guide.

In the case of foods with a minimum shelf life, the date indicated on the packaging still applies.

5.5.1 Fridge section

Always follow the best-before date stated on the packaging.

5.5.2 Freezer compartment

Recommended storage period for various types of food
Ice cream at -18 °C 2 to	6 months
Sausages, ham at -18 °C	2 to 3 months
Bread, baked goods at	18 °C 2 to 6 months
Game, pork at -18 °C 6 to	9 months
Fatty fish at -18 °C 2 to	6 months
Lean fish at -18 °C 6 to	8 months
Cheese at -18 °C 2 to 6 months
Poultry, beef at -18 °C 6 to	12 months
Vegetables, fruit at -18 °C 6 to	12 months

6 Saving energy

• Pay attention to good ventilation. Do not cover ventilation holes or grids.
• Always keep the fan air slits clear.
• Do not install the appliance in direct sunlight or near radiators or similar sources of heat.
• If the appliance is installed directly next to an oven, the energy consumption may increase slightly. This is dependent on the service life and usage intensity of the oven.
• Energy consumption depends on the installation conditions, e.g. the ambient temperature (see 1.4 Appliance range of use). A warmer ambient temperature can increase the energy consumption.
• Open the appliance for as short a time as possible.
• The lower the temperature is set the higher the energy consumption.
• Sort your food: home.liebherr.com/food.
• Keep all food properly packed and covered. This prevents frost from forming.
• Only take food out for as long as necessary so that it doesn't warm up too much.
• Inserting warm food: allow to cool down to room temperature first.
• Thaw frozen food in the refrigerator.
• For longer periods of absence, use HolidayMode (see HolidayMode).

7 Controls

7.1 Controls and displays

7.1.1 Status display

Fig. 6

(1) Temperature display of the fridge section

(2) Freezer compartment temperature display

The Status display shows the set temperature and is the home display. From there, you can navigate to the options and settings.

7.1.2 Display symbols

Display symbols provide information on the current appli-ance status:

Symbol	Appliance status
	StandbyThe appliance or temperature zone is switched off.
	Flashing numberAppliance is working. Temperature flashes until the set value is reached.
	Flashing symbolAppliance is working. Setting is made.
	Bar grows steadilyFunction is activated.

7.2 Appliance functions

7.2.1 Notes on the appliance functions

The appliance functions are set at the factory so that your appliance is fully functional.

Before you alter, activate or deactivate the device functions, make sure that the following requirements are met:

☐ You have read and understood the descriptions of how the display works. (see 3 Functionality of the Touch display)
☐ You have familiarised yourself with the operating and display elements of your appliance.

Switching the appliance off and on

Use this function to switch the entire appliance off and on.

Switching off the appliance

When you switch the appliance off, then the previously saved settings are saved.

Make sure that the following requirements are fulfilled:

☐ Handling instructions (see 11 Shutting down) are carried out.

Fig. 7

Fig. 8
▶ Carry out action steps according to the illustration.
▷ Appliance is switched off.
▷ The standby symbol appears in the display.
▷ Display turns black.

Switching on the appliance

If the display is in sleep mode:

▶ Press any navigation key.

Fig. 9 Example illustration
▶ Carry out action steps according to the illustration.
When the appliance starts in demo mode:
▶ Deactivating demo mode. (see Deactivating demo mode)
▷ The appliance is switched on.
▷ Previous settings are restored.
▷ The appliance cools to the target temperature set.

Switching temperature zone off and on

You can switch temperature zones of the appliance off independently.

Application:

Cleaning

- Defrosting

Switching the fridge compartment off

Make sure that the following requirements are fulfilled:

☐ Refrigerator compartment has been emptied.

Fig. 10 Example illustration
▶ Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched off.

Switching the fridge compartment on

Fig. 11 Example illustration
▶ Carry out action steps according to the illustration.
▷ Refrigerator compartment is switched on.
▷ The appliance cools to the last set temperature.

WiFi

Use this function to connect your appliance to WiFi. You can then operate it via the SmartDevice app on a mobile device. You can also use this function to disconnect or reset the WiFi connection.

To connect your device to WiFi, you need the SmartDeviceBox.

More information on the SmartDevice: (see 1.3 SmartDevice)

Note

The SmartDevice function is not available in the following countries: Russia, Belarus, Kazakhstan.

You cannot use the SmartDeviceBox.

Establishing the WiFi connection for the first time

Make sure that the following requirements are fulfilled:

☐ You have purchased and inserted a SmartDeviceBox. (see 1.3 SmartDevice)
☐ You have installed the SmartDevice app (see apps.home.liebherr.com).
☐ Registration in the SmartDevice app is completed.

Fig. 12

Fig. 13

▶ Carry out action steps according to the illustration.
▷ Connection is established.

Disconnecting from the WiFi

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 14

Fig. 15

▶ Carry out action steps according to the illustration.
There is no connection.

Resetting the WiFi connection

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 16

Fig. 17

▶ Carry out action steps according to the illustration.
▷ WiFi connection and other WiFi settings are reset to factory settings.

Showing information about the WiFi connection

Simple line drawing of a document with a gear symbol (no text or labels)

Fig. 18

Fig. 19

▶ Carry out action steps according to the illustration.

Temperature

Use this function to set the temperature.

The temperature depends on the following factors:

• Frequency of door opening
• Duration of door opening
• Room temperature of the installation site
• Type, temperature and quantity of food

Temperature zone	Factory-set temperature	Recommended setting
5 °C Fridge section	5 °C 4 °C
-18 °C Freezer section	-18 °C -18 °C

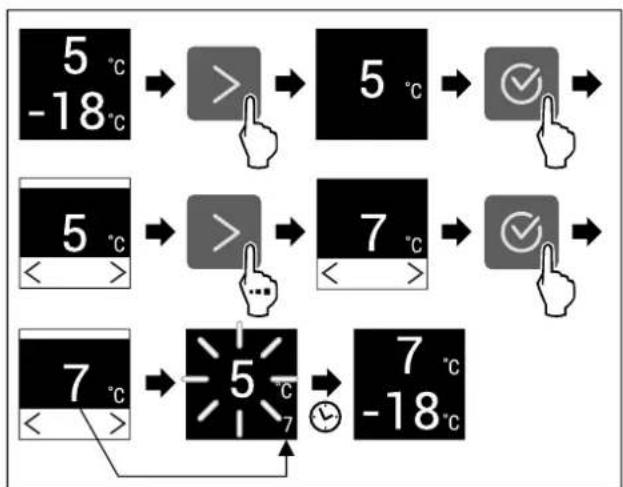

Setting the temperature in the fridge section

Fig. 20 Example illustration

▶ Carry out action steps according to the illustration.
▷ Temperature is set.

Setting the temperature in the freezer section

Fig. 21 Example illustration

▶ Carry out action steps according to the illustration.

▷ Temperature is set.

Temperature unit

Use this function to set the temperature unit. You can set degrees Celsius or degrees Fahrenheit as the temperature unit.

Setting the temperature unit

Simple line drawing of a document icon with a gear symbol (no text or labels)

Fig. 22

Fig. 23 Example illustration: Switch from degrees Celsius to degrees Fahrenheit.

▶ Carry out action steps according to the illustration.

▷ The temperature unit is set.

D-Value\*

Use this function to set the D-Value.

The D-Value specifies whether you are operating your fridge section with a dry rear wall or without a dry rear wall. The rear wall is installed in the appliance as delivered. The D-Value is pre-set to D1.

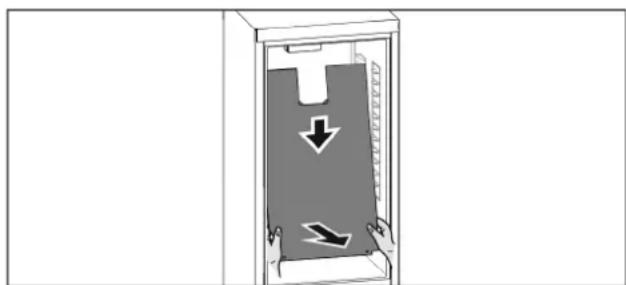

You can remove the rear wall for cleaning. (see 9.4.3 Cleaning the dry rear panel*) In order to operate the appliance without a rear wall, you must set the D-Value to D2.

Note

The declared energy consumption was determined without a dry rear wall. The appliance is fully functional with a dry rear wall but its energy consumption will be slightly higher. Liebherr recommends:

▶ Operate the appliance with a dry rear wall in order to prevent visible condensate and the food freezing.

Setting the D-Value

Simple line icon of a person with a document or folder symbol, no text or labels present

Fig. 24

Fig. 25 Example illustration: Switch from D1 to D2.
▶ Carry out action steps according to the illustration.
▷ The D-Value is set.

SuperCool

You can use this function to activate or deactivate SuperCool. If SuperCool is activated, then the appliance increases the cooling capacity. It allows you to achieve lower cooling temperatures. You can activate SuperCool when you would like to cool a large quantity of food quickly.

If the function is active, the appliance operates at higher power. As a result, the appliance's operating noise may be temporarily louder and energy consumption will increase.

Activating SuperCool

Time for activation of the function:

- When you would like to store fresh food in the fridge section: Activate the function when inserting food.

Fig. 26

Fig. 27
▶ Carry out action steps according to the illustration.
▷ SuperCool is activated.

Deactivating SuperCool

SuperCool is deactivated automatically after 18 hours. However, you can also deactivate SuperCool manually at any time:

Fig. 28

Fig. 29

▶ Carry out action steps according to the illustration.
▷ SuperCool is deactivated.
The appliance continues to run in normal mode.
The appliance cools to the temperature set previously.

PowerCool

You can use this function to activate or deactivate PowerCool. PowerCool ensures optimised temperature layers for cooling your food.

The function applies to the fridge section.

Application:

• At higher room temperatures (as of approx. 35 °C)
• At high humidity, e.g. on summer days
• When storing moist food, in order to prevent condensate forming in the interior

Note

The fan may also run even if the function is deactivated. It therefore ensures even temperature distribution in the appliance.

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating PowerCool

Fig. 30

Fig. 31

▶ Carry out action steps according to the illustration.
▷ PowerCool is activated.

Deactivating PowerCool

Fig. 32

Fig. 33

▶ Carry out action steps according to the illustration.
▷ PowerCool is deactivated.

SuperFrost

You can use this function to activate or deactivate SuperFrost. If SuperFrost is activated, then the appliance increases the freezing capacity. It allows you to achieve lower freezing temperatures.

Application:

• Quickly freeze fresh food through to the core.
  This ensures that the nutrition, appearance and taste of frozen food is maintained.
• Increase the cold reserve in stored frozen food before defrosting the appliance.

If the function is active, the appliance operates at higher power. As a result, the appliance's operating noise may be temporarily louder and energy consumption will increase.

Activating SuperFrost

Make sure that the following requirements are fulfilled:

☐ Freezing quantity and time for activation of SuperFrost are taken into account. (see Freezing food using SuperFrost)

Fig. 34

Fig. 35

▶ Carry out action steps according to the illustration.
▷ SuperFrost is activated.

Deactivating SuperFrost

SuperFrost is automatically deactivated after 56 to 72 hours depending on the quantity of the food inserted. However, you can also deactivate SuperFrost manually at any time:

Fig. 36

Fig. 37

▶ Carry out action steps according to the illustration.
▷ SuperFrost is deactivated.
The appliance continues to run in normal mode.
▷ The appliance cools to the temperature set previously.

Start defrosting cycle

Use this function to start the automatic defrosting cycle manually if it does not start automatically in the event of a fault.

Starting defrosting cycle

Simple line icon of a person with a document or profile, no text or symbols present

Fig. 38

Fig. 39

▶ Carry out action steps according to the illustration.
▷ Defrosting cycle has started: Icon flashes until defrosting cycle is automatically completed.
▷ When defrosting cycle is finished: The device continues to run in normal mode.

Cancelling defrosting cycle

The defrosting cycle will be stopped automatically. However, you can also cancel the defrosting cycle at any time during the defrosting process:

Fig. 40

▶ Carry out action steps according to the illustration.
▷ Defrosting cycle is cancelled.
▷ The device continues to run in normal mode.

PartyMode

You can use this function to activate or deactivate PartyMode. PartyMode activates various functions that are useful for a party.

PartyMode activates the following functions:

• SuperCool
• SuperFrost
• IceMaker (see IceMaker *) and MaxIce (see MaxIce*) *

You can adjust all listed functions individually and flexibly. When you deactivate PartyMode, all changes are discarded. If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating PartyMode

Make sure that the following requirements are fulfilled:*

☐ The IceMaker has been started. (see 4.2 Starting the IceMaker for the first time*)

Fig. 41

Fig. 42

▶ Carry out action steps according to the illustration.
▷ PartyMode and the associated functions are activated.
The current temperature flashes until the target temperature is reached.

Deactivating PartyMode

The PartyMode is automatically deactivated after 24 seconds. However, you can also deactivate PartyMode manually at any time:

Fig. 43

Fig. 44
▶ Carry out action steps according to the illustration.
▷ PartyMode is deactivated.
The appliance cools to the temperature set previously: The current temperature flashes until the target temperature is reached.

HolidayMode

You can use this function to activate or deactivate HolidayMode. If you activate HolidayMode, the fridge section is set to 15 °C. This saves you energy during longer periods of absence and prevents bad odours and growth of mould.

Appliance status when HolidayMode is active

Fridge section cools to 15 °C.

EasyFresh cools to 15 °C.

The set temperature is maintained in the freezer section.

PartyMode is deactivated.

SuperCool is deactivated.

PowerCool is deactivated.

Activating HolidayMode

▶ Empty the fridge section completely.
▶ Empty EasyFresh completely.

Fig. 45

Fig. 46

▶ Carry out action steps according to the illustration.

▷ HolidayMode is activated.

▷ Temperature display shows HolidayMode symbol.

Deactivating HolidayMode

Fig. 47

Fig. 48

▶ Carry out action steps according to the illustration.

▷ HolidayMode is deactivated.

The appliance cools to the temperature set previously.

SabbathMode

You can use this function to activate or deactivate SabbathMode. If you activate this function, some electronic functions are switched off. As a result, your device meets the religious requirements for Jewish holidays such as Sabbath and complies with STAR-K Kosher certification.

Device status when SabbathMode is active

The status display shows SabbathMode permanently.

All functions on the display are locked except for the Deactivate SabbathMode function.

Active functions remain active.

The display remains bright when you close the door.

The interior lighting is deactivated.

Device status when SabbathMode is active

Reminders are not implemented. The set time interval stops.

Reminders and warnings are not displayed.

There is no door alarm.

There is no temperature alarm.

The IceMaker is switched off.*

The defrosting cycle operates only for the specified time, without considering the device consumption.

After a power failure, the device returns to SabbathMode.

Device status

Note

This appliance has certification from the "Institute for Science and Halacha". (www.machonhalacha.co.il) You can find a list of STAR-K-certified appliances at www.star-k.org/appliances.

Activating SabbathMode

WARNING

Danger of food poisoning from spoiled food! If you have SabbathMode activated and a power failure occurs, no message appears in the status display about the power failure. Once the power is restored, the appliance continues to operate in SabbathMode. The power failure may mean that food spoils and the consumption of this food could lead to food poisoning.

After a power failure:

▶ Do not consume food that was frozen and has thawed out.

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 49

Fig. 50

▶ Carry out action steps according to the illustration.

▷ SabbathMode is activated.

▷ The status display shows SabbathMode permanently.

Deactivating SabbathMode

The SabbathMode is automatically deactivated after 80 hours. However, you can also deactivate SabbathMode manually at any time:

Fig. 51

▶ Carry out action steps according to the illustration.

▷ SabbathMode is deactivated.

E-Saver

You can use this function to activate or deactivate Energy saving mode. If energy saving mode is activated, the energy consumption decreases and the temperature in the device increases. The food remains fresh, but the shelf life is shortened.

Temperature zone Recommended setting (see Setting the temperature in the fridge section)		Temperature with active E-Saver
Fridge section	4 °C 7 °C
-18 Freezer section	-18 °C -16 °C

Temperatures

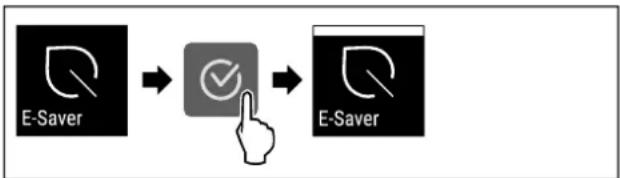

Activating E-Saver

Fig. 52

Fig. 53
▶ Carry out action steps according to the illustration.
▷ Energy saving mode is activated.

Deactivating E-Saver

Fig. 54

Fig. 55
▶ Carry out action steps according to the illustration.
▷ Energy saving mode is deactivated.

IceMaker \*

You can activate or deactivate ice cube production with this function.

More information on the number of ice cubes:	(see 10.1 Technical specifications)
More information on increasing the number of ice cubes:	(see MaxIce*)

Further information on the IceMaker water supply:	(see IceMaker water supply*)
More information on cleaning the lines of the IceMaker:	(see TubeClean *)

If the function is active, the device operates at higher power. As a result, the device's operating noise may be temporarily louder and energy consumption will increase.

Activating IceMaker

Make sure that the following requirements are fulfilled:

☐ IceMaker is put into operation. (see 8.10 IceMaker*)
☐ Water tank is filled. (see 8.10.1 Fill the water tank*) *

Fig. 56

Fig. 57
▶ Carry out action steps according to the illustration.
▷ IceMaker is activated. It can take up to 24 hours for the IceMaker to produce the first ice cubes.

Deactivating IceMaker

Make sure that the following requirements are fulfilled:*
☐ Water tank is empty. (see 8.10 IceMaker*)

Fig. 58

Fig. 59
▶ Carry out action steps according to the illustration.
▷ IceMaker is deactivated.
▷ If ice cubes are currently being made, the system completes the process.
▷ The IceMaker goes off automatically.

IceMaker water supply\*

Use this function to set the IceMaker water supply. The IceMaker water supply regulates the amount of water supplied. The IceMaker water supply can be changed if the water supply does not match the water pressure and the ice cube size dispensed.

The IceMaker water supply is pre-set to value 5 as delivered. A value from 1 (smallest inflow volume) to 8 (largest inflow volume) can be selected.

Setting the IceMaker water supply

Make sure that the following requirements are fulfilled:

☐ The IceMaker has been started. (see 4.2 Starting the IceMaker for the first time*)
□ IceMaker is activated. (see IceMaker *)

Simple line icon of a document with a person silhouette, no text or symbols present

Fig. 60

Fig. 61 Example illustration: Switch from value 5 to value 6.

▶ Carry out action steps according to the illustration.
▷ IceMaker water supply is set.

MaxIce\*

Use this function to increase the number of ice cubes in the IceMaker.

More information on the number of ice cubes:

(see 10.1 Technical specifications)

Activating MaxIce

If you activate MaxIce and have not previously activated the IceMaker (see IceMaker *) function, then by pressing MaxIce you can also automatically activate the IceMaker function.

If you have not yet activated the IceMaker function, make sure that the following requirements are met:

☐ IceMaker is put into operation. (see 8.10 IceMaker*)
□ Water tank is filled. (see 8.10.1 Fill the water tank*) *

Fig. 62

Fig. 63

▶ Carry out action steps according to the illustration.
▷ MaxIce is activated.
▷ If you have not activated the IceMaker function before: IceMaker is activated.

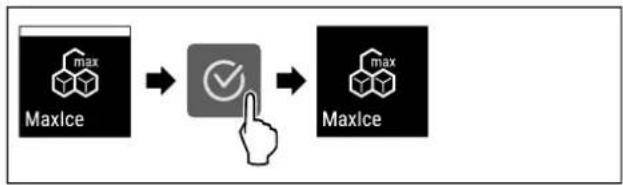

Deactivating MaxIce

If you deactivate MaxIce, then the IceMaker function is still activated.

Fig. 64

Fig. 65

▶ Carry out action steps according to the illustration.
▷ MaxIce is deactivated.

TubeClean \*

You can use this function to activate or deactivate TubeClean. If TubeClean is activated, it cleans the IceMaker lines.

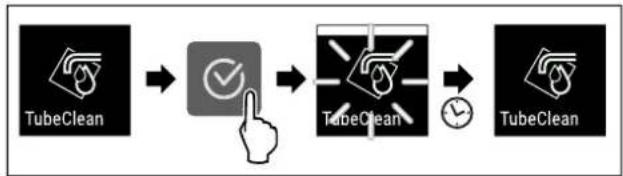

Activating TubeClean

Make sure that the following requirements are fulfilled:

☐ IceMaker cleaning is prepared. (see 9.4.5 Cleaning the IceMaker*)
☐ Empty container with a capacity of 1.5 l and with a maximum height of 10 cm is ready.
▶ Place the container in the drawer under the IceMaker.

Simple line icon of a document with a person silhouette, no text or symbols present

Fig. 66

Fig. 67

▶ Carry out action steps according to the illustration.
▷ TubeClean is activated.
The cleaning process has started: Icon flashes until the cleaning process is automatically completed after 60 minutes.
▷ When the cleaning process is complete: The device continues to run in normal mode.

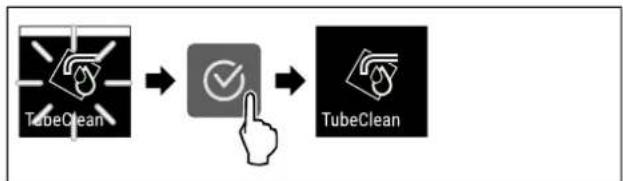

Deactivating TubeClean

TubeClean is automatically ended after 60 minutes. However, TubeClean can also be deactivated at any time during the cleaning process:

Fig. 68

▶ Carry out action steps according to the illustration.
▷ TubeClean is deactivated: Cleaning process is aborted.
▷ The device continues to run in normal mode.

CleaningMode

You can use this function to activate or deactivate CleaningMode. CleaningMode enables the appliance to be cleaned conveniently.

This setting applies to the fridge section.

Application:

- Clean the fridge section. (see 9.4 Cleaning the appliance)

Device status when CleaningMode is active

The status display shows CleaningMode permanently.

The fridge section is switched off.

Interior lighting is activated.

The reminders and warnings are not displayed. No signal tone sounds.

Device status

Activating CleaningMode

Fig. 69

Fig. 70

▶ Carry out action steps according to the illustration.
▷ CleaningMode is activated.
The status display shows CleaningMode permanently.

Deactivating CleaningMode

CleaningMode is deactivated automatically after 60 minutes. However, you can also deactivate Cleaning-Mode manually at any time:

Fig. 71

▶ Carry out action steps according to the illustration.
▷ CleaningMode is deactivated.
▷ The appliance cools to the temperature set previously.

Display brightness

Use this function to set the display brightness in stages.

You can select the following brightness levels:

• 40%
• 60%
• 80%
• 100 % (pre-setting)

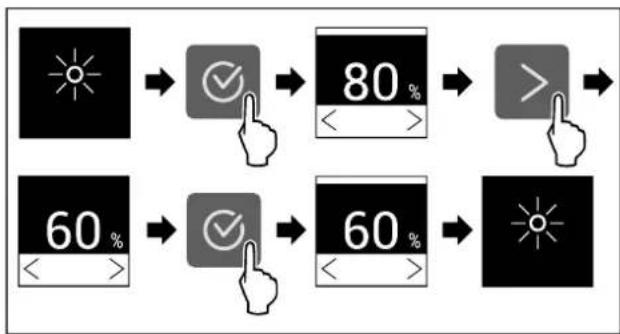

Setting the brightness

Fig. 72

Fig. 73 Example illustration: Switch from 80 % to 60 %.

▶ Carry out action steps according to the illustration.
▷ The brightness is set.

Door alarm

Use this function to activate or deactivate the door alarm. The door alarm sounds if the door is open for too long. The door alarm is activated on delivery. You can set how long the door may be open before the door alarm sounds.

The following values can be set:

• 1 minute
• 2 minutes
• 3 minutes
• Off

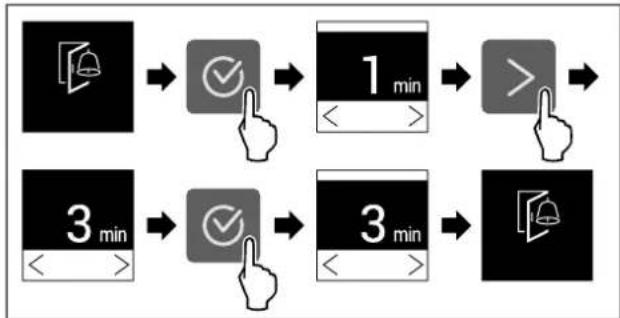

Setting the door alarm

Fig. 74

Fig. 75 Example illustration: Change door alarm from 1 minute to 3 minutes.

▶ Carry out action steps according to the illustration.
▷ The door alarm is set.

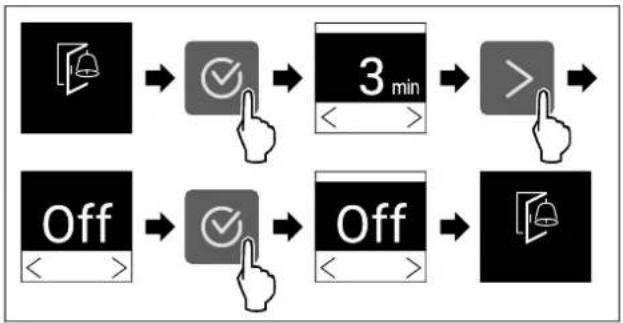

Deactivating the door alarm

Fig. 77

Fig. 78

▶ Carry out action steps according to the illustration.
The door alarm is deactivated.

Input lock

You can use this function to activate or deactivate the input lock. The input lock prevents the appliance being operated accidentally, e.g. by children.

Application:

• Avoid unintentional modification of functions.
• Avoid unintentional switching off of the device.
• Avoid unintentional temperature setting.

Activating the input lock

If you activate the input lock, you can continue to navigate in the menus but you cannot select or change other functions.

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 79

Fig. 80

▶ Carry out action steps according to the illustration.
▷ Input lock is activated.

Deactivating the input lock

Simple line drawing of a document with a gear icon, no text or symbols present

Fig. 81

Fig. 82

▶ Carry out action steps according to the illustration.
▷ Input lock is deactivated.

Device information

Use this function to indicate the model name, index, serial number and service number of your device. You will need the device information when you contact customer service. (see 10.4 Customer Service)

This function also opens the Advanced menu. (see 3 Functionality of the Touch display)

Indicating the device information

Simple line drawing of a document with a gear symbol (no text or labels)

Fig. 83

▶ Carry out action steps according to the illustration.
▷ Display indicates device information.

Software

Use this function to indicate the software version of your device.

Indicating the software version

Simple line drawing of a document with a person silhouette, no text or symbols present

Fig. 85

Fig. 86

▶ Carry out action steps according to the illustration.
▷ Display indicates software version.

Reminder

Use this function to activate or deactivate the reminders. The function is activated on delivery.

If the function is activated, the following reminders will appear:

- Replace the FreshAir activated carbon filter (see Replace the FreshAir activated carbon filter)

Activating the reminder

Simple line drawing of a document with a gear symbol, no text or labels present

Fig. 87

Fig. 88
▶ Carry out action steps according to the illustration.
▷ Reminder is activated.

Deactivating the reminder

Fig. 89

Fig. 90
▶ Carry out action steps according to the illustration.
▷ Reminder is deactivated.

Demo mode

Demo mode is a special feature for dealers who want to demonstrate appliance features. If you activate demo mode, all refrigeration functions are deactivated.

If you switch on your appliance and "Demo" appears in the status display, then demo mode is already activated.

If you activate and then deactivate demo mode, the appliance will be reset to factory defaults. (see Resetting to factory settings)

Activating demo mode

Fig. 91

Fig. 92

▶ Carry out action steps according to the illustration.

▷ Demo mode is activated.

▷ Appliance is switched off.

▶ Switch on the appliance. (see 4.1 Switching on appliance (first use))

▷ "DEMO" appears in the status display.

Deactivating demo mode

Fig. 93

Fig. 94

▶ Carry out action steps according to the illustration.
▷ Demo mode is deactivated.
▷ Appliance is switched off.
▶ Switch on the appliance. (see 4.1 Switching on appliance (first use))
▷ Appliance is reset to factory settings.

Resetting to factory settings

Use this function to reset all settings to factory defaults. All settings you have made so far are reset to their original settings.

Performing a reset

Simple line icon of a document with a gear symbol, no text or labels present

Fig. 95

Fig. 96

▶ Carry out action steps according to the illustration.
▷ Device is reset.
▷ Device is switched off.
▶ Restart the device. (see 4.1 Switching on appliance (first use))

7.3 Messages

There are two categories of messages:

Category	Importance
Warning W	Warnings appear in the event of a door alarm or malfunction.Simple warnings can be cancelled by yourself. In the event of serious malfunctions, you must contact customer service. (see 10.4 Customer Service)
Reminder	Reminders remind you of general processes. You can carry out these operations to end the message.

7.3.1 Overview of warnings

Behaviour of the appliance in the event of warnings:

• Warning appears on the display.
• The alarm tone sounds at an ever-increasing volume.
• The interior lighting pulsates for some warnings.

Message	Cause Exit the	message
Door alarm	The message appears if the door is open for too long.	Carry out action steps (see Door alarm).

Message Cause Exit the		message
Power outage alarm	The message appears if the freezing temperature has risen due to a power failure.	Carry out action steps (see Power outage alarm).
Temperature alarm	The message appears if the freezing temperature does not correspond to the set temperature.	Carry out action steps (see Temperature alarm).
Error	The message appears if there is an appliance error. A component of the appliance has a fault.	Carry out action steps (see Error).

7.3.2 Ending warnings

Door alarm

Fig. 97 Example illustration

▶ Carry out action steps according to the illustration.

-or-

▶ Close the door.

▷ The display returns to the status indicator.

You can set how long the door may be open before the door alarm sounds. (see Setting the door alarm)

Power outage alarm

When the power failure has ended, the appliance cools down to the previously set target temperature.

Fig. 98 Example illustration

▶ Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can still be consumed. If the freezing temperature has risen above -9 °C:
▶ Check the food.
▶ Press the confirmation symbol.
The display returns to the status indicator: Current temperature and target temperature are displayed.

Temperature alarm

Temperature differences can be caused by:

• You have put in warm, fresh food.
• Too much warm air has got in while you were sorting out the freezer or removing items.
• There has been a longer power failure.

- The appliance is faulty.

▶ Eliminate causes.

▷ The appliance cools to the target temperature set previously.

Fig. 99 Example illustration

▶ Press the confirmation symbol.
▷ Warmest freezing temperature is displayed.
▷ If the freezing temperature was below -9 °C: Food can still be consumed. If the freezing temperature has risen above -9 °C:
▶ Check the food.
▶ Press the confirmation symbol.
The display returns to the status indicator: Current temperature and target temperature are displayed.

Error

Fig. 100 Example illustration

▶ Press the confirmation symbol.
▷ Error code is displayed.
▶ Note the error code.
▶ Press the confirmation symbol.
▷ The display returns to the status indicator.
▶ Contact Customer Service. (see 10.4 Customer Service)

7.3.3 Overview of reminders

Behaviour of the appliance during reminders:

• Reminder appears on the display.
• Alarm tone sounds.
• The interior lighting pulsates for some reminders.

Message		Cause Exit the message
		The message appears if the IceMaker is activated but there is not enough water in the water tank.*	Carry out action steps (see Fill the water tank*).*
Fill the water tank*

Message Cause Ex	t the message
IceMaker*Insert the IceMaker drawer*	The message appears if the IceMaker is activated but the IceMaker drawer is open.*	Carry out action steps (see Insert the IceMaker drawer*).*
Replace the FreshAir activated carbon filter	The message appears when the activated carbon filter needs to be replaced.	Carry out action steps (see Replace the FreshAir activated carbon filter).

7.3.4 Ending reminders

Fill the water tank*

Fig. 101 Example illustration

▶ Press the confirmation symbol.
▶ Fill the water tank.
-or-
▶ Deactivate IceMaker. (see IceMaker *)
▷ When the water tank is full and the IceMaker is activated: IceMaker produces ice cubes.

Technical line drawing of a mechanical housing or enclosure with an inset showing a component detail (no text or symbols present)

Fig. 102

If you have filled the water tank and the reminder persists:

▶ Check whether the float Fig. 102 (1) is jammed.
If the float is jammed:
▶ Empty the water tank.
▶ Move the float with a thin tool, e. g. a cotton bud. If you have checked the float and the reminder persists:
▶ Contact Customer Service. (see 10.4 Customer Service)

Insert the IceMaker drawer*

Fig. 103 Example illustration

▶ Press the confirmation symbol.

▶ Insert the IceMaker drawer.
-or-
▶ Deactivate IceMaker. (see IceMaker *)
▷ If IceMaker drawer is inserted and IceMaker is activated: IceMaker produces ice cubes.

Replace the FreshAir activated carbon filter

Liebherr recommends: Replace the FreshAir activated carbon filter every 6 months.

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

Fig. 104 Example illustration

▶ Press the confirmation symbol.
▶ Replace the activated carbon filter. (see 9.1 FreshAir carbon filter)
▶ Activated carbon filter ensures optimum air quality in the cooling unit.
▷ Reminder appears again after 6 months.

If you no longer wish to receive this reminder, you can deactivate it. (see Deactivating the reminder)

8 Features

8.1 Door rack

8.1.1 Move/remove the door rack

Two identical diagrams showing a metal bracket with two directional arrows, mounted on vertical supports (no text or symbols present)

Fig. 105

▶ Slide the rack upwards.
▶ Pull forwards.
▶ Re-insert it in reverse order.

8.1.2 Disassembling the door rack

The door rack can be taken apart for cleaning.

Four-panel diagram showing a mechanical assembly with arrows indicating rotational motion (no text or symbols)

Fig. 106

▶ Disassemble the door rack.

8.2 Shelves

8.2.1 Adjusting/removing the shelves

The shelves are prevented from being pulled out accidentally by pull out stops.

Fig. 107

▶ Lift the shelf and pull forward.
▷ Line up the side runner.
▶ Adjust the height of the shelf: Lift or lower it to the desired height and slide it in.

-or-

Fig. 108

▶ Remove the shelf completely: Pull it out to the front.
▶ Easier removal: Set the shelf at an angle.
▶ Insert the shelf again: Slide it in all the way.
▷ The pull-out stoppers point downwards.
▷ The pull-out stoppers are behind the front support.
You can also remove the shelf above the EasyFresh compartments.

Two-panel diagram showing a room with a large bed and a flat surface, each with arrows indicating direction (no text or symbols)

Fig. 109

Removing the shelf:

If the IceMaker (see 8.10 IceMaker*) has been removed:*

▶ Lift the shelf at the front and back.*
▶ Lift the shelf at the front and back.*
▶ Pull it out towards you.

Do not store any goods on the compartment cover below!

Inserting the shelf:

▶ Place the shelf at an angle, sloping down towards the back.
▷ The pull-out stoppers point downwards.
▶ Slide the shelf into place.

8.2.2 Dismantling the shelves

The shelves can be dismantled for cleaning.

Diagram showing a flat sheet with a pencil and an arrow indicating direction (no text or symbols)

Fig. 110

▶ Dismantling the shelf.

8.3 Dividing shelf\*

8.3.1 Using the dividing shelf

The shelves are prevented from being pulled out accidentally by pull out stops.

Diagram showing a hand pressing down a wall component with an arrow indicating direction (no text or symbols present)

Fig. 111

▶ Push the dividing shelf underneath as shown.

Fig. 112

Adjusting the height:

▶ Pull the glass panels out Fig. 112 (1) from the front, one at a time.
▶ Release the support rails and click in at the height you want.
▶ Slide in the glass panels one at a time.
▷ Flat pull-out stoppers at the front, right behind the support rails.
▷ High pull-out stoppers at the back.

Using both shelves:

▶ Hold the glass panel with one hand and pull it to the front.
The glass panel Fig. 112 (1) and trim strip are at the front.
▷ The stops Fig. 112 (3) point down.

8.4 VarioSafe \*

The VarioSafe offers space in the refrigerator compartment for small groceries, packages, tubes and jars, for example.

Fig. 113

(1) VarioSafe drawer (3) Recesses on the left and right side panel

(2) Side panels with ribs for VarioSafe drawer

(4) Stop edge

8.4.1 Inserting the VarioSafe

Fig. 114

▶ Insert the VarioSafe into the fridge section at an angle Fig. 114 (1) until the recesses in the side Fig. 114 (2) of the VarioSafe are at the level of the support rib in the fridge section.

Fig. 115

▶ Set VarioSafe straight. Fig. 115 (1)

▶ Lift VarioSafe at the front. Fig. 115 (2)

Diagram of a mechanical assembly with a central block and two side grooves, no text or symbols present

Fig. 116

▶ Lift VarioSafe up toward the front.
▶ Push VarioSafe in to the rear.
▶ Lower VarioSafe.
▷ VarioSafe audibly engages.
▷ VarioSafe is inserted.

8.4.2 Repositioning the VarioSafe

You can move the VarioSafe as a whole in the refrigerator compartment.

Diagram of a mechanical assembly with a highlighted component and an upward arrow (no text or symbols)

Fig. 117

▶ Lift VarioSafe at the front.

Fig. 118

▶ Pull VarioSafe forwards until the recesses in the side of the VarioSafe are at the level of the support rib in the refrigerator compartment. Fig. 118 (1)

▶ Move VarioSafe up or down in the refrigerator compartment until the desired height is reached. Fig. 118 (2)

Diagram of a mechanical assembly with a central block and two side chains, featuring a black arrow symbol (no text or labels present)

Fig. 119

▶ Lift VarioSafe at the front.
▶ Push VarioSafe in to the rear.
▷ VarioSafe audibly engages.
▷ VarioSafe is offset in height.

8.4.3 Moving the VarioSafe drawer

You can use the VarioSafe drawer at two different heights. If you would like to store taller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the bottom rib. If you would like to store smaller foodstuffs in the VarioSafe drawer, slide the VarioSafe drawer in on the top rib.

Diagram of a mechanical assembly with a downward arrow indicating force or direction (no text or symbols present)

Fig. 120

▶ Pull out the VarioSafe drawer as far as it will go.
▶ Lift the VarioSafe drawer up at the front.
▶ Remove the VarioSafe drawer to the front.

Fig. 121

▶ Lift the VarioSafe drawer up at the front.
▶ Place the VarioSafe drawer behind the stoppers on desired rib Fig. 121 (1) or Fig. 121 (2).
▷ VarioSafe drawer is offset in height.

8.4.4 Removing the VarioSafe

You can remove the VarioSafe as a whole.

Diagram of a mechanical assembly with a central component and two side teeth, showing an upward arrow (no text or symbols present)

Fig. 122

▶ Lift VarioSafe at the front.

Fig. 123

▶ Pull VarioSafe forwards Fig. 123 (1) until the recesses in the side of the VarioSafe are at the level of the support rib in the fridge section. Fig. 123 (2)

Fig. 124

▶ Set VarioSafe in refrigerator compartment at an angle. Fig. 124 (1)

▶ Take VarioSafe out to the front. Fig. 124 (2)

▷ VarioSafe is removed.

8.4.5 Disassembling the VarioSafe

You can disassemble the VarioSafe into its individual parts if you want to clean the VarioSafe or if you need to install or remove parts.

Fig. 125

▶ Remove VarioSafe as a whole. (see 8.4.4 Removing the VarioSafe)

▶ Disassemble VarioSafe according to the illustration.

8.5 Space for baking tray

There is space for a baking tray Fig. 1 (8) above the drawers.

Pure diagram of a rectangular object with a dark rectangle inside, no text or symbols present

Fig. 126

Ensure that the following conditions are met:

☐ Max. baking tray dimensions are adhered to (see 10.1 Technical specifications).

☐ Baking tray is cooled to room temperature.

☐ The lowest door rack is set at least one position higher.

With the door open to 90°:

▶ Slide the baking tray onto the lower side runners.

8.6 Drawers

You can remove the drawers for cleaning.

You can remove the drawers to use VarioSpace.

The way to remove/insert the drawers varies depending on the pull-out system. Your appliance can contain various pull-out systems.

Note

The energy consumption increases and the cooling power goes down if ventilation is not sufficient.

▶ Leave the bottom drawer in the appliance!

▶ Always leave the fan air vents clear on the back wall!

8.6.1 Drawer on appliance base or glass shelf

The drawer runs directly on the appliance base or on a glass shelf. There are no rails.

When you remove the drawers, you can use the glass shelves below them as storage shelves.

Removing drawer

Simple 3D diagram of a rectangular block with an arrow indicating direction, no text or symbols present

Fig. 127

▶ Remove drawer as shown in the illustration.

Inserting drawer

Pure 3D diagram of a rectangular block with an arrow symbol, no text or labels present

Fig. 128

▶ Insert drawer as shown in the illustration.

8.6.2 Drawer on rails

Removing drawer

3D diagram of a gray rectangular object with an arrow indicating direction, enclosed in a vertical frame (no text or symbols)

Fig. 129

▶ Remove drawer as shown in the illustration.

Inserting drawer

Pure diagram of a 3D rectangular block with an arrow symbol, no text or labels present

Fig. 130

▶ Insert drawer as shown in the illustration.

8.6.3 Drawer on telescopic rails

The drawer runs on extendible rails (telescopic rails). There are fully extendible telescopic rails and telescopic rails with partial pull-out. Drawers which are fully extendible can be pulled out fully from the appliance. Drawers with partial pull-out cannot be removed fully from the appliance. The system in your appliance depends on the type of appliance.

Fully extendible\*

If you have fully extendible rails, there is a clamp located at the back on the left and right of the rail.

Removing drawer

Fig. 131

▶ Pull out drawer as far as it will go.
▶ Lift left clamp and simultaneously pull drawer forwards on the left. Fig. 131 (1)
▶ Lift right clamp and simultaneously pull drawer forwards on the right. Fig. 131 (2)
▶ Remove drawer to the front. Fig. 131 (3)
▶ Slide rails in.

Inserting drawer

Technical diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Fig. 132

▶ Slide rails in.
▶ Place drawer on rails.
▶ Slide in drawer to the back.
▷ Drawer latches in audibly at the back.

Partial pull-out fridge compartment\*

Removing drawer

Fig. 133

▶ Pull out drawer half-way. Fig. 133 (1)
▶ Push the drawer down at the front. Fig. 133 (2)
▶ Push the left rail in by about 2 cm. Fig. 133 (3)
▶ Push the right rail in by about 2 cm. Fig. 133 (4)
▶ Remove drawer to the front. Fig. 133 (5)

Diagram showing two mechanical components with arrows indicating movement, next to a warning symbol (no text or labels present)

Fig. 134

If the rails are not yet fully inserted after removing the drawer:

▶ Push rails in completely.

Inserting drawer

Technical diagram showing a mechanical assembly with two views: one with a small component and arrow indicators, the other showing a gray box with cutouts (no text or symbols)

Fig. 135
▶ Slide rails in.
▶ Place drawer on rails.
▶ Slide in drawer to the back.

8.7 EasyFresh-Safe cover

You can remove the compartment cover for cleaning.

8.7.1 Removing the compartment cover

Fig. 136
When the drawers are removed:
▶ Pull the lid up at the front to the opening in the retaining parts Fig. 136 (1).
▶ Lift from the back and pull it up and out Fig. 136 (2).

8.7.2 Inserting the compartment cover

Fig. 137
If the text THIS SIDE UP points upwards:
▶ Insert the lip of the cover over the opening of the rear bracket Fig. 137 (1) and click into place Fig. 137 (2).
▶ Position the cover where you want it (see 8.8 Adjusting the moisture levels).

8.8 Adjusting the moisture levels

You can adjust the moisture in the drawer yourself by adjusting the compartment cover.

The compartment lid is attached to the drawer and can be hidden by a shelf or additional drawers.

Illustration of a hand inserting a card into a rectangular block (no text or symbols)

Fig. 138

Low air humidity

▶ Open the drawer.
▶ Slide the compartment cover forwards.
▷ With the drawer closed: Gap between the cover and the compartment.
▷ The air moisture in the Safe decreases.

High air moisture

▶ Open the drawer.
▶ Slide the cover back.
▷ With the drawer closed: The cover seals the compartment.
▷ The air moisture in the Safe increases.
If there is too much moisture in the compartment:
▶ Choose the setting "low air moisture".

-or-

▶ Remove any excess moisture with a cloth.

8.9 Glass shelves

You can remove the glass shelves under the drawers for cleaning.

You can remove the glass shelves under the drawers to use VarioSpace.

8.9.1 Removing / inserting the glass shelf

Make sure that the following requirements are fulfilled:

☐ Glass shelf under the drawer: The drawer has been removed. (see 8.6 Drawers)

Removing glass shelf

Fig. 139 Example illustration of glass shelf

▶ Lift glass shelf at the front. Fig. 139 (1)
▶ Take out glass shelf to the front. Fig. 139 (2)

Inserting glass shelf

Technical line drawing of a mechanical assembly with no visible text or symbols

Fig. 140 Example illustration of glass shelf

▶ Position glass shelf at an angle behind the stoppers. (see Fig. 140)
▶ Lower glass shelf.
▶ Slide in glass shelf to the back.

8.10 IceMaker\*

The IceMaker produces ice cubes with the water tank in the fridge section. The water tank can also be used to provide cooled drinking water.*

The IceMaker will produce ice cubes for household use only.

Ensure that the following conditions are met:

• IceMaker is cleaned (see 9 Maintenance).
• The water tank is clean (see 9 Maintenance).*
• IceMaker drawer is cleaned.
• IceMaker drawer is fully inserted.

8.10.1 Fill the water tank\*

WARNING

Unclean water!

Contaminants.

▶ Only fill the water tank with potable water.
▶ If you are not using the IceMaker: Empty the water tank. (see 9.4.5 Cleaning the IceMaker*)

NOTICE

Sugar-content liquids!

Damage to IceMaker.

▶ Only fill with cold drinking water.

Note

Using filtered, decarbonised water ensures the best-tasting drinking water for your ice cubes.
This water quality can be achieved using a table water filter of the kind available in trade retail outlets.
▶ Always fill the water tank only with filtered, decarbonised drinking water.

The IceMaker is supplied with water from the water tank (see 1 Appliance at a glance).

If the water tank is empty, the following reminder appears

on the display Water Refill (see 7.3 Messages).

Diagram showing a water tap in a container with an upward arrow indicating flow, next to a storage cabinet and a wall-mounted device (no text or symbols present)

Fig. 141

▶ Pull the water tank towards you and out.
▶ Remove the lid.
▶ Fill with drinking water.
▶ Put the lid on.
▶ Insert the water tank into the brackets and slide in all the way.

8.10.2 Producing ice cubes

The volume depends on the freezing temperature. The colder the temperature, the more ice cubes the system can produce in a certain time period.

After the IceMaker is turned on for the first time, it can take up to 24 hours for the first ice cubes to be made.

▶ Activate the IceMaker function
▶ To make a high number of ice cubes: Activate the MaxIce function.
▶ To make a high number of ice cubes: Move the divider in the IceMaker drawer or remove it completely.*
▶ Distribute the ice cubes evenly in the drawer to increase the capacity.
▶ Closing the drawer: IceMaker starts making ice cubes again automatically.

Note

When a certain level is reached in the IceMaker drawer, it stops producing ice cubes. The IceMaker does not fill the drawer all the way to the top.

8.10.3 Using the drawer with the IceMaker deactivated

If you deactivate the IceMaker, then you can use the entire IceMaker drawer as a freezer drawer.

▶ Deactivate IceMaker. (see Deactivating IceMaker)

Line drawing of a refrigerator with labeled door and window (no text or symbols)

Fig. 142

▶ Place food in drawer.
If you put food in the left side of the drawer:
▶ Watch out for the IceMaker Fig. 142 (1).

8.11 VarioSpace

Diagram showing a vertical double-headed arrow between two rectangular panels, with no text or symbols present.

Fig. 143

You can remove drawers and glass panels from your appliance. This provides more room for large food items such as poultry, joints of meat, large game, and tall baked products. You can then freeze these items whole for later preparation.

▶ Note the weight limits on the drawers and glass panels (see 10.1 Technical specifications).

8.12 Bottle holder

8.12.1 Using the bottle holder

Fig. 144

▶ Push the bottle holder onto the bottles.

▷ The bottles are prevented from falling over.

8.12.2 Removing the bottle holder

Diagram of a metal shelf with directional arrows indicating movement or force (no text or symbols)

Fig. 145

▶ Move the bottle holder all the way to the right.

▶ Push the bottle holder to the back to remove.

8.13 Flexible ice compartment divider\*

The IceMaker's ice cube drawer has a flexible ice compartment divider. This allows you to store larger quantities of ice cubes or additional food items as needed. You can move or remove the ice compartment divider.

8.13.1 Moving in the flexible ice compartment divider

Technical illustration of a mechanical device with an open lid and internal structure, showing a 3D view (no text or symbols)

Fig. 146 Example illustration of the ice compartment divider
▶ Move the ice compartment divider to the desired position.

8.13.2 Removing the flexible ice compartment divider

Make sure that the following requirements are fulfilled:

☐ Ice cube drawer is removed. (see 8.6 Drawers)

Fig. 147

▶ Lift the rear part of the ice compartment divider. Fig. 147 (1)

▶ Remove the ice compartment divider upwards. Fig. 147 (2)

8.13.3 Putting in the flexible ice compartment divider

Make sure that the following requirements are fulfilled:

☐ Ice cube drawer is removed. (see 8.6 Drawers)

Fig. 148

▶ Insert the front part of the ice compartment divider. Fig. 148 (1)

▶ Lower the rear part of the ice compartment divider to the drawer bottom. Fig. 148 (2)

9 Maintenance

9.1 FreshAir carbon filter

The FreshAir carbon filter is in the compartment above the fan.

It guarantees the best air quality.

☐ Replace the carbon filter every 6 months.

When the reminder is set, a message on the display prompts you to change it.

☐ The carbon filter can be disposed of with the regular household waste.

Note

FreshAir activated charcoal filters can be purchased from the Liebherr-Hausgeräte store at home.liebherr.com/shop/de/deu/zubehor.html.

9.1.1 Removing the FreshAir carbon filter

Fig. 149

▶ Pull out the compartment Fig. 149 (1).
▶ Remove the carbon filter Fig. 149 (2).

9.1.2 Inserting the FreshAir carbon filter

Fig. 150

▶ Insert the carbon filter as shown in the diagram Fig. 150 (1).

▷ The carbon filter clicks into place.

If the carbon filter is pointing downwards:

▶ Push the compartment in Fig. 150 (2).

The carbon filter is now ready for use.

9.2 Disassembling / assembling pull-out systems

9.2.1 Notes on disassembly

You can disassemble some of the pull-out systems for cleaning. Your appliance can contain a variety of pull-out systems.

The following pull-out systems can be disassembled or cannot be disassembled:

Pull-out system	can be disassembled / cannot be disassembled
Drawer on appliance base or glass shelf	cannot be disassembled
Drawer on rails cannot be disassembled
Fully extendible* cannot be disassembled*
Partial pull-out fridge compartment*	cannot be disassembled*

9.3 Defrosting the appliance

9.3.1 Defrosting the fridge compartment

Defrosting is performed automatically. The water from the thawing process drains through the outlet and evaporates.

Water drops or a thin layer of frost or ice can form on the back wall; this is a completely normal part of the appliance's function. This must not be removed.*

A layer of frost or ice can from briefly due to the energy-optimised control of the device.*

▶ Clean the drain opening regularly (see 9.4 Cleaning the appliance).

9.3.2 Defrosting the freezer compartment with NoFrost

Defrosting is performed automatically with the NoFrost system. The moisture is deposited on the evaporator, is periodically defrosted and evaporates.

The appliance does not need to be defrosted.

9.4 Cleaning the appliance

9.4.1 Ready

WARNING

Danger of electric shock!

▶ Remove the refrigerator connector or interrupt the power supply.

WARNING

Risk of fire

▶ Do not damage the refrigeration circuit.

▶ Empty the appliance.

▶ Remove mains connector.

-or-

▶ Activate CleaningMode. (see CleaningMode)

9.4.2 Cleaning the interior

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

▶ Plastic surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.

▶ Metal surfaces: clean by hand with a soft clean cloth, lukewarm water and a little detergent.

▶ Drain hole: remove deposits using a thin item (for example a cotton bud).

9.4.3 Cleaning the dry rear panel\*

You can remove the dry rear panel for cleaning.

Removing the rear panel

▶ Remove all equipment parts.

Technical illustration of a door switch mechanism with screwdriver, showing two steps (no text or symbols)

Fig. 151 *

▶ Unscrew the bracket of the water tank with a torx screw-driver.*

The bracket remains attached to the side panel via various connections and cannot be completely removed.*

Diagram of a door with arrows indicating downward motion, no text or symbols present

Fig. 152

▶ Hold the rear panel with both hands at the bottom and pull downward vigorously at the same time.

▶ Pull the rear panel out to the front by the bottom end.

▷ The rear panel has been removed.

If you want to continue operating the appliance with the rear panel removed:

▶ Set the D-Value to D2. (see D-Value*)

Inserting the rear panel

Diagram of a door with an open door and hand placing a button, showing no text or symbols

Fig. 153

▶ Make sure the appliance is completely empty.

▶ Slide in the rear panel from below to the top.

▶ Press back vigorously on the left-hand side of the rear panel.

▷ The rear panel clicks into place.

▶ Screw the water tank bracket firmly in place.*

▶ Insert the equipment parts.

▶ Set the D-Value to D1. (see D-Value*)

9.4.4 Clean the components

NOTICE

Improper cleaning!

Damage to the appliance.

▶ Only use soft cleaning cloths and ph-neutral all-purpose cleaners.
▶ Do not uses abrasive sponges or steel wool which may cause scratches.
▶ Do not use any sharp or abrasive cleaning agents, nor any that contain sand, chloride or acid.

Clean with a soft, clean cloth, lukewarm water and some detergent:

• Door rack
• Shelf
• Dividing shelf*
• VarioSafe*
• EasyFresh-Safe cover

- Drawer

Please note: Do not remove the magnet on the drawer. The magnet ensures the functionality of the IceMaker.*

- Divider in the IceMaker drawer*

Clean with a damp cloth:

- Retractable rails

Please note: The grease in the tracks is used for lubrication and must not be removed!

Wash in the dishwasher up to 60 °C:

• Bottle rack
• Holder of the dividing shelf*
• IceMaker water tank and water tank lid*
• Ice cube tray*
• Ice cube scoop*
  ▶ Clean the components.

▶ To disassemble components: see the relevant section.

9.4.5 Cleaning the IceMaker\*

There are various options for cleaning the IceMaker.

Cleaning is required in the following cases:

☐ Initial operation

□ With water tank:*

If out of use for more than 48 hours.*

Ensure that the following conditions are met:

☐ Water tank is clean and has been filled. (see 8.10.1 Fill the water tank*) *
☐ IceMaker drawer is emptied.
☐ IceMaker drawer is in place.
☐ The IceMaker is activated.

First use or after a long period of non-use

Clean the IceMaker with the TubeClean function.

▶ Put an empty 1.5 l vessel (max. height 10 cm) in the drawer under the IceMaker.
▶ Activate the TubeClean function.
▷ The rinse process is prepared (max. 60 min.): Symbol flashes.
▷ Water pipes are rinsed: Symbol flashes.
▷ Rinsing process is complete: Function turns off automatically.
▶ Remove the IceMaker drawer and remove the container.
▶ Clean the IceMaker drawer with warm water and a little detergent.
▶ Push the IceMaker drawer in.
▷ The system starts making ice cubes automatically.
▶ Dispose of any ice cubes that were made 24 hours after the first ice cubes.

If cleaning is required

Clean the IceMaker by hand.

▶ Remove the IceMaker drawer and clean with warm water and a little detergent.
▶ Push the IceMaker drawer in.
The system starts making ice cubes automatically.

9.4.6 After cleaning

▶ Wipe the appliance and the components dry.
▶ Connect and switch on the appliance.
▶ Activate SuperFrost (see 7.2 Appliance functions). The temperature is cold enough:
▶ Place the food inside.
▶ Repeat cleaning regularly.

10 Customer help

10.1 Technical specifications

Temperature range
Cooling 2 °C to 9 °C
Freeze -26 °C to -15 °C
Maximum freezing quantity/24 h
Freezer compartment	See “Freezing capacity .../24 h” on the type plate
Maximum component capacity
Features Appliance	width 550 mm (see installation instructions, appliance dimensions)	Appliance width 600 mm (see installation instructions, appliance dimensions)	Appliance width 700 mm (see installation instructions, appliance dimensions)
Drawer on glass shelf (see 8.6.1 Drawer on appliance base or glass shelf)	12 kg 15 kg	--
Maximum size baking tray
Width 466 mm
Depth 386 mm
Height 50 mm
Ice cube production with IceMaker*
Ice cube production/24 h	At a temperature of -18 °C: 1.2 kg of ice cubes
Maximum ice cube production/24 h	With the MaxIce function on: 1.5 kg of ice cubes

10.2 Operating noises

The appliance makes different noises when it is on.

• At higher temperatures the appliance uses less energy but works for longer. It is quieter.
• At lower temperatures the food is cooled faster. It is louder.

Examples:

• Functions on (see 7.2 Appliance functions)
- Fan running
- Food recently added
- High ambient temperature
- Door open for a while

Noise	Possible cause Type	of noise
Bubbling and splashing	Coolant flowing into the cooling circuit.	Normal operating noise
Hissing Coolant	sprays into the cooling circuit.	Normal operating noise
Humming The	appliance is cooling. The volume depends on the cooling output.	Normal operating noise
Suction noises* Soft-closing door is being opened and closed.*		Normal operating noise*
Humming and rustling	The fan is running.	Normal operating noise
Clicking Components are switched on and off.		Normal switching noise
Rattling or humming	Valves or flaps are working.The water tank pump is on.*	Normal switching noise

Noise	Possible cause	Type of noise	Lifting
Vibration	Improper installation	Defective noise	Check the installation.Level the appliance.
Rattling	Components, items inside the appliance	Defective noise	Secure components.Leave enough space between the items.

10.3 Technical fault

Your appliance is designed and built to ensure it works reliably and has a long service life. In the unlikely event that a fault occurs during operation, please check whether it is due to an operating error. If so, you will be charged for the callout and repair costs even if it falls within the warranty period.

You can fix the following faults yourself.

10.3.1 Appliance function

Defect Cause Remedy
The appliance is not working.	→ The appliance is not switched on.	► Switch the appliance on.
	→ The power plug is not properly plugged into the socket.	► Check the power plug.
	→ There is something wrong with the power outlet fuse.	► Check the fuse.
	→ Power cut	► Keep the appliance closed. ► Protecting food: Lay freezer packs on top of the food or use another freezer if the power is off for a prolonged period. ► Do not re-freeze defrosted food,
	→ The appliance plug does not fit the appliance properly.	► Check the appliance plug.
Temperature is not cold enough.	→ The appliance door is not closed properly.	► Close the appliance door.
	→ Not enough ventilation.	► Keep ventilation grille clear, and clean it.
	→ The ambient temperature is too high.	► Problem solution: (see 1.4 Appliance range of use)
	→ The appliance was opened too many times or for too long.	► Wait to see if the required temperature corrects itself. If not, contact Customer Service. (see 10.4 Customer Service)
	→ Too much fresh food was placed inside without SuperFrost.	► Solution: (see SuperFrost)
	→ The temperature is set incorrectly.	► Turn down the temperature and check after 24 hours.
	→ The appliance is too close to a heat source (oven, radiator, etc).	► Move the appliance or the heat source.
	→ The appliance was not correctly installed in the recess.	► Check if the appliance was installed correctly and that the door closes properly.
The door seal is defective or needs to be replaced for another reason.	→ The door seal can be replaced. It can be replaced without the need for special tools.	► Contact Customer Service. (see 10.4 Customer Service)
The appliance builds up too much ice or condensation.	→ The door seal may have slipped out of its groove.	► Check that the door seal is well fitted in the groove.

10.3.2 Features

Defect Cause Remedy
The IceMaker is not producing ice cubes.*	→ The IceMaker is not on.	► Activate the IceMaker.
	→ The drawer of the IceMakers is not connected properly.	► Push the drawer in correctly.
	→ The water tank is not pushed in properly.	► Push the water tank in.*
	→ There is not enough water in the water tank.	► Fill the water tank.*
The internal light does not come on.	→ The appliance is not switched on.	► Switch the appliance on.
	→ The door was open for longer than 15 minutes.	► Interior lighting turns off automatically after approx. 15 min. with the door open.
	→ The LED interior light is faulty or the lid is damaged.	► Contact Customer Service. (see 10.4 Customer Service)

10.4 Customer Service

First check whether you can rectify the fault yourself (see 10 Customer help). If you cannot rectify the problem, contact Customer Service.

You can find the address at home.liebherr.com/service.

WARNING

Unprofessional repair! Injuries.

▶ Have any repairs and action - not expressly specified - on the appliance and mains cable carried out by service personnel only. (see 9 Maintenance)
A damaged mains cable may only be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person.
▶ In the case of appliances with an IEC connector, the change may be made by the customer.

10.4.1 Contacting Customer Service

Make sure that the following appliance information is available:

☐ Appliance name (model and index)
□ Service no. (Service)
Serial no. (S no.)
▶ Call up the appliance information via the display. (see Device information)

-or-

▶ Refer to the type plate for appliance information. (see 10.5 Model plate)

▶ Note down the appliance information.

▶ Notify customer service: Report errors and the appliance information.

▷ This will help us to provide you with a faster, more accurate service.

▶ Follow further instructions from Customer Service.

10.5 Model plate

The model plate is behind the drawers on the inside of the appliance.

Fig. 154

(1) Appliance description (3) Serial no.

(2) Service no.

▶ Note the data on the model plate.

11 Shutting down

▶ Empty the appliance.
▶ Deactivate IceMaker. (see Deactivating IceMaker) *
▶ Switch off appliance. (see Switching the appliance off and on)
▶ Remove mains connector.
▶ Remove appliance connector if required: Remove and move from left to right at the same time.
▶ Clean appliance. (see 9.4 Cleaning the appliance)
Leave the door open, so that no unpleasant odours arise.

12 Disposal

12.1 Preparing appliance for disposal

LI-Ion

Liebherr uses batteries in some of its appliances. In the EU, for environmental reasons, legislation obliges the end user to remove these batteries before disposing of old appliances. If your appliance contains batteries, a corresponding notice is attached.

Lamps If you can remove the lamps yourself without destroying them, also remove these before disposal.

▶ Take the appliance out of operation.
▶ Appliances with batteries: remove the batteries. For description, see Maintenance chapter.
▶ If possible: remove lamps without destroying them.

12.2 Disposing of the appliance in an environmentally friendly manner

The appliance still contains valuable materials and must be disposed of separately from unsorted municipal waste.

LI-Ion

LI-Ion

Dispose of batteries separately from the old appliance. To do this, you can return the batteries free of charge to retailers as well as recycling centres and collection centres for recyclable materials.

Lamps Dispose of removed lamps

via the respective collection systems.

WARNING

Leaking coolant and oil!

Fire. The coolant contained in the appliance is eco-friendly, but also flammable. The oil contained in the appliance is flammable. Escaping coolant and oil can ignite if the concentration is high enough and in contact with an external heat source.

▶ Do not damage the pipelines of the coolant circuit and the compressor.

▶ Observe the notes on transporting the appliance.
▶ Transport the appliance without damaging it.
▶ Dispose of batteries, lamps and the appliance according to the above specifications.

home.liebherr.com/fridge-manuals

Integrated fridge/freezer

Issue date: 20240521

Part number index: 7088453-00
