Type	Fully Automatic Washing Machine (Household Use)
Model	NA-FD12VR1
Rated Voltage	220-240 V ~ 50 Hz
Rated Power Consumption	1475-1750 W
Maximum Capacity (Dry Cloth)	12.5 kg
Standard Water Amount	77 L
Tap Water Pressure	0.01 - 1 MPa
Product Dimensions (W x D x H)	639 mm x 724 mm x 1069 mm
Product Weight	41 kg
Wash Programs	Normal, Speedy, Delicate, Baby Care, Water Save, Blanket, Soak, Stain Master +, Air Dry (90 min), Tub Hygiene
Special Features	ECONAVI, Preset Timer (1-24 h), Auto Tub Clean, Child Lock, Anti-Tangle Care, Auto Power Off
Detergent / Softener / Bleach Dispenser	Drawer with compartments for powder detergent, liquid detergent, softener, bleach

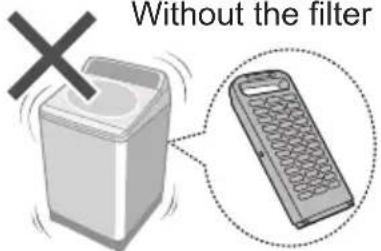

Lint Filter	Removable, clean after each operation

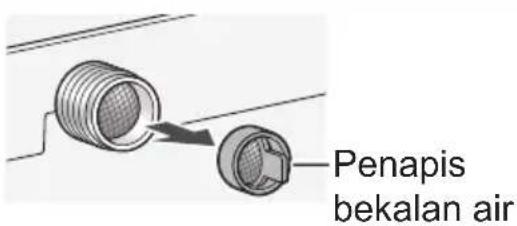

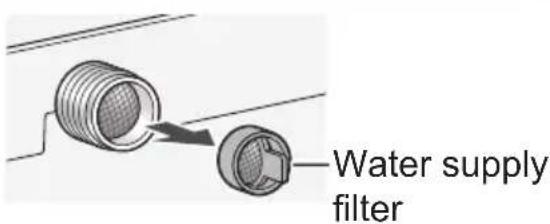

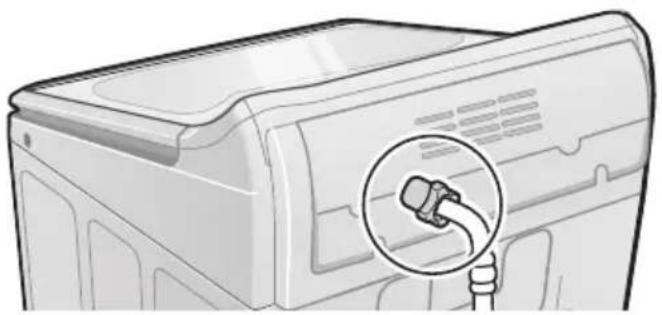

Water Supply Filter	Clean periodically if water flow is slow
Accessories Included	Water supply hose (1.0 m), external drain hose, bottom cover with screw
Safety Features	Child lock, lid open detection, unbalanced load detection, overflow protection, auto shut-off
Maintenance	Tub Hygiene program, periodic cleaning of filter and drawer, water supply filter

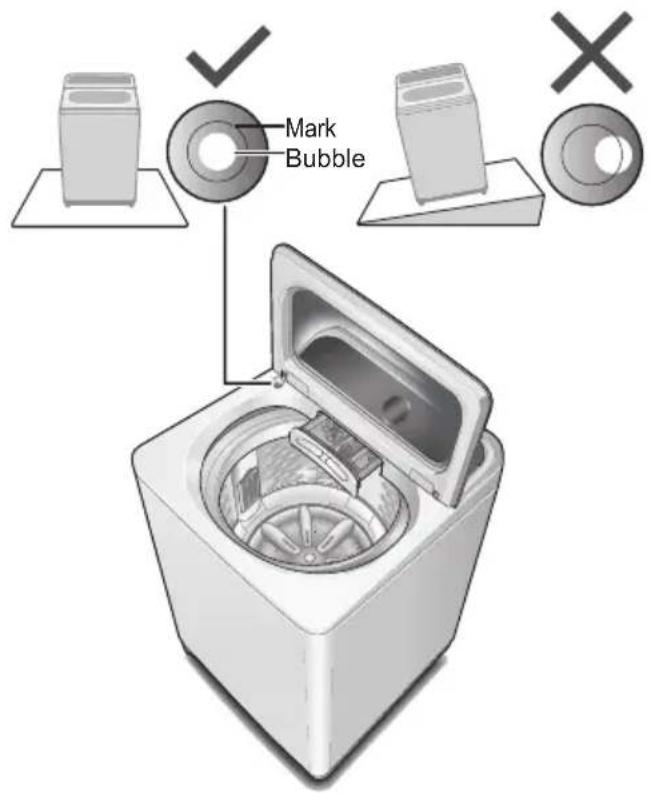

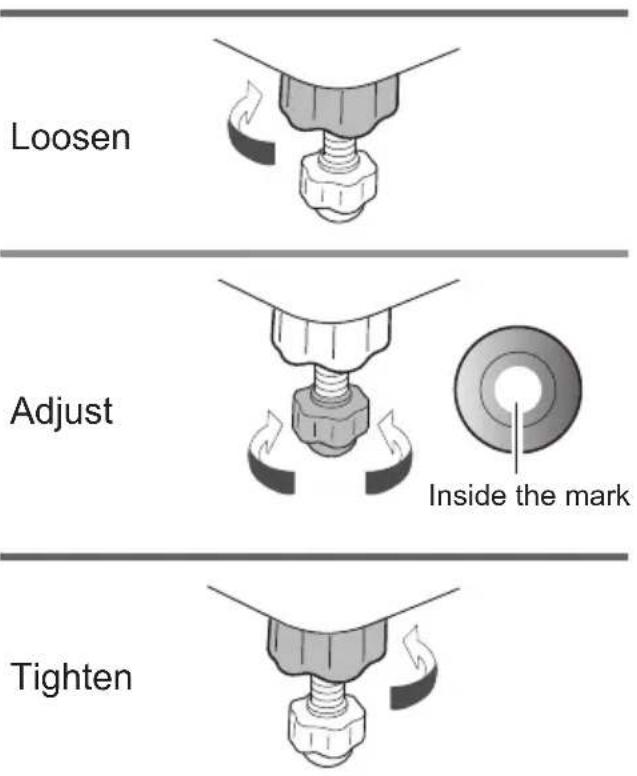

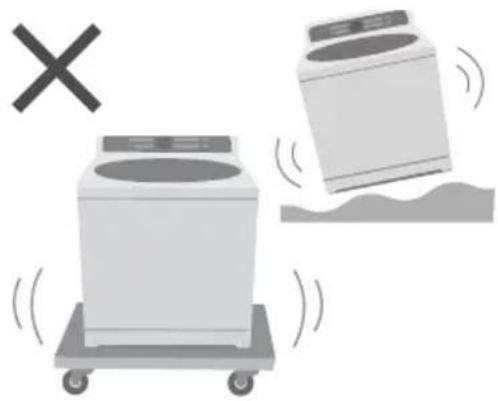

Installation Requirements	Level floor, water supply (0.01-1 MPa), drainage, grounded outlet

Frequently Asked Questions - NA-FD12VR1 PANASONIC

How do I use the Preset timer?

Press the Preset button repeatedly to set the number of hours (1-24) until the wash finishes. The machine will start automatically to finish at the set time. Note: Not all programs support Preset.

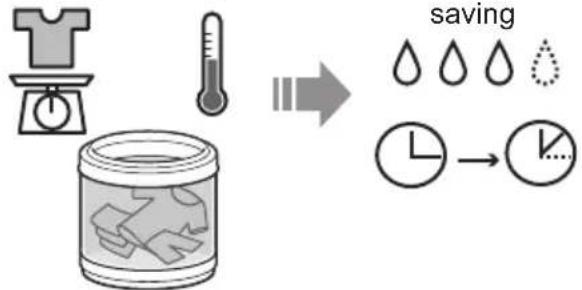

What is ECONAVI and how does it work?

ECONAVI automatically adjusts water usage and washing time based on the load size and water temperature, saving energy and water. It only works with the Normal program.

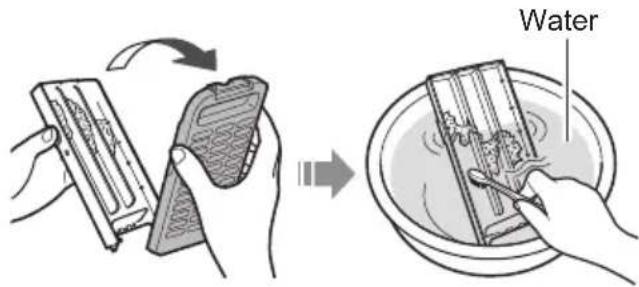

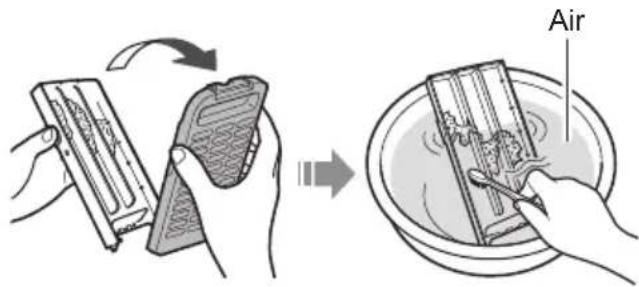

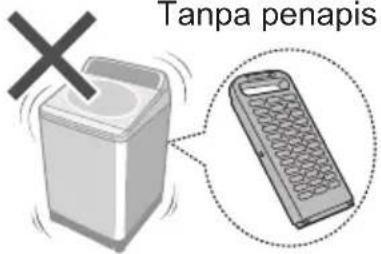

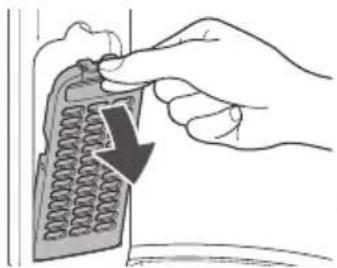

How do I clean the lint filter?

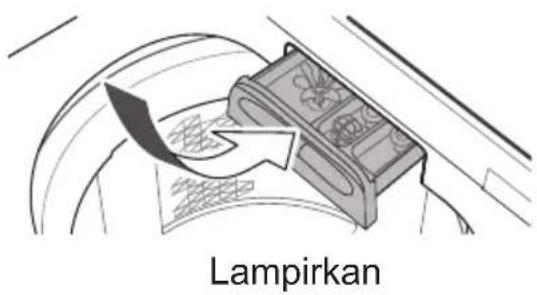

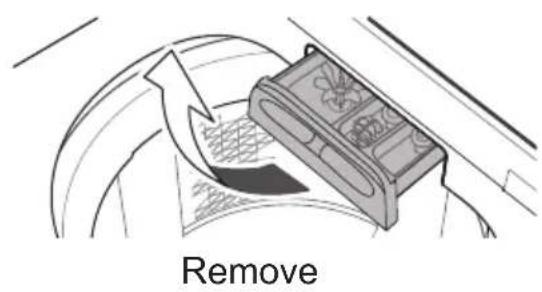

After each wash, open the filter cover near the drum, pull out the lint filter, remove lint with your fingers, and rinse under water. Reinsert firmly.

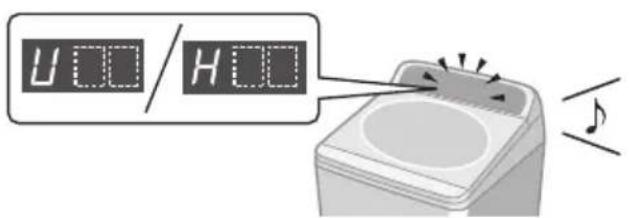

What do error codes mean?

Common errors: U (lid open), H (water cannot drain), F (water cannot supply), C (unbalanced load). Check the manual for specific troubleshooting steps.

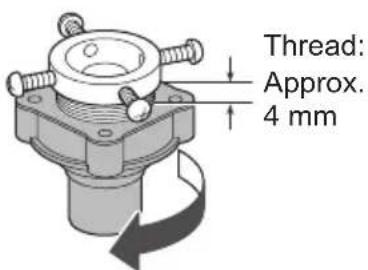

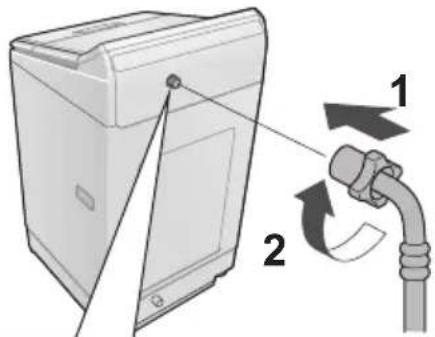

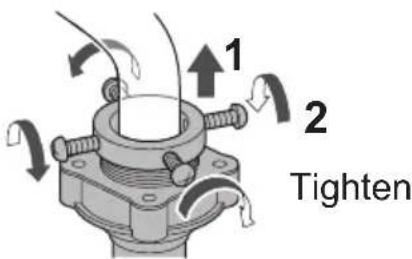

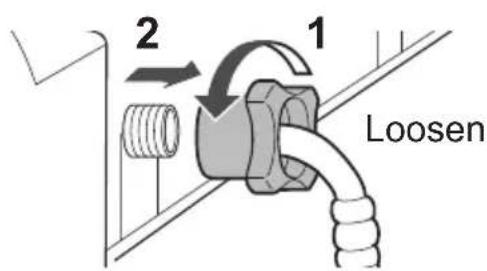

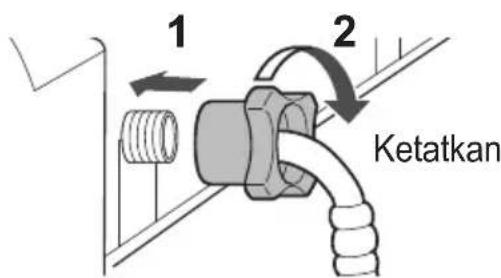

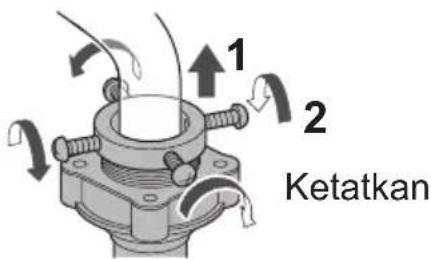

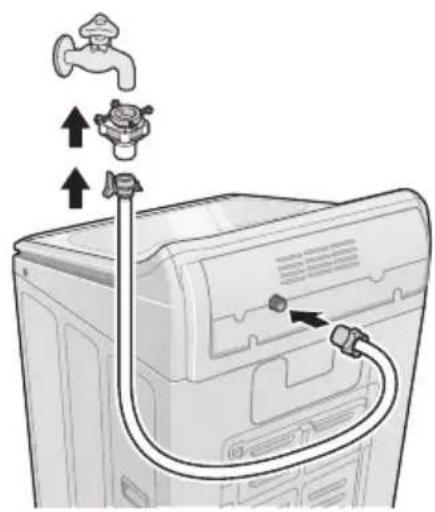

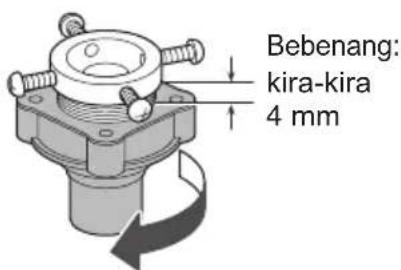

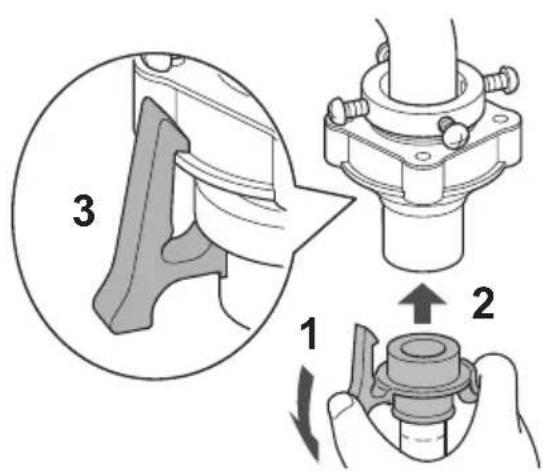

How do I install the water supply hose?

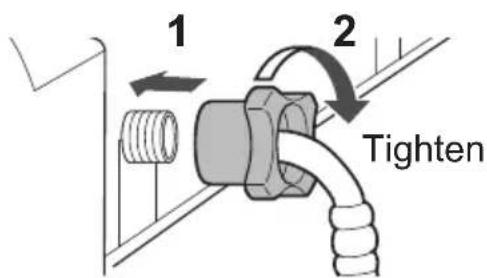

Connect the hose to the water faucet and the washing machine inlet. Tighten nuts by hand, then turn on the water and check for leaks. Use only new hose-sets.

Can I wash a blanket or comforter?

Yes, use the Blanket program. Maximum capacity is 4.2 kg. Ensure the item has a machine-washable tag.

What is the maximum load for the Stain Master + program?

The Stain Master + program handles up to 5.0 kg of laundry. Pretreat stains before washing and select the appropriate stain type.

How do I cancel the end buzzer?

Press and hold the Cancel button for 3 seconds until the buzzer indicator turns off. Repeat to re-enable.

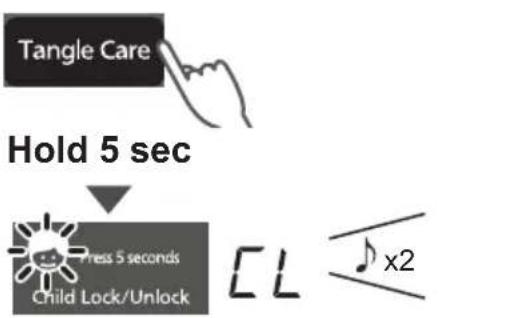

How do I set the Child Lock?

Press and hold the Tangle Care button for 5 seconds. The lock indicator will light up. Repeat to unlock. Note: The lid and buttons are still operable, but settings cannot be changed.

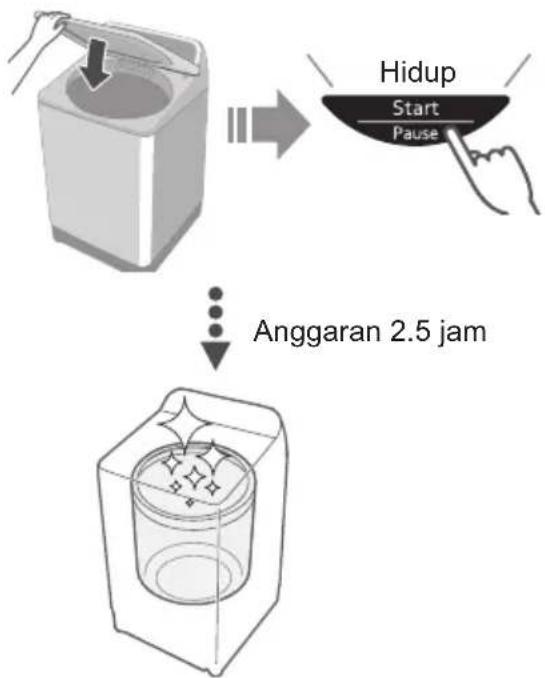

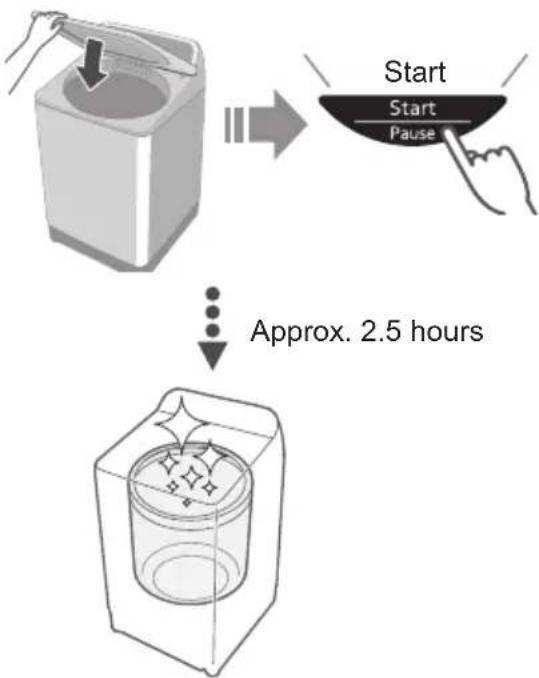

How often should I run the Tub Hygiene program?

Run the Tub Hygiene program once a month or when black mould or odor appears. Do not add laundry or detergent. Ensure the tub is empty.

USER MANUAL NA-FD12VR1 PANASONIC

Operating & Installation Instructions

Fully Automatic Washing Machine (Household Use)

Model No. NA-FD12VR1

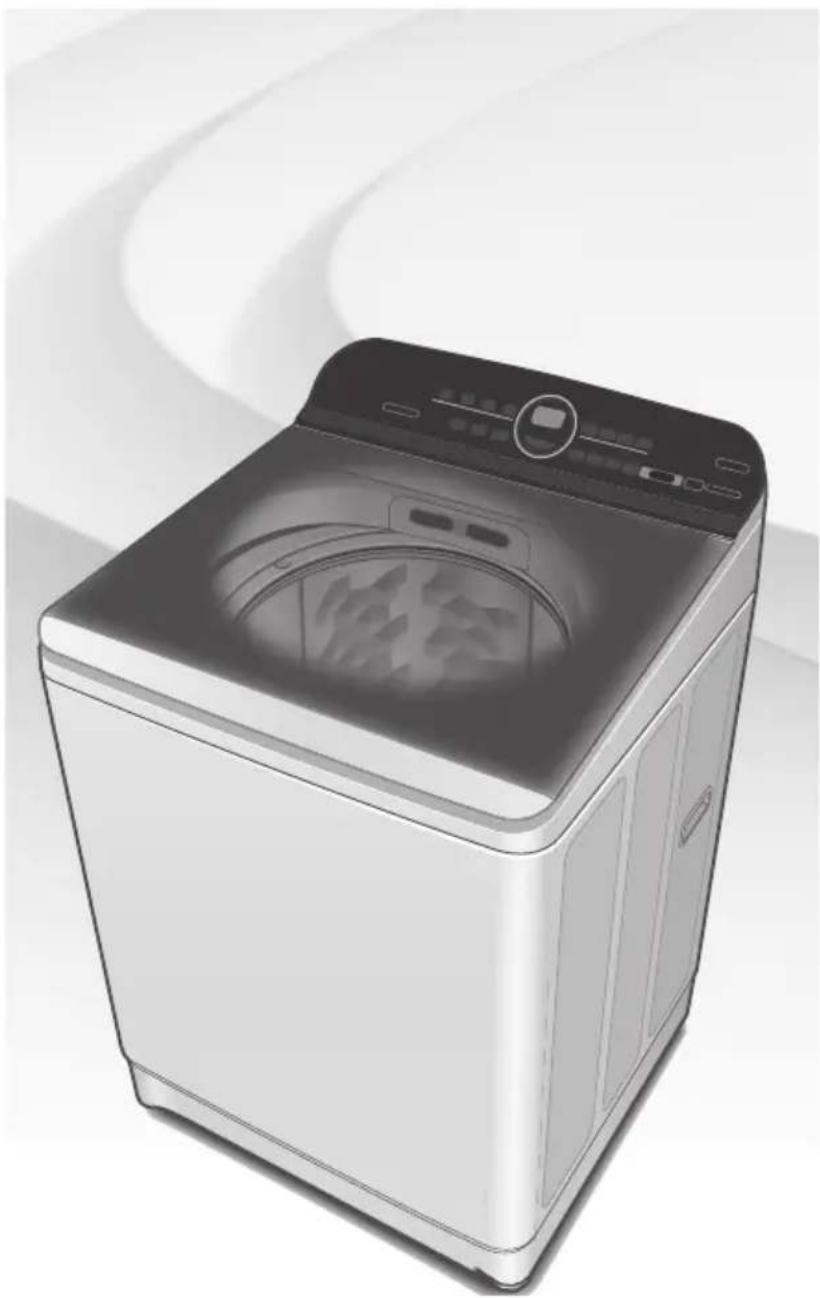

Illustration of a modern single-family washing machine with a circular vent and control panel (no text or symbols visible)

Thank you for purchasing this product.

• Read these instructions carefully for optimum performance and safety before use.
• Keep this manual for future reference.

Contents

Safety Precautions	2
Part Names / Accessories	6
Before Washing	7
Operation Panel	8
Washing	9
Variety of Programs	10
Detergent / Softener / Bleach	12
Washing Options	14
• Preset
• Wash / Rinse / Spin

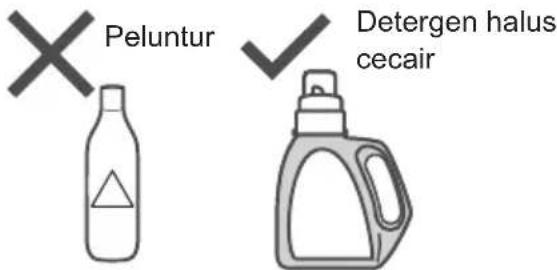

• Delicate
• Blanket
• Stain Master +
• Air Dry (90 min)

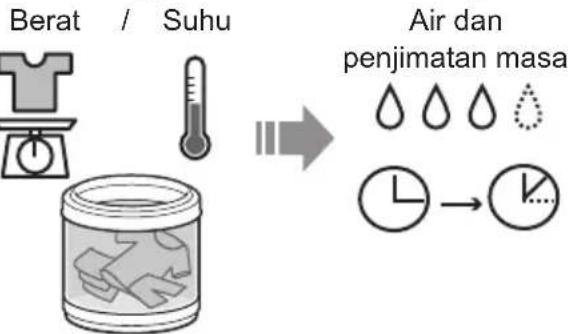

• ECONAVI
Convenient Functions	18
Contents of Programs	19
Maintenance	20
Installation	24
Error Display	28
Troubleshooting	30
Specifications	32

AWW9901C72C0-0C5

A0620-0(M)

Printed in Vietnam

06-2020

Safety Precautions

WARNING

May cause serious injury or death.

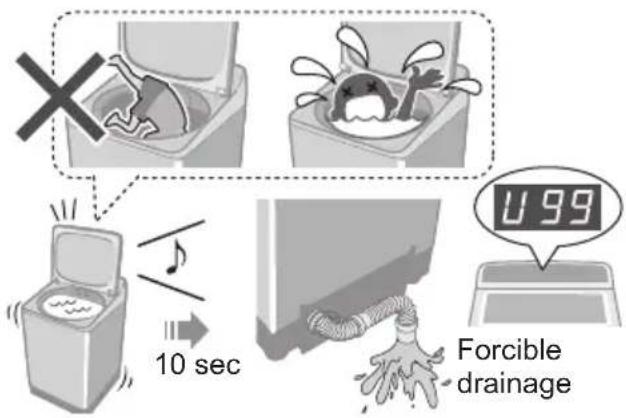

Children must not use it alone.

Illustration of a child washing clothes inside a washing machine with a 'X' symbol above (no text or symbols on the main image)

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  Children should be supervised to ensure that they do not play with the appliance.

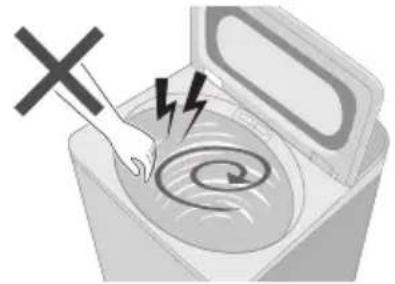

Do not touch the tub until it stops.

Illustration of a hand pressing down on a circular object with a lightning bolt, no text or symbols present

- If the tub does not stop within 15 sec:

May cause fire or electric shock.

Do not touch it with wet hands.

Illustration of a hand holding a water droplet with a 'X' symbol above, indicating an environmental or health hazard (no text present)

Do not hold or pull on the cord.

Hand holding a plug inserted into an electrical outlet, with a 'X' symbol indicating no text or symbols on the main subject.

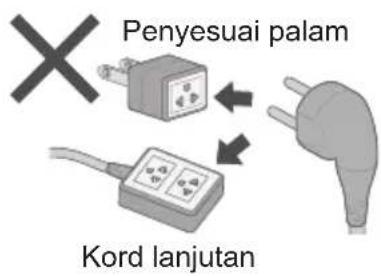

Do not use.

Fully insert it. Do not use.

Two identical diagrams showing a plug inserted into a socket, with no text or symbols present.

- If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

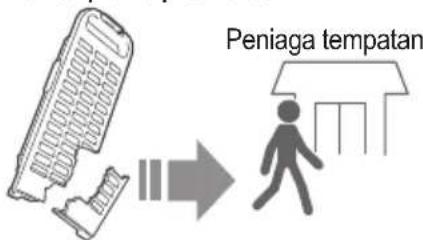

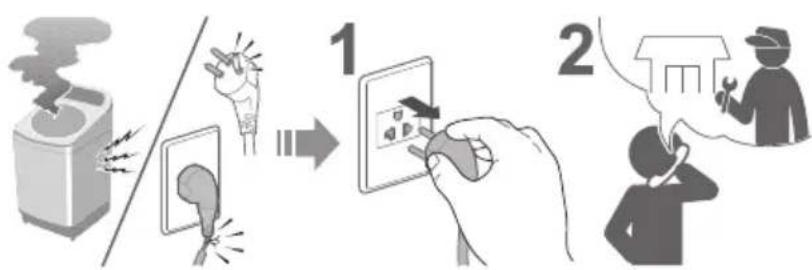

In case of failure or damaged power cord, stop use and ask the service centre.


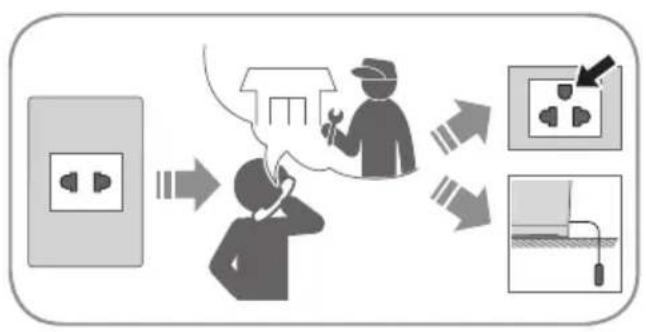

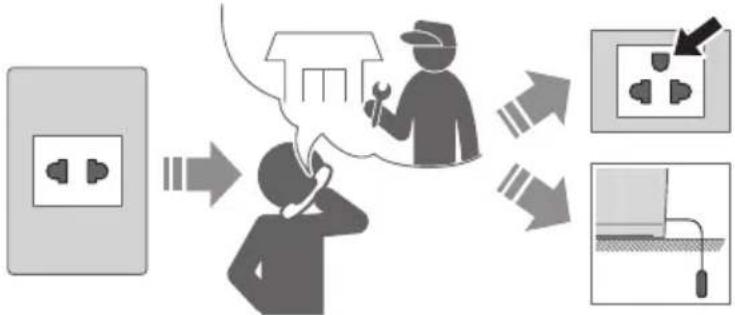

Securely insert the ground prong. Call your local dealer for a new socket.


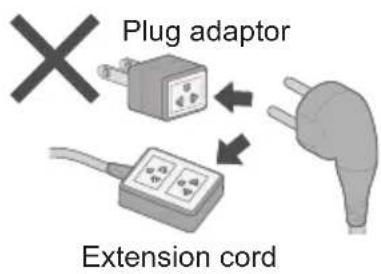

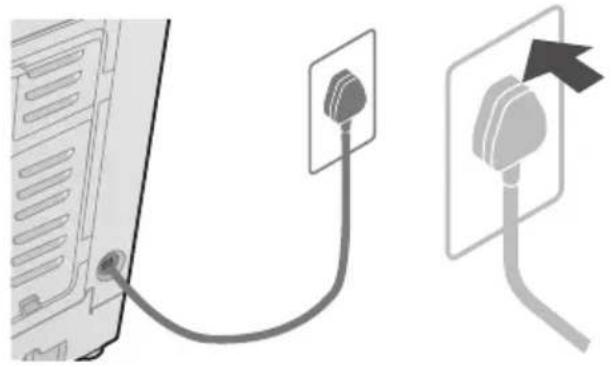

Use a socket appropriate for this appliance.

- The plug shape, socket shape and rating requirement varies with the region.

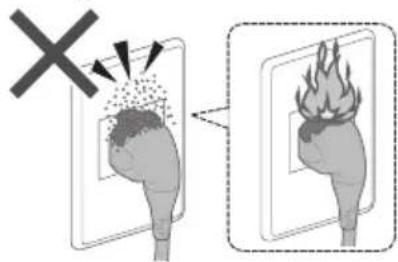

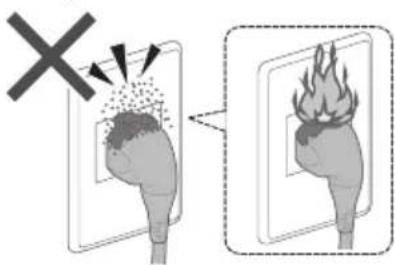

Accumulated dust may cause fire.

Wipe the power plug periodically.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Keep away from flammable materials.

May cause failure.

Never disassemble, repair or modify it by yourself.

Illustration of a washing machine with a cross symbol, a person holding a tool, and scattered items (no text or symbols)

Safety Precautions (continued)

CAUTION

May cause injury.

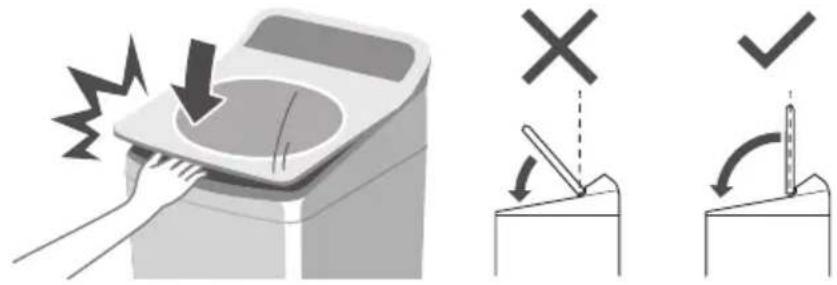

Be careful not to get your fingers caught.

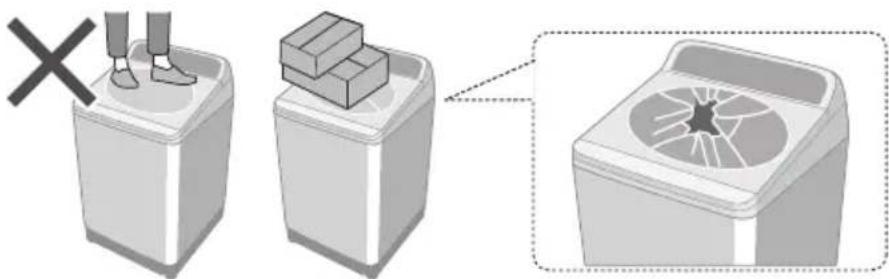

Do not climb or put objects on the appliance.

Illustration of a washing machine with a hand using a tool to stop it, showing a close-up of the lid and base (no text or symbols present)

- If the lid is broken, immediately stop using.

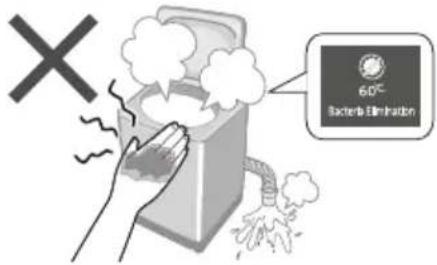

Do not touch when it is hot. Be careful of your hands and feet.

Illustration of two hands holding a gray box with a black 'X' mark, no text or symbols present

May cause water leakage.

Turn off the water faucet. Use new hose-sets.

Illustration of a washing machine with a showerhead and a faucet, symbolizing laundry or water circulation (no text or symbols present)

Illustration of a flexible hose with sparkles and decorative stars (no text or symbols)

● New hose-sets supplied with the appliance are to be used and old hose-sets should not be reused.

■ For maximum dry cloth and tap water pressure, see Page 32.

May cause failure.

Keep away from heat and direct sunlight.

Illustration of a trash bin with a sun and a 'X' symbol, no text or labels present

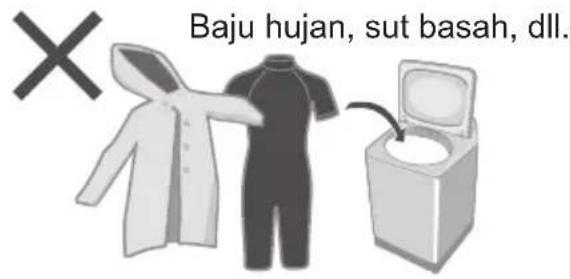

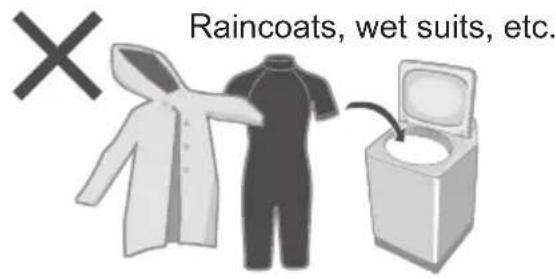

Do not wash waterproof items.

Do not obstruct. Do not use hot water.

- Do not obstruct the openings of the bottom face with carpet, etc.

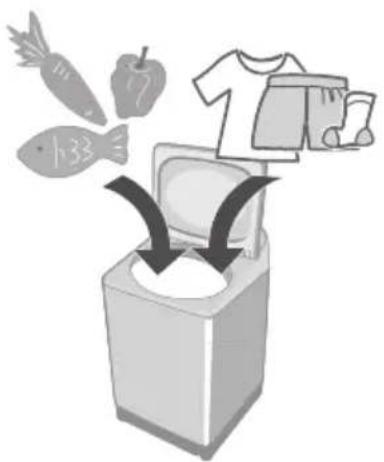

For Machine-washable items only.

Illustration of a washing machine with food items like carrots, apples, and a T-shirt, showing a recycling arrow (no text or symbols)

• This appliance is intended to be used in household. This appliance is not intended to be used in applications such as:
• Staff kitchen areas in shops, offices and other working environments;
• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments;
• areas for communal use in blocks of flats or in launderettes.

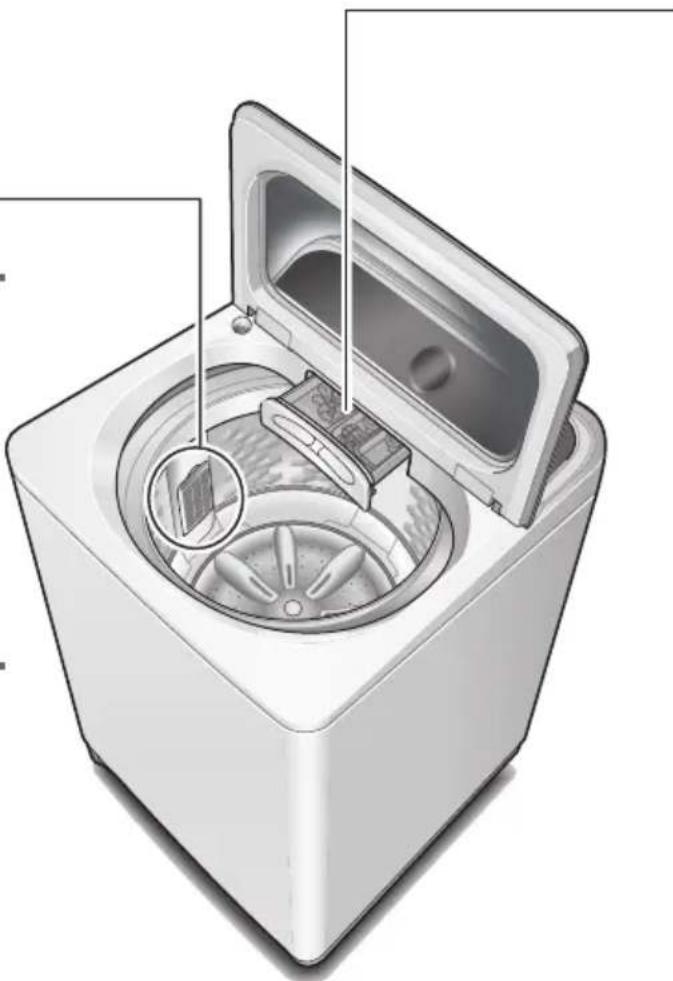

Part Names / Accessories

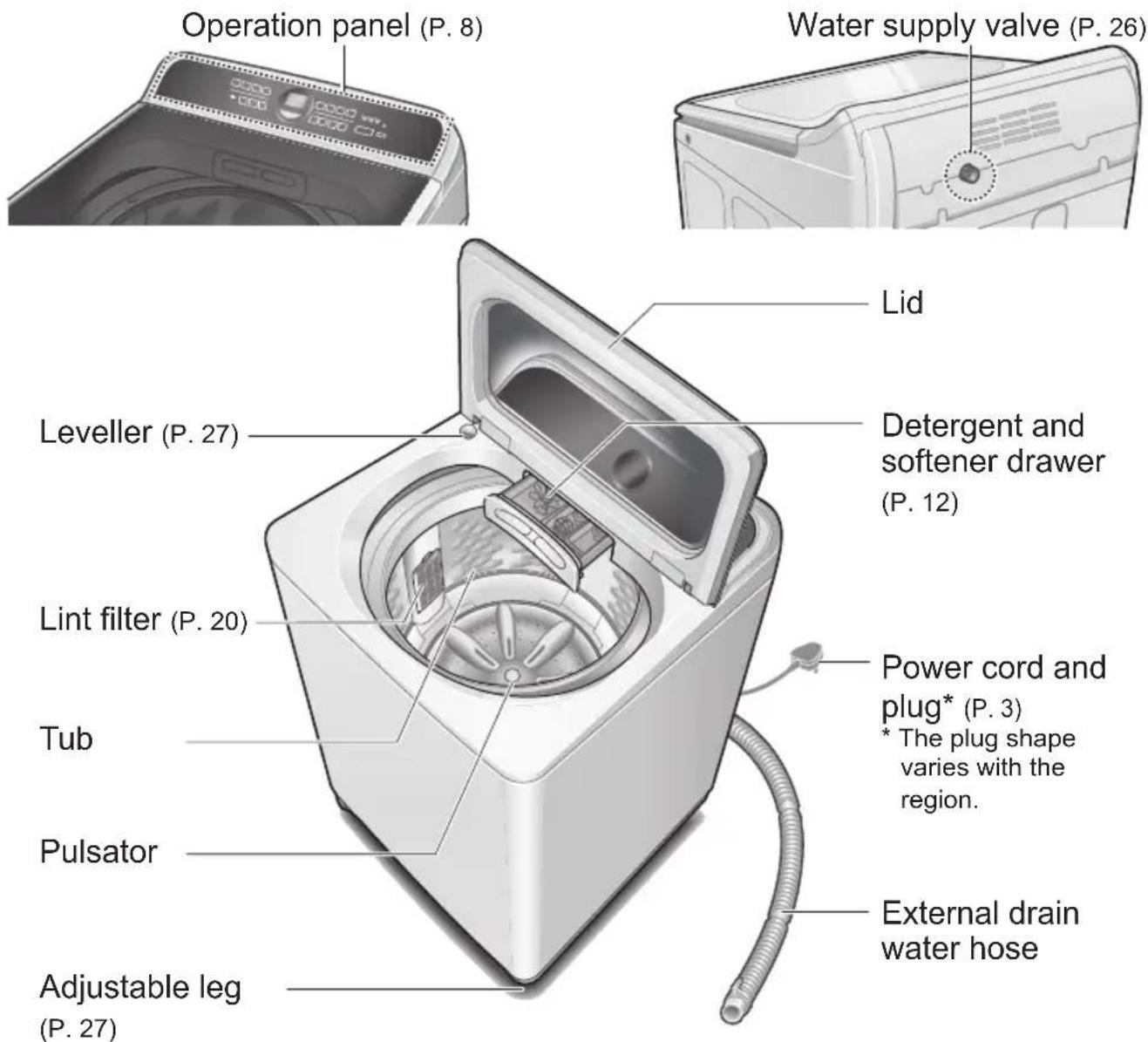

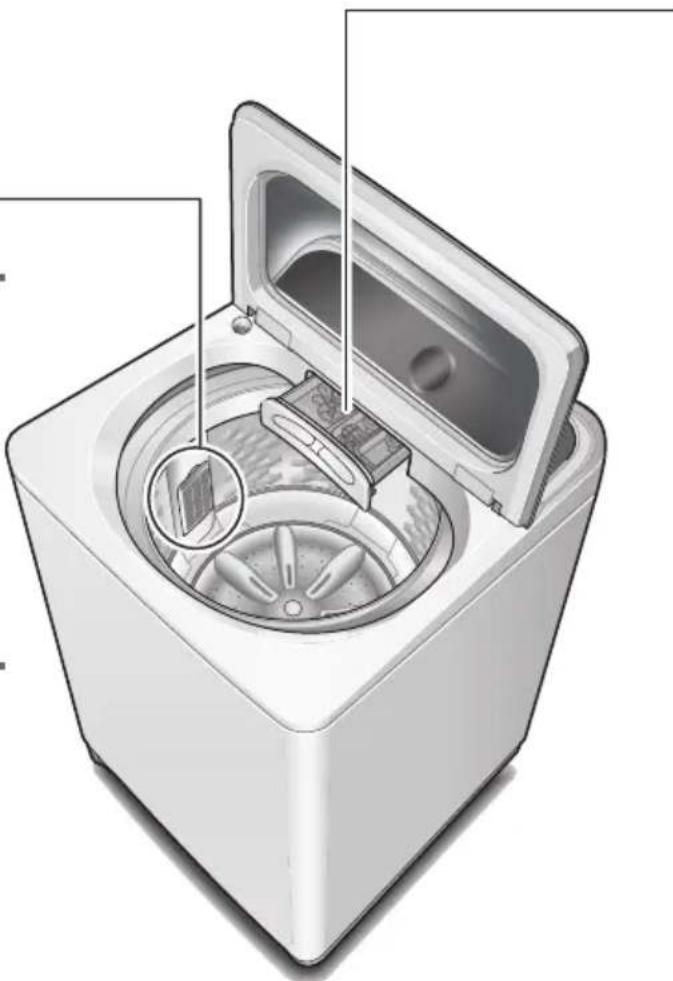

Part names

Accessories

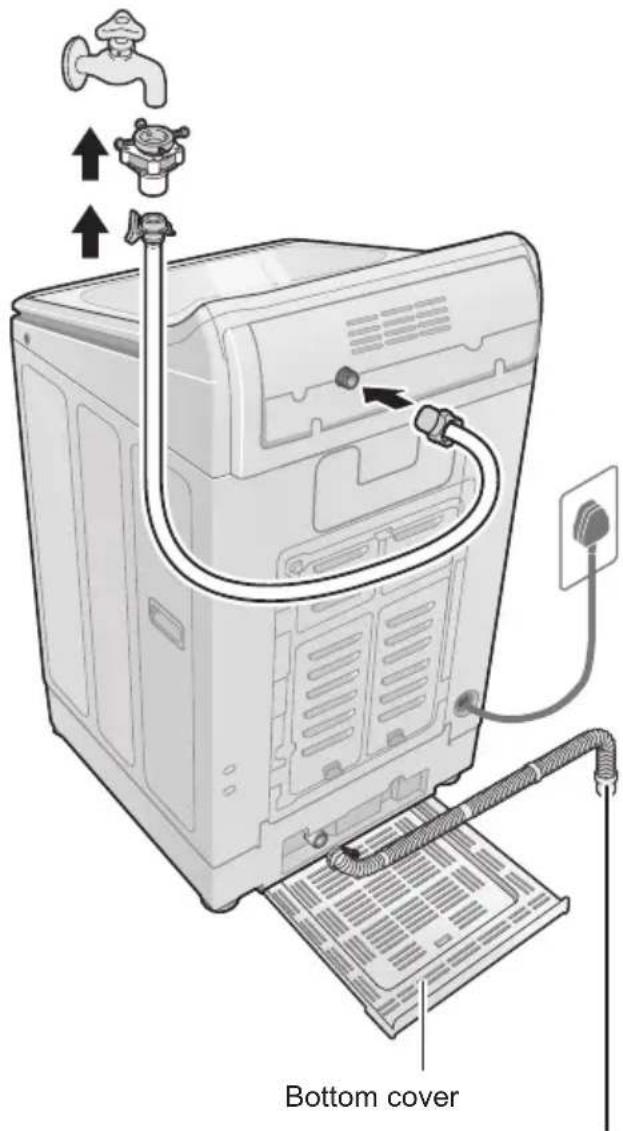

□ Water supply hose (1) (P. 26)

Diagram of a coiled tube with attached connectors, labeled length 1.0 m (no text or symbols on the diagram itself)

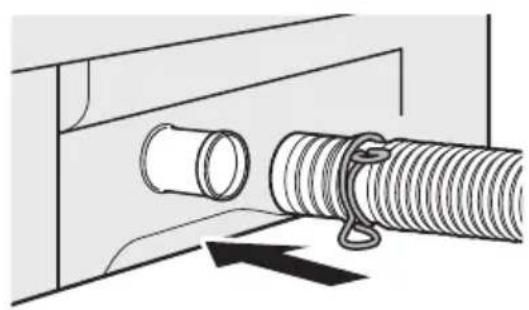

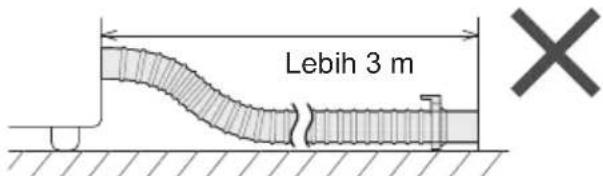

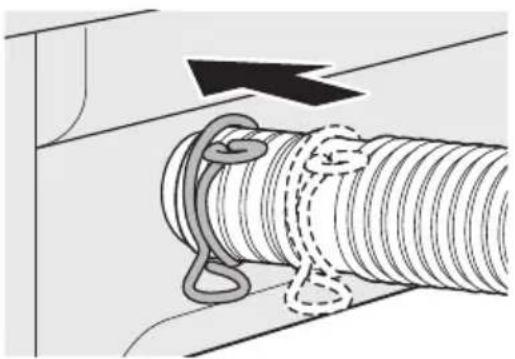

□ External drain water hose (1) (P. 25)

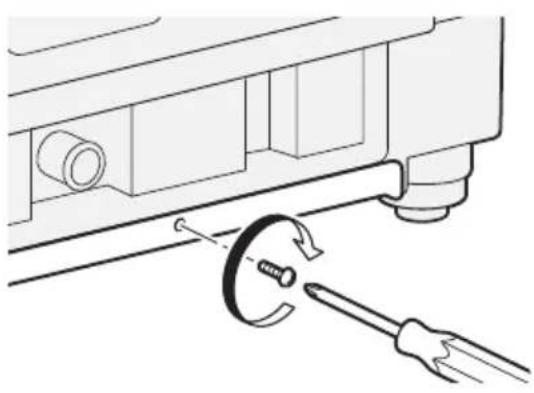

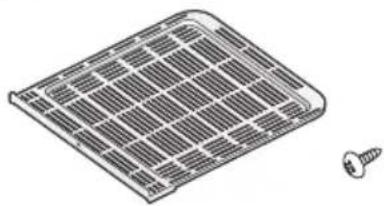

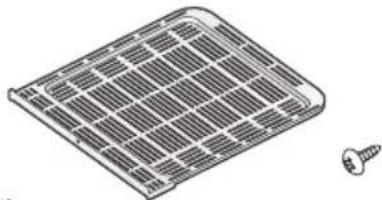

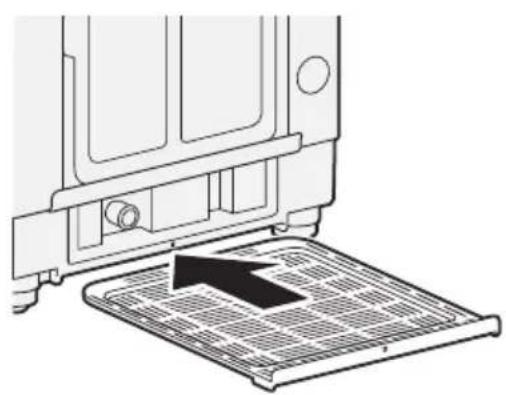

☐ Bottom cover (1) /Screw (1) (P. 25)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Before Washing

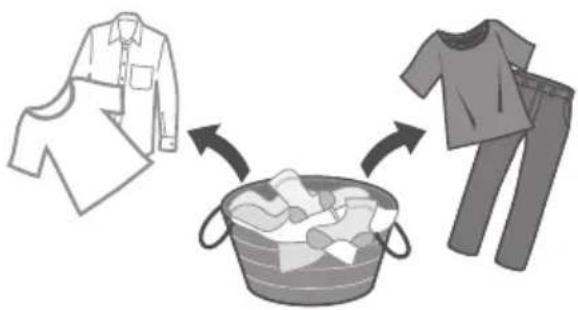

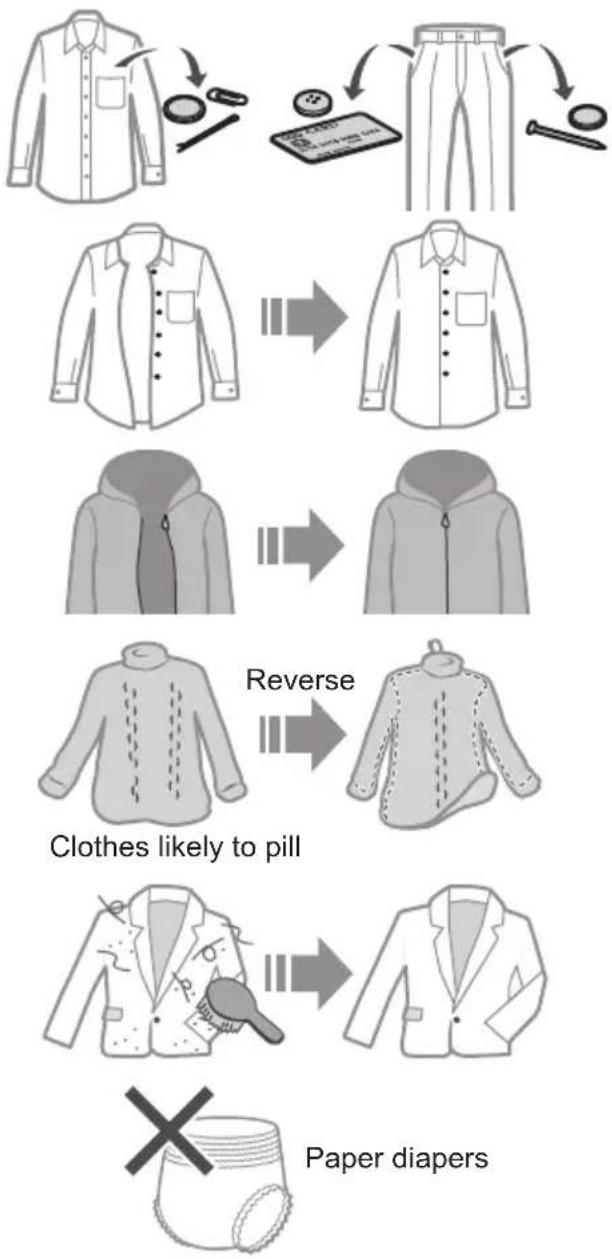

Laundry preparation and check

Pre-laundry check


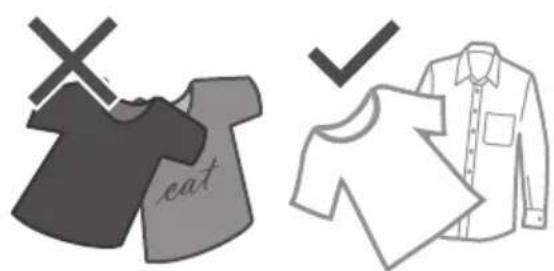

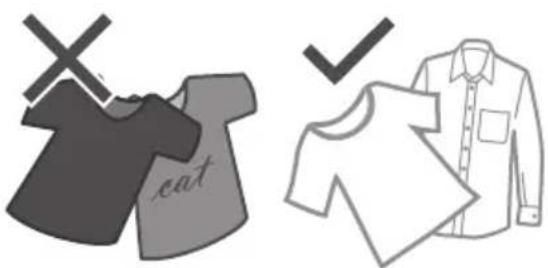

To prevent colour staining

Illustration showing clothing items including a shirt, a bag, and a T-shirt, with arrows indicating direction of movement (no text or symbols)

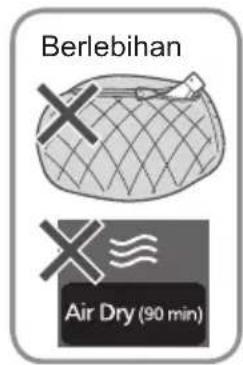

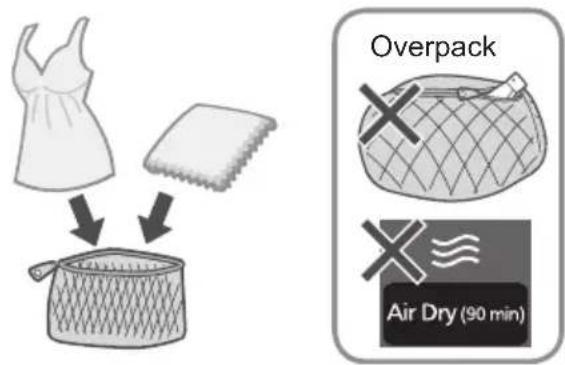

Use laundry nets for delicates

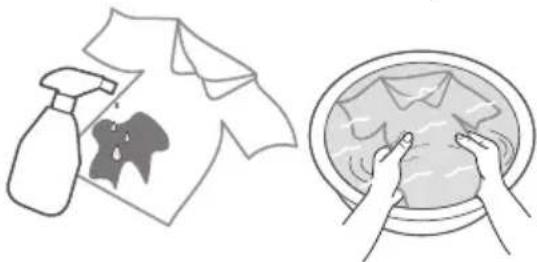

For "Stain Master +" (P. 16)

- Pretreatments for heavily stains

Illustration showing a spray bottle cleaning a garment and a hand washing clothes in a bowl (no text or symbols)

- Observe the clothes' care labels

- Coloured clothes

- Rubber clothes

Silhouette of a person wearing a short-sleeve shirt with a large 'X' symbol (no text or symbols present)

• Shirts with stiff fabric

- Graphic shirts

Simple line drawing of a t-shirt with floral patterns and a crossed-out X symbol (no text or symbols)

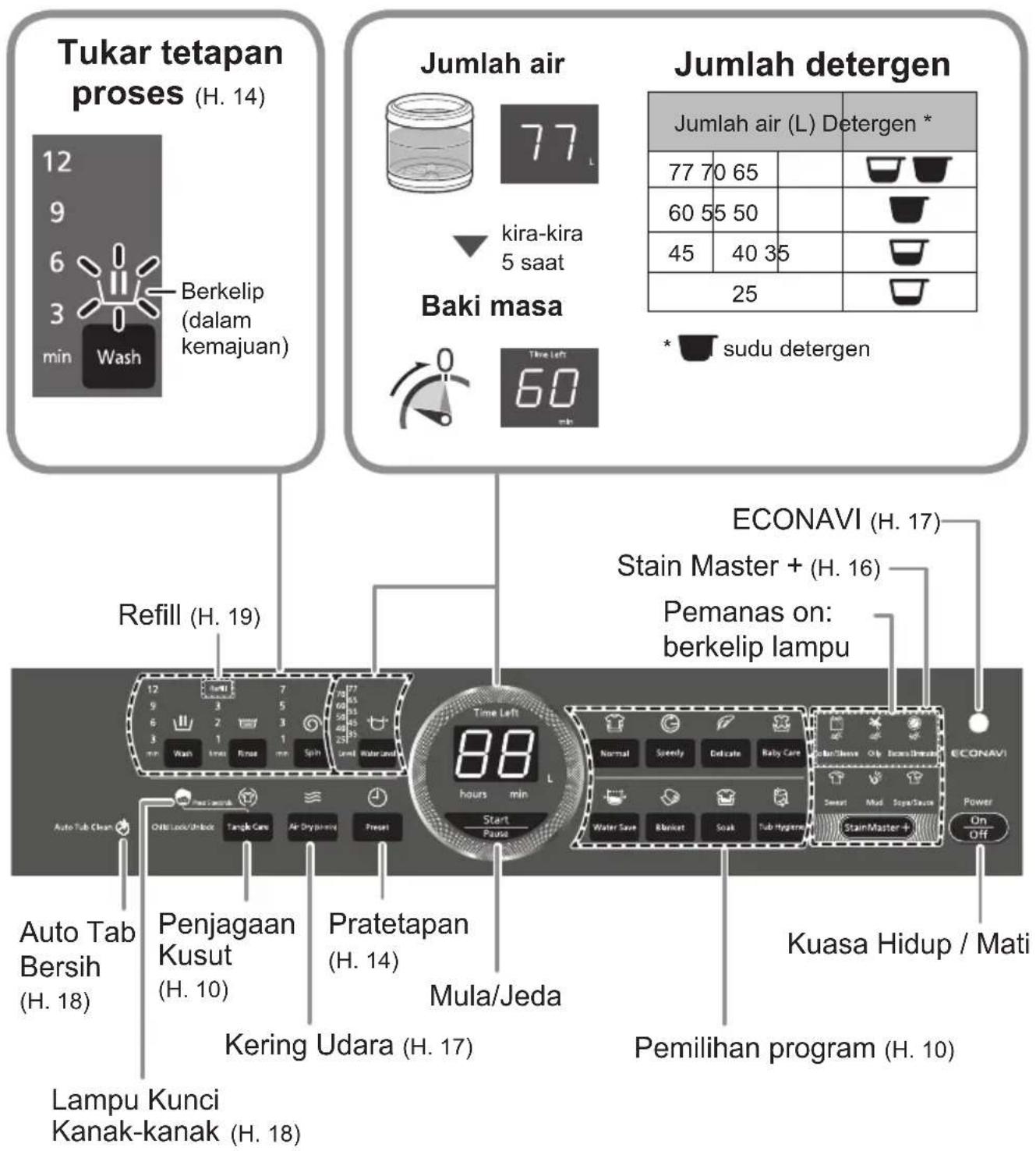

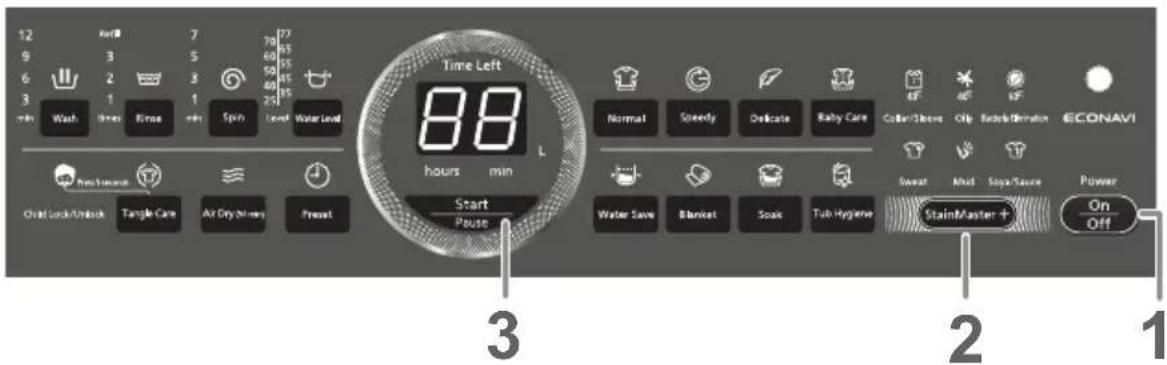

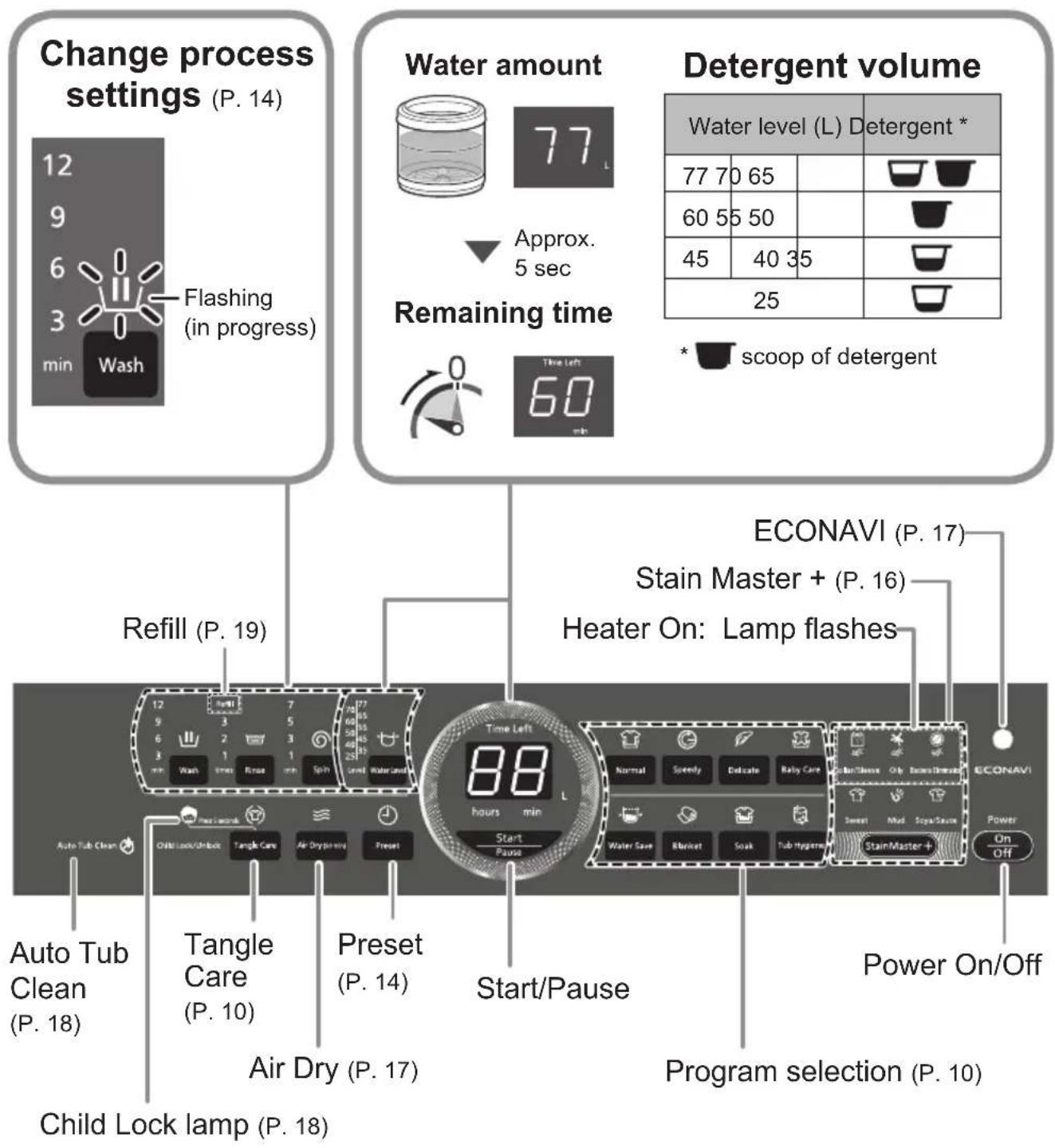

Operation Panel

NOTE

In case of a power failure.
Operation will resume from where it stopped when the power recovers.

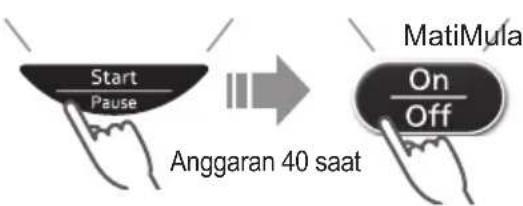

- If you do not press a Start Pause within 10 minutes after power-on.
Auto power off.

- The wash process setting of the “Stain Master +” and “Soak” programs cannot be changed.

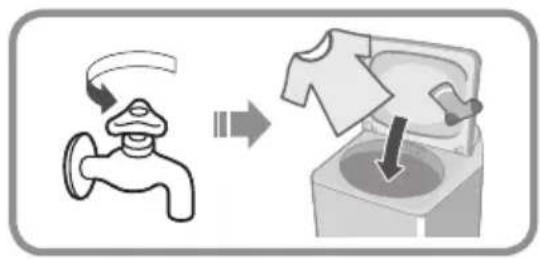

Washing

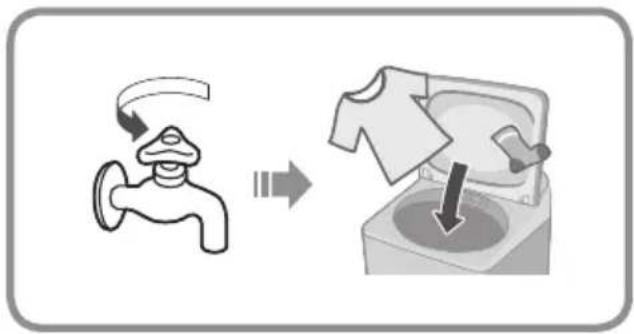

1

2

(P. 10)

Preset timer

(P. 14)

3

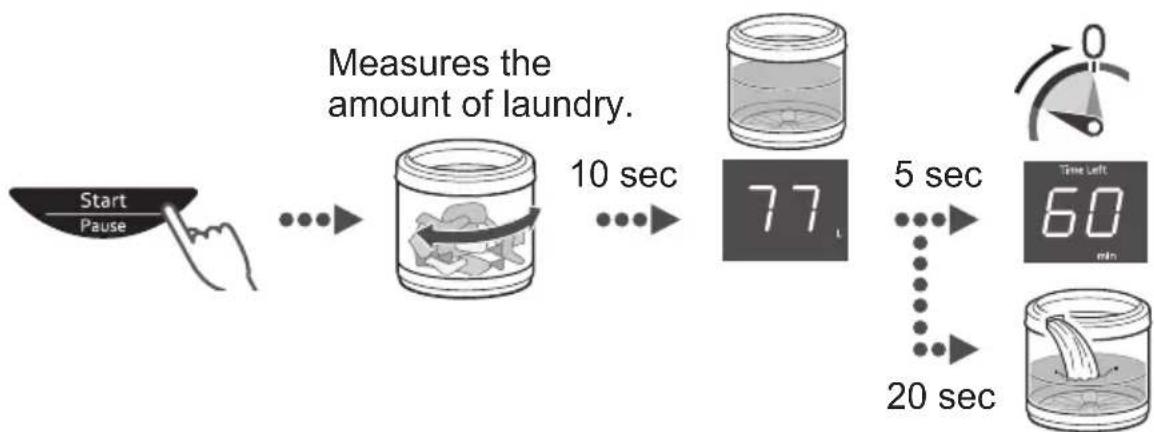


4

(P. 12)

5

Illustration of a washing machine with a hand inserting into it, accompanied by a shirt and starburst graphic (no text or symbols)

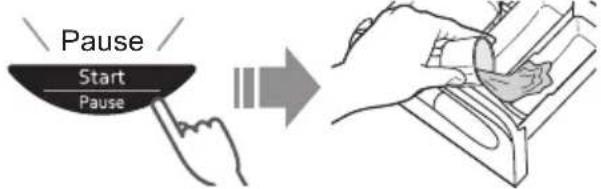

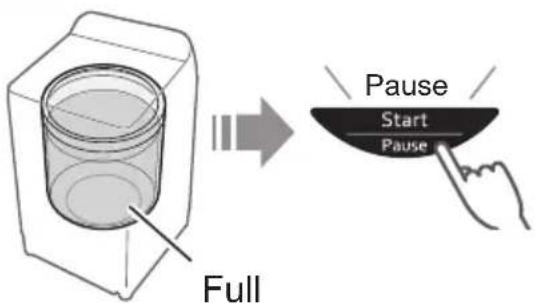

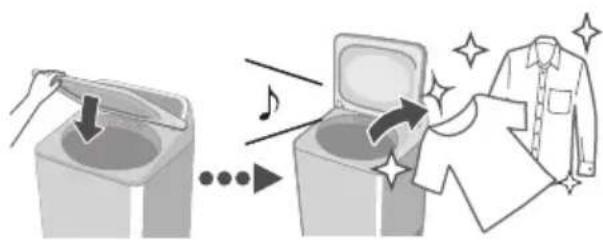

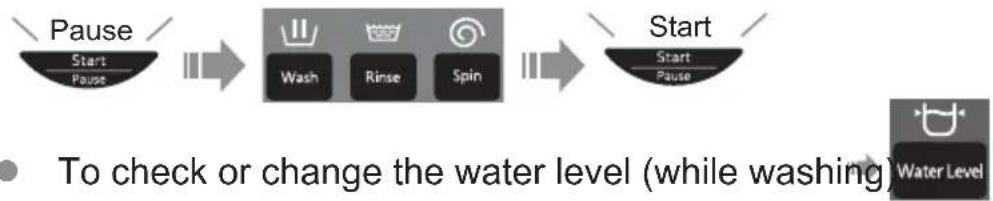

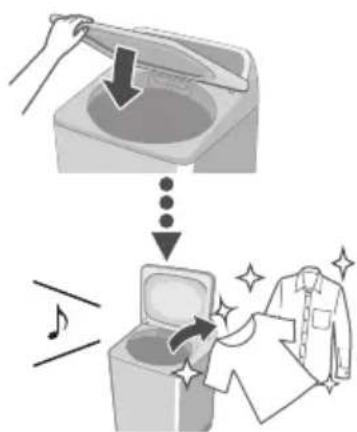

■After pressing "Start"

- To change each operation (while washing).

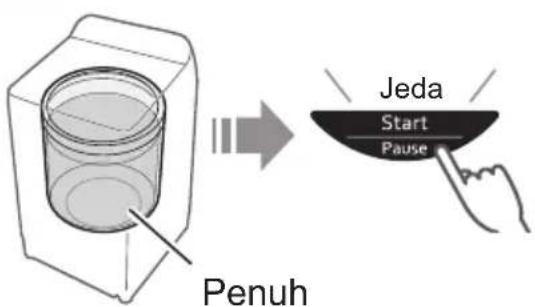


To check or change the water level (while washing
- You cannot change the program.

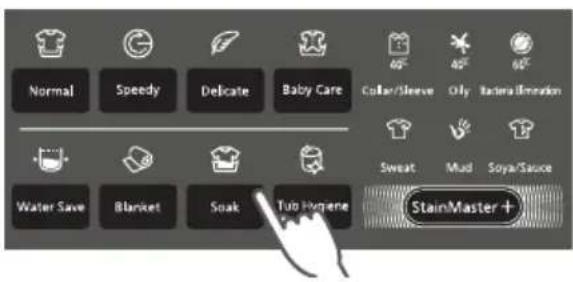

Variety of Programs

	Program Purpose		Max. capacity (kg)
Wash	Normal (P. 9)	Everyday clothes	12.5
	Tangle Care (P. 9)	Anti-tanglingWashing more gently than “Normal” to reduce tangle.Disentangling clothes after spin: 6 kg or less.
	Speedy (P. 9)	For light soil	12.5
	Delicate (P. 15)	Washing gently	4.2
	Baby Care (P. 9)	Clothes for babies & sensitive skinRinsing thoroughly	12.5
	Water Save (P. 9)	Saving water	12.5
	Blanket (P. 15)	Comforters and blanketsWith a machine-washable tag	4.2
Wash	Soak (P. 9)		For heavy soil Presoaking to wash	12.5
	(P. 16)		For the following stains	5.0
	Light Sweat
			Mud
			Soya/Sauce
			Collar/Sleeve (40 °C)
			Oily (40 °C)
	Heavy

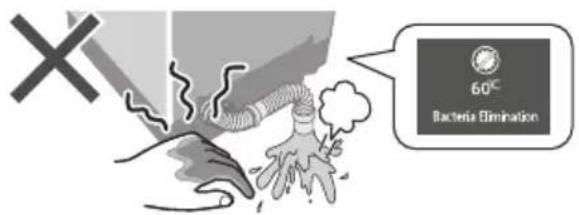

	Bacteria Elimination (60 °C)

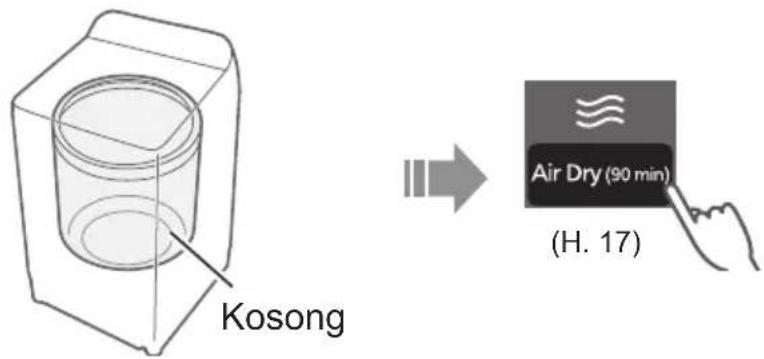

Dry	[Air Dry (90 min)] (P. 17)		Drying synthetic fibre clothes	2.0
Maintenance			Tub drying —
	[Tub Hygiene (P. 23)]		Tub cleaning Removing black mould and smell	—

NOTE

- “Normal” program and “Water Save” program are recommended for a normally soiled load at the rated capacity of this washing machine.

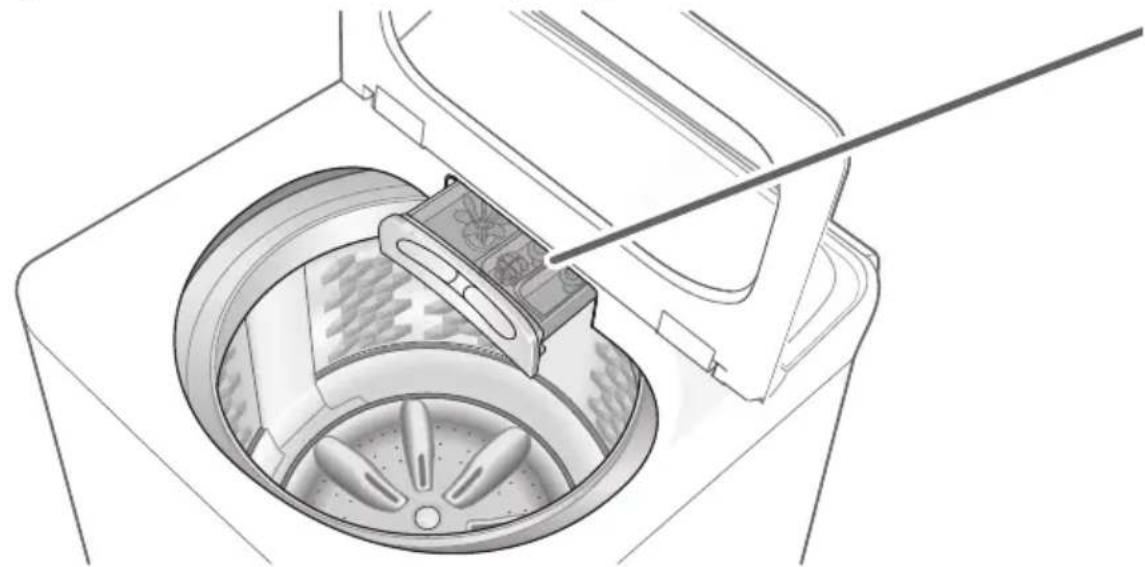

Detergent / Softener / Bleach

• Follow the instructions on each package.

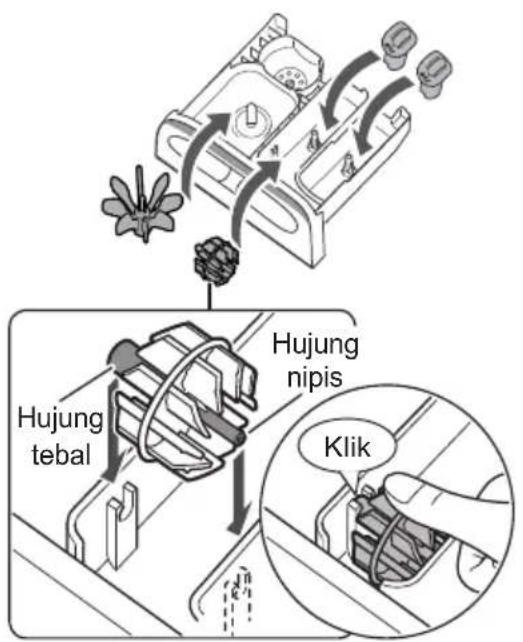

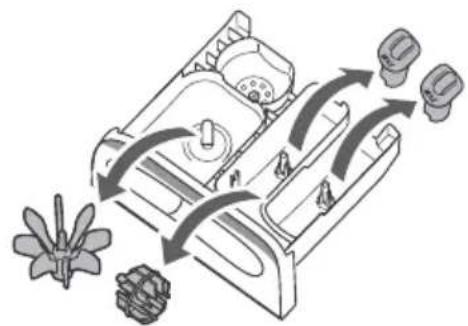

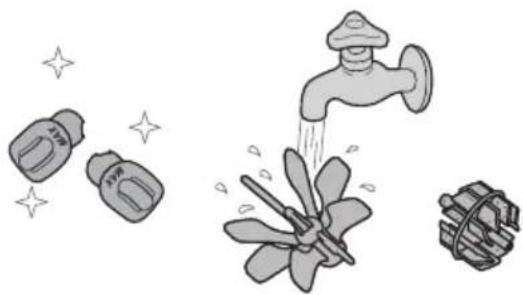

  For cleaning (P. 21)
• Close detergent and softener drawer completely before use.

Diagram of a kitchen appliance with a handle and fan, showing internal components without any text or symbols.

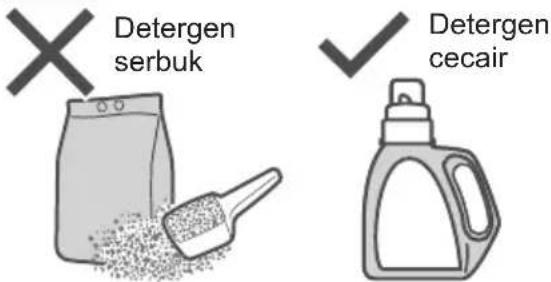

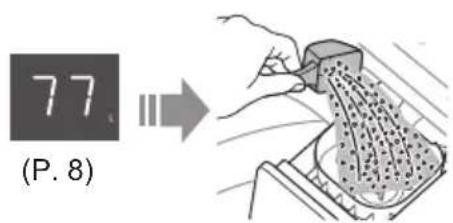

Detergent

Illustration of hands cleaning a car wheel with a cross symbol (no text or labels)

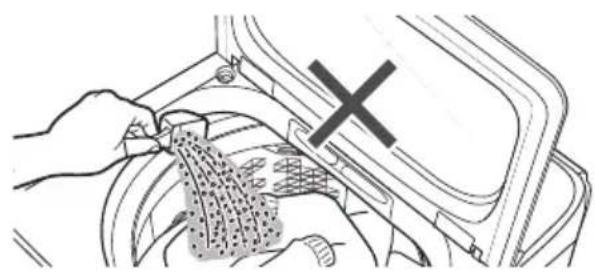

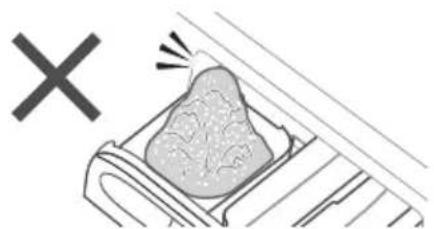

• Do not pour detergent directly into the tub.
  ● The level of foaming depends on the load size, soil, detergent, and water hardness.

Simple line drawing of a rock inside a container with a 'X' symbol above, no text or labels present.

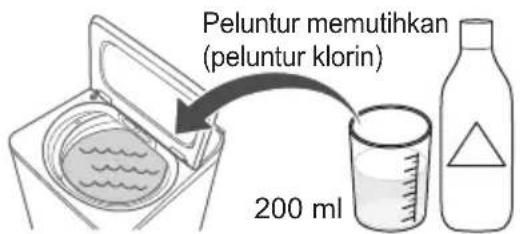

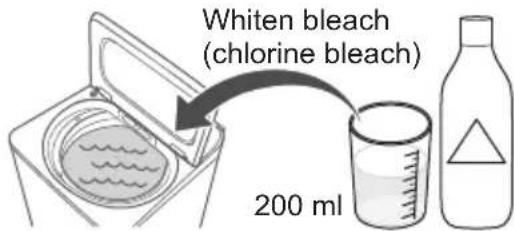

Bleach

Whiten bleach (chlorine bleach)

- To use bleach, put bleach in the powder detergent case (if bleach is in powder form) or liquid detergent case (if it is liquid bleach).

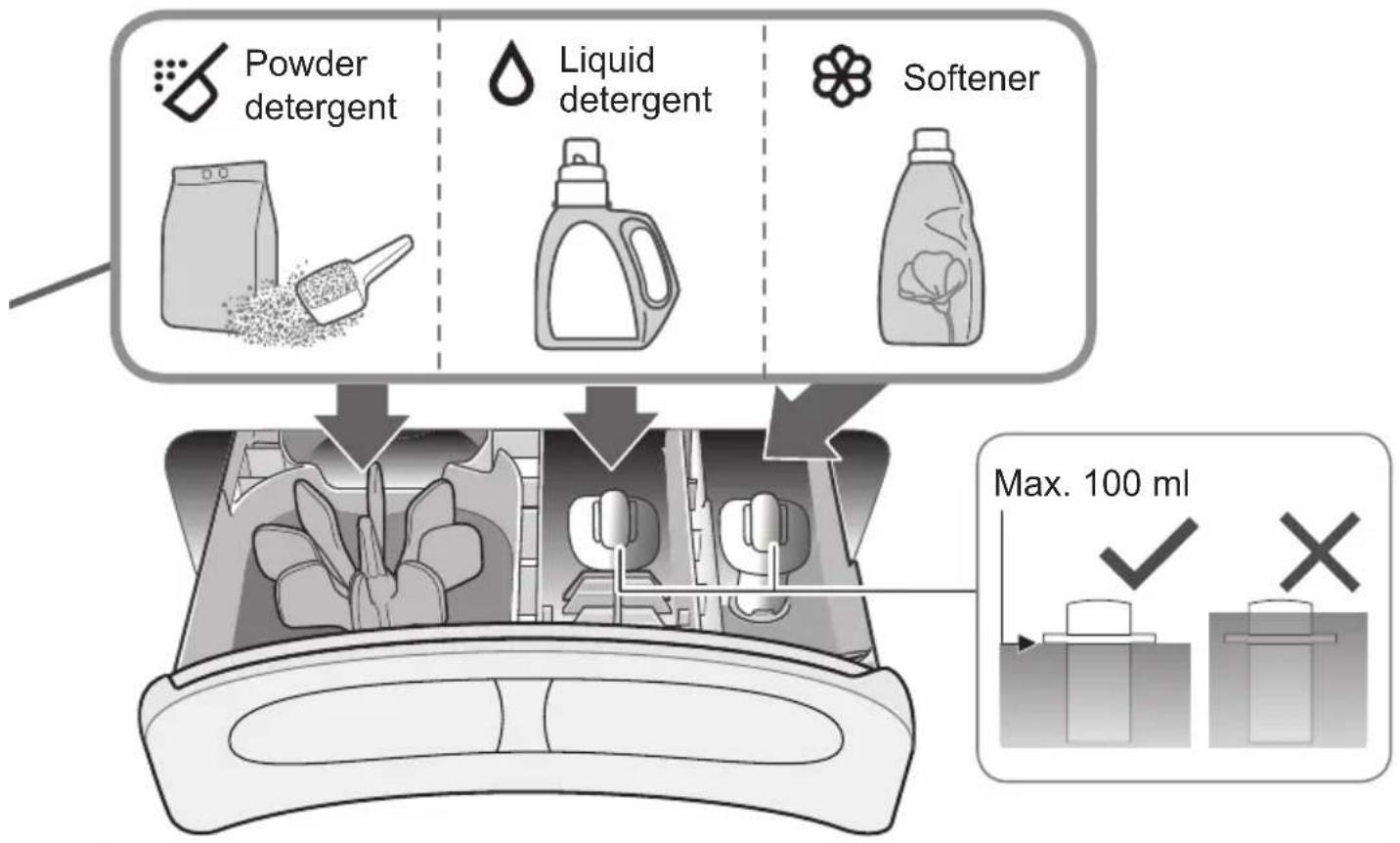

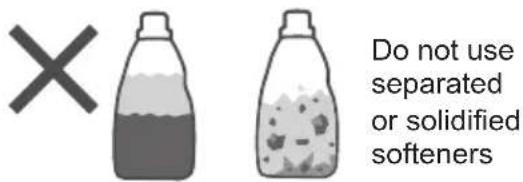

Softener

- To put softener while the machine is operating:

Water

- Softener cannot be used with the "Water Save" program.

Washing Options

Preset

Set how many hours later to finish operation.

1

2

All other indications turn off.

Normal	2 - 24
Speedy	1 - 24
Delicate	-
Baby Care	2 - 24
Water Save	2 - 24
Blanket	-
Soak	3 - 24
StainMaster +	(P. 16)
Air Dry (90 min)	-
Tub Hygiene	-

■ To confirm

■ To cancel or change

Wash / Rinse / Spin

1

2

3

NOTE

- Not available for "Tangle Care".

Delicate

65 L 4.2 kg
55 L 3.0 kg

NOTE

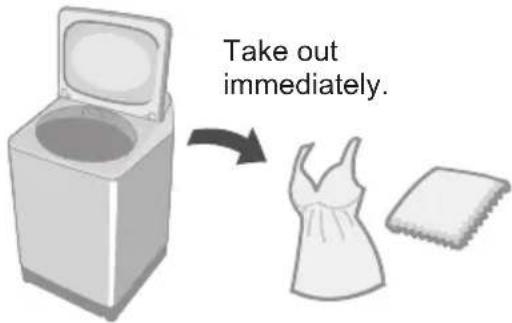

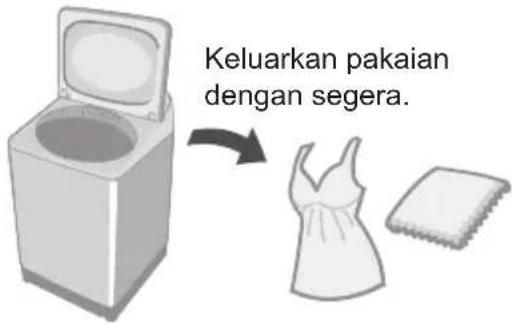

■ After operation ends

Blanket

Max.water amount

4.2 kg100 % synthetic fibre100 % cotton

Illustration of a washing machine with a cylindrical roller inside, showing a downward arrow indicating airflow (no text or symbols)

NOTE

NOTE

- The water amount indication shows the maximum and cannot be changed.

Washing Options (continued)

Stain Master +

Preparation: (P. 7)

1

2

StainMaster +

■ Timer preset (hours)40P.

Collar/Sleeve: 3 - 24

Oily: 3 - 24

Bacteria Elimination: 4 - 24

Others: 2 - 24

3

4

5

NOTE

Max. 5.0 ~kg

Max. water amount: 65 L

- You cannot change the wash process setting of this program.

- When using

• Make sure to close the lid.

Illustration of a coffee maker with an open lid and a hand inserting a coin into a box, showing sound and motion effects (no text or symbols)

- Dew condensation may occur on the lid, etc.

Condensation

Illustration of a food container with granular contents (no text or symbols)

Air Dry (90 min)

The air blown from the tub rotation removes water from clothes.

- Dryable clothes: Synthetic fibre (Max. 2.0 kg)

1

2

3

NOTE

Clothes may not be sufficiently dried (depends on amount and type of clothes, and the temperature).
- This function does not use a heater. Clothes may be cold and half dry.

ECONAVI

• "Normal" program only

Weight / Temperature

Water and time

■ Lamp indications

Detecting

ECONAVI enabled

ECONAVI disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5

* Test conditions:

• "Normal" program
• Comparison between ECONAVI-enabled operation (amount of laundry: 2.0 kg, water temperature: above 35 °C) and ECONAVI-disabled operation (amount of laundry: 12.5 kg (rated capacity), water temperature: below 15 °C)
• Test was conducted based on IEC60456 except for water temperature.

Convenient Functions

Setting Auto Tub Clean

Preventing black mould, available with all programs except "Water Save" and "Air Dry".

■ Lamp indications

Detecting

Function enabled

Function disabled

■ To turn on/off

1

2

3

Hold 3 sec

4

to select

5


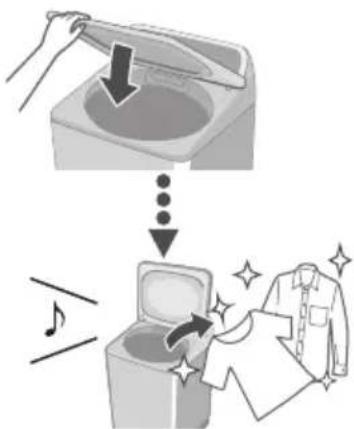

Cancelling end buzzer

1

■ To reset: same procedure

Setting Child Lock

* This function does not lock the lid and button operations.

1

2

■ To cancel: same procedurex4

NOTE

Turning the tub by hand

Diagram of a washing machine interior showing internal components and airflow direction (no text or labels)

Contents of Programs

Program		Total time*1(min)	Wash(min)	Rinse*2(times)	Spin(min)
	Normal	65 10 2 7
	Speedy	45 3 2 5
	Delicate	50 9 2 1
	Baby Care	70 10 2 7
	Water Save	85 12 4 5
	Blanket	70 12 2 5
	Soak	125 *2	71 (Soak 59) 2 7
Stain Master +	Sweat	65 13 2 7
	Mud	85 32 2 7
	Soya/Sauce	105 *2	54 (Soak 29) 2 7
	Collar/Sleeve	140 *2	33 *3	2	7
	Oily	145 *2	38 *3	2	7
	BacteriaElimination	185 *2	30 *3	2	7
	Tub Hygiene	150 *2	65 (Soak 62) 2 30

*1 Total time is approximate (When the standard water supply rate is 15 L / min and the water temperature is 28 °C).
*2 Remaining time of 99 minutes or less will be displayed. --→99
*3 Excluding water heating time. Symbol will be displayed during the water heating process.

- “Refill”: to fill the tub with water and rinse while supplying water.

Maintenance

Lint filter

After each operation

1

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a rectangular device with a curved arrow indicating rotation (no text or symbols)

Illustration of hands holding a handheld device with a scroll arrow (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and a close-up inset showing internal structure (no text or labels)

NOTE

Without the filter

If it is difficult to remove the filter (P. 18)

Diagram of a mechanical component with rotating parts and a tool, no visible text or symbols

If the filter is broken

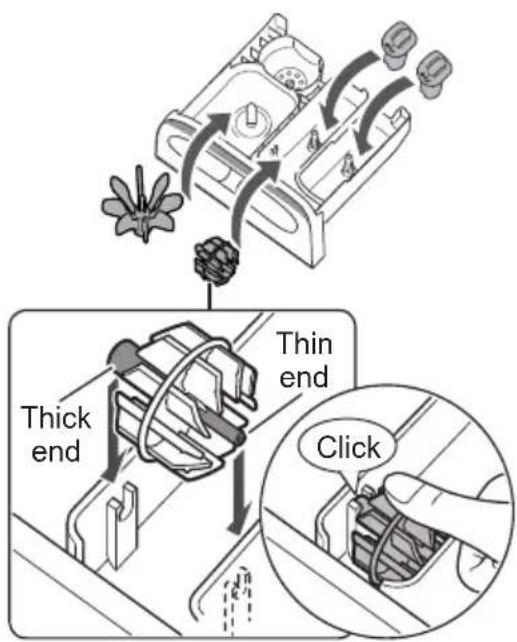

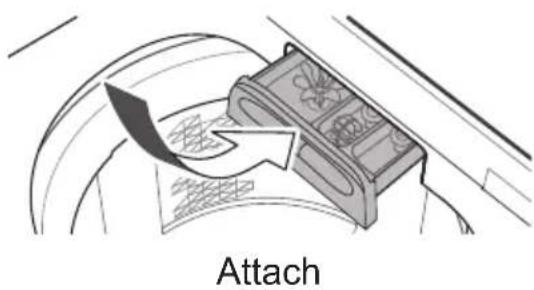

Detergent and softener drawer

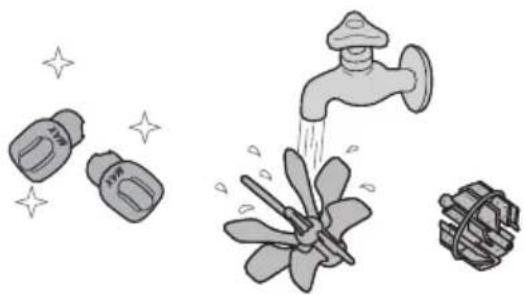

If stained with detergent or softener

1

4

2

5

3

Illustration of four different water pumps and a water tap with sparkles (no text or symbols)

Main unit, lid

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

For heavy soil

Neutral kitchen detergent

Illustration of a bottle with liquid dripping (no text or symbols)

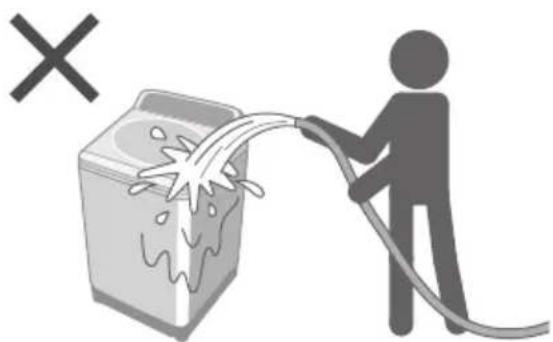

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Maintenance (continued)

Water supply filter

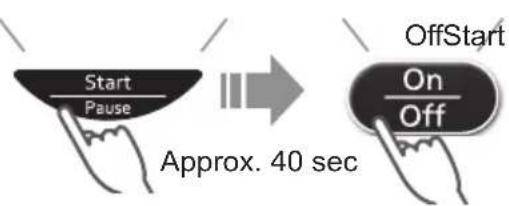

If water does not flow smoothly

Illustration of a device with a magnified inset showing a cable or connector (no text or symbols present)

1

2

3

4

5

6

Line drawing of a hand holding a tool with a circular object inserted (no text or symbols)

7

Diagram showing two mechanical components with a directional arrow, no text or symbols present

8

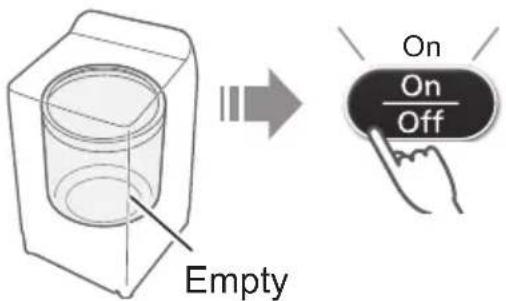

Tub

Once a week

Once a month

1

5

2

6

3

4

Installation

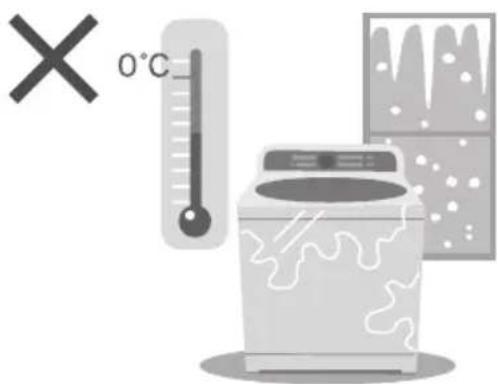

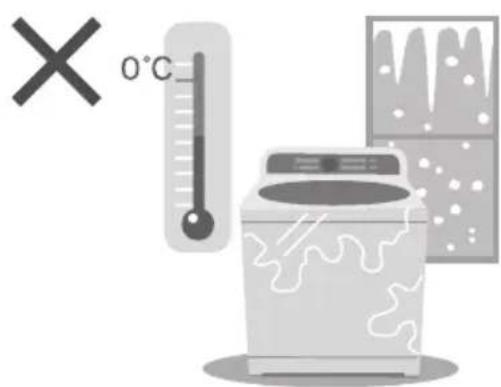

Check the location.

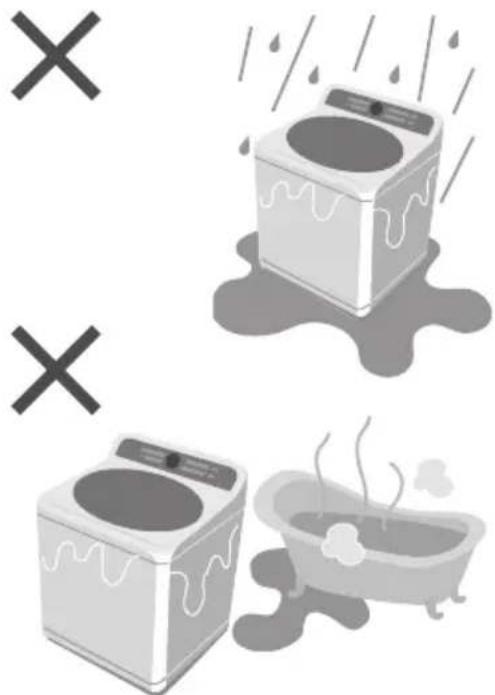

Illustration of washing machines and a bathtub with steam rising, no text or symbols present

Illustration of two washing machines on a platform with a 'X' symbol and sound waves, no text or symbols present.

Make sure to ask a service person for installation.

Silhouette of a house with tools and a worker (no text or symbols)

■ Do not install by yourself.
■ Follow this installation method.
If you do not, Panasonic will not be liable for any accident or damage.

External drain water hose

Attach the bottom cover

1

Diagram of a device with a black arrow pointing to a grid-patterned base (no text or symbols)

2

Technical line drawing of a mechanical assembly with a wrench and screwdriver (no text or symbols)

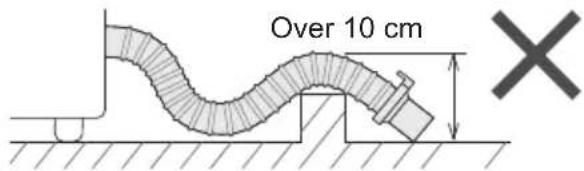

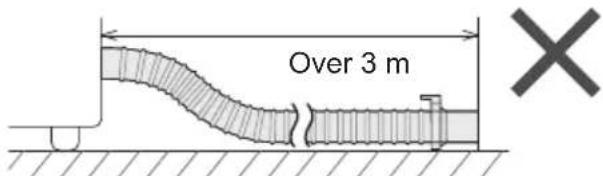

Attach the external drain water hose

1

Diagram of a pipe connection with a coiled hose and directional arrow (no text or symbols)

NOTE

2

Diagram of a mechanical assembly with a coiled spring and directional arrow (no text or symbols)

Installation (continued)

Connect the water supply hose

1

2

3

4

5

6

3
Check that the elbow is not loose.

CAUTION

• Tighten the nut firmly.
• Do not twist, squash, modify or cut the hose.

Connect the power plug and grounding

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating direction (no text or symbols present)

Check that the washing machine is level

■ If the bubble is out of the mark

Trial operation

Illustration of a washing machine with a hand using a pen and a water tap, showing water droplets and a checkmark (no text or symbols)

Error Display

■ Preparation

Cancel Child Lock (P. 18) if it is set.

Error Display Points to be checked

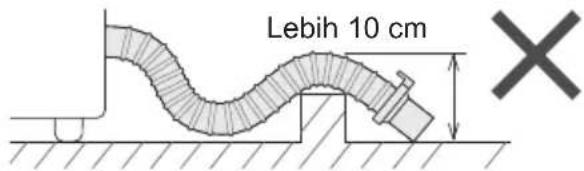

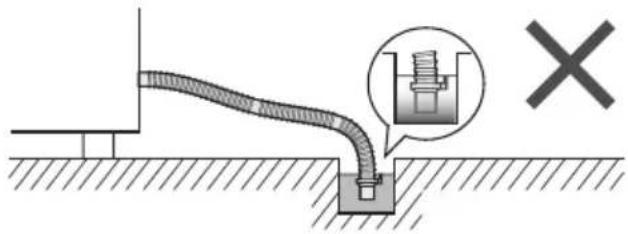

Water cannot drain.

1 Check

Diagram of a mechanical pipe connection with a container and outlet (no text or symbols)

2

Illustration of a damaged pipe with a starburst effect and a 'X' symbol (no text or labels)

The lid is open.

Illustration of a hand opening a washing machine with a downward arrow indicating process (no text or symbols)

Spin or "Air Dry" is not possible.

Unstable or incline

Simple line drawing of a white washing machine placed on a flat base (no text or symbols)

1 Even

Simple line drawing of a jar with contents inside, no text or symbols present

2

Illustration of a hand inserting a plug into a square basin with a downward arrow indicating force (no text or symbols)

1 Stable

Simple line drawing of a two-tiered washing machine on a flat surface (no text or symbols)

2

Error Display Points to be checked
Water cannot be supplied.	1	2
	With Child Lock set		Forcible drainage
Water has been forcibly drained.	1
	1
Inspection is required.

Troubleshooting

	Symptoms Points to be checked
Time	Indication increases or does not decrease.	Time indication is approximate.Remaining time is corrected during operation.
	Longer than the indication.	When clothes are uneven.	When the water drainage is not good. When the water supply is not good.
	Operation passes the preset time.	The operation time may be longer.
Main unit	No operation	CheckPower failure Timer presetTryClose the lid. Turn on. Insert the power plug completely.Press "Start". Turn breaker
	Cannot change process settings (after start).	TryDuring wash processAfter wash process

	Symptoms Points to be checked
Wash	Water is supplied while washing.		When water level drops.	When amount of laundry is large.
			Water is added automatically.
	The water level too high		When laundry is wet.	When there is water in the tub before operation.
			The water level may be higher
	too low		When clothes are light (synthetic fibre, etc.).
			The water level may be lower.
Rinse	Operation started with rinse, but water is not supplied.		When there is no water in the tub.	Water is supplied after spin.
			When there is water in the tub.	Water is supplied after water discharge and spin.
Spin	Spin changes to rinse.		If clothes are uneven, this appliances automatically corrects unevenness by rinse process.
	Rinse starts instead of spin.
	Irregular rotation		The tub rotation speed is adjusted to reduce vibration.

Troubleshooting (continued)

	Symptoms Points to be checked
Others	Power failure/Breaker off. Off		Operation will resume from where it stopped when the power is recovered. On
	StainMaster + has no effect.		□Check □Try Under 5.0 kg Pretreatments (P. 7) Select according to the stain type. (P. 11)

Specifications

Model No. NA-FD12VR1
Rated voltage 220 - 240 V
Rated frequency 50 Hz
Rated power consumption 1475	- 1750 W
Standard water amount 77 L
Maximum capacity (Dry cloth)	12.5 kg
Product dimensions 639 mm (W) x 724 mm (D) x 1069 mm (H)
Product weight 41 kg
Pressure of tap water 0.01 - 1 MPa

Panasonic®

Arahan Pengendalian & Pemasangan

Mesin Basuh Automatik Sepenuhnya (Kegunaan domestik)

No. Model NA-FD12VR1

Illustration of a modern single-family washing machine with a circular vent, shown in grayscale (no text or symbols visible)

Kandungan

Langkah Berjaga-jaga Keselamatan	2
Nama Bahagian / Kelengkapan	6
Sebelum Membasuh	7
Panel Operasi	8
Membasuh	9
Pelbagai Program	10
Washing / Softener / Bleach	12
Pilihan Membasuh	14
• Preset (Pratetapan)
• Wash / Rinse / Spin
• Delicate (Halus)
• Blanket (Selimut)
• Stain Master +
• Air Dry (90 min)
• ECONAVI
Fungsi Menyenangkan	18
Kandungan Program	19
Penyenggaraan	20
Pemasangan	24
Paparan Ralat	28
Penyelesaian Masalah	30
Spesifikasi	32

Illustration of a child washing clothes inside a washing machine with a 'X' symbol (no text or labels)

Illustration of a hand pressing into a washing machine with a lightning bolt symbol (no text or labels)

Illustration of a hand holding a small object with water droplets, no text or symbols present

Hand holding a plug inserted into an electrical outlet, with a 'X' symbol indicating no text or symbols on the plug (no text or symbols present)

Jangan guna.

Two identical illustrations of a plug inserted into a wall, with no text or symbols present.

Illustration of hands performing a medical procedure with sparkles (no text or symbols)

Illustration of a washing machine with a cross symbol, a person holding a tool, and scattered items (no text or symbols)

Illustration of a washing machine with a hand using a tool to stop blocks, showing a close-up of the lid and base (no text or symbols present)

Illustration of two hands holding a gray box with a black X mark, no text or symbols present

Illustration of a washing machine with a showerhead and a faucet, symbolizing laundry or water safety (no text or symbols present)

Illustration of a flexible hose with sparkles and decorative elements (no text or symbols)

Illustration of a washing machine with a sun and a cross symbol (no text or labels)

Jangan basuh barang kalis air.

Jangan halang. Jangan gunakan air panas.

Illustration of a washing machine with food items like carrots, fish, and a T-shirt, showing a recycling arrow (no text or symbols)

Simple line drawing of a coiled tube with connectors (no text or symbols)

Panjang: 1.0 m

□ Hos air saliran luar (1) (H. 25)

□ Penyesuai pili air (1) (H 26)
☐ Penutup bawah (1) / Skru (1) (H. 25)

Illustration of a solar panel with grid lines and a screw, no text or symbols present

Sebelum Membasuh

Illustration showing clothing items including a shirt, a bag, and a T-shirt, with arrows indicating direction of clothing movement (no text or symbols)

Illustration of a dress, a patterned blanket, and a woven basket with arrows indicating direction (no text or symbols)

Illustration showing a spray bottle cleaning a garment and a hand washing clothes (no text or symbols)

Mematuhi label penjagaan pakaian

- Pakaian berwarna

Gray silhouette of a person wearing short-sleeve shorts with a large 'X' symbol (no text or symbols present)

Simple line drawing of a T-shirt with floral patterns and a large 'X' symbol (no text or symbols present)

Panel Operasi

NOTA

Technical line drawing of a washing machine with a handle and fan (no text or symbols)

Detergen

Illustration of hands cleaning a car interior with a cross symbol (no text or labels)

Simple line drawing of a rock inside a container with a 'X' symbol and explosion effect (no text or labels)

Peluntur

Peluntur memutihkan (peluntur klorin)

1

2

3

NOTA

- Tidak tersedia untuk "Tangle Care (Penjagaan Kusut)".

Delicate (Halus)

65 L 4.2 kg
55 L 3.0 kg

NOTA

■ Selepas operasi berakhir

Illustration of a washing machine with a cylindrical roller inside, showing a downward arrow indicating compression or discharge (no text or symbols)

NOTA

NOTA

Bacteria Elimination: 4 - 24

Orang lain: 2 - 24

3

4

5

NOTA

- Maks 5.0 ~kg

Illustration of a coffee maker with open lid and sound effect, showing a hand removing the lid (no text or symbols)

Illustration of a food container with granular contents inside (no text or symbols)

Air Dry (90 min) (Kering Udara (90 min))

3

NOTA

Program "Normal" sahaja

Diagram of a mechanical device with rotating components and directional arrows (no text or symbols)

Kandungan Program

Program		Jumlah masa*1(anggaran)	Wash (Basuh)(minit)	Rinse (Bilas)*2(kali)	Spin (Perah)(minit)
	Normal (Biasa)	65 10 2	7
	Speedy (Cepat)	45 3 2	5
	Delicate (Halus)	50 9 2	1
	Baby Care(Penjagaan Bayi)	70 10 2	7
	Water Save (Jimat Air)	85 12 4	5
	Blanket (Selimut)	70 12 2	5
	Soak (Rendam)	125 *2	71 (Rendam 59)	2 7
Stain Master +	Sweat (Peluh) 65 13 2 7
	Mud (Lumpur) 85 32 2 7
	Soya/Sauce (Kicap/Sos)	105 *2	54 (Rendam 29)	2 7
	Collar/Sleeve(Kolar/Lengan)	140 *2	33 *3	2	7
	Oily (Berminyak) 145	*2	38 *3	2	7
	Bacteria Elimination(Penyingkiran Bakteria)	185 *2	30 *3	2	7
	Tub Hygiene(Kebersihan Tab)	150 *2	65 (Rendam 62)	2 30

Hand inserting a calculator into a device (no text or symbols visible)

2

3

Illustration of hands holding a device with an arrow indicating rotation (no text or symbols)

Illustration of hands holding a handheld device with a lightning bolt (no text or symbols)

Cross-sectional diagram of a microwave oven with internal components and a close-up inset showing internal structure (no text or labels)

NOTA

Diagram of a washing machine interior showing fan and blade arrangement (no text or labels)

Jika penapis rosak

Diagram of a car air vent with airflow direction and component placement (no text or symbols)

Keluarkan

2

3

Illustration of four different household appliances: a water tap, a fan-shaped propeller, a bed with steam, and a small bag (no text or symbols)

4

5

Unit utama, penutup

Illustration of a hand cleaning a washing machine with sparkles around (no text or symbols)

Untuk kotoran degil

Illustration of a bottle with liquid dripping, showing droplets (no text or symbols)

Illustration of a person spraying water from a washing machine with a hose, no text or symbols present

Illustration of a device with a magnified inset showing a cable or connector (no text or symbols present)

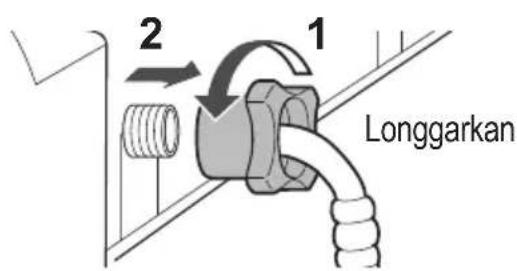

1

2

3

4

5

6

Illustration of a hand holding a tool with a curved object inside (no text or symbols)

7

Diagram showing two mechanical components with a directional arrow, no text or symbols present

8

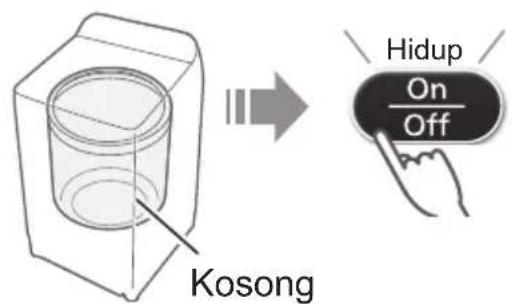

Tab

Sekali seminggu

Sekali sebulan

1

5

2

6

3

4

Pemasangan

Periksa lokasi.

Illustration of washing machines and a bathtub with steam rising, no text or symbols present

Illustration of two washing machines on a platform with a 'X' symbol and sound waves, no text or symbols present.

Silhouette of a house with tools and a worker (no text or symbols)

Diagram of a device's front panel with a black arrow pointing to a grid-patterned base (no text or symbols)

2

Technical line drawing of a mechanical assembly with a wrench and screwdriver (no text or symbols)

Pasangkan hos air saliran luar

1

Diagram of a pipe connection with a coiled hose and directional arrow (no text or symbols)

NOTA

2

Diagram of a mechanical assembly with a coiled spring and directional arrow (no text or symbols)

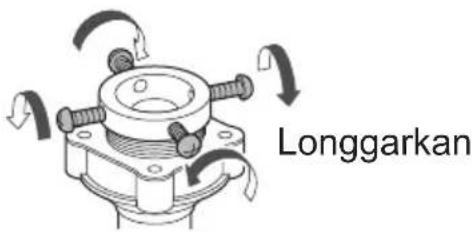

1

2

3

4

3
Periksa bahawa sikunya tidak longgar.

AWAS

Diagram showing a cable inserted into a socket connected to an outlet, with an arrow indicating the outlet's direction (no text or symbols present)

Illustration of a washing machine with a hand using a pen and a water tap, showing water droplets (no text or symbols)

Diagram of a mechanical pipe connection with a housing and valve (no text or symbols)

2

Illustration of a damaged pipe with a starburst effect and a cross symbol (no text or labels)

Penutup terbuka.

Illustration of a hand opening a washing machine with a downward arrow indicating action (no text or symbols)

Simple line drawing of a jar with a lid and a small container containing food items (no text or symbols)

1 Sekata

Simple line drawing of a jar with a lid and a container filled with food items (no text or symbols)

2

Illustration of a hand holding a bucket with a downward arrow indicating a drop or drag (no text or symbols)

Simple 3D illustration of a rectangular box placed on a flat base (no text or symbols)

1 Stabil

Simple line drawing of a two-tiered washing machine on a flat surface (no text or symbols)

2
