USER MANUAL 51-202 RIKON

12" Benchtop Disc Sander

Exterior view of a white and black electric vacuum cleaner with a coiled hose (no text or symbols visible)

Operator's Manual

Record the serial number and date of purchase in your manual for future reference.

Serial Number: ____ Date of purchase: ____

For technical support or parts questions, email [e-mail] or call toll free at [phone]

TABLE OF CONTENTS

Specifications 2

Safety Warnings....3-6

Electrical Requirements 5

Sander Safety Rules 6

Contents of Package 7

Assembly/Adjustments 8-9

Operation....9-10

Troubleshooting....11

Parts Diagram....12

Parts List 13

Wiring Diagram....14

Accessories 14

Notes 14

Warranty 15

SPECIFICATIONS

Motor 1-1/4 HP - 900W Input

Amps 8

Volts, Hertz 120V, 60 Hz

Disc Diameter 12" PSA

Speed 1,750 RPM

Table Size (LxW) 16-3/8" x 6-7/8"

Table Tilt 30° Up, 48° Down

Miter Gauge ....Included

Miter Gauge Slot 3/8" x 45/64"

Dust Outlet 1-13/16" I.D., 2" O.D.

Dust Hose 2" I.D., 2-1/2" O.D.

Table Height 7-5/8"

Height 15-1/2"

Width 17-1/2"

Depth 18-5/8"

Base Size (LxW) 12-3/4" x 10"

Net Weight 68 Lbs.

Shipping Weight 73 Lbs

Shipping Carton 18-1/2" x 17-3/4" x 16-3/8"

NOTE: The specifications, photographs, drawings and information in this manual represent the current model when the manual was prepared. Changes and improvements may be made at any time, with no obligation on the part of Rikon Power Tools, Inc. to modify previously delivered units. Reasonable care has been taken to ensure that the information in this manual is correct, to provide you with the guidelines for the proper safety, assembly and operation of this machine.

SAFETY INSTRUCTIONS

IMPORTANT! Safety is the single most important consideration in the operation of this equipment. The following instructions must be followed at all times. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.

There are certain applications for which this tool was designed. We strongly recommend that this tool not be modified and/or used for any other application other than that for which it was designed. If you have any questions about its application, do not use the tool until you have contacted us and we have advised you.

SAFETY SYMBOLS

SAFETY ALERT SYMBOL: Indicates DANGER, WARNING, or CAUTION. This symbol may be used in conjunction with other symbols or pictographs.

Indicates an DANGER

imminently hazardous situation, which, if not avoided, could result in death or serious injury.

Indicates a WARNING injury.

potentially hazardous situation, which, if not avoided, could result in death or serious

Indicates a CAUTION moderate

potentially hazardous situation, which, if not avoided, could result in minor or injury.

NOTICE: Shown without Safety Alert Symbol indicates a situation that may result in property damage.

GENERAL SAFETY

KNOW YOUR POWER TOOL. Read the owner's manual carefully. Learn the tool's applications, work capabilities, and its specific potential hazards.

BEFORE USING YOUR MACHINE

To avoid serious injury and damage to the tool, read and follow all of the Safety and Operating Instructions before operating the machine.

1. Some dust created by using power tools contains chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.

Some examples of these chemicals are:

• Lead from lead-based paints.
• Crystalline silica from bricks, cement, and other
• masonry products.

• Arsenic and chromium from chemically treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

• READ the entire Owner's Manual. LEARN how to use the tool for its intended applications.

• GROUND ALL TOOLS. If the tool is supplied with a 3-prong plug, it must be plugged into a 3-contact electrical receptacle. The 3rd prong is used to ground the tool and provide protection against accidental electric shock. DO NOT remove the 3rd prong. See Grounding Instructions on the following pages.

• AVOID A DANGEROUS WORKING ENVIRONMENT. DO NOT use electrical tools in a damp environment or expose them to rain.

• DO NOT use electrical tools in the presence of flammable liquids or gasses.
• ALWAYS keep the work area clean, well lit, and organized. DO NOT work in an environment with floor surfaces that are slippery from debris, grease, and wax.
• KEEP VISITORS AND CHILDREN AWAY. DO NOT permit people to be in the immediate work area, especially when the electrical tool is operating.
• DO NOT FORCE THE TOOL to perform an operation for which it was not designed. It will do a safer and higher quality job by only performing operations for which the tool was intended.
• WEAR PROPER CLOTHING. DO NOT wear loose clothing, gloves, neckties, or jewelry. These items can get caught in the machine during operations and pull the operator into the moving parts. The user must wear a protective cover on their hair, if the hair is long, to prevent it from contacting any moving parts.
• CHILDPROOF THE WORKSHOP AREA by removing switch keys, unplugging tools from the electrical receptacles, and using padlocks.
• ALWAYS UNPLUG THE TOOL FROM THE ELECTRICAL RECEPTACLE when making adjustments, changing parts or performing any maintenance.

SAFETY INSTRUCTIONS

1. KEEP PROTECTIVE GUARDS IN PLACE AND IN WORKING ORDER.

2. AVOID ACCIDENTAL STARTING. Make sure that the power switch is in the "OFF" position before plugging in the power cord to the electrical receptacle.

3. REMOVE ALL MAINTENANCE TOOLS from the immediate area prior to turning "ON" the machine.

4. USE ONLY RECOMMENDED ACCESSORIES. Use of incorrect or improper accessories could cause serious injury to the operator and cause damage to the tool. If in doubt, check the instruction manual that comes with that particular accessory.

5. NEVER LEAVE A RUNNING TOOL UNATTENDED. Turn the power switch to the "OFF" position. DO NOT leave the tool until it has come to a complete stop.

6. DO NOT STAND ON A TOOL. Serious injury could result if the tool tips over, or you accidentally contact the tool.

7. DO NOT store anything above or near the tool where anyone might try to stand on the tool to reach it.

8. MAINTAIN YOUR BALANCE. DO NOT extend yourself over the tool. Wear oil resistant rubber soled shoes. Keep floor clear of debris, grease, and wax.

9. MAINTAIN TOOLS WITH CARE. Always keep tools clean and in good working order. Keep all blades and tool bits sharp, dress grinding wheels and change other abrasive accessories when worn.

10. EACH AND EVERY TIME, CHECK FOR DAMAGED PARTS PRIOR TO USING THE TOOL. Carefully check all guards to see that they operate properly, are not damaged, and perform their intended functions. Check for alignment, binding or breaking of moving parts. A guard or other part that is damaged should be immediately repaired or replaced.

11. DO NOT OPERATE TOOL WHILE TIRED, OR UNDER THE INFLUENCE OF DRUGS, MEDICATION OR ALCOHOL.

12. SECURE ALL WORK. Use clamps or jigs to secure the work piece. This is safer than attempting to hold the work piece with your hands.

13. STAY ALERT, WATCH WHAT YOU ARE DOING, AND USE COMMON SENSE WHEN OPERATING A POWER TOOL.

A moment of inattention while operating power tools may result in serious personal injury.

1. ALWAYS WEAR A DUST MASK TO PREVENT INHALING DANGEROUS DUST OR AIRBORNE

PARTICLES, including wood dust, crystalline silica dust and asbestos dust. Direct particles away from face and body. Always operate tool in well ventilated area and provide for proper dust removal. Use dust collection system wherever possible. Exposure to the dust may cause serious and permanent respiratory or other injury, including silicosis (a serious lung disease), cancer, and death. Avoid breathing the dust, and avoid prolonged contact with dust. Allowing dust to get into your mouth or eyes, or lay on your skin may promote absorption of harmful material. Always use properly fitting NIOSH/OSHA approved respiratory protection appropriate for the dust exposure, and wash exposed areas with soap and water.

1. USE A PROPER EXTENSION CORD IN GOOD

CONDITION. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. The table on the following page shows the correct size to use depending on cord length and nameplate amperage rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the larger diameter of the extension cord. If in doubt of the proper size of an extension cord, use a shorter and thicker cord. An undersized cord will cause a drop in line voltage resulting in a loss of power and overheating.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS A 3-PRONG GROUNDING PLUG AND A 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG.

1. ADDITIONAL INFORMATION regarding the safe and proper operation of this product is available from:

• Power Tool Institute 1300 Summer Avenue Cleveland, OH 44115-2851 www.powertoolinstitute.org

• National Safety Council 1121 Spring Lake Drive Itasca, IL 60143-3201 www.nsc.org

• American National Standards Institute 25 West 43rd Street, 4th Floor New York, NY 10036 www.ansi.org

• ANSI 01.1 Safety Requirements for Woodworking Machines and the U.S. Department of Labor regulations www.osha.gov

1. SAVE THESE INSTRUCTIONS. Refer to them frequently and use them to instruct others.

SAFETY INSTRUCTIONS

ELECTRICAL SAFETY

WARNING: THIS TOOL IS WIRED FOR USE ON 120V CIRCUITS AND MUST BE GROUNDED TO PROTECT THE OPERATOR FROM ELECTRIC SHOCK.

IN THE EVENT OF A MALFUNCTION OR BREAKDOWN, grounding provides the path of least resistance for electric current and reduces the risk of electric shock. This tool is equipped with an electric cord that has an equipment grounding conductor and requires a grounding plug (not included). The plug MUST be plugged into a matching electrical receptacle that is properly installed and grounded in accordance with ALL local codes and ordinances.

DO NOT MODIFY ANY PLUG. If it will not fit the electrical receptacle, have the proper electrical receptacle installed by a qualified electrician.

IMPROPER ELECTRICAL CONNECTION of the equipment grounding conductor can result in risk of electric shock. The conductor with the green insulation (with or without yellow stripes) is the equipment grounding conductor. DO NOT connect the equipment grounding conductor to a live terminal if repair or replacement of the electric cord or plug is necessary.

CHECK with a qualified electrician or service personnel if you do not completely understand the grounding instructions, or if you are not sure the tool is properly grounded when installing or replacing a plug.

USE ONLY A 3-WIRE EXTENSION CORD THAT HAS THE PROPER TYPE OF A 3-PRONG GROUNDING PLUG THAT MATCHES THE MACHINE'S 3-PRONG PLUG AND ALSO THE 3-POLE RECEPTACLE THAT ACCEPTS THE TOOL'S PLUG. *

REPLACE A DAMAGED OR WORN CORD IMMEDIATELY.

This tool is intended for use on a circuit that has an electrical receptacle as shown in FIGURE A. It shows a 3-wire electrical plug and electrical receptacle that has a grounding conductor. If a properly grounded electrical receptacle is not available, an adapter as shown in FIGURE B can be used to temporarily connect this plug to a 2-contact ungrounded receptacle. The adapter has a rigid lug extending from it that MUST be connected to a permanent earth ground, such as a properly grounded receptacle box. THIS ADAPTER IS PROHIBITED IN CANADA.

EXTENSION CORDS

WARNING: THE USE OF AN EXTENSION CORD WITH THIS MACHINE IS NOT RECOMMENDED. For best power and safety, plug the machine directly into a dedicated, grounded electrical outlet that is within the supplied cord length of the machine.

If an extension cord needs to be used, it should only be for a limited operation of the machine. The extension cord should be as short as possible in length, and have a minimum gauge size of 14AWG.

WARNING: Check extension cords before each use. If damaged replace immediately. Never use a tool with a damaged cord, since touching the damaged area could cause electrical shock, resulting in serious injury.

Use a proper extension cord. Only use cords listed by Underwriters Laboratories (UL). Other extension cords can cause a drop in line voltage, resulting in a loss of power and overheating of tool. When operating a power tool outdoors, use an outdoor extension cord marked "W-A" or "W". These cords are rated for outdoor use and reduce the risk of electric shock.

MINIMUM RECOMMENDED GAUGE FOR EXTENSION CORDS (AWG)

120 VOLT OPERATION ONLY
	25' LONG	50' LONG	100' LONG	150' LONG
0 to 6 Amps	18 AWG	16 AWG	16 AWG	14 AWG
6 to 10 Amps	18 AWG	16 AWG	14 AWG	12 AWG
10 to 12 Amps	16 AWG	16 AWG	14 AWG	12 AWG

A WARNING Ack the division cord clear of the working area. Position the cord so that it will not get caught on lumber, tools or other obstructions while you are working with your power tool.

* Canadian electrical codes require extension cords to be certified SJT type or better.
** The use of an adapter in Canada is not acceptable.

SAFETY INSTRUCTIONS

SPECIFIC SAFETY INSTRUCTIONS FOR SANDERS

This machine is intended for the surfacing of natural, solid woods and composite materials. Any other use not as specified, including modification of the machine or use of parts not tested and approved by the equipment manufacturer can cause unforeseen damage, and invalidate the warranty.

ATTENTION: Use of this sander still presents risks that cannot be eliminated by the manufacturer. Therefore, the user must be aware that wood working machines are dangerous if not used with care and all safety precautions are adhered to.

1. Do not operate this machine until you have read all of the following instructions.
2. Do not attempt to operate this machine until it is completely assembled.
3. Do not turn ON this machine if any pieces are missing.
4. If you are not familiar with the operation of the machine, obtain assistance from a qualified person.
5. It is highly recommended that this machine be mounted to a flat and secure work surface or stand.
6. Always wear protective eye wear and hearing protection when operating this machine.
7. Do not operate this machine if you are under the influence of drugs, alcohol or medication.
8. Do not wear loose clothing or jewelry when operating this machine. Tie back long hair.

9. Do not wear any gloves while operating this machine.

10. Always make sure the power switch is in the OFF position prior to plugging in the machine.

11. Always make sure the power switch is in the OFF position and the machine is unplugged when doing any cleaning, assembly, setup operations, or when not in use.

12. Always wear a dust mask and use adequate dust collection and proper ventilation. Use of sanders can produce harmful particles while sanding certain types of woods.

13. The use of any accessories or attachments not recommended may cause injury to you and damage your machine.

14. This machine must be properly grounded.

15. Abrasive discs should be the recommended diameter of the manufacturer.

16. Replace worn, frayed or torn abrasives as injury to the user, or the machine, may result.

17. Always keep your face and hands clear of moving parts such as discs, belts and pulleys.

18. Keep power supply cords free of moving parts of the sander. Damaged cords can result in electric shock.

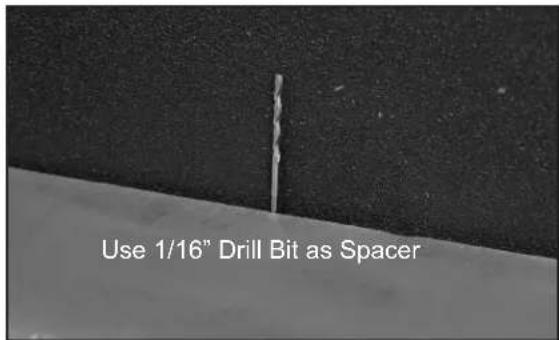

19. Maintain a 1/16" clearance between the sanding disc and table.

20. Always support the workpiece with the table.

21. Remove material or debris from the work area. Keep work area neat and clean.

SAVE THESE INSTRUCTIONS.

Refer to them often.

This owner's manual is not a teaching aid and is intended to show assembly, adjustments, and general use.

CONTENTS OF PACKAGE

Product catalog image showing various mechanical tools and components (no text or labels visible)

A Sander Motor & Frame Assembly

B Disc Brake & Mounting Screws

C Miter Gauge

D Locking Handle & Washer

E 3mm L Wrench

F Dust Hose with Fittings

(Manual & Warranty Card not Shown)

NOTE: Pending packaging changes at the factory, some parts may already be pre-assembled on the machine. The assembly steps listed should none-the-less be reviewed for information on the machine parts and their adjustments.

UNPACKING AND CLEAN-UP

1. Carefully remove all contents from the shipping carton. Compare the contents with the list of contents to make sure that all of the items are accounted for, before discarding any packing material. Place parts on a protected surface for easy identification and assembly. If any parts are missing or broken, please call RIKON Customer Service (877-884-5167) as soon as possible for replacements. DO NOT turn your machine ON if any of these items are missing. You may cause injury to yourself or damage to the machine.
2. Report any shipping damage to your local distributor.
3. Clean all rust protected surfaces with ordinary house hold type grease or spot remover. Do not use; gasoline, paint thinner, mineral spirits, etc. These may damage painted surfaces.
4. Apply a coat of paste wax to the table to prevent rust. Wipe all parts thoroughly with a clean dry cloth.
5. Set packing material and shipping carton aside. Do not discard until the machine has been set up and is running properly.

CALIFORNIA PROPOSITION 65 WARNING: Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm. Your risk from exposure to these chemicals varies, depending on how often you do this type of work. To reduce your exposure, work in a well-ventilated area and with approved safety equipment, such as dust masks that are specially designed to filter out microscopic particles.

For more detailed information about California Proposition 65 log onto rikontools.com.

ASSEMBLY

Locate the brake assembly and two M4 x 10MM Phillips head screws as shown in the Carton Contents photo on page seven. Place the brake assembly on top of the sander and install the two Phillips head screws. (See Fig. 01)

SECURING SANDER TO A WORKBENCH

The sander base must be secured before using. Attach a large C-Clamp to each side of the sander and the workbench, or, permanently mount following the instructions below:

1. Place the sander on the workbench in its final operating location.
2. A single mounting hole is located on each leg at the rear of the sander body. (See Fig. 02) Place a pencil through the two mounting holes of the sander base and mark the hole locations on workbench.
3. Remove sander and drill two 3/8" holes through the workbench.
4. Align sander base over holes and secure using two 5/16" screws (or larger) and hex nuts.

TABLE ADJUSTMENTS

The table stops have been pre-set at the factory. Follow the steps below if adjustments are needed.

1. Install the right side locking handle, refer to Fig. 03.
2. Loosen the two locking handles (Fig. 03 & Fig. 04) and move table into the 90-degree position. Tighten the two locking handles and place a square against the table and sander disc. The square should rest flat against the table and the disc.
3. If adjustment is needed move the table so that it rests 90 degrees from the table, and loosen the two adjusting nuts (Fig. 04) on the positive stop bar and slide bar left or right for the proper adjustment. Once the proper adjustment is made tighten the two adjusting nuts on the positive stop bar.

WARNING

THE MACHINE MUST NOT BE

PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

Fig. 01

Fig. 02

Fig. 03

Fig. 04

WARNING To avoid jamming the workpiece or fingers between the table and sanding surface, the table edge should be set about 1/16 inch away from the sanding surface.

1. Always maintain a gap of approximately 1/16" between the table edge, and disc. If adjustment is necessary loosen three bolts on each table support bracket (six total) and move the table into position. (See Fig. 04)

2. Use a 1/16 inch drill bit as a spacer. Place the drill bit between the disc and the inside edge of the table. Hold the table against the 1/16 inch drill bit and tighten the six hex bolts. (See Fig. 05)

WARNING THE MACHINE MUST NOT BE PLUGGED IN AND THE POWER SWITCH MUST BE IN THE OFF POSITION UNTIL ALL ADJUSTMENTS ARE COMPLETE.

Fig. 04

Fig. 05

OPERATION

ON/OFF SWITCH

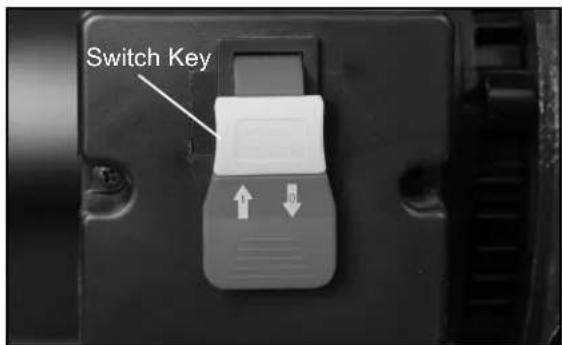

The On/Off Locking Switch needs to have the switch key inserted before the switch can be used. This feature prevents unauthorized use of the sander. (See Fig. 06)

CAUTION: Never walk away from sander when machine is running. Always lock the switch in the Off position and unplug from the power supply when not in use.

DISC BRAKE

WARNING Never apply the disc brake with the switch in the "ON" position. Damage to the brake or disc may occur.

This 12" Disc Sander is equipped with a manual disc brake which can be applied by pressing down on brake lever (Fig. 07), after the switch has been turned off.

Fig. 06

Fig. 07

OPERATION

WARNING Applying the workpiece to the right side of the disc could cause workpiece to fly up (kick-back) and result in an injury.

Please take note of the disc rotation (counter clockwise) and only work on the left side of the disc where there is downward pressure of the work piece against the table. (See Fig. 08)

BEVEL SANDING

The work table can be tilted from 90 to 45 degrees for bevel sanding. Loosen the two locking handles and tilt the worktable to desired angle as shown. Re-tighten table locking handles. (See Fig. 09)

WARNING To avoid jamming the workpiece or fingers between the table and sanding surface, the table should repositioned on the table support to retain a maximum of 1/16" distance between sanding surface and table.

SANDING SMALL SURFACES

Note: Use of a miter gauge is recommended for this operation.

Always move the work across left side of center on the sanding disc face as shown. (See Fig. 10)

WARNING Applying the workpiece to the right side of the disc could cause workpiece to fly up (kick-back) and result in an injury.

CHANGING THE SANDING DISC

The sandpaper disc can be removed with the table installed or with the table removed to give more working access to the disc, if needed.

1. Peel the used abrasive disc from the metal sanding disc plate. A putty knife and hair dryer may help in this process.
2. Make sure that the disc plate is clean of any residue. Mineral spirits will soften the PSA adhesives for its removal. Rotate the disc by hand may be necessary to get access to all of the disc surface.
3. Peel the protective backing from the new PSA

WARNING Before turning on the machine, review the safety precautions listed on pages 3 to 6. Make sure that you fully understand the features, adjustments and capabilities of the machine that are outlined throughout this manual.

Close-up of a hand pressing down on a wooden block next to a machine cutter (no visible text or symbols)

Fig. 08

Close-up of a hand operating a microscope with a dial and pointer (no visible text or symbols)

Fig. 09

Close-up of hands using a wooden block to cut a circular object (no visible text or symbols)

Fig. 10

12" abrasive sanding disc, then center and press the sanding disc firmly onto the disc plate.
4. Replace the sanding table if it was removed.

NOTE: Hook & Loop sanding discs cannot be used with this sander! Only 12" sanding discs with pressure sensitive adhesive (PSA) backing can be used.

MAINTENANCE

WARNING: Turn the power switch "OFF" and disconnect the plug from the outlet prior to adjusting or maintaining the sander. DO NOT attempt to repair or maintain the electrical components of the motor. Take the sander to a qualified service technician for this type of maintenance.

1. Check the power cord and plug for any damage. Before each use.
2. Check sanding disc for damage or wear. Before each use.
3. Check all guards and hardware to make sure they are secure. Before each use.
4. Check all moving parts for alignment and binding issues. Before each use.
5. Dress/Clean sanding surfaces for best abrasive action. As needed
6. Replace sanding disc when worn or damaged. As needed.
7. Clean and vacuum dust from the motor housing and other sander parts. As needed.
8. Keep iron tables free of rust. Apply coat of paste wax or silicon spray. As needed.

NOTE: Lubrication of the bearings is not necessary, as they are sealed and pre-lubricated for life. Just replace a bearing if failure occurs. Do not use compressed air near bearings. Simply wipe the exposed bearing surfaces with a dry cloth to clean them.

WARNING: If blowing sawdust, wear proper eye protection to prevent debris from blowing into eyes.

Service beyond recommended maintenance on these tools should only be performed by an authorized, qualified technician.

TROUBLESHOOTING

PROBLEM	POSSIBLE CAUSE	SOLUTION
Sander will not start	1. Sander unplugged from wall or motor2. Fuse blown or circuit breaker tripped3. Cord is damaged	1. Check all plug connections2. Replace fuse or reset circuit breaker3. Replace the cord
Sander does not come up to speed	1. Extension cord is too light or too long2. Low current	1. Replace with adequate size and length of cord2. Contact a qualified electrician
Machine vibrates excessively	1. Work table or base is on an uneven surface	1. Adjust the table or base so that it rests evenly2. Bolt down the machine
Sanded edge is not square	1. Table not square to the sanding disc	1. Use a square to adjust the table to the sanding disc
Sanding marks on the wood	1. Workpiece is held still2. Wrong grit of sand paper3. Feed pressure is too great4. Sanding against the wood grain	1. Keep the workpiece moving2. Use coarser grit for stock removal, fine grit for finish sanding3. Never force the workpiece4. Sand with the grain

NOTE: Please reference the Key Number when calling for Replacement Parts.
For Parts under Warranty, the Serial Number of your machine is required.

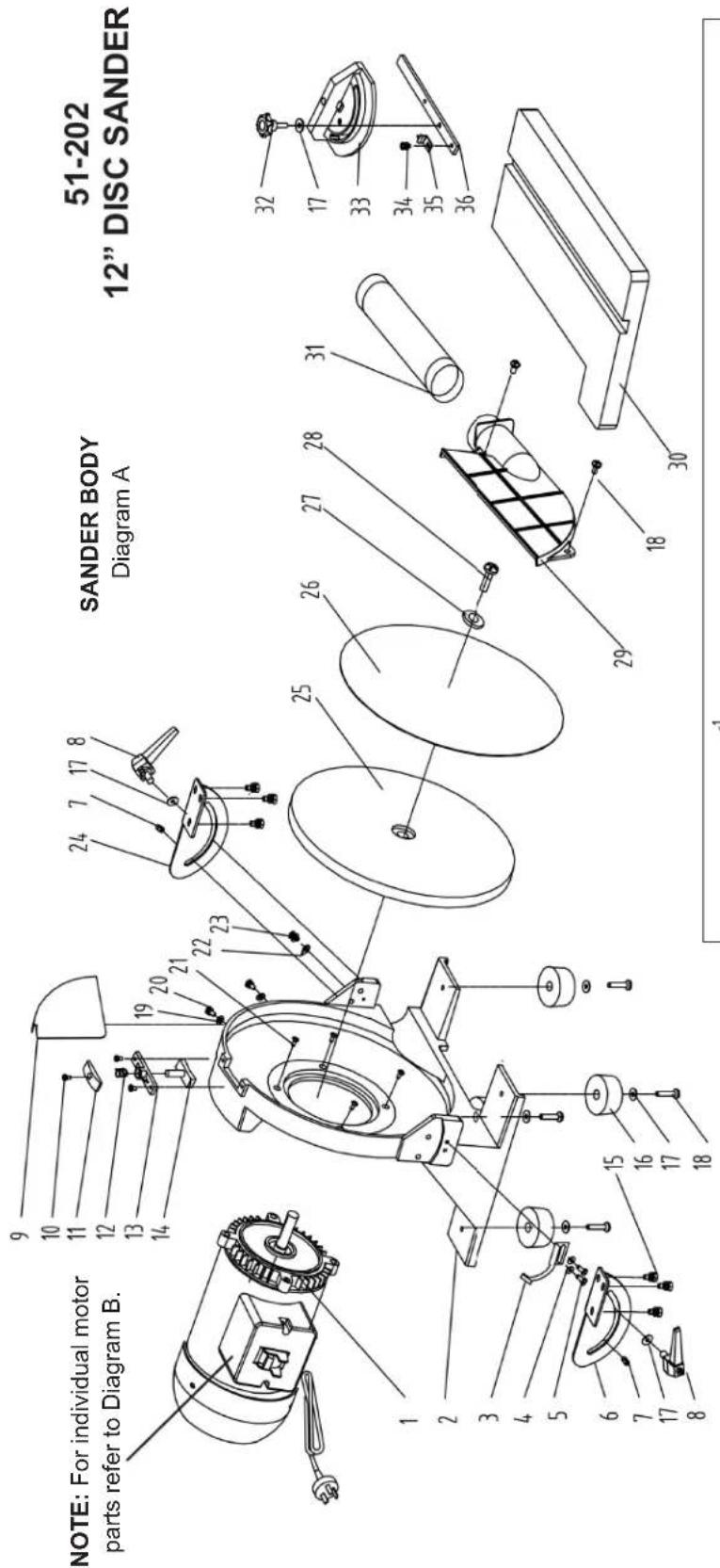

PARTS LIST

KEYNO.	DESCRIPTION	QTY.	PART NO.	KEYNO.	DESCRIPTION	QTY.	PART NO.
1A	Motor Assembly	1	P51-202-1A	31A	Dust Hose Assembly	1	P51-202-31A
2A	Base	1	P51-202-2A	32A	Miter Guage Knob	1	P51-202-32A
3A	Located Spring	4	P51-202-3A	33A	Miter Guage	1	P51-202-33A
4A	Flat Washer D6	2	P51-202-4A	34A	Philips Screw+Spring Washer	4	P51-202-34A
5A	Hex Cylinder Head Screw M6x10	2	P51-202-5A	35A	Miter Guage Indicator	4	P51-202-35A
6A	Left Table Support	1	P51-202-6A	36A	Miter Rod	4	P51-202-36A
7A	Located Shaft	2	P51-202-7A
8A	Locking Knob Assembly	2	P51-202-8A
9A	Disc Guard	1	P51-202-9A	1B	Motor Cover	1	P51-202-1B
10A	Philips Screw M4x8	3	P51-202-10A	2B	Fan	6	P51-202-2B
11A	Brake Handle	1	P51-202-11A	3B	Hex Bolt M5X172	6	P51-202-3B
12A	Spring	1	P51-202-12A	4B	Philips Screw M4X6	1	P51-202-4B
13A	Brake Assembly	1	P51-202-13A	5B	Spring Washer M5	1	P51-202-5B
14A	Brake Support	1	P51-202-14A	6B	Rear End Cap	1	P51-202-6B
15A	Hex Bolt+Spring Washer M6x10	6	P51-202-15A	7B	Ball Bearing	1	P51-202-7B
16A	Rubber Foot	4	P51-202-16A	8B	Rotor	1	P51-202-8B
17A	Flat Washer D6	7	P51-202-17A	9B	Key	1	P51-202-9B
18A	Philips Screw M6x20	6	P51-202-18A	10B	Stator	1	P51-202-10B
19A	Rubber Washer	2	P51-202-19A	11B	Spring Washer	1	P51-202-11B
20A	Philips Screw+Flat Washer M5x8	2	P51-202-20A	12B	Front End Cap	2	P51-202-12B
21A	Hex Bolt + Spring Washer M8x25	4	P51-202-21A	13B	Gasket	1	P51-202-13B
22A	Indicator	1	P51-202-22A	14B	Cord Bushing	1	P51-202-14B
23A	Philips Screw+Spring+Flat Washer	1	P51-202-23A	15B	Locking Washer M4	1	P51-202-15B
24A	Right Table Support	1	P51-202-24A	16B	Philips Screw+Spring+Flat Washer M4X8	1	P51-202-16B
25A	Aluminum Disc	1	P51-202-25A	17B	Capacitor	3	P51-202-17B
26A	Disc Paper	1	P51-202-26A	18B	Connection Box	1	P51-202-18B
27A	Disc Pad	1	P51-202-27A	19B	Philips Screw M4X35	1	P51-202-19B
28A	Philips Screw M6x20	1	P51-202-28A	20B	Switch with Key	1	P51-202-20B
29A	Disc Guard w/ Dust Port ABS	1	P51-202-29A	21B	Cord Clip	1	P51-202-21B
30A	Aluminum Table	1	P51-202-30A	22B	Power Cord	1	P51-202-22B

51-202 12" DISC SANDER

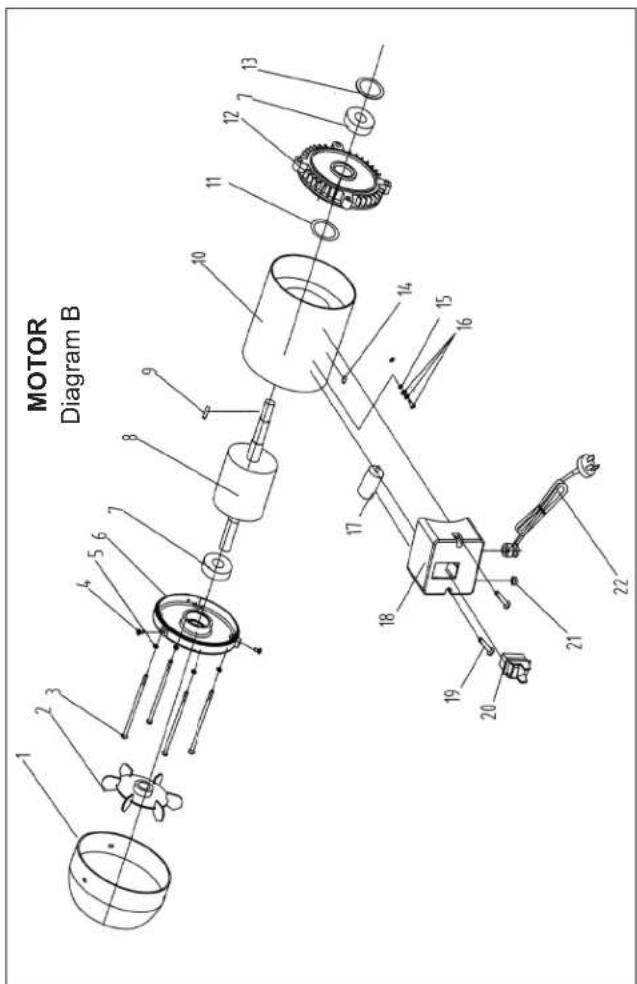

WIRING DIAGRAM

This machine must be grounded. Replacement of the power supply cable should only ified electrician. See page 5 for additional electrical information.

This tool is intended for use on a circuit that has a 120 volt electrical receptacle. The illustration on page 5 shows the type of the 120v, 3-wire electrical plug and electrical receptacle that has a grounding conductor that is required.

ACCESSORIES

Solid dark gray circular shape with no text or symbols

12" SANDING DISCS

12" Diameter

PSA backing

Aluminum Oxide abrasives

50-12060 60 Grit * Pack of 2

50-12080 80 Grit Pack of 2

50-12120 120 Grit * Pack of 2

50-12180 180 Grit Pack of 2

50-12220 220 Grit * Pack of 2

50-12999 Assortment Pack of 6

* 2 each 3 grits 60, 120 & 220

NOTES

Use this section to record maintenance, service and any calls to Technical Support:

RIKON POWER TOOLS®

5-Year Limited Warranty

RIKON Power Tools Inc. ("Seller") warrants to only the original retail consumer/purchaser of our products that each product be free from defects in materials and workmanship for a period of five (5) years from the date the product was purchased at retail. This warranty may not be transferred.

This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs, alterations, lack of maintenance or normal wear and tear. Under no circumstances will Seller be liable for incidental or consequential damages resulting from defective products. All other warranties, expressed or implied, whether of merchantability, fitness for purpose, or otherwise are expressly disclaimed by Seller. This warranty does not cover products used for commercial, industrial or educational purposes.

This limited warranty does not apply to accessory items such as blades, drill bits, sanding discs, grinding wheels, belts, ball bearings and other related items.

Seller shall in no event be liable for death, injuries to persons or property, or for incidental, contingent, special, or consequential damages arising from the use of our products.

To take advantage of this warranty, proof of purchase documentation must be provided which has the date of purchase and an explanation of the complaint.

The Seller reserves the right to effect at any time, without prior notice, those alterations to parts, fittings, and accessory equipment which they may deem necessary for any reason whatsoever.

To take advantage of this warranty, please fill out the enclosed warranty card and send it to:

RIKON Warranty

16 Progress Rd.

Billerica, MA 01821

The card must be entirely completed in order for it to be valid. If you have any questions please contact us at 877-884-5167 or [e-mail].

For more information:

16 Progress Road

Billerica, MA 01821

877-884-5167 / 978-528-5380

[e-mail]
