| Product Type | GPS Receiver Module |
| Brand | Navilock |
| Model | NL-8005P |
| Chipset | u-blox 8 |
| Receiver Type | 72-channel u-blox 8 engine |
| Dimensions (approx.) | 57 x 34 x 10 mm |
| Weight | 28 g (approx.) |
| Power Supply | 5V DC via USB |
| Interface | USB 2.0 |
| Operating Temperature | -10°C to +60°C |
| Sensitivity | Tracking: -162 dBm |
| Position Accuracy | < 2.5 m (autonomous) |
| Update Rate | Up to 10 Hz |
| Features | SBAS (WAAS, EGNOS, MSAS), Anti-jamming, Assisted GPS (A-GPS) |
| LED Indicator | Power and Fix status |
| Compatibility | Windows, Linux, macOS |
| Software Support | u-center, NMEA and UBX protocols |
| Antenna | Built-in patch antenna |
| Cable Length | 1.5 m USB cable with ferrite core |
| Maintenance | Keep dry and clean; avoid physical shock |
Frequently Asked Questions - u-blox 8 NL-8005P Navilock
How do I install the Navilock NL-8005P on Windows?
Plug the device into a USB port. Windows will automatically detect and install drivers. If not, download the driver from the Navilock website or use the included CD. The device will appear as a virtual COM port.
Why is the LED not lighting up?
Ensure the USB cable is properly connected to both the device and a powered USB port. A solid LED indicates power; a blinking LED indicates a GPS fix. If no LED, try a different USB port or cable.
How can I test if the GPS receiver is working?
Use software like u-center (from u-blox) or any NMEA viewer. In u-center, select the correct COM port and baud rate (default 9600). You should see satellite data and a fix after a few minutes outdoors.
What is the maximum update rate of the NL-8005P?

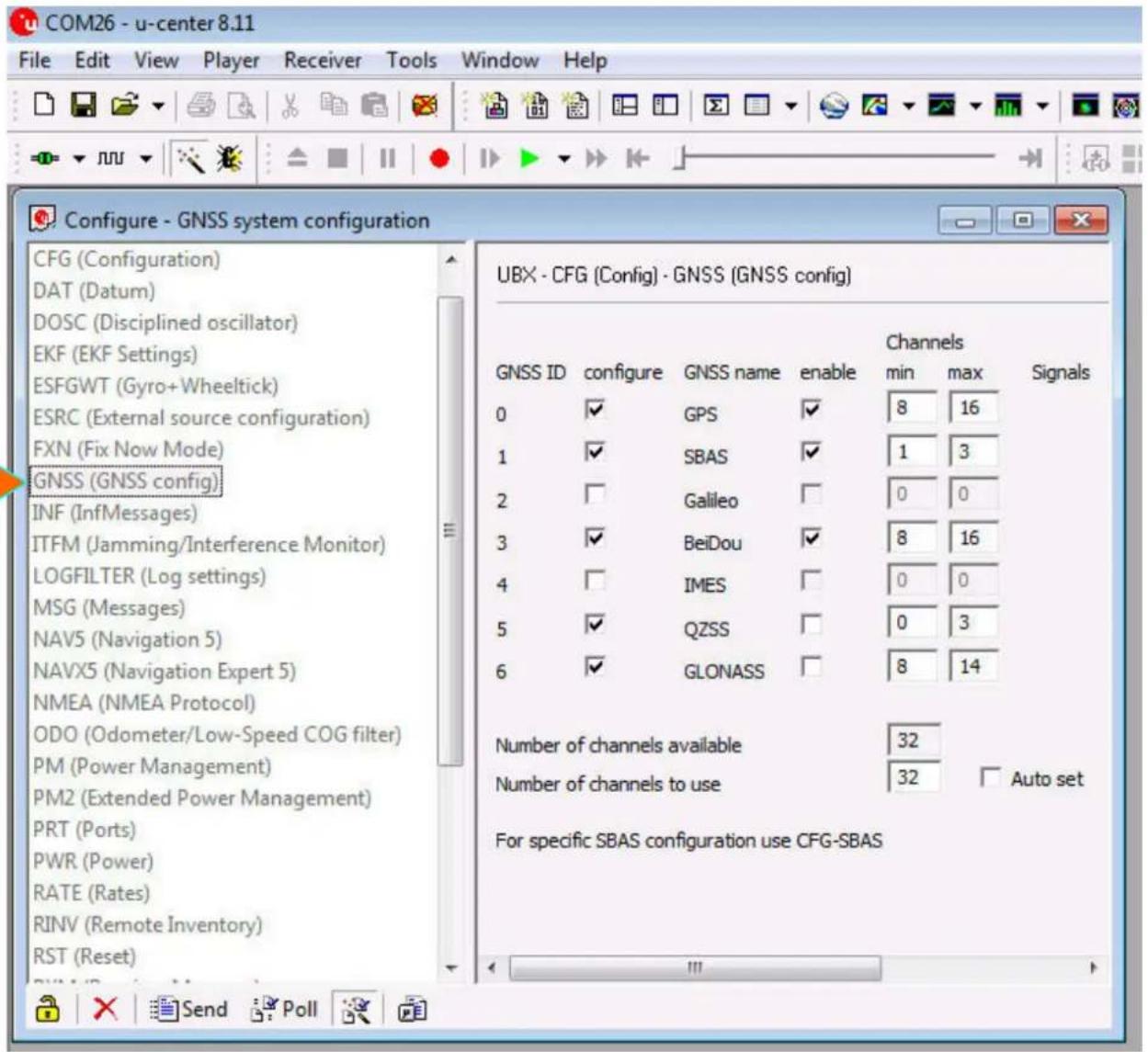

The u-blox 8 chipset supports update rates up to 10 Hz in binary mode (UBX) or 5 Hz in NMEA mode. Configure this via u-center.
Does the NL-8005P support A-GPS?
Yes, it supports Assisted GPS (A-GPS) to improve time to first fix. A-GPS data can be downloaded using u-center or via a service.
Can I use this GPS with a Raspberry Pi?
Yes, the NL-8005P works with Raspberry Pi running Linux. It appears as a serial device (e.g., /dev/ttyACM0). Use gpsd or directly read NMEA sentences.
What is the accuracy of this GPS?
Autonomous position accuracy is typically < 2.5 meters. With SBAS (WAAS/EGNOS) enabled, accuracy improves to < 1.5 meters.
How do I update the firmware?
Download the latest firmware from the Navilock or u-blox website. Use u-center software in firmware update mode. Follow the instructions carefully to avoid bricking the device.
Is the NL-8005P waterproof?
No, the device is not waterproof. It should be used indoors or in dry conditions. Do not expose to rain or moisture.
What protocols does the NL-8005P output?
It supports NMEA 0183 (standard) and UBX (u-blox proprietary binary) protocols. Default baud rate is 9600 for NMEA, adjustable via u-center.
