Product Type	Electric Countertop Grill
Model	QuickTime Flavour Grill
Brand	Kleva
Dimensions (L x W x H)	Approx. 40 x 25 x 10 cm
Weight	Approx. 2.5 kg
Power Supply	220-240 V, 50/60 Hz, 1200 W
Cooking Surface Material	Non-stick coated aluminum
Temperature Range	80°C to 230°C (adjustable thermostat)
Indicator Lights	Power and Ready indicators
Main Functions	Grilling, toasting, searing
Cleaning	Wipe with damp cloth; non-stick surface easy to clean
Safety Features	Automatic shut-off, cool-touch handles, non-slip feet
Detachable Parts	Removable drip tray
Repairability	Spare parts available via Kleva support
Warranty	2 years limited warranty
Accessories Included	User manual, drip tray

Frequently Asked Questions - QuickTime Flavour Grill Kleva

How do I preheat the QuickTime Flavour Grill?

Plug in the grill and set the thermostat to the desired temperature. Wait for the 'Ready' indicator light to turn on, which typically takes 5-10 minutes.

Can I cook frozen foods directly on the grill?

It's recommended to thaw frozen foods before grilling for even cooking. However, you can cook thin frozen items like burgers, but increase cooking time.

How do I clean the non-stick surface?

Allow the grill to cool, then wipe the surface with a soft damp cloth or sponge. Avoid abrasive cleaners or metal utensils to protect the non-stick coating.

What should I do if the grill smokes excessively?

Excess smoke can occur from food drippings. Ensure the drip tray is properly installed and clean. Reduce temperature if needed. First use may also produce light smoke.

Can I use oil or cooking spray on the grill?

Yes, a light coating of oil or spray is fine. Use an oil with a high smoke point like canola or avocado. Do not use too much to avoid smoke.

Is the grill safe to leave unattended?

No, never leave the grill unattended while in use. It has an automatic shut-off as a safety feature, but supervision is required.

What types of food can I cook on this grill?

You can cook meats, poultry, fish, vegetables, sandwiches, and even some fruits. The grill is versatile for indoor grilling.

How do I adjust the temperature?

Turn the thermostat dial to the desired setting. The temperature range is from 80°C (low) to 230°C (high). Wait for the indicator light to cycle.

Can I use metal utensils on the cooking surface?

No, metal utensils can scratch the non-stick coating. Use silicone, wood, or plastic utensils instead.

Where can I buy replacement parts?

Replacement parts like the drip tray are available from Kleva's official website or authorized dealers. Contact customer support for assistance.

USER MANUAL QuickTime Flavour Grill Kleva

Close-up of a black electric grill with open lid and control panel (no visible text or symbols)

USER GUIDE

Please read the User Guide carefully before

Safety & Warnings

• Please keep the warranty, sales receipt, User Guide and if possible all packaging for the Kleva QuickTime Flavour Grill™.
• Children must be supervised when using the Kleva QuickTime Flavour Grill™. Keep the Grill safe and away from children. Take care to ensure that no cables hang down.
• Before operating this appliance, read this User Guide carefully.
• Before cleaning and when not in use, unplug the device from the power supply. The appliance is not intended to be operated using an external timer or separate remote-control system.
• Do not use the Kleva QuickTime Flavour Grill™ if the appliance or power cord is damaged. Stop using immediately and contact Kleva Range®
• Keep the Kleva QuickTime Flavour Grill™ and power cord away from water.
• Never use the appliance outdoors.
• Place the appliance on a flat, stable heat-resistant and splash-proof surface where it cannot fall.
• Make sure that your hands are dry when you touch the appliance, the power cord or the plug.
• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given instructions on using the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 years and are supervised.
• Keep the appliance and its cord out of reach of children less than 8 years.

WARNING This electrical grill contains a heating function. Use with caution as surfaces can become very hot. Only use the intended handles and surfaces when touching the appliance. Heat protection such as gloves are recommended.

- When a symbol is displayed, it means "Caution: Hot surface". Ensure the surface has cooled down before touching it.

Additional Safety Information

NOTE This appliance is rated 1500 watts and should be the only appliance operating on the circuit. The plug must be plugged into an outlet which is properly installed.

WARNING The Kleva QuickTime Flavour Grill™ includes a short power supply cord to reduce the risk of damage from tripping or tangling. If an extension cord is necessary it must be placed so that it does not drape over a counter, table or similar where it can be tripped over or pulled on. The marked rating of the extension cord must be equal to or greater than the rating of this appliance. The electrical rating is listed on the bottom of this unit.

This appliance is intended to be used in household and similar environment such as :

• Staff kitchen areas in shops, offices, and other working environments.
• Farmhouses.
• By clients in hotels, motels, and other residential type environments.
• Bed and breakfast type environments.

Over View

A Top Lid
B Timer Control Knob
© ON/OFF Switch for Upper Plate
D ON/OFF Switch for Lower Plate
E Handle
F Upper Plate
G Lower Deep Pan Plate
H Release Button
Red/Green Indicator Light

Setting Up

1. Carefully unpack the Kleva QuickTime Flavour Grill™ and remove all packaging materials.
2. Place the Grill on a smooth, flat surface and make sure it is close to a power outlet.
3. Open the Flavour Grill™ lid and wipe the cooking plates and outside of the appliance with a soft, damp cloth until all clean. Caution: Never submerge the Kleva QuickTime Flavour Grill™ in water or any other liquid.
4. Close the Grill Lid and plug the power cord into a secure wall power outlet.
5. Pre-heat the Kleva Flavour Grill™ for 6 – 10 minutes. You may notice some smoke coming from the Grill, but do not worry this is normal.
6. Coat the cooking plates with a little bit of oil and you are ready to start cooking!

WARNING Do not submerge the Kleva QuickTime Flavour Grill™ in water or any type of liquid. To clean wipe the Kleva QuickTime Flavour Grill™ with a clean, damp cloth. Do not use any harsh or abrasive cleaners on any part of the Kleva QuickTime Flavour Grill™.

NOTE: Opening the grill into the 180 degrees butterfly grill position The hinge is flexible and has a wide range of movement – This is normal The hinge must be lifted up high to avoid wear and tear on the hinge it will rub away if the lift is not performed correctly. (see PAGE 4 for more info)

NOTE:

The TIMER KNOB is not a temperature control you CANNOT control or change the temperature, the Quicktime Flavour Grill™ heats up to 210° temperature for you.

NOTE:

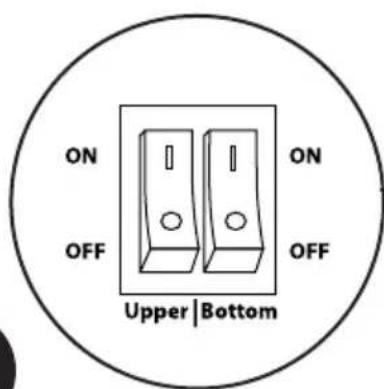

The TEMPERATURE BUTTONS Turn ON/OFF Grills independently

You CAN control if the heat is on, Both the upper plate, bottom plate or both at the same time. The heat control buttons are shown on the diagram

Opening To Butterfly Position

IMPORTANT - READ BEFORE USE

To Open Your Quicktime Grill Into The Butterfly Position Please Follow The Below Steps:

Person standing in a kitchen with a cooking pot and kitchenware in the background (no visible text or symbols)

Step 1:

Place your Grill on a flat surface in the closed position.

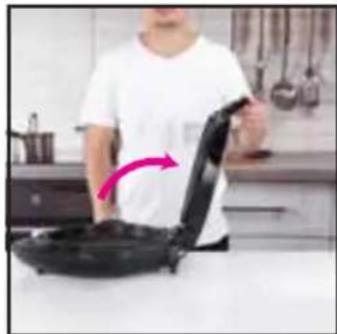

Person cooking a griddle with a black pan, showing a red arrow indicating rotation (no text or symbols visible)

Step 2:

Rotate the Upper Plate from a closed position into a vertical upright position.

Person in a kitchen holding a black appliance, with an inset close-up of its interior (no visible text or symbols)

Step 3:

Lift the Upper plate straight up until the triangle mechanism is fully lifted.

Person cooking in a kitchen using a pan, with a red arrow indicating rotation (no text or symbols visible)

Step 4:

Rotate The Upper plate down into the open butterfly position.

Person standing in a kitchen with two black food items on a table (no visible text or symbols)

Step 5:

Your Quicktime Flavour Grill™ is now ready to cook in the open 180 degrees butterfly grill position.

NOTE: Opening the grill into the 180 degrees butterfly grill position, the hinge is flexible and has a wide range of movement. This is normal

NOTE: The hinge must always be lifted up high to avoid wear and tear on the hinge, if not performed correctly it will rub away and cause damage to the mechanism.

Diagram showing a mechanical component with a pink arrow indicating direction (no text or symbols present)

When opening the grill up to 180° always make sure the triangle hinge mechanism has been fully lifted upwards until it is away from the bottom grill plate. This process must be followed at all times to avoid wear on the hinge.

Operation

1. Place the Kleva QuickTime Flavour Grill™ on a stable, flat surface near a power outlet.
2. Close the Grill lid and plug the power cord into a wall socket.
3. Adjust the Timer Control knob to the required cooking time. (Timer Range: 0–60 minutes)
4. The Indicator light will turn Red when the Kleva QuickTime Flavour Grill™ is powered on and preheating.
5. Allow 6 – 10 minutes for the Kleva QuickTime Flavour Grill™ to properly preheat. When ready to use the Indicator light will turn Green.
6. During the cooking process the Green light may turn on and off, this will show that the correct temperature is being maintained.

Hints & Tips

• When first using the Flavour Grill™ make sure to keep checking your food while it cooks, to help learn the best cooking times for each meal.
• Remember the flavour grill has dual heating plates that are individually controlled so you can turn one plate off and have the other one still cooking. This is great to use when wanting to crisp the top of dishes in the deep pan such as pizza, bakes and pies.
• Although both Cooking plates have Greblon C3 non-stick coating, it is recommended to add a small amount of cooking oil when frying, roasting or cooking.
• Remember your flavour grill can be used both in the closed position and the 180 degree open position to allow for versatile cooking options.
• Once your food has finished cooking and the timer has run out, the Flavour Grill™ will retain heat for up to 30 minutes to keep your meal warm

Cleaning & Care

NOTE Always follow the Cleaning and Maintenance instructions in the Kleva QuickTime Flavour Grill™ User Manual. No other servicing is required. If the Kleva QuickTime Flavour Grill™ has sustained any damage or needs repairs contact Kleva Customer Service.

Do Not submerge the Kleva QuickTime Flavour Grill™ in water or any type of liquid.

1. When finished using the Kleva QuickTime Flavour Grill™ unplug the power cord from the wall outlet and allow it to completely cool.
2. To avoid discolouration, stains and oil or food build up, ensure you clean the Grill and cooking plates after each use.
3. When cleaning the inside and outside of the Kleva QuickTime Flavour Grill™ use a clean, soapy cloth or sponge and mild detergent if needed.
4. Wipe the Flavour Grill™ with a damp cloth and dry thoroughly.
5. To remove stubborn marks and stains, make sure to use a non-stick safe scrubber or cleaning tool. Do Not use any abrasive cleaning agents, scouring pads, steel wool or rough cleaning tools on the Kleva QuickTime Flavour Grill™.
6. The Bottom Cooking plate can be removed for cleaning and placed in the dishwasher.

NOTE Never submerge the Kleva Quick TimeFlavour Grill™ in water or any type of liquid. Only the Cooking plates are dishwasher safe and must be detached before washed in a dishwasher.

Disposal This marking indicates that the Kleva QuickTime Flavour Grill™ cannot be disposed of with other household waste. Incorrect disposal could result in harm to people and the environment. To prevent potential harm from uncontrolled waste disposal, recycle the Kleva QuickTime Flavour Grill™.

Cooking Tips

Bacon Mac & Cheese
GRILL POSITIONFlat Top/deep Dish	TIMEApprox. 10 Minutes
Berry Cobbler
GRILL POSITIONDeep Dish	TIMEApprox. 30 Minutes
Chicken Breast
GRILL POSITIONFlat Top Or Deep Dish	TIMEApprox. 10 Minutes
Chicken Pot Pie
GRILL POSITIONDeep Dish	TIMEApprox. 50 Minutes
Grilled Broccolini, Halloumi & Sweet Potato
GRILL POSITIONButterfly	TIMEApprox. 10 Minutes
Homemade Pizza
GRILL POSITIONDeep Dish	TIMEApprox. 10 Minutes

Cooking Tips

Omelette
GRILL POSITIONDeep Dish	TIMEApprox. 3-5 Minutes
Pork Chops with Onions & Mushrooms
GRILL POSITIONDeep Dish	TIMEApprox. 6-8 Minutes
Steak
GRILL POSITIONDeep Dish	TIMEApprox. 3-6 Minutes
Teriyaki Glazed Salmon
GRILL POSITIONDeep Dish	TIMEApprox. 7 Minutes
Vegetable Medley
GRILL POSITIONDeep Dish	TIMEApprox. 15 Minutes
Vegetarian Chilli
GRILL POSITIONDeep Dish	TIMEApprox. 45 Minutes

KLEVA®

QUICKTIME™

FLAVOUR GRILL NON - STICK

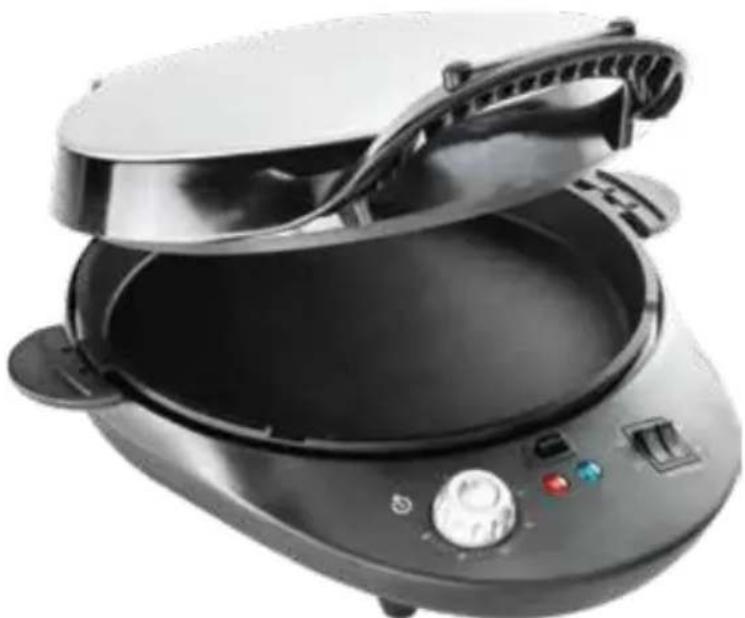

Close-up of a stainless steel electric grill with open lid and control buttons (no visible text or symbols)

BEWARE OF HOT GRILL. ALWAYS KEEP CHILDREN AWAY FROM HEATED GRILL. THE HANDLES AND KNOBS OF YOUR COOKING IMPLEMENT

COULD BECOME HOT. EVEN STAY-COOL HANDLES CAN GET HOT.

ALWAYS TREAT A GRILL AS THOUGH IT'S HOT.
