OPT-2033 - Planer Ozito - Free user manual and instructions

Product Type	Planer Thicknesser
Brand	Ozito
Model	OPT-2033
Voltage	230-240V ~ 50Hz
Motor Power	2000W
No Load Speed	9,100 rpm
Feed Speed	6 m/min
Max Planing Width	330 mm
Number of Blades	2
Planing Depth	0-3 mm
Planing Height	6-160 mm
Table Size	330 x 290 mm
Weight	28 kg
Dust Extraction	Yes, with port and adapter
Overload Protection	Yes, with reset button
Safety Features	Double insulation, overcurrent protection, safety switch
Included Accessories	Push stick, blade guide, dust extraction adaptor, 2 spanners, hex key, depth adjustment handle, 4 feet
Warranty	3 Year Replacement Warranty (DIY use)
Intended Use	DIY only

Frequently Asked Questions - OPT-2033 Ozito

How do I adjust the planing depth?

Turn the depth adjustment handle. Each full rotation changes the planing depth by 1.5 mm. Use the planing thickness guide to set the desired height. Always test on a scrap workpiece first.

How do I replace the blades?

Disconnect the tool from power. Remove the depth adjustment handle and undo the 4 hex bolts on top to remove the casing. Remove the dust hood by undoing 4 hex bolts. Use a 10mm spanner to loosen the blade screws. Remove the old blade and locking plate. Install the new blade with the edge facing the correct direction, using the blade guide to align. Tighten all screws. Reassemble. Test on scrap material.

What should I do if the machine overheats or overloads?

Press the '0' button to stop, disconnect power, and push the overload reset button. Allow the machine to cool down. Remove any jammed material. If the overload activates again immediately on restart, do not continue using the tool.

What is the maximum width of wood I can plane?

The maximum planing width is 330 mm. The minimum workpiece length is 153 mm, and minimum thickness is 6 mm plus the desired planing depth.

Can I use the thicknesser for materials other than timber?

No. Never use the thicknesser with materials other than timber. It is designed only for wood.

How do I adjust the table extensions if they are uneven?

Raise the blade out of the way. Place a level on the main worktable and check for gaps under the extensions. Loosen the adjustment nut and turn the screw to raise or lower the extension until it is level with the main table. Retighten the nut.

How do I adjust parallelism if workpieces are not square?

Place the machine on its side and loosen the cross rod bolts. Move the cross rod to disengage the conical gear from the blade holder gear. Rotate the blade holder gear to adjust height (each tooth anti-clockwise raises by 0.1 mm). Re-engage gears and tighten bolts. Check that the blade holder and work table are parallel.

What safety precautions should I take when using the thicknesser?

Always wear eye, ear, and breathing protection. Never place hands near the cutter head. Use the push stick to feed workpieces. Ensure the tool is off and disconnected before adjustments. Keep bystanders away. Do not force the workpiece.

How do I maintain the thicknesser?

Clean the machine after each use with a damp cloth and soft soap. Regularly remove shavings from depth setting chains and lifting screws, then lightly grease. Carbon brushes should be replaced by a qualified repairer when worn. Store in a dry place.

What does the warranty cover?

The product has a 3-year replacement warranty for domestic DIY use from the original purchase date. It covers defects but excludes consumable parts like blades and accessories. Proof of purchase is required.

USER MANUAL OPT-2033 Ozito

Mains Voltage:	230-240V ~ 50Hz
Motor:	2000W
No Load Speed:	9,100/min
Feed Speed:	6m/min
Max. Planing Width:	330mm
No. of Blades:	2
Planing Depth:	0-3mm
Planing Height:	6-160mm
Table Size:	330 x 290mm
Weight:	28kg

ozito.com.au

STANDARD EQUIPMENT

Thicknesser

Technical line drawing of a mechanical tool assembly with wrench, tap, and dial (no text or labels)

Push Stick, Blade Guide, Dust Extraction Adaptor, 2 x Spanners, Hex Key, Depth Adjustment Handle & 4 x Feet

OPT-2033

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia: 1800 069 486

New Zealand: 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY\*

Your product is guaranteed for a period of 36 months from the original date of purchase. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: valve adapters and accessories.

*This product is intended for DIY use only and replacement warranty covers domestic use.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
  • Professional, industrial or high frequency use.

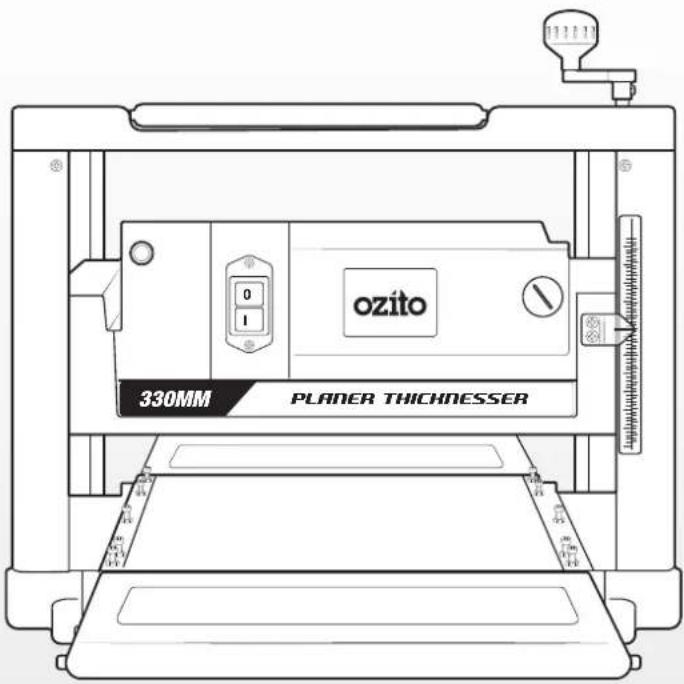

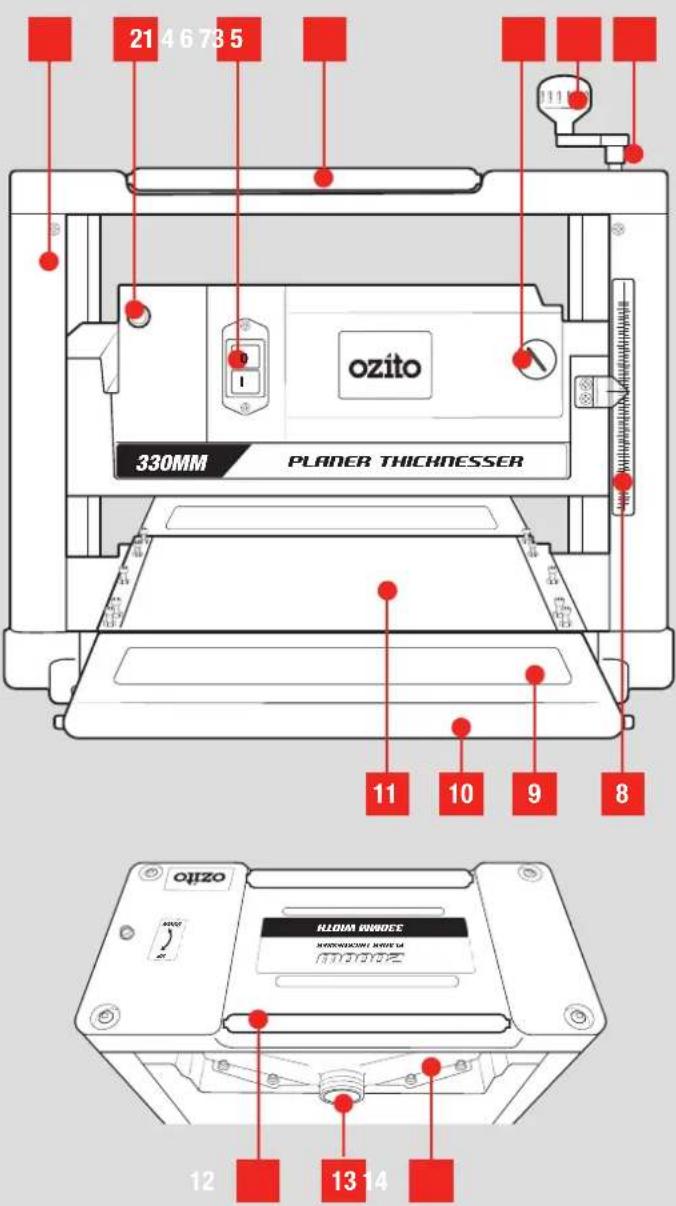

KNOW YOUR PRODUCT

THICKNESSER

1. Casing
2. Overload Reset Button
3. On/Off Switch
4. Material Support Rollers
5. Carbon Brush Cover
6. Depth Adjustment Handle

7. Handle Screw

8. Depth Guide

9. In-Feed Extension Table
10. Material Support Roller
11. Working Table
12. Material Support Roller
13. Dust Extraction Port
14. Dust Hood

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

YEAR REPLACEMENT WARRANTY*

SETUP & PREPARATION

1. ASSEMBLY

WARNING! ENSURE THE TOOL IS TURNED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS.

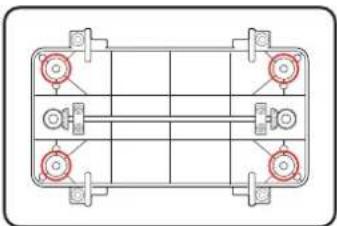

Installing The Rubber Feet

1. Press the rubber feet into the slots on the base of the unit.

Pure electrical circuit lines without any symbols

Installing The Depth Adjustment Handle

1. Align the depth adjustment handle with the protruding shaft on the machine.

Diagram of a mechanical device with a lever and base, showing no text or symbols

1. Tighten the screw and nut to lock the handle into place.

Simple line drawing of a device with a funnel and screwdriver (no text or symbols)

2. CONTROLS 3. PLANING

WARNING! NEVER PLACE HANDS NEAR THE CUTTER HEAD UNLESS THE MACHINE IS SWITCHED OFF AND DISCONNECTED FROM THE POWER SUPPLY.

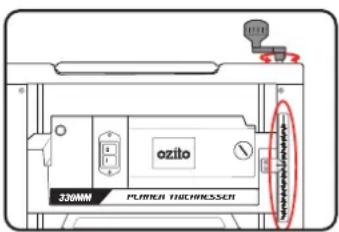

Adjusting The Planing Depth

The planing depth can be raised or lowered 1.5mm with every full rotation of the handle. Always test the setting on a scrap workpiece first.

1. Turn the depth adjustment handle and use the planing thickness guide to determine the required height.

Switching The Tool On/Off

1. Press the "i" button to start the machine.

2. Press the "0" button to stop the machine.

Overcurrent Protection

If the planing material gets stuck, the tool is overloaded or there is a short, the overcurrent protection will automatically shut off the machine to prevent damage.

Follow the steps below to reset the machine after an overload.

1. Press the "0" button to ensure the machine does not start up again unexpectedly, then disconnect the power supply to the machine.

1. Push the overload reset button and allow the machine to cool down.

1. Remove any jammed material or loose debris that may have caused the overload.

WARNING! DO NOT CONTINUE USING THE TOOL IF THE OVERCURRENT PROTECTION ACTIVATES AGAIN IMMEDIATELY ON RESTART.

WARNING! NEVER USE THE THICKNESSER WITH MATERIALS OTHER THAN TIMBER.

WARNING! WEAR EYE, EAR & BREATHING PROTECTION TO AVOID PERSONAL INJURY.

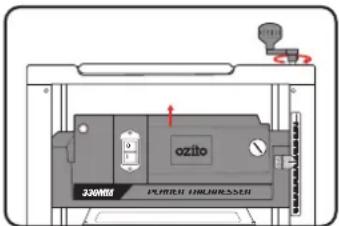

1. Turn the depth adjustment handle to raise the blade and allow sufficient space for the workpiece.

1. Place the workpiece below the blade and lower the blade to the surface of the workpiece.

1. Without adjusting the height, remove the workpiece. Then lower the blade to the desired planing depth.

1. Start the machine and gently feed the workpiece into the machine using the provided push stick.

WARNING! ALWAYS USE THE PUSH STICK PROVIDED INSTEAD OF YOUR HANDS TO FEED THE WORKPIECE.

WARNING! DO NOT FORCE THE WORKPIECE INTO THE THICKNESSER. THE MACHINE AUTOMATICALLY PULLS THE WORKPIECE.

Planing Tips

• The length of the workpiece should not be less than 153mm long.
• The thickness of workpiece should not be less than 6mm + desired planing depth.
• Do not remove more than 3mm of material at a time.
• When working with hardwood, do not remove more than 2.5mm at a time to avoid overloading the machine.
• Removing material gradually over several passes will result in a smoother surface finish.
• The surface finish can be affected by the hardness, moisture and fibre content of the timber. The blade sharpness, machining direction and planing depth can also affect the surface finish.
• Feed material into the machine along the grain where possible for best results.
• Always test any adjustments on scrap pieces of timber before attempting on your workpiece.
• If not working in well ventilated areas, connect a dust extraction unit, such as a vacuum cleaner, to the dust extraction port to create a cleaner work environment. Use the dust extraction adapter if required.

WARNING! BEFORE CLEANING THE APPLIANCE OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT IT IS DISCONNECTED FROM THE POWER SUPPLY TO PREVENT ACCIDENTAL STARTING.

Adjusting The Table Extensions

The table extensions have been factory adjusted for use straight out of the box. However these can become uneven over time, in which case follow the steps below to readjust them.

1. Raise the blade height so that it is out of the way.

1. Place a level on the main worktable and inspect the extension table for gaps.

Technical line drawing of a mechanical assembly with no visible text or symbols

1. If the table extensions are not level, there will be gaps between the surface and the level. Loosen the adjustment nut and use the screw to adjust the table height.

Pure technical diagram showing a mechanical component with a highlighted circular feature (no text or symbols)

1. Retighten the nut when the proper height is achieved.

Parallelism

Adjust the machine parallelism if workpieces are no longer coming out square.

Note: Poor parallelism is usually caused by misaligned blades. Always check that the blade holder and work table are parallel before attempting to adjust the parallelism setting.

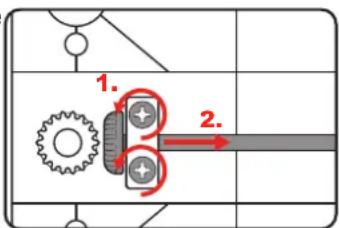

1. Place the machine on its side and loosen the cross rod bolts.

2. Move the cross rod to disengage the conical gear from the blade holder gear.

3. Rotate the blade holder gear to adjust the height of the blade holder. Each gear tooth shifting anti-clockwise raises the blade holder by 0.1mm.

4. Once adjusted, move the cross rod gear back into place and re-tighten the bolts.

WARNING! WEAR GLOVES AND HANDLE THE BLADES WITH CAUTION TO AVOID PERSONAL INJURY OR COLLATERAL DAMAGE.

Blade Replacement

1. Loosen the screw and remove the depth adjustment handle.

Diagram of a mechanical device with a lever and rotating knob (no text or symbols)

1. Undo the 4 hex bolts on the top of the unit with an M5 hex key and remove the casing.

1. Undo the 4 hex bolts with an M4 hex key and remove the dust hood.

1. Use the 10mm spanner to turn the hex bolts clockwise and loosen the blade.

1. Remove the knife blade and the blade locking plate.

Diagram of a cylindrical object with red arrows pointing to its top surface, no text or symbols present

1. Replace the worn blade with a new blade of the same dimensions. Place the new knife blade and blade locking

Note: Ensure the blade edge is facing the correct direction.

1. Hold the assembly in place to loosely tighten the blade by turning the 9 hex bolts anti-clockwise.

1. Place the blade guide in the proper orientation on the blade assembly and use it to push the blade to the proper position, then fully tighten the blade.

Note: Ensure that the 2 support blocks on the left and right side of the blade guide are pressed against the knife blade.

1. Repeat steps 4 to 8 for the other blade.

WARNING! CHECK THAT ALL SCREWS ARE TIGHTENED. TURN THE BLADE HOLDER BY HAND TO CHECK THAT IT ROTATES EASILY AND SMOOTHLY.

1. Reassemble the dust hood and casing onto the machine.

Note: Test the settings on a scrap piece of material to ensure the blades are properly installed and operating as they should.

DESCRIPTION OF SYMBOLS

Cleaning

1. We recommend that you clean the appliance immediately after you use it.
2. Keep the safety devices free of dirt and dust as much as possible. Wipe the equipment with a clean cloth.
3. Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.

Lubrication

1. Regularly remove shavings from the depth setting chains, reduction drive and lifting screws for the blade holder.
2. Remove chips with a cloth and brush, then lightly grease with a clean brush dipped in oil.

WARNING! NEVER POUR OIL DIRECTLY ON THE COMPONENTS. TOO MUCH OIL WILL CAUSE DUST TO STICK AND IMPAIR LUBRICATIONS, WHICH IN TURN REDUCES THE SERVICE LIFE OF THE MACHINE.

WARNING! THE BLADE HOLDER BEARINGS ARE SEALED AND MUST NOT BE LUBRICATED.

Carbon Brushes

When the carbon brush wears out, the tool will spark and/or stop. Discontinue use as soon as this happens. It should be replaced prior to recommencing use of the tool. Carbon brushes are a wearing component of the tool, and

are not covered under warranty. Continuing to use the tool when the carbon brush needs to be replaced may cause permanent damage to the tool. Carbon brushes will wear out after many uses but when the carbon brush needs to be replaced, take the tool to an electrician or a power tool repairer for a quick and low cost replacement.

Storage

Pull the mains plug out of the socket, switch off the tool and make sure that it is secured in such a way that it cannot be started up again by any unauthorised person.

Store the tool in a dry location which is not accessible to unauthorised persons.

Supply Cords

If replacement of the supply cord is necessary, this has to be done by a certified electrician in order to avoid a safety hazard.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.

V	Volts		Hz	Hertz
~	Alternating Current Watts		W
/min			n_0	No load speedRevolutions per minute
m/min	Meters per minute Millimetres		mm
	Wear eye, ear & breathing protection			Wear gloves
	Sharp blade; keep hands clear			Rotating blades; keep hands & feet out of openings while the machine is running
	Beware of debris being ejected from the machine			Switch off & remove plug from mains before adjusting, cleaning or if the cord is entangled or damaged
[CSKD]	Double insulated			Keep bystanders away
	Warning			Regulatory Compliance Mark (RCM)
		Read Instruction Manual		Sound power level in decibels

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit

www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

ELECTRICAL SAFETY

WARNING! When using mains-powered tools, basic safety precautions, including the following, should always be followed to reduce risk of fire, electric shock, personal injury and material damage. Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.

Save these instructions and other documents supplied with this tool for future reference.

This tool has been designed for 230V and 240V only. Always check that the power supply corresponds to the voltage on the rating plate.

Note: The supply of 230V and 240V on Ozito tools are interchangeable for Australia and New Zealand.

This tool is double insulated; therefore no earth wire is required.

Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for added protection against injury resulting from a possible electrical insulation failure within the tool.

Using an Extension Lead

Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.

When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not suitable for the power input of the tool or which is damaged or defective may result in a risk of fire and electric shock.

The power supply for this product should be protected by a residual current device (rated at 30mA or less). A residual current device reduces the risk of electric shock.

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries

c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a

rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

THICKNESSER SAFETY WARNINGS

The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or Instruction.

Young children should be supervised to ensure that they do not play with the appliance.

WARNING! Before connecting a tool to a power source (mains switch power point receptacle, outlet, etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, as well as damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

• Always wear safety glasses and hearing protection when operating this machine. Always wear a dust mask to reduce the risk of inhalation of harmful dust.
  • Always remove the plug from the mains socket before making any adjustments or performing maintenance.
• Don't cram wood into outfeed side.
• Before use check that all screws connections are properly tightened.
• Do not force the tool. Let the feed mechanism do the work. Never insert objects or body parts in the outfeed.
• Check regularly that the rubber roller and iron roller are clean. If the rollers are contaminated the workpiece will not feed correctly.
• Do not machine workpieces with many knots or sprigs.

• The operating position is in front of the machine. Stand by the side of the infeed table.

• Remove any nails, screws and other metal objects from the workpiece before machining.

• Check that the blades are correctly installed.
• Wear gloves and handle the knife blades with care to avoid personal injury and/or collateral damage.
• Never start planing until the blade holder has reached full speed.
• Never use blunt blades as this could result in kickback.
• Always replace or sharpen both blades at the same time. Both blades must be of the same size and weight.
• Never place hands near the cutter head unless the machine is switched off and disconnected from the power supply. Never insert your fingers or other body parts in the chip outlet.
  • Always use the push stick provided instead of your hands to feed the workpiece.
  • Always keep your hands well away from the cutter head and the chip ejection area while the machine is running.
  • Always check that the recoil claw is in the correct position.
• Do not force the workpiece if it's not being fed smoothly, check if the machine has other problems.
• If the workpiece jams while being fed into the machine, do not continue to force the operation. Stop the tool, disconnect from the power and investigate for the cause of the jam.
• The sawdust created by planing makes it difficult to see as clearly as necessary and can impair the operator's health in certain circumstances. If not working in well ventilated areas, the machine must be connected with the dust extraction port to an extractor unit, such as a small portable dust extractor.
• Do not use the machine without the appropriate guard in place and correctly adjusted. Never use the machine without dust chute.
• Never use the thicknesser with materials other than timber.
