SVN5200D - Wine cellar SVAN - Free user manual and instructions

Product Type	Wine Cellar
Brand	SVAN
Model	SVN5200D
Capacity	Approximately 52 bottles
Temperature Range	5°C to 18°C
Energy Class	F (typical for this type)
Annual Energy Consumption	~150 kWh
Noise Level	≤ 40 dB(A)
Climate Class	N/ST (temperate/subtropical)
Dimensions (W x D x H)	59.5 x 57.0 x 84.5 cm (approx)
Weight	~38 kg
Power Supply	220-240 V / 50 Hz
Refrigerant	R600a (isobutane)
Number of Shelves	5 wooden shelves
Type of Lighting	LED interior light
Door Type	Glass door with UV protection
Adjustable Feet	Yes, front adjustable
Defrosting	Automatic
Product Location	Freestanding
Warranty	2 years (refer to manual)
Spare Parts Availability	Contact SVAN support for replacement parts
Repair Information	See manual for maintenance and servicing guidelines

Frequently Asked Questions - SVN5200D SVAN

What is the ideal temperature for storing wine in the SVN5200D?

The recommended temperature range is between 5°C and 18°C. For long-term aging, set it around 12°C to 14°C. Use the adjustable thermostat to achieve the desired temperature.

How many bottles can the SVN5200D hold?

This wine cellar can store approximately 52 standard 750ml bottles, depending on the size and shape of the bottles.

Can I install the wine cellar in an unheated garage?

It is not recommended. The wine cellar is designed for indoor use with ambient temperatures between 16°C and 38°C. Extreme temperatures may affect performance and efficiency.

How do I clean the SVN5200D wine cellar?

Unplug the unit, remove bottles and shelves, and wipe the interior with a mild detergent and warm water. Dry thoroughly. Clean the condenser grille (if accessible) every few months to ensure proper ventilation.

Why is my wine cellar making noise?

Normal operation includes sounds from the compressor (humming) and refrigerant flow (gurgling). If you hear loud banging or rattling, check that the unit is level and the shelves are secure. A persistent unusual noise may require service.

What should I do if the door does not close properly?

Check if the wine cellar is level by adjusting the front feet. Also ensure that no items are blocking the door. If the door seal is damaged, contact SVAN for a replacement.

How do I adjust the temperature?

The SVN5200D has a mechanical thermostat dial inside the wine cellar. Turn it clockwise for colder temperatures and counterclockwise for warmer. Allow 24 hours for the temperature to stabilize after adjustment.

Does the SVN5200D have UV protection?

Yes, the glass door is treated to block harmful UV rays, protecting your wine from light damage.

What type of shelves does it have?

It features wooden shelves which are solid and stable, designed to hold wine bottles securely. They are slide-out for easy access.

How do I defrost the wine cellar?

The SVN5200D features automatic defrosting, so no manual defrosting is required. Frost is removed automatically during normal operation.

USER MANUAL SVN5200D SVAN

Operating Instruction

MODEL: SVN5200D

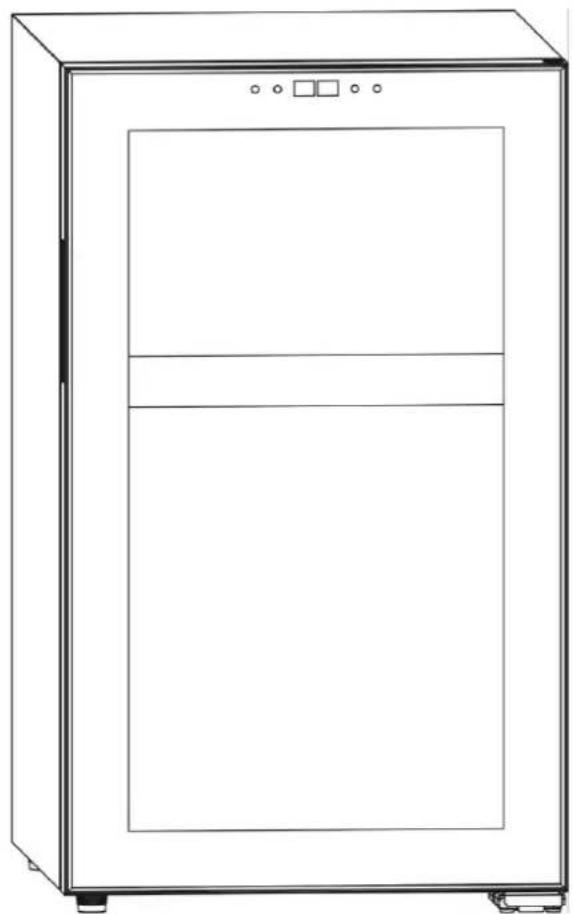

Line drawing of a refrigerator with two doors and front panel (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

WARNING	To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions:
·Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.WARNING:1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.2) Children should be supervised to ensure that they do not play with the appliance.3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.6) When positioning the appliance, ensure the supply cord is not trapped or damaged.7) Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.8) Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.9) Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.10) Do not damage the refrigerant circuit.11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.- This appliance is intended to be used in household applications.13) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.14) To avoid contamination of drink, please respect the following instructions:- Opening the door for long periods can cause a significant increase of the temperature in thecompartments of the appliance.- Clean regularly surfaces that can come in contact with drink and accessible drainage systems.- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
·Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane.Please avoid contact fire when you transport and use it.Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal station when you discard it.-Save these instructions-

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color.

It's risk of fire warning symbol. There are flammable materials in refrigerant pipes and compressor.

Please be far away fire source during using, service and disposal

INSTALLATION INSTRUCTIONS

• This appliance is designed to be free standing only, and should not be recessed or built-in.
• Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the leveling legs at the bottom of the appliance.
• Allow 10 cm of space between the top, the back and sides of the appliance, which allows the proper air circulation to cool the compressor and condenser.

- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

- Avoid locating the appliance in moist areas.

- Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

• After plugging the appliance into a wall outlet, allow the appliance to cool down for 2-3 hours before placing any items in the compartment.

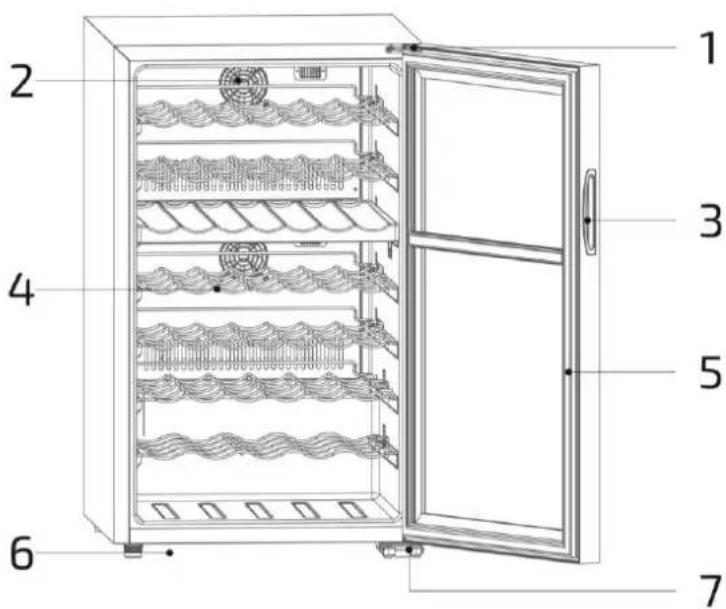

PARTS AND FEATURES

1: Upper Hinge

2: Fan

3: Door Handle

4: Shelves

5: Door Gasket

6: Adjust Foot

7: Bottom Hin

OPERATING YOUR UNIT

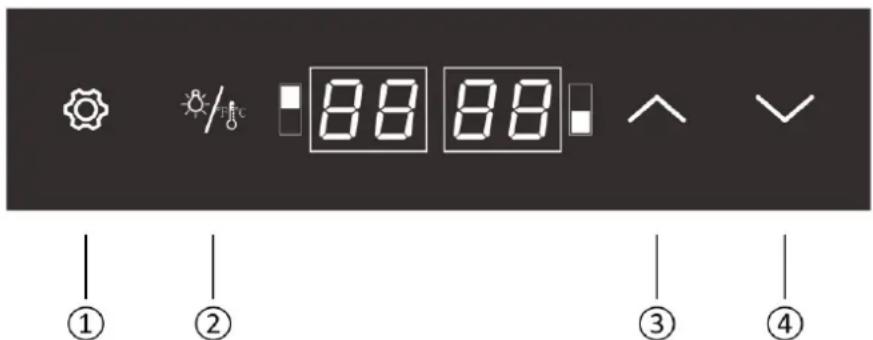

Setting the Temperature Control

Key Function

① Unlock key: short press to switch the upper room/lower room setting state; long press for 2 seconds to unlock
② Light/CF key: short press to turn on or off; long press to switch between Fahrenheit and Celsius
③ Add key: temperature setting
④ Minus key: temperature setting

Automatic locking function

When all the key no operation for 20 seconds, the key will be locked automatically. After locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally

Auto light off function

When all the key no operation for 10 minutes, the lamp will turn off automatically

Adjustable range

Upper room:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Lower chamber:

lowest value: 5°C / 41°F

Maximum value: 18°C / 64°F

Display range

Temperature display range of control panel:0\~37°C / 32\~99°F

Display stability

In the Celsius state: When the temperature measured by the temperature probe is within ±1^ C of the set temperature, the temperature display will display the set temperature value

In the Fahrenheit state: When the temperature measured by the temperature probe is within ±2^ F of the set temperature, the temperature display will display the set temperature value

Error code

EE: "EE" is displayed when the temperature probe is short-circuited or disconnected, flashes, and cooling is stopped

LL: When the temperature measured by the temperature probe is lower than 0 degrees Celsius, "LL" is displayed, flashing, and the cooling is stopped

HH: When the temperature measured by the temperature probe is higher than 37 degrees Celsius, "HH" is displayed, flashing, and cooling is stopped

Forced defrosting function

When the compressor works for 12 hours, the compressor will stop working for 30 minutes

Memory function

The control board is re-energized after each power-off, the temperature setting value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off time is not limited

Tips

- It is intended to be used exclusively for the storage of wine.

• This refrigerating appliance is not suitable for the freezing foodstuffs.

• The wine cooler is recommended to be designed at 12^ C.

- The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

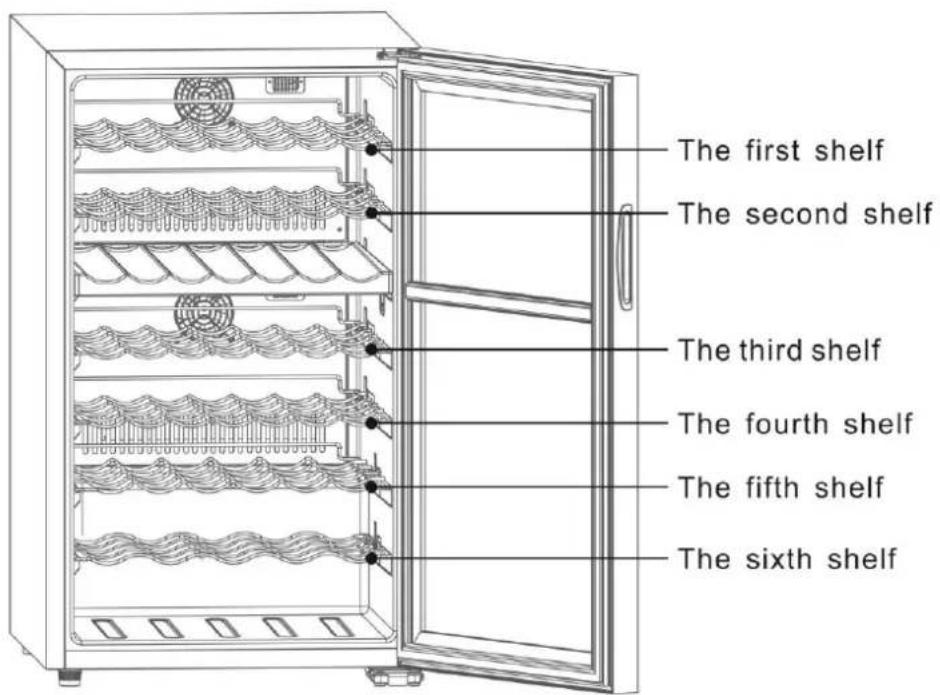

- The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

THERE ARE SIX SHELVES IN TOTAL

- When the surrounding temperature is 25^ C and the wine cooler has no bottle loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5^ C to 12^ C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12^ C to 5^ C. The less the temperature span is, the less time it will take

- The wine cooler is recommended to be designed at 12°C. The energy consumption is 0.356kWh/24h. If the setting temperature is higher than 12°C, the energy consumption will be lower. If the setting temperature is lower than 12°C, the energy consumption will be higher.

- When the compressor works for 12 hours, the compressor will stop and defrost for 40 minutes

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle according to the following methods. If the situation can not be changed, please contact the local after-sales service center in time, and be sure to provide the model name and product number in detail.

The refrigerator doesn't work

Simple line drawing of a hand pressing down on a button (no text or symbols)

Is the power on?

Is the power supply voltage too low?

It's noisy

Whether the ground is flat and whether the product is placed stably

Simple line drawing of a refrigerator next to a small stool with steam lines (no text or symbols)

Is the product in contact with external objects or walls

The internal temperature is not low

Improper setting temperature, please select the appropriate temperature

Simple line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

The door is not closed tightly or opened frequently, and the opening time is too long

Simple line drawing of a portable air conditioner emitting steam and a small stove with flames, no text or symbols present.

Is the location exposed to direct sunlight or too close to the furnace and other heat sources

Cartoon illustration of a smiling refrigerator with steam rising, showing facial features and a torn paper sheet (no text or symbols)

Poor heat dissipation, please check whether there is enough cooling space around the product

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed information about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

SVAN TRADING S.L.

Imported by B73737553
