Product Type	Wine Cellar
Brand	SVAN
Model	SVVN033C
Capacity	33 bottles
Dimensions (H x W x D)	82 x 59 x 55 cm
Weight	28 kg
Power Supply	220-240V, 50Hz, 100W
Temperature Range	5°C to 18°C
Temperature Control	Electronic thermostat
Cooling System	Compressor
Interior Lighting	LED
Shelves	5 removable wooden shelves
Door Type	Full glass door, UV protection
Lock	Yes
Vibration Reduction	Yes
Humidity Control	Passive (vibration pad)
Energy Efficiency Class	G (EU)
Noise Level	≤ 42 dB
Installation	Freestanding
Defrost	Manual
Maintenance	Clean with damp cloth, check door seal
Spare Parts Availability	Shelves, thermostat, door hinge

Frequently Asked Questions - SVVN033C SVAN

What is the capacity of the SVAN SVVN033C wine cellar?

The SVAN SVVN033C wine cellar can hold up to 33 standard wine bottles.

How do I set the temperature on my wine cellar?

Use the electronic control panel to adjust the temperature between 5°C and 18°C. The display shows the current setting.

Why is my wine cellar not cooling properly?

Check that the ventilation grilles are not blocked, the door is fully closed, and the thermostat is set correctly. Also ensure the unit is level.

Can I install the wine cellar in a garage?

The SVVN033C should be installed in a temperature-controlled environment (10°C to 35°C). Avoid garages if they are too hot or cold.

How often should I defrost the wine cellar?

Defrost manually when ice buildup exceeds 5 mm. Switch off the unit, remove bottles, and let ice melt naturally.

Does the wine cellar have a lock?

Yes, the SVVN033C comes with a key lock to secure your wine collection.

What type of light is inside?

The interior is illuminated by a LED light that operates on a switch or automatically when the door opens.

How do I clean the wine cellar?

Unplug the unit and wipe the interior and exterior with a soft damp cloth. Do not use abrasive cleaners.

Are replacement shelves available?

Yes, replacement wooden shelves can be ordered from SVAN authorized service centers.

What is the noise level of this wine cellar?

The noise level is ≤ 42 dB, which is quieter than a normal conversation.

USER MANUAL SVVN033C SVAN

Line drawing of a simple kitchen refrigerator with front panel and side door (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precau ons:

- Before using the appliance, please read this user manual to ensure that you gain the maximum benefit from it.

WARNING:

1) This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
2) Children should be supervised to ensure that they do not play with the appliance.
3) This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
4) If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
5) To avoid a hazard due to instability of the appliance, it must be fixed in accordance with the instructions.
6) When positioning the appliance, ensure the supply cord is not trapped or damaged.
7) Do not locate mul ple portable socket-outlets or portable power supplies at the rear of the appliance.
8) Keep ven la on openings, in the appliance enclosure or in the built-in structure, clear of obstruc on.
9) Do not use mechanical devices or other means to accelerate the defros ng process, other than those recommended by the manufacturer.
10) Do not damage the refrigerant circuit.
11) Do not use electrical appliances inside the drink storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
12) Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
13) This appliance is intended to be used in household applications.
14) Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
15) To avoid contamina on of drink, please respect the following instructions:
- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
– Clean regularly surfaces that can come in contact with drink and accessible drainage systems.
- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days.
- If the refrigerating appliance is le empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

- Note: This appliance contains flammable refrigerant R600a and foaming agent cyclopentane.

Please avoid contact fire when you transport and use it.

Please ask professional for servicing when the machine broke down. Please send it to your local appointed disposal sta on when you discard it.

-Save these instruc ons-

INSTALLATION INSTRUCTIONS

• This appliance is designed to be free standing only, and should not be recessed or built-in.

- Place your appliance on a floor that is strong enough to support the appliance when it is fully loaded. To level your appliance, adjust the leveling legs at the bottom of the appliance.

- Allow 10 cm of space between the top, the back and sides of the appliance, which allows the proper air circula on to cool the compressor and condenser.

- Locate the appliance away from direct sunlight and sources of heat (stove, heater, radiator, etc.). Direct sunlight may affect the acrylic coa ng and heat sources may increase electrical consumption. Extreme cold ambient temperatures may also cause the unit not to perform properly.

- Avoid loca ng the appliance in moist areas.

- Plug the unit into an exclusive, properly installed-grounded wall outlet. Do not under any circumstances cut or remove the third (ground) prong from the power cord. Any questions concerning power and/or grounding should be directed toward a certified electrician or an authorized Products service center.

- A per plugging the appliance into a wall outlet, allow the appliance to cool down for 2-3 hours before placing any items in the compartment.

PARTS AND FEATURES

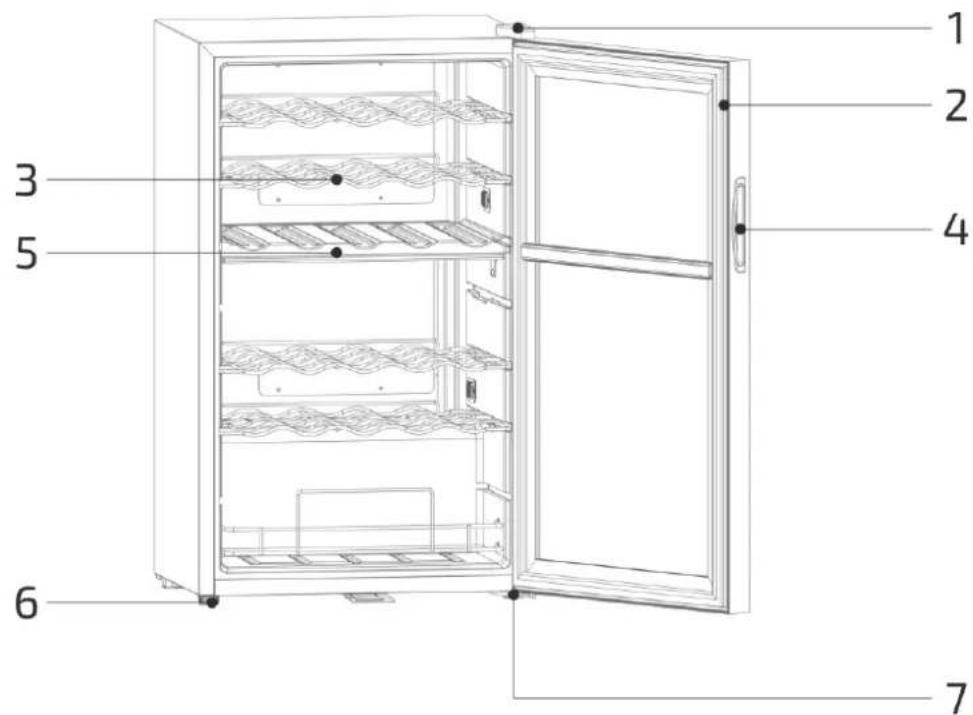

1: Upper Hinge

2: Door Gasket

3: Shelves

4: Door Handle

5: Par ons

6: Foot

7: Bo om Hinge

OPERATING YOUR UNIT

Se ng the Temperature Control

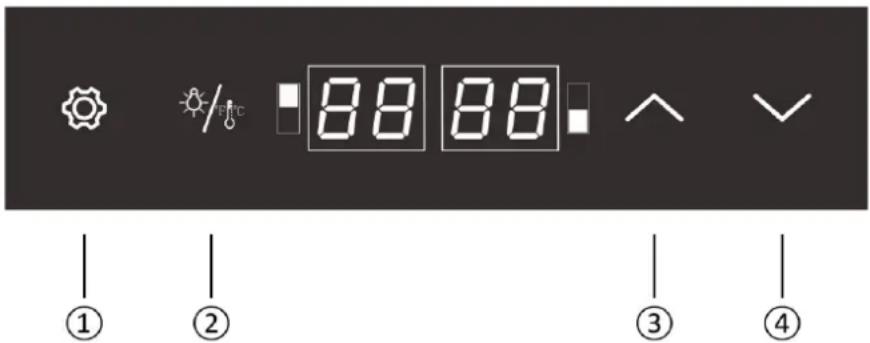

Key Funcon

① Unlock key: short press to switch the upper room/lower room setting state; long press for 2 seconds to unlock
② Light/CF key: short press to turn on or off; long press to switch between Fahrenheit and Celsius
③ Add key: temperature se ng
④ Minus key: temperature se ng

Automac locking funcon

When all the key no opera on for 20 seconds, the key will be locked automatically. A er locking, the plus and minus keys cannot be operated. The unlock key and light / CF key operate normally

Auto light o funcon

When all the key no opera on for 10 minutes, the lamp will turn off automa cally

Adjustable range

Upper room:

lowest value: 12^ C / 54^ F

Maximum value: 18°C / 64°F

Lower chamber:

lowest value: 5°C / 41°F

Maximum value: 14°C / 57°F

Display range

Temperature display range of control panel:0\~37°C / 32\~99°F

Display stability

In the Celsius state: When the temperature measured by the temperature probe is within ±1^ C of the set temperature, the temperature display will display the set temperature value

In the Fahrenheit state: When the temperature measured by the temperature probe is within ±2^ F of the set temperature, the temperature display will display the set temperature value

Error code

EE: "EE" is displayed when the temperature probe is short-circuited or disconnected, flashes, and cooling is stopped

LL: When the temperature measured by the temperature probe is lower than 0 degrees Celsius, "LL" is displayed, flashing, and the cooling is stopped

HH: When the temperature measured by the temperature probe is higher than 37 degrees Celsius, "HH" is displayed, flashing, and cooling is stopped

Forced defros ng func on

When the compressor works for 8 hours, the compressor will stop working for 45 minutes

Memory funcon

The control board is re-energized a er each power-off, the temperature se ng value, Fahrenheit/Celsius state will be the same as before the power-off, and the length of power-off me is not limited

Tips

• It is intended to be used exclusively for the storage of wine.
  • This refrigerang appliance is not suitable for the freezing foodstuffs.

• The wine cooler is recommended to be designed at 12°C.

- The shelves placed in factory mode is the most efficient use of energy for the refrigerating appliances.

- The following combination of shelves is recommended for energy to be used as efficiently as possible by the refrigeration unit.

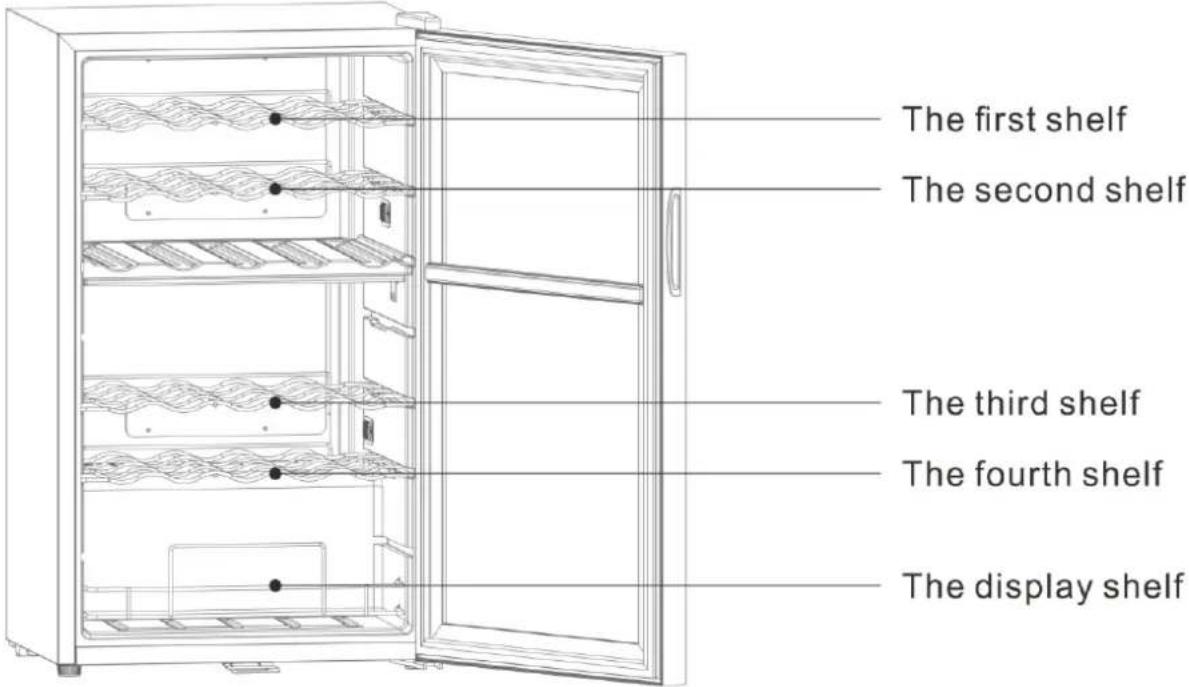

THERE ARE FOUR SHELVES AND ONE DISPLAY SHELF IN TOTAL

• When the surrounding temperature is 25^ C and the wine cooler has no bo le loaded, it will take around 30 minutes to increase the wine cooler's temperature from 5^ C to 12^ C. Under the same circumstance, it will take around one hour to decrease the wine cooler's temperature from 12^ C to 5^ C. The less the temperature span is, the less me it will take
• The setting temperature of upper zone should be lower than the setting temperature of lower zone
• The wine cooler is recommended to be designed at 12^ C. The energy consumption is 0.373 kWh/24h. If the setting temperature is higher than 12^ C, the energy consumption will be lower. If the setting temperature is lower than 12^ C, the energy consumption will be higher.
• When the compressor works for 8 hours, the compressor will stop and defrost for 45 minutes

GENERAL FAULT DESCRIPTION

If the product is not working properly, please check and handle according to the following methods. If the situa on can not be changed, please contact the local a er-sales service center in me, and be sure to provide the model name and product number in detail.

The refrigerator doesn't work

Simple line drawing of a hand pressing down on a button (no text or symbols)

Is the power on?

Is the power supply voltage too low?

The light is not bright

Simple line drawing of a sad light bulb with eyes closed and nose, no text or symbols present

The light switch was not pressed

Line drawing of a hand pressing down on a button (no text or symbols)

Is the power on?

It's noisy

Whether the ground is flat and whether the product is placed stably

Simple line drawing of an electric refrigerator next to a small stool with steam lines indicating heat or smoke (no text or symbols)

Is the product in contact with external objects or walls

The internal temperature is not low

Improper setting temperature, please select the appropriate temperature

Simple line drawing of a refrigerator with smoke and exhaust bubbles (no text or symbols)

The door is not closed ghtly or opened frequently, and the opening me is too long

Illustration of a portable refrigerator emitting steam and a portable stove with a sun in the background (no text or symbols)

Is the loca on exposed to direct sunlight or too close to the furnace and other heat sources

Cartoon illustration of a steaming refrigerator with a sad face and a lid, next to a sheet of paper (no text or symbols)

Poor heat dissipa on, please check whether there is enough cooling space around the product

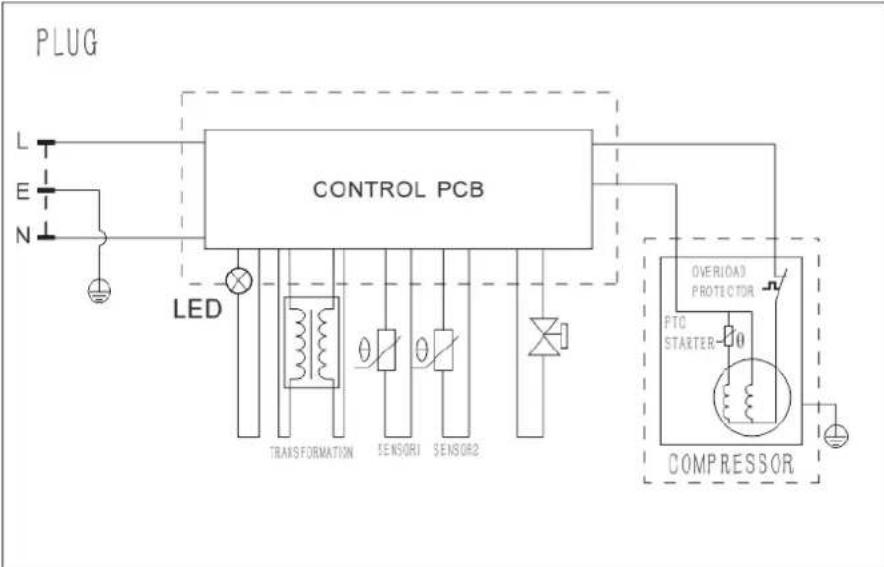

WIRING DIAGRAM

Correct disposal of this product

This symbol on the product, or in its packaging, indicates that this product may not be treated as household waste. Instead, it should be taken to the appropriate waste collec on point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent poten al nega ve consequences for the environment and human health, which could otherwise be caused by the inappropriate waste handling of this product. For more detailed informa on about the recycling of this product, please contact your local council, your household waste disposal service, or the shop where you purchased the product.

SVAN TRADING S.L.
