MW 20 DI X - Microwave MIDEA - Free user manual and instructions

Product Type	Microwave Oven
Brand	Midea
Model	MW 20 DI X
Capacity	20 Liters
Microwave Power	800 W
Voltage / Frequency	230 V / 50 Hz
Dimensions (W x D x H)	440 x 360 x 260 mm
Net Weight	10.5 kg
Material	Stainless Steel
Control Type	Digital Touch
Display	LED
Defrost Function	Yes, by time and weight
Timer	Up to 95 minutes
Clock	Yes
Child Lock	Yes
Auto Cook Programs	8 predefined
Power Levels	5
Interior Light	Yes
Turntable Diameter	245 mm
Warranty	2 years

Frequently Asked Questions - MW 20 DI X MIDEA

What is the capacity of the Midea MW 20 DI X?

The MW 20 DI X has a capacity of 20 liters, suitable for medium-sized dishes.

How do I set the clock on this microwave?

Press the Clock button, then use the number pad to enter the time. Confirm by pressing the Clock button again.

What is the maximum power output?

The microwave operates at 800 watts maximum power.

Can I use metal containers in the MW 20 DI X?

No, metal containers can cause sparks and damage the microwave. Use microwave-safe glass or ceramic.

How do I activate child lock?

Press and hold the Stop/Cancel button for 3 seconds. The display will show a lock icon. Repeat to unlock.

What does the defrost function do?

The defrost function allows you to thaw frozen food by time or weight for even results.

How do I clean the microwave interior?

Wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. For odors, place a bowl of water with lemon slices and heat for 2 minutes.

Why does the microwave display 'ERROR'?

An error code may indicate a malfunction. Unplug for 1 minute, then restart. If persistent, contact customer service.

Can I use the MW 20 DI X without the turntable?

No, the turntable ensures even cooking. Operating without it may cause uneven heating and damage.

What is the power consumption in standby mode?

Standby power consumption is typically less than 1 watt.

USER MANUAL MW 20 DI X MIDEA

Line drawing of a microwave oven with control panel and buttons (no text or symbols)

FORNO MICROONDE AD INCASSO

MANUALE UTENTE

MW 20 DI X

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

Line drawing of a microwave oven with control panel and display (no text or symbols)

BUILT-IN MICROWAVE OVEN

USER MANUAL

MW 20 DI X

Warning notices: Before using this product, please read this manual carefully and keep it for future reference. The design and specifications are subject to change without prior notice for product improvement. Consult with your dealer or manufacturer for details.

The diagram above is just for reference. Please take the appearance of the actual product as the standard.

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATION 12

PRODUCT OVERVIEW 13

PRODUCT INSTALLATION 14

OPERATION INSTRUCTIONS 18

CLEANING AND MAINTENANCE 24

TROUBLE SHOOTING 25

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT 26

DISPOSAL AND RECYCLING 27

DATA PROTECTION NOTICE 28

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

Precautions To Avoid Possible Exposure To Excessive Microwave Energy

a. Do not attempt to operate this oven with the door open since this can result in harmful exposure to microwave energy. It is important not to break or tamper with the safety interlocks.
b. Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
c. WARNING: If the door or door seals are damaged, the oven must not be operated until it has been repaired by a competent person.

Addendum

If the apparatus is not maintained in a good state of cleanliness, its surface could be degraded and affect the lifespan of the apparatus and lead to a dangerous situation.

WARNING

To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following:

• Read and follow the specific: "PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE ENERGY".
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Keep the appliance and its cord out of reach of children less than 8 years.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- WARNING: Ensure that the appliance is switched off before replacing the lamp to avoid the possibility of electric shock.

- WARNING: It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

- WARNING: Liquids and other foods must not be heated in sealed containers since they are liable to explode.

- When heating food in plastic or paper containers, keep an eye on the oven due to the possibility of ignition.

- Only use utensils that are suitable for use in microwave ovens.

- If smoke is emitted, switch off or unplug the appliance and keep the door closed in order to stifle any flames.

- Microwave heating of beverages can result in delayed eruptive boiling, therefore care must be taken when handling the container.

- The contents of feeding bottles and baby food jars shall be stirred or shaken and the temperature checked before consumption, in order to avoid burns.

- The oven should be cleaned regularly and any food deposits removed.

- Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could adversely affect the life of the appliance and possibly result in a hazardous situation.

- Only use the temperature probe recommended for this oven. (for ovens provided with a facility to use a temperature-sensing probe.)

- The microwave oven must be operated with the decorative door open. (for ovens with a decorative door.)

- This appliance is intended to be used in household and similar applications such as:

- staff kitchen areas in shops, offices and other working environments;

- by clients in hotels, motels and other residential type environments;

- farm houses;

- bed and breakfast type environments.

• The microwave oven is intended for heating food and beverages. Drying of food or clothing and heating of warming pads, slippers, sponges, damp cloth and similar may lead to risk of injury, ignition or fire.
• The microwave oven is intended to be used built-in.
• Care should be taken not to displace the turntable when removing containers from the appliance.

(For fixed appliances and built-in appliances being used equal or higher than 900mm above the floor and having detachable turntables. But this is not applicable for appliances with horizontal bottom hinged door.)

• Surface of a storage drawer can get hot.
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.
• During use the appliance becomes hot. Care should be taken to avoid touching heating elements inside the oven.

• WARNING: Accessible parts may become hot during use. Young children should be kept away.

• WARNING: When the appliance is operated in the combination mode, children should only use the oven under adult supervision due to the temperatures generated.

• Eggs in their shell and whole hard-boiled eggs should not be heated in microwave ovens since they may explode, even after microwave heating has ended.
• Metallic containers for food and beverages are not allowed during microwave cooking.
• The appliance shall not be cleaned with a steam cleaner.
• The appliance must not be installed behind a decorative door in order to avoid overheating. (This is not applicable for appliances with decorative door.)
• Steam cleaner is not to be used.
• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

READ CAREFULLY AND KEEP FOR FUTURE REFERENCE

To Reduce The Risk Of Injury To Persons Grounding Installation

DANGER

Electric Shock Hazard Touching some of the internal components can cause serious personal injury or death. Do not disassemble this appliance.

WARNING

Electric Shock Hazard

Improper use of the grounding can result in electric shock. Do not plug into an outlet until appliance is properly installed and grounded.

This appliance must be grounded. In the event of an electrical short circuit, grounding reduces the risk of electric shock by providing an escape wire for the electric current.

This appliance is equipped with a cord having a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and grounded.

Consult a qualified electrician or serviceman if the grounding instructions are not completely understood or if doubt exists as to whether the appliance is properly grounded.

If it is necessary to use an extension cord, use only a 3-wire extension cord.

- A short power-supply cord is provided to reduce the risks resulting from becoming entangled in or tripping over a longer cord.

- If a long cord set or extension cord is used:

- The marked electrical rating of the cord set or extension cord should be at least as great as the electrical rating of the appliance.

- The extension cord must be a grounding-type 3-wire cord.

- The long cord should be arranged so that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped over unintentionally.

Utensils

CAUTION

Personal Injury Hazard

It is hazardous for anyone other than a competent person to carry out any service or repair operation that involves the removal of a cover which gives protection against exposure to microwave energy.

See the instructions on "Materials you can use in microwave oven or to be avoided in microwave oven."

There may be certain non-metallic utensils that are not safe to use for microwaving. If in doubt, you can test the utensil in question following the procedure below.

Utensil Test:

• Fill a microwave-safe container with 1 cup of cold water (250ml) along with the utensil in question.
• Cook on maximum power for 1 minute.
• Carefully feel the utensil. If the empty utensil is warm, do not use it for microwave cooking.
• Do not exceed 1 minute cooking time.

Materials you can use in microwave oven

Utensils Remarks
Browning dish	Follow manufacturer's instructions. The bottom of browning dish must be at least 3/16 inch (5mm) above the turntable. Incorrect usage may cause the turntable to break.
Dinnerware	Microwave-safe only. Follow manufacturer's instructions. Do not use cracked or chipped dishes.
Glass jars	Always remove lid. Use only to heat food until just warm. Most glass jars are not heat resistant and may break.
Glassware	Heat-resistant oven glassware only. Make sure there is no metallic trim. Do not use cracked or chipped dishes.
Oven cooking bags	Follow manufacturer's instructions. Do not close with metal tie. Make slits to allow steam to escape.
Paper plates and cups	Use for short-term cooking/warming only. Do not leave oven unattended while cooking.
Paper towels	Use to cover food for reheating and absorbing fat. Use with supervision for a short-term cooking only.
Parchment paper	Use as a cover to prevent splattering or a wrap for steaming.
Plastic	Microwave-safe only. Follow the manufacturer's instructions. Should be labeled "Microwave Safe". Some plastic containers soften, as the food inside gets hot. "Boiling bags" and tightly closed plastic bags should be slit, pierced or vented as directed by package.
Plastic wrap	Microwave-safe only. Use to cover food during cooking to retain moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only (meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.

Materials to be avoided in microwave oven

Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with metal handle	May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-trimmed utensils	Metal shields the food from microwave energy. Metal trim may cause arcing.
Metal twist ties May cause arcing and could cause a fire in the oven.
Paper bags May cause a fire in the oven.
Plastic foam	Plastic foam may melt or contaminate the liquid inside when exposed to high temperature.
Wood	Wood will dry out when used in the microwave oven and may split or crack.

SPECIFICATION

MODEL MW 20 DI X

RATED VOLTAGE 230V\~50Hz

RATED INPUT POWER(MICROWAVE): 1250W

RATED OUTPUT POWER(MICROWAVE): 800W

RATED INPUT POWER(GRILL): 1000W

PRODUCT OVERVIEW

Setting Up Your Oven

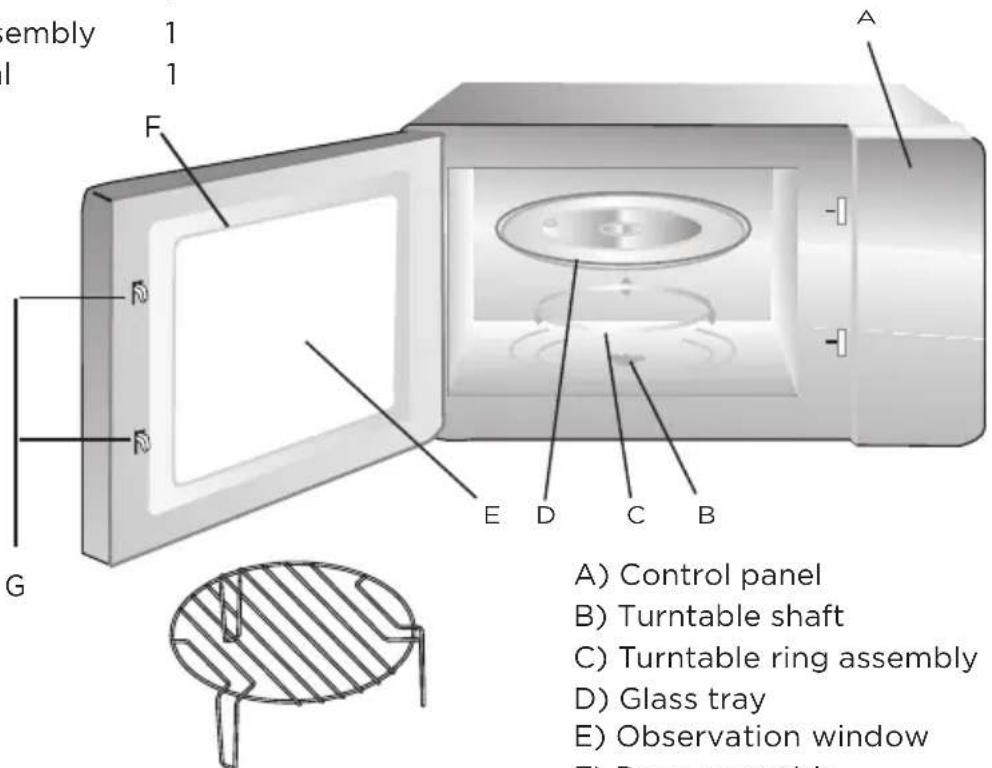

Names of Oven Parts and Accessories

Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories:

Glass tray	1
Turntable ring assembly	1
Instruction Manual	1

Grill Rack( Can not be used in microwave function and must be placed on the glass tray )

A) Control panel
B) Turntable shaft
C) Turntable ring assembly
D) Glass tray
E) Observation window
F) Door assembly
G) Safety interlock system

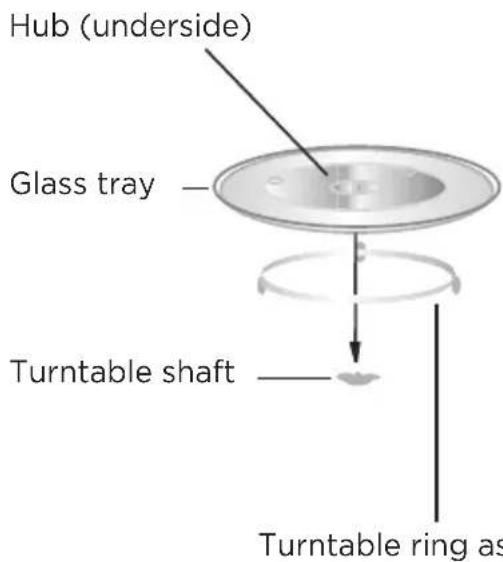

Turntable Installation

a. Never place the glass tray upside down. The glass tray should never be restricted.
b. Both glass tray and turntable ring assembly must always be used during cooking.
c. All food and containers of food are always placed on the glass tray for cooking.
d. If glass tray or turntable ring assembly cracks or breaks, contact your nearest authorized service center.

PRODUCT INSTALLATION

Installation and Connection

1. This appliance is only intended for domestic use.
2. This oven is intended for built-in use only. It is not intended for counter-top use or for use inside a cupboard.
3. Please observe the special installation instructions.
4. The appliance can be installed in a 60cm wide wall-mounted cupboard.
5. The appliance is fitted with a plug and must only be connected to a properly installed earthed socket.
6. The mains voltage must correspond to the voltage specified on the rating plate.
7. The socket must be installed and connecting cable must only be replaced by a qualified electrician. If the plug is no longer to accessible following installation, an all-pole disconnecting device must be present on the installation side with a contact gap of at least 3mm.
8. Adapters, multi-way strips and extension leads must not be used. Overloading can result in a risk of fire.

The accessible surface may be hot during operation.

Installation Instructions

Please Read the Manual Carefully Before Installation

Please note

Electrical connection

The oven is fitted with a plug and must be only connected to a properly installed earthed socket. In accordance with the appropriate regulations, the socket must only be installed and the connecting cable must only be replaced by a qualified electrician.

If the plug is no longer accessible following installation and all-pole isolating switch must be present on the installation side with a contact gap of at least 3mm.

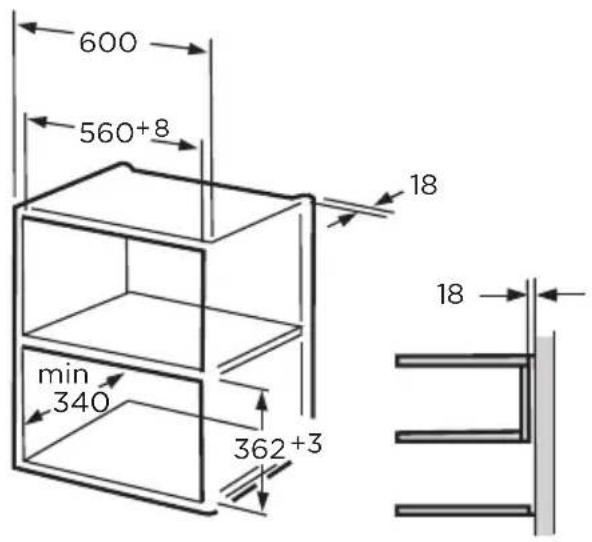

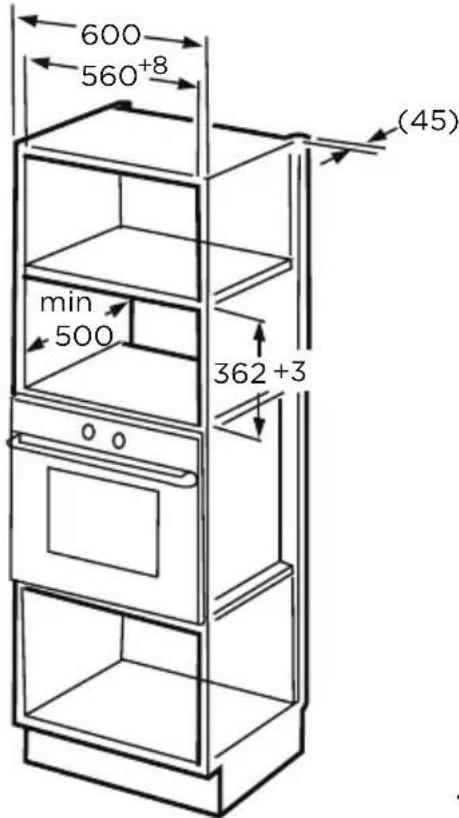

A. Built-in Furniture

The built-in cabinet shall not have a rear wall behind the appliance.

Minimum installation height is 85cm.

Do not cover ventilation slots and air intake points.

1.

1.

NOTE

In case of any differences between the appliance and the pictures in this manual, the product shall prevail.

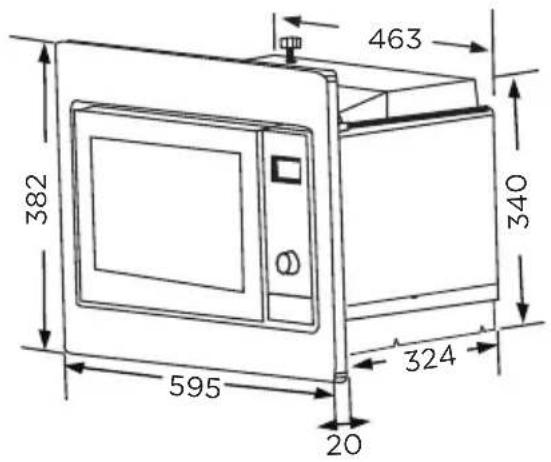

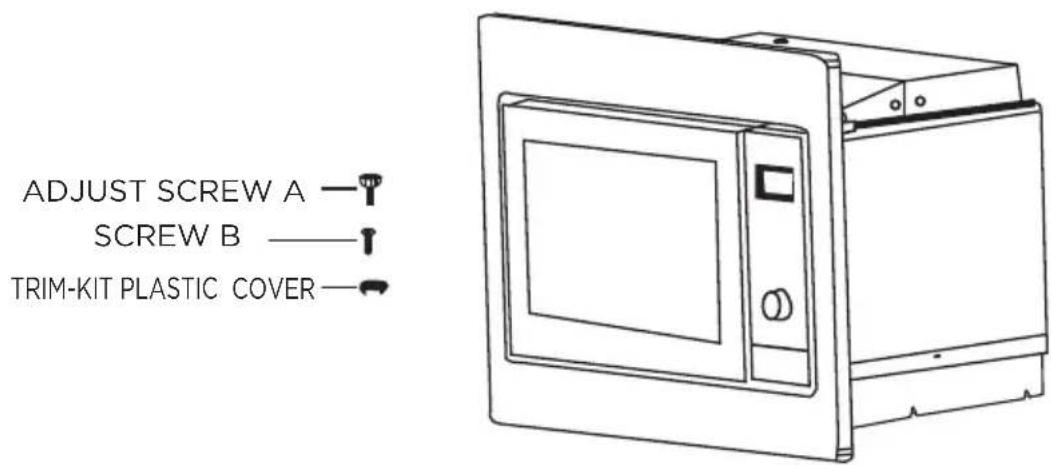

B. Install the Oven

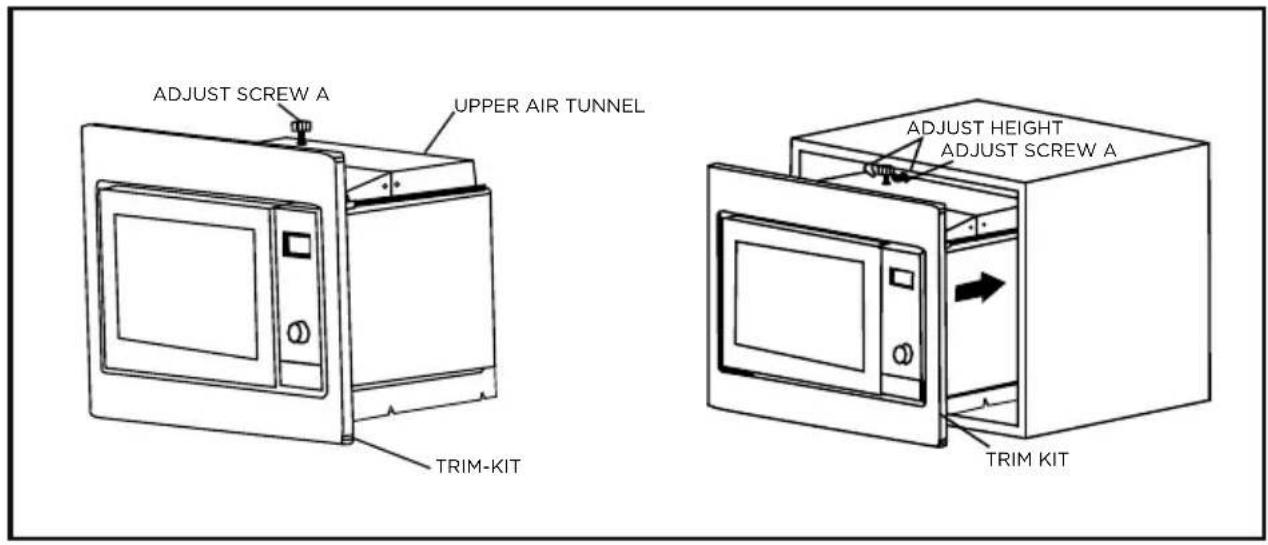

- Fix ADJSUTSCREW A on the UPPER AIR TUNNEL of the oven, and then install the oven into the cabinet.

• Adjust the height of ADJUST SCREW A to keep 1mm gap between the ADJUST SCREW A and the top plane of cabinet.
• Do not trap or kink the power cord.
• Make sure that the oven is installed in the centre of the cabinet.

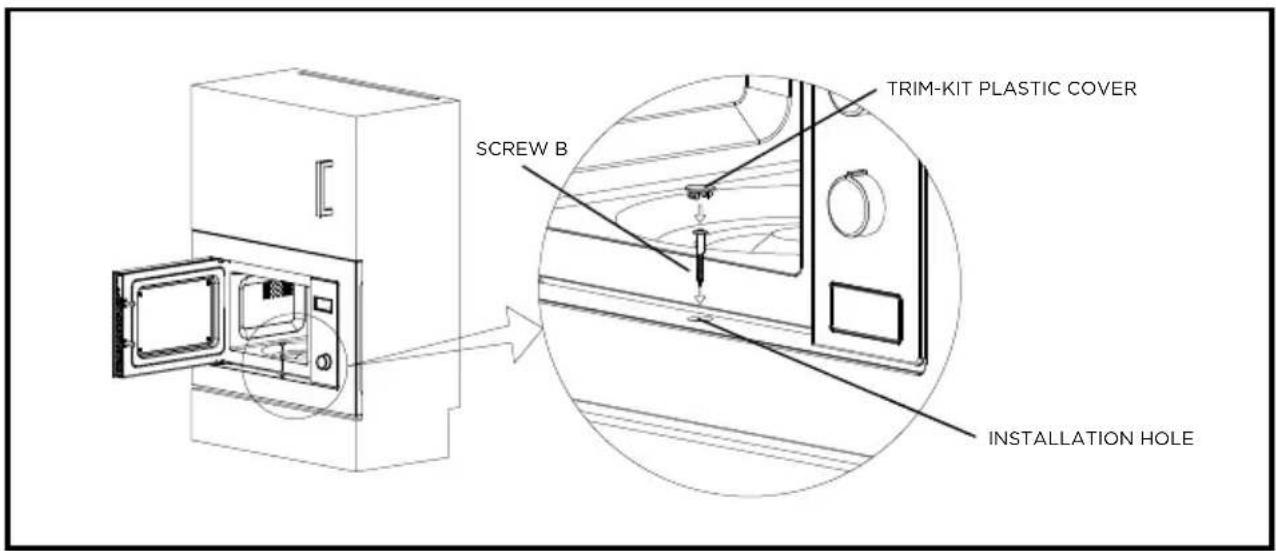

- Open the door; fix the oven to the cabinet with SCREW B at the INSTALLATION HOLE of TRIM KIT. Then fix the TRIM-KIT PLASTIC COVER to the INSTALLATION HOLE.

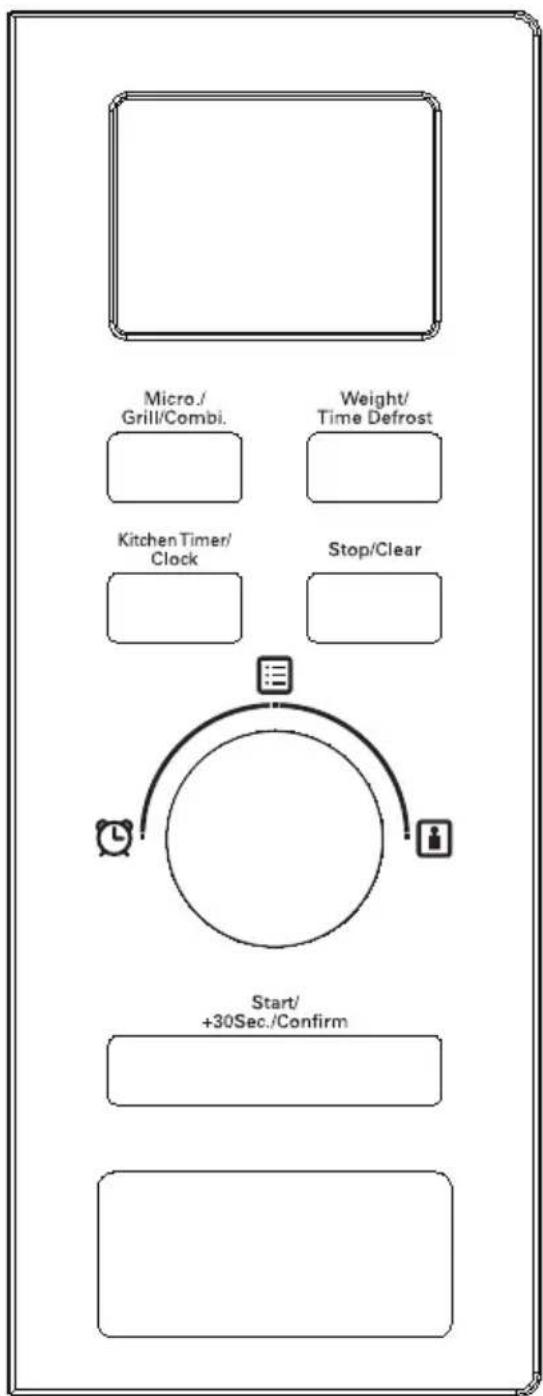

OPERATION INSTRUCTIONS

Clock Setting

When the microwave oven is electrified, the LED will display "0:00", buzzer will ring once.

1. Press "Kitchen Timer/Clock" twice to select clock function, the hour figures will flash.
2. Turn " 🔍 to adjust the hour figures, the input time should be within 0--23.
3. Press "Kitchen Timer/Clock", the minute figures will flash.
4. Turn "Q" to adjust the minute figures, the input time should be within 0--59.
5. Press "Kitchen Timer/Clock" to finish clock setting. ":" will flash, and the time will light.

NOTE

• If the clock is not set, it would not function when powered.
• During the process of clock setting, if you press "Stop/Clear", the oven will go back to the previous status automatically.

Microwave Cooking

1. Press "Micro./Grill/Combi." the LED will display "P100".
2. Press "Micro./Grill/Combi." for times or turn " [icon] " to choose the power you want, and "P100", "P80" "P50", "P30" or "P10" will display for each added press.
3. Then press "Start/+30Sec./Confirm" to confirm, and turn "to set cooking time from 0:05 to 95:00.
4. Press "Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 80% microwave power to cook for 20 minutes, you can operate the oven as the following steps.

1. Press "Micro./Grill/Combi." once, the screen display "P100".
2. Press "Micro./Grill/Combi." once again or turn " 🔍" to choose 80% microwave power.

3. Press "Start/+30Sec./Confirm" to confirm, and the screen displays "P80".

4. Turn " " to adjust the cooking time until the oven displays "20:00".

5. Press "Start/+30Sec./ConfirmPress" to start cooking.

NOTE

The step quantities for the adjustment time of the coding switch are as follow:

" Micro./Grill/Combi." Order	Pad instructions Display	Microwave Power Grill Power
1 P100 100%
2 P80 80%
3 P50 50%
4 P30 30%
5 P10 10%
6 G 0% 100%
7 C-1 55% 45%
8 C-2 36% 64%

Grill or Combi. Cooking

1. Press "Micro./Grill/Combi." the LED will display "P100", and press "Micro./Grill/Combi." for times or turn the "to choose the power you want, and "G","C-1" or "C-2" will display for each added press.
2. Then press "Start/+30Sec./Confirm" to confirm, and turn " [icon] " to set cooking time from 0:05 to 95:00.
3. Press "Start/+30Sec./Confirm" again to start cooking.

Example: If you want to use 55% microwave power and 45% grill power(C-1) to cook for 10 minutes, you can operate the oven as the following steps.

1. Press "Micro./Grill/Combi." once, the screen display "P100".
2. Press "Micro./Grill/Combi." for times or turn " " to choose combi. 1 mode.
3. Press "Start/+30Sec./Confirm" to confirm, and the screen displays "C-1".
4. Turn " " to adjust the cooking time until the oven displays "10:00".
5. Press "Start/+30Sec./Confirm" to start cooking.

NOTE:

If half the grill time passes, the oven sounds twice, and this is normal. In order to have a better effect of grilling food, you should turn the food over, close the door, and then press " START/ +30SEC./ Confirm " to continue cooking. If no operation, the oven will continue working.

Quick Start

1. In waiting state, Press "Start/+30Sec./Confirm" to start cooking with 100% power, each added press will increase 30 seconds cooking time up to 95 minutes.
2. In microwave, cooking or time defrost state, each press of "Start/+30Sec./Confirm" can increase 30 seconds of cooking time.
3. In waiting state, turn " 🔥" left to set cooking time with 100% microwave power, then press " Start/+30Sec./Confirm " to start cooking.

Defrost By Weight

1. Press "Weight/Time Defrost" once, and the oven will display "dEF1".
2. Turn "to select the weight of food from 100 to 2000g.
3. Press "Start/+30Sec./Confirm" to start defrosting.

Defrost By Time

1. Press "Weight/Time Defrost" twice, and the oven will display "dEF2".
2. Turn "to select the defrost time. The MAX time is 95 minutes.
3. Press "Start/+30Sec./Confirm" to start defrosting. The defrost power is P30, and it will not be changed.

Kitchen Timer

1. Press "Kitchen Timer/Clock" once, LED will display 00:00.
2. Turn "to enter the correct timer.(The maximum cooking time is 95 minutes.)
3. Press "Start/+30Sec./Confirm" to confirm setting.
4. When the kitchen time is reached, timer indicator will go out. The buzzer will ring 5 times. If the clock be set (24-hour system), LED will display the current time.

NOTE:

The kitchen Time is different from 24-hour system, Kitchen Timer is a timer.

Auto Menu

1. Turn " right to choose the menu, and "A-1" to "A-8" will display, which means pizza, meat, vegetable, pasta, potato, fish, beverage and popcorn.
2. Press "Start/+30Sec./Confirm" to confirm.
3. Turn "to choose the default weight as the menu chart.
4. Press "Start/+30Sec./Confirm" to start cooking.

Example: If you want to use "Auto Menu" to cook fish for 350g.

1. Turn " 🔍" clockwise till "A-6" display.
2. Press "Start/+30Sec./Confirm" to confirm.
3. Turn "to select the weight of fish till "350" display.
4. Press "Start/+30Sec./Confirm" to start cooking.

The menu chart:

Menu Weight Display
A-1 Pizza	200g 200
	400g 400
A-2 Meat	250g 250
	350g 350
	450g 450
A-3 Vegetable	200g 200
	300g 300
	400g 400
A-4 Pasta	50g (with 450mlcold water) 50
	100g (with 800 ml cold water) 100
A-5 Potato	200g 200
	400g 400
	600g 600
A-6 Fish	250g 250
	350g 350
	450g 450
A-7 Beverage	1 cup (120 ml) 1
	2 cups (240 ml) 2
	3 cups (360ml) 3
A-8 Popcorn	50g 50
	100g 100

Multi-section Cooking

At most 2 sections can be set for cooking. In multi-section cooking, if one section is defrosting, then defrosting shall be placed in the first section.

Example: If you want to defrost food for 5 minutes and then cook with 80% microwave power for 7 minutes, operate it as the following:

1. Press "Weight/Time Defrost" twice, and the oven will display "dEF2".
2. Turn " to select the defrost time till "5:00" display.
3. Press "Micro./Grill/Combi." once, the screen display "P100".
4. Press "Micro./Grill/Combi." once again or turn " 🔍" to choose 80% microwave power.
5. Press " Start/+30Sec./Confirm " to confirm, and the screen displays "P80".

6. Turn "to adjust the cooking time till the oven displays "7:00".

7. Press "Start/+30Sec./Confirm" to start cooking, and buzzer will sound once for the first section, defrosting time counts down; buzzer will sound once again entering the second cooking. when cooking finish, buzzer sounds five times.

Inquiring Function

1. In states of microwave, grill and combination cooking, press "Micro./Grill/Combi.", the current power will be displayed for 3 seconds. After 3 seconds, the oven will turn back to the former state;
2. In cooking state, press "Kitchen Timer/Clock" to inquire the time and the time will display for 3 seconds

Lock-out Function for Children

Lock: In waiting state, press "Stop/Clear" for 3 seconds, there will be a long beep denoting entering the children-lock state and the current time will display if the time has been set, otherwise, the LED will display".And lock indicator lights

Lock quitting: In locked state, press" Stop/Clear " for 3 seconds, there will be a long "beep" denoting that the lock is released.

Specifications

1. The buzzer will sound once when turning the knob at the beginning;
2. "Start/+30Sec./Confirm" must be pressed to continue cooking if the door is opened during cooking;
3. Once the cooking programme has been set, "Start/+30Sec./Confirm" is not pressed in 5minute. The current time will be displayed. The setting will be cancelled.
4. The buzzer sounds once by efficient press, inefficient press will be no response.
5. The buzzer will sound five times to remind you when cooking is finished.

CLEANING AND MAINTENANCE

Be sure to unplug the appliance from the power supply.

• Clean the cavity of the oven after using with a slightly damp cloth.
• Clean the accessories in the usual way in soapy water.
• The door frame and seal and neighbouring parts must be cleaned carefully with a damp cloth when they are dirty.

- Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

- Cleaning Tip---For easier cleaning of the cavity walls that the food cooked can touch: Place half a lemon in a bowl, add 300ml (1/2 pint) water and heat on 100% microwave power for 10 minutes. Wipe the oven clean using a soft, dry cloth.

TROUBLE SHOOTING

Normal
Microwave oven interfering TV reception	Radio and TV reception may be interfered when microwave oven operating. It is similar to the interference of small electrical appliances, like mixer, vacuum cleaner, and electric fan. It is normal.
Dim oven light	In low power microwave cooking, oven light may become dim. It is normal.
Steam accumulating on door, hot air out of vents	In cooking, steam may come out of food. Most will get out from vents. But some may accumulate on cool place like oven door. It is normal.
Oven started accidentally with no food in.	It is forbidden to run the unit without any food inside. It is very dangerous.

Trouble Possible Cause Remedy
Oven can not be started.	Power cord not plugged in tightly.	Unplug. Then plug again after 10 seconds.
	Fuse blowing or circuit breaker works.	Replace fuse or reset circuit breaker (repaired by professional personnel of our company)
	Trouble with outlet.	Test outlet with other electrical appliances.
Oven does not heat.	Door is not closed well.	Close door well.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed out by two diagonal lines, with no text or labels present.

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

make yourself at home
