Product Type	Atomic Clock
Brand	AcuRite
Model	75065A2
Display Type	LCD
Dimensions	7.5 x 5.5 x 1.5 inches
Weight	0.5 lbs
Power Source	2 AA batteries (not included)
Battery Life	Approximately 12 months
Time Display	12 or 24-hour format
Atomic Time Sync	Yes, WWVB radio-controlled
Date Display	Month, day, and year
Alarm	Single daily alarm with snooze
Temperature Display	Indoor temperature (°F/°C)
Humidity Display	Indoor humidity (RH%)
Backlight	Blue LED backlight
Mounting Options	Tabletop stand or wall mount
Color	Black
Maintenance	Clean with a soft dry cloth; avoid liquids
Safety	Indoor use only; keep away from moisture

Frequently Asked Questions - 75065A2 AcuRite

How do I set the time on my AcuRite 75065A2 clock?

Insert batteries and the clock will automatically sync with the atomic time signal. If manual setting is needed, press and hold the SET button for 3 seconds, then use the UP or DOWN buttons to adjust.

Why is my clock not receiving the atomic signal?

Place the clock near a window and away from electronic interference. The signal is strongest at night. It may take up to 24 hours to sync. Ensure batteries are fresh.

How do I change between Fahrenheit and Celsius?

Press the UP button while in normal mode to toggle between °F and °C for the temperature display.

How do I set the alarm?

Press the ALARM button to enter alarm setting mode. Use UP or DOWN to set the hour and minute. Press ALARM again to confirm. To activate, press the ALARM button until the alarm icon appears.

How do I turn off the alarm?

Press the ALARM button once to disable the alarm (the icon disappears). To silence a sounding alarm, press the SNOOZE button for a 5-minute snooze or any other button to turn it off completely.

What batteries does the 75065A2 use?

It requires 2 AA alkaline batteries (not included). Do not use rechargeable batteries as they may not provide sufficient voltage.

How do I reset the clock?

Remove the batteries, wait 30 seconds, and reinsert them. This will reset the clock to factory defaults and force a new atomic time sync.

Can I mount the clock on a wall?

Yes, the clock has a keyhole slot on the back for wall mounting. Alternatively, it can be placed on a table using the built-in stand.

Why is the temperature display not working?

Ensure batteries are fresh and contacts are clean. The temperature sensor is built-in; if still not working, try a reset. If the problem persists, contact AcuRite support.

How do I clean the clock?

Use a soft, dry cloth to wipe the exterior. Do not use water, cleaning solvents, or abrasive cleaners. Avoid getting moisture into the battery compartment.

USER MANUAL 75065A2 AcuRite

Unpacking Instructions ...... 2

Package Contents ...... 2

Product Registration ...... 2

Features & Benefits......3

Clock Setup 4

Atomic Clock 5

Set the Time & Date .... 5

Placement Guidelines ...... 6

Using the Alarm Clock......7

Troubleshooting 8

Care & Maintenance......9

Specifications......9

FCC Information 9

Customer Support......10

Warranty....10

Questions? Contact Customer Support at

[phone] or visit www.AcuRite.com.

SAVE THIS MANUAL FOR FUTURE REFERENCE.

ACURITE®

Congratulations on your new AcuRite product. To ensure the best possible product performance, please read this manual in its entirety and retain it for future reference.

Unpacking Instructions

Remove the protective film that is applied to the LCD screen prior to using this product. Locate the tab and peel off to remove.

Package Contents

1. Alarm clock
2. Instruction Manual

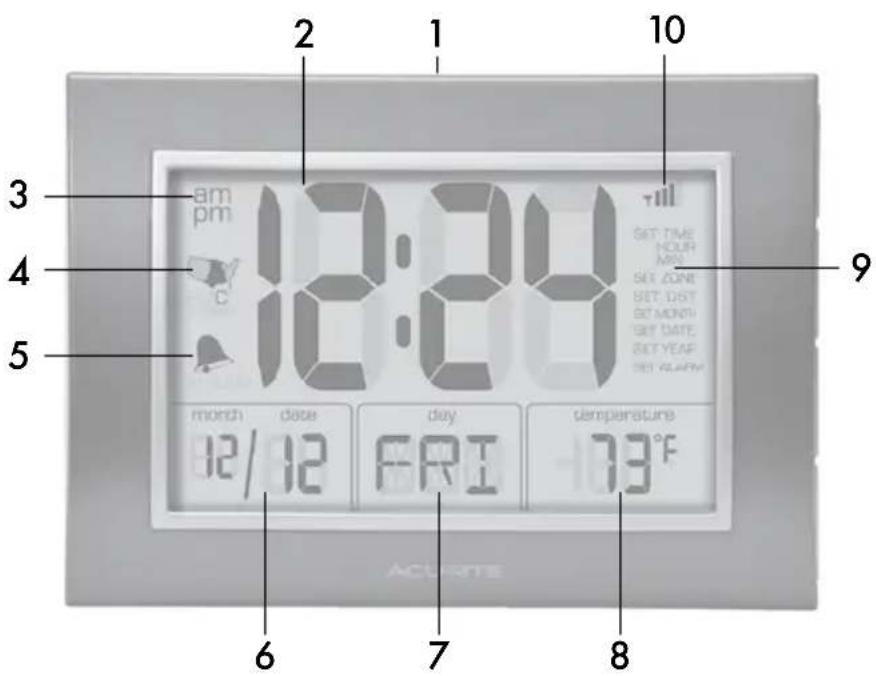

Features & Benefits

FRONT

1. SNOOZE/LIGHT Button
2. Atomic Clock

Sets itself to the correct time and automatically updates for Daylight Saving Time.

1. AM/PM Indicator
2. Time Zone Indicator
3. ALARM Indicator Icon
4. Date
5. Day of the Week
6. Indoor Temperature
7. Menu Selection
8. Atomic Signal Strength

Gray rectangular object with a small protrusion and the number 17 labeled on its top (no other text or symbols)

SIDE/BOTTOM

1. SET CLOCK Button
2. "▲" Button
3. "▼" Button
4. ALARM ON/OFF Button
5. C°/F° Button
6. Reset Button
7. Battery Compartment Cover (not shown)

Clock Setup

Install or Replace Batteries

1. Remove the battery compartment cover.
2. Insert 3 x AA alkaline batteries into the battery compartment, as shown. Follow the polarity (+/-) diagram in the battery compartment.
3. Replace the battery cover.

PLEASE DISPOSE OF OLD OR DEFECTIVE BATTERIES IN AN ENVIRONMENTALLY SAFE WAY AND IN ACCORDANCE WITH YOUR LOCAL LAWS AND REGULATIONS.

BATTERY SAFETY: Clean the battery contacts and also those of the device prior to battery installation. Remove batteries from equipment which is not to be used for an extended period of time. Follow the polarity (+/-) diagram in the battery compartment. Promptly remove dead batteries from the device. Dispose of used batteries properly. Only batteries of the same or equivalent type as recommended are to be used. DO NOT incinerate used batteries. DO NOT dispose of batteries in fire, as batteries may explode or leak. DO NOT mix old and new batteries or types of batteries (alkaline/standard). DO NOT use rechargeable batteries. DO NOT recharge non-rechargeable batteries. DO NOT short-circuit the supply terminals.

Atomic Clock (RCC)

AcuRite atomic clocks use a radio-controlled signal (RCC) to synchronize to the correct time broadcast by the National Institute of Standards and Technology (NIST) Radio Station WWVB, located near Fort Collins, Colorado. WWVB broadcasts the current time and date with split-second accuracy.

The atomic clock and calendar will maintain the correct time and date, and automatically update for Daylight Saving Time to provide the most accurate timekeeping standard possible.

Please note: Signal reception is normally better at night and when the weather is clear. The atomic signal generally takes a few hours to synchronize, so it is important to manually set the time and date after powering on the clock.

Set the Time & Date

Press and hold the "SET CLOCK" button, located on the side of the clock, to enter SET MODE. Once in SET MODE the preference you are currently setting will blink on the clock.

To adjust the currently selected (flashing) item, press and release the "▲" or "▼" buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "SET CLOCK" button to adjust the next preference. The preference set order is as follows:

TIME ZONE (PST MST CST EST AST HAST AKST)

AUTO DST ON/OFF*

CALENDAR YEAR

CALENDAR MONTH

CALENDAR DATE

CLOCK HOUR

CLOCK MINUTE

You will automatically exit SET MODE if no buttons are pressed for 45 seconds. Enter SET MODE at any time by pressing AND HOLDING the "SET CLOCK" button.

* If you live in an area that observes Daylight Saving Time, DST should be set to ON, even if it is not currently Daylight Saving Time.

Alarm Clock Placement

Place alarm clock in a dry area free of dirt and dust. To help ensure an accurate indoor temperature measurement, be sure to place the clock away from heat sources or vents.

Important Placement Guidelines

• To ensure accurate temperature measurement, place out of direct sunlight and away from any heat sources or vents.
• To maximize atomic signal reception, place unit away from large metallic items, thick walls, metal surfaces, or other objects that may limit radio communication.
• To prevent wireless interference, place unit at least 3 ft (.9 m) away from electronic devices (TV, computer, microwave, radio, etc.).

Using the Clock

Set the Alarm Time

Press AND HOLD the "ALARM ON/OFF" button for 5 seconds to enter ALARM SET MODE.

To adjust the currently selected (flashing) item, press and release the “▲” or “▼” buttons (press and HOLD to fast adjust).

To save your adjustments, press and release the "ALARM ON/OFF" button to adjust the next preference. The preference set order is as follows:

ALARM CLOCK HOUR ALARM CLOCK MINUTE

You will automatically exit ALARM SET MODE if no buttons are pressed for 60 seconds. Enter ALARM SET MODE at any time by pressing and holding the "ALARM ON/OFF" button for 5 seconds.

Alarm Clock ON/OFF function

To Turn Alarm on: Press AND HOLD the "ALARM ON/OFF" button until the "icon and the words "ALARM ON" appear on the clock

To Turn Alarm off: Press AND HOLD "ALARM ON/OFF" Button until the "icon disappears and the words "ALARM OFF" appear on the clock.

SNOOZE function

When the alarm is sounding, press the "SNOOZE/LIGHT" button to activate the SNOOZE function for 8 minutes. After the SNOOZE function has been activated 10 times the alarm is automatically deactivated.

Momentary Backlight

Press the "SNOOZE/LIGHT" button to activate the momentary backlight for 5 seconds.

Troubleshooting

Clock is too dark, hard to read or doesn't work	·Verify that the batteries are installed correctly. Batteries may need to be replaced.·The optimum viewing angle for this product is from slightly above it.·Reset the unit by pressing the reset button, located in the battery compartment. This resets the alarm to the original factory settings. Time and date will need to be entered after a reset.
Inaccurate temperature	·Verify the clock is placed out of direct sunlight and away from any heat sources or vents (see page 6).
Atomic signal or time syncing problems	·For additional troubleshooting, please visit: http://www.nist.gov/pml/div688/grp40/radioclocks.cfm

If your AcuRite product does not operate properly after trying the troubleshooting steps, visit www.AcuRite.com or call [phone] for assistance.

Care & Maintenance

Clock Care

Clean with a soft, damp cloth. Do not use caustic cleaners or abrasives. Keep away from dust, dirt and moisture. Clean ventilation ports regularly with a gentle puff of air.

Specifications

TEMPERATURE RANGE	32°F to 99°F, 0°C to 37°C
POWER	3 x AA alkaline batteries

FCC Information

This device complies with part 15 of FCC rules. Operation is subject to the following two conditions:

1- This device may NOT cause harmful interference, and

2- This device must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, There is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.

Such modifications could void the user authority to operate the equipment.

This device complies with Industry Canada licence-exempt RSS standard(s).

Operation is subject to the following two conditions:

(1) This device may not cause interference, and
(2) This device must accept any interference received, including interference that may cause undesired operation of the device.

Customer Support

AcuRite customer support is committed to providing you with best-in-class service. For assistance, please have the model number of this product available and contact us in any of the following ways:

) 221-1252

[e-mail]

24/7 support at www.AcuRite.com

▶ Installation Videos ▶ Register your Product
▶ Instruction Manuals ▶ Support User Forum
▶ Replacement Parts ▶ Submit Feedback & Ideas

IMPORTANT

PRODUCT MUST BE REGISTERED TO RECEIVE WARRANTY SERVICE

PRODUCT REGISTRATION

Register online to receive 1 year warrantyprotection

www.AcuRite.com

SUPPORT

Support Forum

Archived Products

▶Register a Product

Limited One Year Warranty

At AcuRite, we proudly uphold our commitment to quality technology. Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase.

We recommend that you visit us at www.AcuRite.com for the fastest way to register your product. However, product registration does not eliminate the need to retain your original proof of purchase in order to obtain warranty benefits.

Chaney Instrument Co. warrants that all products it manufactures to be of good material and workmanship, and to be free of defects when properly installed and operated for a period of one year from the date of purchase. Remedy for breach of this warranty is limited to repair or replacement of the defective item(s). Any product which, under normal use and service, is proven to breach the warranty contained herein within ONE YEAR from date of sale will, upon examination by Chaney, and at its sole option, be repaired or replaced by Chaney. Transportation costs and charges for returned goods shall be paid for by the purchaser. Chaney hereby disclaims all responsibility for such transportation costs and charges. This

warranty will not be breached, and Chaney will give no credit for products it manufactures which have received normal wear and tear, been damaged (including by acts of nature), tampered, abused, improperly installed, damaged in shipping, or repaired or altered by others than authorized representatives of Chaney. The above-described warranty is expressly in lieu of all other warranties, express or implied, and all other warranties are hereby expressly disclaimed, including without limitation the implied warranty of merchantability and the implied warranty of fitness for a particular purpose. Chaney expressly disclaims all liability for special, consequential or incidental damages, whether arising in tort or by contract from any breach of this warranty. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you. Chaney further disclaims all liability from personal injury relating to its products to the extent permitted by law. By acceptance of any of Chaney's products, the purchaser assumes all liability for the consequences arising from their use or misuse. No person, firm or corporation is authorized to assume for Chaney any other liability in connection with the sale of its products. Furthermore, no person, firm or corporation is authorized to modify or waive the terms of this paragraph, and the preceding paragraph, unless done in writing and signed by a duly authorized agent of Chaney. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

For in-warranty claims: Chaney Instrument Co. 965 Wells St., Lake Geneva, WI 53147
