Product Type	Canister Vacuum Cleaner
Model	FN-VM1001BA
Brand	Finlux
Dimensions (L x W x H)	400 x 250 x 280 mm
Weight	4.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 W
Suction Power	250 Air Watts
Dust Capacity	1.5 L
Filtration System	HEPA 13 Filter
Cord Length	6 m
Operating Radius	8 m
Noise Level	75 dB
Accessories Included	Crevice tool, dusting brush, upholstery tool
Maintenance	Empty dust container after each use, clean filter regularly
Safety Features	Overheat protection, automatic shut-off
Spare Parts Availability	Filters, dust bags (optional), and accessories available online

Frequently Asked Questions - FN-VM1001BA Finlux

How do I empty the dust container on the Finlux FN-VM1001BA?

Press the release button on the dust container and remove it. Hold it over a trash bin and open the bottom lid to empty. For thorough cleaning, you can rinse the container with water and let it dry completely before reinserting.

How often should I clean or replace the HEPA filter?

Clean the HEPA filter every 3 months by tapping off dust or rinsing with water (if washable). Replace it every 6-12 months or when suction decreases significantly. Always check the user manual for specific instructions.

What should I do if the vacuum loses suction?

Check for blockages in the hose, wand, and floor head. Empty the dust container if full. Clean the filter as dust buildup reduces airflow. Also inspect the hose for cracks or leaks.

Can I use the Finlux FN-VM1001BA on hardwood floors?

Yes, the vacuum comes with a combination floor head that can be adjusted for hard floors. Use the hard floor setting to prevent scratches and ensure optimal cleaning.

How do I replace the dust bag?

If your model uses a dust bag, open the bag compartment, remove the full bag, and insert a new one. The FN-VM1001BA is bagless with a cyclonic system, so no bags are needed unless you purchase an optional bag for finer dust.

What does the automatic shut-off feature do?

The vacuum automatically shuts off if it overheats or the motor is blocked. This protects the motor from damage. After cooling down for 30 minutes, restart by pressing the power button.

Can I wash the foam pre-motor filter?

Yes, if your vacuum has a washable foam filter. Rinse it under running water until the water runs clear, then squeeze out excess water and let it air dry for 24 hours before reinstalling. Never operate the vacuum with a wet filter.

Where can I find spare parts for my Finlux vacuum?

Spare parts such as filters, hoses, and brushes are available online through Finlux official website or authorized retailers. Use the model number FN-VM1001BA to ensure compatibility.

How do I store the vacuum cleaner?

Wind the power cord around the cord hooks. Store the vacuum in a dry place, away from extreme heat or moisture. Keep the accessories in the designated storage slots on the unit.

The vacuum emits an unusual smell. What could be the cause?

A burning smell may indicate a blocked filter or full dust container. Clean or replace the filter and empty the container. If the smell persists, check for debris wrapped around the brush roll or motor. Allow the vacuum to cool down before inspection.

USER MANUAL FN-VM1001BA Finlux

Cordless Vacuum Cleaner 2 in 1

Line drawing of a vacuum cleaner with labeled component 'FN' (no text or symbols on the device itself)

FN-VM1001BA

Operation manual

Instrukcja obsługi

Important Safeguards

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Prevent unintentional starting. Ensure the switch is in the off-position before connecting to battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that has the switch on invites accidents.

- Do not touch nozzle when the vacuum cleaner is on.

- Do not put any object into openings. Do not use with any openings blocked; keep free of dust, lint, hair and anything that may reduce air flow.

- Do not use outdoors or on wet surfaces.

- Do not operate the vacuum cleaner or charger if it has been damaged in any way. If vacuum cleaner is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, call the Customer Service

- To avoid excessive heat and damage to the unit or battery, the vacuum cleaner will not operate while charging.

- Do not allow to be used as a toy. Close attention is necessary when used by or near children.

- Use only as described in this manual. Use only manufacturer's recommended attachments.

- Recharge only with the charger specified by the manufacturer.

- A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.

- Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury.

- Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 130^irc C ( 266^irc F) may cause explosion.

- Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire.

- Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained.

- Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care.

- The terminals on both the vacuum cleaner and battery should be kept free and clean of objects. Do not insert metal objects inside the terminals.

- Do not pull or carry the charger by cord, use cord as a handle, close a door on cord, or pull cord around sharp edges or comers. Do not run appliance over cord. Keep cord away from heated surfaces.

• This charger is not intended for use by travelers.

- Do not use extension cords or outlets with inadequate current- carrying capacity for the charger.

- Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.

- Do not handle charger or vacuum cleaner with wet hands.

- Use appliances only with specifically designated battery packs.

- Use of any other battery packs may create a risk of injury and fire.

- Liquid ejected from the battery may cause irritation or burns. If the liquid gets on the skin, (1) seek medical attention, (2) wash quickly with soap and water, and (3) neutralize with a mild acid such as lemon juice or vinegar. If the liquid gets into the eyes, flush them immediately with clean water for a minimum of 10 minutes.

- When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.

- Do not incinerate this appliance even if it is severely damaged.

- This product is functioning at temperature range within 0^ircC - 40^ircC (40°F-104°F).

- This vacuum cleaner creates suction. Keep hair, loose clothing, fingers, and all parts of body away from openings and moving parts.

- Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes.

- Do not use without filters in place.

- Use extra care when cleaning stairs.

- Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present.

- Store vacuum cleaner and charger indoors in a cool, dry area. To avoid electric shock and/or cleaner damage, do not expose to weather elements.

- Keep your work area well lit. Unplug electrical appliances before vacuuming them.

- Overcharging, short circuiting, reverse charging, mutilating or incinerating the cells and the batteries must be avoided.

- The battery should be fully charged at least every 6 months in order to maintain vacuum cleaner efficiency.

What's inside the box

Lithium Ion battery

Charger

Line drawing of a mechanical device with no visible text or symbols

Cordless vacuum cleaner

Technical line drawing of a mechanical device with no visible text or symbols

Wall mount

Operation manual and important safeguards

Technical line drawing of a mechanical component with threaded ends and internal channels (no text or symbols)

2-in-1 tool

Technical line drawing of a mechanical component (no text or symbols)

Motorized floor head

Line drawing of a mechanical component with no visible text or symbols

Crevice tool

Pure technical line drawing of a vertical cylindrical component without any text, numbers, or symbols

Telescopic tube

Cordless vacuum cleaner with telescopic tube attached

Main body details

Filters location

For filter maintenance instructions, see page 8.

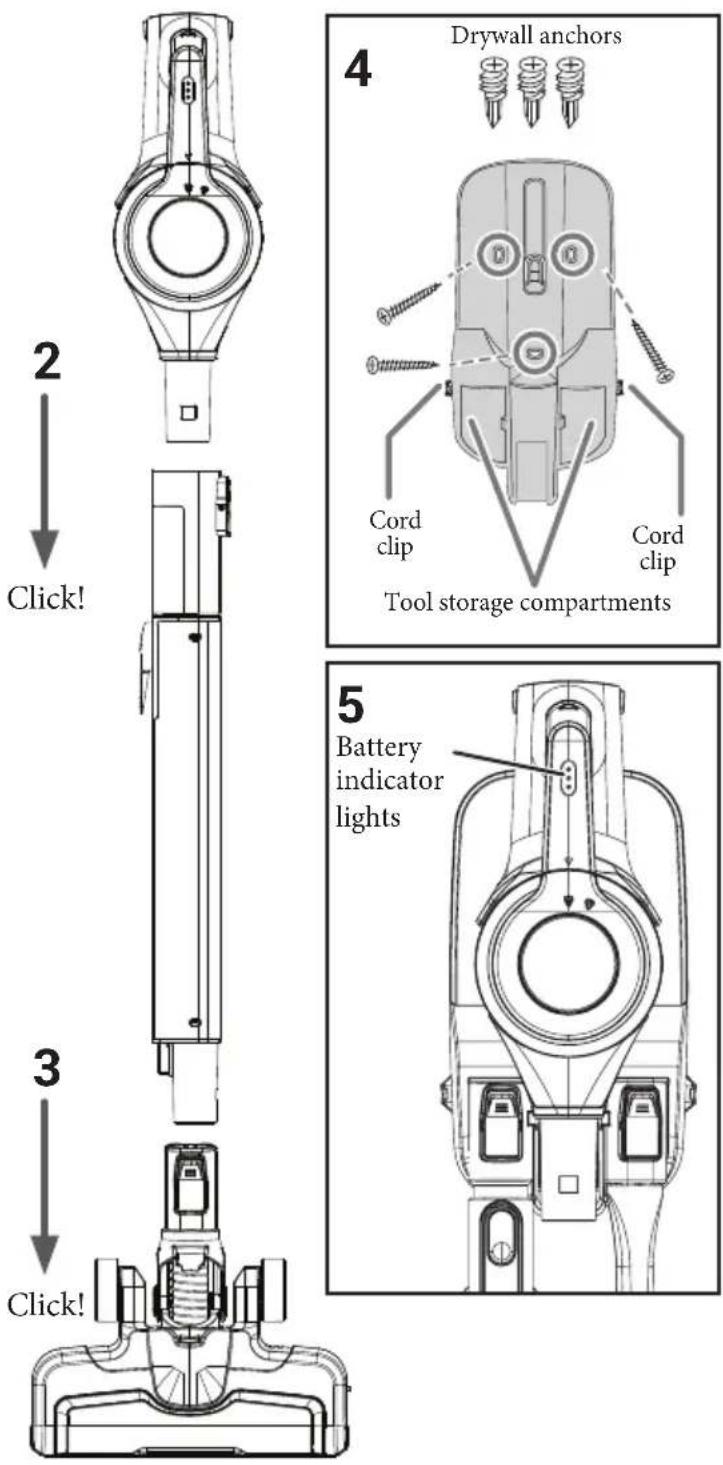

Easy assembly

1. Slide in the battery to place below the handle of the vacuum cleaner and make sure it is firmly attached. (Fig. 1).
2. Slide telescopic tube onto cordless vacuum cleaner until it clicks (Fig. 2).
3. Push telescopic tube into motorized floor nozzle until it clicks (Fig. 3).

How to install wall mount (it is optional. The vacuum cleaner is designed to be freestanding)

• Choose location near power outlet. Locate point high enough on wall to allow telescopic tube and motorized floor nozzle to hang freely.
• Place mount against wall and use pencil to mark drill holes.
• Drill holes (with 1/4" bit) and insert drywall anchors. Insert screws through holes on mount and tighten until firmly attached (Fig. 4).

How to charge battery and store accessories (Fig. 5)

• Place assembled vacuum cleaner on wall mount or leave freestanding.
• Plug in charger in the power socket then into charger port on hand vac.
• Attach tools to storage compartments on the wall mount.

Battery indicator lights show level of charge (Fig. 5)

• Indicator lights will stop flashing once fully charged.
• For the first time the battery should be charged in full in order to maintain its performance. This may take up to four hours.

Technical line drawing of a mechanical device with two views: front view and side view (no text or symbols)

Empty dust cup after every use

There are two ways to empty the dust cup:

1. Hold cleaner over bin. Press lever to release bottom lid of dust cup to remove debris. (Fig. 1).
2. Alternatively remove entire dust cup from the vacuum cleaner by twisting to ,unlock' position (Fig. 2). Once emptied, reattach dust cup by lining up arrow ▲ and ,unlock' position. Twist dust cup until arrow ▲ lines up with ,locked' position.

Line drawing of a spray gun with powder being poured into a container (no text or symbols)

EN

How to use vacuum cleaner and accessories

Caution!

Moving parts! Always turn off cordless vacuum cleaner before attaching accessories.

The vacuum cleaner can be used with or without tools.

• To use without tools, press release button and remove telescopic tube. Collect debris directly with cordless vacuum cleaner nozzle (Fig. 1).
• To use tools with telescopic tube, press release button to remove motorized floor nozzle. Slide tool onto end of telescopic tube until it clicks (Fig. 2).
• To use tools with cordless vacuum cleaner only, press release button to remove telescopic tube. Slide tool onto the vacuum cleaner until it clicks (Fig. 3).

How to use cordless vacuum cleaner with motorized floor head.

Recommended for stairs.

• Press release button to remove telescopic tube from vacuum cleaner. Attach motorized floor nozzle directly to vacuum cleaner until it clicks.
• Click power button once to start.

Line drawing of a robotic vacuum cleaner on a base platform (no text or symbols)

FINLUX

Operation without accessories

1

Line drawing of a hand holding a car seatbelt, no text or symbols present

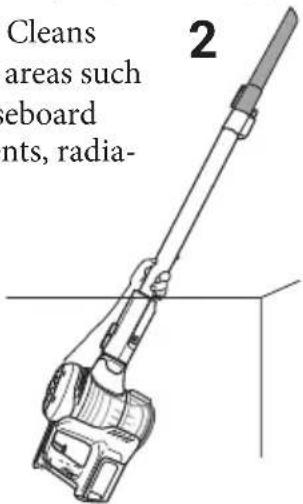

Crevice tool: Cleans hard-to-reach areas such as corners, baseboard edges dryer vents, radiators, cordless.

2-in-1 tool: Use brush to vacuum blinds, vents or upholstered surfaces. Use felt portion to clean delicate surfaces.

Diagram of a handheld device with attached wires, no text or symbols present

To switch between tools, press button and slide brush up or down.

Two identical mechanical component diagrams showing downward and upward movement, no text or symbols present.

How to maintain your vacuum cleaner

Caution!

Moving parts! Always turn off the vacuum cleaner before attaching accessories.

Never use vacuum cleaner without filters, filter screen and dust cup. Please make sure all items are placed in proper position.

Washable dust cup filter - clean frequently

Washable post-motor filter – clean every 6 months

1. Twist dust cup and remove.
2. Twist filter screen and remove.
3. Lift out foam filter and holder.

1. Separate foam filter from fiber filter by pulling them apart.
2. Rinse and dry.
3. Reassemble once completely dry

1. Twist filter cover and remove.
2. Lift out post-motor filter.
3. Shake to remove dust.
4. Every 6 months, replace filter or rinse and dry THOROUGHLY.
5. Reposition filter and cover and twist to "lock".

Brushroll maintenance - clean frequently or when brushroll indicator light turns red

Illustration of a hand operating a mechanical device with a tool, no visible text or symbols

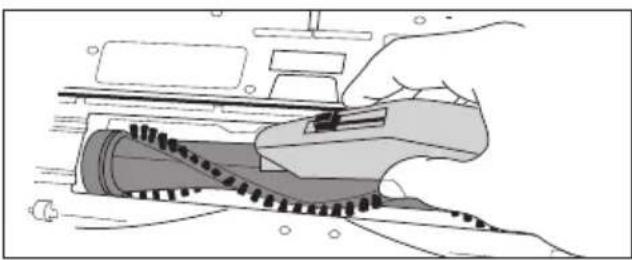

Place motorized floor nozzle upside down. Use scissors or knife to cut tangled hair, threads.

Diagram of a vehicle's internal structure with pressure gauge and lock mechanism (no text or labels)

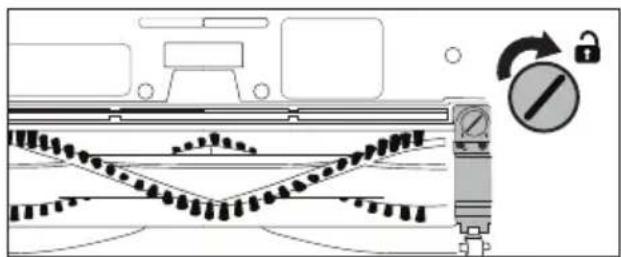

If debris cannot be removed easily, remove retainer clip to access brushroll. Using flathead screwdriver or coin, turn screw to the 'unlock' position.

Illustration of a hand operating a mechanical device with a gear-like component (no text or symbols visible)

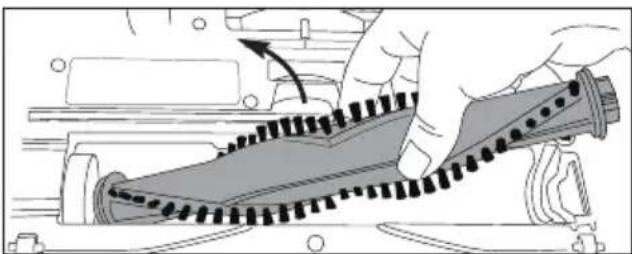

Remove retainer clip and lift out brushroll to clean and remove debris.

To reassemble:

1. Align one end of brushroll with floor nozzle gear.
2. Press other end into slot.
3. Hook retainer clip under tab and press down.
4. Insert screw and turn to 'lock' position.

Troubleshooting

EN

Make sure vacuum cleaner is off and charging plug is unplugged.

NOTICE: Thermal cut-off
This vacuum cleaner has a special thermostat that protects the vacuum cleaner in case of motor overheating. If the vacuum suddenly shuts off, proceed as follows: 1) Check the vacuum for a possible source of overheating such as a full dust cup, blocked telescopic tube or clogged filters. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum. 2) After the 30 minute period, press the power button.
Problem Solution
Motor will not start • Make sure cleaner is fully powered.- Push charger securely into electrical outlet, try another outlet or check circuit breaker.- See detailed “thermal cut-off” instructions above.
Charging indicator lights are not lit while charging	Make sure charger is securely inserted into electrical outlet.Make sure charging plug is securely inserted into vacuum cleaner.Indicator lights stop blinking when fully charged.

Discarding the vacuum cleaner and battery pack

Li-Ion

Before discarding this vacuum cleaner, dispose of battery in an environmentally safe manner. Do not discard battery with your regular household trash.

Important battery disposal information.

Find a disposal location nearest you.

To preserve natural resources, please recycle or dispose of expired battery pack properly. This product contains a lithium-ion battery. It must be disposed of properly. Local laws may prohibit disposal of lithium-ion batteries in ordinary trash. Consult your local waste authority for information regarding available recycling and/or disposal options.

Operating time

Model name FN-VM1001	BA
Motor type DC
Battery 24V Li-Ion
Operation in max power mode	n/a
Operation in normal power mode	Up to 20 min
Charging time 3,5 h
Noise level <=84dB

Information on Disposal for Users (private households)

1. In the European Union

Attention: If you want to dispose of this equipment, please do not use the ordinary dust bin! Used electrical and electronic equipment must be treated separately and in accordance with legislation that requires proper treatment, recovery and recycling of used electrical and electronic equipment.

Following the implementation by members states private households within the EU states may return their used electrical and electronic equipment to designated collection facilities free of charge*. In some countries* your local retailer may also take back your old product free of charge if you purchase a similar new one.

*Please contact your local authority for further details.

2. In other Countries outside the EU

If you wish to discard this product, please contact your local authorities and ask for the correct method of disposal. For Switzerland: Used electrical or electronic equipment can be returned free of charge to the dealer, even if you don't purchase a new product. Further collection facilities are listed on the homepage of www.swico.ch or www.sens.ch.

Additional information on disposal

- Packaging

The packaging is designed to protect the vacuum cleaner from being damaged during transportation. It is made of environmentally friendly materials and can be recycled. Dispose of packaging that is no longer required at an appropriate recycling point.

- Old appliances

This appliance contains rechargeable lithium-ion batteries. The appliance must therefore only be disposed of by an authorised after-sales service or dealer.

Importer

Vestel Poland Sp. z o.o. ul. Salsy 202-823 Warszawa, Poland

EN

Line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical device with no visible text or symbols

Uchwyt ścienny

Technical line drawing of a mechanical component with threaded ends and internal channels (no text or symbols)

Końcówka 2-w-1

Technical line drawing of a mechanical component (no text or symbols)

Line drawing of a mechanical component with a central housing and flange (no text or symbols)

Pure technical line drawing of a vertical cylindrical component without any text, numbers, or symbols

Rura teleskopowa

Nazwy części

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a spray gun with powder being poured into a container (no text or symbols)

PL

Line drawing of a robotic vacuum cleaner operating on a platform (no text or symbols)

FINLUX

Line drawing of a car seatbelt mechanism (no text or symbols)

Illustration of a handheld device with attached wires, no text or symbols present

Two mechanical components with downward and upward arrows indicating motion (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols.

Illustration of a hand operating a mechanical device with a roller being inserted (no text or symbols visible)

Ponowny montaż:
