| Product Type | Generator |
| Brand | Draper |
| Model | PG68W |
| Power Output (Rated) | 2.8 kW |
| Power Output (Peak) | 3.2 kW |
| Fuel Type | Petrol (Unleaded) |
| Engine Type | 4-Stroke, OHV |
| Starting Method | Recoil Start |
| Voltage Output | 230 V AC |
| Frequency | 50 Hz |
| Fuel Tank Capacity | 15 L |
| Run Time (50% Load) | 8 hours |
| Noise Level | 92 dB(A) @ 7m |
| Dimensions (L x W x H) | 600 x 400 x 500 mm |
| Weight | 40 kg |
| Voltage Regulator | AVR (Automatic Voltage Regulation) |
| Protection Features | Overload protection, Low oil shutdown |
| Outlets | 2 x 230 V AC sockets, 1 x 12 V DC |
| Maintenance Interval | Check oil every 20 hours, replace oil every 50 hours |
| Warranty | 2 years |
Frequently Asked Questions - PG68W Draper

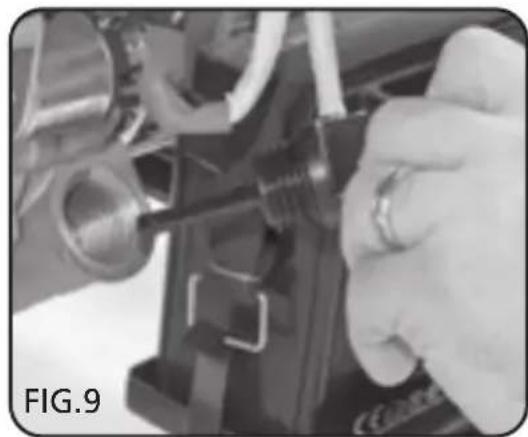

What type of oil should I use?
Use a high-quality 4-stroke engine oil with SAE 10W-30 viscosity for most temperatures. Refer to the user manual for specific recommendations.
How do I start the generator?
Ensure the generator is on a flat surface, turn the fuel valve to ON, move the choke to CLOSE, pull the recoil cord gently until resistance, then pull sharply. Once started, gradually open the choke.
What is the run time at half load?
The generator can run for up to 8 hours at 50% load on a full tank.
Can I connect the generator directly to my house electrical panel?
No, direct connection is dangerous and illegal without a transfer switch. Use heavy-duty extension cords and plug appliances directly into the generator outlets.
How often should I change the engine oil?
Change the engine oil after the first 20 hours of use, then every 50 hours or every season.
What does the low oil shutdown do?
The low oil sensor automatically shuts off the engine when oil level is too low to prevent engine damage.
Can I use the generator during rain?
No, never operate the generator in rain or wet conditions. Keep it in a dry, well-ventilated area away from water.
How do I store the generator when not in use?
Drain the fuel, change the oil, clean the generator, and store it in a dry, covered place. Run the engine dry of fuel to prevent carburetor issues.
What is the noise level of the generator?
The noise level is approximately 92 dB(A) measured at 7 meters. Ear protection is recommended when working nearby.
Where can I find replacement parts?
Replacement parts such as spark plugs, air filters, and oil filters are available through Draper authorized dealers or online retailers. Use genuine parts for best performance.
