KMC-2536 - Chopper Kunft - Free user manual and instructions

Brand	Kunft
Model	KMC-2536
Product Type	Mini Chopper
Category	Food Processor
Power Supply	AC 220-240V, 50/60Hz
Power Consumption	200W (estimated)
Bowl Capacity	0.3 L (max liquid) / 200g solid
Control Type	Pulse button (press top cover)
Blade Material	Stainless Steel
Bowl Material	Plastic
Dimensions (estimated)	H 20 cm x Ø 15 cm
Weight (estimated)	1 kg
Safety Features	Overheat protection; safety interlock (press to operate)
Cleaning	Bowl and blade washable (hand wash recommended)
Cord Length (estimated)	0.8 m
Warranty	2 years manufacturing defects

Frequently Asked Questions - KMC-2536 Kunft

What is the maximum capacity of the KMC-2536 mini chopper?

The maximum solid capacity is around 200g for onions or 150g for meat. For liquids, maximum 0.3 L.

How do I operate the Kunft KMC-2536?

Place the blade in the bowl, add ingredients, fix the plate, then place the power unit on top and press down to start. Use in short pulses for best results.

Can I chop ice or frozen foods?

No, the manual does not recommend chopping ice or frozen foods. Only chop soft to medium-hard ingredients like onions, garlic, cheese, nuts, and cooked meat.

Is the bowl dishwasher safe?

The manual advises hand washing the bowl and blade. Do not immerse the motor unit in water.

What safety precautions should I take?

Always unplug before cleaning. Do not use if the appliance has fallen or is damaged. Keep cord away from heat. Never immerse in water.

How long can I run the mini chopper continuously?

The manual provides maximum operating times per ingredient (e.g., 10-15 seconds). Do not exceed these times; let the motor rest between uses.

What is the warranty coverage?

Kunft offers a 2-year warranty for manufacturing defects from the date of purchase. Any unauthorized repair voids the warranty.

Can I replace the blade?

The blade is not user-serviceable. If damaged, contact an authorized service center. Do not attempt to open the motor unit.

Why is the chopper not starting?

Ensure the power unit is properly seated on the bowl and pressed down. Check that the bowl and blade are correctly assembled. If still not working, check the power supply.

Can I use the appliance for grinding coffee or spices?

The manual recommends against using for other than intended purposes. The mini chopper is designed for food preparation like chopping onions, garlic, nuts, and soft ingredients.

USER MANUAL KMC-2536 Kunft

Exterior view of a Kuwait Kunch tool (no text or symbols on the device itself)

mini-chopper

is perfectly enough

KMC-2536

kunft.®

mini-chopper

KMC-2536

EN

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS .... 4

1.1. Power Supply 5
1.2. Power Cable and Other Cables ...... 6
1.3. Humidity and Water 6
1.4. Cleaning 6
1.5. General Precautions ...... 6

1. USE AND FUNCTIONING 8

2.1. Identification of the Parts 8
2.2. Utilization of the Product 8

1. POST-SALE SERVICE 9

2. ENVIRONMENTAL PROTECTION 9

2

3

kunft®

1. SAFETY INSTRUCTIONS

	WARNING
	Risk of Electric ShockDo Not Open
Warning: to avoid the risk of electric shock, do not remove the cover.The interior does not contain any parts that can be repaired by the user. Ask for assistance by qualified personnel.

Important Warnings

Before using your appliance read this instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance may not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any ma-

mini-chopper

KMC-2536

EN

nual modifications to the product will not be covered and automatically voids the warranty.

Assistance

In case of malfunction, take your appliance to a qualified technician for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case please consult the Customer Support Service.

kunft®

mini-chopper

KMC-2536

EN

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Technical Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product use a dry soft cloth only.

1.5. General Precautions

- Please follow the instructions in the user manual which help to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.

• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.

kunft.

2. UTILIZATION AND FUNCTIONING

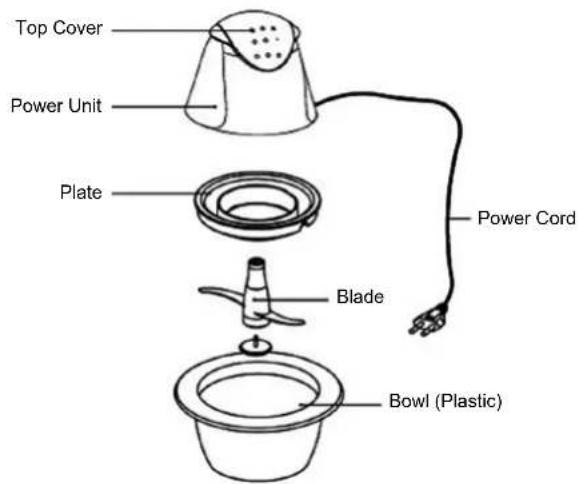

2.1. Identification of the Parts

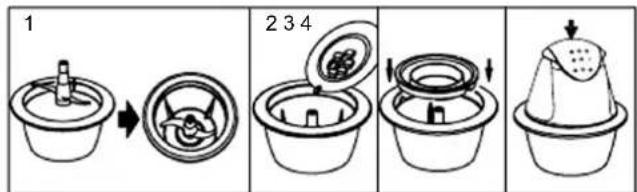

2.2. Utilization of the Product

The appliance is designed to work on standard voltages only. Please check that the main supply corresponds to the one shown on the rating label of the appliance.

1. Put the blade into the bowl. Make sure the axis holder is clean before using, with no food or liquid adhered.
2. Add ingredients to the bowl.
3. Fix the plate into the bowl.
4. Place the power unit on the bowl, press top cover down to start.

mini-chopper

KMC-2536

EN

INGREDIENT MAX. QUANTITIES (g) MAX. TIMES (sec.)
Onions 200g (cut in 8) 5-10 sec. in pulse
Fruit compote 150g (about 5g/piece) 10 sec.
Garlic 150g 5-10 sec. in pulse
Biscuits 20g 15 sec.
Cheese 80g 15 sec.
Almonds 80g 15 sec.
Hazelnuts	80g 15 sec.
Walnuts	80g 15 sec.
Hard boiled eggs	Four yolks	5-10 sec. in pulse
Meat 150g (about 5g/piece) 10 sec.
Ham	150g	10 sec.
Liquids	0.3 liter	10 sec.

3. POST-SALE SERVICE

KUNFT has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Costumer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.
