Product Type	High Chair
Brand	Baby Jogger
Model	City Bistro
Recommended Age	6 months to 3 years
Maximum Weight Capacity	40 lbs (18 kg)
Product Dimensions (Open)	21 x 23 x 34 inches (53 x 58 x 86 cm)
Product Dimensions (Folded)	21 x 23 x 8 inches (53 x 58 x 20 cm)
Product Weight	16 lbs (7.3 kg)
Seat Height Adjustment	4 positions
Recline Positions	3
Tray	Removable, dishwasher-safe
Harness Type	5-point harness
Materials	Plastic, aluminum frame, fabric seat pad
Cleaning Instructions	Wipe frame with damp cloth; tray dishwasher safe; seat pad machine washable
Safety Standards	JPMA certified, ASTM compliant
What's Included	High chair frame, seat pad, tray, harness
Warranty	Limited lifetime warranty

Frequently Asked Questions - City Bistro BABY JOGGER

What is the weight limit for the Baby Jogger City Bistro high chair?

The maximum weight capacity is 40 lbs (18 kg).

Can the tray be washed in the dishwasher?

Yes, the tray is dishwasher-safe for easy cleaning.

How do I clean the seat pad?

The seat pad is machine washable. Remove it from the frame and wash on a gentle cycle, then air dry.

Is the high chair easy to fold for storage?

Yes, the City Bistro folds compact with a one-hand fold mechanism, reducing to 8 inches thick.

What age is the high chair suitable for?

It is recommended for 6 months to 3 years old.

How many recline positions does it have?

It offers 3 recline positions to accommodate different stages from infant to toddler.

Is the harness adjustable?

Yes, the 5-point harness is adjustable to fit your child securely.

What is the warranty on the Baby Jogger City Bistro?

It comes with a limited lifetime warranty against manufacturing defects.

Can I attach toys to the tray?

The tray is designed to be compatible with most clip-on toys and accessories.

How do I adjust the seat height?

The seat can be adjusted to 4 different heights using the easy-to-use lever on the frame.

USER MANUAL City Bistro BABY JOGGER

©2019 Baby Jogger NWL0001005846D 11/19

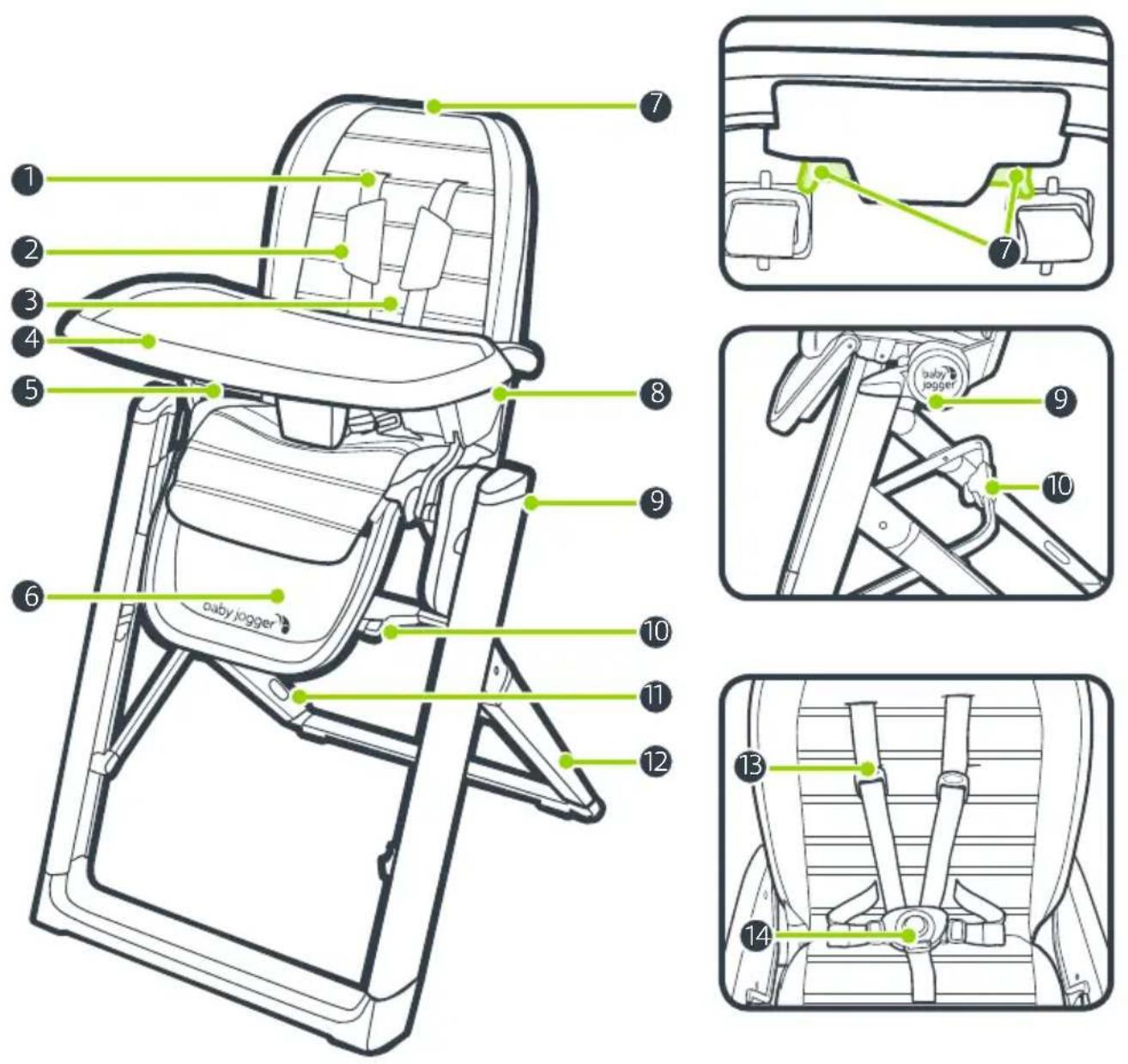

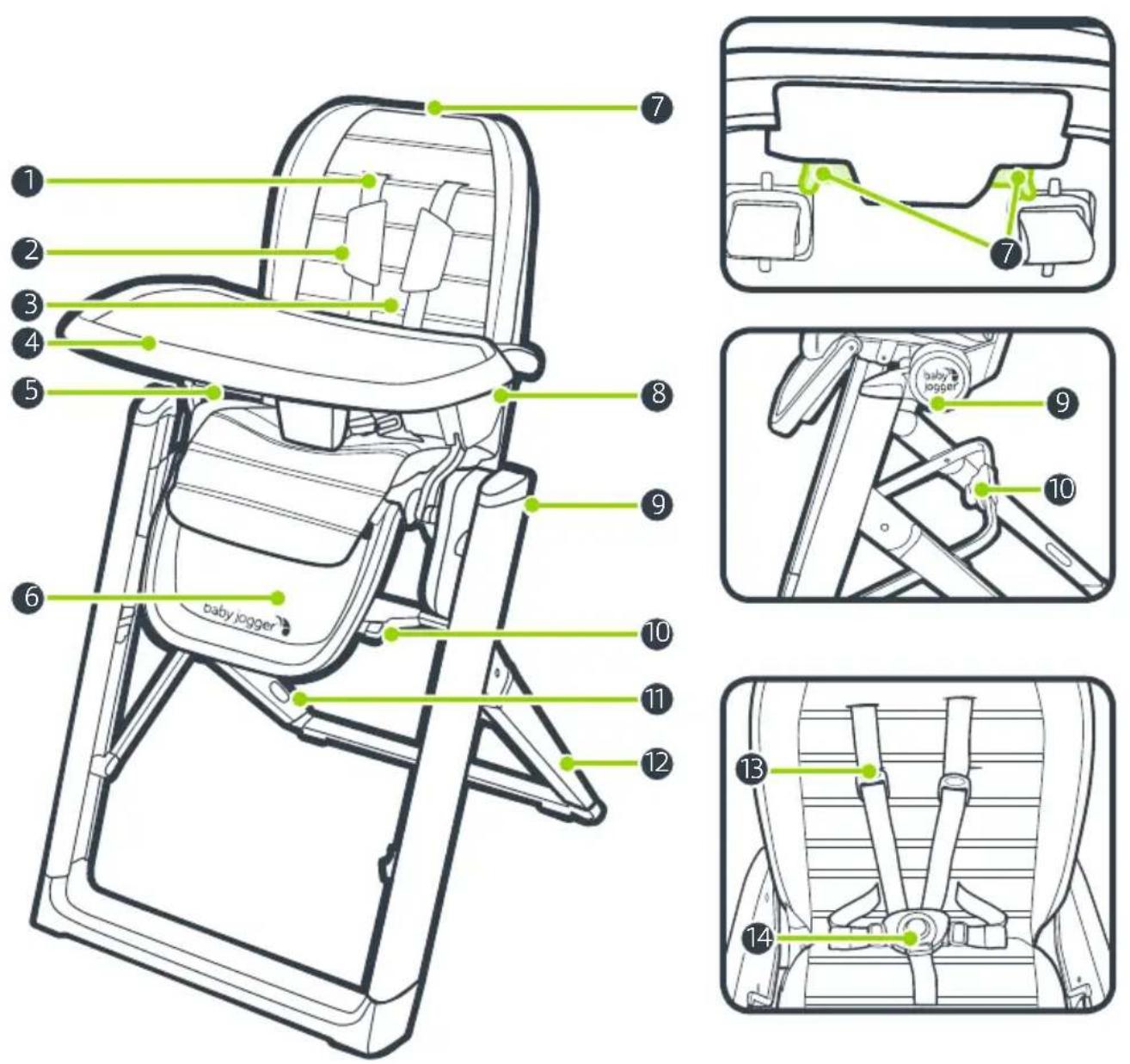

1 Shoulder Strap
2 Harness Covers
3 Seat Pad
4 Tray Insert
5 Tray Release Button
6 Calf Support
7 Seat Fold Button
8 Tray
9 Height Adjust Button

10 Frame Fold Button
11 Tray Storage Tab
12 Rear Leg
13 Harness Adjuster
14 Harness Buckle

WARNING

Failure to follow these warnings and the assembly instructions could result in serious injury or death. Read all instructions before use.

• PLEASE SAVE OWNER'S MANUAL FOR FUTURE USE.
  • ONLY USE PRODUCT AS INSTRUCTED.

• FOLLOWASSEMBLY INSTRUCTIONS CAREFULLY.

If you experience any difficulties, please contact the Customer Service Department.

• ADULT ASSEMBLY REQUIRED.

- This Product is not intended to be used with any other used with any other accessories, unless specified by Baby Jogger.

• DO NOT ADJUST the height of high chair with your child in it.

- DO NOT FORCE TRAY against child. Use only the three adjustment positions. Be sure both adjustment fingers are engaged in armrest slots.

- NEVER allow a child to push away from table.

- FALL HAZARD: Children have suffered severe head injuries including skull fractures when falling from high chairs. Falls can happen suddenly if child is not restrained properly.

• Always use restraints, and adjust to fit snugly.
- Tray is not designed to hold child in chair.

• STAY NEAR AND WATCH CHILD DURING USE. Always keep your child in view.

- It is recommended that the highchair be used only by children capable of sitting upright unassisted.

- STRANGULATION HAZARD: Do not place highchair in any location where there are cords, such as window blind cords, drapes, phone cords, etc.

- This highchair is designed to be used by child capable of sitting upright unassisted (approximately 6 months of age) up to 3 years of age. Maximum weight 40 lb (18kg).

• DISCONTINUE USING YOUR HIGHCHAIR should it become damaged or broken.

- Keep child away from highchair when folding/unfolding highchair.

- STORE HIGHCHAIR away from child when not in use.

TO OPEN HIGHCHAIR

1 Squeeze leg release handle.
2 Rotate handle down until highchair locks open.

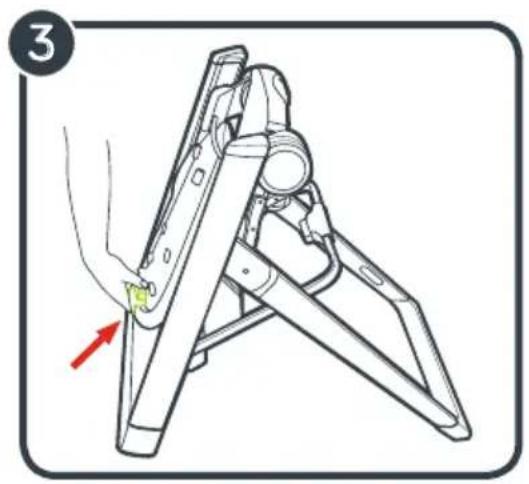

3 Grasp highchair seat back.
4 Pull seat back up until it locks into open. CHECK that seat is locked by pushing on the seat back.
5 Lower calf support down to use position.

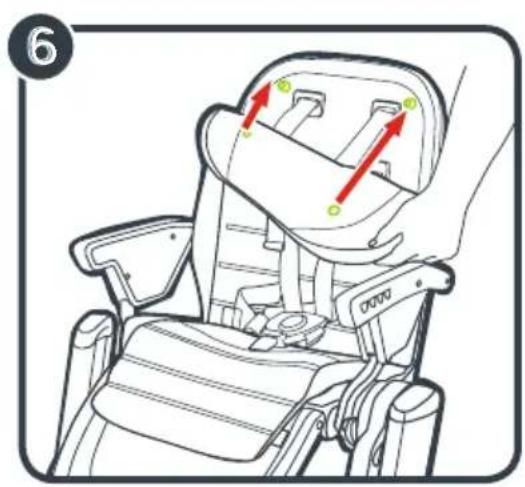

6 Fasten snaps on seat pad to mounts on seat back.

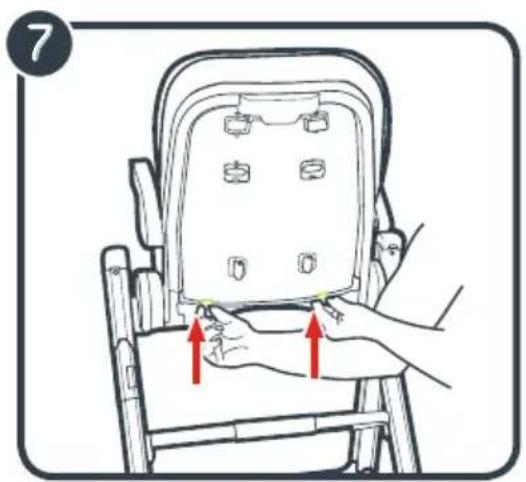

7 Ensure plastic hooks is attached around bottom of seat back.

ATTACHING TRAY

8 Press in and squeeze handle on bottom and attach tray to highchair arms. CHECK the tray is properly installed by pulling on the tray.
9 Tray can also be attached as shown.

TRAY INSERT

Dishwasher safe.

10 Attach tray insert by pushing it down on the tray.

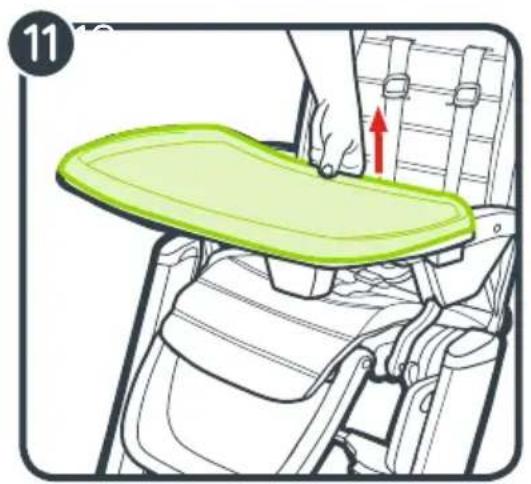

11 To remove pull up on the back of the tray.

USING SAFETY HARNESS

WARNING

Falling hazard: Always use the restraint system.

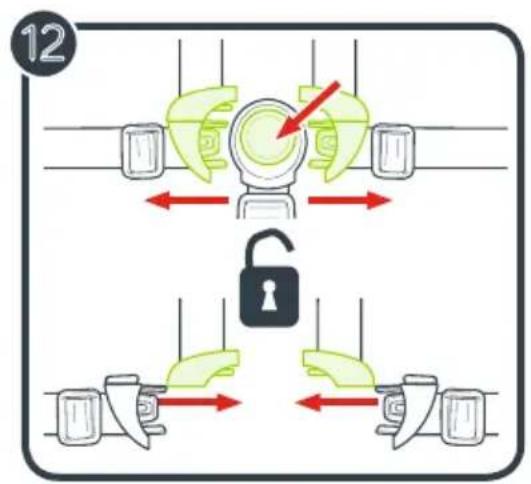

12 To open, press button on buckle to release the waist straps and slide shoulder strap off of waist straps.
13 To close, slide shoulder strap connectors to waist straps and insert into buckle.
14 Use slide adjuster on shoulder, waist and crotch straps for tighter adjustment.

ADJUSTING SAFETY HARNESS

15 Line up ends of shoulder straps from seat back.
16 Pull out front of seat pad.
17 Insert shoulder straps through matching seat pad slot.
18 Insert into matching slots in seat back and secure in seat back.

ADJUSTING HEIGHT

WARNING

DO NOT adjust the height of the product with the child in it.

19 To adjust height, squeeze buttons on the outside of both legs and lower or raise seat. There are 4 height positions.

HARNESS COVERS

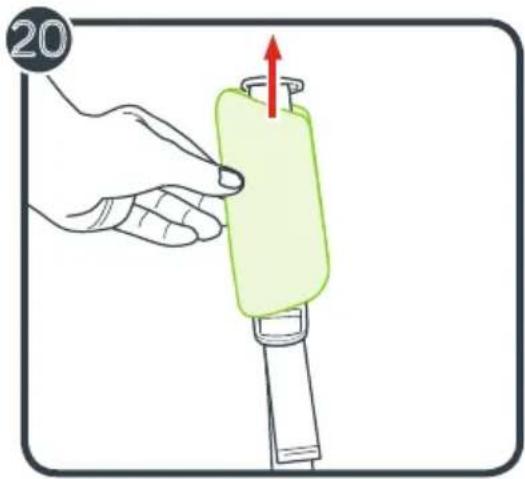

20 Slide harness covers onto harness straps.

TO FOLD HIGHCHAIR

21 Press in and squeeze handle on bottom of the tray and remove from highchair.
22 Rotate calf support up into storage position.

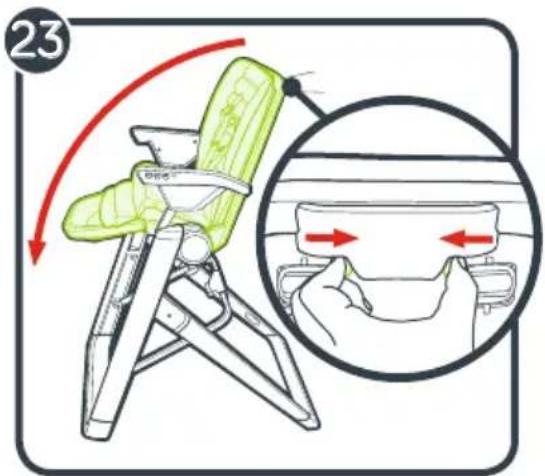

23 Squeeze button on back of seat back and rotate highchair seat closed.
NOTE: To ensure smooth folding, buttons must be fully squeezed before rotating.
24 Squeeze handle and rotate up.
25 Be sure highchair is locked closed.

TO STORE TRAY

26 Slide tray onto mounts on back legs of highchair.
27 Tray stored.

TO REMOVE SEAT PAD

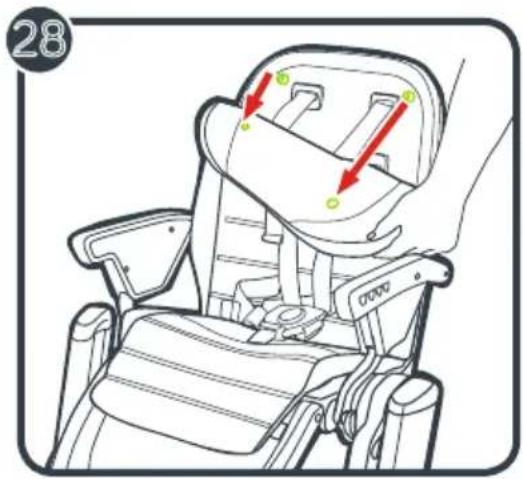

28 Unfasten snaps on seat pad from mounts on seat back.

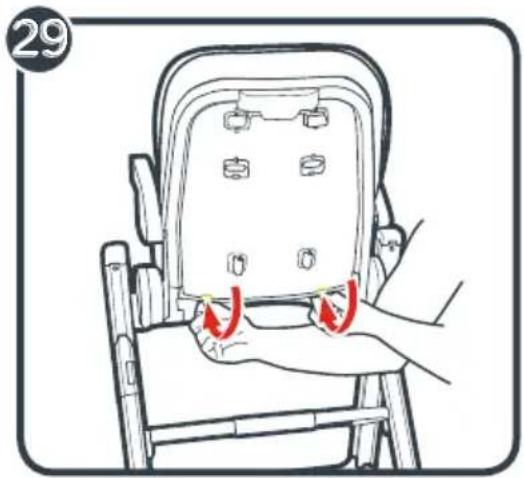

29 Disconnect plastic hooks from bottom of seat back.
30 Insert seat pad webbing through slots in calf support.

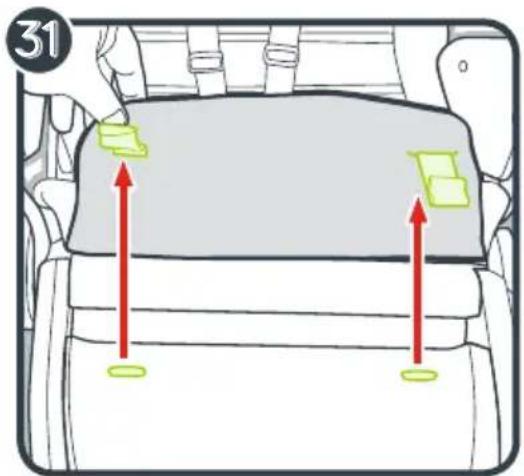

31 Pull webbing out of calf support.
32 Press button on buckle to release straps if connected.
33 Insert shoulder harness straps through slots in seat back.

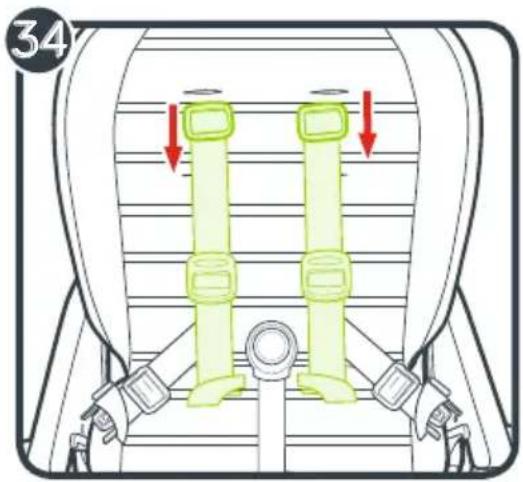

34 Pull softgoods shoulder harness straps out of seat pad.

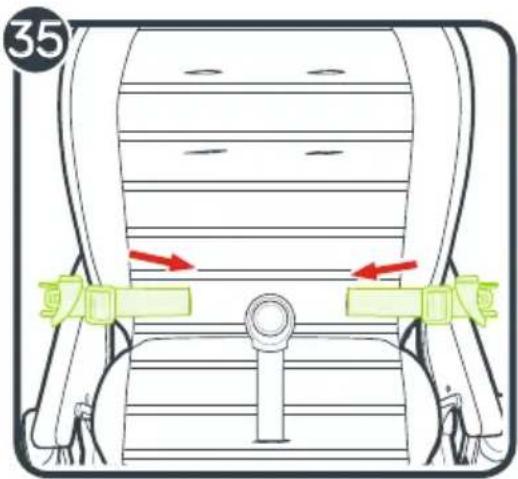

35 Insert waist harness through seat pad.
36 Insert crotch strap through seat pad.

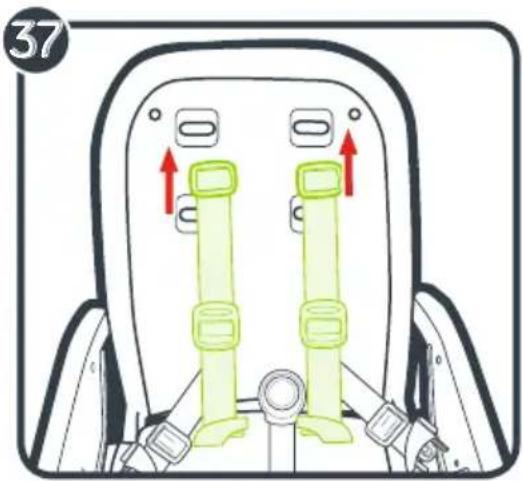

37 Re-attach shoulder harness straps through slots in seat back.

CARE AND MAINTENANCE

To preserve the longevity of your highchair, it is important to perform simple, regular maintenance. From time to time, make sure that the joints and folding areas are still in good condition. All repairs should only be carried out by an authorized dealer.

WASHING

Seat Fabric

• You can machine wash your highchair's seat in cold water with a mild detergent.
• Be sure to remove the harness straps the seat pad before washing.
• Do not use solvents, caustic or abrasive cleaning materials.
• Do not press, iron, dry clean, tumble dry or wring the fabric.
• If the seat pads need to be replaced, only use parts from a Baby Jogger Authorized Dealer. They are the only ones that are guaranteed to have been safety tested and designed to fit this seat.

Tray Insert

- Tray Insert is dishwasher safe on top rack.

Plastic/Metal Parts

• Wipe clean using a mild soap and warm water.
• You must not remove, dismantle or alter any part of the seat folding mechanism or brakes.

STORING

• DO NOT store outside.
• Always store the highchair in a dry environment.
- Store the highchair in a safe place when not in use (i.e. where children cannot play with it).
- DO NOT place heavy objects on top of the highchair.
- DO NOT store the highchair near a direct heat source such as a radiator or fire.

Baby Jogger's Limited Lifetime Warranty: www.babyjogger.com/register

Baby Jogger's Limited Lifetime Warranty:

Baby Jogger warrants that the frame is free of manufacturer defects for the lifetime of the product. Manufacturer's defects include but are not limited to the breaking of welds and frame tube damage. Textile or soft side materials and all other components shall be warranted for one year from the date of purchase (except for tubes). Proof of purchase is required to make a warranty claim and the warranty is only extended to the original purchaser.

THIS WARRANTY DOES NOT COVER:

• Normal wear and tear
- Corrosion or rust
- Incorrect assembly, or the installation of third party parts or accessories not compatible with the original design
• Accidental or intentional damage, abuse or neglect.
- Commercial use
- Improper storage/care of the unit

This warranty specifically excludes claims for indirect, incidental, or consequential damages. The implied warranties of merchantability and fitness for a particular purpose is according to the specific warranty period for this model unit at time of purchase. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may also have other rights which vary from state to state. To know what your legal rights are in your state, consult your local or state consumer affairs office or your State's Attorney General.

If your product was purchased outside of the United States, please contact the distributor in the country nearest you. Their contact information can be found on our website at http://www.babyjogger.com. Claims for warranty outside of the country in which the product was purchased may incur shipping charges.

NOTE: When contacting Baby Jogger distributor regarding your product, please have your product's serial number ready.

Customer Care Contact Information:

E-Mail: [e-mail]

Call: 1-800-241-1848 8:30am - 5:30pm EST, Mon - Fri.

Fax: [phone]

Mail: Baby Jogger, LLC

4110 Premier Drive

High Point, NC 27265

www.babyjogger.com
