Product Type	Refrigerator
Brand	Jocel
Model	JF46
Net Capacity	46 Liters
Energy Class	A+
Annual Energy Consumption	100 kWh
Noise Level	42 dB
Dimensions (Height x Width x Depth)	850 x 480 x 500 mm
Weight	25 kg
Power Supply	220-240 V, 50 Hz
Climate Class	N/ST (16°C - 38°C)
Defrost Type	Manual
Refrigerant	R600a
Adjustable Thermostat	Yes
Interior Light	Yes
Reversible Door	Yes
Number of Shelves	3
Vegetable Crisper	1
Door Storage	2 compartments
Maintenance	Clean with mild detergent; defrost regularly
Safety Features	Child lock, automatic shutdown on overheating

Frequently Asked Questions - JF46 Jocel

How do I adjust the temperature on my Jocel JF46 fridge?

Use the thermostat dial inside the fridge compartment. Turn it clockwise for colder, counterclockwise for warmer. We recommend setting it to a medium position for optimal cooling.

What should I do if my fridge is not cooling properly?

Check that the door is sealing properly and not obstructed. Ensure the ventilation grills are clean. Also verify the temperature setting and that the fridge is not overloaded.

How often should I defrost the JF46 refrigerator?

Defrost the fridge when the frost layer reaches about 3-5 mm thickness. This typically occurs every 2-3 months depending on usage and humidity.

Can I reverse the door opening direction?

Yes, the Jocel JF46 features a reversible door. Refer to the instruction manual for step-by-step instructions on how to change the hinge side.

What is the ideal temperature for storing food in this fridge?

The recommended temperature for the fridge compartment is 4°C (39°F). This helps keep food fresh while preventing bacterial growth.

How do I clean my Jocel JF46 fridge?

Unplug the fridge first. Use a soft cloth with mild soapy water to clean interior and exterior. Avoid abrasive cleaners. Dry thoroughly before plugging back in.

Why is there water pooling at the bottom of the fridge?

This is usually due to a clogged defrost drain. Clean the drain hole using a pipe cleaner or soft wire. Also ensure the fridge is level to allow proper drainage.

What does the energy class A+ mean?

A+ indicates the fridge has high energy efficiency. It uses less electricity compared to lower classes, meaning lower operating costs and reduced environmental impact.

Is it normal for the fridge to make noise?

Some noise is normal: humming from the compressor, gurgling of refrigerant, and occasional clicking of the thermostat. Loud or persistent noises may indicate a fault.

How can I save energy with my JF46?

Place the fridge in a cool, ventilated area away from heat sources. Allow hot food to cool before storing. Keep the door closed as much as possible and ensure a tight seal.

USER MANUAL JF46 Jocel

White refrigerator with a logo on the front panel (no visible text or symbols on the appliance itself)

MANUAL DE INSTRUÇÕES MANUAL DE INSTRUCCIONES INSTRUCTION MANUAL

INSTRUÇÕES DE SEGURANÇA IMPORTANTES

ATENÇÃO

Simple line drawing of a trash bin with crossed lanes and a blank bottom bar (no text or symbols)

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

JOCEL®

SEDE:

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electrical shock, or injury when using your refrigerator, follow these basic precautions:

• Read all instructions before using the refrigerator.
• WARNING: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• WARNING: Do not damage the refrigerant circuit.
• WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.
• WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

WARNING! FLAMMABLE MATERIAL!

• WARNING: Risk of child entrapment.
• This appliance should not be used by children aged 8 years and above or

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they are supervised or instructed concerning use of the appliance in a safe way and they understand the hazards involved.

• Children should be supervised to ensure that they do not play with the appliance.
• Cleaning and user maintenance must not be performed by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

• To avoid the possibility of child entrapment; please take the following precautions before disposing of the refrigerator.

• Remove all doors from the unit.

• Leave the shelves in place so that children cannot easily climb inside.

• This appliance is intended to be used in household and similar situations such as

– Staff kitchen areas in shops, offices and other working environments;
– Farm houses and by clients in hotels, motels and other residential-type environments;
- Bed-and-breakfast environments;
– Catering and similar non-retail applications.

Save these instructions

WARNING

• This refrigerator should be properly grounded for your safety. The power cord of this refrigerator is equipped with a three-prong plug which is compatible with standard three-prong wall outlets to minimize the possibility of electrical shock.
• This refrigerator requires a standard 220-240V/50Hz electrical outlet with three-prong grounded socket.
• Do not, under any circumstances, cut or remove the third ground prong from the power cord supplied.
• Improper use of the grounded plug can result in the risk of electrical shock.
• This refrigerator is not designed to be used with an inverter.
• The cord should be secured behind the refrigerator and not left exposed or dangling, so as to prevent accidental injury.
• Never unplug the refrigerator by pulling the power cord. Always grip the plug firmly and pull straight out from the socket.
• Do not use an extension cable with this appliance. If the power cord is too short, have a qualified electrician or service technician install an outlet near the appliance. Use of an extension cord can negatively affect the performance of the unit.

WARNING: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

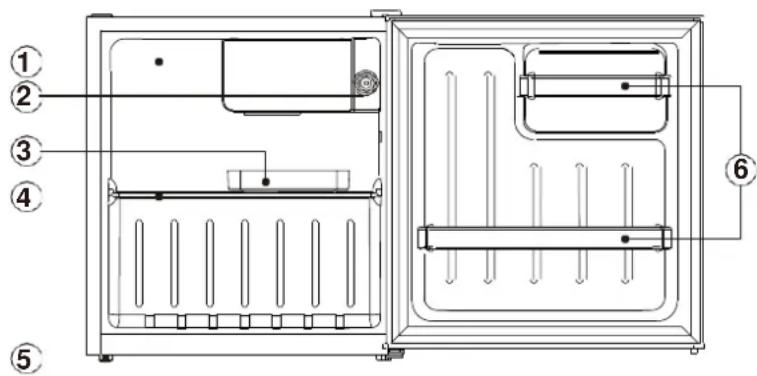

FIGURE

No	Description
1	Chill door
2	Thermostat
3	Drip tray
4	Shelf
5	Adjustable front feet
6	Plastic retainings

INSTALLATION METHOD:

1. The ground should be level, solid and dry.
2. Avoid placing upside down or horizontally. The angle should be not more than 45^ between the cabinet and the ground if inclination is necessary.
3. Leave a space of 30cm above the refrigerator and 5cm on either side and behind the refrigerator, otherwise air will not be able to circulate properly, reducing the freezing effect, and increasing energy consumption.
4. Place your refrigerator in a space where there is less humidity, so as to improve electronic insulation and avoid rust.
5. Avoid placing the refrigerator near heat sources (stove, warmer etc.) or in direct sunlight.

HOW TO USE THE REFRIGERATOR:

1. When operating the refrigerator for the first time, leave the empty refrigerator to operate until it stops, which will usually take 2-3 hours (10 hours in summer), then adjust the thermostat knob.
2. Install the accessories in the appropriate positions according to the diagram.
3. Turn the thermostat dial to between 3 and 4; insert the power plug into the socket.
4. Defrosting is needed when the frost layer on the evaporator reaches 3 - 4mm. First, disconnect from the power supply, then open the door, take out the ice tray and all food. The refrigerator will begin to defrost. Wipe and dry the evaporator after defrosting has finished. Then return the food to its place.

Attention!

1. When storing food, wrap it in plastic wrap or store it in a container with a lid; this prevents odours and keeps it dry. Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
2. There should be sufficient space between each item of food; do not store too much food.
3. To save electricity, do not open the door too frequently. Clean regularly surfaces that can come in contact with food and accessible drainage systems.
4. Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
5. If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.
6. The temperature inside can be lower if take out the drip tray during performance testing.

MAINTENANCE

1. Periodical maintenance may prolong the refrigerator's life. For safety reasons, the power cord must be disconnected before maintenance.
2. Abrasive powder, detergent powder, sodium carbonate, benzene, petrol, acid alcohol hot water etc. must not be used to clean the refrigerator; these may damage the paint coat and the plastic.

Safety inspection after maintenance

a) Power wire: broken or not?
b) Power plug: hot abnormal or not?
c) Power plug: plug properly inserted or not?

Problem	Check
No refrigeration	Is there an interruption to the power supply?Is the voltage sufficient?Has the fuse blown?
Refrigerating effect insufficient	Is the thermostat in the proper position?Is there sufficient space around the appliance?Is the door being opened too frequently?Is the appliance exposed to direct sunlight or too close to heat sources?Is too much food being stored or is the temperature of food stored too high?
Food frozen inside the refrigerator	Is the thermostat in the proper position?Is too much food being stored?
Unusual noises	Is the appliance positioned on a flat surface?Is the appliance in contact with other items?
Compressor in constant operation	Is too much food being stored?Is the door not closed tightly or being opened too frequently?

Main technical data:

Model	JF46
Climate Class	N/ST
Protection Class	I
Total Capacity	46L
Fresh Food Capacity	46L
Voltage (V)	220-240
Frequency (Hz)	50
Current (A)	0.6
Energy Consumption (Kw-h/24h)	0.268
Refrigerant	R600a
Refrigerant Weight	13g
Vesicant	C5H10(CP)
Net Weight	14.5kg
Noise level	39dB
Product dimensions (HxWxD)	503 x 455 x 455 mm

Notice:

All data covered by this catalogue are given as general information only; our company reserves the right to change or modify its product line without prior notices.

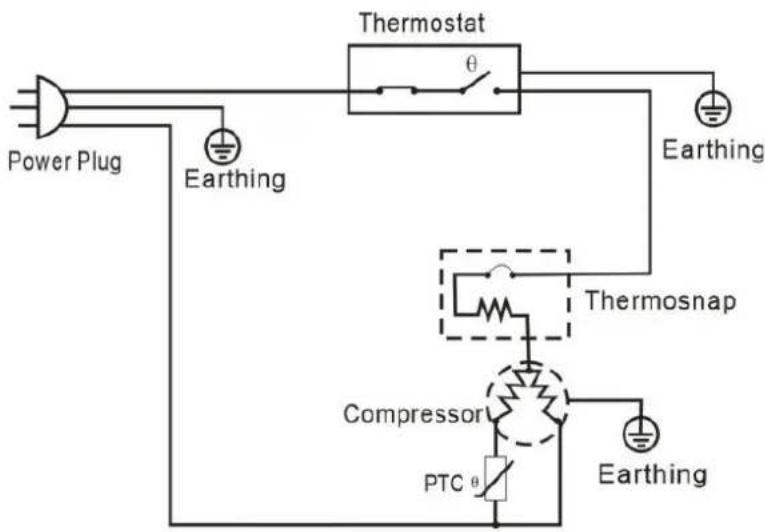

Circuit diagram:

Packing list:

No	Name of parts	JF46
1	Water tray	1
2	Refrigerator Shelf	1
3	Door seal	1
4	Bottle guard	2
5	Instruction manual	1

Correct disposal of this product:

Simple line drawing of a trash bin with crossed lines indicating no waste or discharge (no text or symbols)

This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.

GENERAL WARRANTY TERMS

1. The warranty is valid only on presentation of invoice of purchase.
2. This WARRANTY is limited exclusively to parts substitution ineffective due to faulty manufacture, made in our workshops.
3. The elimination of several faults of the scope of the guarantee is made for repair or replacement of defective parts, according to the discretion of our technical services. Defective parts are our property.
4. Are not covered under warranty damage caused by transportation, neglect or poor use, improper assembly or installation, as well as external influences such as: lightning strikes or power, flooding, humidity, etc.
5. Lose warranty, all appliances that are not being used according to the instructions, or connected to FEEDING NETWORKS not guarantee a constant voltage of 220/240V.
6. The warranty does not cover damages for personal injury or damage caused directly or indirectly in any capacity whatsoever.
7. This warranty terminates when it is found to have been undergoing repairs, alterations or interventions by any person not authorized by Jocel.

THE WARRANTY EXPIRES

1. If the appliance has not been installed by an Accredited Technician.
2. Exceeded the period of 2 years for home appliances and 06 months for industrial appliances, warranty expires and assistance will be made by charging the costs of manpower, according to current fees.
3. With the modification or disappearance of the nameplate of the appliance.

TECHNICAL ASSISTANCE

For technical assistance request, our services are available through the following contacts:

Telef. 00 351 252 910351

Fax: [phone]

E-mail: [e-mail]

http://www.jocel.pt

JOCEL®

HEADQUARTERS:

Rua Alto do Curro, n.º 280

4770-569 S. COSME DO VALE

V.N. de FAMALICÃO

Telef: 252 910 350/2

Fax: [phone]

email: [e-mail]

http://www.jocel.pt

DECLARATION OF CONFORMITY

CE

We declare on our own responsibility that the machine indicated below.

Product REFRIGERATOR

Brand JOCEL

Model JF46

Complies with the following European directives and standards implementation:

Low Voltage 2014/35/EU

EN 60335-1: 2012 + A11:2014 +

A13:2017

EN 60335-2-24:2010 + A1:2019 +

A2:2019

EN 62233:2008

Electromagnetic Compatibility 2014/30/EU

EN 55014-1 + 2006 + A1:2009 +

A2:2011

EN 55014-2:2015

EN 61000-3-2:2014

EN 61000-3-3:2013
