Product Type	Rack-Mount Power Conditioner / Power Strip
Model	Pyle PCO885
Number of Outlets	20 total: 4 front (switched), 16 rear (switched, EMI/RFI filtered, surge protected)
USB Charging Ports	2 front USB ports, 5V/2A each
Surge Protection	Triple mode varistor surge and spike protection, 1500A peak impulse current
Noise Filtering	RFI/EMI interference filter
Digital Voltage Display	LED digital screen showing input voltage
Circuit Breaker	Resettable 15A thermal circuit breaker (rear panel)
Power Rating	120V/60Hz, 15A total, 3600W maximum load
Power Cord	Heavy duty 14-gauge, 6.56 feet (2m) with grounded plug
Rack Mount Size	2U rack space, fits standard 19-inch racks
Dimensions (W x H x D)	19 x 3.54 x 7.28 inches (48 x 9 x 18.5 cm)
Construction Material	Steel front panel and chassis, iron body
Weight	Approximately 5.5 lbs (2.5 kg)
Safety Features	Overload protection, surge/spike protection, grounded plug, circuit breaker
Maintenance	No user-serviceable parts; clean with dry cloth; refer servicing to qualified personnel
Warranty	Not specified; contact Pyle support

Frequently Asked Questions - PCO885 Pyle

What is the maximum power load for the Pyle PCO885 power conditioner?

The PCO885 can handle a maximum total load of 15 amps or 3600 watts at 120VAC. If exceeded, the rear panel circuit breaker will trip to protect your equipment.

How do I reset the circuit breaker on the Pyle PCO885?

If the circuit breaker trips, first unplug some devices to reduce the load below 15A. Then locate the resettable circuit breaker button on the rear panel and push it in to reset.

Can I charge my phone using the USB ports on the Pyle PCO885?

Yes, the front panel features two USB ports that provide 5V/2A each, suitable for charging smartphones, tablets, and other USB devices.

What type of surge protection does the PCO885 offer?

It features triple mode varistor surge and spike protection with a peak impulse current rating of 1500 amps, safeguarding your equipment from voltage spikes.

Is the Pyle PCO885 rack mountable?

Yes, it is designed to fit a standard 19-inch equipment rack and occupies 2U of rack space. The rugged steel housing ensures reliable mounting.

How many outlets does the PCO885 have and are they all switched?

It has a total of 20 outlets: 4 on the front and 16 on the rear. All outlets are controlled by the front panel power switch, so they turn on/off together.

What is the purpose of the digital voltage display on the front panel?

The LED digital screen shows the current input voltage, allowing you to monitor the power quality and ensure it is within the safe operating range (120VAC).

Does the Pyle PCO885 filter RFI and EMI noise?

Yes, it includes an RFI/EMI interference filter that reduces unwanted noise from fluorescent lights, motors, and other sources, providing cleaner power to your audio/video equipment.

What should I do if the power cord is damaged?

If the power cord or plug is damaged, do not use the unit. Contact qualified service personnel for replacement. Opening the unit yourself may cause electric shock.

Can I mount this power conditioner in a rack upside down?

It is recommended to mount it right side up to ensure proper ventilation and access to controls. Mounting upside down may interfere with airflow and label readability.

USER MANUAL PCO885 Pyle

3600 Watt Power Conditioner w/ 20 Outlets

USER GUIDE

This unit was developed using the expertise of professional sound engineers and working musicians. You will find your new unit has superior performance and greater flexibility than any other power conditioner in its price range. READ THIS MANUAL CAREFULLY TO GET THE MOST OUT OF YOUR NEW UNIT.

Features

For advanced RF/EMI noise filtering and the quietest operation of your equipment..

• Triple Mode Varistor Surge And Spike Protection
• 4 Front and 16 Rear Outlets (With Room For 4 " Wall Warts")
• 15 Amp Rating With Rear Panel Circuit Breaker (UL)
• Rugged Single Rack Space Metal Housing For Maximum Reliability

Black triangular warning symbol with a white lightning bolt inside (no text or numbers)

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

Black triangular warning symbol with exclamation mark (no text or numbers)

ATTENTION: RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE.

REFER TO SERVICING TO QUALIFIED SERVICE PERSONNEL.

An equilateral triangle enclosing a lightening flash/arrowhead symbol is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure which may be of sufficient magnitude to constitute a risk of electric shock.

An equilateral triangle enclosing an exclamation point is intended to alert the user to the presence of important operating and service instructions in the literature enclosed with this unit.

WARNING:

This products can expose you to a chemical or group of chemicals, which may include "Nickel Carbonate" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.

IMPORTANT SAFETY INSTRUCTIONS

WARNING! When using electric products, basic precautions should always be followed, including the following:

1. Read all the instruction before using the product.
2. DO NOT use this product near water (e.g. near a bathtub, washbowl, kitchen sink, in a wet basement, or near a swimming pool etc.).
3. This product should be used only with a cart or stand that will keep it level and stable and prevent wobbling.
4. This product, in combination with amplifiers, headphones or speakers, may be capable of producing sound levels that could cause permanent hearing loss. Do not operate for a long period of time at a high volume level or at a level that is uncomfortable. If you experience many hearing loss or ringing in the ears, you should consult an audiologist.
5. The product should be located so that its location or position does not interfere with its proper ventilation.
6. The product should be located away from heat sources such as radiators, heat vent, or other devices (including amplifiers) that produce heat.
7. The product should be connected to a power supply only of the type described in the operating instructions or as marked on the product.

8. The power supply cord should:

9. Be undamaged

10. Never share an outlet or extension cord with other devices so that the outlet's extension on cord's power rating is exceeded.

11. Be left plugged into the outlet when left unused for a long period of time.

12. Care should be taken so that objects do not fall into, and liquids are not spilled through, the enclosure's openings.

13. The products should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged.
B. Objects have fallen into, or liquid has been spilled onto the product.
C. The product has been exposed to rain.
D. The product does not appear to operate normally or exhibits a marked change in performance.
E. The product has been dropped, or the enclosure damaged.

1. Do not attempt to service the product beyond what is described in the user-maintenance instructions. All other servicing should be referred to qualified service personnel.

2. Do not defeat the safety purpose of the grounding-type plug, which features a third grounding prong. If this provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

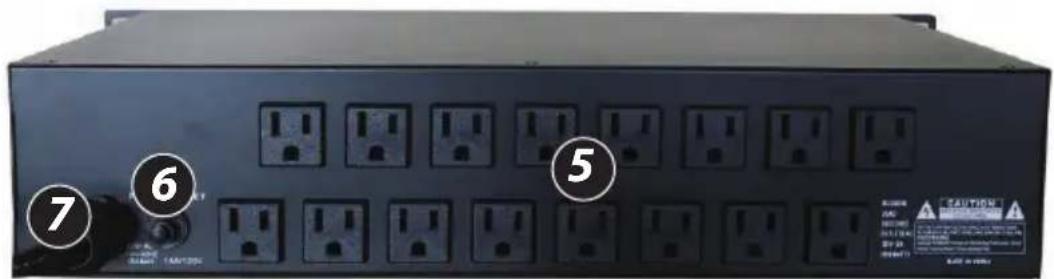

FRONT & BACK PANEL FEATURES:

1. POWER SWITCH: Outlet switch activates protection and filtration to all outlets. To turn the unit ON or OFF, press the upper or lower portion of this button.
2. Voltage LED Digital Screen
3. Dual USB Charge (5V/2A): Charge for Mobile-phone
4. 4 FRONT PANEL OUTLETS
5. 16 REAR PANEL OUTLETS: EMI/RFI Filtered, spike/surge protected and switched.
6. CIRCUIT BREAKER: Resettable 15 Amp thermal circuit breaker.
7. POWER CORD: Heavy duty 14-gauge power cord for connection to the AC Power Mains (115V/60Hz).

INSTALLATION AND OPERATION

1. The Power Conditioners are the perfect accessories for any rack mount system. Install in the top slot of a standard 19-inch rack, and the 4 Front and 16 switched AC outlets on the rear panel will provide full safety protection to al your rack equipment. These conditioners protect your delicate electronic equipment by combining a high voltage varistor surge and transient suppressor with an RFI/EMI interference filter. The filter helps prevent noise from fluorescent lights, motors, and similar sources of “electronic pollution” from contaminating the AC feed to your sensitive video, audio, vtr or computer circuits.

2. Plug Power Cord (7) into a standard grounded 120V outlet.

3. Plug sensitive electronic equipment into the 8 Rear Panel Outlets (4)

4. Turn Outlet Power Switch (1) to "ON" position. Lit LED indicates conditioned power to the connected equipment.

5. MAXIMUM LOAD:

The Power Conditioners 4 Front and 16 Rear Panel Outlets are rated at 15 amps total load (or 3600W at 120VAC). If this maximum load is exceeded, the Circuit Breaker will trip, cutting off power to all connected equipment in your rack. If this happens, reduce the load by unplugging one or more units from the power conditioner, and push the circuit breaker to reset it.

FEATURES:

• Triple Mode Varistor Surge And Spike Protection
• 16 Rear Outlets (With Room For 4 " Wall Warts") Controlled By A Front Panel Switch
• 4 Front Outlets
  • 2 USB Front Outlets (5V x 2A)
  • Digital Voltage Display Screen
  • 15 Amp Rating With Rear Panel Circuit Breaker (UL)
  • Rugged Single Rack Space Metal Housing For Maximum Reliability
• Eliminates Unwanted Radio Frequency Interference (RFI) and Electromagnetic Interference (EMI)
  • Overload and Surge Protection
• 2U Rack Mountable
  • Steel Front Panel and Chassis
• Push to Reset

WHAT'S IN THE BOX:

• 20-Outlet Rack Mount Power Conditioner

TECHNICAL SPECS:

• Power Supply: 120V/60Hz, UL Standard Socket
• Construction Material: Iron
• 6.56 Foot Power Cord
- Peak Impulse Current: 1500 Amps
- Product Dimensions (L x W x H): 48X18.5X9 cm 19" x 7.28" x 3.54"-inches

PYLE

PyleUSA.com

Illustration of a laptop with a red checkmark on screen, next to a partial list of letters (no text or symbols on the laptop or background)

VISIT US ONLINE:

Have a question?

Need service or repair?

Want to leave a comment?

PyleUSA.com/ContactUs

PYLE

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]
