Product Type	Tower Fan
Model	GCTF360
Brand	GoldAir
Height	81 cm
Power Supply	AC 220-240V, 50Hz
Power Consumption	40 W (typical)
Weight	Approx. 4 kg
WiFi Connectivity	2.4 GHz only
App Compatibility	Goldair App (iOS/Android)
Voice Control	Amazon Alexa, Google Assistant
Fan Speeds	3 levels (Low, Medium, High)
Modes	Normal, Natural, Sleep
Oscillation	Left and right swing
Timer	1-12 hours (1-hour increments)
Anion Function	Yes
Display	LED indicators (WiFi, mode, etc.)
Remote Control	Via smartphone app only
Safety Features	Overheat protection, child lock (via app scenario)
Maintenance	Clean grille with soft, dry cloth; do not use water
Repairability	Contact GoldAir support for spare parts

Frequently Asked Questions - GCTF360 GoldAir

How do I pair the fan with the Goldair app?

Ensure your phone is connected to a 2.4 GHz WiFi network. Open the Goldair app, tap '+', select your device (GCTF360), confirm the LED is flashing rapidly (if not, hold the Oscillation button for 5 seconds), then follow the in-app steps. You may use EZ or AP mode.

Why won't my fan connect to WiFi?

The fan only supports 2.4 GHz networks. If your router uses dual-band (2.4/5 GHz), you must separate them. Contact your internet provider for guidance. Also ensure the fan's WiFi LED is flashing rapidly before pairing.

What are the different fan modes?

Normal mode provides constant speed. Natural mode cycles speed every 5 seconds in a low-medium-high-medium-low pattern. Sleep mode starts at high for 30 minutes, then medium for 30 minutes, then low until turned off.

Can I control the fan with Amazon Alexa or Google Assistant?

Yes. After pairing the fan with the Goldair app, link the Goldair skill to Alexa or add the Goldair service to Google Home. Use voice commands like 'Alexa, turn Bedroom Fan on' or 'Ok Google, set Living Room Fan to high'.

How do I set a timer?

In the app, use the countdown timer slider to select hours (1-12). The fan will automatically turn off after the set time. You can also set timers in smart scenes.

What is the oscillation feature?

Oscillation moves the fan left and right to distribute air. It can be toggled via the app or by pressing the Oscillation button on the device (to reset WiFi).

What is the Anion function?

Anion releases negative ions to help purify the air. It can be turned on/off in the app. This feature may reduce dust and allergens.

Can I share control of the fan with family members?

Yes, in the app go to device settings and select 'Share Device'. Enter the family member's email or phone number (they must have the Goldair app installed). Only one user can control the fan at a time.

How do I reset the fan's WiFi?

Press and hold the Oscillation button for 5 seconds until the WiFi LED starts flashing rapidly. This puts the fan into pairing mode.

What should I do if the app stops working?

Ensure your app is updated, your phone is on a 2.4 GHz network, and the fan is powered on. If issues persist, contact GoldAir customer service. Note: as technology evolves, WiFi support for older models may be discontinued.

USER MANUAL GCTF360 GoldAir

Blue background with white wavy horizontal bands (no text or symbols)

Operating Instructions

81cm Electronic Tower Fan with WiFi

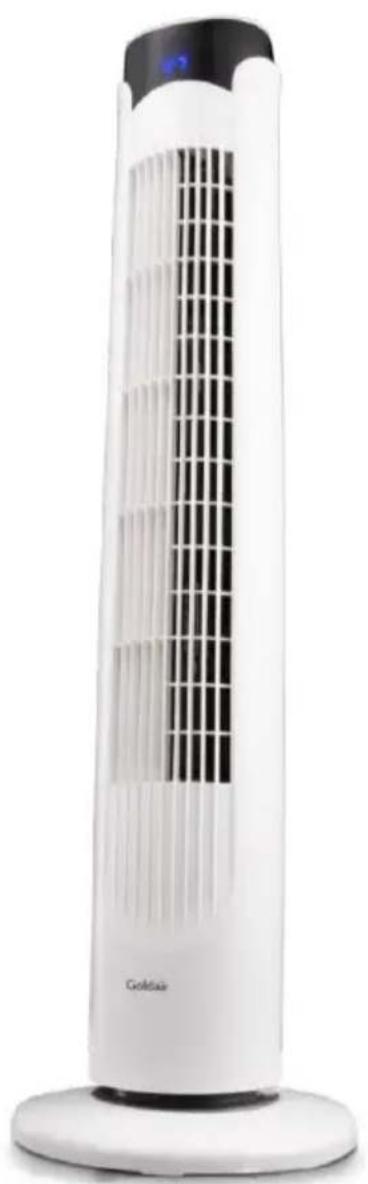

White vertical tower with black ventilation grille and 'Gold tea' branding, no visible text or symbols on the device itself.

Model: GCTF360

Wifi — Downloading and Setting up APP

This APP is supported only on 2.4GHz Wifi channels.

The Goldair app and device pairing process require your 2.4ghz connection to be separated from your 5ghz connection. For instructions on how to do this please contact your internet provider.

Red square logo with white letter 'G' (no text or symbols)

Please note, we endeavour to keep our app up to date as devices and software continue to adapt and evolve. However, with ever changing technology and software we cannot guarantee as models age that their Wifi operation will continue to be supported. If you feel like the day-to-day functionality of your app is impacted, please contact our customer services team.

Download Goldair mobile APP

• Open the APP Store or Google Play on your mobile phone.
• Open 'Search' and enter 'Goldair'
• Click 'GET' and begin to download and install.

Once downloaded to your phone open the APP

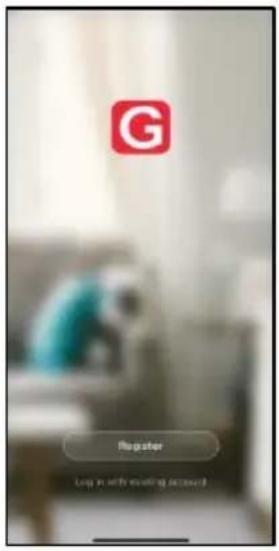

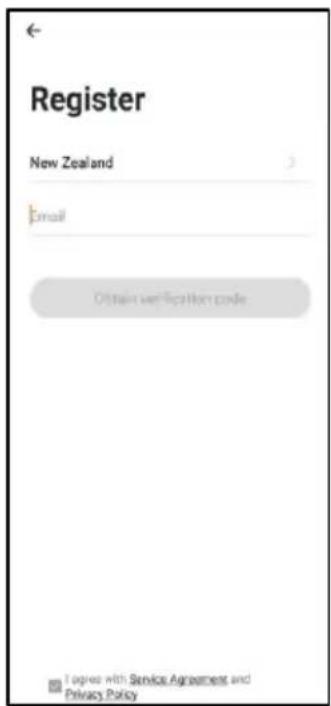

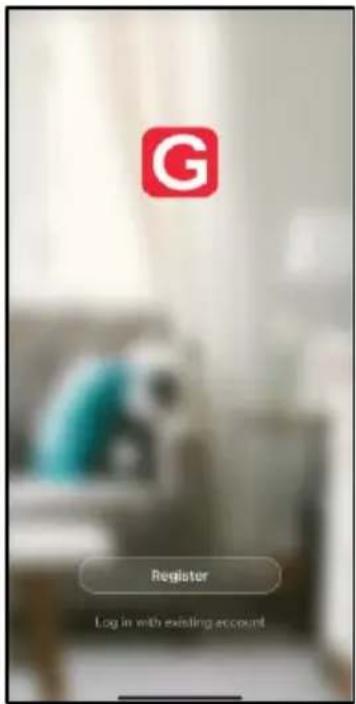

• Tap REGISTER near the bottom of the screen.

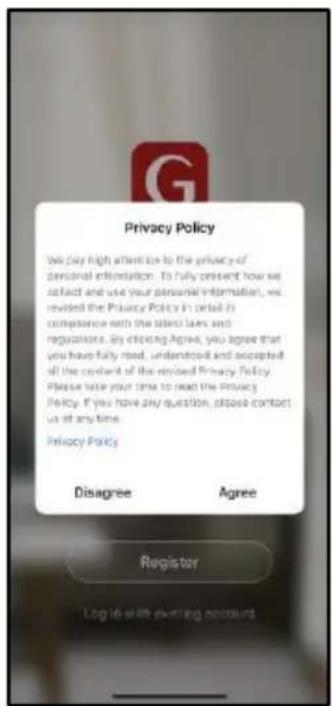

• Read and agree to the Privacy Policy.
- Add your email address.
- Tap 'Obtain verification code'

You will then receive an email with a verification code.

• Enter the verification code from your email.
• Create a password.
• Then tap confirm.

If you haven't received a verification code via email, tap the resend button and when the verification code is received follow above steps.

Your APP is now registered and ready for pairing to your device.

Pairing APP to Device

Connect with 2.4ghz Wifi Network

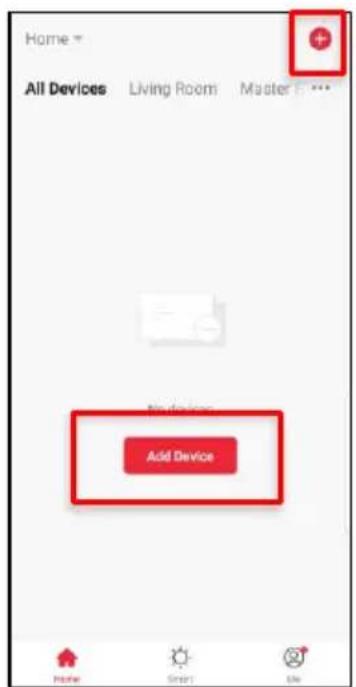

On the Home screen, tap 'Add Device' or the '+' icon.

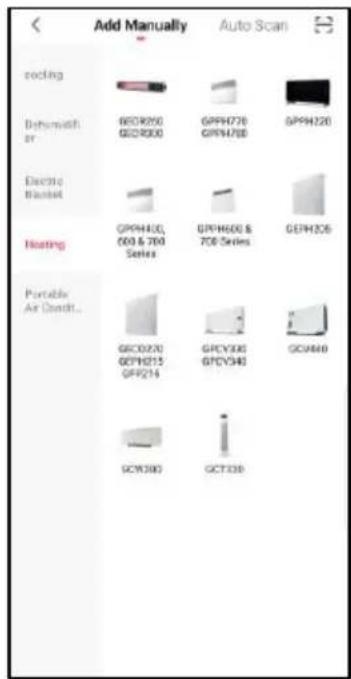

Using the categories on the left, navigate to your device and tap on the image.

Confirm you are connected to a 2.4ghz network. If your 2.4ghz and 5ghz networks are dual banded, click 'Common router setting method' on how to split, or contact your internet provider.

Pairing APP to Device

Connect with 2.4ghz Wifi Network: EZ Mode

See instructions below to finalise your device pairing via EZ mode.

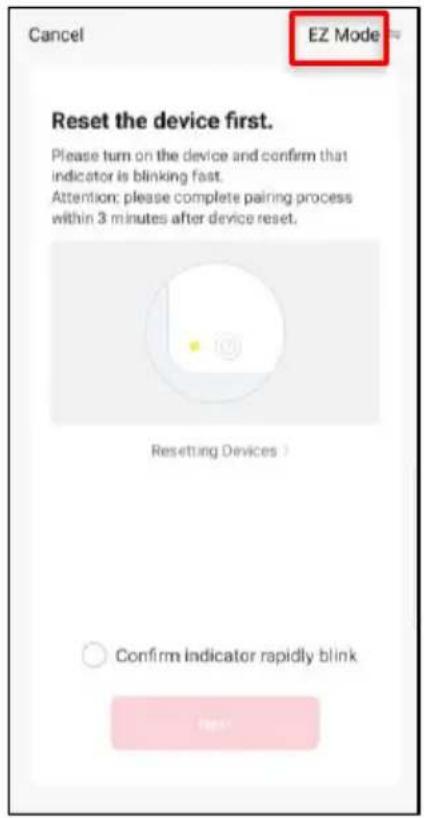

The app will default to EZ Mode in the right hand corner.

Ensure your device's Wifi LED is flashing rapidly.

If it is not, hold down the

"OSCILLATION" button for 5 seconds or until the Wifi icon begins to flash.

Click 'Confirm indicator rapidly blink' and 'Next'

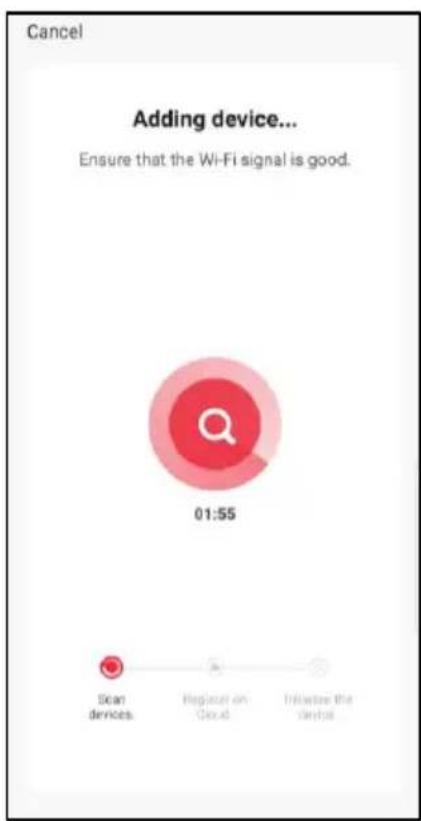

Your device will now pair with the app.

Please ensure your device, modem and phone are as close together as possible and that your 2.4ghz Wifi signal is strong.

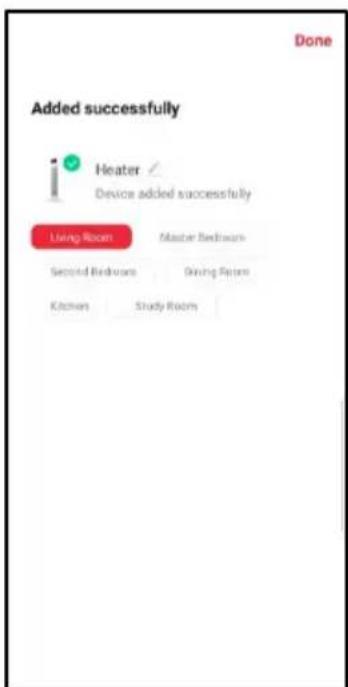

Once the device has paired, choose to rename it by tapping the Pen icon

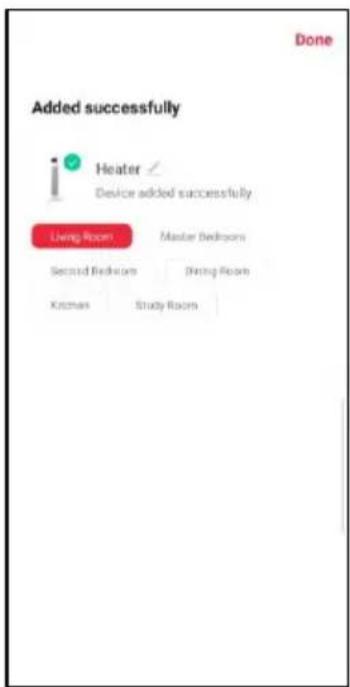

Choose the most suitable room type and click 'Done' in the top right hand corner.

Pairing APP to Device

Connect with 2.4ghz Wifi Network: AP Mode

See instructions below to finalise your device pairing via AP Mode.

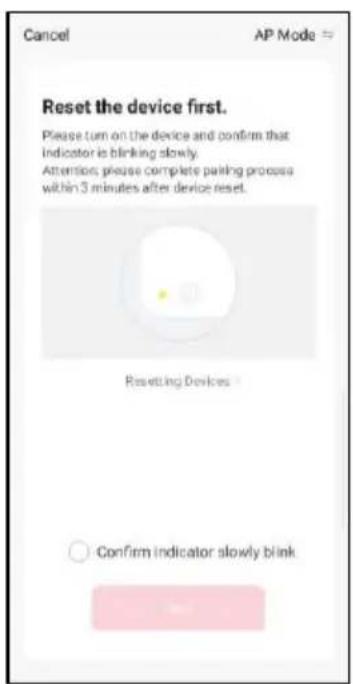

Change 'EZ Mode' to 'AP Mode' by clicking in the top right hand corner Ensure your device's Wifi LED is flashing slowly. If it is not, hold down the "OSCILLATION" button for 5 seconds or until the Wifi icon begins to flash.

Click 'Confirm indicator slowly blink' and 'Next'

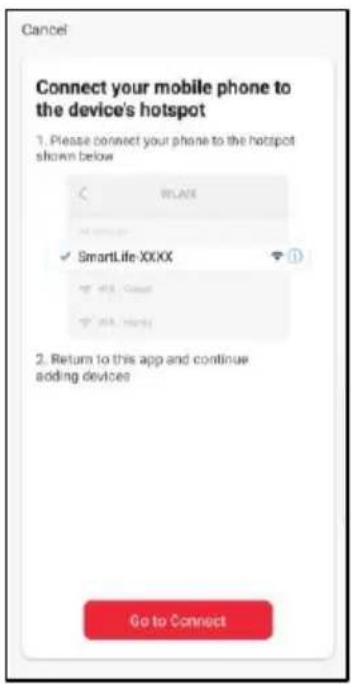

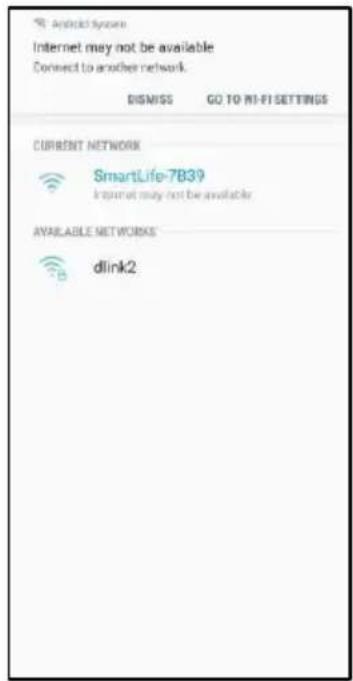

Click 'Go Connect' to connect to the device's Hotspot by selecting the network highlighted on the screen in your app, e.g. 'SmartLife- XXXX'

Select the device's Hotspot network and you will be returned to the app. If not, navigate back to the Goldair app. Note- if you get a notification saying 'Internet may not be available' press Dismiss.

Your device will now pair with the app.

Please ensure your device, modem and phone are as close together as possible.

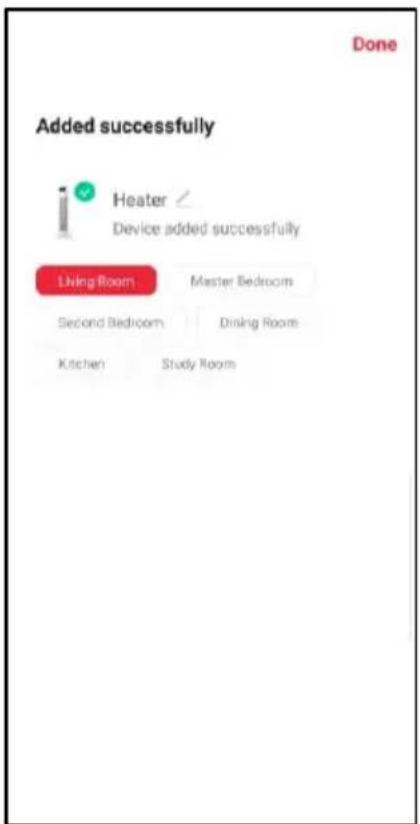

Once the device has paired, choose to rename it by tapping the Pen icon

Choose the most suitable room type and click 'Done' in the top right hand corner.

Pairing APP to Device

Connect with Bluetooth

As an alternative way of connecting your device, you can pair via Bluetooth. Please ensure you have Bluetooth switched on on your mobile phone.

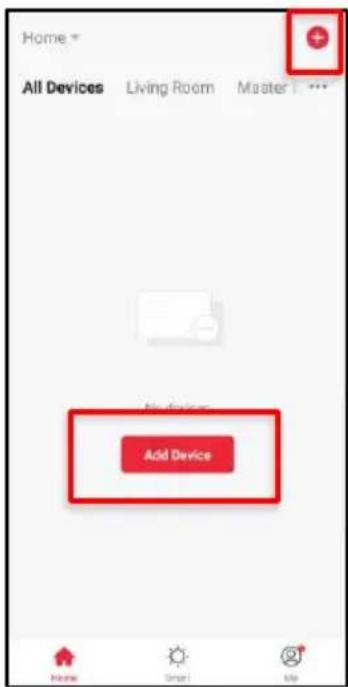

On the Home screen, tap 'Add Device' or the '+' icon.

Ensure your device's Wifi LED is flashing rapidly.

If it is not, hold down the "OSCILLATION" button for 5 seconds or until the Wifi icon begins to flash.

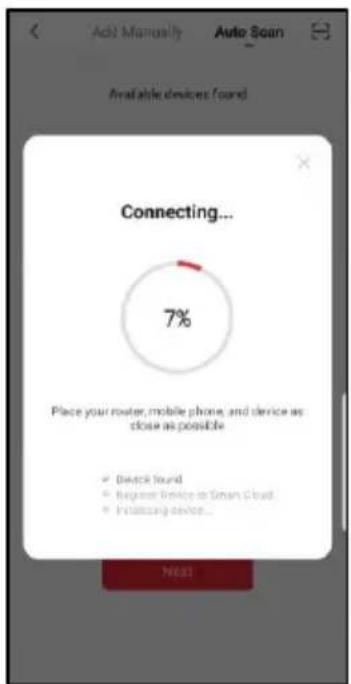

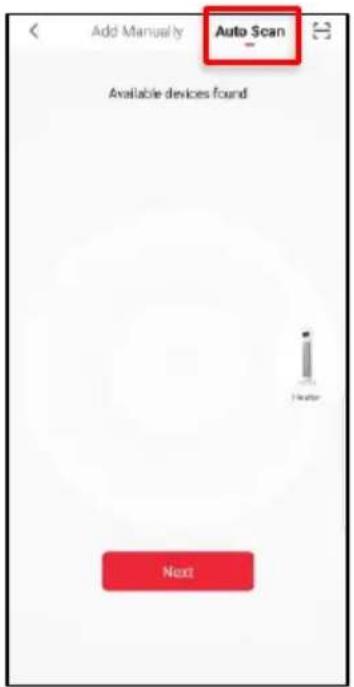

On the top right, click 'Auto Scan'

The app will now scan for Bluetooth devices.

When your device appears, click on the image.

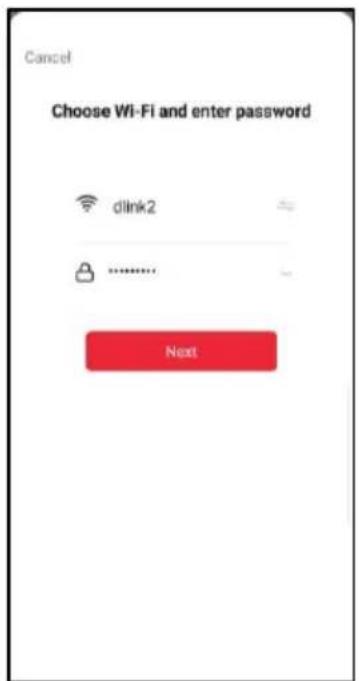

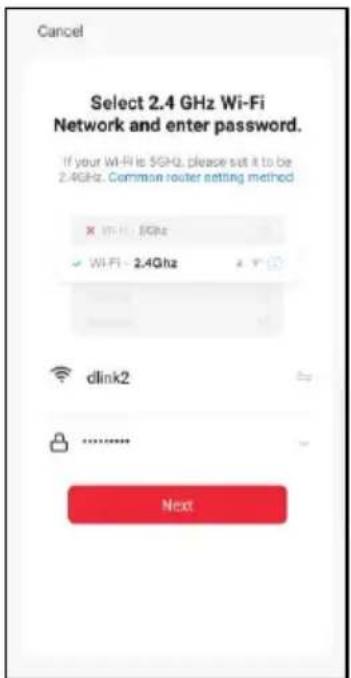

Choose your 2.4ghz Wifi network and add in the password. Click 'Next'

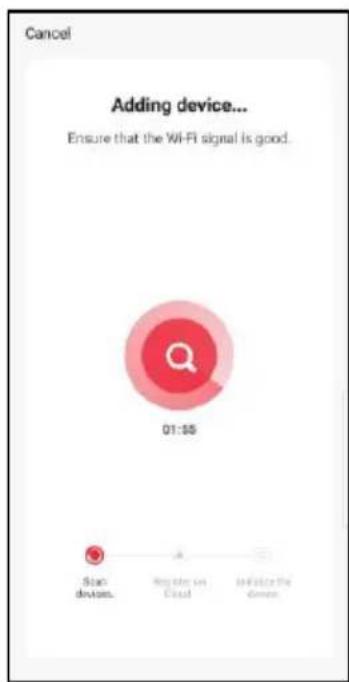

Your device will now pair with the app.

Please ensure your device, modem and phone are as close together as possible.

Once the device has paired, choose to rename it by tapping the Pen icon

Choose the most suitable room type and click 'Done' in the top right hand corner.

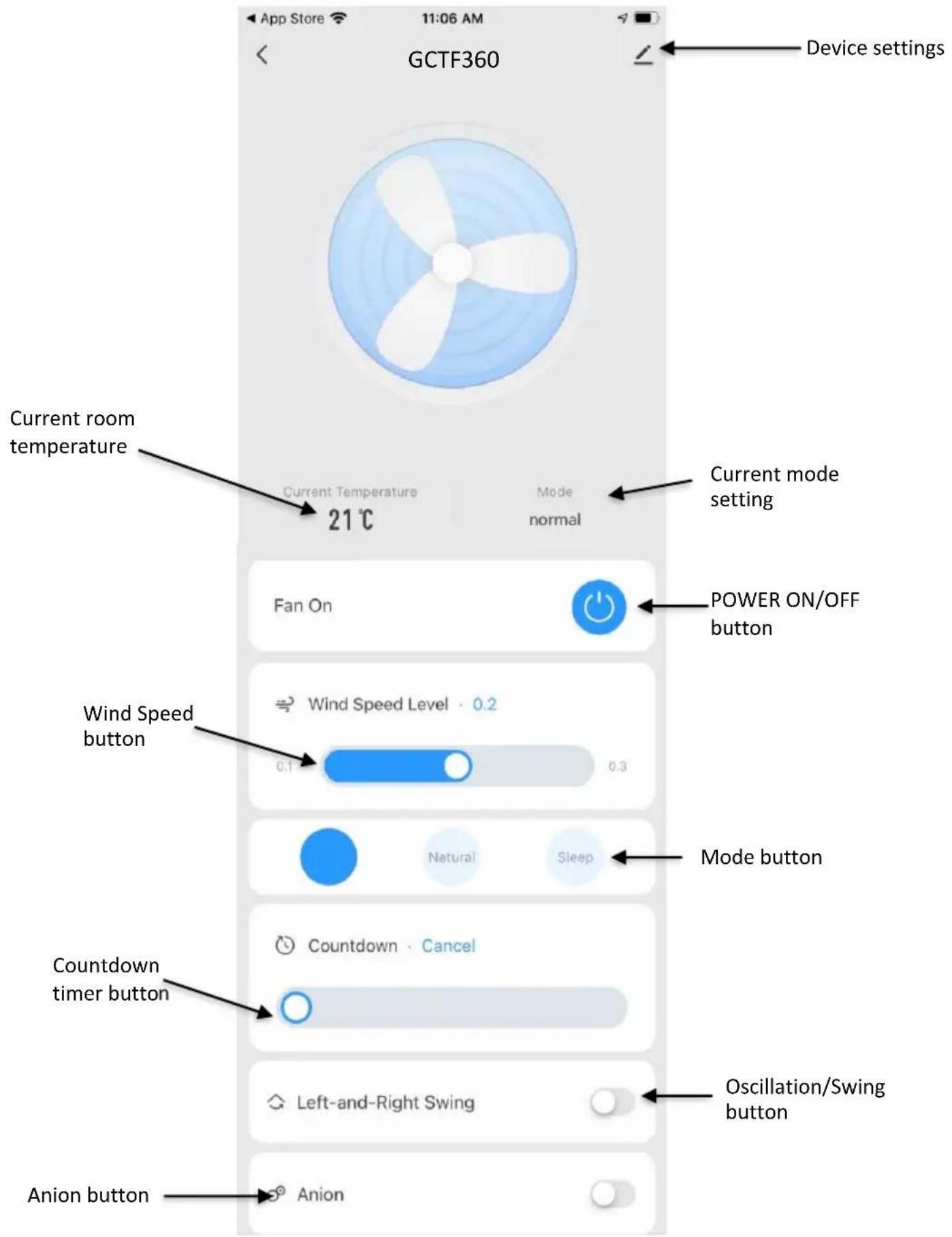

Operating your Fan from the APP

Operating your Fan from the APP

POWER

Click the Power Icon to turn the Fan ON/OFF

WIND SPEED

When the fan is turned on, it will default to Speed Level 1. Move the slider to the middle to activate Speed Level 2, or to the right to activate Speed Level 3.

MODE

When the fan is turned on, it will default to Normal mode. Click the relevant icon to move to Natural and Sleep mode.

Normal: The fan will operate a consistent wind at the speed of your choice

Natural: the speed changes every 5 seconds in a cycle from low to medium to high to medium to low to medium to high to medium to low etc.

Sleep: the sleep function first runs at high speed for half an hour, then at the medium speed for half an hour, then at low speed until the fan is switched off.

Operating your Fan from the APP

COUNTDOWN TIMER

Move the countdown slider to the hour off choice to set a timer to turn the fan OFF. Choose between 1-12 hours in 1 hr increments.

OSCILLATION

Click the Left and Right Swing icon to turn on oscillation.

ANION

Click the Anion icon to turn on Anion.

Set up Tap-To-Run & Create Smart Scenes

Store your favourite settings or set up automated functions based on conditions in the 'Smart' part of your Goldair app.

Warning- you must remember to turn off any Smart functions prior to leaving the house or going away. We recommend you only operate your Goldair devices when someone is on the premises.

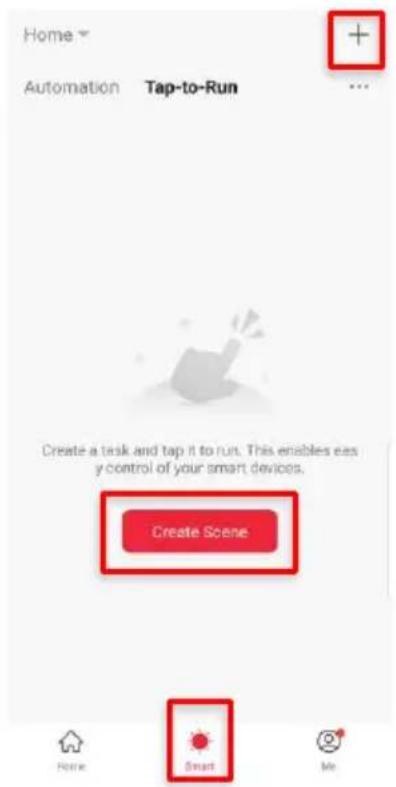

• Tap 'Smart' on the bottom of your mobile phone.
• Tap 'Create Scene' or the '+' icon on the top right.

Click 'Launch Tap-to-Run' to save your preferred settings on your devices to launch at the click of a button. Click 'Run the device' and choose a device. Preset your desired functions such as Power ON/OFF, temperature, mode and timer as per on the device's functions. Click 'Next'

Review your conditions and tasks on this screen, or choose to add another device or task by clicking the '+' icon.

Click Save to store your settings and your new task will appear on the Smart homepage. Click it to operate your desired task.

Set up Tap-To-Run & Create Smart Scenes

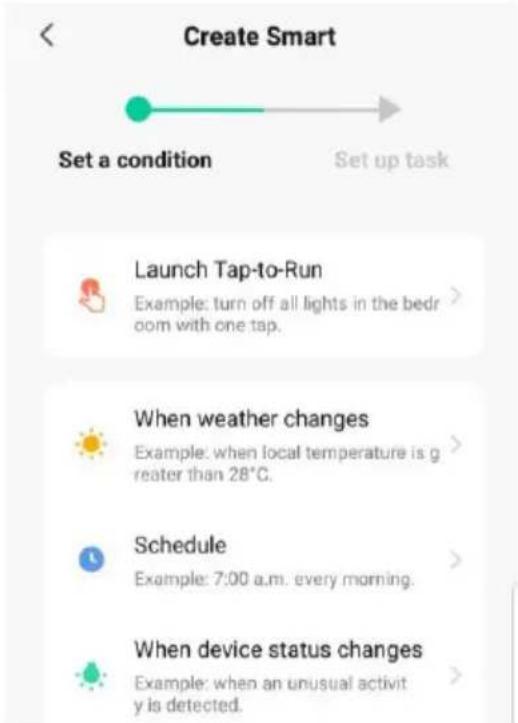

As well as setting up automated Tap-to-Run tasks, you can set conditions to operate your devices.

Weather:

Click ‘When weather changes’ to create a task based on your local outside weather. Choose between temperature, humidity, weather type, sunset/sunrise or wind speed. Select your desired condition and click ‘Next’. Click ‘Run the device’ and choose a device. Preset your desired functions such as Power ON/OFF, temperature, mode and timer as per on the device’s functions. Click ‘Next’. Review your conditions and click save. Your automation will appear on the main Smart homepage.

Schedule:

Click ‘Schedule’ to create a task for your device at selected times of the day. Click ‘Repeat’ to choose days of the week or leave as ‘Once’ to operate as a one off. Choose your desired time from the scroll bar and click ‘Next’. Click ‘Run the device’ and choose a device. Preset your desired functions such as Power ON/OFF, temperature, mode and timer as per on the device’s functions. Click ‘Next’. Review your conditions and click save. Your automation will appear on the main Smart homepage.

Status Change

Click ‘When device status changes’ to create a condition based on any function on your device, for example turning the Power Off when any device function is changed (to act as a child lock)

Voice Control

Once your smart scenes are set up, you can use Amazon Alexa or Google Home Routines to operate the scenes via voice control. Refer to your Amazon or Google Home user guides for instructions on how to pair your routine to smart scenes.

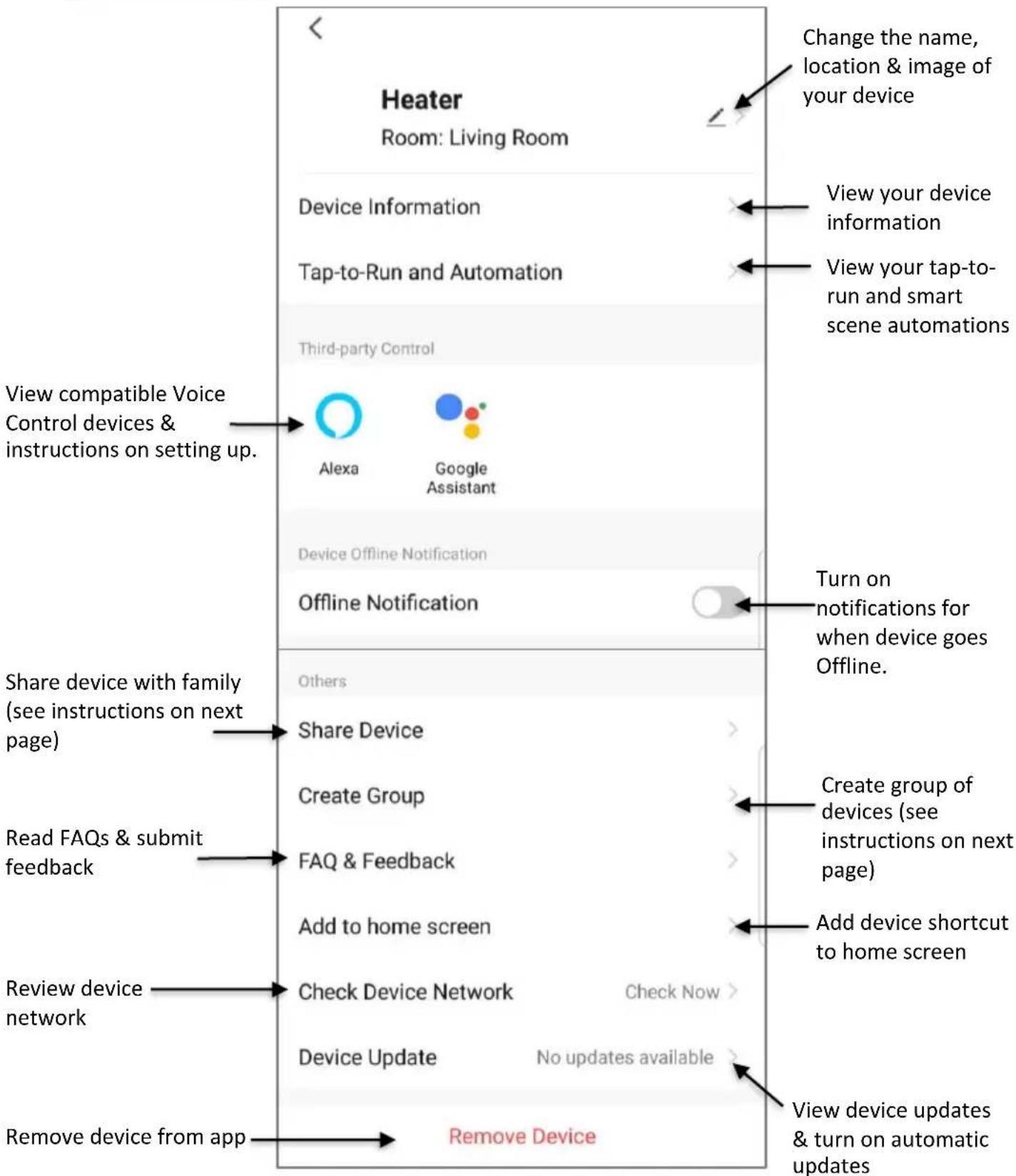

Operating your Device from the APP

Device settings:

    style A fill:#f9f,stroke:#333
    style B fill:#ccf,stroke:#333
    style C fill:#cfc,stroke:#333
    style D fill:#fcc,stroke:#333
    style E fill:#cff,stroke:#333
    style F fill:#ffc,stroke:#333
    style G fill:#ffc,stroke:#333
    style H fill:#cfc,stroke:#333
    style I fill:#fcc,stroke:#333
    style J fill:#ffc,stroke:#333
    style K fill:#cfc,stroke:#333
    style L fill:#cfc,stroke:#333
    style M fill:#cfc,stroke:#333
    style N fill:#cfc,stroke:#333

    note1["Change the name, location & image of your device"] --> A
    note2["View your device information"] --> B
    note3["View your tap-to-run and smart scene automations"] --> C
    note4["Turn on notifications for when device goes Offline."] --> I
    note5["Create group of devices (see instructions on next page)"] --> K
    note6["Add device shortcut to home screen"] --> M

    %% Note labels in A,B,C,D,E,F,G,H,I,J,K,L,M,N,O,P,Q,R,S,T,U,V,W,X,Y,Z,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,N,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,n,u,k,l,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,m,k,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,l,r,k,l,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,s,r,e,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k-r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,r,k,t,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,x,u,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,w,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,qp,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,p,q,a,b,c,d,f,g,h,i,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,t,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u-v,a,b,c,d,f,g,h,i,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,j,t,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u,v,u-v,a,b,c,d,f,g,h,i,j,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h ,e,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,hi,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h,i,e,f,g,h{i},\\

Operating your Device from the APP

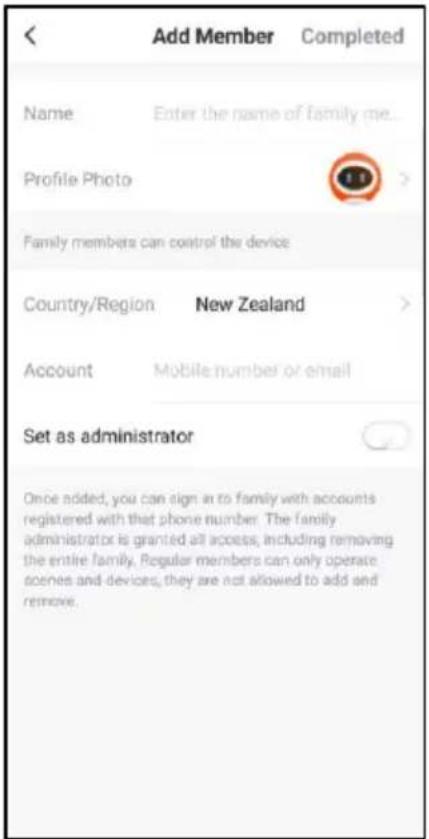

Share device with family member:

• The person you add will need to have the Goldair APP installed on their phone.
• Enter your family member's details to share device operation with them.
• Tap 'Confirm' to complete the addition.

Remove family member from device:

- Tap 'Share Devices' to delete the number of the person you want to cancel. Tap 'Confirm' to confirm.

NOTE: There can only be one user operating the device at a time. The APP needs to be closed on all other devices to enable the sharing to work.

NOTE: If someone else sets up their phone on the same device without using the 'Device Sharing' the original phone will be disconnected and the device will disappear from the device list.

Group your devices:

Devices within the same group can be controlled simultaneously

• Under 'Create Group' setting, select all devices you wish to group together. Click 'Save'
  • Enter a group name of choice. Click Save.

You can now operate all devices within this group simultaneously.

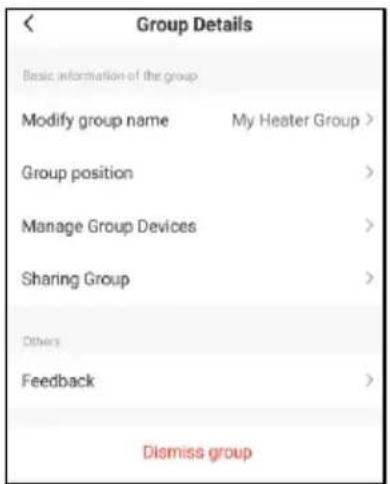

Ungroup your devices:

• Click on to pen icon within device group
• Select 'Dismiss Group'

You have now deleted your group.

How to connect to your Alexa devices

• Download the Goldair App and pair your device.

Note: change the name of the device to an easily identifiable name such as 'Bedroom Fan' or 'Living Room Heater'

Note: Ensure you have downloaded and have configured the Amazon Alexa app. Please see your Alexa device's user manual for instructions.

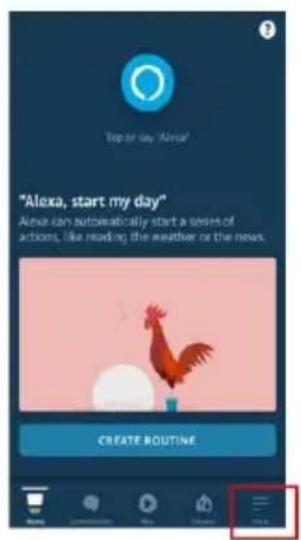

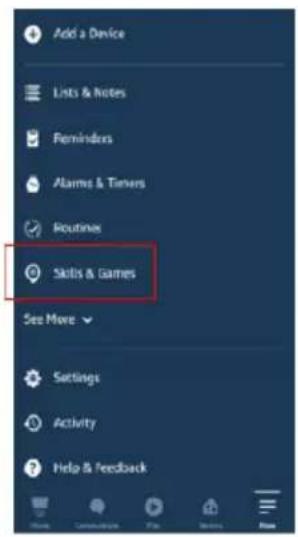

• On the main page of the Alexa app, click the 'More' icon in the bottom right hand side of the page. Click on 'Skills and Games'

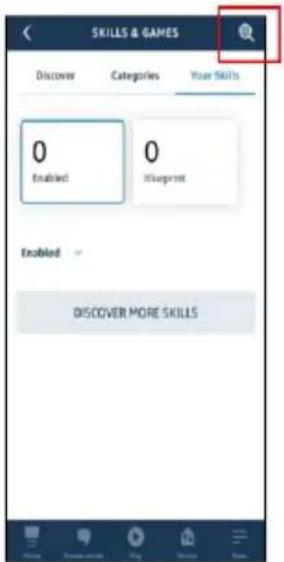

• Click on the search icon in the top right hand corner

- Click on the search icon in the top right hand corner

How to connect to your Alexa devices

• Type 'Goldair' in the search bar and click to proceed.

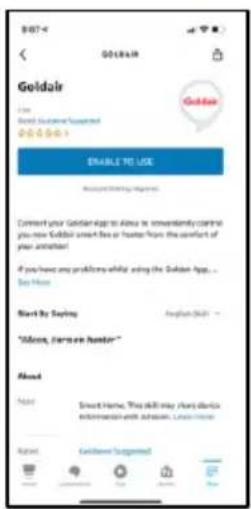

- Click 'Enable to use' and type your phone number/email address and password and click 'Link Now'

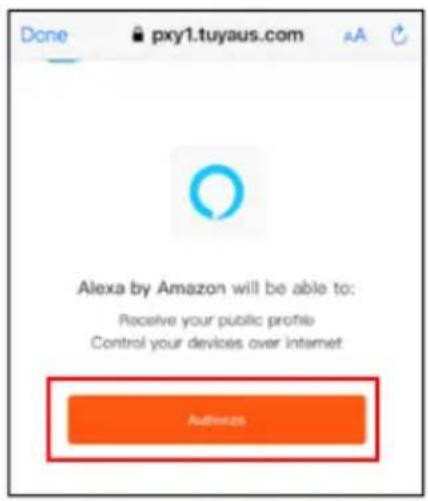

- Click 'Authorise' and go back to the Home screen. Your devices will now appear and you can operate using voice control.

How to connect to your Alexa devices

SUGGESTED VOICE COMMANDS

Note: Amazon and Google are in control of voice control functionality and terminology. Not all functions available via the controller or APP can be controlled via voice command.

Voice control on your device will allow you to turn ON and OFF and adjust the settings.

Suggested voice commands to work with your Alexa device are:

Turning ON/OFF

Alexa, turn "Device Name" ON

Alexa, turn "Device Name" OFF

Adjust the settings

Alexa, turn "Device Name" to High (omit High with the desired setting or speed)

How to connect to your Google Home devices

Follow the below instructions to connect your device to Google Home.

• Download the Goldair App and pair your device.

Note: change the name of the device to an easily identifiable name such as 'Bedroom Fan' or 'Living Room Heater'

Note: Ensure you have downloaded and have configured the Google Home/Assistant apps. Please see your Google device's user manual for instructions.

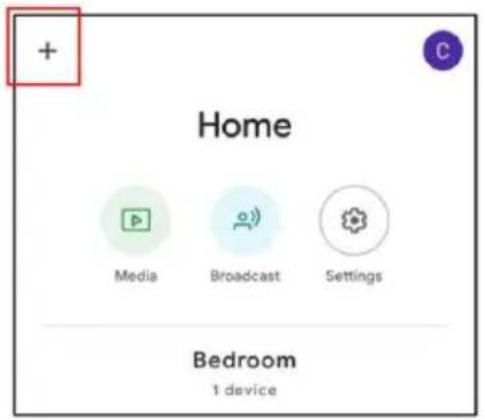

- On the main page of the Google Home app, click the '+' icon in the top left hand side of the page.

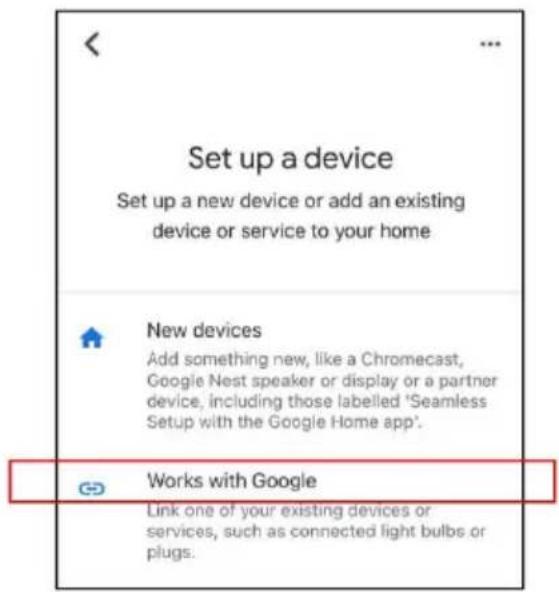

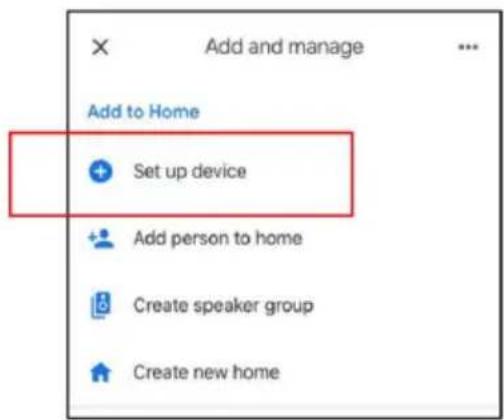

- Click 'Set up device'

How to connect to your Google Home devices

- Click 'Works with Google'

- Type 'Goldair' in the search bar and click to proceed.

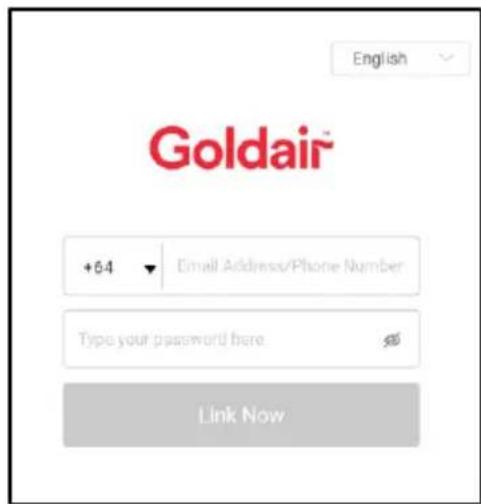

- Type your phone number/ email address and password and click 'Link Now'

How to connect to your Google Home devices

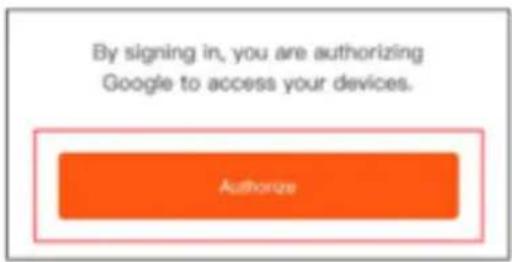

- Click Authorise and all devices from your Goldair App will appear on screen.

• You have the option to add these to a particular room in your home

- When you go back to the Home screen, your devices will now appear and you can operate using voice control.

SUGGESTED VOICE COMMANDS

Note: Amazon and Google are in control of voice control functionality and terminology. Not all functions available via the controller or APP can be controlled via voice command.

Voice control on your device will allow you to turn ON and OFF and adjust the settings. Suggested voice commands to work with your Google device are:

Turning ON/OFF

Ok Google, turn "Device Name" ON

Ok Google, turn "Device Name" OFF

Adjust the settings

Ok Google, turn "Device Name" to High (omit High with the desired setting or speed)

Goldair™

Blue and white wavy flag pattern (no text or symbols)

CDB Goldair

New Zealand

PO Box 100707,

North Shore Mail Centre,

Auckland, 0745

www.goldair.co.nz

Australia

PO Box 574,

South Morang,

Victoria, 3752

www.goldair.com.au
