Product Type	Indoor/Outdoor Speaker with Bluetooth
Model	PA360
Dimensions (Speaker)	10" W x 27" H x 12" D
Weight (Speaker)	25 lbs
Power Supply Input	AC120V-240V, DC26.5V
Battery Life	Up to 8 hours at max volume
Bluetooth Version	Bluetooth 4.0 with aptX support
Bluetooth Range	Up to 150 ft
Audio System	2.1 with 8" woofer and 4 x 3" speakers
Amplifier Power	L&R > 20W×2 (THD=1%), SW > 45W (THD=1%)
Connectivity	Bluetooth, 3.5mm Aux input
Controls	Illuminated touch buttons: Play/Pause, Revert, Forward, Volume, Power
LED Indicators	Bluetooth (blue/yellow), Power (orange/red/green)
Weather Resistance	Water, weather, and UV resistant
Carrying Convenience	Tilted handle and low profile wheels
Audio Codecs	aptX, AAC
Warranty (Speaker)	2 years
Warranty (Battery)	1 year
Package Contents	Speaker, Power Supply, Product Manual

Frequently Asked Questions - PA360 PulseAudio

How do I connect my phone to the PA360 via Bluetooth?

Turn on the speaker and enable Bluetooth on your device. Search for 'PA360' and select it. If prompted, confirm pairing. The Bluetooth LED will illuminate solid blue when connected.

What should I do if the speaker doesn't connect via Bluetooth?

Power the speaker off and then back on. Make sure Bluetooth is enabled and discoverable on your source device. If it still fails, try forgetting the device and re-pairing.

How long does the battery last on a full charge?

The built-in rechargeable battery provides up to 8 hours of play time at maximum volume.

Can I use the PA360 while it is charging?

Yes, you can use the speaker while it is connected to the power supply.

What are the dimensions and weight of the speaker?

The speaker measures 10 inches wide, 27 inches high, and 12 inches deep, and weighs 25 pounds.

Is the PA360 suitable for outdoor use?

Yes, it is water, weather, and UV resistant, making it ideal for both indoor and outdoor use.

How do I clean the speaker?

Use a dry cloth only. Always unplug the power before cleaning. Do not use liquid or aerosol cleaners.

What is the warranty period for the PA360?

Vanco warrants the speaker to be free from defects for 2 years and the battery for 1 year from the date of purchase.

How can I get technical support?

Call Vanco Technical Support at 1-800-626-6445 or email [e-mail]. Have the Model Number, Serial Number, and invoice ready.

Does the PA360 comply with FCC regulations?

Yes, this device complies with Part 15 of the FCC Rules. It is tested and found to meet limits for a Class B digital device.

USER MANUAL PA360 PulseAudio

WITH BLUETOOTH® WIRELESS TECHNOLOGY

Close-up of a dark blue portable electronic device with a circular vent and control buttons (no visible text or symbols)

PART NUMBER PA360

EXPERIENCE 360° OF SOUND

pulseaudio1.com | vanco1.com | 800.626.6445

DEAR CUSTOMER

Thank you for purchasing this product. For optimum performance and safety, please read these instructions carefully before connecting, operating or adjusting this product. Please keep this manual for future reference.

THIS PRODUCT IS 100% INSPECTED AND TESTED IN THE UNITED STATES TO VERIFY PERFORMANCE PARAMETERS.

WARNING

1. Do not install or place this unit in a built-in cabinet, or other confined space without adequate ventilation.
2. To prevent risk of electrical shock or fire hazard, due to overheating do not obstruct unit's ventilation openings.
3. Do not install near any source of heat, including other units that may produce heat.

4. Do not place unit near flames.

5. Only clean unit with a dry cloth.

6. Unplug unit during lightning storms or when not used for an extended period of time.
7. Protect the power cord from being walked on or pinched, particularly at the plugs.
8. Use unit only with accessories specified by the manufacturer.
9. Refer all servicing to qualified personnel.

Bluetooth®

The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Vanco International, LLC is under license. Other trademarks and trade names are those of their respective owners.

- FEATURES

The PA360 is a complete 2.1 audio system. It allows the user to connect wirelessly either from a Bluetooth® Wireless Technology enabled source device (phone, computer, etc.) or directly with a 3.5mm stereo cable to play high quality audio indoors or outdoors. The rechargeable battery allows for up to 8 hours max volume of play time off of a single charge. The top panel allows for manual control of the audio source and indicates when a device is connected Bluetooth and when the battery has little or no charge left. The PA360 is a versatile audio system for use indoors, outdoors and on the go.

INDOOR/OUTDOOR SPEAKER WITH BLUETOOTH® WIRELESS TECHNOLOGY Part # PA360

• Water, weather, and UV resistant for use indoor, outdoor and on the go
- 2.1 audio system with 8" woofer provides 360° of commanding sound
- Tilted carrying handle and low profile wheels for easy maneuverability
• Built-in rechargeable battery with up to 8 hours of max volume play time
- Bluetooth® Wireless Technology & Auxiliary input ports built-in
- Connect via Bluetooth® Wireless Technology - Broadcast Range of up to 150 ft.
- Illuminated touch button controls and LED indicators
- Supports Bluetooth ^ and Bluetooth AptX ^TM encoding and decoding technology, Apple ^ audio coding (AAC)

Black cylindrical electronic device with control panel and side legs (no visible text or symbols)

○ PACKAGE CONTENTS

• PA360 Indoor/Outdoor Speaker
- Power Supply
- Product Manual

- SPECIFICATIONS

Input Power Voltage: Adaptor Input.....AC120V-240V, DC Charge Input: DC26.5V

Amplifier rated output power.... L&R > 20W×2 (THD=1%), SW > 45W (THD=1%)

Amplifier Solution....TPA3118 ×2 : BTL×2 + 1PBTL

Bluetooth ....Bluetooth 4.0 with aptX® support, A2DP1.2 and AVRCP1.4

Speaker....L&R 3"4Ω×4, SW 8"4Ω

Speaker Dimensions ....10" W x 27" H x 12" D

Speaker Weight....25 lbs

Carton Dimensions....16" W x 33.5" H x 17" D

Carton Weight....33 lbs

To Connect via Bluetooth® Wireless Technology:

1. Turn on the PA360 and make sure Bluetooth is enabled and is discoverable within the audio source settings of your device
2. Search for Bluetooth labeled "PA360"
3. Once PA360 has been selected, wait momentarily for the devices to connect.
4. If you are unable to connect, power the PA360 off then back on

To Connect via Auxiliary:

1. Using a quality 3.5mm stereo cable connect the audio source
2. Connect the other end of the 3.5mm stereo cable to the PA360
3. Turn on the speaker and test

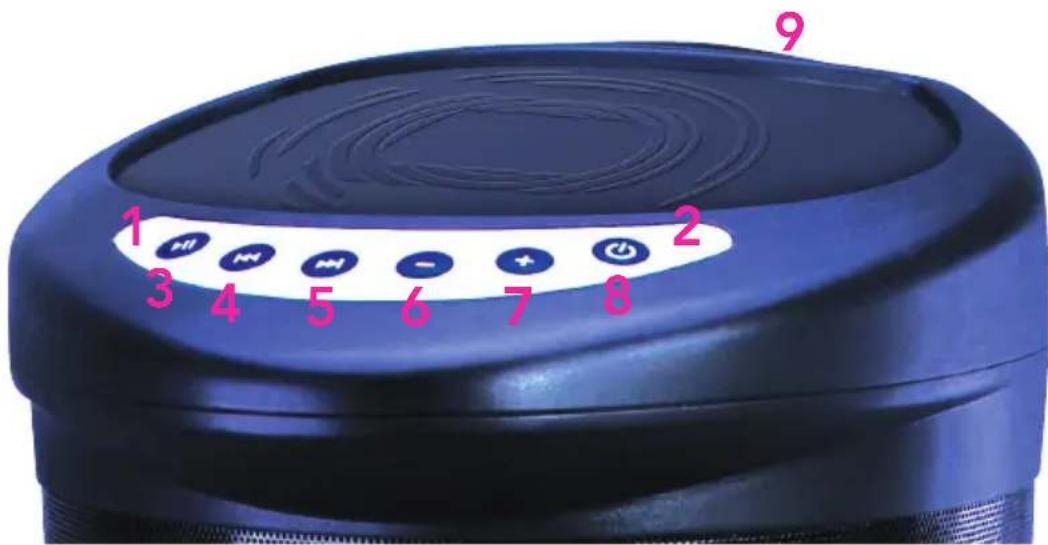

- PANEL DESCRIPTIONS

1. Bluetooth LED: To pair Press and Hold the Play/Pause key. Once paired, the Bluetooth Indicator Light will illuminate in blue. If not paired after powering on, the Bluetooth indicator light will flicker between red and blue. If not paired for 5 minutes, the Bluetooth indicator light will flicker fast in blue. The Bluetooth Indicator light will illuminate yellow when using the Auxiliary Input.

2. Power LED: “When power is less than 40%, it will illuminate in Orange. It will show Red when power is less than 20%. When charging it will illuminate in Green.

3. Play/Pause: Press to Play or Pause your music playing device or answer and hang up phone. Press and Hold to pair device.

4. Revert: Press to revert to the last song

5. Forward: Press to play the next song

6. Decrease Volume: Press to reduce the volume

7. Increase Volume: Press to increase the volume

8. Power On/Off Switch

9. 3.5mm Input

10. Not pictured - Power Supply input located at the base of the speaker

- SAFETY AND NOTICE

This product has been tested for conformance to safety regulations and requirements, and has been certified for international use. However, like all electronic equipment, this should be used with care. Please read and follow the safety instructions to protect yourself from possible injury and to minimize the risk of damage to the unit.

• Follow all instructions and warnings marked on this unit.
• Do not attempt to service this unit yourself, except where explained in this manual.
• Provide proper ventilation and air circulation
• Keep away objects that might damage the device and assure that the placement of this unit is on a stable surface.
• Use only the power adapter and power cords and connection cables designed for this unit.
• Do not use liquid or aerosol cleaners to clean this unit.
  • Always unplug the power to the device before cleaning.

- TECHNICAL SUPPORT

In case of problems, please contact Vanco Technical Support by dialing 1-800-626-6445. You can also email technical support issues to [e-mail] When calling, please have the Model Number, Serial Number (affixed to the bottom of the unit) and Invoice available for reference during the call. Please read this Instruction Manual prior to calling or installing this unit, since it will familiarize you with the capabilities of this product and its proper installation. All active electronic products are 100% inspected and tested to insure highest product quality and trouble-free installation and operation. The testing process utilizes the types of high-definition sources and displays typically installed for entertainment and home theater applications.

◦ LIABILITY STATEMENT

Every effort has been made to ensure that this product is free of defects. The manufacturer of this product cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user and installer of the hardware to check that it is suitable for their requirements and that it is installed correctly. All rights are reserved. No parts of this manual may be reproduced or transmitted by any form or means electronic or mechanical, including photocopying, recording or by any information storage or retrieval system without the written consent of the publisher.

Manufacturer reserves the right to revise any of its hardware and software following its policy to modify and/or improve its products where necessary or desirable. This statement does not affect the legal rights of the user in any way.

- LIMITED WARRANTY

With the exceptions noted in the next paragraph, Vanco warrants to the original purchaser that the equipment it manufactures or sells will be free from defects in materials and workmanship for a period of two years from the date of purchase. Should this product, in Vanco's opinion, prove defective within this warranty period, Vanco, at its option, will repair or replace this product without charge. Any defective parts replaced become the property of Vanco. This warranty does not apply to those products which have been damaged due to accident, unauthorized alterations, improper repair, modifications, inadequate maintenance and care, or use in any manner for which the product was not originally intended.

Items integrated into Vanco products that are made by other manufacturers, notably computer hard drives and liquid crystal display panels, are limited to the term of the warranty offered by the respective manufacturers. Such specific warranties are available upon request to Vanco. A surge protector, power conditioner unit, or an uninterruptible power supply must be installed in the electrical circuit to protect against power surges. Vanco warrants the Indoor/Outdoor Speaker (# PA360) to be free from defects for a period of 2 years. Vanco warrants the battery to be from defects for a period of 1 year.

If repairs are needed during the warranty period, the purchaser will be required to provide a sales receipt/sales invoice or other acceptable proof of purchase to the seller of this equipment. The seller will then contact Vanco regarding warranty repair or replacement.

- FCC STATEMENT

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

This device complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Vanco® International

506 Kingsland Drive Batavia, Illinois 60510

call: 800.626.6445 | fax: [phone]

visit: www.vanco1.com
