ERF60W - Range hood Esatto - Free user manual and instructions
Find the device manual for free ERF60W Esatto in PDF.
Pick your language and provide your email: we'll send you a specifically translated version.
| Product Type | Range Hood |
| Brand | Esatto |
| Model | ERF60W |
| Width | 60 cm (approx.) |
| Depth | 50 cm (approx.) |
| Height | 15 cm (approx.) |
| Weight | 10 kg (approx.) |
| Power Supply | 220-240 V ~ 50 Hz |
| Max Power Consumption | 150 W (approx.) |
| Number of Speeds | 3 |
| Extraction Capacity | 600 m³/h (approx.) |
| Noise Level | 65 dB (approx., max speed) |
| Lighting | LED (2 x 1.5 W, approx.) |
| Filter Type | Aluminum grease filter, washable |
| Number of Filters | 2 |
| Ducting | 150 mm diameter, top or rear outlet |
| Control Type | Slide switch or push buttons |
| Energy Class | A (approx.) |
| Certifications | CE, RoHS |
| Cleaning | Wipe with damp cloth; grease filters washable in dishwasher |
| Safety Features | Thermal cutout, motor overload protection |
| Spare Parts Availability | Filters, lamps, control board (contact Esatto) |
Frequently Asked Questions - ERF60W Esatto
How do I install the Esatto ERF60W range hood?

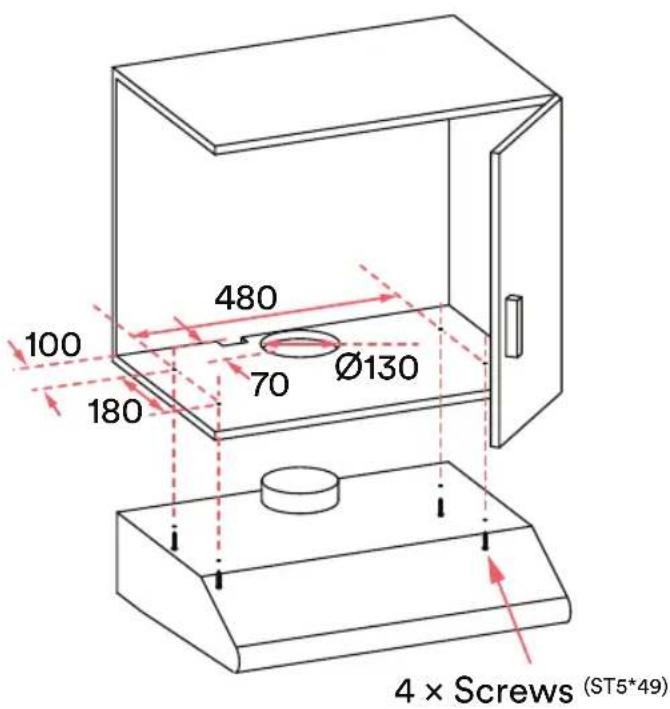

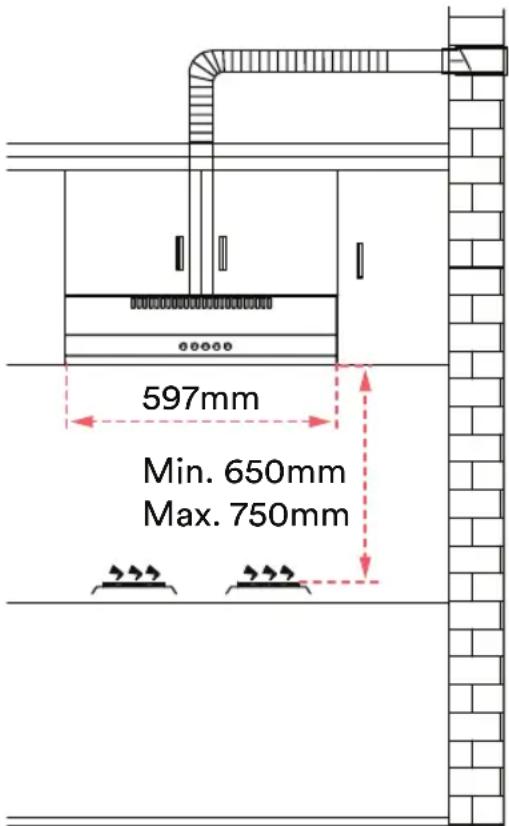

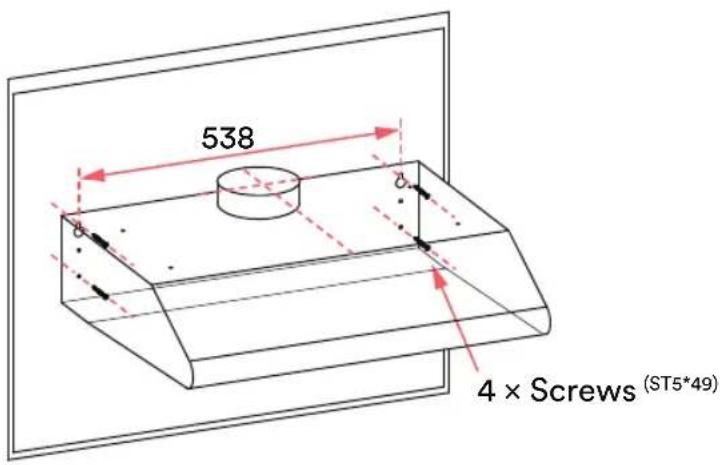

Installation should be done by a qualified professional. Ensure the hood is mounted at least 65-75 cm above gas hobs or 60-65 cm above electric hobs. Use the provided mounting bracket and ducting (150 mm diameter) for external exhaust. For recirculation mode, install charcoal filters.

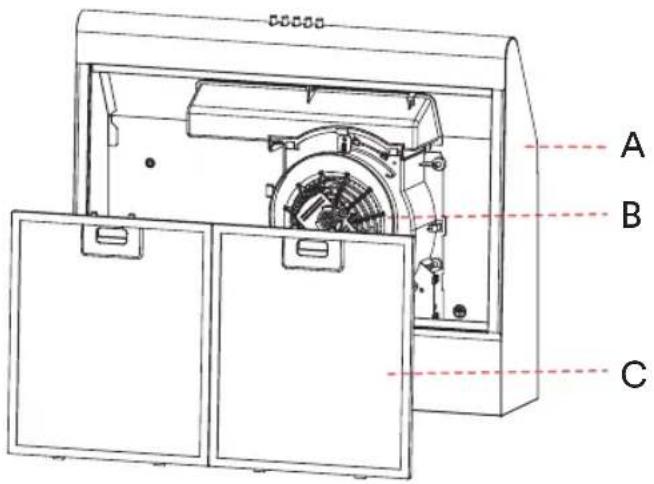

How do I clean the grease filters?
The aluminum grease filters are washable. Remove them from the hood and soak in warm soapy water, or place in the dishwasher (low temperature cycle). Let dry completely before reinstalling. Clean at least every 2 months for optimal performance.

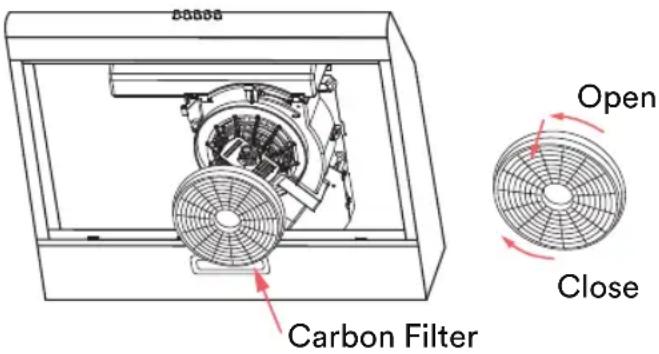

How often should I replace the charcoal filters?
Charcoal filters (if used in recirculation mode) should be replaced every 3-6 months, or when you notice reduced odor absorption. They are not washable. Refer to the manual for compatible part numbers.
Why is the hood not working?
Check if the power cord is plugged in and the circuit breaker is on. Ensure the speed selector is set correctly. If the motor hums but not spin, the fan wheel may be blocked. If no display or lights, the fuse may have blown.

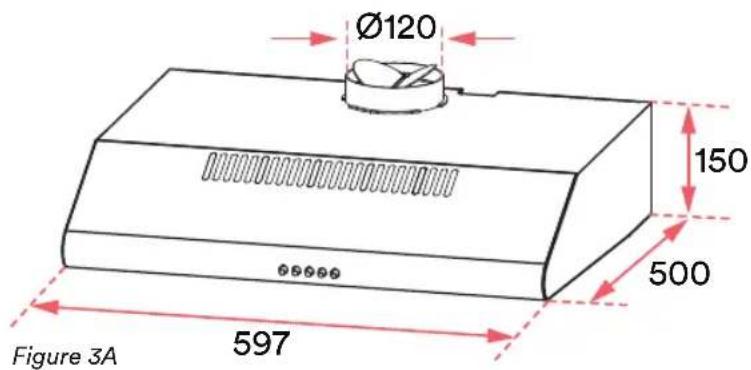

What are the dimensions of the Esatto ERF60W?
The hood is approximately 60 cm wide, 50 cm deep, and 15 cm high. Exact dimensions can be found in the product manual or by contacting Esatto support.
Can I use the hood with a recirculation mode?
Yes, the ERF60W can be used in recirculation mode by adding charcoal filters (sold separately). Air is filtered through charcoal and returned to the kitchen. Ensure the top outlet is closed with a cover.

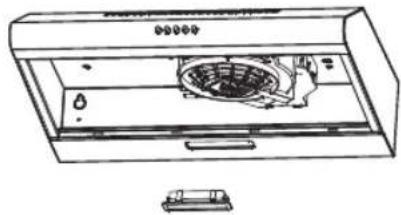

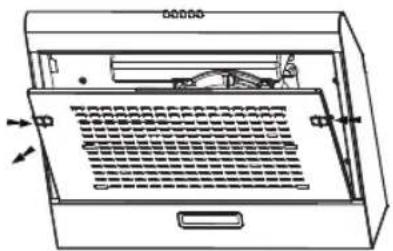

How do I replace the LED lights?
The LED lights are integrated and not replaceable by the user. If they fail, contact Esatto customer service for assistance. Do not attempt to open the light assembly.
What is the noise level of this range hood?
At maximum speed, the noise level is approximately 65 dB. Lower speeds are quieter. Actual noise may vary depending on installation and ducting.
Does the hood come with a warranty?
Yes, the Esatto ERF60W comes with a standard manufacturer warranty of 2 years (conditions apply). Register your product on the Esatto website for extended coverage.
How do I reset the filter saturation indicator?
If your model has a filter saturation indicator, press and hold the speed button for 3 seconds until the indicator light turns off. This resets the timer for both grease and charcoal filters.
User questions about ERF60W Esatto
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
