Product Type	Tumble Dryer
Brand	LG
Model	RC8066G2F
Capacity	8 kg
Dimensions (H x W x D)	85 cm x 60 cm x 60 cm
Weight	46 kg
Energy Class	A++
Annual Energy Consumption	236 kWh
Drying Type	Heat Pump
Noise Level	62 dB(A)
Power Supply	220-240 V, 50 Hz
Motor Type	Inverter
Sensor Dry Technology	Yes
Reverse Tumble	Yes
Child Lock	Yes
Delay End	Up to 19 hours
Filter Cleaning Indicator	Yes
Condenser Self-Cleaning	Yes
Warranty	2 years

Frequently Asked Questions - RC8066G2F LG

How do I install the tumble dryer?

Place the dryer on a level, sturdy floor. Leave at least 10 cm clearance on all sides for ventilation. Connect the power plug to a grounded outlet. Do not use extension cords.

How do I clean the filter?

After each cycle, remove the lint filter from the door opening. Rinse it under water and dry thoroughly before reinserting. Clean the filter twice a month with a soft brush.

Why is my dryer making a loud noise?

Check for objects like coins or buttons in the drum. Ensure the dryer is level. A knocking sound may indicate an unbalanced load. If noise persists, contact service.

What does the heat pump system require?

The heat pump dryer uses a refrigerant to reuse hot air. It requires periodic cleaning of the condenser fins (follow manual) and ensures lower energy consumption.

How do I use the sensor dry program?

Select the desired dryness level (e.g., cup board dry, iron dry). The dryer automatically stops when the clothes reach that moisture level, saving energy.

Can I dry delicate fabrics?

Yes, use the Delicates program with low heat. Place items in a mesh bag and select gentle drying. Do not overdry.

How do I reset the child lock?

Press and hold the Child Lock button for 3 seconds until the lock symbol on the display disappears. The child lock prevents unintended operation.

What does the error code 'E1' mean?

Error E1 indicates a problem with the water drain. Check the drain hose for kinks or blockages. Clean the condensate filter. If persists, call service.

How can I save energy with this dryer?

Use the Eco program and always select the correct dryness level. Spin clothes at high speed in the washing machine before drying. Clean the filter regularly.

What is the maximum load capacity?

The maximum load is 8 kg for cotton items. For synthetics, reduce to 4 kg. Overloading reduces drying efficiency and may cause wrinkles.

USER MANUAL RC8066G2F LG

MFL71712101

Rev.01_051320

Technical diagram showing three views of a mechanical component with no visible text or symbols

• 3-2) 550 mm

Diagram showing a washing machine with a hand operating the door, alongside a close-up of its interior components (no text or symbols present)

Illustration of a washing machine with a close-up view showing hand positioning and adjustment (no text or symbols)

Illustration of a washing machine with a close-up view showing hand holding a tool near the lid (no text or symbols present)

Diagram of a boat hull with a person inside, showing no text or symbols

Line drawing of a hand holding a tool or device (no text or symbols present)

ОСТОРОЖНО!

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

Diagram of a car interior with steering wheel and fan (no text or symbols)

Diagram of a car interior showing steering wheel and dashboard (no text or labels)

Technical line drawing of a car interior with fan and dashboard (no text or symbols)

5 Закройте дверцу.

Diagram of a boat's side view showing hull, hull, and weight (no text or labels)

Diagram of a curved structural component with directional arrows indicating rotation (no text or symbols)

Illustration of a faucet dispensing water into a tiled surface (no text or symbols)

Diagram of a boat navigating a curved ship deck, showing no text or symbols

ПРИМЕЧАНИЕ

Illustration of a hand inserting a component into a washing machine (no text or symbols)

Line drawing of two hands using a tool to lift or lift a surface (no text or symbols)

Line drawing of a hand using a vacuum cleaner to clean a washing machine (no text or symbols present)

ПРИМЕЧАНИЕ

Technical line drawing of a mechanical component inside a transparent cube, with an inset showing a hand holding a circular component (no text or symbols present)

ВНИМАНИЕ!

Illustration of a washing machine with a magnified inset showing a hand holding a small object (no text or symbols present)

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

Illustration of a hand inserting a component into a grid-patterned device (no text or symbols visible)

ПРИМЕЧАНИЕ

Illustration of two hand-painted illustrations of a water tap (no text or symbols present)

Diagram of a mechanical or electrical component with internal components and directional arrows (no text or symbols)

ВНИМАНИЕ!

Before beginning installation, read these instructions carefully. This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference.

RC8066**F

RC9066**F

TABLE OF CONTENTS

This manual may contain images or content different from the model you purchased.

This manual is subject to revision by the manufacturer.

SAFETY INSTRUCTIONS ....3

IMPORTANT SAFETY INSTRUCTIONS....3

INSTALLATION....10

Specifications 10

Accessories (Optional) 10

Installation Place Requirements.... 11

Stacking Installation Instructions 12

OPERATION 15

Using the Appliance....15

Sorting Laundry 16

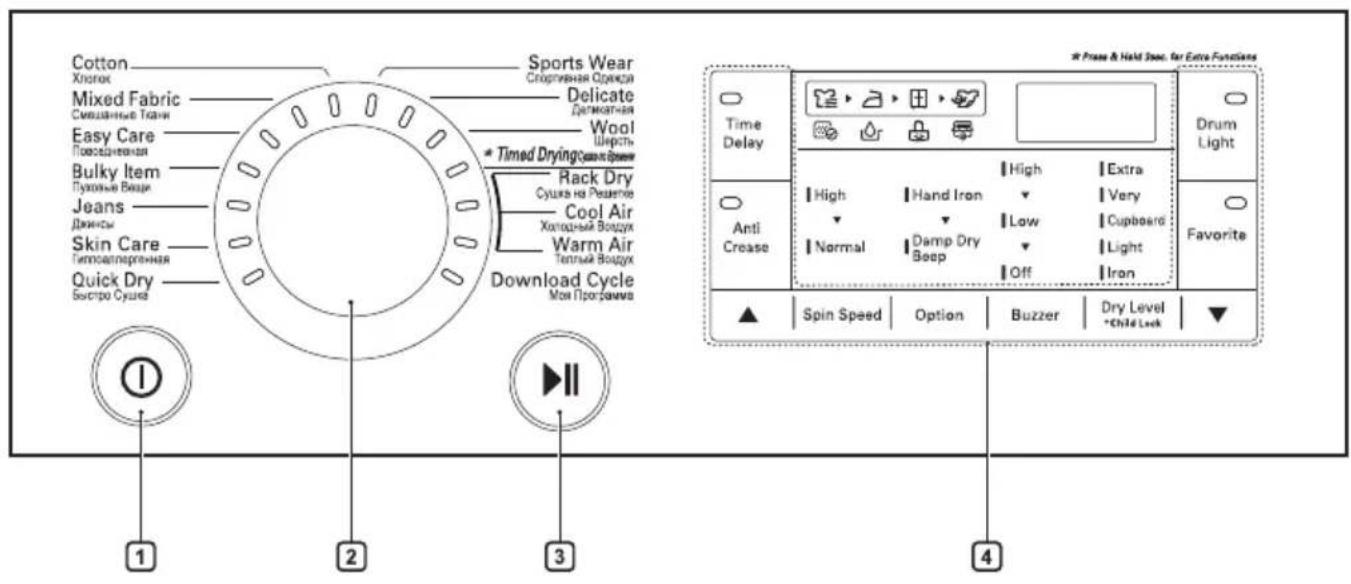

Control Panel....17

Programme Table 18

Option Programme 20

Rack Dry (Optional) 22

SMART FUNCTIONS....23

LG ThinQ Application....23

Smart Diagnosis 24

MAINTENANCE....25

Cleaning the Lint Filter....25

Emptying the Water Container 26

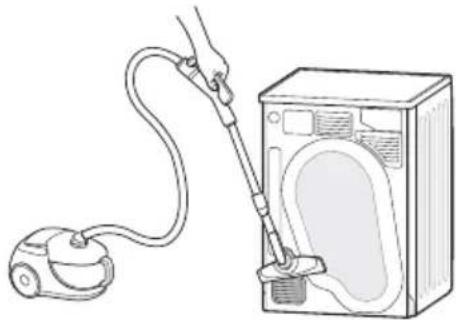

Cleaning the Cool Air Inlet Grill....26

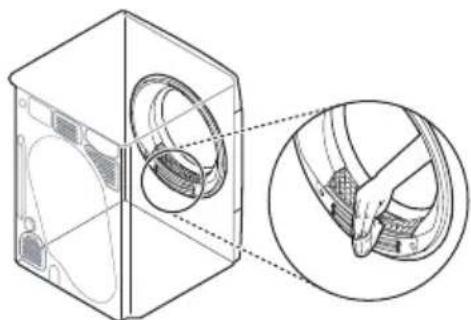

Wiping the Moisture Sensor 26

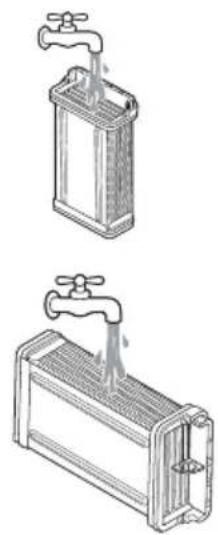

Cleaning the Condenser....27

TROUBLESHOOTING....28

Diagnosing Problems 28

Error Codes 32

WARRANTY....33

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance.

The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below.

This symbol is displayed to the indicate matters and operations that can cause risk. Read the part with this symbol carefully and follow the instructions in order to avoid risk.

WARNING

This indicates that the failure to follow the instructions can cause serious injury or death.

CAUTION

This indicates that the failure to follow the instructions can cause the minor injury or damage to the product.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

To reduce the risk of fire, electric shock, or injury to persons when using your product, basic safety precautions should be followed, including the following:

Children in the Household

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

For use in Europe:

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children of less than 3 years should be kept away unless continuously supervised.

Installation

- Make sure the appliance is properly installed, grounded, and adjusted by qualified service personnel according to the installation instructions.

- Never attempt to operate the appliance if it is damaged, malfunctioning, partially disassembled, or has missing or broken parts, including a damaged cord or plug.

- This appliance should only be transported by two or more people holding the appliance securely.

- Do not install the appliance in a damp and dusty place. Do not install or store the appliance in any outdoor area, or any area that is subject to weathering conditions such as direct sunlight, wind, or rain or temperatures below freezing.

- Tighten the drain hose to avoid separation.

- If the power cord is damaged or the hole of the socket outlet is loose, do not use the power cord and contact an authorized service centre.

- Do not plug multiple socket outlets, an extension power cable or adapter with this appliance.

• This appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the appliance, in such a way that a full opening of the appliance door is restricted.
• This appliance must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current.
• This appliance is equipped with a power cord having an equipment-grounding conductor and a grounding power plug. The power plug must be plugged into an appropriate socket outlet that is installed and grounded in accordance with all local codes and ordinances.
• Improper connection of the equipment-grounding conductor can result in risk of electric shock. Check with a qualified electrician or service personnel if you are in doubt as to whether the appliance is properly grounded.
• Do not modify the power plug provided with the appliance. If it does not fit the outlet, have a proper outlet installed by a qualified electrician.

Operation

• Do not attempt to separate any panels or disassemble the appliance. Do not apply any sharp objects to the control panel in order to operate the appliance.

• Do not repair or replace any part of the appliance. All repairs and servicing must be performed by qualified service personnel unless specifically recommended in this Owner's Manual. Use only authorized factory parts.

• Keep the area underneath and around the appliance free of combustible materials such as lint, paper, rags, chemicals, etc.

• Do not put animals, such as pets into the appliance.
• Do not leave the appliance door open. Children may hang on the door or crawl inside the appliance, causing damage or injury.
• Never reach into the appliance while it is operating. Wait until the drum has completely stopped.
• Do not put in, wash or dry articles that have been cleaned in, washed in, soaked in, or spotted with combustible or explosive substances (such as wax, oil, paint, gasoline, degreasers, drycleaning solvents, kerosene, vegetable oil, cooking oil, etc.). Improper use can cause fire or explosion.
• In case of flood, disconnect the power plug and contact the LG Electronics customer information centre.
• Do not push down the door excessively, when the appliance door is open.
• Use new hose or hose-set supplied with the appliance. Reusing old hoses can cause a water leak and subsequent property damage.
• Do not touch the door during a high temperature programme.

• Do not use flammable gas and combustible substances (benzene, gasoline, thinner, petroleum, alcohol, etc.) near the appliance.

• If the drain hose or inlet hose is frozen during winter, use it only after thawing.

• Keep all washing detergents, softener and bleach away from children.
• Do not touch the power plug or the appliance controls with wet hands.
• Do not bend the power cable excessively or place a heavy object on it.

Maintenance

• Securely plug the power plug in the socket outlet after completely removing any moisture and dust.
• Disconnect the appliance from the power supply before cleaning the appliance. Setting the controls to the OFF or stand by position does not disconnect this appliance from the power supply.
• Do not spray water inside or outside the appliance to clean it.
• Never unplug the appliance by pulling on the power cable. Always grip the power plug firmly and pull straight out from the socket outlet.

Technical Safety for Using the Dryer

• Do not dry unwashed items in the appliance.
• Fabric softeners, or similar products, should be used as specified by the fabric softener instructions.
• Remove all objects from pockets such as lighters and matches.
• Never stop the appliance before the end of the drying cycle unless all items are quickly removed and spread out so that the heat is dissipated.
• The appliance is not to be used if industrial chemicals have been used for cleaning.
• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the appliance.
• Do not drink the condensed water. Failure to do so may result in food-borne illnesses.
• The lint trap has to be cleaned frequently.
• Lint must not to be allowed to accumulate around the appliance.
• Do not spray dry cleaning detergent directly onto the appliance or use the appliance to dry clothes left with dry cleaning detergent.

• Do not dry clothes stained with oil substances. Oil substances (including edible oils) stained on clothes cannot be completely removed even after washing with water.

• The appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by a utility.

• Remove clothes from the product immediately when drying is complete or the power is turned off during the drying process. Leaving clothes that has been dried in the appliance unattended could result in fire. Clothes removed from the appliance after drying could result in fire. Remove clothes immediately after drying, and then hang or lay the clothes flat to cool.

Disposal

• Before discarding an old appliance, unplug it. Cut off the cable directly behind the appliance to prevent misuse.
• Dispose of all packaging materials (such as plastic bags and styrofoam) away from children. The packaging materials can cause suffocation.
• Remove the door before disposing of or discarding this appliance to avoid the danger of children or small animals getting trapped inside.

Specifications

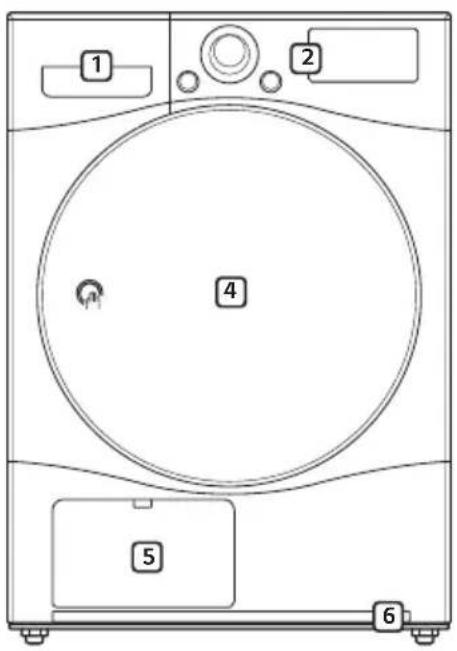

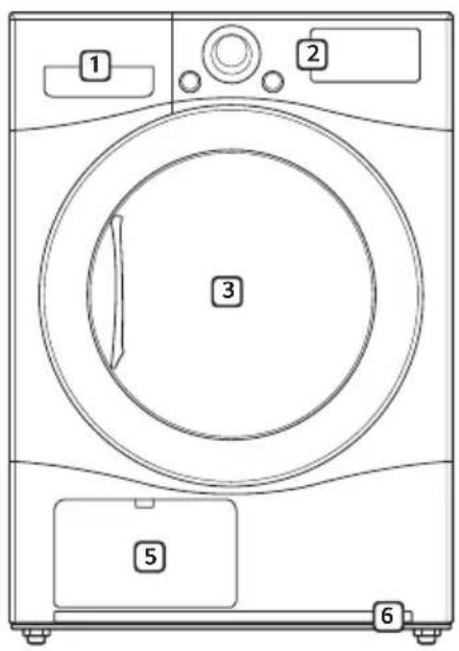

① Water container
② Control panel
3 Glass door
④ Opaque door
5 Condenser cover
6 Air ventilation grill

Model RC8066**F RC9066**F
Power supply 220 - 240 V~, 50 Hz
Size 600 mm (W) X 690 mm (D) X 850 mm(H)
Product weight 43 - 46 kg
Allowable temperature 5 - 35 °C
Max. capacity 8 kg 9 kg

• Appearance and specifications may vary without notice to improve the quality of the appliance.

Accessories (Optional)

Please contact the LG Electronics Customer Information Centre for purchase.

Condensing Drain Hose and Hose Holder

Dry Rack Stacking Kit

Installation Place Requirements

Location

Level floor : Allowable slope under the entire appliance is 1°.

Power outlet : Must be within 1.5 meters of either side of the location of the appliance.

- Do not overload the outlet with more than one appliance.

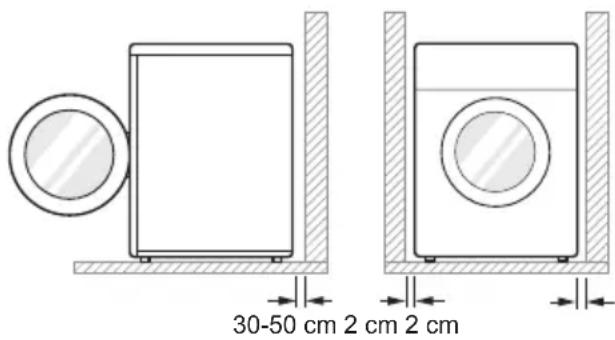

Additional Clearance : For the wall, 30 – 50 cm: rear /2 cm: right & left side

- Do not place or store laundry products on top of the appliance at any time.

• These products may damage the finish or controls.

NOTE

• For better drying performance, please keep the rear of the appliance away from wall.
• Do not install the appliance where there is a risk of frost or dust.
• The appliance may not be able to operate properly or may be damaged by freezing of condensed water in the pump and drain hose.
• Do not install the appliance next to a high-temperature appliance like refrigerator, oven or stove etc, which can cause poor drying performance and programme duration, and adversely affect the proper functioning of the compressor. The appliance performs best at a room temperature of 23 °C.

Positioning

• Install the appliance on a flat hard floor.
• Make sure that air circulation around the appliance is not impeded by carpets, rugs, etc.
• Never try to correct any unevenness in the floor with pieces of wood, cardboard or similar materials under the appliance.
• Do not install the appliance in rooms where freezing temperatures may occur. Frozen hoses may burst under pressure. The reliability of the electronic control unit may be impaired at temperatures below freezing point.
• If the appliance is delivered in winter and temperatures are below freezing, place the appliance at room temperature for a few hours before putting it into operation.
• Please ensure that when the appliance is installed, it is easily accessible for an engineer in the event of a breakdown.

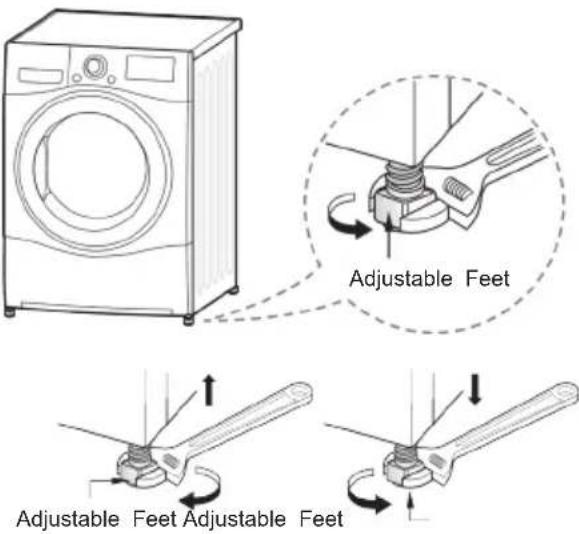

• With the appliance installed, adjust all four feet using a transit bolt spanner to ensure the appliance is stable, and a clearance of approximately 20 mm is left between the top of the appliance and the underside of any work-top.

Ventilation Requirement

• Alcove or under counter
• Ensure air flow of 3.17min through the appliance
• Closet
• Closet door must have 2 (louvered) openings, each having a minimum area of 387~cm^2 , located 8cm from bottom and top of door.

WARNING

• Avoid installing the appliance around a heat source. The rear side of the appliance must be well ventilated. Failure to follow these instructions may result in problems.
• The appliance should not be installed next to a refrigeration appliance.
• The appliance is not designed for maritime use or for use in mobile installations such as caravans, aircraft etc.

Electrical Connection

• Do not use an extension cord or double adapter.
  • Always unplug the appliance after use.
• Connect the appliance to an earthed socket in accordance with current wiring regulations.
• The appliance must be positioned so that the plug is easily accessible.

Stacking Installation Instructions

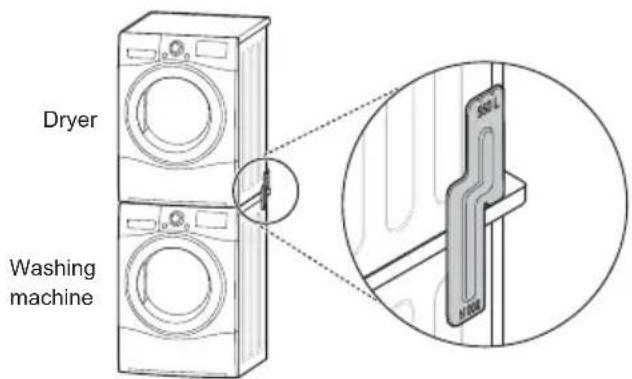

Your dryer can be placed on top of an LG washing machine and securely fixed with a stacking kit. This installation must be conducted by qualified service personnel to ensure it has been installed correctly.

The qualified service personnel will ensure you have the correct stacking kit for your model of washing machine and will ensure it is firmly fixed. For these reasons, expert fitting is essential.

Stacking Kit

In order to stack this dryer an LG stacking kit is required.

This dryer may only be stacked on top of an LG washing machine. Do not attempt to stack this dryer on any other washing machine, as damage, injury or property damage could result.

Shape and assembly direction	Washing Machine Top plate size
	550 mm 600	mm

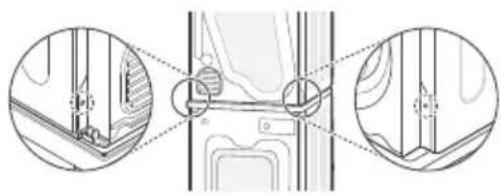

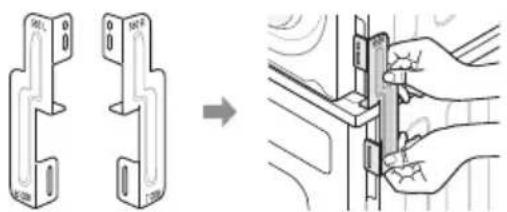

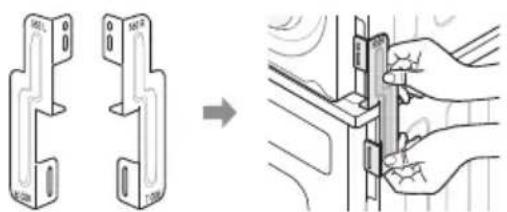

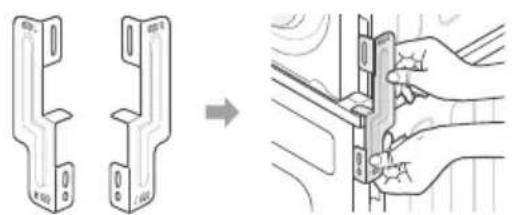

Installation Procedure

1 Place the LG dryer on the LG washing machine.

2 Remove the two screws from the bottom of the rear cover on each side as illustrated below.

Technical diagram showing three views of a mechanical component with no visible text or symbols

3 Align the stacking kit holes and the rear cover holes.

• 3-1) 600 mm

• 3-2) 550 mm

4 Fasten the two screws that were removed earlier from the dryer to the stacking kit.

5 Use the four screws in the accessory box (16 mm) to assemble the washing machine rear cover and stacking kit.

6 The procedure for the opposite side will be the same.

WARNING

- Incorrect installation can cause serious accidents.

- The weight of the appliance and the height of installation make the stacking procedure too risky for one person. This procedure should be performed by two or more qualified service personnel.

- The appliance is not suitable for a built-in installation. Please do not install as a built-in appliance.

- Do not operate if the appliance is not properly stacked.

Condensed Water Drain-out

Normally, condensed water is pumped up to the water container where water is collected until manually emptied. Water can also be drained out directly to a mains drain, especially when the dryer is stacked on top of a washing machine. With a connecting kit for the mains drain hose, simply change the water path and re-route to the drainage facility as below:

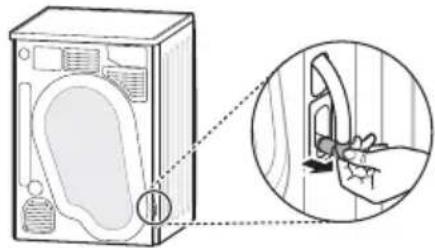

1 Take the connecting kit out.

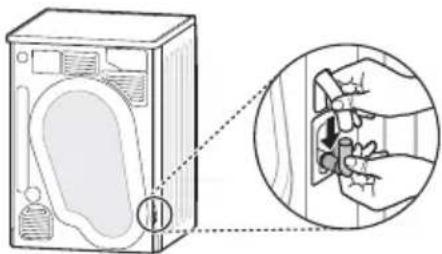

2 Separate the water container hose from the kit.

Illustration of a washing machine with a close-up view of its side panel (no text or symbols present)

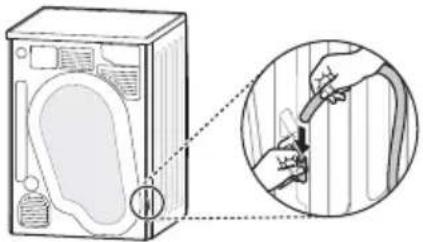

3 Connect the drain hose to the kit.

Leveling the appliance

Leveling the appliance prevents unnecessary noise and vibration. Place the appliance on a solid, level floor.

If the appliance is not properly level, adjust the front leveling feet as necessary.

Turn them clockwise to raise and counter-clockwise to lower until the appliance no longer wobbles, both front-to-back and side-to-side and corner-to-corner.

Diagonal Check

- When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (Check both directions). If the appliance rocks when pushing the top plate diagonally, adjust the feet again.

Using the Appliance

Before the first cycle, set the appliance to dry for five minutes to warm up the drum. Open the door between loads the first few times you use the appliance to allow any odours from the interior of the appliance to disperse.

1 Ensure the lint filter and water container are clean.

• The lint filter is inside the door rim. It needs to be cleaned before each drying cycle.
• Open the door and ensure the lint filter is clean. If it is not, please clean the lint filter.

Diagram of a person inside a boat with an arrow indicating direction (no text or symbols)

- Also check if the water container needs to be emptied for optimum drying results.

Line drawing of a hand holding a tool or bracket (no text or symbols)

WARNING

- Do not drink the condensed water.

NOTE

- In some instances, LED window may display (Empty water symbol) and the appliance may stop because the water container is full.

2 Place laundry into the drum after sorting.

- The clothes should be sorted by fabric type and dryness level and all the strings and belts of clothes should be well tied and fixed before being put into the drum. Push the laundry to the back to keep it away from the door seal. Otherwise, the door seal and clothes may be damaged. Close the door.

CAUTION

- Be careful not to trap laundry between the door and rubber seal.

3 Turn the power on.

- Press the Power button. The indicator icon above the button will become illuminated, indicating that the appliance is all set to run.

4 Select the drying programme you want.

• You can choose a programme by turning the programme selector knob until the required programme is indicated.
• If you press the Start/Pause button without choosing a programme, the appliance will proceed with the Cotton programme. Please refer to the programme table for the detailed information.

Diagram of a circular mechanical component with two curved arrows indicating rotational or bidirectional motion (no text or symbols)

5 Press the Start/Pause button.

6 After the cycle has finished, open the door and remove the laundry.

7 Turn off the appliance.

- Press the Power button.

CAUTION

• Be careful! The drum inside may still be hot.
• The appliance must not be used for purposes other than those for which it was designed.

NOTE

• The final part of a tumble dryer cycle occurs without heat (cool down cycle) to ensure that laundry is left at a temperature that ensures the laundry will not be damaged.
• A high atmospheric temperature and a small room may both increase drying time as well as energy consumption.

Sorting Laundry

Clothes have their own wash care labels, so drying according to the wash care label is recommended.

Not only that, the laundry must be sorted according to size and type of fabric.

For the best drying performance and most efficient energy usage, do not overload the appliance.

Woollens

- Dry woollens on the Wool programme. Be sure to follow fabric care label symbols first. Wool may not be completely dried from the cycle, so do not repeat drying. Pull woollens to their original shape and dry them flat.

Woven and Loopknit Materials

- Some woven and loopknit materials may shrink, depending on quality.

Permanent Press and Synthetics

- Do not overload the appliance. Take out permanent press items as soon as the appliance stops to reduce creases.

Baby Clothes and Night Gowns

• Always check fabric care labels.

Rubber and Plastics

- Do not dry any items made from or containing rubber or plastics such as:

– Aprons, Bibs and Chair Covers
– Curtains and Table Clothes
- Bathmats

Fiberglass

- Do not dry fiberglass items in the appliance. Glass particles left in the appliance may be subsequently picked up by your clothes in later cycles.

Icon Description
	Dry
	Tumble dry
	Permanent Press / Crease resistant
	Gentle / Delicate
	Do not tumble dry
	Do not dry
	High heating
	Medium heating
	Low heating
	No Heating / Air
	Line dry / Hang to dry
	Drip dry
	Dry flat
	In the shade

Control Panel

• Press the Power button to turn power on and off.
• Press the Power button to cancel the Time Delay function.

2 Programme Selector

• Programmes are available according to the laundry type.
• The lamp will light up to indicate the selected programme.

3 Start/Pause Button

• This Start/Pause button is used to start or pause a dry cycle.
• When in Pause, the power is turned off automatically after four minutes.

4 Additional Programme Buttons

- Use these buttons to select the desired options for the selected programme.

Display

: This icon indicates that the lint filter should be cleaned or is clogged. - Cleaning notice: When you press the Power button, the icon will become displayed. - Clogging notice: This icon will become displayed with a buzzer sound whilst the appliance is in operation.
: This icon indicates that the water container needs to be emptied or is full.
- Emptying notice: When you press the Power button, this icon will become displayed.
- Full water notice: The icon will become displayed and a buzzer will sound while the appliance is in operation.
: This icon indicates that the condenser should be cleaned. If the icon is displayed, clean the condenser promptly.

Programme Table

Drying Programme

Sensor Dry Programmes
Programme Laundry Type Detail Drying Level
Cotton	Towels, dressing gowns and bed linen	For thick and quilted fabrics Extra
	Terry towels, tea towels, towels and bed linen	For thick and quilted fabrics that do not need to be ironed	Very
	Bath towels, tea towels, underwear and cotton socks	For fabrics that do not need to be ironed	Cupboard
	Sheets, pillowcase and towels	For fabrics that do not need to be ironed	Light
	Bed linen, table linen, towels, T-shirts, polo shirts and work clothes	For fabrics that need to be ironed	Iron
Mixed Fabric	Bed linen, table linen, tracksuits, anoraks and blankets	For thick and quilted fabrics that do not need to be ironed	Very
	Shirts and blouses	For fabrics that do not need to be ironed	Cupboard
	Trousers, dressers, skirts and blouses	For fabrics that need to be ironed	Iron
Easy Care	Shirts, T-shirts, trousers, under-wear and socks	For polyamide, acrylic, and polyester that do not need to be ironed	Cupboard
	Shirts, T-shirts, under-wear, anoraks and socks	For polyamide, acrylic, polyester that do need to be ironed	Iron
Bulky Item Bed clothes, sheets For bulky items		-
Jeans	Jeans and colour fading garments.	For jeans which do not need to be ironed	-
Skin Care T-shirts, pillowcase, and towels		For cotton fabrics which do not need to be ironed	-
Sports Wear Soccer kit and training wear For polyester material -
Quick Dry	Linen and towels (excluding delicate fabrics) sports wear, bulky Item cycle.	For small loads of suitable fabrics with short drying times	-
Delicate Silk, fine fabrics and lingerie		For fabrics that are heat-sensitive, such as synthetic fabrics	-
Wool Wool For wool fabrics -
Timed Drying Programmes
Programme Laundry Type Detail Drying Level
Rack Dry Silk, wool, delicate lingerie		Refreshes clothes without tumble drying	-
Cool Air All fabrics that need refreshing Tumbles without heat		-
Warm Air	Bath towels, bath robes, dishclothes and acrylic quilted fabrics	Small Items & damp clothing, Everyday items suitable for heat drying	-

CAUTION

- If the load is less than 1 kg, please use the Warm Air programme in Timed Drying programmes. Wool items should be dried using the Wool programme and heat-sensitive fabrics including silk, underwear and lingerie should be dried using the Delicate programme. Please comply with the recommended laundry load when you select your desired programme. Otherwise, your clothes may be damaged.

NOTE

• The test results depend on room temperature, type and amount of load, water hardness and water inlet temperature.
• If the appliance is installed as built under, it may cause performance degradation.
• If the laundry is not spun at a high speed during washing, energy consumption and drying time will increase.

Option Programme

Time Delay

You can use the Time Delay option to delay the finishing time of the drying cycle. Maximum Time Delay is 19 hours. Minimum Time Delay is 3 hours.

1 Turn the appliance on.
2 Select a programme.
3 Press the Time Delay button.
4 Set time delay hour(s) by pressing the ▲▼ button.
5 Press the Start/Pause button.

Anti Crease ( [ ]

The Anti Crease option prevents creases that are formed when the laundry is not unloaded promptly at the end of the drying cycle. When Anti Crease is selected, the appliance repeatedly runs and pauses, giving you two hours to unload the laundry. If the door is opened during the Anti Crease option, the option is cancelled.

Favorite

The Favorite option allows you to store a customized dry programme for future use.

1 Turn the appliance on.
2 Select a programme.
3 Select the option or additional programme. (Anti Crease, Spin Speed etc.)
4 Press and hold the Favorite option button for three seconds.

The Favorite option is now stored for future use. To reuse the stored programme, select the Favorite option and press the Start/Pause button.

Drum Light

Whilst the appliance is running it is possible to see inside the drum if you select the Drum Light function.

• Light on : Door is opened.
- Light off: Door is closed. The light is turned off automatically.

Spin Speed

This additional program is able to control drying time, allowing you to select high or normal.

• The default option is Normal.

Option

Hand Iron

This function keeps the garments more moist than the standard Iron dry level.

1 Turn the appliance on.
2 Select a programme.
3 Press the Dry level button and select Iron.
4 Press the Option button and select Hand Iron.
5 Press the Start/Pause button.

Hand Iron is available to programmes specified in the table below.

Programme Dry Level
Cotton	IronMixed Fabric
Easy Care

Damp Dry Beep

With this option, the appliance will beep when the load is ready for ironing.

This allows you to remove faster-drying lightweight items or items that you would like to iron or hang while still slightly damp.

1 Turn the appliance on.
2 Select a programme.
3 Press the Dry level button and select a level.
4 Press the Option button and select Damp Dry Beep.
5 Press the Start/Pause button.
6 When the laundry is ready for ironing, the buzzer will sound for approximately one minute.
7 Press the Start/Pause button and open the door.
8 Take out laundry which you wish to iron. (Leave the other laundry in the appliance.)
9 Close the door and press the Start/Pause button.

Damp Dry Beep is available to programmes specified in the table below.

Programme Dry Level
Cotton	Extra/Very Cupboard/Light
Mixed Fabric Very/Cupboard
Easy Care Cupboard

Child Lock

Use this option to disable the controls. This feature can prevent children from changing cycles or operating the appliance.

Locking the Control Panel

1 Press and hold the Child Lock button for three seconds.
2 A beeper will sound, and CL will appear on the display.

When the Child Lock is set, all buttons are locked except the Power button.

NOTE

- Turning off the power or completing all cycles will not reset the child lock function. You must deactivate child lock before you can access any other functions.

Unlocking the Control Panel

Press and hold the Child Lock button for three seconds.

- A beeper will sound and the remaining time for the current programme will reappear on the display.

Buzzer

This option enables you to adjust the volume of the beeper sound.

Rack Dry (Optional)

The dryer rack is placed inside the appliance, as in the picture below. Remove and discard packing material before use.

The Rack Dry is designed for use with laundry that must be dried flat, without tumbling, including sweaters and delicate fabrics.

1 Open the door.

2 Insert the hook to the drum centre.

Diagram of a mechanical device with rotating components and fan-like motion lines (no text or symbols)

3 Place the dryer rack on the structure above the lint filter and press it to complete assembly.

Technical line drawing of a mechanical component with curved lines indicating motion or flow (no text or symbols)

4 Place wet items on top of the rack. Allow space around items for air to circulate.

- The rack does not move, but the drum will rotate.

Technical line drawing of a car interior with fan and wheels (no text or symbols)

5 Close the door.

6 Turn power on and select Rack Dry.

7 Press the Start/Pause button.

NOTE

- Check the lint filter and remove any lint accumulated from items dried on the rack.

LG ThinQ Application

Installing the LG ThinQ Application

Search for the LG ThinQ application from the Google Play Store or Apple App Store on a smartphone. Follow instructions to download and install the application.

Tag On Function

• For appliances with the logo
- The Tag On function can only be used with most smart phones equipped with the NFC (Near Field Communication) function and based on the Android OS (operating system).

Download Cycle

Download new and special cycles that are not included in the basic cycles on the appliance.

Appliances that have been successfully registered can download a variety of specialty cycles specific to the appliance.

Only one cycle can be stored on the appliance at a time.

Once cycle download is completed in the appliance, the product keeps the downloaded cycle until a new cycle is downloaded.

Smart Diagnosis

This function provides useful information for diagnosing and solving issues with the appliance based on the pattern of use.

Settings

Set the product nickname and delete product.

NOTE

• Press in the LG ThinQ application for a more detailed guide on how to use the Tag On function.
• The location of the smartphone's NFC module may vary depending on the phone, and NFC use may be restricted on some smartphones due to differences in transmission methods. Because of the characteristics of NFC, if the transmission distance is too far, or if there is a metal sticker or a protective case on the phone, transmission will not be good. In some cases, NFC-equipped phones may be unable to transmit successfully.
• The content found in this manual may differ from the current version of the LG ThinQ application, and the software may be modified without informing customers.
• NFC function would vary depending on smart phones.

NFC Module Specifications

Model LGHA-NWW-v3.0
Frequency Range	13.553 MHz - 13.567 MHz
Output Power (Max)	9.0 dBμA/m @ 10 m

Declaration of Conformity

CE

For consideration of the user, this device should be installed and operated with a minimum distance of 20 cm between the device and the body.

Smart Diagnosis

This feature is only available on models with the ⚙ or ⚙ logo.

Use this feature to help you diagnose and solve problems with your appliance.

NOTE

- The feature may be subject to change without prior notice and may have a different form depending on where you are located.

Using Audible Diagnosis to Diagnose Issues

Follow the instructions below to use the audible diagnosis method.

- Launch the LG ThinQ application and select the Smart Diagnosis feature in the menu. Follow the instructions for audible diagnosis provided in the LG ThinQ application.

1 Press the Power button to turn on the appliance.

- Do not press any other buttons.

2 Place the mouthpiece of your smartphone close to the ⚙ or ⚙ logo.

3 Press and hold the ▲ (more) button for 3 seconds or longer while holding the smartphone mouthpiece to the logo until the data transfer is complete.

- Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed.

4 After the data transfer is complete, the diagnosis will be displayed in the application.

NOTE

- For best results, do not move the smartphone while the tones are being transmitted.

WARNING

- Remove the power plug when you clean the appliance. Not removing the plug may result in electric shock.

Cleaning the Lint Filter

Clean the lint filter before each drying cycle. It should also be cleaned if the icon becomes illuminated and the buzzer sounds while the appliance is in operation.

Cleaning the lint filter will reduce drying time and energy consumption.

1 Open the door.

2 Remove the lint filter.

Diagram of a boat's side view showing speed and speed indicators (no text or symbols)

3 Open the lint filter and remove all the lint.

Diagram of a curved grid structure with directional arrows indicating rotation or movement (no text or symbols)

4 Rinse away the lint under warm, running water.

Illustration of a faucet pouring liquid into a curved surface (no text or symbols)

5 Dry the lint filter completely, close and reinsert the lint filter.

Diagram of a mechanical component inside a curved housing (no text or symbols)

NOTE

- Remove moisture from the mesh. Otherwise, the lint filter may be clogged due to water film and the appliance may not operate.

- If the lint filter is not in the appliance, you can not operate the appliance.

Emptying the Water Container

Condensed water is collected in the water container.

Empty the water container after every use. Not doing so will affect the drying performance.

If the water container is full, the iron glows and the buzzer sounds while the appliance is operating. If this should occur, the water container needs to be emptied within the next hour.

1 Pull out the water container.

Illustration of a hand inserting a component into a washing machine (no text or symbols)

2 Empty the water container in the sink.

Line drawing of two hands holding a tool, no text or symbols present

3 Push it back into the appliance.

4 Press the Start/Pause button.

Cleaning the Cool Air Inlet Grill

Vacuum the Cool Air Inlet grill 3 – 4 times a year to make sure there is no build up of lint or dirt that may cause improper air flow.

Line drawing of a hand using a vacuum cleaner to clean or install a washing machine (no text or symbols present)

NOTE

• Warm air is exhausted through the ventilation grill.
• Adequate ventilation should be provided to avoid the back flow of gases into the room from units burning other fuels, such as open fires.

Wiping the Moisture Sensor

This device senses the moisture level of the laundry during operation, which means it must be cleaned regularly to remove any build up of lime scale on the surface of the sensor.

Wipe the sensors inside the drum.

Technical line drawing of a washing machine with a magnified inset showing the interior wheel assembly (no text or symbols)

CAUTION

- Do not wipe the moisture sensor with abrasive materials. Always clean the sensor with a rough sponge.

Cleaning the Condenser

The condenser is also a very important part for efficient drying performance result, so it needs special care from you. It is recommended that the condenser be cleaned three or four times a year or when the 📄on blinks.

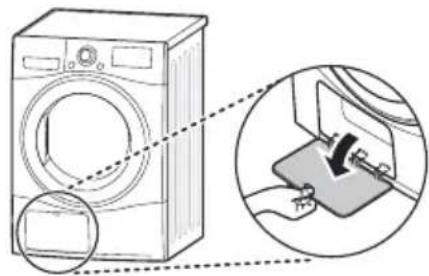

1 Push the cap and open the condensing cover.

Illustration of a washing machine with a magnified inset showing a hand holding a clipboard (no text or symbols present)

2 Open the seal by turning the locking lever.

Pure diagram of a mechanical or electrical component with no text, numbers, or symbols visible

3 Pull the condenser out by inserting a finger into the tab at the front of the condenser. (Do not force the condenser).

Diagram of a hand inserting a component into a grid-patterned device (no text or symbols visible)

NOTE

- If the icon is displayed, clean the condenser promptly.

4 Clean the condenser thoroughly under a tap, letting the water flow through.

Two line drawings of a water tap with liquid, showing different flow directions (no text or symbols)

5 Put everything back together by following the instructions in reverse order.

Diagram of a mechanical or electrical component with internal channels and directional arrows (no text or symbols)

CAUTION

- The locking lever must be closed after cleaning the condenser as illustrated above.

- Operating when the condenser is clogged with lint can damage the appliance. This also increases energy consumption.

- Do not use sharp objects to clean the heat exchanger. This could cause damage and leaking.

- Never operate the appliance without the heat exchanger.

The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service:

Diagnosing Problems

Symptoms Reason Solution
Appliance will not turn on.	Power cord is not properly plugged in.	Make sure that the plug is securely plugged into a grounded outlet matching the appliance's rating plate.
	House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
Appliance does not heat.	House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
Clothes take too long to dry.	Load is not properly sorted.	Separate heavy items from lightweight items. Larger and heavier items take longer to dry. Light items in a load with heavy items can fool the sensor because the light items dry faster.
	Large load of heavy fabrics.	Heavy fabrics take longer to dry because they tend to retain more moisture. To help reduce and maintain more consistent drying times for large and heavy fabrics, separate these items into smaller loads of a consistent size.
	Appliance controls are not set properly.	Use the appropriate control settings for the type of load you are drying. Some loads may require an adjustment of the dry level setting for proper drying.
	Lint filter needs to be cleaned.	Remove the lint from the lint filter before every cycle. With the lint removed, hold the lint filter up to a light to see if it is dirty or clogged. With some loads that produce high amounts of lint, such as new bath towels, it may be necessary to pause the cycle and clean the filter during the cycle.
Clothes take too long to dry.	House fuse is blown, circuit breaker has tripped, or power outage has occurred.	Reset circuit breaker or replace fuse. Do not increase fuse capacity. If the problem is a circuit overload, have it corrected by a qualified electrician.
	Appliance is overloaded.	Divide extra large loads into smaller loads for better drying performance and efficiency.
	Appliance is underloaded.	If you are drying a very small load, add a few extra items to ensure proper tumbling action. If the load is very small and you are using Sensor Dry programmes, the electronic control cannot properly sense the dryness of the load and may shut off too soon. Use Timed Drying programmes or add some extra wet clothes to the load.
Drying time is not consistent.	Heat settings, load size, or dampness of clothing is not consistent.	The drying time for a load will vary depending on the type of heat used (electric), the size of the load, the type of fabrics, the wetness of the clothes, and lint filter. Even an unbalanced load in the appliance can cause poor spinning, resulting in wetter clothes which will take longer to dry.
Greasy or dirty spots are left on clothes.	Fabric softener is used incorrectly.	When washing laundry that is to be dried in the appliance, use the correct amount of fabric softener as recommended by the manufacturer of the fabric softener.
	Clean and dirty clothes are being dried together.	Use the appliance to dry only clean items. Soil from dirty clothes can transfer to the clean clothes in the same or later loads.
	Clothes were not properly cleaned or rinsed before being placed in the appliance.	Stains on dried clothes could be stains that were not removed during the washing process. Make sure that clothes are being completely cleaned or rinsed according to the instructions for your washing machine and detergent. Some difficult soils may require pre-treating prior to washing.
Clothes are wrinkled.	Clothes have dried too long (overdried).	Over drying a load of laundry can lead to wrinkled clothes. Try a shorter drying time.
	Clothes have been left in the appliance for too long after cycle ends.	Use the Anti crease option.
Clothes are shrinking.	Garment care instructions are not being followed.	To avoid shrinking your clothes, always consult and follow fabric care instructions. Some fabrics will naturally shrink when washed. Other fabrics can be washed but will shrink when dried in the appliance. Use a low or no heat setting.
Lint is left on clothes.	Lint filter has not been cleaned properly.	Remove the lint from the lint filter before every cycle. With the lint removed, hold the lint filter up to a light to see if it is dirty or clogged. If it looks dirty, follow the cleaning instructions. With some loads that produce high amounts of lint, it may be necessary to clean the lint filter during the cycle.
	Laundry has not been sorted properly.	Some fabrics are lint producers (i.e., a fuzzy white cotton towel) and should be dried separately from clothes that are lint trappers (i.e., a pair of black linen pants).
	Appliance is overloaded.	Divide extra large loads into smaller loads for drying.
	Tissue, paper, etc., has been left in pockets.	Check pockets thoroughly before drying clothes.
Excess static in clothes after drying.	Clothes have dried for too long (overdried).	Overdrying a load of laundry can cause a buildup of static electricity. Adjust settings and use a shorter drying time, or use Sensor Dry programmes.
	Drying synthetics, permanent press, or synthetic blends.	These fabrics are naturally more prone to static buildup. Try using fabric softener, or use shorter Timed Drying time settings.
Water leaks.	The water container hose or the drain hose is not connected correctly.	Connect the water container hose or the drain hose correctly.
	The door is closed while laundry or foreign substance is caught in the door.	Check if laundry or foreign substance is caught in the door before using the appliance. If water leaks continuously, contact the LG Electronics Customer Information Centre.
Clothes have damp spots after a Sensor Dry programme.	Very large load or very small load. Single large item such as a blanket or comforter.	If items are too tightly packed or too sparse the sensor may have trouble reading the dryness level of the load. Use a Timed Drying programme for very small loads.Large, bulky items such as blankets or comforters can sometimes wrap themselves into a tight ball of fabric. The outside layers will dry and register on the sensors, while the inner core remains damp. When drying a single bulky item, it may help to pause the cycle once or twice and rearrange the item to unwrap and expose any damp areas.To dry a few remaining damp items from a very large load or a few damp spots on a large item after a Sensor Dry programme has completed, empty the lint trap, then set a Timed Drying programme to finish drying the item(s).

Error Codes

Symptoms Reason Solution
dE	The door has been opened while the appliance is in operation or the appliance is being operated without the door being closed properly.	Close the door completely.
		If dE is not released, call for service.
tE1	Temperature Sensor has malfunctioned.	Unplug the power plug and call for service.
tE3

THIS LIMITED WARRANTY DOES NOT COVER:

• Service trips to deliver, pick up, or install or repair the product; instruction to the customer on operation of the product; repair or replacement of fuses or correction of wiring or plumbing, or correction of unauthorized repairs/installation.
• Failure of the product to perform during power failures and interruptions or inadequate electrical service.
• Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inadequate supply of air.
• Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product's owner's manual.

- Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.

- Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage where the product was not properly installed.

- Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, components, or consumable cleaning products that are not approved by LG.

- Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless such damage results from defects in materials or workmanship.

- Damage or missing items to any display, open box, discounted, or refurbished Product.

- Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along with original retail sales receipt, are required for warranty validation.

- Increases in utility costs and additional utility expenses.

- Repairs when your Product is used in other than normal and usual household use or contrary to the instructions outlined in the Product's owner's manual.

- Costs associated with removal of your Product from your home for repairs.

- The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installation instructions, including LG's owner's and installation manuals.

- Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or specified by LG.

- Noise or vibration that is considered normal, for example, water drain sound, spin sound or warning beeps.

Filter is clogged.- Not heating, long dry time			Clean the lint filter.
Improperly connected power cord or electrical outlet issue.- No power- Not heating			Reconnect power cord, replace house fuse or reset breaker. If outlet is issue, electrician may be required.

Memo

Memo

LG

Life's Good
