Product Type	Wing-tip mounted ADS-B Out transceiver with GPS/SBAS, altitude encoder, position and anti-collision lights

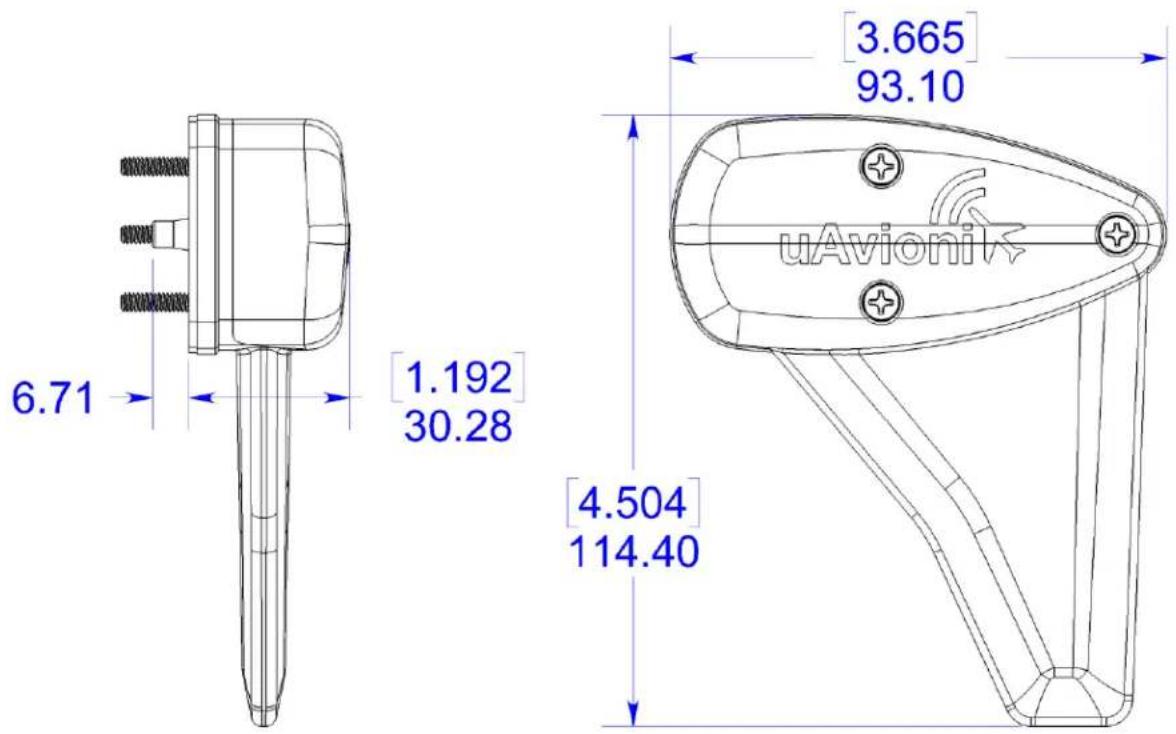

Dimensions (L x W x H)	3.665 x 4.504 x 1.192 in (93.10 x 114.4 x 30.28 mm)
Weight	3.5 oz (100 g)
Input Voltage Range	9 to 33 VDC
Current Consumption	0.5A max at 14V; 0.25A max at 28V
Operating Temperature	-45°C to +70°C
Maximum Pressure Altitude	18,000 ft MSL
Transmit Power (978 MHz)	44 dBm (25 W)
GPS/SBAS Channels	15 (12 GPS + 3 GPS/SBAS)
Horizontal Position Accuracy	6 m RMS with SBAS
Altitude Range	-1,000 to 18,000 ft
Wi-Fi	2.4 GHz, secure WPA2, used for ground configuration only
LED Lights	Red position light (3 LEDs) and white anti-collision light (4 LEDs)
Wingtip Adapter Options	UAV-1002301-() for C150/C152; UAV-1002302-() for C172/C182 and others
Mounting	Three 6-32 screws to existing wingtip holes; O-ring seals provided

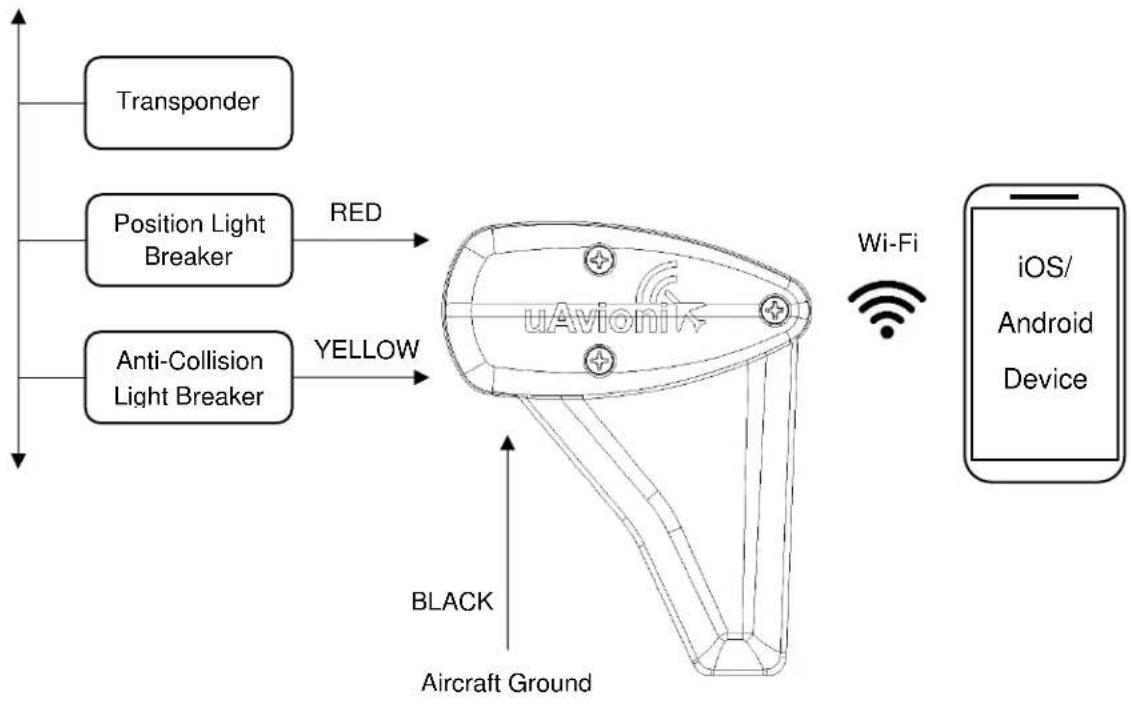

Wiring	Red (position light), Yellow (anti-collision light), Black (ground); 22 AWG typical
Anonymous Mode	Transmits random ICAO and non-identifying call sign when squawk is 1200
Maintenance	On condition only; clean with warm soapy water; do not wax or paint
Warranty	One year from installation; covers defects in material and workmanship
Regulatory Standards	TSO-C154c, TSO-C145d (incomplete), TSO-C88b, TSO-C30c, TSO-C96a

Frequently Asked Questions - skyBeacon TSO uAvionix

What is the skyBeacon TSO?

The skyBeacon TSO is a wing-tip mounted ADS-B Out transceiver by uAvionix. It integrates a 978 MHz UAT transmitter, GPS/SBAS receiver, barometric altitude encoder, LED position light, and LED anti-collision light.

How do I install skyBeacon?

Mount the unit on the left wingtip using three supplied 6-32 screws and O-ring seals. Connect the red wire to the switched position light power, yellow wire to the switched anti-collision light power (not high voltage), and black wire to aircraft ground. Ensure the fin points downward and the unit is at least 3 feet from any transponder antenna.

How do I configure skyBeacon?

Download the uAvionix skyBeacon Installer app from the App Store or Google Play. Power on the unit, connect to its Wi-Fi network (SSID Beacon-xxxx) using the provided WPA2 passphrase, then launch the app to configure call sign, ICAO, Vso, and ADS-B In capability.

What is Anonymous Mode and when should I use it?

Anonymous Mode transmits a random temporary ICAO address and non-identifying call sign when the transponder squawk code is 1200. It must not be enabled on aircraft with a Mode S transponder to avoid ICAO code mismatch. Use only when not requiring ATC services.

How do I maintain the skyBeacon?

Clean the unit with warm soapy water and a soft cloth. Do not wax, buff, paint, or use abrasive materials. The unit is not user-serviceable; return to uAvionix or an authorized repair center for service.

What does the LED on the fin indicate?

A constant red LED indicates a device failure (self-test or invalid ICAO). Blinking LED (on/off every second) indicates a functional failure (no GPS or ADS-B broadcast failure). Off indicates normal operation.

Can I install skyBeacon on an aircraft with TCAS/ACAS?

No. The skyBeacon does not support installation on aircraft with an active TCAS/ACAS system. Also avoid installation on aircraft with SatCom equipment as compatibility has not been demonstrated.

What are the power requirements for skyBeacon?

Input voltage range is 9 to 33 VDC. At 14V, current is 0.5A max; at 28V, 0.25A max. The yellow wire must connect directly to 14/28V aircraft power, not a high voltage anti-collision supply.

How do I perform post-installation checks?

Use the Monitor screen in the Installer app. Verify status is 'OK', call sign and ICAO match your aircraft, transponder squawk and altitude agree, and GPS position and altitude match known references. Check 'Last Calibration' date after flight.

What should I do if the altitude encoder is not calibrating?

Ensure the Last Calibration field shows a recent flight UTC date/time. If not, adjust the Transponder Monitor Threshold in the app or have the transponder serviced. The unit uses Continuous Calibration™ to stay synchronized.

USER MANUAL skyBeacon TSO uAvionix

User and Installation Guide

© 2018 uAvionix Corporation. All rights reserved.

Except as expressly provided herein, no part of this guide may be reproduced, transmitted, disseminated, downloaded or stored in any storage medium, for any purpose without the express written permission of uAvionix. uAvionix grants permissions to download a single copy of this guide onto an electronic storage medium to be viewed for personal use, provided that the complete text of this copyright notice is retained. Unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

uAvionix ^® and Ping ^® are registered trademarks of uAvionix Corporation and may not be used without express permission of uAvionix.

skyBeacon, Continuous Calibration, Power Transcoder, Echo Installer, and Ping Installer are trademarks of uAvionix Corporation and may not be used without express permission of uAvionix.

skyBeacon technologies are patent pending.

1 Revision History

Revision	Date	Comments
A	8/8/2018	Initial release
B	8/22/2018	Update anonymous mode, limitations, and electrical information
C	8/31/2018	Add limitation for distance to transponder antenna
D	10/9/2018	Add limitation for transponder installation. Update part numbers. Update nameplate.
E	12/16/2018	Add wingtip adapter information.

2 Warnings / Disclaimers

All device operational procedures must be learned on the ground.

uAvionix is not liable for damages arising from the use or misuse of this product.

This equipment is classified by the United States Department of Commerce's Bureau of Industry and Security (BIS) as Export Control Classification Number (ECCN) 7A994.

These items are controlled by the U.S. Government and authorized for export only to the country of ultimate destination for use by the ultimate consignee or end-user(s) herein identified. They may not be resold, transferred, or otherwise disposed of, to any other country or to any person other than the authorized ultimate consignee or end-user(s), either in their original form or after being incorporated into other items, without first obtaining approval from the U.S. government or as otherwise authorized by U.S. law and regulations.

3 Limited Warranty

uAvionix products are warranted to be free from defects in material and workmanship for one year from the installation of skyBeacon in the aircraft. For the duration of the warranty period, uAvionix, at its sole option, will repair or replace any product which fails in normal use. Such repairs or replacement will be made at no charge to the customer for parts or labor, provided that the customer shall be responsible for any transportation cost.

Restrictions: This warranty does not apply to cosmetic damage, consumable parts, damage caused by accident, abuse, misuse, fire or flood, theft, damage caused by unauthorized servicing, or product that has been modified or altered.

Disclaimer of Warranty: IN NO EVENT, SHALL UAVIONIX BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT OR CONSEQUENTIAL DAMAGES, WHETHER RESULTING FROM THE USE, MISUSE OR INABILITY TO USE THE PRODUCT OR FROM DEFECTS IN THE PRODUCT. SOME STATES DO NOT ALLOW THE EXCLUSION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU.

Warranty Service: Warranty repair service shall be provided directly by uAvionix. Proof of purchase for the product from uAvionix or authorized reseller is required to obtain and better expedite warranty service.

Please email or call uAvionix support with a description of the problem you are experiencing. Also, please provide the model, serial number, shipping address and a daytime contact number.

You will be promptly contacted with further troubleshooting steps or return instructions. It is recommended to use a shipping method with tracking and insurance.

4 Table of Contents

1 Revision History....3
2 Warnings / Disclaimers....4
3 Limited Warranty....5
4 Table of Contents 6
5 TSO and System Information....8

5.1 Certification....8
5.2 TSO Authorization....9
5.3 Applicable P/Ns 9
5.4 System Functions 9
5.5 TSO Deviations and Incomplete....10
5.6 FCC ID....11
5.7 Device Marking....11
5.8 Environmental Qualification Form 12
5.9 Continued Airworthiness 13
5.10 System Limitations....13

6 System Specifications....14

6.1 System Functionality....14
6.2 Altitude Encoder with Continuous Calibration™ 14
6.3 Power Line Transponder Monitor....14
6.4 Anonymous Mode....15
6.5 Wi-Fi 15
6.6 Call Sign 15
6.7 skyBeacon Specifications 16

6.7.1 Physical Specifications....16
6.7.2 GPS/SBAS Specifications 17
6.7.3 Altitude Encoder Specifications 17

UAV-1001421-001 6

Rev E

6.7.4 978MHz UAT Specifications....17
6.7.5 System Interfaces....18

6.8 Wingtip Adapters....19

6.8.1 UAV-1002301-( ) C150/C152 19
6.8.2 UAV-1002302-( ) C172/C182 20

7 Installation 21

7.1 Part Numbers....21
7.2 Unpacking and Inspecting....21
7.3 Mounting....21
7.4 Wiring 22
7.5 Unit Installation without Wingtip Adapter 23
7.6 Unit Installation with Wingtip Adapter....24
7.7 Mounting Surface Dimensions 25

8 Maintenance....25
9 Care and Cautions....26
10 System Configuration 26

10.1 Connect to skyBeacon Wi-Fi....27
10.2 Configuration 28

10.2.1 Configure....28

10.3 Post-Installation Checks....30
10.4 Post-Flight and Annual Checks....31

11 Normal Operation 32
12 Support....32

5 TSO and System Information

5.1 Certification

This installation manual provides mechanical and electrical information necessary to install skyBeacon. It is not equivalent to an approved airframe-specific maintenance manual, installation design drawing, or installation data package. The content of this manual assumes use by competent and qualified personnel using standard maintenance procedures in accordance with Title 14 of the Code of Federal Regulation and other related accepted procedures. The conditions and tests required for approval of this article are minimum performance standards. Those installing this article either on or within a specific type or class of aircraft must determine that the aircraft installation conditions are within the standards which include any accepted integrated functions not specified by the standards. TSO articles, articles approved with 14 CFR Part 21.8(d), and any accepted integrated function(s) not specified in the standard must have separate approval for installation in an aircraft. The article may be installed only according to 14 CFR Part 43 or the applicable airworthiness requirements. This is an incomplete system intended to provide the functions identified in, and when installed according to this installation manual.

5.2 TSO Authorization

Function	TSO/RTCA/SAE	Class/Type
Airborne Navigation Sensor Using the Global Position System (GPS) Augmented by the Satellite Based Augmentation System (SBAS)	TSO-C145d INCOMP RTCA/DO-229D	Beta 1
Universal Access Transmitter (UAT) Automatic Dependent Surveillance-Broadcast (ADS-B) Equipment Operating on Frequency of 978MHz	TSO-C154c RTCA/DO-260B	B1S
Automatic Pressure Altitude Reporting Code-Generating Equipment	TSO-C88b SAE/AS8003
Position Light (Red)	TSO-C30c SAE/AS8037	Type I
Anti-Collision Light	TSO-C96a SAE/AS8017D	Class II

5.3 Applicable P/Ns

Description	P/Ns
skyBeacon PF007 Boot Program Firmware	UAV-1001758-( )
skyBeacon PF007 Operating Program Firmware	UAV-1001759-( )
skyBeacon GNSS Operating Program Firmware	UAV-1001760-( )
skyBeacon Wi-Fi Operating Program Firmware	UAV-1001761-( )
skyBeacon Transponder Monitor Firmware	UAV-1001762-( )

5.4 System Functions

System Function	DO-178C DAL	DO-254 DAL
GPS/SBAS	C	C
UAT Transmission	C	C
Transponder Monitor	C	C
Altitude Encoder	C	C
Wi-Fi [1]	E	E

[1] Wi-Fi not intended for and disabled during airborne operation

5.5 TSO Deviations and Incomplete

TSO	Deviation
C154c	uAvionix was granted a deviation from TSO-C154c paragraphs 3.e and 6.h to use DO-178C instead of DO-178B.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.4.5.2.5.1.e to allow an algorithm with multiple sources of data to determine the Vertical Status of light aircraft.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.4.5.4.15 to not provide installers with the configuration option to enable or disable Call Sign Identification Logic. CSID Logic is hardcoded to Enabled.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.12 to not provide a suppression bus output.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.7.1.a Table 2-63 Line 1 to not provide a Barometric Vertical Rate Input.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.7.1.a Table 2-63 Line 24 to not provide a SIL Supplement Flag input.
C154c	uAvionix was granted a deviation from RTCA/DO-282B section 2.2.7.1.a Table 2-63 Line 29 to not provide a TCAS/ACAS Operational Input.
C145d	uAvionix was granted a deviation from TSO-C145d Paragraph 3.e.(1) and Paragraph 6.g to use DO-178C instead of DO-178B.
C145d	uAvionix was granted a deviation from TSO-C145d Paragraph 3.d to use RTCA/DO-160G in place of RTCA/DO-160E.
C145d	uAvionix was granted a deviation from RTCA/DO-229D section 2.1.1.10 to use a GPS antenna that meets uAvionix minimum performance specifications instead of DO-301 qualified antennas.
C30c	uAvionix was granted a deviation from TSO-C30c Paragraph a.(2), TSO-C30c Paragraph c.(1).(viii), and SAE/AS8037 Section 4 to use RTCA/DO-160G in place of RTCA/DO-160B.
C96a	uAvionix was granted a deviation from TSO-C96a Paragraph a.(2) and Paragraph c.(1).(viii) to use RTCA/DO-160G in place of RTCA/DO-160B.
C88b	uAvionix was granted a deviation from TSO-C88b Paragraph a.(1) to use SAE/AS8017D in place of SAE/AS8017A.

UAV-1001421-001 10

Rev E

C88b	uAvionix was granted a deviation from TSO-C88b Paragraph 3.d to use RTCA/DO-160G in place of RTCA/DO-160E.

TSO-C145d Class Beta 1 functionality is incomplete. skyBeacon does not implement LNAV approach mode, instead operating in En Route/Terminal mode only, as appropriate for ADS-B Out applications.

5.6 FCC ID

Model	FCC ID
skyBeacon	2AFFTUAT016R
Contains	2AHMR-ESP12S

5.7 Device Marking

skyBeacon Device

uAvionix Corporation

TSO-C30c Type I, INCOMP

UAV-1002301-001

2018-12-09

Example Wingtip Adapter

5.8 Environmental Qualification Form

Conditions	DO-160G Section	Description of Conducted Tests
Temperature and Altitude	4.0	Equipment tested to Category B2
Low temperature ground survival	4.5.1	-55°C
Low Temperature Short-Time Operating	4.5.1	-45°C
Low Temperature Operating	4.5.2	-45°C
High Temperature Operating	4.5.4	+70°C
High Temperature Short-Time Operating	4.5.3	+70°C
High Temperature Ground Survival	4.5.3	+85°C
Loss of Cooling	4.5.5	Cooling air not required (+70°C operating without cooling)
Altitude	4.6.1	25,000feet
Decompression	4.6.2	Equipment identified as Category B2 – no test
Overpressure	4.6.3	Equipment identified as Category B2 – no test
Temperature Variation	5.0	Equipment tested to Category A
Humidity	6.0	Equipment tested to Category C
Operation Shocks and Crash Safety	7.0	Equipment tested to Category B
Vibration	8.0	Aircraft zone 5: type 5 (Single Engine) to Category S level M
Explosion	9.0	Equipment identified as Category H
Waterproofness	10.0	Equipment identified as Category S
Fluids Susceptibility	11.0	Equipment identified as Category F
Sand and Dust	12.0	Equipment identified as Category D
Fungus	13.0	Equipment identified as Category X – no test
Salt Spray	14.0	Equipment identified as Category S
Magnetic Field	15.0	Equipment identified as Category A
Power Input	16.0	Equipment identified as Category BX
Voltage Spike	17.0	Equipment identified as Category B
AF Conducted Susceptibility	18.0	Equipment identified as Category B
Induced Signal Susceptibility	19.0	Equipment identified as Category AC
RF Susceptibility	20.0	Equipment identified as Category T
RF Emissions	21.0	Equipment identified as Category H
Lightning Induced Transient Susceptibility	22.0	Equipment identified as Category A2G2L2 with no loss of function, A3G3L3 with no incorrect broadcasts
Lightning Direct Effects	23.0	Equipment identified as Category X – no test
Icing	24.0	Equipment identified as Category X – no test
Electrostatic Discharge	25.0	Equipment identified as Category A
Fire, Flammability	26.0	Equipment identified as Category C

5.9 Continued Airworthiness

Maintenance of the skyBeacon is "on condition" only. For regulatory periodic functional checks, refer to the approved aircraft maintenance manuals or manual supplements. The aircraft must be returned to service in a means acceptable to the appropriate aviation authority.

The forward position light is designed with 3 red LEDs. The anti-collision light is designed with 4 white LEDs. If any one LED fails, the unit must be repaired or replaced.

Note: Use dark glasses or cover the device to ensure eye safety during LED inspection.

5.10 System Limitations

Installation

This article meets the minimum performance and quality control standards required by a technical standard order (TSO). If you are installing this article on or in a specific type or class of aircraft, you must obtain separate approval for installation.

TCAS/ACAS system

skyBeacon does not support installation on aircraft with an active TCAS/ACAS system.

SatCom

The skyBeacon GPS has not been demonstrated as compatible with SatCom equipment and should not be installed on SatCom equipped aircraft.

Transponder

A companion altitude-reporting transponder is required to be installed for 14 CFR 91.225 and 91.227 compliance, unless installed on an aircraft excepted from the requirements of 14 CFR 91.215 and 91.225.

Location

skyBeacon must be installed at least 3 feet from any operating transponder antenna.

UAV-1001421-001 13

Rev E

6 System Specifications

6.1 System Functionality

skyBeacon is a wing-tip mounted unit that contains a 978 MHz transmitter, power line transponder monitor, GPS/SBAS receiver, barometric pressure sensor and altitude encoder, LED position light and LED anti-collision light. This device transmits ownership Automatic Dependent Surveillance-Broadcast (ADS-B) data through the UAT data link. It monitors an installed transponder for Mode A/C replies. skyBeacon includes an internal GPS/SBAS receiver. This receiver allows the unit to function as its own position source.

6.2 Altitude Encoder with Continuous Calibration™

The integrated altitude encoder does not require connection to the aircraft static pressure system. Instead, skyBeacon benefits from being mounted in an ideal altitude sensing location, and contains Continuous Calibration™ technology. This patent pending technology automatically and continuously calibrates the integrated altitude encoder for correspondence with the aircraft transponder's altitude encoder, allowing compliant operations in remote and challenging environments.

6.3 Power Line Transponder Monitor

skyBeacon utilizes uAvionix's Power Transcoder to ensure proper synchronization of data elements between Secondary Surveillance Radar (SSR) replies and ADS-B transmissions. These elements include Mode A squawk and IDENT status. In remote areas where you may not be interrogated by SSR, these data elements may at times be unavailable. The Power Transcoder additionally serves to provide Continuous Calibration™ data to the altitude encoder.

6.4 Anonymous Mode

In anonymous mode, skyBeacon transmits a randomized temporary address instead of the aircraft's assigned ICAO address code, and a non-identifying Call Sign. The temporary address and Call Sign are disabled if the operator selects a non-1200 squawk code on the transponder. When enabled, the operator will not be eligible to receive ATC services.

Anonymous Mode must not be enabled when skyBeacon is installed in an aircraft with a Mode S transponder. Doing so will present an ICAO code mismatch to ATC.

6.5 Wi-Fi

Wi-Fi is intended for on-ground configuration. It is disabled five minutes after startup, or when airborne, whichever occurs first. Connecting the skyBeacon Installer app to the device will prevent the five minute shutdown from occurring.

To restore Wi-Fi functionality after flight, power to the device must be cycled.

6.6 Call Sign

Your call sign may be adjusted on the ground using the skyBeacon Installer app. It may not be adjusted in flight. This allows your call sign to be configured to correspond with ATC communications and flight plans, for use during commercial, medical, or volunteer flight operations. When changing the call sign ensure no other installation parameters are adjusted. For typical operations, the call sign should be set to the aircraft registration (N-number), including the leading “N”.

6.7 skyBeacon Specifications

6.7.1 Physical Specifications

Characteristics	Specifications
Width	3.665 in (93.10 mm)
Height	4.504 in (114.4 mm)
Depth	1.192 in (30.28 mm)
Weight	3.5 oz (100 grams)
Operating Temperature Range	-45°C to +70°C
Maximum Pressure Altitude [1]	18,000 ft
Input Voltage Range	9 to 33 VDC
14V Current	0.5A Max
28V Current	0.25A Max

[1] UAT usage is restricted to below 18,000 feet MSL ( §91.225 ).

6.7.2 GPS/SBAS Specifications

Characteristics	Specifications
Number of Channels	15 (12 GPS and 3 GPS/SBAS)
Frequency	1575.42 MHz L1, C/A code
Sensitivity
Tracking	-166 dBm
Reacquisition	-160 dBm
Cold Start	-148 dBm
Hot Start	-160 dBm
Horizontal position accuracy	6 m RMS with SBAS
Velocity accuracy	0.05 m/s
Heading accuracy	0.3 degrees
TTFF (Time to First Fix)	58 seconds typical with current almanac and position
Reacquisition	1 second typical
Position update interval	0.2 second (5 Hz)
Time Mark	±20 nSec of UTC
Datum	WGS-84

6.7.3 Altitude Encoder Specifications

Characteristics	Specifications
Altitude Range [1]	-1,000 to 18,000 feet

[1] UAT usage is restricted to below 18,000 feet MSL ( §91.225 ).

6.7.4 978MHz UAT Specifications

Characteristics	Specifications
Frequency	978.00 MHz
Transmit Power	44 dBm (25 W)
Frequency Tolerance	±10 PPM
Modulation	Continuous phase FSK, h = 0.6, raised cosine, a = 0.5
Data Rate	1.041667 Mbps
99% Power Bandwidth	1.3 MHz
60dB bandwidth	3.3 MHz

6.7.5 System Interfaces

Aircraft Power

6.8 Wingtip Adapters

Wingtip adapters are available to allow or enhance fitment to selected aircraft.

6.8.1 UAV-1002301-( ) C150/C152

Characteristics	Specifications
Width	6.2 in (157 mm)
Height	2.9 in (74 mm)
Depth	1.8 in (45 mm)
Weight	0.6 oz (19 grams)
Intended Aircraft Application	Cessna 150L, 150M, 152, 185E, 180H, 182N

6.8.2 UAV-1002302-( ) C172/C182

Characteristics	Specifications
Width	6.5 in (164 mm)
Height	3.2 in (81 mm)
Depth	2.1 in (53mm)
Weight	0.9 oz (25 grams)
Intended Aircraft Application	172L, 172M, 172N, 172Q, 172R, 172RG, 182Q, 182R, 182S, 182T, T182T, R182, 180J, 180K, A185K, U206G, TU206F, TU206G, 177B, 177RG

7 Installation

7.1 Part Numbers

Item	P/N
skyBeacon	UAV-1001856-( )
6-32 x 1-1/4” Screw (3)	UAV-1001459-001
5mm x 1mm O-Ring (6)	UAV-1002038-001
Wire Splice (3)	UAV-1001487-001
Wingtip Adapters (as required)	UAV-1002301-( ) and UAV-1002302-( )

7.2 Unpacking and Inspecting

Carefully unpack the device and make a visual inspection of the unit for evidence of any damage incurred during shipment. If the unit is damaged, notify the shipping company to file a claim for the damage. To justify your claim, save the original shipping container and all packing materials.

7.3 Mounting

skyBeacon is a wingtip, forward, left position light. The assembly should be mounted as far outboard on the aircraft as practical, parallel to the vertical and horizontal centerlines of the aircraft. Ensure that when mounted, the fin and top of the assembly are free from obstructions. skyBeacon must be mounted with the fin pointing down to ensure proper performance. It must be installed at least 3 feet from any operating transponder antenna.

To ensure performance of the integrated altitude encoder, the wire bundle exiting the skyBeacon enclosure must not be further sealed. This area functions as the static pressure sensing port.

1. Remove the existing left position light.
2. Detach the power wire(s).
3. Connect the red wire to the switched position light power wire.
4. If replacing a position light with integrated anti-collision strobe, connect the yellow wire to the switched anti-collision power wire.

WARNING: The yellow wire must be connected directly to 14/28V aircraft power. It must NOT be connected to a high voltage anti-collision power supply.

UAV-1001421-001 21

Rev E

1. skyBeacon may be grounded to the aircraft structure via the mounting screws. However, it may be necessary to connect the black wire to the battery ground.

2. If skyBeacon fits without adaptation, mount skyBeacon using the three supplied 6-32 screws. See Section 7.5.

3. If skyBeacon requires adaptation to achieve proper fit and finish, see Section 7.6.

4. Changes to the existing position and anti-collision light circuit breaker rating are not required.

Note: Installation of the skyBeacon must be in accordance with AC 43.13-2B, Chapter 1.

Aircraft port (left-hand) side

7.4 Wiring

skyBeacon is designed to use existing position and/or anti-collision light wiring. If new wiring is required, refer to AC 43.13-1B Chapter 11 for guidance. The wiring should present an impedance of less than 0.5ohm. The following table provides guidance for typical aircraft hook-up wire.

Gauge	ohm/km	Maximum Length for 0.5ohm
20 AWG	35	14.2m
22 AWG	64	7.8m

7.5 Unit Installation without Wingtip Adapter

skyBeacon is mounted with three 6-32-inch screws to the existing holes and nut plates in the end of the wing. Two O-rings per screw must be used between the screw and skyBeacon assembly.

Note: the O-ring nearest the head of the screw must be replaced if the screw is tightened and subsequently removed.

7.6 Unit Installation with Wingtip Adapter

The following procedure is generalized for all wingtip adapter models. Wingtip adapters allow or refine the fit of the installation.

skyBeacon is mounted with three 6-32-inch screws to the existing holes and nut plates in the end of the wing, with the wingtip adapter sitting between the wing and skyBeacon.

1) Locate mounting holes (Item 13) and wire pass through holes (Item 12) to match the wingtip.
2) Drill clearance holes for #6 screws through the wingtip adapter (Item 11) for the mounting holes and a 0.5-1" hole for the wire pass through.
3) Wire the skyBeacon according to Section 7.3.
4) Position skyBeacon and skyBeacon wingtip adapter onto the wingtip and confirm alignment with existing mounting holes (Item 14).
5) Install 2 O-ring seals (Item 2) onto each screw (Item 3).

Note: the O-ring nearest the head of the screw must be replaced if the screw is tightened and subsequently removed.

6) Use appropriate length mounting screws (Item 3) to attach skyBeacon to the wingtip adapter. Tighten screws to 8-10 in-lbs or until screw is properly seated.

UAV-1001421-001 24

Rev E

7.7 Mounting Surface Dimensions

8 Maintenance

The skyBeacon is not a user serviceable product. All service must be performed either by uAvionix or an authorized uAvionix repair center.

9 Care and Cautions

The skyBeacon should be regularly cleaned with warm soapy water and a soft cloth micro-fiber rag. Use of chemical cleaners and degreasers should be avoided. If the skyBeacon is exposed to cleaning chemicals, you should promptly wash off all residue.

DO NOT wax, buff, paint or attempt to polish any part of the skyBeacon assembly. Doing so may damage the housing. Avoid any contact with abrasive materials including scrubbing pads.

Never hit, tap on or flex the fin portion of a properly mounted skyBeacon assembly. Doing so will cause undue stress in the assembly and could void your warranty.

The wingtip adapter may be painted.

10 System Configuration

Download the “uAvionix skyBeacon Installer” app from the iOS App Store or Google Play Store. Note: DO NOT use the “uAvionix Ping® Installer” or “uAvionix Echo Installer” apps. The app will guide you through the configuration process.

Download on the App Store

GET IT ON Google Play

10.1 Connect to skyBeacon Wi-Fi

Launch the skyBeacon Installer app and follow instructions to connect to the skyBeacon for configuration.

The SSID of the skyBeacon is in the form Beacon-xxxx, for example Beacon-7782.

The skyBeacon Wi-Fi connection is secure. The WPA2 passphrase is written on an inclusion in your package, and should be entered exactly as printed. WPA2 passphrases are case sensitive.

Keep the inclusion containing Wi-Fi information in a safe place, preferably with your aircraft records.

10.2 Configuration

10.2.1 Configure

The configure screen provides all configuration options.

Anonymous Mode:

When checked, this enables the skyBeacon to transmit a self-assigned (random) ICAO and non-identifying Call Sign when the squawk code matches the defined VFR squawk code (1200). When enabled, the operator will not be eligible to receive ATC services.

Call Sign:

The CALL SIGN can be up to an 8 digit code that corresponds to the tail number of the aircraft. (0-9, A-Z). Note: This is typically your aircraft N-number (e.g. N8644B), unless otherwise advised by the FAA or ATC.

ICAO Number:

The ICAO address is a 24-bit number issued to the aircraft by the registration authority of the aircraft. These addresses are usually written as a 6-digit hexadecimal number.

Vso (knots):

This parameter allows skyBeacon to automatically switch between airborne and ground modes and should be set to the aircraft stall speed.

ADS-B In Capability:

Sets the ADS-B In equipment capability reporting. This is used to indicate the current aircraft configuration.

Tap "Update" when complete.

Position Light:

Sets the position light on or off.

Anti-collision Light:

Sets the anti-collision light on or off.

Emitter Type:

To assist ATC tracking of aircraft, an aircraft category can be transmitted. Select the aircraft category that most closely matches the aircraft.

Aircraft Length:

Enter the aircraft Length in Meters.

Aircraft Width:

Enter the aircraft width in Meters.

GPS Antenna Offset (Lateral):

Enter the position of skyBeacon relative to the center of the aircraft Roll axis in Meters.

GPS Antenna Offset (Longitudinal):

Enter the position of skyBeacon relative to the nose of the aircraft in Meters.

Transponder Monitor Threshold:

Adjust this value only if experiencing difficulties with the transponder monitor (squawk and barometric altitude) function, and at the direction of uAvionix Support.

Tap "Update" when complete.

10.3 Post-Installation Checks

Configure skyBeacon before performing system checkouts.

Tab to the "Monitor" screen on the Installer App.

Verify that Status is listed as "OK". Information on status annunciations described in Section 11 can be found here.

Verify that the Call Sign matches your aircraft's N-number (including the 'N').

Verify that the ICAO number is correct as entered.

Select ALT mode on the Aircraft's transponder.

In an area of known radar activity or using a ramp tester interrogate the transponder and verify that the Squawk and Pressure Altitude agree with the transponder or known pressure altitude.

With the skyBeacon having a clear view of the sky, allow enough time for the GPS to acquire a fix (typically less than 2 minutes). Verify that the Latitude/Longitude and GPS Altitude agree with the known reference position.

10.4 Post-Flight and Annual Checks

After your first flight with skyBeacon, and every 12 calendar months, perform the following checks.

Tab to the "Monitor" screen on the Installer App.

Ensure that the “Last Calibration” field has the UTC date and time of a recent flight recorded. This indicates that Continuous Calibration™ information has updated, and that the integrated altitude encoder is synchronized with your transponder altitude encoder.

If no “Last Calibration” date is listed, or does not match that of a recent flight of significant duration, your Transponder Monitor Threshold may need to be adjusted, or your transponder serviced.

11 Normal Operation

skyBeacon must be enabled (turned ON) during all phases of flight including surface movement operations. To ensure skyBeacon is enabled, aircraft power to the position light must remain on.

A red LED annunciator is on the pilot facing side of the fin. It indicates operating status of the skyBeacon.

LED Indication	Meaning
On (Constant)	Device FailureInternal self-test failureInvalid ICAO configured
Blinking (On/off every second)	Function FailureNo GPS signalADS-B broadcast failure
Off	No Failure

12 Support

For additional questions or support please visit:

https://www.uavionix.com/support/
