Product Type	Hand/Stand Mixer
Model	FD5122
Power Rating	300W
Voltage	220-240V
Frequency	50/60Hz
Bowl Capacity	2.4 Liters
Speed Settings	5 speeds + Turbo
Maximum Continuous Operation Time (Speed 1-5)	Less than 3 minutes
Maximum Continuous Operation Time (Turbo)	Less than 1 minute
Attachments Included	2 Beaters, 2 Dough Hooks
Stand Feature	Yes, with rotating bowl
Hand Mixer Detachable	Yes
Ejector Button	Yes, for easy attachment removal
Stand Release Button	Yes
Dishwasher Safe Parts	Beaters, dough hooks, and bowl
Cleaning Instructions	Wipe mixer body with damp cloth; do not immerse
Safety Features	Overheat protection (by limiting operating time)
Housing Material	Plastic
Certifications	CE, GS, TUV SUD
Usage	Household use only

Frequently Asked Questions - FD5122 FRIGIDAIRE

How do I attach the beaters or dough hooks?

With the mixer unplugged and speed selector at 0, insert the attachment into the socket and twist until it clicks. For dough hooks, ensure the one with washer goes into the larger socket.

What is the maximum operating time?

For speeds 1-5, do not exceed 3 minutes continuously. For Turbo, do not exceed 1 minute. Allow the mixer to cool to room temperature between cycles.

Can I wash the mixer body in water?

No. Do not immerse the mixer body. Wipe with a damp cloth. The beaters, dough hooks, and bowl can be washed in warm soapy water or in a dishwasher.

How do I remove the beaters?

Ensure the mixer is off and unplugged. Hold the beaters with one hand and press the ejector button firmly with the other hand.

Can I use the hand mixer without the stand?

Yes, the hand mixer can be detached from the stand by pressing the stand release button and pulling up. It can then be used handheld.

What type of dough can I mix?

The dough hooks are designed for yeast dough. Avoid mixing very hard ingredients to prevent motor strain.

Why does the bowl rotate?

The bowl is designed to rotate automatically during mixing for even blending. Ensure the bowl is properly fitted on the base before use.

What should I do if the mixer stops during use?

It may have overheated. Turn off and unplug, then let it cool down. Check that you haven't exceeded the recommended operating time.

Can I use metal utensils in the bowl while mixing?

No. Do not place knives, metal spoons, or forks in the bowl during operation to avoid damage and injury. Use rubber or wooden spatulas.

Is the mixer suitable for commercial use?

No, it is for household use only. Do not use outdoors or for commercial purposes.

USER MANUAL FD5122 FRIGIDAIRE

White kitchen mixer with hand mixer and two separate kitchen utensils (no text or symbols visible)

MODEL NO.: FD5122

Read this booklet thoroughly before using and save it for future reference

IMPORTANT SAFEGUARDS

Before using the electrical appliance, the basic precautions should always be followed including the following:

1. Read all instructions carefully.

2. Before use check the voltage of your wall outlet corresponds to the one on the rating label of the mixer which is on the bottom of the appliance.
   If this is not the case, do not use the appliance & immediately contact your dealer.

3. Household use only. Do not use Outdoors OR for Commercial purpose.

4. Do not operate the appliance with a damaged cord or plug, after the appliance malfunction, or if it is dropped or damaged in any manner. Return the appliance to the nearest authorized service center for examination, repair or electrical or mechanical adjustment.

5. If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

6. Do not use the appliance with bare feet OR wet hands or feet.

7. Do not leave mixer unattended while it is operating.

8. Do not let cord hang over edge of table or counter or hot surface.

9. Unplug the appliance from outlet while not in use, before putting on or taking off parts and before cleaning. Remove beaters from mixer before washing.

10. Always check that the control is OFF before plugging cord into wall outlet. To disconnect turn the control to OFF then remove plug from wall outlet.

11. To protect against risk of electrical shock, do not put mixer or cord in water or other liquid, this may cause personal injury or damage to the product.

12. The use of attachments not recommended by the manufacturer may cause fire, electric shock or injury.
13. Avoid contacting with moving parts.
14. Keep hands, hair, clothing, as well as spatulas and other utensils away from beaters during operation to reduce the risk of injury to persons, and/or damage to the mixer
15. Close supervision is necessary when your appliance is being used near children or infirm persons.
16. Children should be supervised to ensure that they do not play with the appliances.
17. Do not place an appliance on or near a hot gas or on a heated oven.
18. Never eject beaters or dough hooks when the appliance is in operation.
19. Do not use the beaters to mix too hard ingredients.
20. Do not continuously operate the mixer for longer period, The motor may over heat.
    Note: For Speed 1-5: Continuous operating time must be less than 3 minutes.
    For Turbo speed: Continuous operating time must be less than 1 minute.

21. The use of attachments or accessories not recommended or sold by the manufacturer may cause fire, electric shock OR injury.

22. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety.

23. Switch off the appliance before changing accessories or approaching parts which move in use.
24. Save these instructions.

HOUSEHOLD USE ONLY

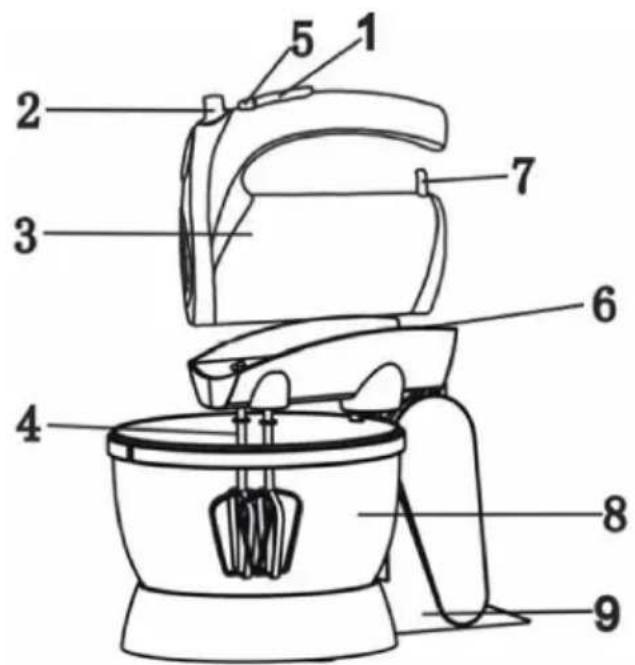

1. Speed Selector

2. Ejector Button

3. Hand Mixer Body

4. Dough Hooks / Beaters
5. Accelerate Switch
6. Stand release button
7. Cord
8. Bowl
9. Base/Stand

USING YOUR HAND/STAND MIXER

For the first use, clean the beaters, dough hooks and bowl. Before assembling the mixer, be sure the power cord is unplugged from the power outlet and the speed selector is on the “0” position.

1. Place the food that need to be blend into bowl, than place the bowl on position.
2. Before putting the mixer on the base, make sure the bowl is properly fitted on the base.
3. Insert the beaters by holding mixer from handle in one hand & inserting the beaters/hooks form the other hand. Put it in hole, press and twist it until beater/hooks clicks into position.
4. Choose the proper attachments based on the task to be performed and assemble it in position. Dough hooks are used for mixing dough and beaters are only used for beating eggs or similar food.

Note: Beaters can be inserted in either socket, as the beaters are identical. For dough hooks, the one with washer can only be

inserted into the big socket and the other one can only be inserted into small socket. The two dough hooks cannot be inserted in reverse.

1. Ensure that the unit is at the 0 setting before connecting it to power supply.

2. Start using the appliance from lower speed, i.e. Speed 1. You can increase the speed as per need up to Speed 5.

3. IF you need more power, you may press the TURBO button for maximum speed.

Warning: Do not place knife, metal spoon, fork and so on into bowl when operating.

1. The max operation time for Speed 1 to 5 MUST be less than 3 minutes. And for Turbo speed MUST be less than 1 minute.

Allow the appliance to cool down to room temperature before performing next operation cycle. When kneading yeast dough, we suggest that the speed selector should be at low speed firstly and then use high speed to achieve the best results.

1. During operation the bowl will rotate itself.

2. When mixing is completed, turn the speed selector to 0 position, unplug the cord from power outlet.

3. Press stand release button and pull up the hand mixer.

4. If necessary you can scrape the excess food particles from the beaters or dough hooks by rubber or wooden spatula.

5. Hold the beaters/dough hooks with one hand and press the

Ejector button firmly down with the other hand, remove the beater/dough hooks.

Note: Remove the beaters/dough hooks only at the 0 setting.

1. The hand mixer can be used separately without the stand in position.

CLEANING AND MAINTENANCE

1. Unplug the appliance and allow it to completely cool down before cleaning.

2. Wipe over the outside surface of the mixer with a dampened cloth and polish with a soft dry cloth.

3. Wipe any excess food particles from the power cord.

4. Wash the bowl, the beaters and dough hooks in warm soapy water and wipe dry. The beaters and dough hooks may be washed in the dishwasher.

Caution: the mixer cannot be immersed in water or other liquid.

COOKERY TIPS

1. Refrigerated ingredients, such as butter and eggs, should be at room temperature before mixing begins. Set these ingredients out ahead of time.

2. To eliminate the possibility of shells or deteriorated-off eggs in your recipe, break eggs into separate container first, then adding

to the mixture.

1. Do not over-beat. Be careful that you only mix/blend mixtures until recommended in your recipe. Fold into dry ingredients only until just combined. Always use the low speed.
2. Climatic conditions. Seasonal temperature changes, temperature of ingredients and their texture variation from area to area all play a part in the required mixing time and the results achieved.
3. Always start mixing at lower speed. Gradually increase to the recommended speed / higher speed as stated in the recipe.

SPECIFICATIONS:

PRODUCT	STANDBOWL	MIXER
MODEL NO: FD5122
CAPACITY 2.4LITRES
VOLTAGE 220 – 240V
HERTZ	50/60Hz
WATTS	300W
WORK TIME (SPEED 1-5)WORK TIME (TURBO)	LESS THAN 3 MINUTESLESS THAN 1 MINUTE
MADE IN CHINA

ENVIRONMENT FRIENDLY DISPOSAL

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

You can help protect the environment!

Please remember to respect the local regulations: hand in the non-working electrical equipments to an appropriate waste disposal center.
