Product Type	Electric Room Heater
Model	SFH 3396
Brand	Sinbo
Rated Voltage	AC 220-240 V
Frequency	50/60 Hz
Power Consumption	2500 W
Dimensions (W x D x H)	800 x 160 x 60 mm
Weight	1.81 kg
Effective Heating Area	25 m²
Mounting Options	Wall or ceiling mount
Heat Settings	Two heat settings with thermostat control
Heating Element	Not specified (likely infrared or quartz)
Oxygen Consumption	Does not consume oxygen
Air Drying	Does not dry air; no bad odors
Safety Features	Overheat protection (inferred), grounded plug required, minimum distances from flammable materials (1 m front, 0.4 m ceiling, 0.5 m sides)
Cleaning	Unplug, remove safety grill, clean reflector with soft cloth; do not use harsh chemicals
Included Accessories	L-brackets, bolts, butterfly nuts for wall mounting
Recommended Fuse	16 A for 2500 W (or 10 A up to 2000 W)
Warranty	Damages from incorrect usage not covered

Frequently Asked Questions - SFH 3396 SINBO

What are the dimensions and weight of the Sinbo SFH 3396 heater?

The heater measures 800 x 160 x 60 mm and weighs 1.81 kg.

Can this heater be used on the floor?

No, this heater is designed for wall or ceiling use only. It must be mounted on a sturdy, non-flammable surface.

How do I clean the Sinbo SFH 3396?

Unplug the unit, remove the safety grill with a flathead screwdriver, and clean the reflector with a soft cotton cloth or brush. Do not use cleaning agents that may damage the reflector.

What is the power consumption and voltage requirement?

It operates at AC 220-240 V, 50/60 Hz, and consumes 2500 W. Ensure your electrical circuit is rated for this load.

Does the heater consume oxygen or dry the air?

No, it does not consume oxygen, does not dry the air, and does not produce bad odors as it does not burn particles.

How far must the heater be from walls and objects?

Maintain a minimum of 1 meter from the front to flammable materials, 0.5 meters from side walls, 0.4 meters from the ceiling, and 1.8 meters from the floor. Also keep at least 1 meter from living things.

Is the heater suitable for use in bathrooms?

Yes, but it must be installed so that people in the shower cannot contact the appliance or its controls. Ensure a safe distance.

Can I use a timer or programmer with this heater?

No, do not use an external timer or automatic switcher as it may cause a fire risk if the heater is covered or positioned incorrectly.

How do I mount the heater on the wall?

Fix the L-brackets to the heater using M5 bolts, then mount another pair of L-brackets on the wall at the same spacing. Attach the heater to the wall brackets using butterfly nuts. Ensure a sturdy surface like concrete or metal.

What is the effective heating area?

The heater is suitable for rooms up to 25 m².

USER MANUAL SFH 3396 SINBO

Exterior view of a silver cylindrical device with black buttons and mesh grille, labeled 'sinbo.' (no other text or symbols visible)

Black-and-white family photo of a man, a woman, and a baby smiling together (no text or symbols visible)

www.sinbo.com

SINBO SFH 3396

ELEKTRİKLİ ODA ISITICISI

KULLANIM KILAVUZU

Değerli Müşterimiz,

Children being supervised not to play with the appliance.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliances by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

Read these instructions carefully before using the device in order to avoid malfunctioning due to incorrect operation and keep it for future reference.

Warning: Incorrect usage can injure the operator and damage the device.

1. ATTENTION: Do not operate your heater upright.

2. Ensure that the voltage rating of the place you will use the unit conforms to the voltage level specified on the unit.

3. Always use a grounded plug to avoid electric shock hazard. Ensure that the plug is connected securely.

4. Do not bend the power cable or apply excessive pressure in order to avoid damaging the cable. If the power cable is damaged, it shall be replaced by professional technicians in order to avoid electric shock hazard. Don't attempt to replace the power cable.

5. Keep the cable away from heated surfaces.

6. Do not try to dismantle the part which contains the electrical parts.

7. This unit is not suitable for the use of children. Do not leave the unit unattended at places where children are present or while it is being operated.

8. Do not insert any object (paper, pencil or wire etc.) or fingers through the safety grill while the device is operating.

9. The device shall not be used for lighting cigarettes or similar things.

10. Do not place clothes on the heater for drying them, otherwise they can catch fire.

11. Do not cover the top of your heater.

12. Check the mains safety. Your fuse shall be 10A up to 2000 Watt, 16 A from 2200 Watt to 3000 Watt.

13. Check that mains power supply is 220 ± 10 V (AC) and the electrical circuit is fitted with an appropriate fuse.

14. Grounded socket shall not be above the level of the unit.

15. Unplug the unit if it will not be used for long times or before cleaning.

16. Do not connect the unit to the same socket or extension cable shared with other devices.

17. There must be a minimum distance of 1 m between the unit and living things.

18. There must be a minimum distance of 1.8 m between the unit and floor.

19. There must be a minimum distance of 0.4 m between the unit and ceiling.

20. It should be min 1 meter distance between heating surface of device and wood, carton, cloth etc.

21. Due to fire danger, don't mount the device close to curtains and flammable materials.

22. It should be at least 50 cm distance between device and side wall.

Warning: Damages resulting from failure to observe the instructions in this manual or incorrect usage are not covered by the warranty. Specifications contained on the device or in the instructions manual can be changed without prior notice.

If the appliance will be installed to spaces such as bathrooms, it should be assembled to a distance so that people having shower can not contact with appliance and its control buttons.

Do not use this heater with a programmer, timer or any other device that switches the heater on automatically, since a fire risk exists if the heater is covered or positioned incorrectly.

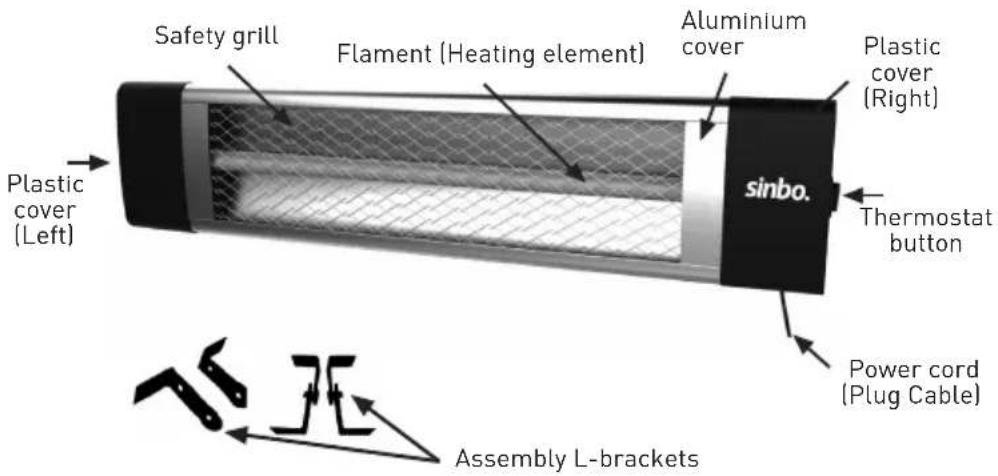

PARTS OF THE APPLIANCE

SPECIFICATIONS

Rated Voltage : AC220-240V

Frequency : 50/60 Hz

Power Consumption : 2500W

Dimensions : 800x160x60 mm

Weight : 1,81 kg.

Effective Area : 25 m

OPERATION AND FUNCTIONS

* Healthy, economical and durable heater.
* Heats the environment in a short time.
* Does not cause headaches since it does not consume oxygen.
* Does not dry air; does not cause bad odors since it does not burn particles in the air.
* Thermostat controlled two heat settings.
* Can be mounted on wall, ceiling easily.
* It is for wall use only.

WALL ASSEMBLY

1. The heater shall be mounted on a sturdy surface like concrete, stone or metal. Do not mount the unit on flammable surfaces.
2. "L" brackets shown in the figure shall be fixed to the nuts inside the rail behind the heater housing using M5 YSB bolts, centering the heater with a 50 mm distance between them.
3. The other 2 "L" brackets shall be fixed on the wall or to the ceiling parallel to the floor, using 2 fixing plugs with the identical distance between them.

WALL ASSEMBLY

1. "L" brackets to be mounted on the and "L" brackets in the rear of the heater are fixed to each other using butterfly nuts upon adjusting the desired angle of the heater.

CLEANING AND MAINTENANCE

Clean your heater regularly.

* Unplug the unit before cleaning.
* Remove the safety grill using a flathead screwdriver without damaging the housing.
* Clean the reflector with a soft cotton cloth or a suitable brush.
* Do not use cleaning agents which may damage the reflector.
* Install the wire grill using a flathead screwdriver.

WHILE CARRYING

* Do not drop the unit,
* Avoid any impacts on the device,
* Ensure that it is not pinched or crushed,
* Observe the markings on the package.

CORRECT DISPOSAL OF THIS PRODUCT

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the

environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling.
