Brand	EuroGrille
Model	EUG-BR2
Product Type	2-Burner BBQ
Fuel Type	LPG (Liquid Propane Gas)
Power Output	20,000 BTU
Material	430 Grade Stainless Steel
Ignition System	Piezo
Regulator & Hose	Included (100 cm)
Approvals	AGA, CSA
Number of Burners	2
Usage Location	Outdoors only
Minimum Clearance from Combustible Surfaces	61 cm from sides and back
Tabletop Height Requirement	Max 81 cm
Assembly Required	Yes
Grease Management	Removable grease tray
Included Components	Cooking grid, flame tamers, burner supporters, temperature gauge
Maintenance	Clean burner ports and grease tray regularly; inspect gas hose
Warranty	Refer to manual; modifications void warranty

Frequently Asked Questions - EUG-BR2 EuroGrille

How do I light the BBQ?

Open the lid, ensure all knobs are OFF, turn on the cylinder valve, push and turn a burner knob to HI. If it doesn't light in 5 seconds, turn OFF, wait 5 minutes, and repeat. Alternatively, use a match with the lighting rod. Keep face and hands away.

How do I check for gas leaks?

Mix one part liquid detergent with one part water to create a soap solution. Apply to all gas connections with a spray bottle or brush while the gas is ON (controls OFF). Bubbles indicate a leak. If found, tighten fittings or replace parts. Never use an open flame to test.

What should I do if I smell gas?

Immediately shut off the gas supply at the cylinder. Extinguish any open flames. Open the lid. If the odour continues, keep away from the appliance and call your gas supplier or fire department.

Can I use this BBQ indoors?

No. This BBQ is for outdoor use only. Using it indoors can lead to carbon monoxide poisoning, which can be fatal. Never use in a garage, porch, shed, or any enclosed area.

What type of gas does the EUG-BR2 use?

It uses LPG (Liquid Propane Gas). It is configured for LPG and must not be used with natural gas. The regulator supplied is suitable for LPG.

How do I clean the burners?

Ensure the BBQ is cool and gas is off. Use compressed air or a wire to clean the burner ports. Wire brush the outside of the burner to remove dirt. Check for spider webs or nests that can cause flash-back.

What is the minimum clearance required?

Keep at least 61 cm clearance from sides and back of the BBQ to combustible construction. Do not use under overhead combustible surfaces. Ensure good ventilation.

How do I store the BBQ when not in use?

Let the BBQ cool completely. Disconnect and remove the LPG cylinder indoors. Store the cylinder outdoors out of reach of children. Place dust cap on the cylinder valve. Store the BBQ in a dry place away from direct sunlight.

Why are my burners producing yellow flames or not lighting properly?

Yellow flames or poor lighting may indicate blocked burner ports from dirt, debris, spider webs, or food residue. Clean the burner tubes and ports thoroughly. Check the air shutter if adjustable. Ensure proper gas flow.

Can I use briquettes on this BBQ?

No. The grill is designed without briquettes. Do not place briquettes on the radiant as they block burner venting and can damage ignition components and knobs, voiding the warranty.

USER MANUAL EUG-BR2 EuroGrille

EUG-BR2 2-Burner BBQ

ALSO INCLUDES

Dark rectangular panel with diagonal white stripe and two small dots at top (no text or symbols)

Black rectangular object with evenly spaced vertical white lines on a dark background (no text or symbols)

EURO GRILLE

User Manual

[Revision 1.0 April 2022]

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases, or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol, or medication.
• This equipment is not intended for use by persons with reduced physical, sensory, or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start, or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors, and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage, or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases, or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids, or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories, or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service-related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

BBQ Safety

• FOR OUTDOORS USE ONLY.
- THIS INSTRUCTION MANUAL CONTAINS IMPORTANT INFORMATION NECESSARY FOR THE PROPER ASSEMBLY AND
• SAFE USE OF THE APPLIANCE.
- READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS BEFORE ASSEMBLING AND USING THE APPLIANCE.
• FOLLOW ALL WARNING AND INSTRUCTIONS WHEN USING THE APPLIANCE.
• DO NOT LEAVE THE APPLIANCE UNATTENDED. KEEP YOUNG CHILDREN AND PETS AWAY.
• DO NOT MOVE THE DEVICE DURING USE.
- NOT INTENDED TO BE INSTALLED IN OR ON BOATS AND SHOULD NEVER BE USED AS A HEATER.
- CLOSE THE VALVE OF THE GAS CYLINDER AFTER USE.
- THE COVER SHALL NOT BE USED WHILE THE UNITS IN OPERATION AND SHALL NOT BE INSTALLED UNTIL THE UNIT HAS COOLED.
- KEEP THIS MANUAL FOR FUTURE REFERENCE.
- NEVER OPERATE THIS BBQ WITHOUT A PRESSURE REGULATOR.
- IF THE REGULATOR IS NOT SUPPLIED WITH YOUR BARBECUE -DEPENDING ON WHICH GAS YOU DECIDE TO USE – TURN TO YOUR LOCAL GAS DEALER FOR A REGULATOR.
• THE SERVICING SHOULD BE CARRIED OUT ONLY BY AUTHORISED PERSONNEL, AND THE APPLIANCE SHOULD NOT BE MODIFIED.

DANGER!

IF YOU SMELL GAS:

• SHUT OFF GAS TO THE APPLIANCE.
- EXTINGUISH AN OPEN FLAME.
- OPEN LID.
- IF ODOUR CONTINUES, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR GAS SUPPLIER OR YOUR FIRE DEPARTMENT.
- NEVER OPERATE THIS APPLIANCE UNATTENDED. NEVER OPERATE THIS APPLIANCE WITHIN 3.0M OF ANY STRUCTURE, COMBUSTIBLE MATERIAL, OR OTHER GAS CYLINDER.
- NEVER OPERATE THIS APPLIANCE WITHIN 7.5M OF ANY FLAMMABLE LIQUID.
• IF A FIRE SHOULD OCCUR, KEEP AWAY FROM THE APPLIANCE AND IMMEDIATELY CALL YOUR FIRE DEPARTMENT.
- DO NOT ATTEMPT TO EXTINGUISH AN OIL OR A GREASE FIRE WITH WATER.
- FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN FIRE OR EXPLOSION WHICH COULD CAUSE PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

WARNING!

• DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE LIQUIDS OR VAPOURS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • DO NOT USE OR STORE FLAMMABLE MATERIALS IN OR NEAR THIS APPLIANCE
  • DO NOT SPRAY AEROSOLS IN THE VICINITY OF THIS APPLIANCE WHILE IT IS IN OPERATION.
  • DO NOT PLACE ARTICLES ON OR AGAINST THIS APPLIANCE.
  • DO NOT MODIFY THIS APPLIANCE.

• ANY LP CYLINDER NOT CONNECTED FOR USE SHOULD NOT BE STORED IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
  • NEVER OPERATE THIS APPLIANCE UNATTENDED.

• WITH THE HOOD DOWN, ONLY COOK WITH CONTROL KNOB SET AT LOW.
• THE APPLIANCE IS NOT INTENDED FOR COMMERCIAL USE. THE USE OF ALCOHOL, PRESCRIPTION OR NON-PRESCRIPTION DRUGS MAY IMPAIR THE CONSUMERS' ABILITY TO PROPERLY ASSEMBLY OR SAFETY OPERATE THE APPLIANCE.

Care and Maintenance Precautions

• When using the grill, do not touch the grill rack, burner grate or immediate surroundings which become extremely hot during use and can cause burns.
• Avoid allowing excess grease to collect in the grease tray at the bottom of the grill's firebox. Clean the grease tray often. For proper burner lighting and performance, keep the burner ports clean.
• It is necessary to clean them periodically for optimum performance. For safe operation, the burners must be mounted correctly. The burners will only operate in one direction.
• Clean the grill with caution. to avoid steam burns, do not use a wet sponge or cloth when cleaning the grill. Turn off all controls knobs and make sure the grill is cool before cleaning. When using aerosol sprays to clean burners be very careful. Ensure that the equipment is cool before using an aerosol spray, as the presence of heat could cause it to corrode or light the equipment on fire.
• Do not use the grill for cooking excessively fatty meats or products, which can cause flare-ups. Do not operate the grill under unprotected combustible construction. Use only in well ventilated areas. Do not use in buildings, garages, sheds, breezeways, or other such enclosed areas. This unit is for outdoor use only. Caution: beware of flashback
• Caution: spiders and small insects occasionally spin webs or make nests in the grill burner tubes during transit and warehousing. These webs can lead to gas flow obstruction, which could result in a fire in and around burner tubes. This type of fire is known as "flash-back" and can cause serious damage to your grill and create an unsafe operating condition for the user.
• Although an obstructed burner tube is not the only cause of "flash-back", it is the most common cause.
• To reduce the likelihood of "flash-back", you must clean the burner tubes before assembling your grill, and at least once a month in late summer or early fall when spiders are most active. Also perform this burner tube cleaning procedure if your grill has not been used for an extended period. A clogged tube can lead to a fire beneath the grill.

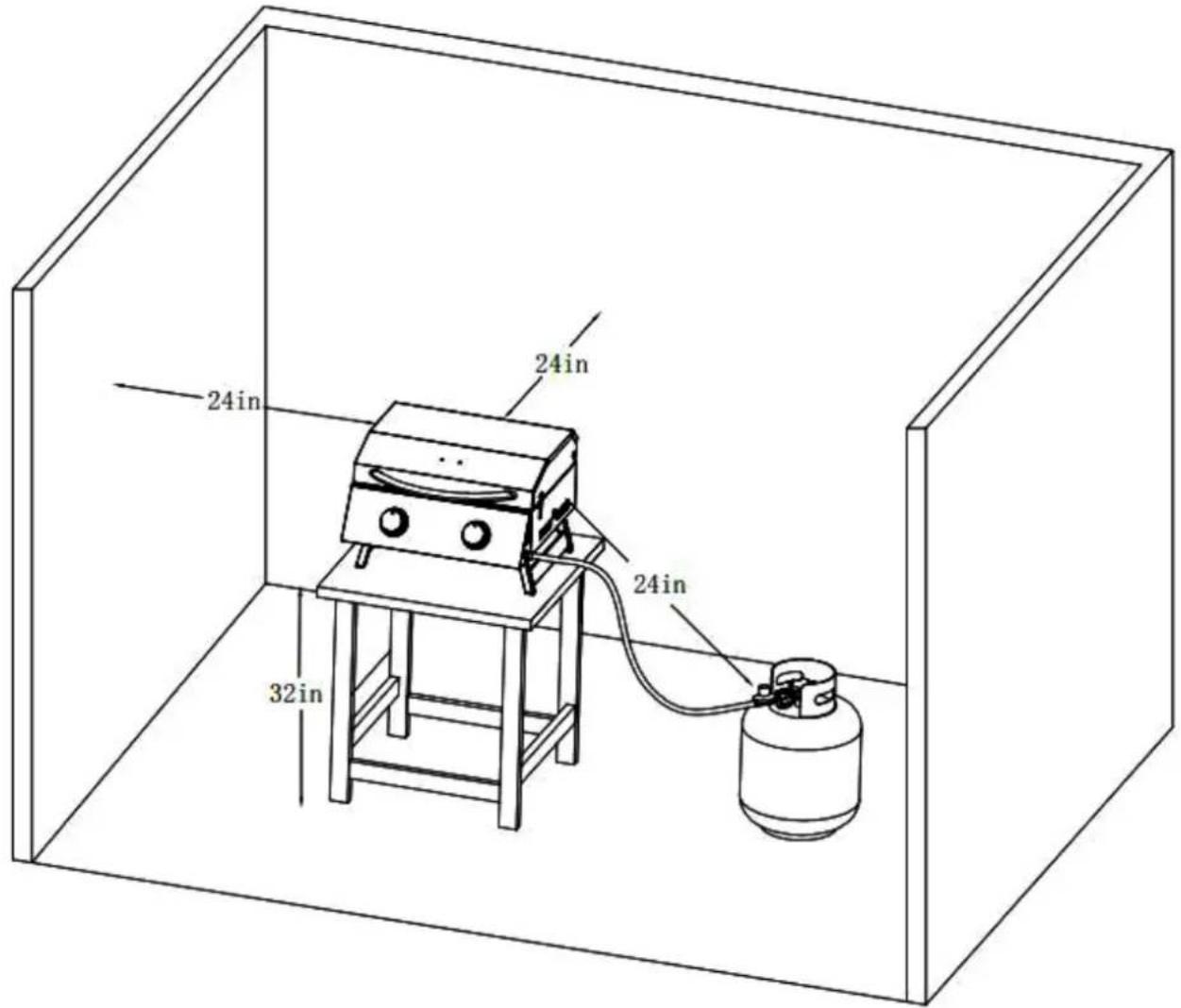

Proper Placement and Clearance of Grill

• Never use your gas grill in a garage, porch, shed, breezeway, or any other enclosed area. Your gas grill is to be used outdoors only.
• DO NOT install this unit into combustible enclosures.
• Minimum clearance from sides and back of unit to combustible construction, 61cm from both sides and 61cm from the back.
• DO NOT use this appliance under overhead combustible surfaces. This outdoors cooking gas appliance is not intended to be installed in or on recreational vehicles and/or boats.
• Do Not obstruct the flow of ventilation air around the gas grill housing. Only use the regulator and the hose assembly supplied with your gas grill. Replacement regulators and hose assemblies must be those specified in this manual.
• The regulator and hose assembly must be inspected before each use of the grill. If there is excessive abrasion or wear or if the hose is cut, it must be replaced prior to the grill being put into operation. The replacement hose assembly shall be that specified by the manufacturer.
• Pressure regulator and hose assembly supplied with the outdoor cooking gas appliance must be used.
• Never substitute other types of regulators. Contact the manufacturer or an authorised service centre for specified replacement parts.
• This outdoor cooking gas appliance is equipped with an AGA standard pressure regulator and hose.
• The grill is designed for optimum performance without the use of briquettes. Do not place briquettes on the radiant as this will block off the area for the grill burners to vent. Adding briquettes can damage ignition components and knobs and void the warranty.
• Keep the back and side cart free and clear from debris. Keep any electrical supply cord or the rotisserie motor cord away from the heated areas of the grill.
• Never use the grill in extremely windy conditions. If located in a consistently windy area (oceanfront, mountaintop, etc.) a windbreak will be required. Always adhere to the specified clearance.
• Never use a dented or rusty propane tank.
• Keep any electrical supply cord and the fuel supply hose away from any heated surface.
• While lighting, keep your face and hands as far away from the grill as possible.
• Burner adjustment should only be performed after the burner has cooled.

• WARNING! If stepping over the hose, it may cause the hazard of tripping over the hose and tipping of the supply cylinder.
• This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.
• This appliance must not be used indoors. Do not use your barbecue in garages, porches, sheds, or other enclosed areas. The barbecue is not intended to be installed in or used on recreational vehicles (e.g., boats, camping vans) and should not be placed close to or under any surfaces that will burn or are sensitive to heat. Do not block/obstruct the flow of air and combustion around the barbecue housing while in use.

• Any enclosure in which the appliance is used shall comply with one of the following:

• An enclosure with walls on all sides, but at least one permanent opening at ground level and no overhead cover.

• Within a partial enclosure that includes an overhead cover and no more than two walls.
• Within a partial enclosure that includes an overhead cover and more than two walls, the following shall apply:

- At least 25% of the total wall area is completely open; and

- At least 30% of the remaining wall area is open and unrestricted.

- In the case of balconies, at least 20% of the total of the side, back and front wall areas shall be and remain open and unrestricted.

WARNING!

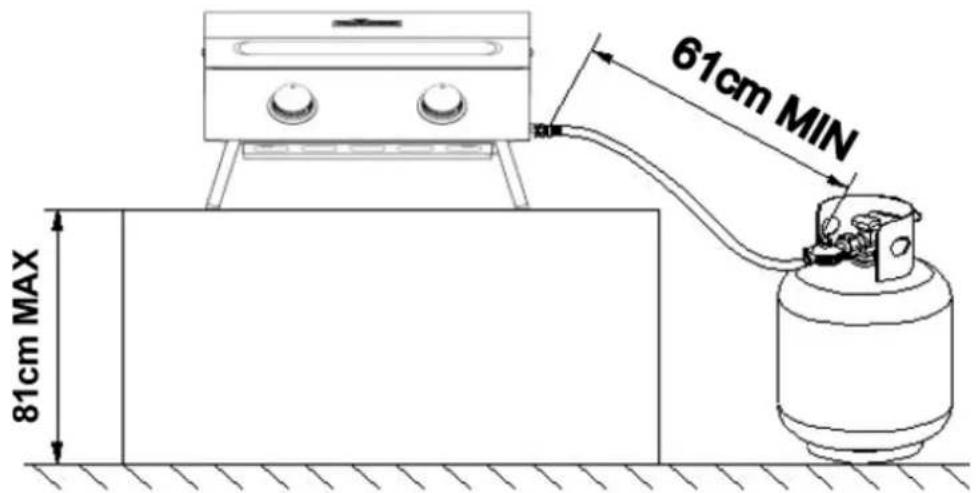

• Always operate the grill on a tabletop, no higher than 81cm.
- Place the propane tank on the ground immediately adjacent to the tabletop, no further than 61cm from the grill.
- Failure to follow these instructions could cause the propane tank to overheat and vent propane which could ignite causing serious personal juries or property damage and/or a tripping hazard over the gas hose or propane tank, pulling the grill off the tabletop causing serious personal injuries or property damage.

! DANGER !

Using an engine or wood/charcoal/gas fuelled appliance indoors CAN KILL YOU IN MINUTES.

Engine exhaust and wood/charcoal/gas fumes contain carbon monoxide. This is a poison you cannot see or smell.

NEVER use inside a building, home, garage, boat, caravan or tent EVEN IF doors and windows are open.

Only use OUTSIDE and far away from windows, doors, and vents.

Avoid other hazards - READ MANUAL BEFORE USE.

GENERAL:

• Do not operate in a hazardous location. Such areas include where there is a risk of explosion of petrol fumes, leaking gas or explosive dusts.
• Do not operate in a confined area where exhaust gases or wood/charcoal/gas fumes could reach dangerous concentrations.

PRODUCTS FEATURING AN ENGINE

- Follow all warnings in the section titled "GENERAL".

• Explosion hazard - never smoke while refuelling.
• Take care not to spill fuel. When refuelling the engine, ensure that the engine has been allowed to cool. Prevent spilling of fuel as this may also ignite with a hot engine.
• Never refuel while engine is running.

GENERATORS

• Follow all warnings in the sections titled "GENERAL" and "PRODUCTS FEATURING AN ENGINE".
• The output of this generator is potentially lethal. The generator should not be connected to a fixed electrical installation except by an appropriately licensed person.
• Not weatherproof – protect your machine. This machine is not weatherproof and should not be exposed to direct sunlight, high ambient temperature, damp conditions, wet conditions or high humidity conditions.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases, or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases, or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing, and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp, or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety....2

Safety Symbols 8

Parts Identification.... 11

Assembly 12

Injector Markings....12

Regulator and Hose Assembly....12

Preparation....12

BBQ Assembly 12

Tank Installation 13

Gas Installation....14

Operation 14

Checking for Gas Leaks....14

Lighting Instructions ....15

Maintenance 16

Specifications.... 17

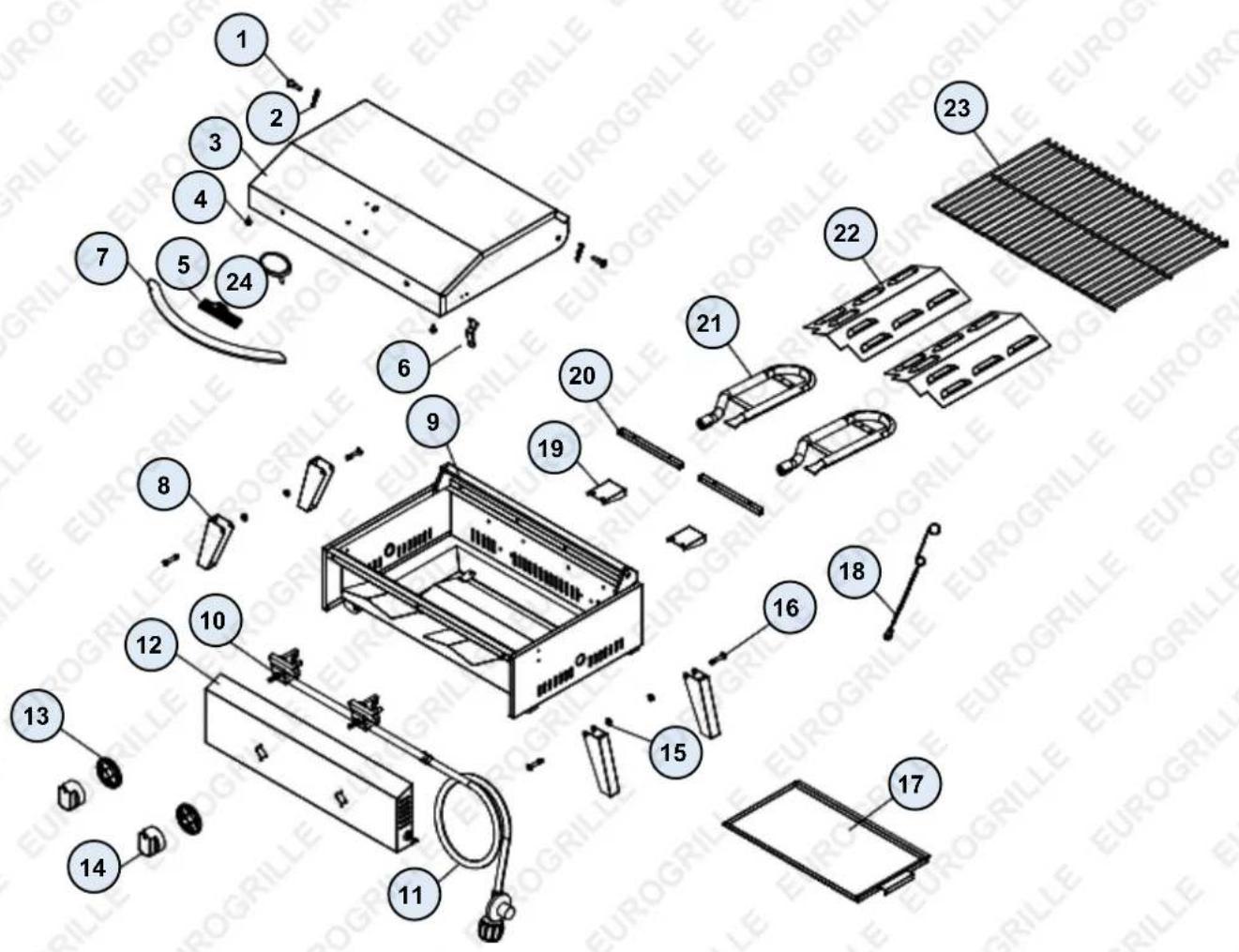

Parts Identification

No.	Name	No.	Name
1	Main Lid Bolt x 2	13	Knob Bezel x 2
2	Main Lid Screw Cover x 2	14	Knob x 2
3	Main Lid x 1	15	Nut, Foot Stand Leg x 4
4	Lid Rubber Pad x 2	16	Screw, Foot Stand Leg x 4
5	Temperature Gauge x 1	17	Grease Tray x 1
6	Latch x 2	18	Lighting Rod x 1
7	Handle x 1	19	Burner Supporter x 2
8	Foot Stand Leg x 4	20	Fixed Plate for Flame Tamer x 2
9	Main Firebox x 1	21	Main Burner x 2
10	Manifold with valve x 1	22	Flame Tamer x 2
11	Regulator and Hose x 1	23	Cooking Grid x 1
12	Control Panel x 1	24	Temperature Gauge x 1

Assembly

Injector Markings

The marking of injectors as diagram is the injector size.

Regulator and Hose Assembly

• After the assembly has been secured, turn ON the gas and check for leaks. See the Checking for Gas Leaks section. Make certain this procedure is carried out in a well-ventilated area and never in the presence of a flame, spark, or a heat source.
  • Never use a dented or rusty LP tank.
• Normally, it's necessary to change the regulator hose every 4 years.

Preparation

• Before beginning assembly, make sure all parts are present. Compare parts with package contents list and diagram above. If any part is missing or damaged, do not attempt to assemble the product.
• Contact the manufacturer for replacement parts.
• Tools Required for Assembly: Phillips Screwdriver (not included) and wrench (not included).

NOTE: The right and left sides of the grill are designated as if you are facing the front of the grill.

BBQ Assembly

1. Install the grease tray underneath the BBQ, as shown.

Line drawing of a portable stove or cooker with two side legs and a central vent (no text or symbols)

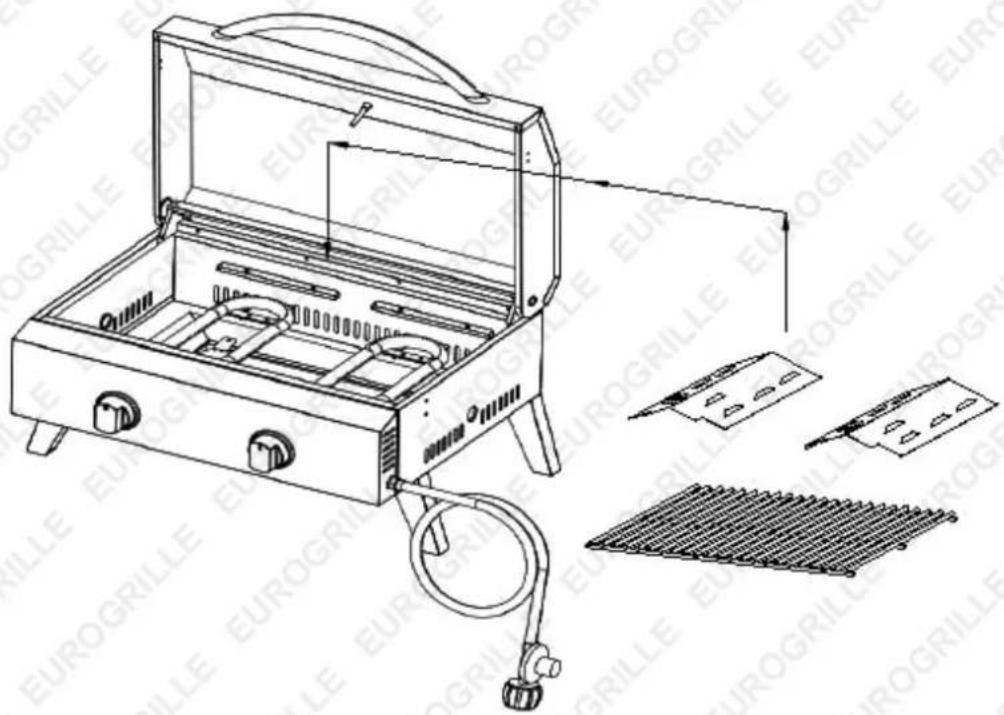

1. Install the flame tamer onto the burner, then put the grid on the BBQ, as shown.

Tank Installation

• Check the hose that came attached to the barbeque, make sure that it has a rubber seal on the regulator end of it, and connect this end of the hose to the gas cylinder.
• You won't need a spanner here. Just turn the fitting in an anti-clockwise direction and hand0tighten as much as you can. This should seal it sufficiently.
• The regulator as supplied should be firmly tightened, but care must be taken not to over-tighten the connections.
  • The regulator as supplied is the correct regulator for this item.
• If the outdoor cooking appliance is not in use, the gas must be turned "OFF" at the Liquid Propane Cylinder.
• If the outdoor cooking gas appliance is not in use, the gas must be turned off at the supply cylinders.
• Storage of an outdoor cooking gas appliance indoor is permissible only if the cylinder(s) is/are disconnected and removed from the outdoor cooking gas appliance.
• Cylinder(s) must be stored outdoor out of the reach of children and must not be stored in a building, garage or any other enclosed area.
• Cylinder(s) used must include a collar to protect the cylinder valve.

Note: The minimum LP Gas cylinder capacity Should be 9KGS. Always keep the cylinder at 90° (upright) orientation to provide adequate vapour withdrawal. Keep the fuel supply hose away

from any heated surface(s).

- Place dust cap on cylinder valve outlet whenever the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of cap or plugs may result in leakage of propane.

Gas Installation

• Only the pressure regulator and hose assembly suitable for the grill should be used. Any replacement pressure regulator and hose assembly must be specified by the grill manufacturer.
• This grill is configured for LPG. Do not use a Natural Gas supply. Total gas consumption (per hour) with all burners set on HI.

Operation

Warning: This product may heat surfaces around it. Heat may be projected in any direction. Keep away from any surface that could be affected by heat.

Checking for Gas Leaks

General

• Although all gas connections on the grill are leak-tested at the factory prior to shipment, a complete gas tightness check must be performed at the installation site due to possible mishandling in shipment, or excessive pressure unknowingly being applied to the unit.
  • Periodically check the whole system for leaks following the procedures listed below.
  • If the smell of gas is detected at any time, you should immediately check the entire system for leaks.

Before Testing

• Make sure that all packing material is removed from the grill, including the burner tie-down straps.

DO NOT SMOKE WHILE LEAK-TESTING. NEVER PERFORM LEAK TEST WITH AN OPEN FLAME.

- Make a soap solution of one part liquid detergent and one part water. You will need a spray bottle, brush, or rag to apply the solution to the fittings. For the initial leak test, make sure the LP cylinder is full.

To Test

1. Make sure the control valves are in the OFF position, and then turn ON the gas supply.
2. Check all connections from the LP gas regulator and supply valve up to and including the connection to the manifold pipe assembly (the pipe that goes to the burners). Soap bubbles will appear where a leak is present.
3. If a leak is present, immediately turn OFF the gas supply and tighten the leaky fittings.
4. Turn the gas back ON and recheck.
5. Should the gas continue to leak from any of the fittings, turn OFF the gas supply.

ONLY THOSE PARTS RECOMMENDED BY THE MANUFACTURER SHOULD BE USED ON THE GRILL. SUBSTITUTION WILL VOID THE WARRANTY. DO NOT USE THE GRILL UNTIL ALL ECTIONS HAVE BEEN CHECKED AND DO NOT LEAK.

Gas Flow Check

• Each grill burner is tested and adjusted at the factory prior to shipment; however, variations in the local gas supply may make it necessary to adjust the burners.
  • The flames of the burners should be visually checked.

• Flames should be blue and stable with no yellow tips, excessive noise or lifting.

• If any of these conditions exist, check to see if the air shutter or burner ports are blocked by dirt, debris, spider webs, etc.

ALWAYS CHECK FOR LEAKS AFTER EVERY LP TANK CHANGE. Check all gas supply fittings for leaks before each use. It is handy to keep a spray bottle of soapy water near the shut-off of the gas supply line. Spray all the fittings. Bubbles indicate leaks.

Lighting Instructions

Before Lighting

• Inspect the gas supply hose prior to turning on the gas. If there is evidence of cuts, wear, or abrasion, it must be replaced prior to use.
• Connect the hose onto the cylinder and check the hose and regulator connections before operating the grill.
• Only the pressure regulator and hose assembly supplied with the unit should be used. Never substitute regulators. If a replacement is necessary, contact customer service for proper replacement.

WARNING! Do not use the grill if the odour of gas is present.

1. Read the safety instructions before lighting.
2. Open the lid during lighting and make sure all knobs are in the OFF position.
3. Turn ON the cylinder valve.
4. Push and turn burner knob slowly to HI, then release the knob.
5. If ignition does not occur in 5 seconds, turn the burner control(s) OFF, wait 5 minutes, and repeat the lighting procedure.

Lighting the BBQ with a Match

• If a burner will not light after several attempts using the control knobs, the burners may be lit with a match.
• The cylinder supply system must be arranged for adequate vapour withdrawal.
• WARNING! When lighting, keep your face and hands as far away from the grill as possible.
- WARNING! Before lighting, please check the connection with the proper procedure. If there's a leak, turn the gas OFF.
- WARNING! The appliance will be hot during and after use. Use insulated oven mitts or gloves for protection from hot surfaces or splatter from cooking liquids.
• CAUTION! When using a match to light the grill, make sure to use the attached lighting rod.
• CAUTION! Remove the cooking grids when using a match to light the grill.
• If the burner gets accidentally extinguished, turn the control knobs OFF, and repeat the lighting procedure.

Lighting the BBQ

1. If you have already attempted to light the main burner with the igniter, allow 5 minutes for any accumulated gas to dissipate.
2. Insert a match into the lighting rod. Ignite the match and insert through the cooking grids to the burner.
3. If the burner does not light within seconds, turn the knob to the OFF position, wait for 5 minutes, then try again.

WARNING! Do not store a spare LP-Gas cylinder under or near the appliance. Never fill the cylinder beyond 80%. If the information in above warning is not followed exactly, a fire causing or serious injury may occur.

Maintenance

ATTENTION: Surface corrosion will occur on metal surfaces over time and the rate of oxidation depends on factors such as proximity to the ocean and humidity or condensation of water on metal surfaces. To mitigate this, WD40 can be used to remove surface corrosion then, when periodically, it will prevent rust from forming.

It is recommended that, at the commencement of each barbecue season, the following maintenance should be conducted.

Burner

• Clean thoroughly with compressed air or a length of wire, if possible.
  • Wire brush the outside of the burner to remove any dirt.

Grease Tray

- Ensure to remove all dirt/grease accumulation.

Gas Supply

• Inspect the gas supply hose for any damage/deterioration and replace it, if necessary.
• Check all connections for gas soundness.

Gas Cylinder

- Please check the gas cylinder regularly to make sure it is still within the validity period.

Specifications

Material	430 Grade Stainless Steel
Power 20,000 BTU
Ignition System Piezo
Regulator and Gas Hose	Included (100cm)
Approvals AGA, CSA

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging, and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear, or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear, or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

■ The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business, or employee, or financially affect the user, business, or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement, or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

topia.com.au
