USER MANUAL ATAK-009 Ozito

AIR TOOLS & ACCESSORIES KIT

9 PIECE

INSTRUCTION MANUAL

SPECIFICATIONS

Long Nose Air Blow Gun

Nozzle: 100mm

Working Pressure: 58psi (4bar)

Air Inflation Gun

Working Pressure: 116psi (8bar)

Spray Nozzle Washing Gun

Tank Size: 1L

Working Pressure: 87psi (6bar)

Air Water Washing Gun

Working Pressure: 87psi (6bar)

Max. Water Inlet Pressure: 50psi (3.4bar)

Gravity Fed Spray Gun

Cup Size: 0.6L

Flow Rate: 160 - 240mL/min

Working Pressure: 50psi (3.4bar)

Kit Weight: 2.9kg

ozito.com.au

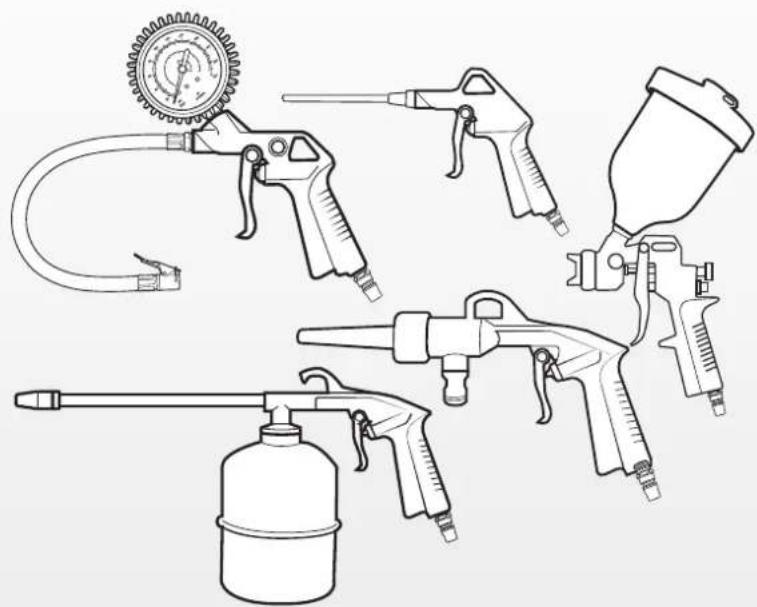

Line drawings of various spray gun types including pressure gauge, hose, spray gun, and spray bottle (no text or labels)

STANDARD EQUIPMENT

Line drawing of two spray gun holders with a gas cylinder (no text or symbols)

Air/Water Washing Gun & 1L Spray Nozzle Washing Gun

Air Inflation Gun & Long Nose Air Blow Gun

0.6L Gravity Fed Spray Gun

5m Air Hose & 3 x Inflation Accessories

ATAK-009

WARRANTY

IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER SERVICE HELPLINE:

Australia: 1800 069 486

New Zealand: 0508 069 486

TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER SERVICE REPRESENTATIVE WILL TAKE YOUR CALL AND ANSWER ANY QUESTIONS YOU MAY HAVE RELATING TO THE WARRANTY POLICY OR PROCEDURE.

The benefits provided under this warranty are in addition to other rights and remedies which are available to you at law.

Our goods come with guarantees that cannot be excluded at law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

Generally you will be responsible for all costs associated with a claim under this warranty, however, where you have suffered any additional direct loss as a result of a defective product you may be able to claim such expenses by contacting our customer service helpline above.

3 YEAR REPLACEMENT WARRANTY\*

Your product is guaranteed for a period of 36 months from the original date of purchase. If a product is defective it will be replaced in accordance with the terms of this warranty. Warranty excludes consumable parts, for example: valve adapters and accessories.

*This product is intended for DIY use only and replacement warranty covers domestic use.

WARNING

The following actions will result in the warranty being void.

• If the tool has been operated on a supply voltage other than that specified on the tool.
• If the tool shows signs of damage or defects caused by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
  • Professional, industrial or high frequency use.

KNOW YOUR PRODUCT

AIR TOOLS

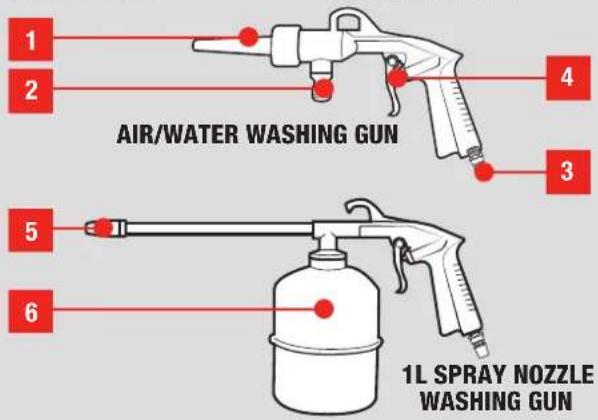

1. Water Nozzle
2. Hose Clamp
3. Water Inlet Port

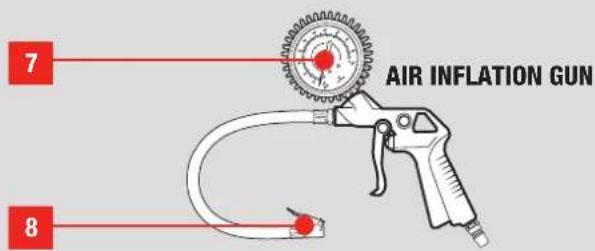

4. 100mm Inflator Nozzle
5. Nitto Style Fitting

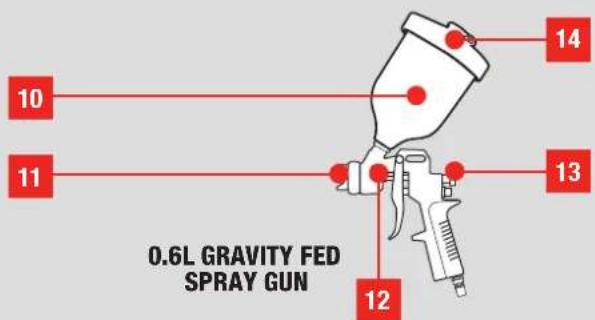

6. Material Cup
7. On/Off Trigger
8. Spray Nozzle
9. Adjustable Nozzle
10. Fan Adjustor
11. 1L Tank
12. Spray Regulator Dial
13. Pressure Gauge
14. Material Cup Lid

ONLINE MANUAL

Scan this QR Code with your mobile device to take you to the online manual.

YEAR REPLACEMENT WARRANTY*

SETUP & PREPARATION

1. ASSEMBLY

WARNING! ENSURE THE TOOL IS TURNED OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE PERFORMING ANY OF THE FOLLOWING OPERATIONS.

Connecting The Air Tools

1. Pull back the sleeve on the air hose Nitto fitting and insert the male Nitto on the desired air tool.

2. Release the sleeve; the Nitto coupling should click into place.

3. Check that the fitting is secure by tugging gently on the connector. If the hose detaches, repeat steps 2 & 3, pushing the Nitto connector firmly into the outlet.

4. To disconnect the air tool, retract the sleeve on the female Nitto fitting and disconnect the air hose from the air tool.

WARNING! ENSURE YOU HAVE A FIRM GRIP ON THE AIR HOSE WHEN DISCONNECTING IT FROM THE AIR COMPRESSOR, AS PRESSURISED AIR IN THE TANK MAY CAUSE IT TO WHIP AROUND AND INFLECT INJURY OR DAMAGE.

Illustration of a medical procedure with a syringe and needle inserted into a tube (no text or symbols)

Attaching The Inflation Nozzles

The inflation nozzles can be attached to the air inflation gun.

The needle nose nozzle can be used for sports balls.

Technical line drawing of two mechanical components: a threaded rod and a flanged cylindrical housing (no text or symbols)

The tapered nozzle can be used for rubber dinghies, small inflatable swimming pools & air bed.

Note: A suitable air compressor will be required to inflate these.

1. Press down the clamp and insert the desired nozzle.

2. Release the clamp and ensure the nozzle is securely attached by tugging gently on it.

2. SETTING UP THE SPRAY GUN

WARNING! FOR BEST RESULTS, SURFACE PREPARATION AND PAINT THINNING SHOULD BE PERFORMED. ENSURE ALL SURFACES ARE FREE OF DUST, DIRT, & GREASE.

WARNING! PAINTING CAN BE A MESSY TASK. WEAR SUITABLE CLOTHING AND ENSURE THE SURROUNDINGS ARE PROPERLY COVERED AND PROTECTED. USE OF A DROP SHEET IS RECOMMENDED WITH THE SPRAYER.

WARNING! THE SPRAY GUN CANNOT BE USED WITH MATERIALS CONTAINING ABRASIVE SUBSTANCES, GLAZES, DISPERSION PAINTS, CAUSTIC AND ALKALINE SUBSTANCES, OR TEXTURED COATINGS.

Thinning Paints

Thinning is particularly important when spraying. Most paints are supplied ready for brush application and need to be diluted sufficiently for spraying purposes. Follow the manufacturers guide for thinning ratios which should be labelled on the paint container.

1. Before pouring any paint or thinners work out how much of each substance is needed.

1. Pour the required paint and thinners through a filter into a mixing cup and mix thoroughly.

1. Unscrew the lid of the material cup and pour the thinned paint in.

Diagram of a mechanical component with a red circular annotation highlighting a feature (no text or symbols present)

1. Replace the lid and attach the air tool to the air hose.

Spray Fan Size

The fan size of the spray can be controlled with the fan adjustor.

1. Turn the dial anti-clockwise to increase the size of the fan jet.

2. Turn the dial clockwise to decrease the size of the jet.

Diagram of a hand holding a mechanical component with red arrows indicating motion or force direction (no text or symbols)

Choosing The Spray Direction

To change spray patterns, the nozzle can be rotated to the desired pattern.

Diagram of a mechanical clamp or tool with red rotation arrows indicating motion (no text or symbols)

1. For surfaces that are taller than they are wide (vertical surfaces), use a horizontal fan spray. Rotate the nozzle until it is in the position shown.

Diagram showing a circular button and a red oval shape with vertical arrows, no text or symbols present.

1. For surfaces that are wider than they are tall (horizontal surfaces), use a vertical fan spray. Rotate the nozzle until it is in the position shown.

Simple diagram showing a circular object with a horizontal bar and a red oval shape with bidirectional arrows, no text or symbols present.

Spray Regulator Dial

The amount of paint being sprayed can be adjusted with the spray regulator dial.

1. Fully tighten the spray regulator dial.

1. Slightly loosen the dial.

2. Test the setting on a scrap piece of material. Squeeze the on/off trigger to start spraying.

Diagram of a manual tool with a red arrow indicating motion or force (no text or symbols present)

1. Repeat steps 2 & 3 until the desired spray setting is achieved.

OPERATION

3. SETTING UP THE WASHING GUNS 4. INFLATING OBJ

Connecting A Water Source

A water hose (not supplied) can be connected to the Air/Water Washing Gun.

Illustration of a spray gun with a red arrow pointing to a small component (no text or symbols)

WARNING! THE WATER INLET PRESSURE MUST NOT EXCEED 50PSI (3.4BAR).

Push the standard quick coupling adaptor on the water hose onto the water inlet port of the Washing Gun.

Using The 1L Spray Nozzle Washing Gun

Alternatively, you can fill the tank of the Spray Nozzle Washing Gun with 1L of water if you only require a small amount of liquid.

Illustration of a gas washing bottle with a hand holding a tool, no text or symbols present

The size of the spray jet can be adjusted by rotating the nozzle.

Simple diagram of a tool with a red circular motion indicator (no text or symbols)

rs

Inflating A Tyre

1. With the inflation gun connected to a suitable air compressor, press down the clip on the end of the hose and push the clamp onto the nozzle of the tyre.

Diagram of a mechanical or electrical component with a curved pipe and a red arrow pointing to a component (no text or symbols present)

1. Release the clamp and pull on it gently to check that the hose is attached correctly.

2. Pull the trigger and monitor the inflation pressure with the attached pressure gauge.

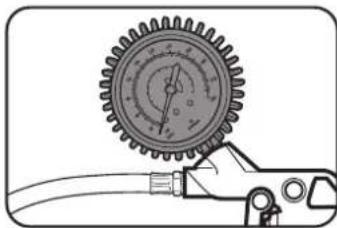

Illustration of a pressure gauge attached to a tool, showing mechanical components and a dial indicator (no text or symbols present)

MAINTENANCE DESCRIPTION OF

WARNING! BEFORE CLEANING THE APPLIANCE OR CARRYING OUT ANY MAINTENANCE PROCEDURE, MAKE SURE THAT IT IS DISCONNECTED FROM THE POWER SUPPLY TO PREVENT ACCIDENTAL STARTING.

Cleaning

1. We recommend that you clean the appliance immediately after you use it.
2. Keep the safety devices free of dirt and dust as much as possible. Wipe the equipment with a clean cloth.
3. Clean the appliance regularly with a damp cloth and some soft soap. Do not use cleaning agents or solvents; these may be aggressive to the plastic parts in the appliance. Ensure that no water can get into the interior of the appliance.

Cleaning The Spray Gun

WARNING! IT IS ESSENTIAL TO CLEAN THE SPRAY GUN THOROUGHLY AFTER EACH USE. FAILURE TO DO SO WILL CAUSE BLOCKAGES WHICH WILL PREVENT THE TOOL FROM WORKING & VOID THE WARRANTY.

If oil based paint was used, use a solvent such as turps for cleaning. If water based paint was used, use water for cleaning.

1. Empty the paint pot of remaining material & fill with appropriate cleaning solution.
2. Connect the spray gun to the air supply and spray the cleaner onto a scrap piece of cardboard. Repeat this procedure until the solution coming out of the gun runs clear.
3. Disconnect the air supply.
4. Remove the paint pot and rinse until clean.
5. Unscrew the nozzle. Dip a clean cloth in cleaning solution and use this to clean the nozzle parts and gun housing.

Mechanical diagram showing a lever mechanism with a red circular motion indicator (no text or symbols)

1. Allow all parts to air dry completely before re-assembling.

Storage

Disconnect the air tools from the air hose and make sure that it is secured in such a way that it cannot be started up again by any unauthorised person. Store the tools in a dry location which is not accessible to unauthorised persons.

Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the tool by an unauthorised person or by mishandling of the tool.

YMBOLS

mm	Millimetre		psi	Pounds per square inch
			LL/min	LitresLitres per minute
	Wear eye, ear & breathing protection		⚠️	Warning
		Read Instruction Manual

CARING FOR THE ENVIRONMENT

Power tools that are no longer usable should not be disposed of with household waste but in an environmentally friendly way. Please recycle where facilities exist. Check with your local council authority for recycling advice.

Recycling packaging reduces the need for landfill and raw materials. Reuse of recycled material decreases pollution in the environment. Please recycle packaging where facilities exist. Check with your local council authority for recycling advice.

SPARE PARTS

Spare parts can be ordered from the Special Orders Desk at your local Bunnings Warehouse.

For further information, or any parts not listed here, visit

www.ozito.com.au or contact Ozito Customer Service:

Australia 1800 069 486

New Zealand 0508 069 486

E-mail: [e-mail]

GENERAL POWER TOOL SAFETY WARNINGS

WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference.

1. Work area safety
   a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
   b. Do not operate air tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Air tools create sparks which may ignite the dust or fumes.
   c. Keep children and bystanders away while operating a air tool. Distractions can cause you to lose control.
2. Personal safety
   a. Stay alert, watch what you are doing and use common sense when operating a air tool. Do not use a air tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating air tools may result in serious personal injury.
   b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
   c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying air tools with your finger on the switch or energising air tools that have the switch on invites accidents.
   d. Remove any adjusting key or wrench before turning the air tool on. A wrench or a key left attached to a rotating part of the air tool may result in personal injury.
   e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the air tool in unexpected situations.
   f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
   g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
3. Air tool use and care
a. Do not force the air tool. Use the correct air tool for your application. The correct air tool will do the job better and safer at the rate for which it was designed.
b. Do not use the air tool if the switch does not turn it on and off. Any air tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the air tool before making any adjustments, changing accessories, or storing air tools. Such preventive safety measures reduce the risk of starting the air tool accidentally.
d. Store idle air tools out of the reach of children and do not allow persons unfamiliar with the air tool or these instructions to operate the air tool. Air tools are dangerous in the hands of untrained users.
e. Maintain air tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the air tool's operation. If damaged, have the air tool repaired before use. Many accidents are caused by poorly maintained air tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the air tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the air tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
4. Service
a. Have your air tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the air tool is maintained.

AIR TOOL SAFETY WARNINGS

The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction.

Young children should be supervised to ensure that they do not play with the appliance.

• Ensure the air valve (or trigger) is in the 'off' position before connecting to the air supply.
• Do not use any additional force upon the tool.
• Only use with accessories rated to handle the forces exerted by this tool during operation. Other accessories not designed for the forces generated may break and forcefully launch pieces.
• Attach all accessories properly to the tool before connecting the air supply. A loose accessory may detach or break during operation.
• Use this tool with both hands only. Using tools with only one hand can result in loss of control.
• When you disconnect the hose coupling, hold the coupling element in your hand to prevent injury from the whiplashing hose.
• Never point the blow guns at other persons and never use it to clean clothes that are still being worn.
• Be certain to read all the labels on the containers of paint or other materials to be sprayed. Closely follow all safety instructions. Use a respirator mask if there is a chance that you might otherwise inhale the spray material. Carefully check the effectiveness of any respirator mask you intend using.
• Always wear safety goggles or glasses when using the air tools. Never point the nozzle of an accessory towards any part of your body or towards another person.

- Protect the air hose from damage. Inspect for weak or worn spots regularly and replace if necessary.

- Check the maximum pressure rating of any tools or accessories that you intend using with the compressor. The output pressure of the air from the compressor must be regulated so that it never exceeds the rated pressure of the tool or accessory.

- Never apply the outlet air directly on to any part of a person's body. Do not attempt to block the air outlet with your finger or any part of your body.

- The tool must be used only for its prescribed purpose. Any use other than those mentioned in this Manual will be considered a case of misuse. The user and not the manufacturer shall be liable for any damage or injury resulting from such cases of misuse.

- The manufacturer shall not be liable for any changes made to the tool nor for any damage resulting from such changes.

- Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool's construction and design: - Damage to the lungs if an effective breathing mask is not worn. - Damage to hearing if effective earmuffs are not worn.

- Damage to the eyes if effective safety goggles or shield are not worn.

• WARNING! In the event that an air line is cut or broken, the air supply must be turned off at the compressor. A broken air line which is not supported is extremely dangerous and can whip around very quickly, both with the capability of striking people, and blowing foreign particles into the air. Do not attempt to catch the air line but immediately keep bystanders well clear and turn off the air supply to the hose, turn off the compressor at the On/Off button, and then remove the hose from the compressor.
• Always check for leaks and correct operation before use. Never operate the spray gun if there are any leaks or faults. Faults or leaks can cause injury.
• NEVER under any circumstances aim the nozzle at another person or animal. In the event of an injury occurring, seek medical advice immediately.
  • Always ensure there is adequate ventilation when spraying.
• NEVER spray near a naked flame, including an appliance pilot light.
  • NEVER smoke whilst spraying.
• NEVER allow children to operate or play with the spray gun.
• NEVER put your hand in front of the gun. Gloves will not provide protection against an injection injury.
• All accessories must be rated at or above the maximum operating pressure range of the sprayer. This includes spray tips, guns, extensions, and hose.
• High-pressure hoses must be checked thoroughly before they are used. Replace any damaged high pressure hose immediately.
• Never pull on the high-pressure hose to move the device.
• Do not twist the high-pressure hose.
• Do not put the high-pressure hose into solvents. Use only a wet cloth to wipe down the outside of the hose.
• Lay the high-pressure hose in such a way as to ensure that it cannot be tripped over.
• Follow material and solvent manufacturer's warnings and instructions. Be familiar with the coating material's SDS sheet and technical information to ensure safe use.
• Use lowest possible pressure to flush equipment.
• Protective clothing, gloves and possibly skin protection cream are necessary for the protection of the skin. Observe the regulations of the manufacturer concerning coating materials, solvents and cleaning agents in preparation, processing and cleaning units.
• ALWAYS follow the material manufacturer's instructions for safe handling of paint and solvents.
• Do not spray on windy days.
• Never leave this equipment unattended. Keep away from children or anyone not familiar with the operation of airless equipment.
