HT3 - Uncategorized Baumr-AG - Free user manual and instructions

Product Type	Hedge Trimmer
Brand	Baumr-AG
Model	HT3
Power Source	Electric Corded
Power Rating	600 W
Cutting Length	20 inches (510 mm)
Blade Material	High-carbon steel
Blade Type	Dual reciprocating
Weight	4.5 kg
Overall Dimensions	800 x 200 x 150 mm
Handle Type	Adjustable front handle
Safety Features	Double-switch activation, blade guard
Cutting Capacity	Up to 20 mm diameter branches
Noise Level	85 dB(A)
Vibration Level	2.5 m/s²
Cable Length	0.5 m (integrated)
Maintenance	Clean after use, lubricate blades periodically
Spare Parts Available	Replacement blade set, blade cover
Repairability	User-replaceable blade and handle
Warranty	2 years limited

Frequently Asked Questions - HT3 Baumr-AG

How do I start the Baumr-AG HT3 hedge trimmer?

Ensure the blade guard is removed, press and hold the safety lock button, then squeeze the throttle trigger. Release either to stop.

What maintenance is required for the HT3?

Clean the blades with a cloth after each use and apply lubricating oil to the blade teeth. Check for loose screws regularly.

Can I use the HT3 to cut thick branches?

The HT3 is designed for branches up to 20 mm in diameter. Thicker branches may damage the blades or motor.

Is the Baumr-AG HT3 corded or battery-powered?

It is a corded electric hedge trimmer with a power rating of 600 W. It requires a standard power outlet.

How do I replace the blades on the HT3?

Disconnect the trimmer from power, remove the blade cover, unscrew the blade retaining bolts, and replace with a compatible replacement blade set.

What safety precautions should I take when using the HT3?

Always wear safety goggles and gloves. Keep both hands on the handles. Avoid using in wet conditions. Disconnect when not in use.

How long is the power cable on the HT3?

The integrated cable is 0.5 m long. Use an extension cord suitable for outdoor use.

What is the noise level of the Baumr-AG HT3?

The noise level is approximately 85 dB(A). Use hearing protection for prolonged use.

Does the HT3 come with a blade cover?

Yes, a blade cover is included for storage and transport to protect the blades and prevent accidents.

What is the warranty period for the Baumr-AG HT3?

The HT3 comes with a 2-year limited warranty covering manufacturing defects. Retain your proof of purchase.

USER MANUAL HT3 Baumr-AG

[Revision 5.0 March 2022]

THE BATTERY MAY HAVE SOME CHARGE ON ARRIVAL, IT IS IMPORTANT HOWEVER THAT THE BATTERY IS CHARGED PRIOR TO USE.

Safety

Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols:

You WILL be KILLED or SERIOUSLY INJURED if you do not follow instructions.

It is vital that you read and understand this user manual before using the product, including safety warnings, and any assembly and operating instructions. Keep the manual for future reference.

Safety precautions and recommendations detailed here must be fully understood and followed to reduce the risk of injury, fire, explosion, electrical hazard, and/or property damage.

Safety information presented here is generic in nature – some advice may not be applicable to every product. The term "equipment" refers to the product, be it electrical mains powered, battery powered or combustion engine powered.

• Before Use - If you are not familiar with the safe operation/handling of the equipment or are in any way unsure of any aspect of suitability or correct use for your application, you should complete training conducted by a person or organization qualified in safe use and operation of this equipment, including fuel/electrical handling and safety.
• Do NOT operate the equipment in flammable or explosive environments, such as in the presence of flammable liquids, gases or dust. The equipment may create sparks or heat that may ignite flammable substances.
• Keep clear of moving parts.
• Equipment may be a potential source of electric shock or injury if misused.
• Do NOT operate the equipment if it is damaged, malfunctioning or is in an excessively worn state.
• Do NOT allow others to use the equipment unless they have read this manual and are adequately trained.
• Keep packaging away from children - risk of suffocation! Operators must use the equipment correctly. When using the equipment, consider conditions and pay due care to persons and property.

General Work Area Safety

• Work areas should be clean and well it.
- Do not operate the equipment if bystanders, animals etc are within operating range of the equipment or the general work area.
- If devices are provided for connecting dust extraction / collection facilities, ensure these are connected and used properly. Dust collection can reduce dust-related hazards.

You CAN be KILLED or SERIOUSLY INJURED if you do not follow instructions.

General Personal Safety

• Wear appropriate protective equipment when operating, servicing, or when in the operating area of the equipment to help protect from eye and ear injury, poisoning, burns, cutting and crush injuries. Protective equipment such as safety goggles, respirators, non-slip safety footwear, hard hat, hearing protection etc should be used for appropriate equipment / conditions. Other people nearby should also wear appropriate personal protective equipment. Do not wear loose clothing or jewellery, which can be caught in moving parts. Keep hair and clothing away from the equipment.
• Stay alert and use common sense when operating the equipment. Do not overreach. Always maintain secure footing and balance.
• Do not use the equipment if tired or under the influence of drugs, alcohol or medication.
• This equipment is not intended for use by persons with reduced physical, sensory or mental capabilities.

General Fuel Safety

• Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources.
• Do not spill fuel. If you spill fuel, wipe it off the equipment immediately – if fuel gets on your clothing, change clothing.
• Do NOT smoke near fuel or when refuelling.
  • Always shut off the engine before refuelling.
• Do NOT refuel a hot engine.
• Open the fuel cap carefully to allow any pressure build-up in the tank to release slowly.
  • Always refuel in well ventilated areas.
• Always check for fuel leakage. If fuel leakage is found, do not start or run the engine until all leaks are fixed.

General Carbon-Monoxide Safety

• Using a combustion engine indoors CAN KILL IN MINUTES. Engine exhaust contains carbon-monoxide – a poison you cannot smell or see.
• Use combustion engines OUTSIDE only, and far away from windows, doors and vents.

You CAN be INJURED if you do not follow instructions or equipment damage may occur.

General Equipment Use and Care

• The equipment is designed for domestic use only.
• Handle the equipment safely and carefully.
• Before use, inspect the equipment for misalignment or binding of moving parts, loose components, damage or any other condition that may affect its operation. If damaged, have the equipment repaired by an authorised service centre or technician before use.
• Prevent unintentional starting of the equipment - ensure equipment and power switches are in the OFF position before connecting or moving equipment. Do not carry equipment with hands or fingers touching any controls. Remove any tools or other items that are not a part of the equipment from it before starting or switching on.
• Do not force the equipment. Use the correct equipment for your application. Equipment will perform better and be safer when used within its design and usage parameters.
• Use the equipment and accessories etc. in accordance with these instructions, considering working conditions and the work to be performed. Using the equipment for operations different from those intended could result in hazardous situations.
• Always keep equipment components (engines, hoses, handles, controls, frames, housings, guards etc) and accessories (cutting tools, nozzles, bits etc) properly maintained. Keep the equipment clean and, where applicable, properly lubricated.
• Store the equipment out of reach of children or untrained persons. To avoid burns or fire hazards, let the equipment cool completely before transporting or storing. Never place or store the equipment near flammable materials, combustible gases or liquids etc.
• The equipment is not weather-proof, and should not be stored in direct sunlight, at high ambient temperatures or locations that are damp or humid.
• Do not clean equipment with solvents, flammable liquids or harsh abrasives.
• For specific equipment safety use and care, see Equipment Safety.

General Electrical Safety

• Inspect electrical equipment, extension cords, power bars, and electrical fittings for damage or wear before each use. Repair or replace damaged equipment immediately.
• Ensure all power sources conform to equipment voltage requirements and are disconnected before connecting or disconnecting equipment.
• When wiring electrically powered equipment, follow all electrical and safety codes.
• Wherever possible, use a residual current device (RCD).
• High voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines. Electrical shock can be fatal.

General Electrical Safety

• Electrically grounded equipment must have an approved cord and plug and be connected to a grounded electrical outlet.
• Do NOT bypass the ON/OFF switch and operate equipment by connecting and disconnecting the electrical cord.
• Do NOT use equipment that has exposed wiring, damaged switches, covers or guards.
• Do NOT use electrical equipment in wet conditions or in damp locations.
• Do NOT use electrical cords to lift, move or carry equipment.
• Do NOT coil or knot electrical cords, and ensure electrical cords are not trip hazards.

General Service Information

• The equipment must be serviced or repaired at authorised service centres by qualified personnel only.
• Replacement parts must be original equipment manufacturer (OEM) to ensure equipment safety is maintained.
• Do NOT attempt any maintenance or repair work not described in this manual.
• After use, the equipment and components may still be hot – allow the equipment to cool and disconnect spark plugs and/or electrical power sources and/or batteries from it before adjusting, changing accessories or performing repair or maintenance.
• Do NOT adjust while the equipment is running.
• Perform service related activities in suitable conditions, such as a workshop.
• Replace worn, damaged or missing warning/safety labels immediately.

Introduction and Security

Never allow children or anyone unfamiliar with these instructions to use the garden tool. Children should be supervised to ensure that they do not play with the device.

Intended Use

• This device is intended exclusively for the care of trees and shrubs in private areas. It is not suitable for felling trees, not for sawing plastic, masonry or building materials that are not made of wood.
• The device is in accordance with the instructions in this manual-given descriptions and safety instructions. Any other use is improper. Incorrect use will invalidate the warranty and result in the manufacturer rejecting any responsibility. The user is responsible for all damage to third parties and their property. Only operate the device in the technical condition specified and delivered by the manufacturer. Unauthorized changes to the device exclude the manufacturer's liability for any resulting damage.

General Safety Instructions for Power Tools

• WARNING! Read all safety warnings and instructions. Failure to follow the safety instructions and instructions can result in electric shock, fire and / or serious injury.
• Keep all safety notices and instructions for future use.
• The term power tool used in the safety instructions refers to mains-operated power tools (with a power cord) and to battery-operated power tools (without a power cord).

Work Area Safety

• Keep your work area clean and well-lit. Cluttered or dark work areas can lead to accidents.
• Do not work with the power tool in potentially explosive environments in which there are flammable liquids, gases or dust. Power tools generate sparks that can ignite the dust or fumes.
• Keep children and other people away while using the power tool. If you are distracted, you can lose control of the device.

Electrical Safety

• The power tool plug must match the socket. The plug must not be modified in any way. Do not use adapter plugs together with protective earthed power tools. Unchanged plugs and matching sockets reduce this risk of electric shock.
• Avoid body contact with earthed surfaces such as pipes, heaters, stoves, and refrigerators. There is an increased risk of electric shock if your body is grounded.
• Keep power tools away from rain or moisture. Water getting into a power tool increases the risk of electric shock.
• Do not misuse the cable to carry the power tool, hang it up or to pull the plug from the socket. Keep the cord away from heat, oil, sharp edges, or moving parts of the device. Damaged or tangled cables increase the risk of electric shock.
• When working with a power tool outdoors, only use extension cords that are also suitable for outdoor use. Applying one for outdoors suitable extension cord reduces the risk of electric shock.

Personal Safety

• Be attentive, pay attention to what you are doing, and use common sense when working with a power tool. Do not use a power tool when you are tired or under the influence of drugs, alcohol, or under the influence of any medication. A moment of inattention while using the power tool can result in serious injury.

• Wear personal protective equipment and always protective glasses. Wearing personal protective equipment, such as a dust mask, non-slip safety shoes, hard hat or hearing protection, depending on the type and use of the power tool, reduces the risk of injuries.

• Avoid unintentional start-up. Make sure that the power tool is switched off before you connect it to the power supply and / or the battery, pick it up or carry it. If you hold your finger while carrying the power tool at the switch or when connecting the device to the power supply, this can lead to accidents.

• Remove adjustment tools or wrenches before switching on the power tool. A tool or wrench in a rotating part of the device can cause injuries.
• Avoid abnormal posture. Make sure you stand securely and keep your balance at all times. This gives you better control of the power tool in unexpected situations.
• Wear suitable clothing. Do not wear baggy clothes or jewellery. Keep hair, clothing, and gloves away from moving parts. Loose clothing, jewellery or long hair can be caught in moving parts.

Use and Treatment of the Power Tool

• Do not overload the device. Use the power tool designed for the job. With the right power tool, you can work better and more safely in the specified performance range.
• Do not use a power tool with a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.
• Pull the plug out of the socket and / or remove the battery before making device settings, changing accessories, or putting the device away. This precaution prevents the power tool from starting accidentally.
• Keep unused power tools out of the reach of children. Do not allow people to use the device who are not familiar with it or who have not read these instructions. Power tools are dangerous when used by inexperienced people.
• Maintain power tools with care. Check whether moving parts are working properly and are not jamming, whether parts are broken or damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the device. Many accidents are caused by poorly maintained power tools.
• Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharp cutting edges are less likely to jam and are easier to guide.
• Use the power tool, accessories, tool bits etc. in accordance with these instructions. Take into account the working conditions and the work to be performed. Using power tools for purposes other than those for which they are intended can lead to dangerous situations.

Use and Treatment of the Cordless Tool

• Only charge the batteries with chargers recommended by the manufacturer. A charger designed for one type of battery may create a fire hazard if used with other batteries.
• Only use the rechargeable batteries provided for this purpose in the power tools. The use of other batteries can lead to injuries and the risk of fire.
• When the battery is not in use, keep it away from paper clips, coins, keys, nails, screws or other small metal objects that could cause the contacts to be bridged. A short circuit between the battery contacts can result in burns or fire.
• If used incorrectly, liquid can leak from the battery. Avoid contact with it. In the event of accidental contact with water, rinse. If the liquid gets into your eyes, get additional medical help. Leaking battery fluid can cause skin irritation or burns.

General Safety Instructions for Pole Saws

• For your own safety and for the safety of others, read these operating instructions and their safety instructions before using the device. Please keep the operating instructions and their safety instructions in a safe place for later use and keep them to hand for each use.
• Pass on the operating instructions with the device if the owner changes.
• People who operate the device must not be under the influence of intoxicants (e.g. alcohol, drugs, or medication).
• Only operate the device in the technical condition prescribed and delivered by the manufacturer. Unauthorized changes to the device exclude any liability on the part of the manufacturer for any resulting damage.
• Only use the device in daylight or under good artificial lighting.
• Only use the device in dry weather conditions. Keep it away from rain or moisture. Water getting into the device increases the risk of electric shock.
• Switch off the device and remove the battery under the following conditions:
• If the device is left unattended.
• Before checking, cleaning or other work on the device.
• When the unit begins to vibrate excessively.

Hedge Trimmer Kit Safety

• For your own safety and for the safety of others, read these operating instructions and their safety instructions before using the device. Please keep the instruction manual and keep your safety instructions safe for later use and keep them for every application at hand.
  • Pass this manual on with the device if the owner changes.
• Persons who operate the device must not be under the influence of intoxicants (e.g. alcohol, drugs, or medication).
• Only use the device in daylight or under good artificial lighting.
• Use the device only in dry weather conditions. Keep it away from rain or moisture. Water getting into the device increases the risk of electric shock.
• Switch off the device and remove the battery under the following conditions:
• If the device is left unattended.
• Before checking, cleaning or other work on the device.
• When the unit begins to vibrate excessively.

Before Use

• Before starting work, familiarize yourself with the pole saw and hedge trimmer and their functions as well as their controls.

• Check the device for signs of wear or damage before commissioning and after an impact.

• Do not use a device whose switch is defective and can no longer be switched on or off.

• Check that all nuts, bolts, and screws are tight to ensure that the device is operated safely.
• Never use a device with damaged or missing parts. Have these repaired or replaced if necessary, by a qualified specialist or specialist workshop.
• When working with or on the device, always wear sturdy shoes, long trousers, and the appropriate personal protective equipment (safety glasses, hearing protection, non-slip work gloves, etc.) Wearing personal protective equipment reduces the risk of injury.
• Do not wear any jewellery or loose clothing that could be caught in the saw. Keep long hair away from the cutting unit.
• Remove adjustment tools or wrenches before switching on the pole saw. A tool or key that is in a moving part of the device can cause injury.
• Do not wear jewellery or loose clothing that could get caught in the hedge trimmer. Keep long hair away from the cutting unit.

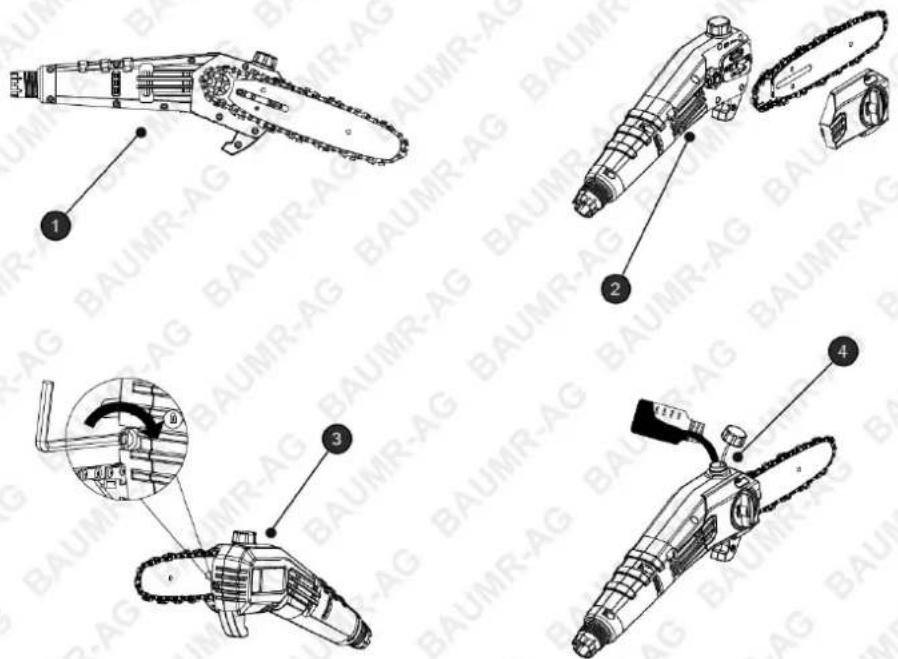

• Make sure that the chain is sufficiently lubricated. If the chainsaw is not lubricated enough, it is highly likely to be damaged or cracked.
• Remove any adjustment tools or wrenches before turning on the hedge trimmer. A tool or key that is in a moving part of the device can cause injury.

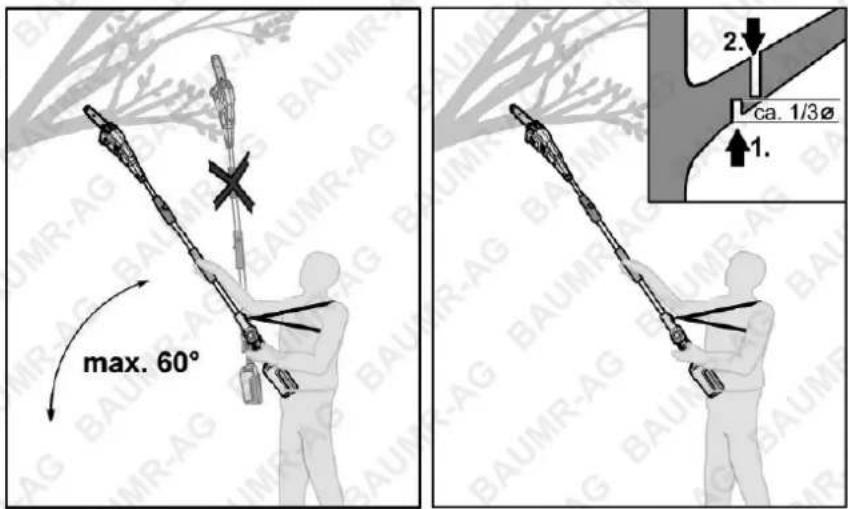

When Using the Pole Saw Tool

• Do not use the device if people (especially children) or animals are in the immediate vicinity.
• Stop working if you notice people (especially children) or pets nearby.
  • Always keep hands and feet away from the moving blades, especially when switching on the saw.
• Avoid abnormal posture. Make sure you have a secure footing and keep your balance at all times. This allows you to better control the pole saw in unexpected situations and particularly steep spots.
• Do not work with the pole saw in a potentially explosive atmosphere containing flammable liquids, gases or dust. The pole saw can generate sparks that can ignite the dust or fumes.
• Exercise extra caution when walking backwards. There is a risk of tripping!
• Go only at a walking pace.
• Never leave the device unattended during work interruptions and keep it in a safe place.
• Keep all body parts away from the chainsaw. Do not try to remove clippings or hold material to be cut while the knife is running. Only remove trapped clippings when the device is switched off. A moment of inattention while using the saw can lead to serious injuries.
• Carry the pole saw by the handle with the knife stationary. Always remove the battery when transporting or storing the device. Careful handling of the device reduces the risk of injury from the chainsaw.
• Only hold the power tool by the insulated gripping surfaces, as the chainsaw can come into contact with hidden power lines. If the saw comes into contact with a live line, metal parts of the device can become live and lead to an electric shock.
• Make sure that no people (especially children) or animals are in the work area during the cutting process.
• When the saw is running, keep all parts of your body away from the chain. Before starting the saw, make sure that the saw chain is not touching anything. When working with a pole saw, a moment of inattention can lead to clothing or parts of the body being caught in the saw chain.
• Wear protective glasses and hearing protection. Further protective equipment for the head, hands, legs and feet is recommended. Appropriate protective clothing reduces the risk of injury from flying chips and accidental contact with the saw chain.
• Do not use the saw on a tree. There is a risk of injury when operating on a tree.
• Use the device only in dry weather conditions. Keep it away from rain or moisture.
• Always make sure you have a firm footing and only use the pole saw if you are standing on firm, secure and level ground. Slippery ground or unstable surfaces such as on a ladder can lead to loss of balance or loss of control over the saw.
• Make sure that the chainsaw does not come into contact with the floor or other objects during operation.
• When cutting a branch that is under tension, expect it to spring back. When the tension in the wood fibres is released, the taut branch can hit the operator and / or make the saw go out of control.
• Be especially careful when cutting undergrowth and young trees. The thin material can get caught in the saw chain and hit you or throw you off balance.
• Wait until the power tool has stopped before putting it down.
• Never leave the device unattended during work interruptions and keep it in a safe place.
  • Always switch off the pole saw when transporting it to other work sites.
• Never take hold of the saw by its saw blade.
• When it is switched off, carry the pole saw on the front handle with the saw chain facing away from your body. Always pull on the protective cover when transporting or storing the saw. Careful handling of the saw reduces the likelihood of accidental contact with the moving saw chain.
• Follow instructions for lubrication, chain tension, and changing accessories. An improperly tensioned or lubricated chain can either break or increase the risk of kickback.
• Keep handles dry, clean, and free of oil and grease. Greasy, oily handles are slippery and lead to loss of control.
• Saw only wood. Do not use the saw for work for which it is not intended. Example: Do not use the pole saw to saw plastic, masonry or building materials that are not made of wood. Using the saw for work that is not intended can lead to dangerous situations.
• Only operate the device in the technical condition specified and delivered by the manufacturer. Unauthorized changes to the device exclude any liability on the part of the manufacturer for any resulting damage.
• Spare parts must meet the requirements specified by the manufacturer. Only use original spare parts or the spare parts approved by the manufacturer. When replacing, please observe the installation instructions provided and remove the battery beforehand.
• Have repairs carried out only by a qualified specialist or a specialist workshop.

When Using the Hedge Trimmer

• Do not operate the device if people (especially children) or animals are in the immediate vicinity.
• Stop working if you notice people (especially children) or pets nearby.
  • Always keep your hands and feet away from the moving blades, especially when turning on the hedge trimmer.
• Avoid awkward postures. Make sure you have a safe stance and keep your balance at all times. This gives you better control of the hedge trimmer in unexpected situations and particularly steep areas.
• Do not work with the hedge trimmer in an explosive environment with flammable liquids, gases, or dust. The hedge trimmer can produce sparks which can ignite the dust or fumes.
• Exercise extra caution when walking backwards. There is a risk of tripping!
• Move around only at a walking pace.
• Never leave the device unattended during work interruptions and keep it in a safe place.
• Keep all body parts away from the cutting blades. Do not try to remove clippings or hold material to be cut while the blades are running. Remove any jammed clippings only when the device is switched off. A moment of inattention while using the hedge trimmer can result in serious injury.
• Carry the hedge trimmer by the handle with the blades stationary. Always remove the battery and pull on the protective cover when transporting or storing the hedge trimmer. Careful handling of the device reduces the risk of injury from the blades.
• Only hold the power tool by the insulated gripping surfaces, as the cutting blades can come into contact with hidden power lines. Contact of cutting blades with a live cable can put metal parts of the device under voltage and cause an electric shock.
• Make sure that no people (especially children) or animals are in the work area during the cutting process.
• Make sure that the work area is clear of stones and wires before using the hedge trimmer. Also take this into account during the cutting process and search the hedge for hidden objects, such as wire fences.
• Use the device only in dry weather conditions. Keep it away from rain or moisture.
• Make sure that the cutting knife does not come into contact with the floor or other objects.
• Wait until the power tool has stopped before putting it down.
• Never leave the device unattended during work interruptions and keep it in a safe place.
  • Always switch off the hedge trimmer when transporting it to other workplaces.
• Never touch the hedge trimmer by the cutting blade.
• Make sure that all guards and handles are fitted when using the device. Never try an incompletely assembled device or a device with impermissible to put modifications into operation.
• Only operate the device in the manner prescribed and delivered by the manufacturer technical condition. Unauthorized changes to the device exclude any liability on the part of the manufacturer for any resulting damage.
• Spare parts must meet the requirements specified by the manufacturer. Only use original spare parts or the spare parts approved by the manufacturer. When replacing, please observe the installation instructions provided and remove the battery beforehand.
• Have repairs carried out only by a qualified specialist or a specialist workshop.

Causes and Avoidance of Setbacks

Kickbacks can occur if the tip of the bar hits an object or if the wood bends and jams the saw chain in the cut. Contact with the tip of the bar can in some cases result in an unexpected rearward-facing reaction, flapping the saw bar up and toward the operator.

The jamming of the saw chain on the upper edge of the saw bar can quickly push the bar back in the direction of the operator. Any of these reactions can cause you to lose control of the saw and potentially cause serious injury. Do not rely solely on the safety devices built into the chainsaw. As a chain saw user, you should take various measures to ensure that you can work without accidents or injuries.

Kickback is the result of incorrect or incorrect use of the power tool. It can be prevented by taking suitable precautionary measures, as described below:

• Hold the pole saw firmly with both hands, with your thumb and fingers gripping the pole saw handles. Bring your body and arms in a position where you can withstand the kickback forces. If appropriate measures are taken, the operator can control the kickback forces. Never let go of the pole saw.
• Avoid abnormal postures. This prevents accidental contact with the tip of the bar and enables better control of the chainsaw in unexpected situations.
• Always use replacement bars and saw chains specified by the manufacturer. Incorrect replacement bars and chains can cause the chain to break and / or kickback.
• Follow the manufacturer's instructions for sharpening and maintaining the saw chain. Depth gauges that are too low increase the tendency to kickback.

After Each Work

• Turn off the device, remove the battery, and then put the device in a safe place.
• Do not store the device within the reach of children.
• Make sure that the ventilation slots on the device are free from dirt.
• Spare parts must meet the requirements specified by the manufacturer. Only use original spare parts or the spare parts approved by the manufacturer. When replacing, please observe the installation instructions provided and remove the battery beforehand.
• Have repairs carried out exclusively by a qualified specialist or a specialist workshop.

Safety Instructions for the Charger

• Keep the charger away from rain or moisture. Water ingress into a charger increases the risk of electric shock.

• Keep the charger clean. There is a risk of electric shock from contamination.

• Before each use, check the charger, cable, and plug. Do not use the charger if you find any damage. Do not open the charger yourself and have it repaired only by qualified personnel and only with original spare parts.

• Damaged chargers, cables and plugs increase the risk of an electric shock.
• Do not place any objects on top of the charger or place it on soft surfaces. There is a risk of fire.
• Always check that the mains voltage corresponds to the voltage specified on the charger's nameplate.
• Never use the charger if the cable, plug or the device itself is damaged by external influences. Take the charger to the nearest specialist workshop.
• Under no circumstances should you open the charger. In the event of a malfunction, take it to a specialist workshop.

Safety instructions for Li-ion Batteries

• Do not open the battery. There is a risk of a short circuit.
• Protect the battery from heat, including constant exposure to sunlight, fire, water and moisture. There is a risk of explosion.
• If the battery is damaged or used improperly, vapours can escape. Supply fresh air and consult a doctor if you have symptoms. The vapours can irritate the airways.
• If used incorrectly, the battery can leak liquid. Avoid contact with it. In the event of accidental contact with water, rinse. If the liquid gets into your eyes, get additional medical help. Leaking battery fluid can cause skin irritation or burns.
• Use only original batteries with the voltage specified on the rating plate of your power tool. The use of other batteries, imitations, refurbished batteries or other makes, there is a risk of injuries and material damage from exploding batteries.
• Only charge the batteries with chargers recommended by the manufacturer. A charger designed for one type of battery may create a fire hazard if used with other batteries.
• The battery can be damaged by sharp objects such as nails or screwdrivers or by external forces. An internal short circuit can occur, and the battery can burn, smoke, explode or overheat.

DANGER!

• BE AWARE THAT THE EQUIPMENT MAY INCLUDE HAZARDOUS COMPONENTS, SUCH AS BLADES, HOT SURFACES AND MOVING PARTS.
• MOVING BLADES CAN CAUSE SERIOUS INJURY AND EVEN DEATH IF USED IMPROPERLY OR WITHOUT SUFFICIENT PPE.
• DO NOT USE THIS EQUIPMENT ON UNEVEN SURFACES AND ALWAYS MAINTAIN GOOD BALANCE WHEN USING THIS EQUIPMENT. FAILURE TO DO SO MAY CAUSE SERIOUS INJURY.
• MAINTAIN A SECURE GRIP OF THE TRIGGER ASSEMBLY AT ALL TIMES.

Safety Symbols

The product may have safety warning labels attached to it, explained below. Understand the symbols on your product and their meanings. If any stickers become unreadable, unattached etc., replace them.

Flammable Material HazardFlammable liquids, gases or substances etc may present.Avoid ignition sources and open flames. Danger of fire.	Read User ManualRead and fully understand product safety warnings, operation, procedures etc before using the product.	Use Hand ProtectionWear appropriate hand protection and take due care as the product or use of the product may present hand hazards.	Exhaust FumesCarbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.
Electrocution / Electrical Shock HazardHigh voltage or high current electricity may be present or required by the product. Take due care when handling electrical products, cables, plugs and leads. Electrical shock can be fatal.	Toxic Fumes / Dust HazardUsing the product or by-products from use may produce fumes, smoke or particles that could be harmful if inhaled. Wear appropriate breathing protection and have adequate ventilation.	Explosive Material HazardCombustible liquids, gases or substances etc may be present.Avoid ignition sources and open flames. Danger of explosion.	Cutting / Amputation HazardThe product may have blades, edges or mechanical devices that can cause severe cut injury to fingers, limbs etc. Take due care when handling and using the product.
Crush HazardThe product may have blades, edges or mechanical devices that can cause severe crush injury to fingers, limbs etc. Take due care when handling and using the product.	Single Operator OnlyThe product must be operated by a single person only. More than one person operating the product may introduce additional hazards.	Use Face ProtectionWear appropriate full-face protection and take due care as the product or use of the product may present face and eye hazards.	Use Foot ProtectionWear appropriate foot protection and take due care as the product or use of the product may present foot hazards.
Use Eye / Ear / Head ProtectionWear appropriate eye and / or ear and / or head protection and take due care as the product or use of the product may present eye, hearing and head hazards.	Running HazardDo not run on or near the product as doing so may present a fall hazard.	Diving HazardDo not dive into the product as doing so may present a neck / head injury hazard.	Adult Supervision RequiredAlways supervise children and other users of a product to prevent drowning or injury.
Skin Penetration / Puncture HazardThe product may produce pressure, emit liquids or objects that can cause severe injury to fingers, limbs, blood etc. Take due care when handling and using the product.	Hot Surface HazardBe aware that the product may produce high temperatures and hot surfaces that can cause burn injuries.	Flying Debris HazardBe aware that the product or use of the product may present hazards produced by flying debris. Wear appropriate clothing and protective devices.	Moving Parts HazardBe aware that the product contains or uses mechanical devices that move or rotate. Always wait for moving parts to stop fully before handling the product, adjusting, maintenance etc.
Carbon-Monoxide HazardDo not use the product in confined areas or without adequate ventilation. Carbon-monoxide poisoning can be fatal.	Pull HazardBe aware that the product contains or uses mechanical devices that can pull in objects and can cause severe injury to fingers, limbs etc. Take due care when handling and using the product.	Slope / Fall Injury HazardBe aware that using the product on sloping surfaces or in slippery conditions may present additional dangers from falls and contact with blades, moving parts, hot surfaces etc.	"Slam Dunk" WarningDo NOT attempt "slam dunk" manoeuvres as this may result in severe injury due to falling, product breakage or collapse etc.
Electrocution / Electrical Shock Hazard - OutdoorHigh voltage or high current electricity may be present or required by the product. Do NOT use in rain, damp or wet conditions. Electrical shock can be fatal.	Electrocution / Electrical Shock Hazard - DisconnectHigh voltage or high current electricity may be present or required by the product. Always disconnect the product from the electrical supply before handling the product, adjusting, maintenance etc.	Power Line Electrocution HazardHigh voltage / high current power lines may be present. Use extreme caution to avoid contact or interference with power lines.Electrical shock can be fatal.	"Kick-Back" HazardHigh level of "kick-back" hazard that can cause the machine to suddenly rotate towards operator.Kick-back injury can be fatal.
Winch Operator Position HazardDo NOT stand between winch and load. Do NOT use winch to move people.	Winch Lift HazardDo NOT LIFT load vertically. Use machine to PULL only.	Cable HazardEnsure that load bearing cable is not kinked or knotted.	Winch Cable HazardEnsure that there is a minimum number of cable coils on winching mechanism.
Winch Hook HazardCarry hook to load – do NOT throw or run.	Flash / Blinding HazardWear appropriate eye protection for welding. Direct exposure to weld arcs may cause permanent eye injury.	Laser HazardLaser may be in use – do NOT look directly at laser or allow others to.

Table of Contents

Safety....2

Safety Symbols 8

Parts List....11

Pole Chainsaw....12

Parts Identification and Diagrams....12

Operation....14

Switch ON/OFF 14

Operating the Pole Saw....14

Maintenance....15

Hedge Trimmer.... 16

Parts Identification....16

Assembly and Set-Up....17

Operation....17

Switch ON/OFF 17

Operating the Hedge Trimmer .... 18

Lithium Battery Care and Maintenance.... 19

Top 3 Battery Care Requirements....19

Maintenance....20

Specifications....21

Parts List

Black and white icon of a crossed wrench and wrench (no text or symbols)

Spare parts available for purchase, scan QR codes below:

Pole Chainsaw

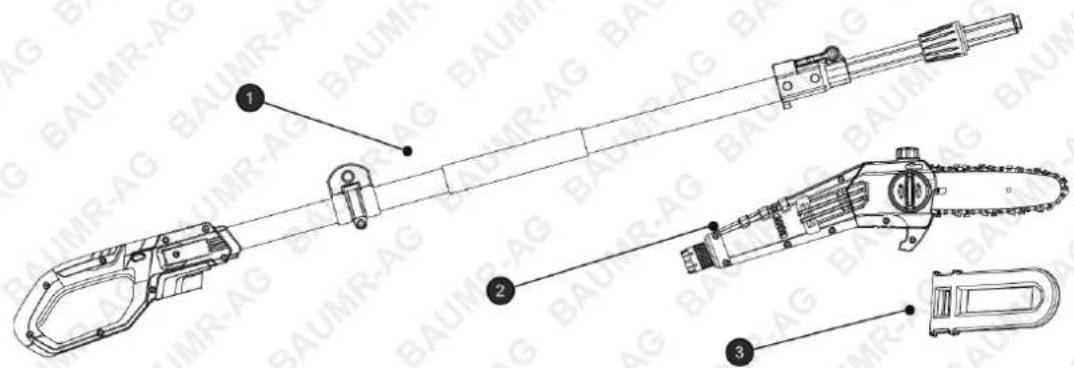

Parts Identification and Diagrams

No.	Name
1	Handle with telescopic rod
2	Motor with chainsaw
3	Protective cover for chainsaw

Figure 2: For maintenance and care

No.	Name
1	Side view of the chainsaw
2	Motor, chainsaw bar including chain and side cover including chain tensioning wheel
3	Chain tension adjustment screw
4	Opening of the tank for chain oil (65ml capacity)

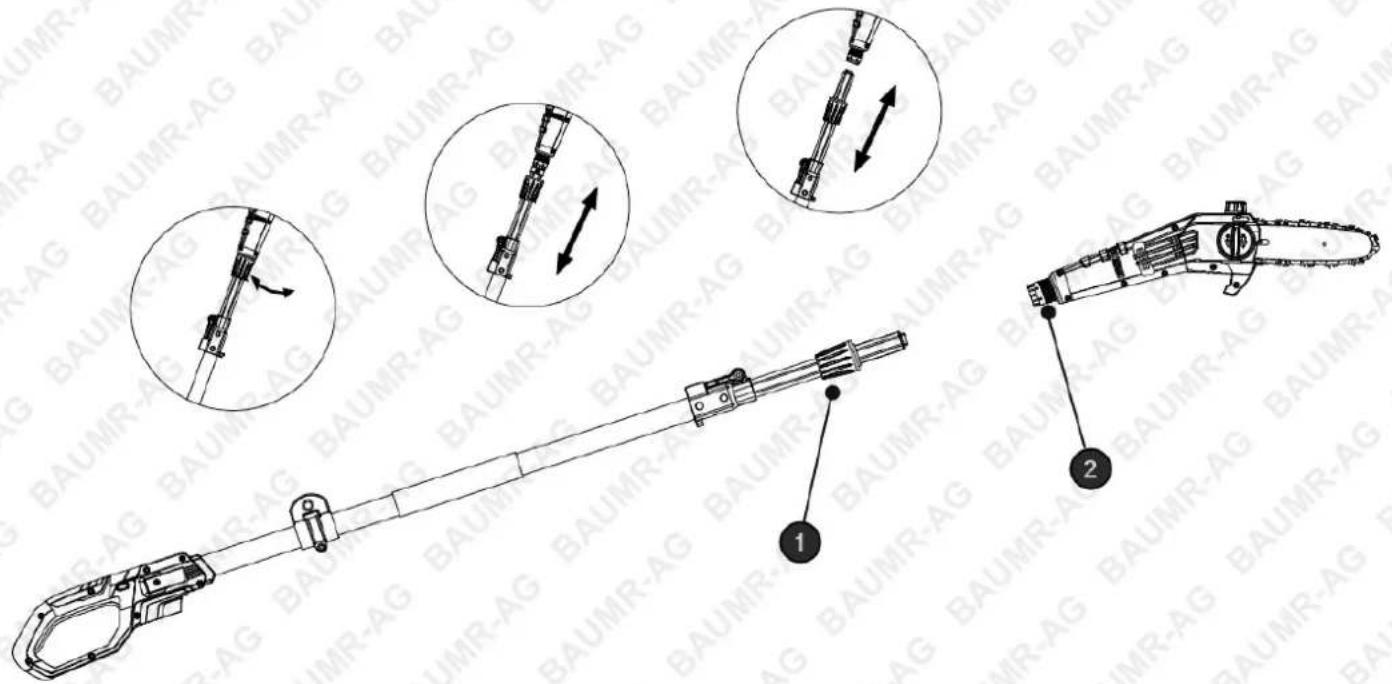

Figure 3: Uninstalling the motor with cutting head from the telescopic rod for space-saving storage or transport.

Technical line drawings of a mechanical device with two views (no text or symbols)

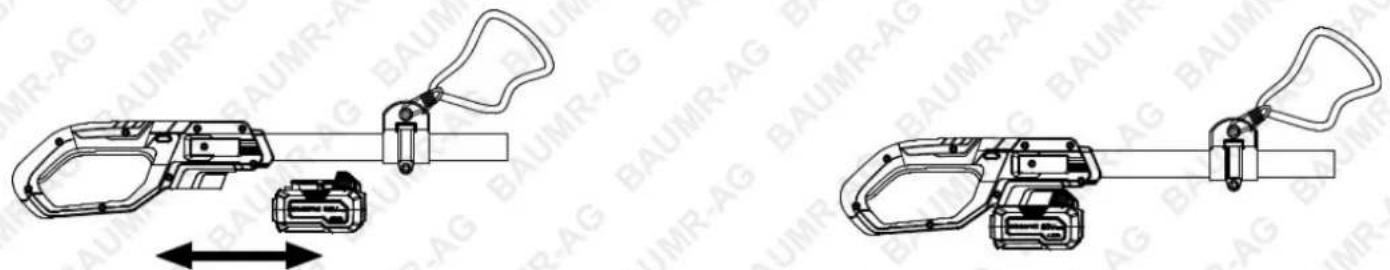

Figure 4: Installing the battery

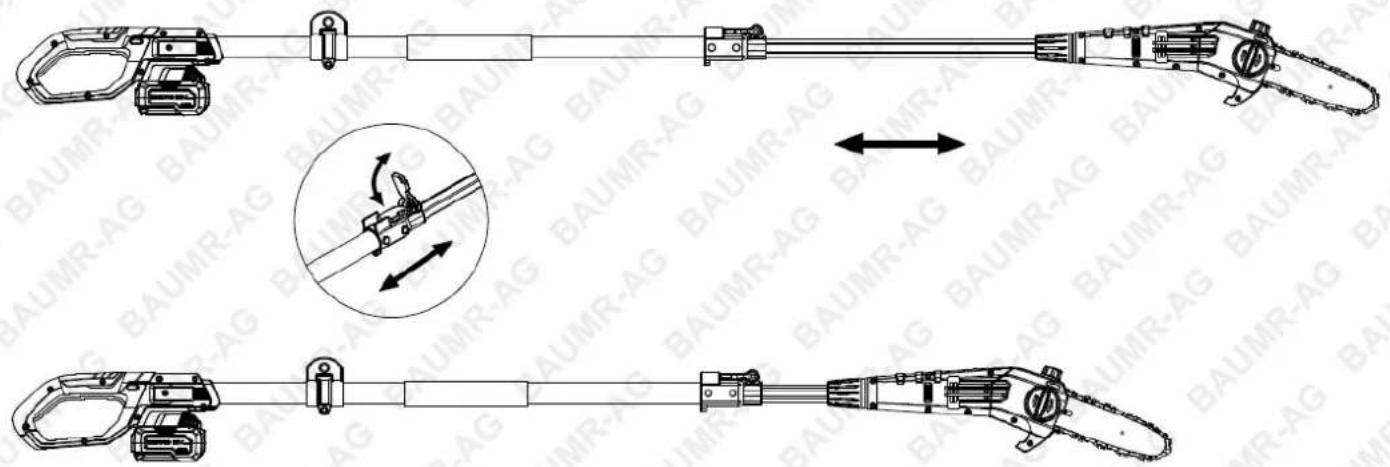

Figure 5: Extension of the working area by 70cm

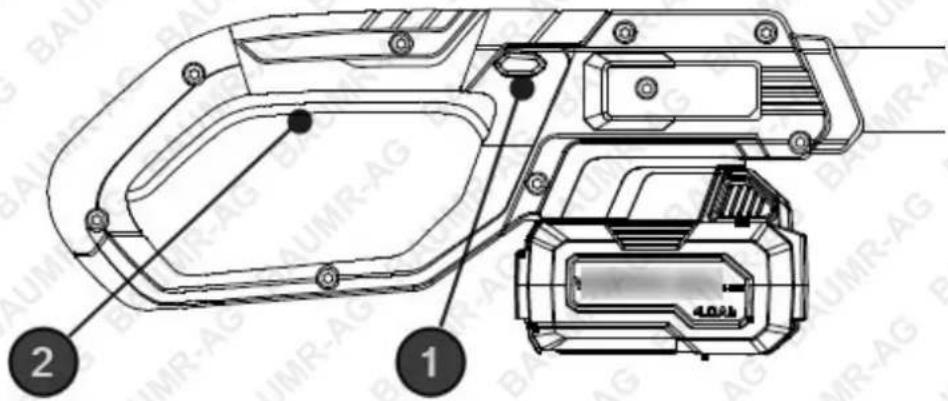

Figure 6: Safety button and ON/OFF switch

Operation

Switch ON/OFF

Insert the battery in the rail provided. Then press the safety button (Figure 6, point 1) in from the side, only then can you operate the ON/OFF switch (Figure 6, point 2). The device will now start. When you release the ON/OFF switch, the device stops working. NOTE: The cutting tool can still run a little.

Operating the Pole Saw

1. Search the work area and remove interfering objects.
2. Before starting work, check the safety of the device.
3. Take the device in both hands.
4. Switch on the pole saw before you start cutting.
5. Apply even pressure on the device, but not with excessive force.

CAUTION RISK OF INJURY! ONLY USE THE POLE SAW UP TO A MAXIMUM ANGLE OF 60°. NEVER SAW OFF A BRANCH DIRECTLY ABOVE YOUR HEAD!

1. Start at the bottom of the trunk and work upwards.
2. For a clean cut, thick branches should be sawn in 2 steps:

a. Saw the branch from bottom to top to 1/3 of the branch diameter (see above figure to the right, point 1). b. Saw the branch a little further outside from top to bottom (see above figure to the right, point 2).

1. Cut off longer branches piece by piece.
2. When delimbing lying trunks, always first saw off the branches that protrude freely into the air. Only cut off supporting branches when the trunk has been sawn into manageable lengths.

ATTENTION RISK OF INJURY! BRANCHES THAT ARE RESTING OR UNDER TENSION CAN WEDGE THE SAW CHAIN IN THE WOOD.

Maintenance

CAUTION: REMOVE THE BATTERY FROM THE DEVICE BEFORE STARTING ANY WORK ON THE POWER TOOL. SHARP CUTTING TEETH; ALWAYS WEAR PROTECTIVE GLOVES! DO NOT USE OR LIQUID DETERGENTS.

• Clean the pole saw after each use with a dry cloth or, if it is heavily soiled, with a brush.
  • Never spray the device with water.
• Keep the contacts of the battery and the device clean and free of dust.
• Remove the chain cover and then use a soft brush to remove any debris from the guide bar, saw chain, sprocket and chain cover.
• The saw chain must not sag, but it should be able to be pulled 2-3 millimeters off the saw bar in the middle of the saw bar.

Hedge Trimmer

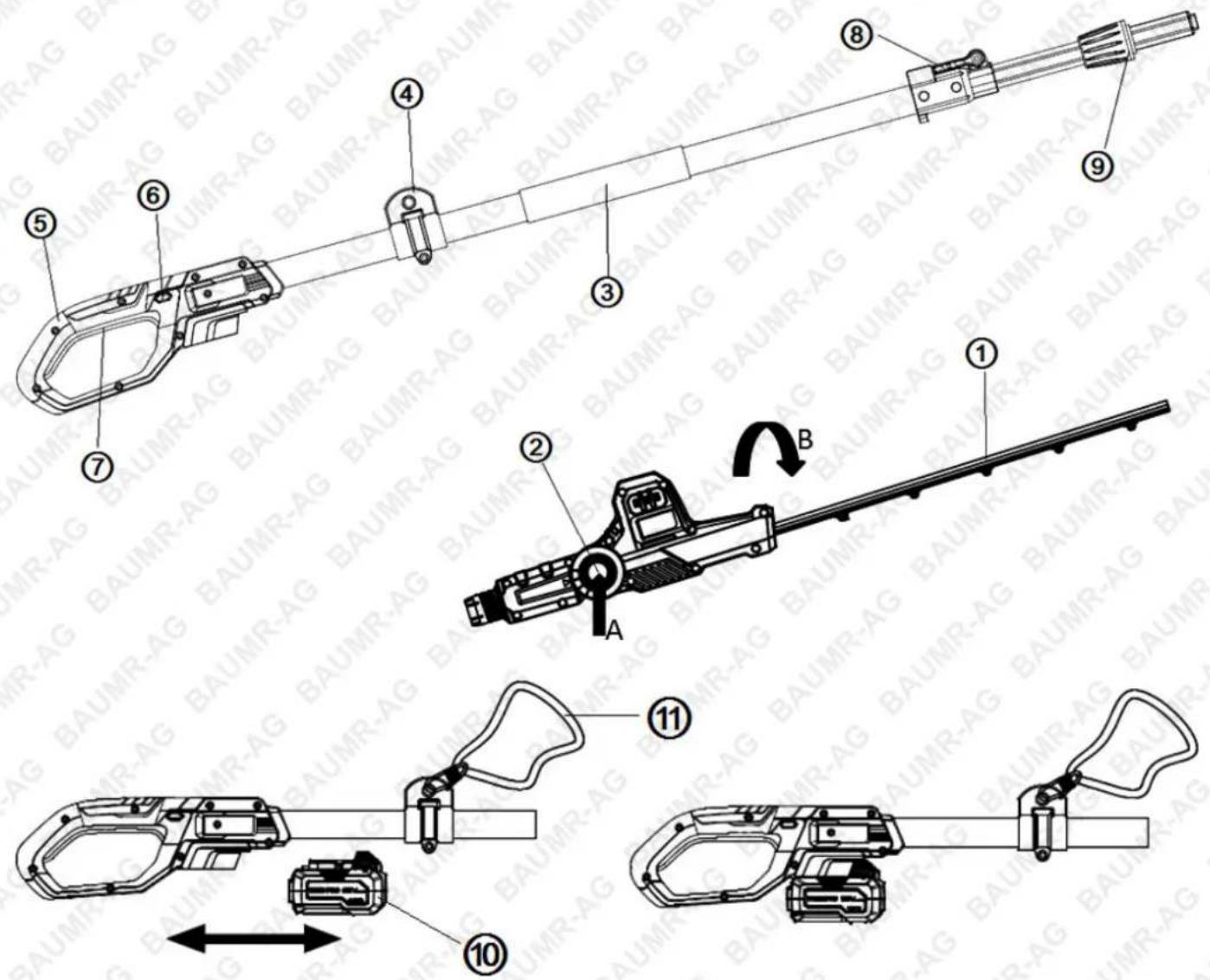

Parts Identification

No.	Name
1	Cutting blade
2	Safety button for setting the cutting angle
3	Front handle
4	Eyelet for attaching the shoulder strap
5	Rear handle
6	Safety button for ON/OFF switch
7	ON/OFF switch
8	Fastening lever for telescopic extension
9	Swivel eyelet for attaching the telescopic extension to the cutting head
10	Insertion of the battery in the guide rail provided
11	Carrying strap

Assembly and Set-Up

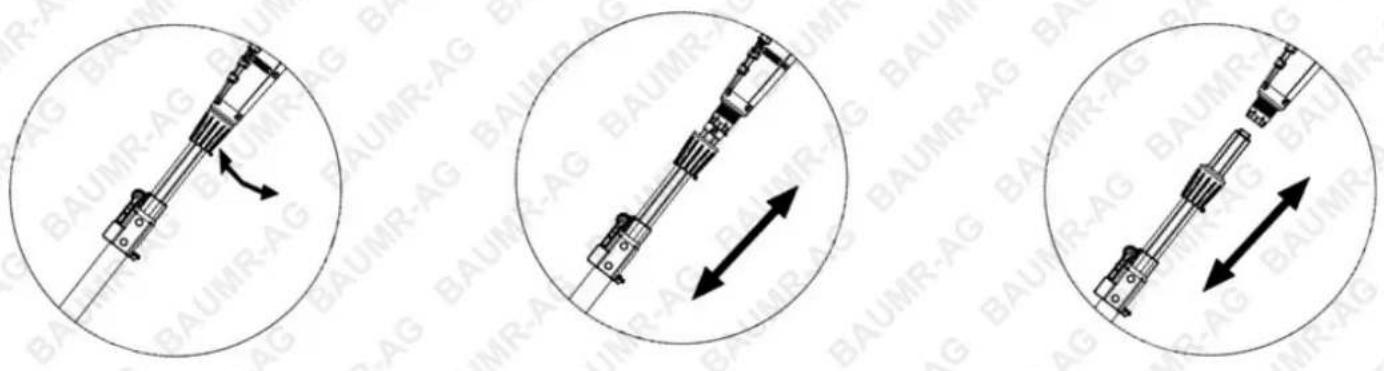

Uninstalling the motor with cutting head from the telescopic rod for space-saving storage or transport.

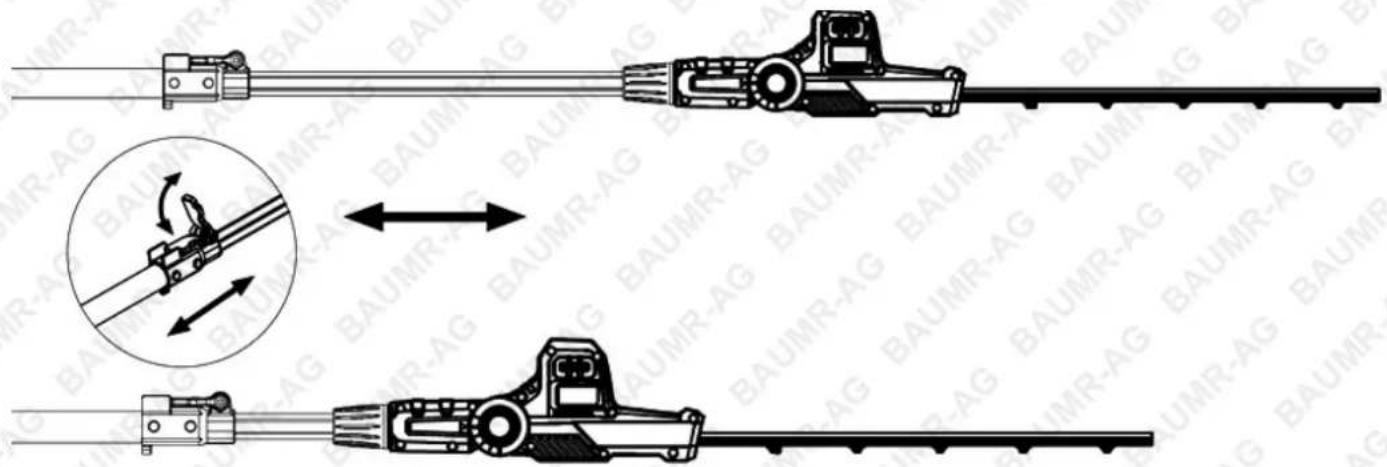

Operating the telescopic extension

Operation

Switch ON/OFF

Insert the battery in the rail provided. Then press the safety button (#6) from the side, only then can you operate the ON/OFF switch (#7). The device will now start. When you release the ON/OFF switch, the device will stop working.

WARNING! THE CUTTING TOOL CAN STILL RUN A LITTLE.

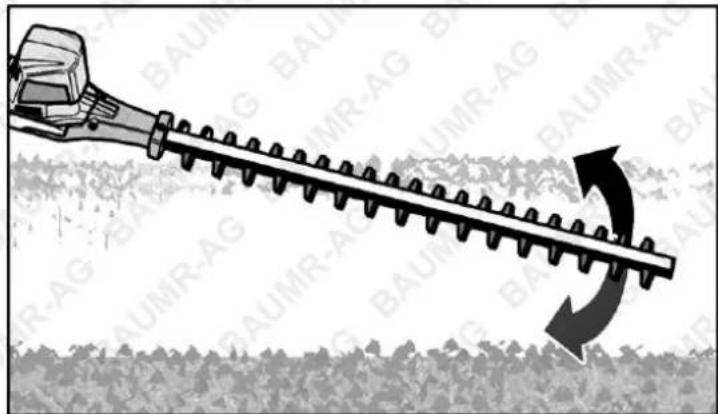

Operating the Hedge Trimmer

1. Hold the device by the handles with both hands.

2. The hedge trimmer can be guided forwards and backwards with its double-sided cutting blades or with a pendulum movement from one side to the other.

Illustration of a hairpin cutting through soil with an arrow indicating clockwise motion (no text or symbols)

1. First cut the sides of the hedge and then the top edge.

2. Cut the hedge from bottom to top.

3. Hold the hedge trimmer at an angle of 5–10° to the hedge to make a straight cut.

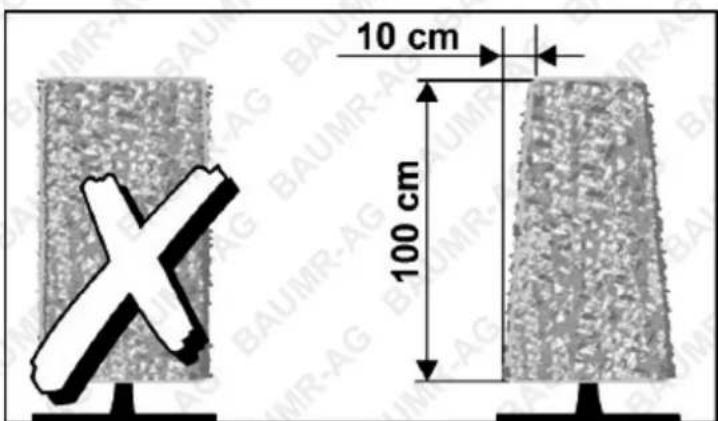

4. Cut the hedge in a trapezoidal shape. This prevents discoloration of the lower hedge area due to lack of light.

1. Trim the top edges of the hedge a little round.

2. Cut in multiple passes if heavy pruning is required.

3. If necessary, stretch a guideline if you want to cut the hedge evenly.

4. Trim the young hedge plants to the desired shape. The main shoot should not be damaged until the hedge has reached the desired height. All other shoots can be cut in half.

Ideal cutting times:

• Deciduous hedges: June and October
• Coniferous hedges: April and August

Fast growing hedges (e.g. conifers): from May approx. Every 6 weeks

WARNING! Watch out for birds nesting in the hedge. Only cut after the chicks have hatched or leave out this area of the hedge.

Lithium Battery Care and Maintenance

Top 3 Battery Care Requirements

1. Charge battery before first use. The battery may arrive with some charge, regardless of this the battery must be charged for one hour on the initial charge and one hour for each subsequent charge.
2. Charge battery immediately when it is depleted. Do not store a depleted battery. This will permanently impact the life of the battery. If the battery is going to be stored for a period of time, fully charge the battery before storing.
3. Disconnect battery when not in use. To prolong the life of a battery, disconnect it from the unit when not in use. Disconnect chargers from the battery once charged.

To ensure the battery maintains optimum performance, follow the guidelines outlined below.

• For best results, charge batteries in temperatures between 10°C and 30°C
- When battery is charged, disconnect the charger from the power supply and remove the battery from the charger.
- If a battery is stored or otherwise unused for an extended period, and the battery has no charge remaining when you check it, consider it to be damaged. Do not attempt to recharge it or to use it. Replace it with a new battery.
• Use only with the battery charger specified by the manufacturer.

- Ensure that the battery charger electrical cord is not subjected to damage or stress. Do not operate the battery charger if it has a damaged electrical cord or plug.

- Do not use the charger in wet areas or expose it to rain or water.

- The typical estimated life of a Lithium-Ion battery is about two to three years or 300 to 500 charge cycles, whichever occurs first. One charge cycle is a period of use from fully charged, to fully discharged, and fully recharged again

- Explosion hazard – protect the battery against heat; for example, direct sunlight and fire. Do not store batteries in vehicles or locations subject to heat.

- Batteries can explode in the presence of an ignition source, such as a pilot light. To reduce the risk of serious personal injury, never use any cordless product in the presence of open flame. Exploding batteries can propel debris and chemicals.

- Do not open the battery – danger of short-circuiting and/or explosion.

- Do not attempt to destroy or disassemble the battery pack or remove any of its components.

- Do not touch the battery terminals with metal objects and/or body parts as short-circuit and/or personal injury may result.

- Explosion hazard – do not open and/or short-circuit the battery.

- Poison hazard – battery leakage (liquid ejection). Under extreme conditions, liquid may be ejected from the battery – avoid contact. If contact accidentally occurs, immediately seek medical attention, and flush with water. If liquid contacts eyes, immediately seek medical attention, flush with clean water for at least 10 minutes. Liquid ejected from the battery may cause irritation or burns.

- Dispose of non-serviceable batteries in an environmentally responsible manner and according to local regulations.

Failure to adhere to the requirements above may result in the battery becoming inoperative or battery life being reduced. In extreme cases or abuse, battery overheating or fire may result.

Maintenance

CAUTION! Remove the battery from the device before starting any work on the power tool. When maintaining sharp cutting blades, wear protective gloves! Do not use water or liquid detergents.

• Clean the hedge trimmer after each use with a dry cloth or with a brush if there is stubborn dirt.
  • Never spray the hedge trimmer with water.
• Keep the contacts of the battery and the device clean and free of dust.
• Clean the cutting blade after each use. Remove all dirt, leaves, etc.
• Lubricate the cutting blade with maintenance oil after each use to ensure a long service life for the hedge trimmer. Use environmentally friendly lubricants.
• Lay the hedge trimmer on its side for oiling and apply a thin film of oil to the cutting blade.

Specifications

Series SYNC
Models HT3 & PS3
Battery 20V 2.2Ah Lithium
Run time Up to 25 mins
Chainsaw Bar 8 Inch Oregon
Chainsaw Chain Oregon
Cutting Blade	21 Inch Double-Action
Oil Pot Capacity 65ml
No-Load Speed	2800spm
Throttle Control Handle	Rubber Over Moulded
Shaft	Aluminium
Charger	240V
Charging Time	1hr
Power Plug	Australian Standard

Note: Minimal Assembly required

Some experts believe that the incorrect or prolonged use of almost any product may cause serious injury or death. To help reduce your risk of serious injury or death, refer to the information below. For more information, see www.datastreamserver.com/safety

• Consult all documentation, packaging and product labelling before use. Note that some products feature documentation available online. It is recommended to print and retain the documentation.
  ■ Before each use, check the product for loose/broken/damaged/missing parts, wear or leaks (if applicable). Never use a product with loose/broken/damaged/missing parts, wear or leaks.
  ■ Products must be inspected and serviced (if applicable) by a qualified technician every 6 months. This is based on average residential use by persons of average size and strength, and on a property of average metropolitan size. Use beyond these recommendations may require more frequent inspections/servicing.
  ■ Ensure that all users of the product have completed a suitable industry recognised training course before being allowed access to the product.

■ The product has been supplied by a general merchandise retailer that may not be familiar with your specific application or description of application. Be sure to attain third-party approval from a qualified specialist for your application before use, regardless of any assurances from the retailer or its representatives.
This product is not intended for use where fail-safe operation is required. As with any product (for example, automobile, computer, toaster), there is the possibility of technical issues that may require the repair or replacement of parts, or the product itself. If the possibility of such failure and the associated time it may take to rectify could in any way inconvenience the user, business or employee, or financially affect the user, business or employee, then the product is not suitable for your requirements. This product is not intended for use where incorrect operation or a failure of any kind, including but not limited to, a condition requiring product return, replacement, parts replacement or service by a technician may cause financial loss, loss of employee time or an inconvenience requiring compensation.
If this product has been purchased in error when considering the information presented here, contact the retailer directly for details of their returns policy, if required.

Bäumr-AG®.com.au

©2022 Baumr-AG. All rights reserved. No part of this document, including descriptive content, concepts, ideas, diagrams or images may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, scanning or recording, or any information storage and retrieval system, without express permission or consent from the publisher.
