Product Type	Router
Brand	BEC Technologies
Model	6300VNL
Dimensions (approx)	200 mm × 150 mm × 30 mm
Weight (approx)	500 g
Power Supply	12 V DC, 1 A
Ethernet Ports	4 × Gigabit LAN, 1 × Gigabit WAN
Wireless Standard	IEEE 802.11 b/g/n
Wireless Frequency	2.4 GHz
Maximum Wireless Speed	300 Mbps
VPN Support	Yes (PPTP, L2TP, IPSec)
Firewall	SPI, DoS protection, IP/Port filtering
WAN Connection Type	DSL (ADSL2+), Ethernet, 3G/4G (via USB)
USB Ports	1 × USB 2.0 (for storage or 3G/4G modem)
Antenna	2 × external detachable antennas (RP-SMA)
LED Indicators	Power, DSL, Internet, LAN, WLAN, USB
Operating Temperature	0°C to 40°C
Storage Temperature	-20°C to 70°C
Humidity	10% to 90% (non-condensing)
Maintenance	Keep clean and dry; update firmware via web interface
Safety Precautions	Do not expose to liquids; ensure proper ventilation
Spare Parts & Reparability	Power adapter and antennas available; user-replaceable
Certifications	CE, FCC

Frequently Asked Questions - 6300VNL BEC Technologies

How do I reset the 6300VNL router to factory defaults?

Locate the reset button on the back panel. Use a paperclip to press and hold it for 10 seconds until the Power LED starts blinking. The router will reboot with factory settings.

What is the default IP address and login credentials?

The default IP address is 192.168.1.1. The default username is admin and password is admin (or password — check label).

How do I set up a Wi-Fi connection?

Connect via Ethernet, open a browser, go to 192.168.1.1, log in, navigate to Wireless settings, enable SSID, set a name and password (WPA2 recommended), save and reboot.

Can I use a 4G USB dongle with this router?

Yes, the USB port supports 3G/4G modems. Plug in the dongle, log into the router, go to WAN settings, select USB modem as WAN type, and configure APN from your provider.

How do I update the firmware?

Download the latest firmware from BEC Technologies support site. Log into the router, go to System > Firmware Upgrade, choose the file, and click Upgrade. Do not power off during update.

Why is my internet connection dropping frequently?

Check DSL cable connections and try restarting the router. Also ensure the router is not overheating. If using a USB modem, check signal strength. Try updating firmware.

How do I enable the firewall?

Log into the router, go to Security > Firewall. Enable SPI and you can also set filters for IPs, ports, and MAC addresses. Save settings.

Can I set up a VPN connection?

Yes, go to VPN > IPSec, L2TP, or PPTP. Configure the required parameters (server, username, password) provided by your VPN service. Enable and save.

What should I do if I forgot the router password?

Perform a factory reset (see above). This will erase all settings and restore default credentials. Remember to reconfigure your network.

How can I improve Wi-Fi range?

Place the router centrally, away from obstacles. Ensure antennas are upright. Consider changing the Wi-Fi channel to a less congested one. For larger areas, use a Wi-Fi extender.

USER MANUAL 6300VNL BEC Technologies

Version release: v1.09

TABLE OF CONTENTS

CHAPTER 1: INTRODUCTION ....1

INTRODUCTION TO YOUR ROUTER....1

FEATURES & SPECIFICATIONS....1

HARDWARE SPECIFICATIONS....1

APPLICATION DIAGRAMS 1

CHAPTER 2: PRODUCT OVERVIEW......2

IMPORTANT NOTE FOR USING THIS ROUTER 2

DEVICE DESCRIPTION 3

Front Panel LEDs....3

Rear Panel Connectors 5

POWER SOURCE 6

SYSTEM RECOVERY PROCEDURES......8

CABLING 9

CHAPTER 3: BASIC INSTALLATION ...... 10

NETWORK CONFIGURATION – IPv4 11

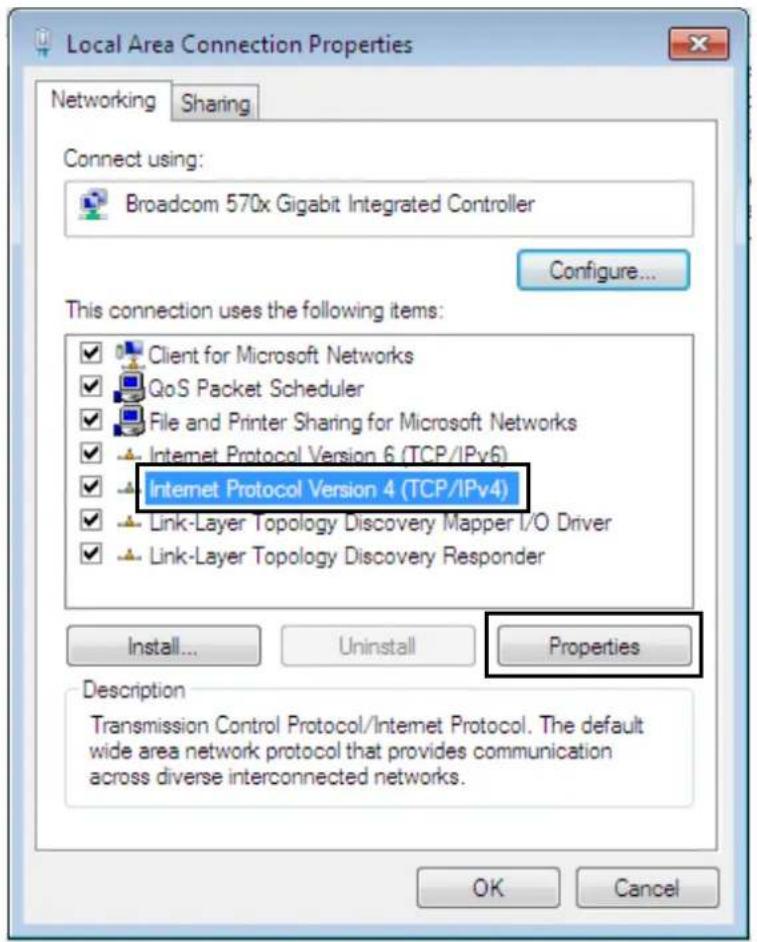

Configuring PC in Windows 10 (IPv4) ...... 11

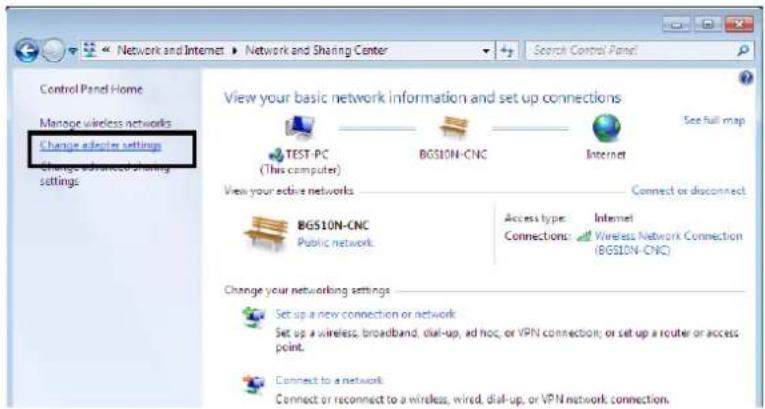

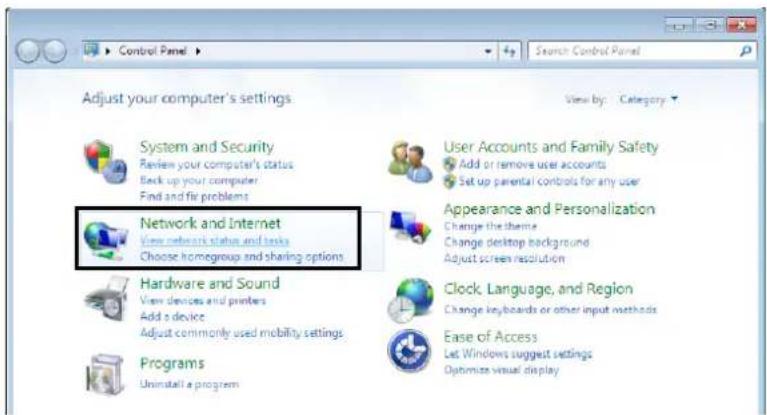

Configuring PC in Windows 7/8 (IPv4)....13

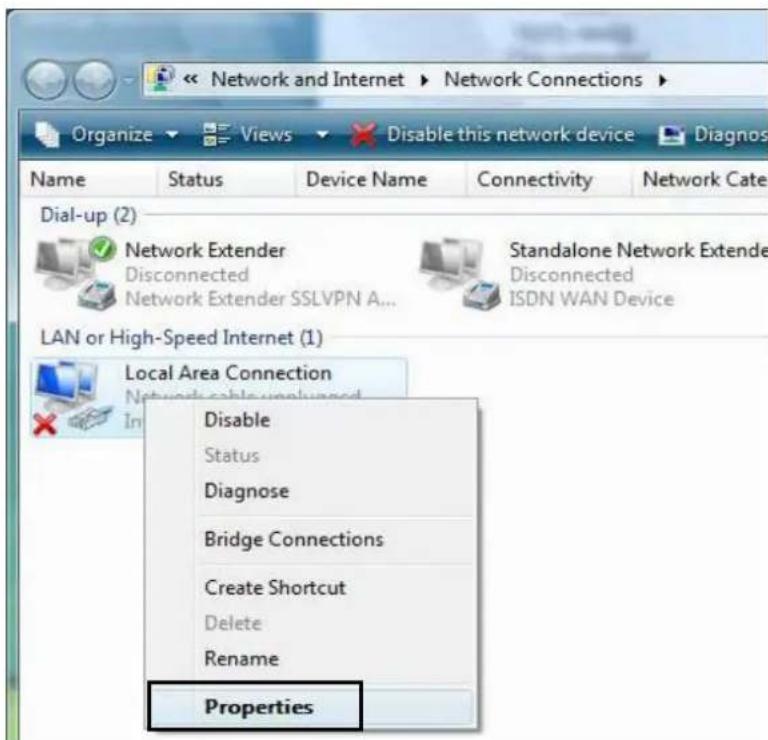

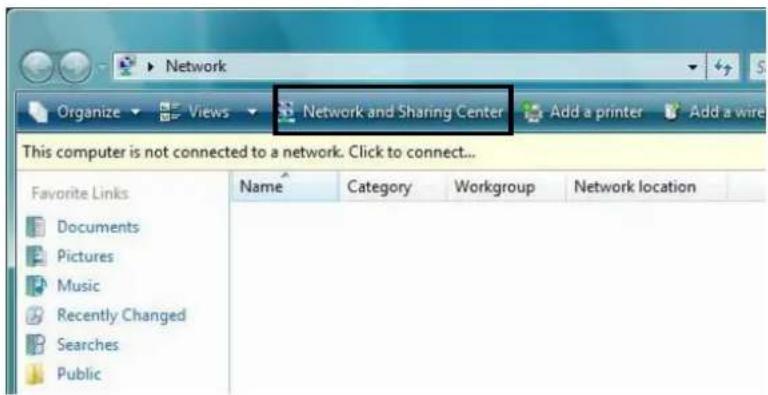

Configuring PC in Windows Vista (IPv4) 15

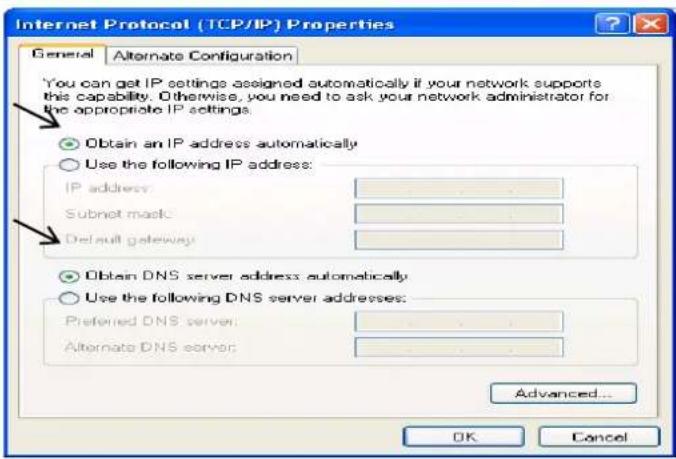

Configuring PC in Windows XP (IPv4) 17

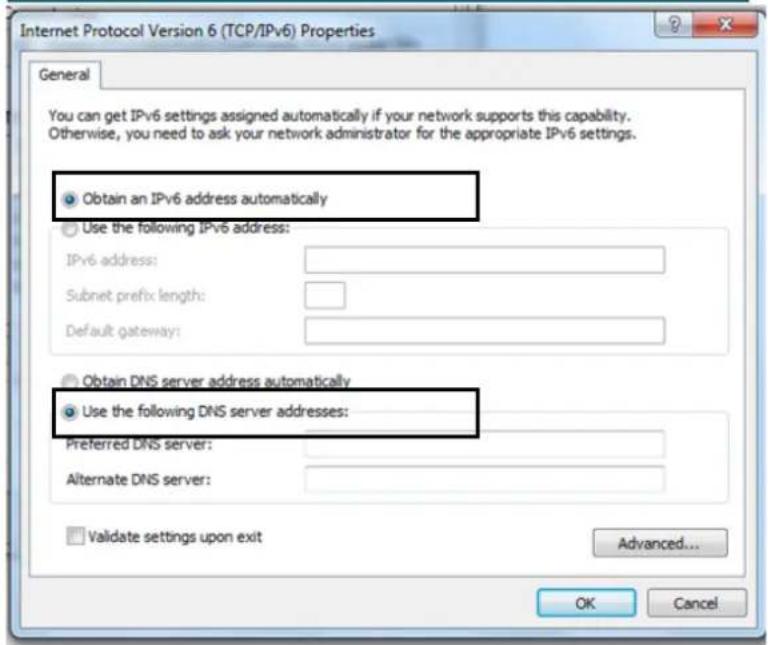

NETWORK CONFIGURATION – IPv6 18

Configuring PC in Windows 10 (IPv6)....18

Configuring PC in Windows 7/8 (IPv6)....20

Configuring PC in Windows Vista (IPv6) 22

Configuring PC in Windows XP (IPv6) 24

DEFAULT SETTINGS.... 25

INFORMATION FROM YOUR ISP 26

CHAPTER 4: DEVICE CONFIGURATION.....27

LOGIN TO YOUR DEVICE 27

STATUS....29

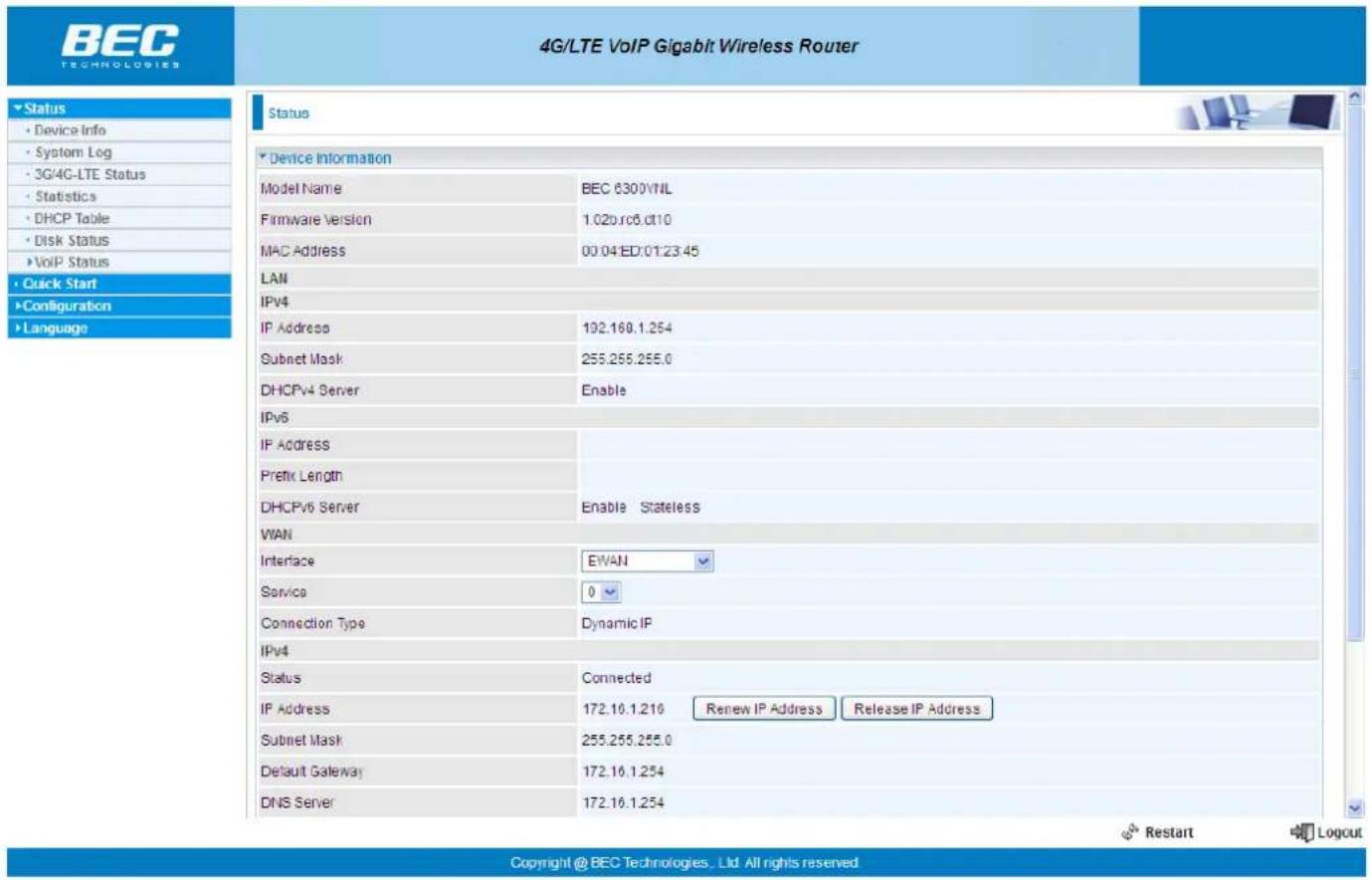

Device Info 30

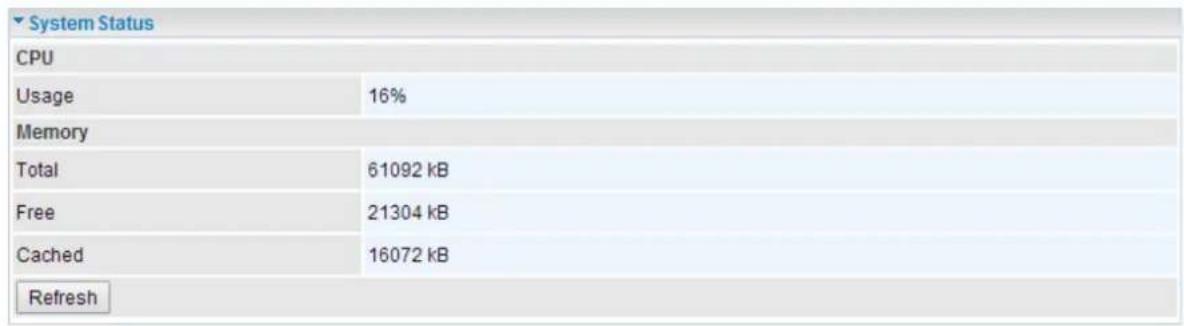

System Status....32

System Log 32

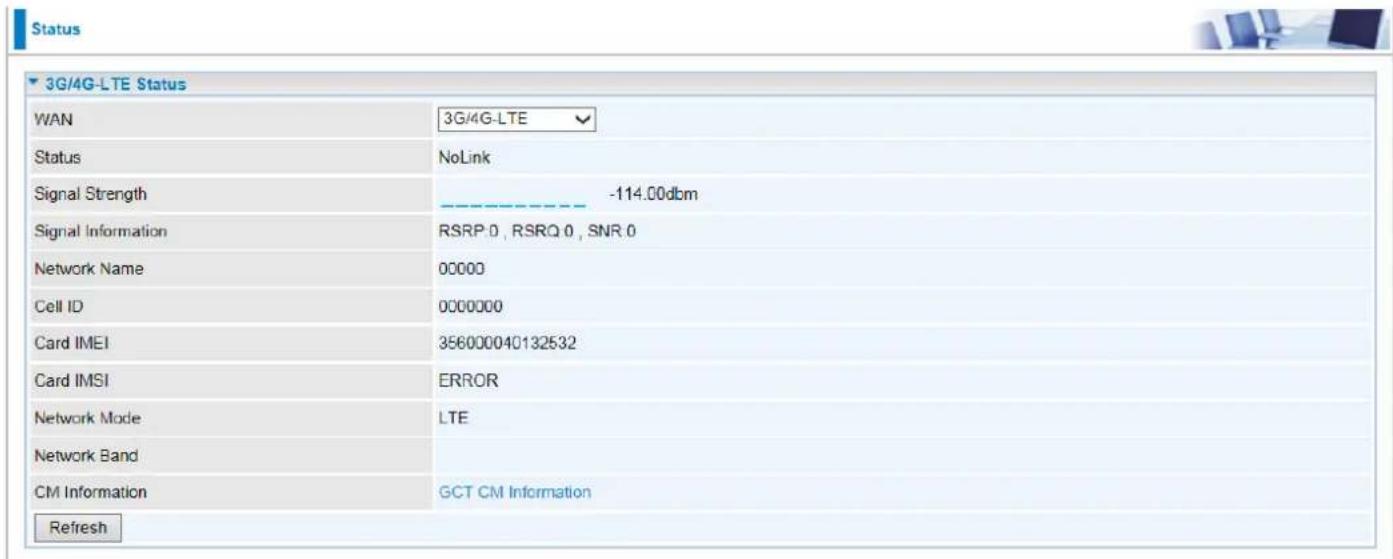

3G/4G-LTE Status....33

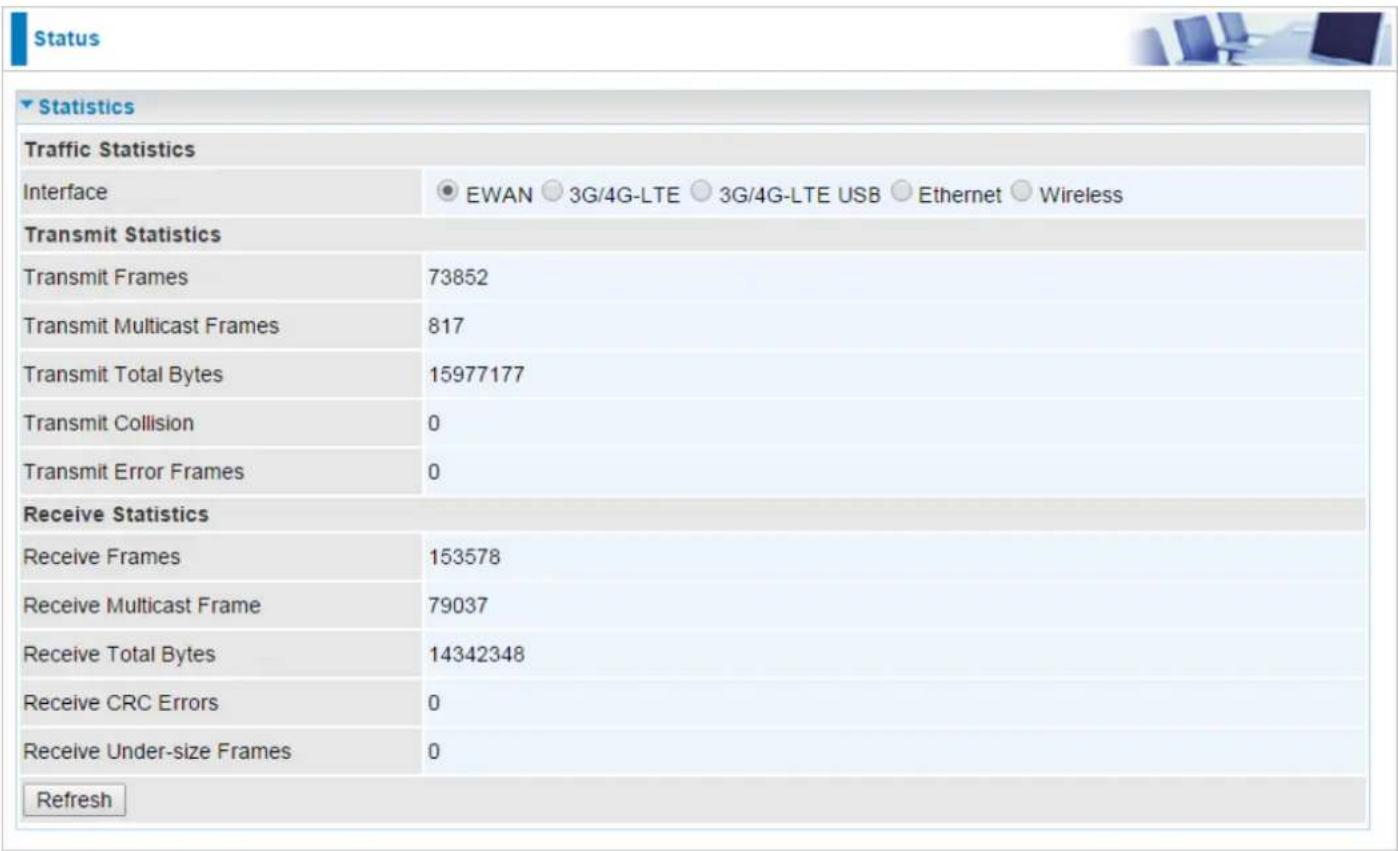

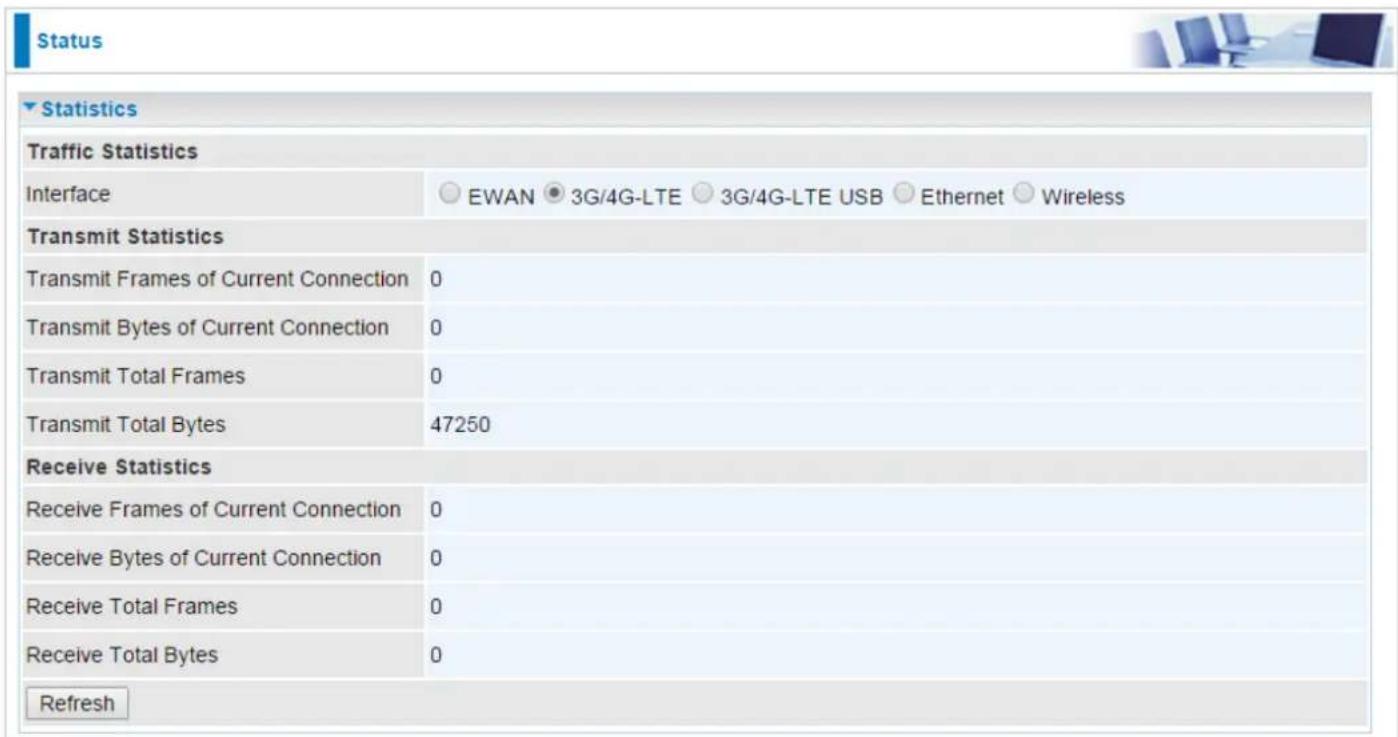

Statistics 34

DHCP Table 39

Disk Status....39

VoIP Status 40

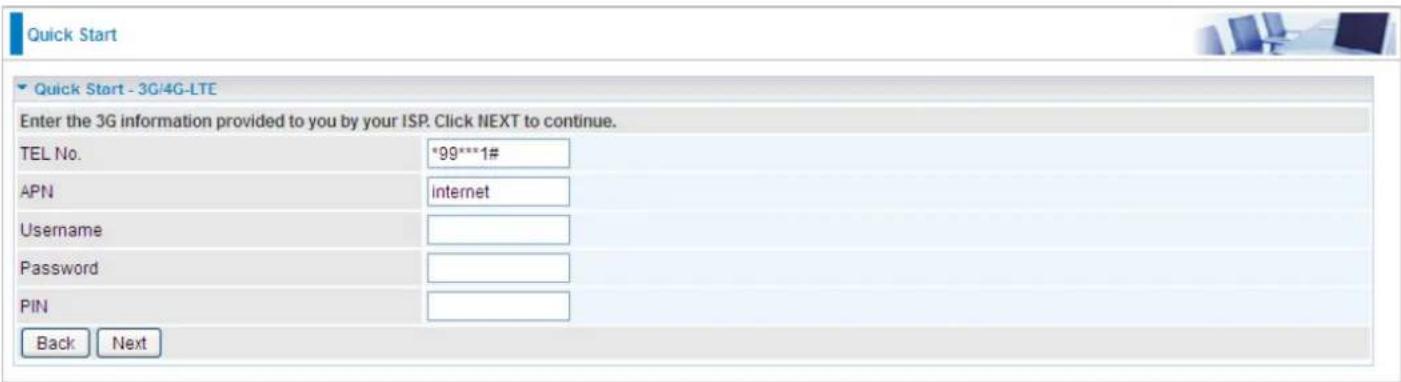

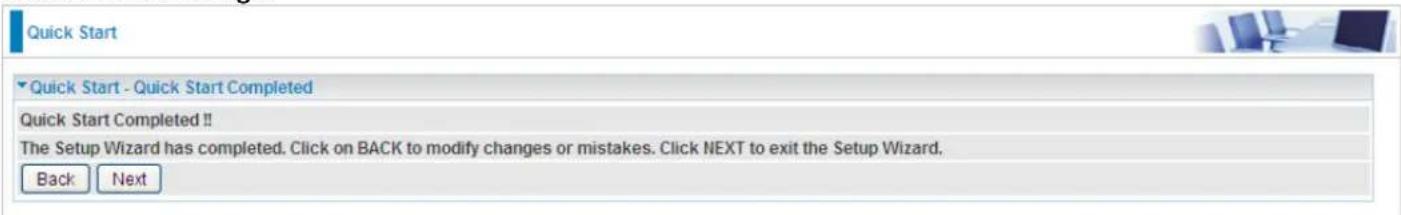

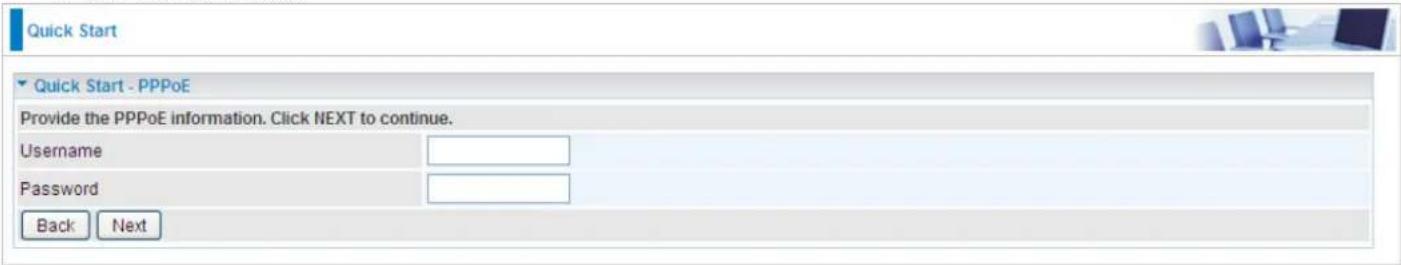

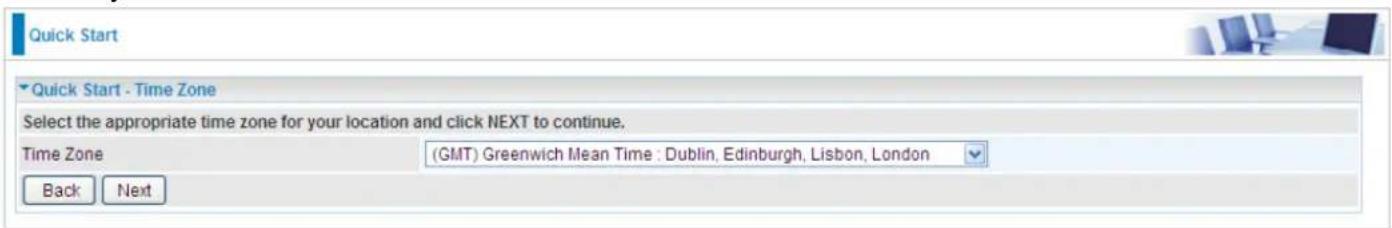

QUICK START 41

CONFIGURATION....44

Interface Setup....44

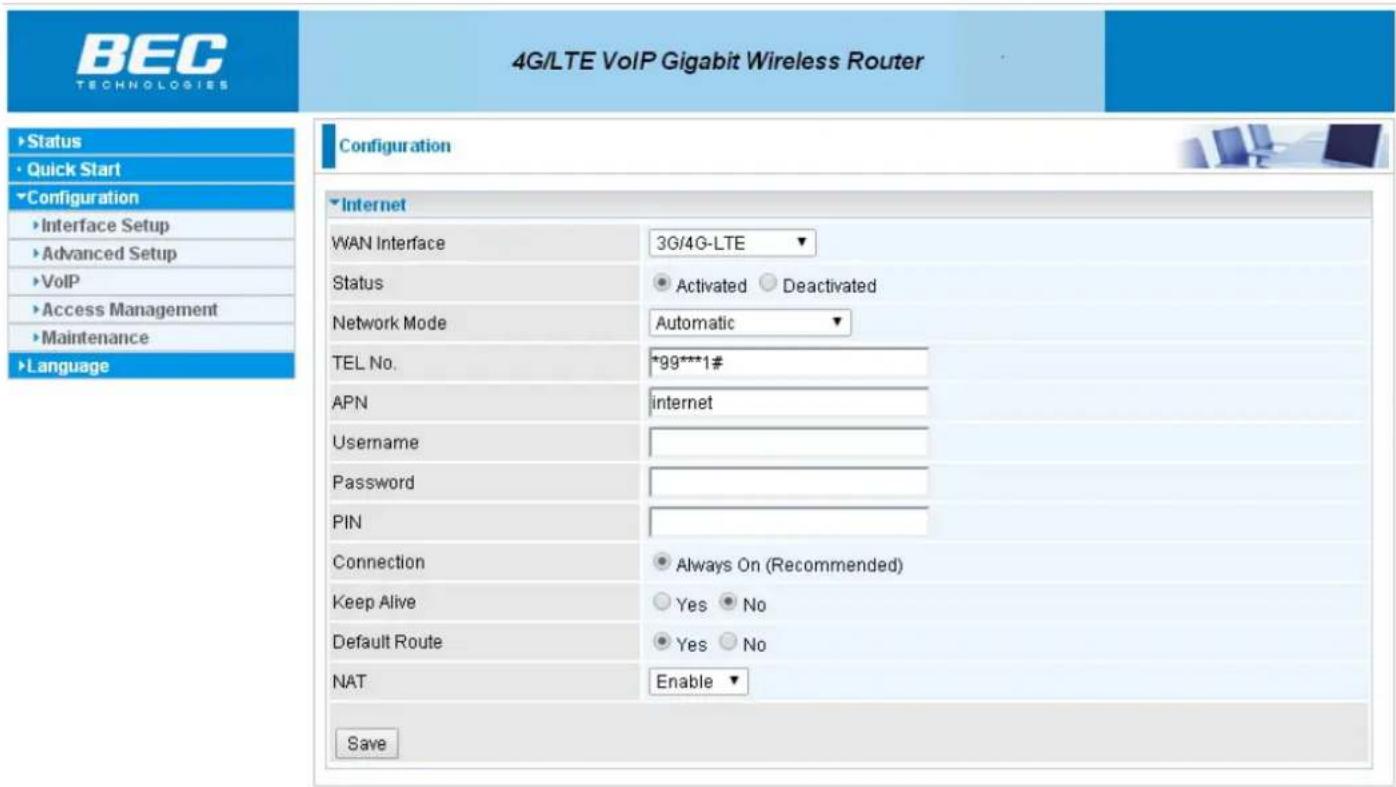

Internet 45

LAN 54

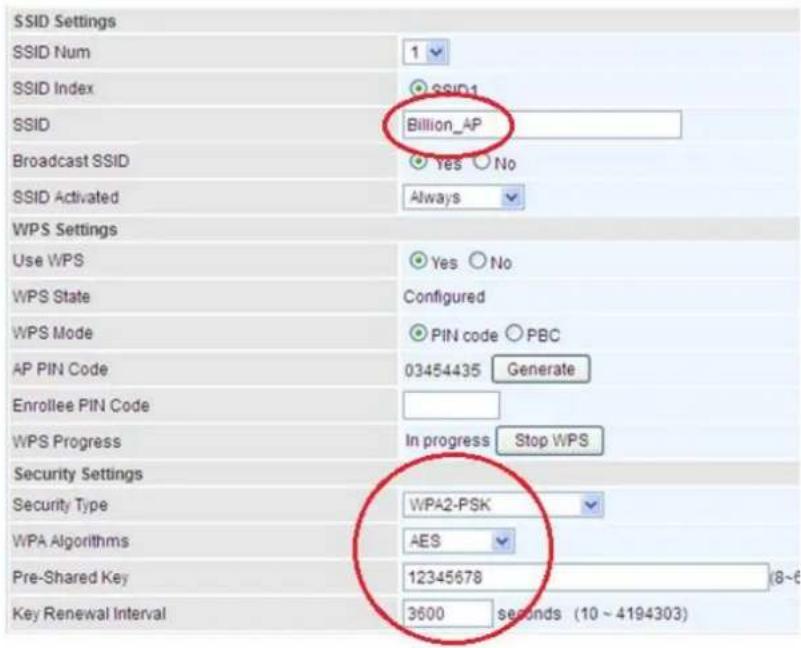

Wireless....58

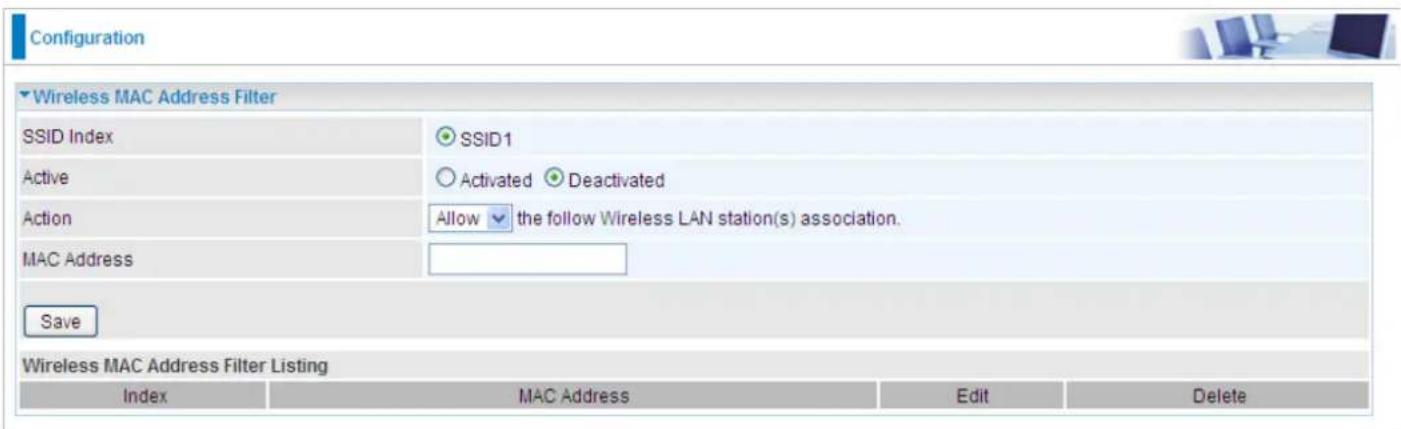

Wireless MAC Filter 69

Advanced Setup 70

Firewall....70

Routing....71

NAT....72

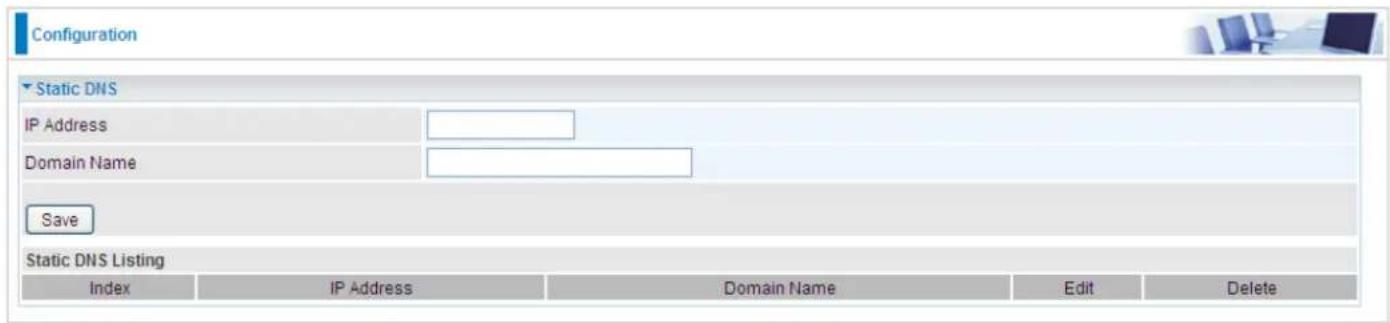

Static DNS....77

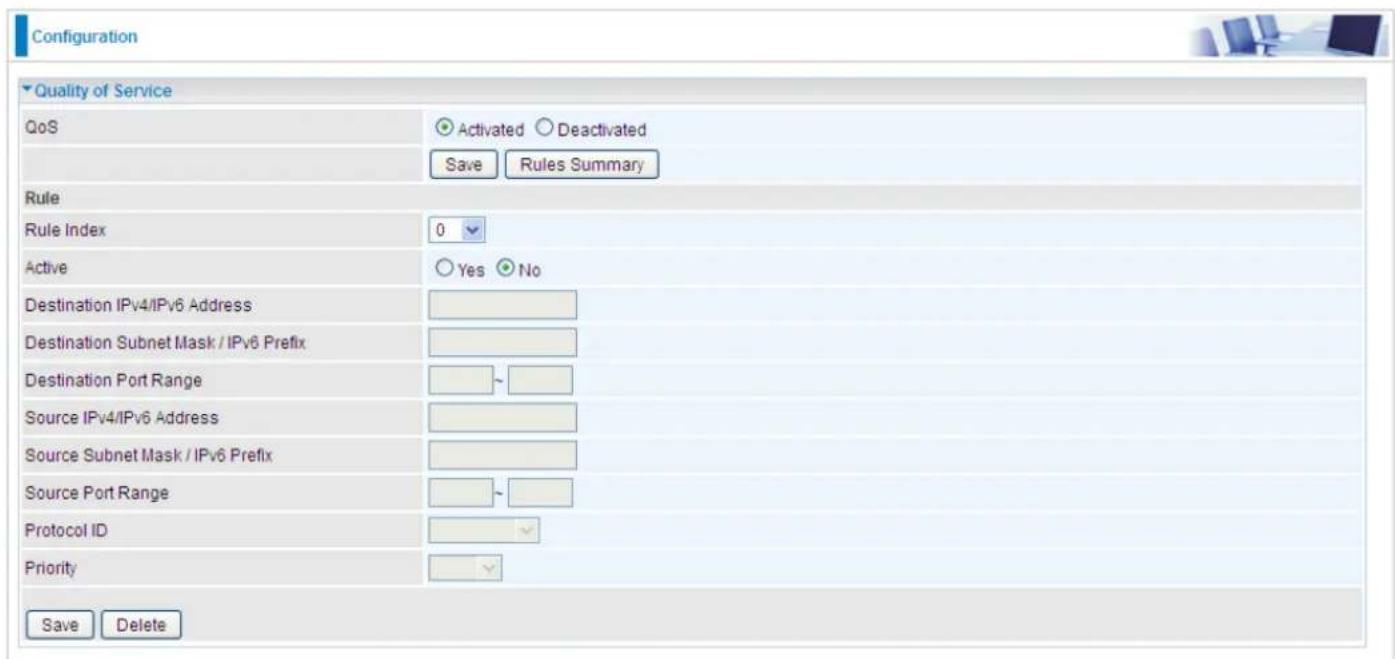

QoS....78

Interface Grouping 79

Time Schedule 81

VoIP 82

Basic 82

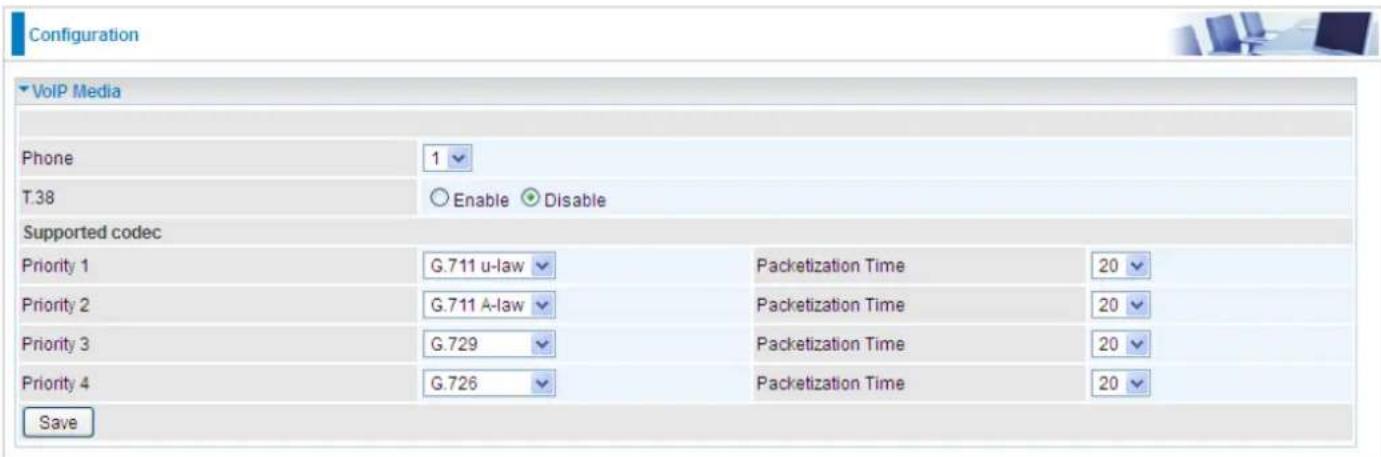

Media 84

Advanced....85

Speed Dial 86

Dial Plan 87

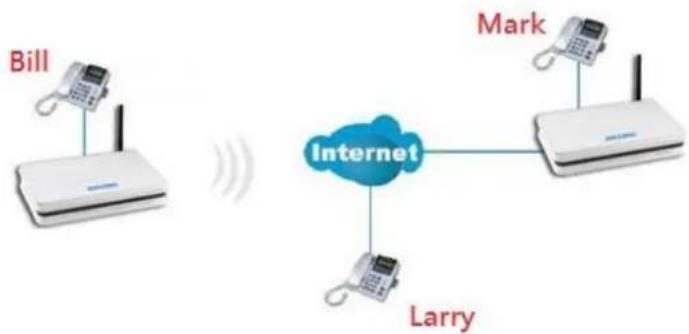

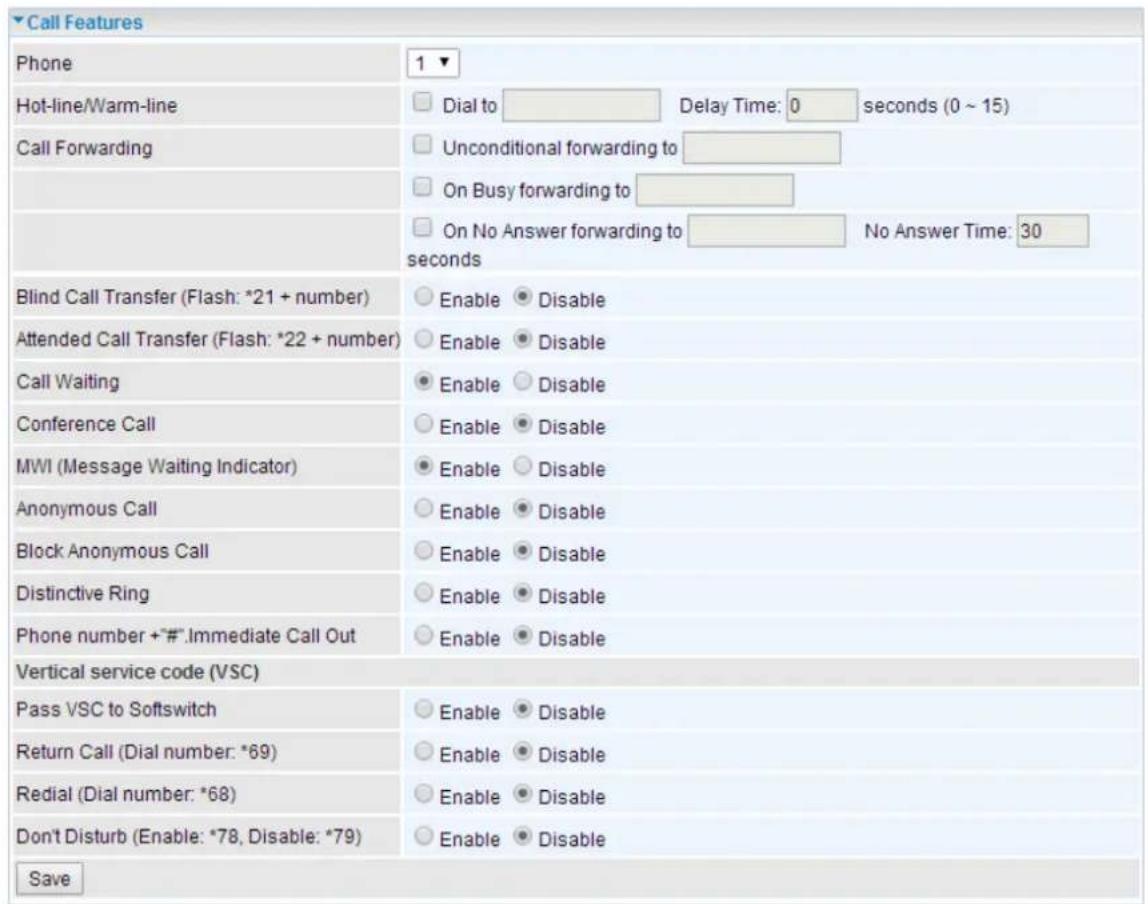

Call Features....90

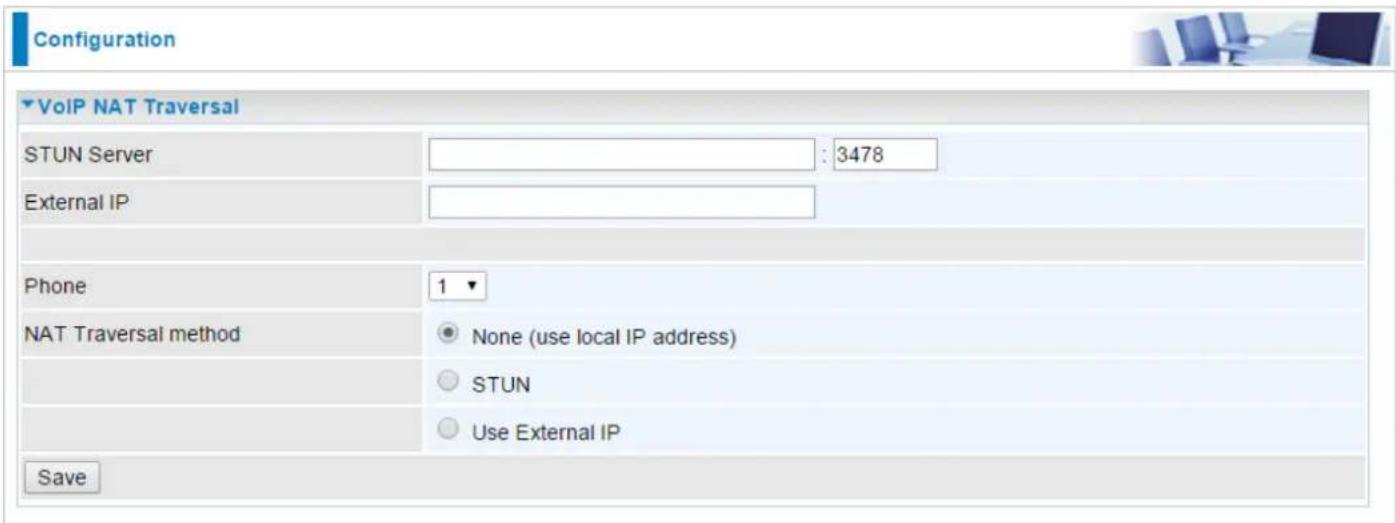

NAT Traversal for VoIP 93

Access Management 95

Device Management 95

SNMP 96

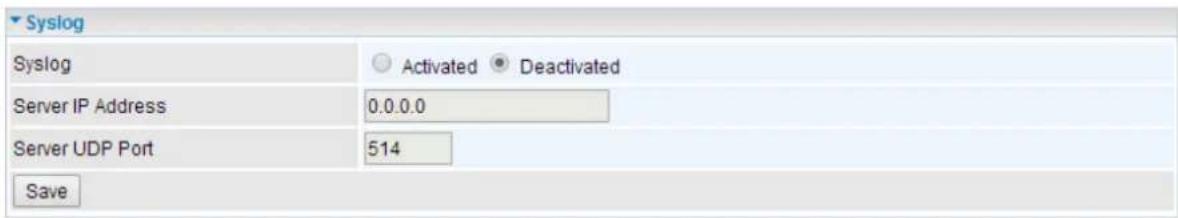

Remote Syslog 97

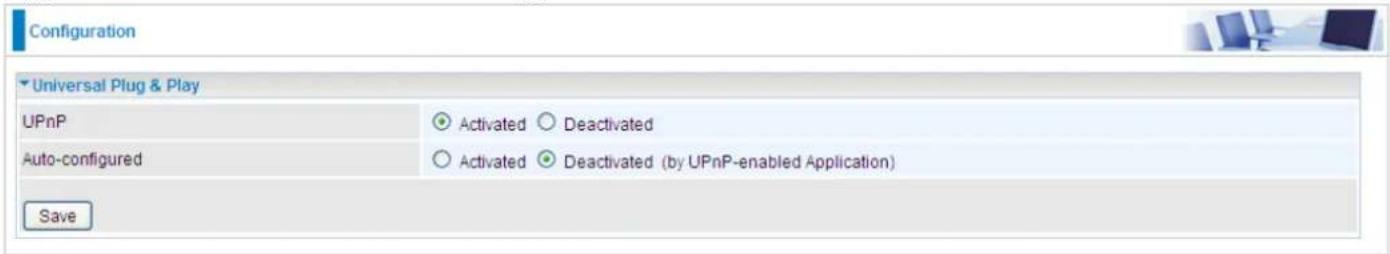

Universal Plug & Play 97

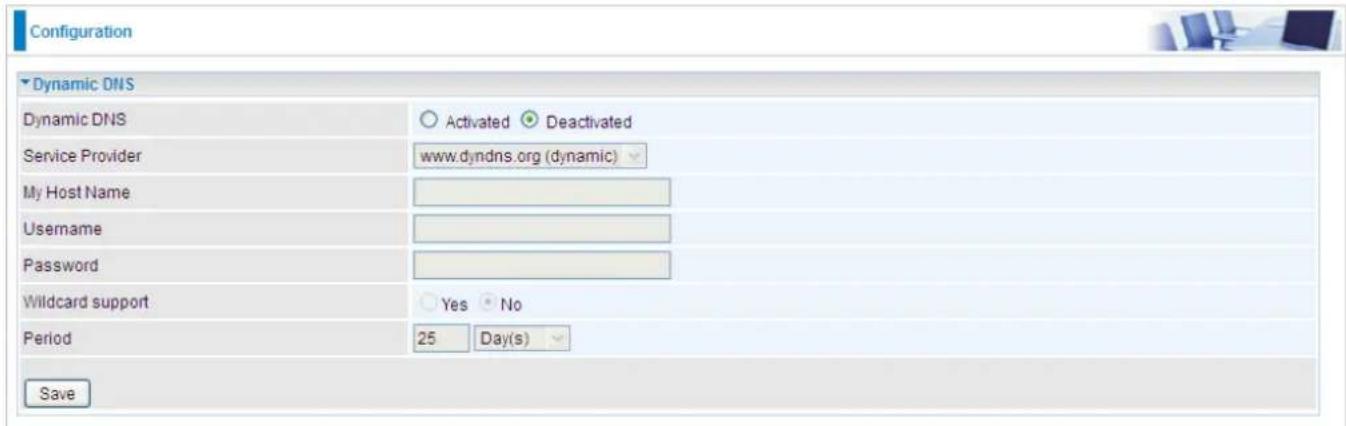

Dynamic DNS....98

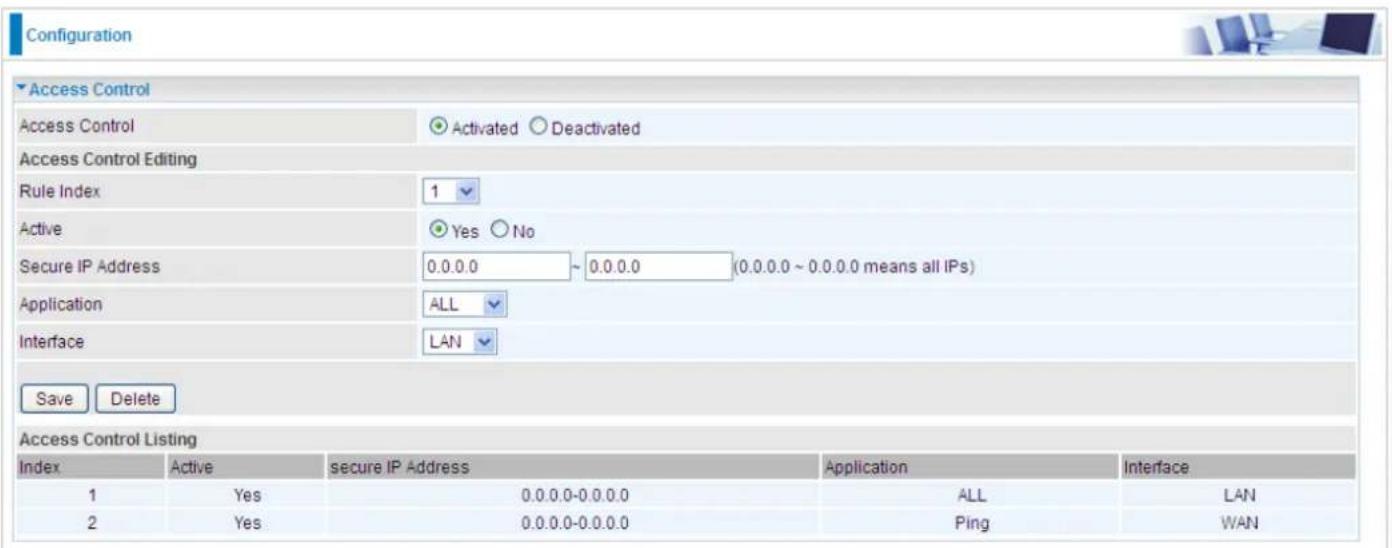

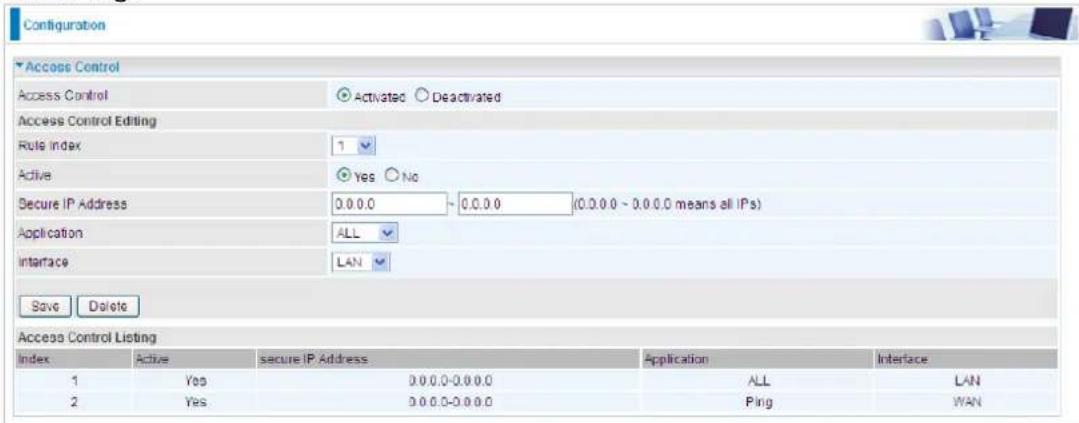

Access Control 100

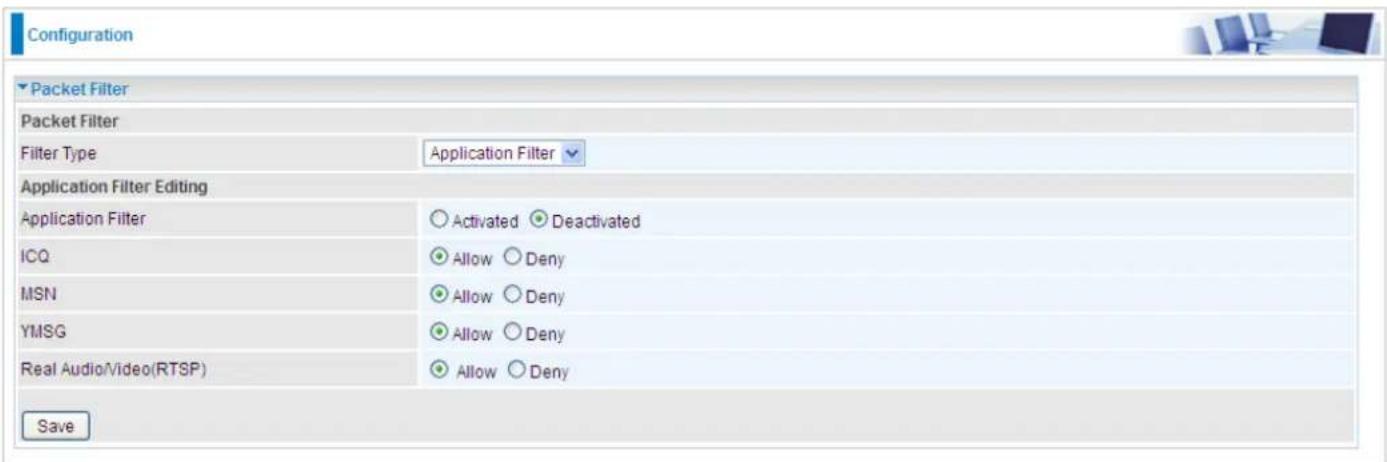

Packet Filter.... 102

CWMP (TR-069).... 105

Parental Control 107

Problems with the Router 120

Problem with LAN Interface 120

Recovery Procedures....121

APPENDIX: PRODUCT SUPPORT & CONTACT

122

CHAPTER 1: INTRODUCTION

Introduction to your Router

Congratulations on your purchase of the BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router). This router is a compact and advanced broadband router that offers flexible and multiple Internet connection options, EWAN and embedded 4G/LTE interfaces, for home, SOHO, and office users to enjoy high-speed, high-level security Internet connection via cellular wireless and/or Ethernet WAN. With an integrated 802.11n wireless access point and 4-port Gigabit Ethernet LAN, this router enables faster wireless speed of up to 300Mbps and LAN connection 10 times faster than regular 10/100Mbps Ethernet LAN. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) provides a unique Management Center enabling users to monitor 4G/LTE signal strength, bandwidth, download speed, and many more. Users can choose the most economical rate of VoIP calls provided by different providers. The device integrates two FXS ports which allows for simultaneous VoIP calls.

Cost Saving

Making VoIP calls is extremely simple; just connect the router with your existing analog telephones. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) complies with the most popularly adopted VoIP standard and SIP protocol to ensure interoperability with SIP devices and major VoIP Gateways. This router also supports a wider range of telephony features, such as Call Waiting, Conference, Speed Dial, Return Call, Redial, etc.

4G/LTE Mobility

With 4G/LTE-based Internet connection (4G/LTE embedded module, requires an additional SIM card), you can access to the Internet through 4G/LTE whether you are seated at your desk or taking a cross-country trip.

Wireless Mobility and Security

With an integrated 802.11n Wireless Access Point, this router delivers up to 3 times the wireless coverage of a 802.11b/g network device, so that wireless access is available everywhere in the house or office. If your network requires wider coverage, the built-in Wireless Distribution System (WDS) allows you to expand your wireless network without additional wires or cables. BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) also supports the Wi-Fi Protected Setup (WPS) standard and allows users to establish a secure wireless network just by pressing a button. Multiple SSIDs allow users to access different networks through a single access point. Network managers can assign different policies and functions for each SSID, increasing the flexibility and efficiency of the network infrastructure.

4G/LTE Management Center

BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) Mobile Management Center visually displays its current 4G/LTE signal status also calculates the total amount of hours or data traffic used per month, allowing you to manage your 4G/LTE monthly subscriptions.

IPv6 Supported

Internet Protocol version 6 (IPv6) is a version of the Internet Protocol that is designed to succeed IPv4. IPv6 has a vastly larger address space than IPv4. The router is already supporting IPv6, you can use it in IPv6 environment no need to change device. The dual-stack protocol implementation in an operating system is a fundamental IPv4-to-IPv6 transition technology. It implements IPv4 and IPv6 protocol stacks either independently or in a hybrid form. The hybrid form is commonly implemented in modern operating systems supporting IPv6.

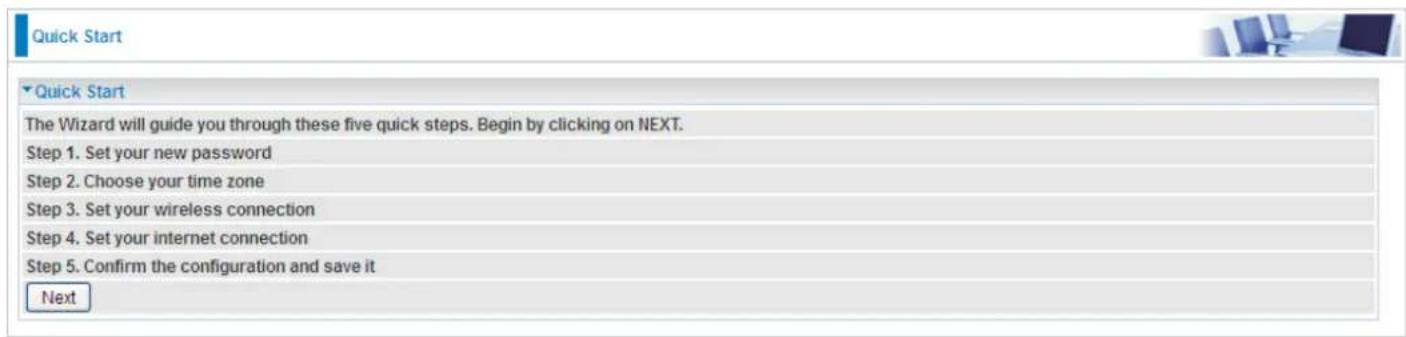

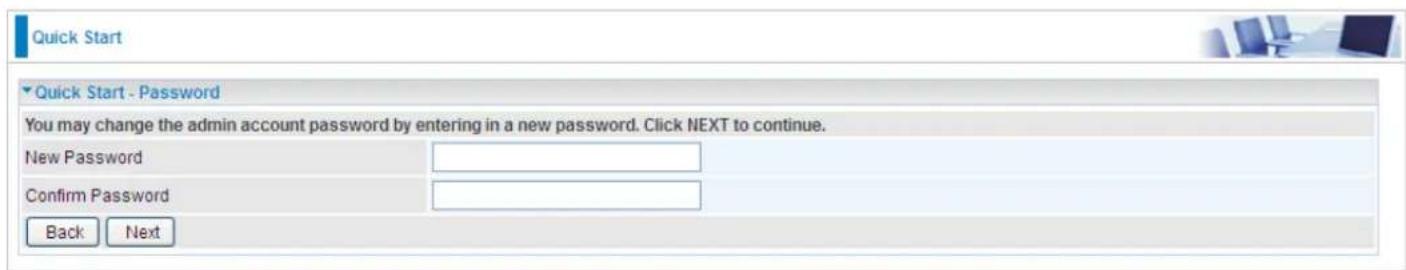

Quick Start Wizard

Support a WEB GUI page to install this device quickly. With this wizard, simple steps will get you connected to the Internet immediately.

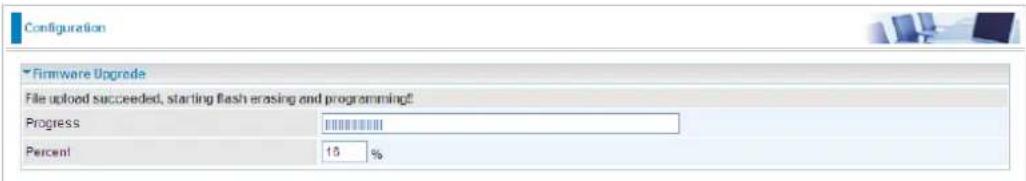

Firmware Upgradeable

Device can be upgraded to the latest firmware through the WEB based GUI.

Features & Specifications

• 4G/LTE for high speed mobile broadband connectivity
• Gigabit Ethernet WAN (GbE WAN) for Cable/Fiber/xDSL high WAN throughput
  • Gigabit Ethernet LAN
• IPv6 ready (IPv4/IPv6 dual stack)
• Multiple wireless SSIDs with wireless guest access and client isolation
• IEEE 802.11 b/g/n compliant Wireless Access Point with Wi-Fi Protected Setup (WPS)
• Wi-Fi Protected Access (WPA-PSK/ WPA2-PSK) and Wired Equivalent Privacy (WEP)
  • SOHO Firewall Security with DoS Preventing and Packet Filtering
  • Quality of Service Control for traffic prioritization management
  • Universal Plug and Play (UPnP) Compliance
  • Voice over IP compliant with SIP standard
• Two FXS ports for connecting to regular analog telephones
• Call Waiting, Conference Call
  • Speed Dial, Return Call, Redial
• Don't Disturb
• Ease of Use with Quick Installation Wizard
  • One USB port for NAS (FTP/ SAMBA server)
• Ideal for SOHO, office, and home users

Network Protocols and Features

• IPv4, IPv6 or IPv4 / IPv6 Dual Stack
  • NAT, static (v4/v6) routing and RIP-1 / 2
• DHCPv4 / v6
  • Universal Plug and Play (UPnP) Compliant
  • Dynamic Domain Name System (DDNS)

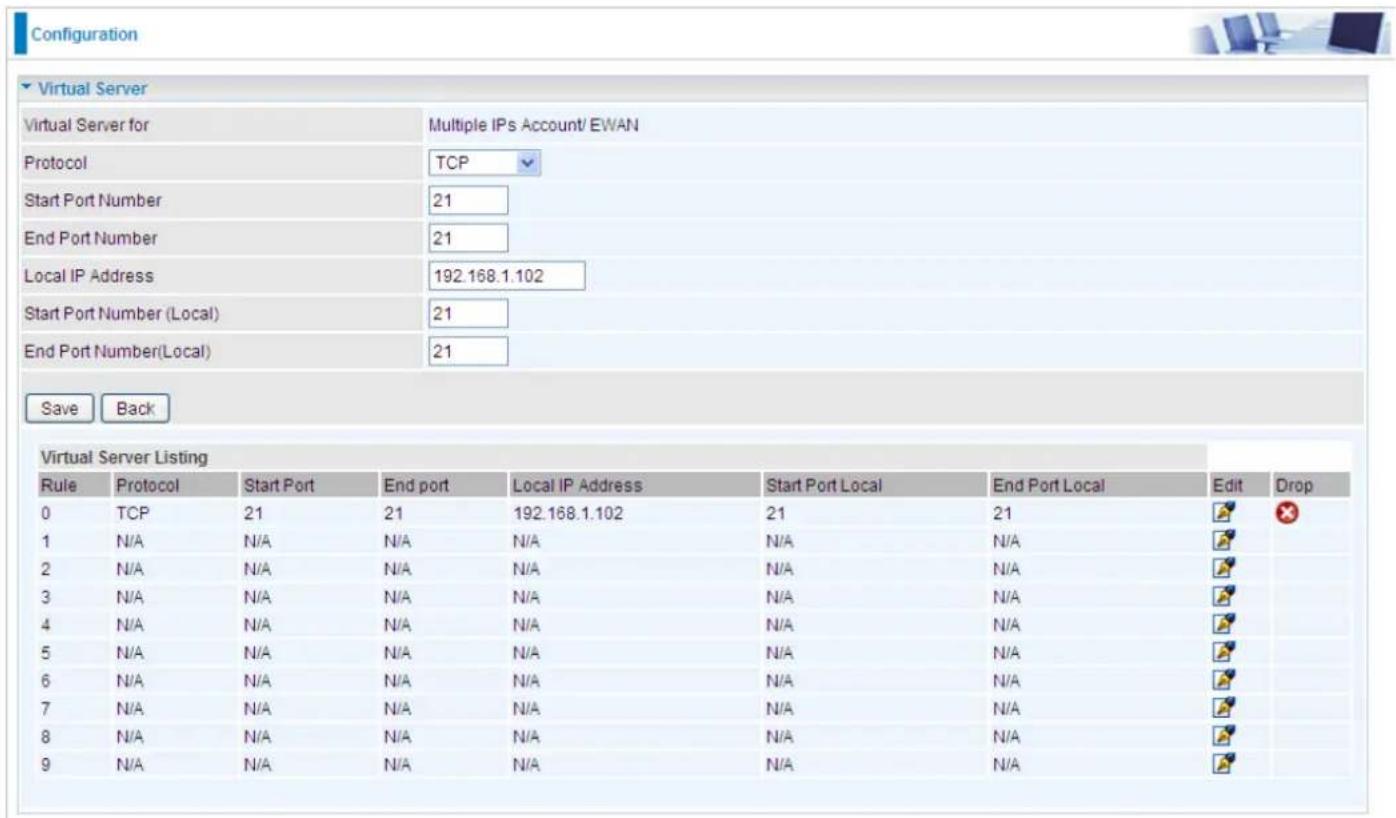

  • Virtual Server and DMZ
• SNTP, DNS proxy
  • IGMP snooping and IGMP proxy
• MLD snooping and MLD proxy

Firewall

• Built-in NAT Firewall
• Stateful Packet Inspection (SPI)
- DoS attack prevention including Land Attack, Ping of Death, etc.
- Access control
• IP&MAC filter, URL Content Filter
- Password protection for system management
- VPN pass-through

Quality of Service Control

- Traffic prioritization management based-on Protocol, Port Number and IP Address (IPv4/ IPv6)

Wireless LAN

• Compliant with IEEE 802.11 b/ g/ n standards
  • 2.4 GHz - 2.484GHz radio band for wireless
• Up to 300 Mbps wireless operation rate
  • 64 / 128 bits WEP supported for encryption
• WPS (Wi-Fi Protected Setup) for easy setup
• Wireless Security with WPA-PSK / WPA2-PSK support
  • WDS repeater function support

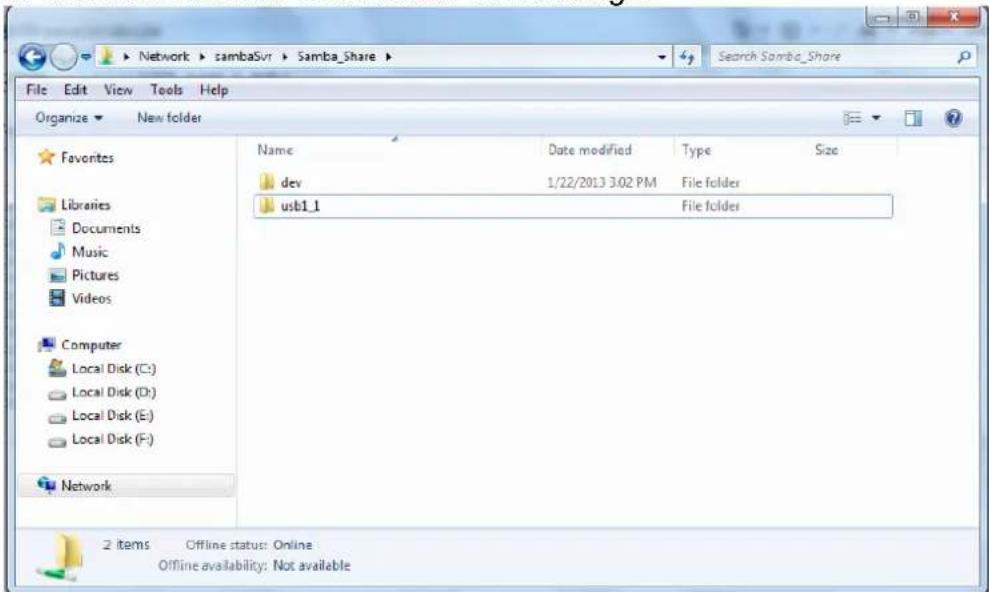

USB Application Server

• Storage/NAS: SAMBA Server, FTP Server
• 3G/4G LTE Mobile Internet Connection

VoIP

• Compliant with SIP standard (RFC3261)
  • Codec: G.729, G.726, G.711 A-Law, G.711 u-Law
  • DTMF Method: Inband, RFC 2833, SIP Info
• Caller ID Generation: DTMF, FSK
• Silence Suppression (VAD), Echo Cancellation
• Call Waiting, Conference Call
  • Speed Dial, Return Call, Redial
• Don't Disturb

• FAX Relay: T.38
- Call Detailed Records (CDR)

Management

• Quick Installation wizard
• Web-based GUI for remote and local management (IPv4/IPv6)
• Firmware upgrades and configuration data upload and download via web-based GUI
  • Supports DHCP server / client / relay
  • Supports SNMP v1, v2, v3, MIB-I and MIB-II
  • TR-069 supports remote management

Hardware Specifications

Physical interface

• 4G LTE antenna: 2 external antennas
- SIM card slot: Mini SIM card (2FF) slot for mobile broadband connectivity
• VoIP phone port: 2 RJ-11 FXS phone ports to connect with 2 regular analog phones.
- USB: USB 2.0 port for storage service
- Ethernet: 4-port 10 / 100 / 1000Mbps auto-crossover (MDI / MDI-X) Switch
- EWAN: RJ-45 Gigabit Ethernet port for connecting to Cable/Fiber/xDSL modem for Broadband connectivity.
- Factory default reset button
- Wireless on/off and WPS push button
- DC Power jack
- UPS Power with 4-pin connectors
- Power switch to switch between DC power and UPS power.

Physical Specifications

- Dimensions (W*H*D): 9.04" x 6.10" x 1.27"(229.5mm x 155mm x 32.24mm)

Application Diagrams

BEC 6300VNL (4G/LTE VoIP Wireless Broadband Router) is an all-in-one router, supporting 2 connection options (4/LTE and EWAN) to connect to the Internet.

4G/LTE router mode

With an embedded 4G/LTE module, the router can be used to connect to high speed mobile fixed wireless connection.

Broadband Router Mode

This router also has a Gigabits Ethernet WAN port (EWAN) to connect with your Fiber / Cable/ xDSL modem.

CHAPTER 2: PRODUCT OVERVIEW

Important Note for Using This Router

Warning

√ Do not use the router in high humidity or high temperature.
√ Do not use the same power source for the BEC 6300VNL on other equipment.
√ Do not open or repair the case yourself. If the device becomes too hot, turn off the power immediately and have it repaired at a qualified service center.
√ Avoid using this product and all accessories outdoors.

Attention

√ Place the router on a stable surface.
√ Only use the power adapter that comes with the package.
Using a different voltage rating power adaptor may damage the router.

Device Description

Front Panel LEDs

LED	STATUS	DESCRIPTION
Power	Green	System is up and ready
	Red	Boot failure
Battery	Green	UPS is functional properly
	Orange	UPS battery failure. Need a new battery replacement
	Orange blinking	UPS AC power failure and battery functional properly
	Off	Device powered by the DC power adaptor
EWAN	Lit up	BEC 6300VNL is successfully connected with a broadband connection device.
	Green	Transmission speed is at Gigabit speed (1000Mbps)
	Orange	Transmission speed is at 10/100Mbps
	Blinking	Data being transmitted/received
Ethernet Port LAN 1 ~ 3	Green	Transmission speed is at Gigabit speed (1000Mbps)
	Orange	Transmission speed is at 10/100Mbps
	Blinking	Data being transmitted/received
USB 2.0	Green	Connecting to a USB dongle or a hard drive.
Wireless/WPS	Green	Wireless connection established
	Green blinking	Data being transmitted / received
	Orange	WPS configuration is in progress
Phone	Green	Successfully registered and ready to be used.
	Orange	Phone is off-hook, in-use
LTE(Received Signal Strength Indicator)	Green	RSSI greater than -69 dBm. Excellent signal condition
	Green Flashing quickly	RSSI from -81 to -69 dBm. Good signal condition
	Orange Flashing quickly	RSSI from -99 to -81 dBm. Fair signal condition.
	Orange Flashing slowly	RSSI less than -99 dBm. Poor signal condition.
	Orange	No signal and the 4G_LTE module is in service
	Off	No LTE module or LTE module fails
Internet	Green	IP connected and traffic is passing thru the device.
	Red	IP request failed.
	Off	BEC 6300VNL is either in bridged mode or WAN connection not ready.

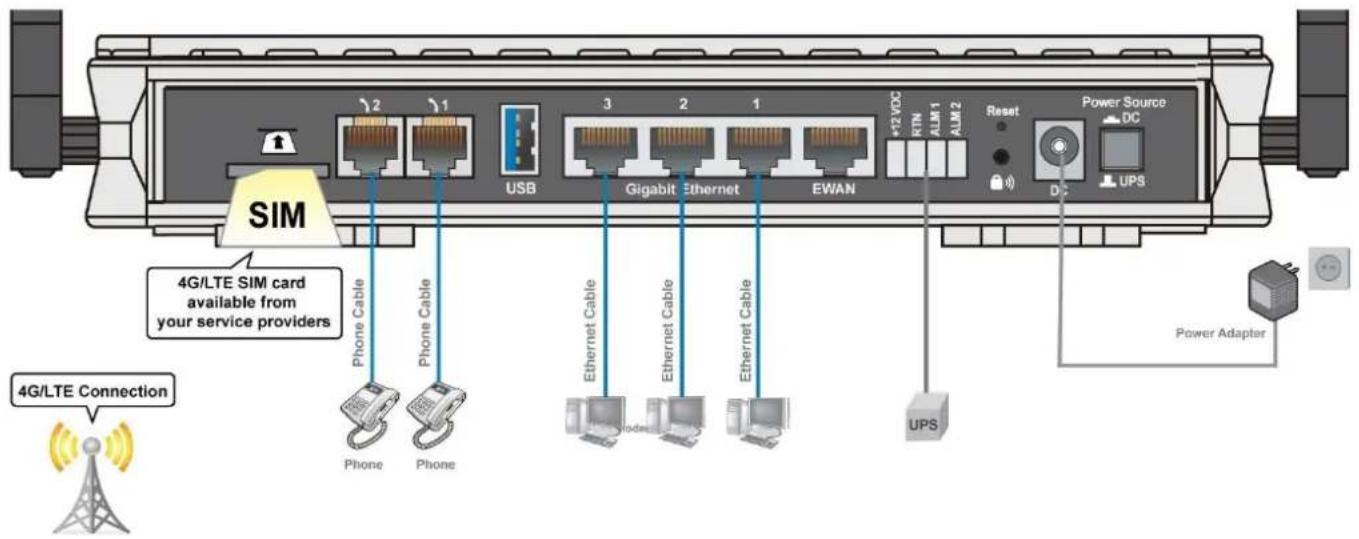

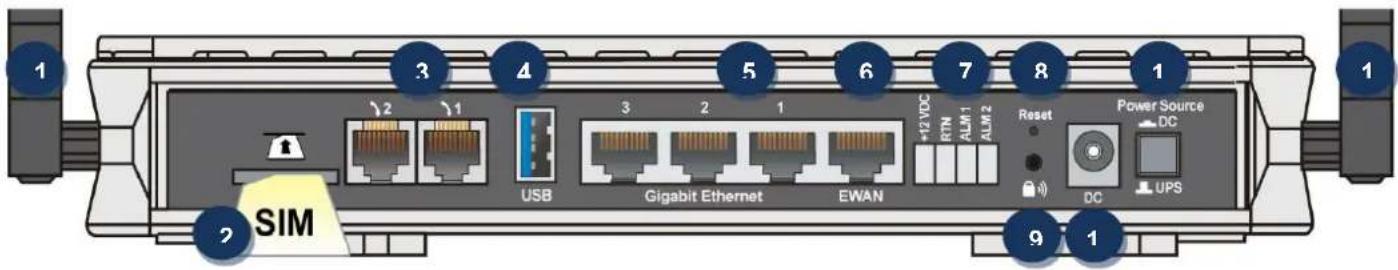

Rear Panel Connectors

PORT		MEANING
1	LTE Antenna	Screw the supplied LTE antennas onto the antenna connectors on both sides.
	SIM Card Slot	Insert the mini SIM card (2FF) with the gold contact facing down.Push the mini SIM card (2FF) inwards to eject it
3	Phone (1X-2X)	Connect your analog phone to this port with a RJ-11 cable.
4	USB	The USB can either setup for 3G/4G LTE internet access or storage/file sharing.(1)For File Sharing:Connect an external USB dongle / hard drive for storage, network sharing, etc.(2)For 3G/4G LTE Internet Connection:Connect with an external USB 3G/4G LTE modem or dongle with an activate data plan (Internet access).
5	Gigabit LAN Ethernet (1~3)	Connect a UTP Ethernet cable (Cat-5 or Cat-5e) to one of the four LAN ports when connecting to a PC or an office/home network of 10Mbps /100Mbps /1000Mbps
6	Gigabit EWAN	Connect to Fiber/ Cable/ xDSL Modem with a RJ-45 cable
7	UPS Jack	The 4-pin connectors are used to power the device with an external UPS battery backup.
8	Reset	After the device is powered on, press it6 seconds or above:to restore to factory default settings (this is used when you cannot login to the router, e.g. forgot your password)
9	WPS & Wireless On/Off	By controlling the pressing time, users can achieve two different effects:(1)WPS*:Press &hold the button for less than 6 seconds to trigger WPS function.(2)Wireless ON/OFF button:Press & hold the button for more than 6 seconds to On/Off the wireless.*Please refer to the WPS section in the User Manual.
10	Power Jack (DC)	Connect the supplied Power Adapter to this jack.
11	Power Source	Power ON/OFF switch(1)with Power Switch ON:power up by the supplied DC power adaptor(2)with Power Switch OFF:power up by the UPS battery unit

Power Source

BEC 6300VNL offers two kinds of power input, namely, DC power Adapter and DC UPS (or BBU). BEC 6300VNL can take the advantage of UPS (Uninterruptible Power Supply) to keep working even if the power outage hit your router when the router in working in DC UPS mode.

(A picture of the rear focusing on the power source)

UPS Port Assignment:

▶ +12VDC: VCC (DC + 12V) Power supply
▶ RTN: GND (Ground)
▶ ALM 1: Active high – replace battery
▶ ALM 2: Active high – on battery

Technical line drawing of a mechanical component with no visible text or symbols

(A shot from the front panel, with second icon being identified as the Battery LED)

How to switch between the two (2) power sources, DC power adaptor and external UPS battery

Pressed "Power Source" button, the button is visually being pressed down. The power source is from the DC power adapter supplied in the package.

"Power Source" button in the un-pressed state, the power source is from the UPS. The router can continue to operate for a period of time after AC power failure, due to uninterrupted power system features of UPS.

UPS LED:

A Battery LED indicates if a DC UPS is in-use or not. When the router is operating via the DC power adapter this LED will be off.

Battery LED Definition:

Green LED: UPS AC power is working; UPS battery is also working well
▶ Orange LED Only UPS AC power is working. Battery failure- need a new battery replacement
▶ Orange LED: UPS AC power failure; UPS battery is working

System Recovery Procedures

The purpose is to allow users to restore the MX-1000 to its initial stage when the device is outage, upgraded to a wrong / broken firmware, cannot access to the GUI with wrong username and/or password, etc.

Step 1 – Configure your PC Network IP Address

Before performing the system recovery, assign this IP address and Netmask to your PC, 192.168.1.100 and 255.255.255.0 respectively.

Step 2 – Reset your 6300VNL Device

2.1 Power off your 6300VNL
2.2 Power on the 6300VNL while pushing the RESET button with a small pointed object (such as paper clip, needle, toothpick, and etc.).
2.3 When the POWER LED turns RED, keep holding and pushing the RESET button until the INTERNET LED flashes in GREEN

Step 3 – Restore your 6300VNL Device

With INTERNET light flashes green, 6300VNL is in recovery mode and ready for a new Firmware.

3.1 Open a web browser and type the IP address, 192.168.1.1, to access to the recovery page. NOTE: In the recovery mode, 6300VNL will not respond to any PING or other requests.

3.2 Browse to the new Firmware image file then click Upload to start the upgrade process.

3.3 INTERNET LED turns red means the Firmware upgrade is in process. DO NOT power off or reboot the device, it would permanently damage your 6300VNL.

3.4 INTERNET LED turns green after the Firmware upgrade completed

3.5 Power cycle on & off to regain access to the 6300VNL.

Cabling

One of the most common causes of problems is bad cabling. Make sure that all connected devices are turned on. On the front panel of the product is a bank of LEDs. Verify that the LAN Link and LEDs are lit. If they are not, verify that you are using the proper cables.

Make sure that all other devices (e.g. telephones, fax machines, analogue modems) connected to the same telephone line as your BEC router have a line filter connected between them and the wall socket (unless you are using a Central Splitter or Central Filter installed by a qualified and licensed electrician), and that all line filters are correctly installed in a right way. If the line filter is not correctly installed and connected, it may cause problems to your connection or may result in frequent disconnections.

CHAPTER 3: BASIC INSTALLATION

The router can be configured with your web browser. A web browser is included as a standard application in the following operating systems: Windows XP / 7 / 8 / Vista, Linux, Mac OS, etc. The product provides an easy and user-friendly interface for configuration.

PCs must have an Ethernet interface installed properly and be connected to the router either directly or through an external repeater hub, and have TCP/IP installed or configured to obtain an IP address through a DHCP server or a fixed IP address that must be in the same subnet as the router. The default IP address of the router is 192.168.1.254 and the subnet mask is 255.255.255.0 (i.e. any attached PC must be in the same subnet, and have an IP address in the range of 192.168.1.1 to 192.168.1.253). The best and easiest way is to configure the PC to get an IP address automatically from the router using DHCP. If you encounter any problems accessing the router's web interface it may also be advisable to uninstall any kind of software firewall on your PCs, as they can cause problems accessing the 192.168.1.254 IP address of the router. Users should make their own decisions on how to best protect their network.

Please follow the steps below for your PC's network environment installation. First of all, please check your PC's network components. The TCP/IP protocol stack and Ethernet network adapter must be installed. If not, please refer to your Windows-related or other operating system manuals.

Any TCP/IP capable workstation can be used to communicate with or through the BEC 6300VNL. To configure other types of workstations, please consult the manufacturer's documentation.

Network Configuration – IPv4

Configuring PC in Windows 10 (IPv4)

1. Click
2. Click
   Settings
3. Then click on Network and Internet.
4. Under Related settings, select Network and Sharing Center
5. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
6. Select the Local Area Connection, and right click the icon to select Properties.

Related settings

Change adapter options

Change advanced sharing options

Network and Sharing Center

HomeGroup

Internet options

Windows Firewall

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

1. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows 7/8 (IPv4)

1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.

1. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

1. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows Vista (IPv4)

1. Go to Start. Click on Network.

2. Then click on Network and Sharing Center at the top bar.

3. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window pane.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 4 (TCP/IPv4) then click Properties.

2. In the TCP/IPv4 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.

3. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows XP (IPv4)

1. Go to Start. Click on Control Panel.

2. Then click on Network and Internet.

3. In the Local Area Connection Status window, click Properties.

4. Select Internet Protocol (TCP/IP) and click Properties.
5. Select the Obtain an IP address automatically and the Obtain DNS server address automatically radio buttons.
6. Click OK to finish the configuration.

Network Configuration – IPv6

Configuring PC in Windows 10 (IPv6)

1. Click
2. Click
   Settings
3. Then click on Network and Internet.
4. Under Related settings, select Network and Sharing Center
5. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.
6. Select the Local Area Connection, and right click the icon to select Properties.

Related settings

Change adapter options

Change advanced sharing options

Network and Sharing Center

HomeGroup

Internet options

Windows Firewall

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows 7/8 (IPv6)

1. Go to Start. Click on Control Panel.
2. Then click on Network and Internet.

1. When the Network and Sharing Center window pops up, select and click on Change adapter settings on the left window panel.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IPv6 address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows Vista (IPv6)

1. Go to Start. Click on Network.
2. Then click on Network and Sharing Center at the top bar.

1. When the Network and Sharing Center window pops up, select and click on Manage network connections on the left window pane.

1. Select the Local Area Connection, and right click the icon to select Properties.

1. Select Internet Protocol Version 6 (TCP/IPv6) then click Properties.

1. In the TCP/IPv6 properties window, select the Obtain an IP address automatically and Obtain DNS Server address automatically radio buttons. Then click OK to exit the setting.
2. Click OK again in the Local Area Connection Properties window to apply the new configuration.

Configuring PC in Windows XP (IPv6)

IPv6 is supported by Windows XP, but you need to install it first.

Please follow the steps to install IPv6:

1. On the Desktop, Click Start > Run, type cmd, then press Enter key in the keyboard, the following screen appears.

1. Key in command ipv6 install

Installation of IPv6 is now completed. Please test it to see if it works or not. .

Default Settings

Before configuring the router, you need to know the following default settings.

Web Interface: (Username and Password)

√ Username: admin
√ Password: admin

The default username and password are "admin" and "admin" respectively.

If you ever forget the username/password to login to the router, you m press the RESET button up to 6 seconds then release it to restore the factory default settings.

Caution: After pressing the RESET button for more than 6 seconds then release it, to be sure you power cycle the device again.

Device LAN IP Settings

√ IP Address: 192.168.1.254
√ Subnet Mask: 255.255.255.0

DHCP Server:

√ DHCP server is enabled.
√ Start IP Address: 192.168.1.100
√ IP pool counts: 100

Information from Your ISP

Before configuring this device, you have to check with your ISP (Internet Service Provider) what kind of service is provided such as EWAN ((Dynamic IP address, Static IP address, PPPoE, Bridge Mode).

Gather the information as illustrated in the following table and keep it for reference.

PPPoE	Username, Password, Service Name, and Domain Name System (DNS) IP address (it can be automatically assigned by your ISP when you connect or be set manually).
Dynamic IP Address	DHCP Client (it can be automatically assigned by your ISP when you connect or be set manually).
Static IP Address	IP address, Subnet mask, Gateway address, and Domain Name System (DNS) IP address (it is fixed IP address).
Bridge Mode	Pure Bridge

CHAPTER 4: DEVICE CONFIGURATION

Login to your Device

Open your web browser, enter the IP address of your router, which by default is 192.168.1.254, and click "Go", a user name and password window prompt appears.

The default username and password is "admin" and "admin" respectively for the Administrator.

NOTE: This username / password may vary by different Internet Service Providers.

Congratulations! You have successfully logged on to your BEC 6300VNL.

Once you have logged on to your 6300VNL via your web browser, you can begin to set it up according to your requirements. On the configuration homepage, the left navigation pane links you directly to the setup pages, which includes:

Section	Status	Quick Start (Wizard Setup)	Configuration	Language
Sub-Items	Device Info		Interface Setup- Internet- LAN- Wireless- Wireless MAC Filter
	System Status		Advanced Setup- Firewall- Routing- NAT- Static DNS- QoS- Interface Grouping- Time Schedule
	System Log		VoIP- Basic- Media- Advanced- Speed Dial- Dial Plan- Call Features- NAT Traversal
	3G/4G-LTE Status		Access Management- Device Management- SNMP- Remote Syslog- Universal Plug & Play (UPnP)- Dynamic DNS- Access Control- Packet Filter- CWMP (TR-069)- Parental Control- SAMBA & FTP Server
	Statistics		Maintenance- User Management- Time Zone- Firmware & Configuration- System Restart- Auto Reboot- Diagnostic Tool
	DHCP Table
	Disk Status
	VoIP Status- VoIP Status- VoIP Call Log

Please see the relevant sections of this manual for detailed instructions on how to configure your BEC 6300VNL gateway.

Status

In this section, you can check the router working status, including Device Info, System Log, 3G/4G-LTE Status, Statistics, DHCP Table, Disk Status, and VoIP Status.

Device Info

It contains basic information of the device.

Device Information

Model Name: Name of the router for identification purpose.

Firmware Version: Software version currently loaded in the router

MAC Address: A unique number that identifies the router

LAN

IPv4:

IP Address: LAN port IPv4 address.

Subnet Mask: LAN port IP subnet mask.

DHCPv4 Server: LAN port DHCP role - Enabled, Relay or Disabled.

IPv6:

IP Address: LAN port IPv6 address.

Prefix Length: The prefix length

DHCPv6 Server: The DHCP status.

WAN

Interface: WAN connection options, "EWAN" or "3G/4G-LTE".

Service: The WAN interface service index.

PPP Connection Time: the uptime of the PPP connection.

IPv4:

Status: The connection status, either being connected or not in connected.

IP Address: WAN port IP address.

Subnet Mask: WAN port IP subnet mask.

Default Gateway: The IP address of the default gateway.

DNS Server: DNS information.

IPv6:

Status: The IPv6 connection status.

IP Address: WAN port IPv6 address.

Prefix Length: The prefix length of IPv6 address.

Default Gateway: The IP address of the default gateway.

DNS Server: DNS information.

3G/4G-LTE:

Signal Strength: The signal strength bar and dBm value indicates the current 3G/4G-LTE signal strength. The front panel 3G/4G-LTE Signal Strength LED indicates the signal strength as well.

Network Name: The name of the LTE network the router is connecting to.

Card IMEI: The unique identification number that is used to identify the 3G/4G-LTE module.

Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE module.

System Status

System status displays the current router system (CPU and Memory) usage.

System Log

In system log, you can check the operations status and any glitches to the router.

Refresh: Press this button to refresh the statistics.

3G/4G-LTE Status

This page contains 3G/4G-LTE connection information.

Status: The current status of the 3G/4G-LTE connection.

Signal Strength: The signal strength bar and dBm value indicates the current 3G/4G-LTE signal strength. The front panel 3G/4G-LTE Signal Strength LED indicates the signal strength as well.

Signal Information: Shows important LTE signal parameters such as RSRP (Reference Signal Receiving Power), RSRQ (Reference Signal Receiving Quality), SINR (Signal to Interference plus Noise Ratio).

• RSRP (Reference Signal Receiving Power): is the average power of all resource elements which carry cell-specified reference signals over the entire bandwidth.
  ▶ RSRQ (Reference Signal Receiving Quality): measures the signal strength and is calculated based on both RSRP and RSSI.
  ▶ RSSI (Received Signal Strength Indicator): parameter which provides information about total received wide-band power (measure in all symbols) including all interference and thermal noise.
  ▶ SNR (Signal Noise Ratio): is also a measure of signal quality as well. It is widely used by the operators as it provides a clear relationship between RF conditions and throughput.

Note: Some LTE modules do not provide this information.

Network Name: The name of the LTE network the router is connecting to.

Cell ID: The ID of base station that the device is connected to.

Card IMEI: The unique identification number that is used to identify the 3G/4G-LTE module.

Card IMSI: The international mobile subscriber identity used to uniquely identify the 3G/4G-LTE module.

Network Mode: Display current network operating mode.

Network Band: Indicated the current radio frequency band used.

Refresh: Press this button to refresh the statistics.

Statistics

EWAN

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the EWAN port.

Transmit Frames: This field displays the total number of frames transmitted until the latest second.

Transmit Multicast Frames: This field displays the total number of multicast frames transmitted till the latest second.

Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second.

Transmit Collision: This is the number of collisions on this port.

Transmit Error Frames: This field displays the number of error packets on this port.

Receive Frames: This field displays the number of frames received until the latest second.

Receive Multicast Frames: This field displays the number of multicast frames received until the latest second.

Receive Total Bytes: This field displays the number of bytes received until the latest second.

Receive CRC Errors: This field displays the number of error packets on this port.

Receive Under-size Frames: This field displays the number of under-size frames received until the latest second.

Refresh: Press this button to refresh the statistics.

3G/4G-LTE

Take 3G/4G-LTE as an example to describe the following connection transmission information.

Interface: List all available network interfaces in the router. You are currently checking on the physical status of 3G/4G-LTE interface.

Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames transmitted until the latest second for the current connection.

Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest second for the current connection for the current connection.

Transmit Total Frames: The field displays the total number of frames transmitted till the latest second since system is up.

Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second since system is up.

Receive Frames of Current Connection: This field displays the number of frames received until the latest second for the current connection.

Receive Bytes of Current Connection: This field shows the total bytes received till the latest second for the current connection.

Receive Total Frames: This field displays the total number of frames received until the latest second since system is up.

Receive Total Bytes: This field displays the total frames received till the latest second since system is up.

◆ 3G/4G\_LTE via USB port

Take 3G/4G-LTE USB as an example to describe the following connection transmission information.

Interface: List all available network interfaces in the router. You are currently checking on the physical status of 3G/4G-LTE interface.

Transmit Frames of Current Connection: This field displays the total number of 3G/4G-LTE frames transmitted until the latest second for the current connection.

Transmit Bytes of Current Connection: This field shows the total bytes transmitted till the latest second for the current connection for the current connection.

Transmit Total Frames: The field displays the total number of frames transmitted till the latest second since system is up.

Transmit Total Bytes: This field displays the total number of bytes transmitted until the latest second since system is up.

Receive Frames of Current Connection: This field displays the number of frames received until the latest second for the current connection.

Receive Bytes of Current Connection: This field shows the total bytes received till the latest second for the current connection.

Receive Total Frames: This field displays the total number of frames received until the latest second since system is up.

Receive Total Bytes: This field displays the total frames received till the latest second since system is up.

Ethernet

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the Ethernet port.

Transmit Frames: This field displays the number of frames transmitted until the latest second.

Transmit Multicast Frames: This field displays the number of multicast frames transmitted until the latest second.

Transmit Total Bytes: This field displays the number of bytes transmitted until the latest second.

Transmit Collision: This is the number of collisions on this port.

Transmit Error Frames: This field displays the number of error packets on this port.

Receive Frames: This field displays the number of frames received until the latest second.

Receive Multicast Frames: This field displays the number of multicast frames received until the latest second.

Receive Total Bytes: This field displays the number of bytes received until the latest second.

Receive CRC Errors: This field displays the number of error packets on this port.

Receive Under-size Frames: This field displays the number of under-size frames received until the latest second.

Refresh: Press this button to refresh the statistics.

Wireless

Interface: List all available network interfaces in the router. You are currently checking on the physical status of the Wireless.

Transmit Frames: This field displays the number of frames transmitted until the latest second.

Transmit Error Frames: This field displays the number of error frames transmitted until the latest second.

Transmit Drop Frames: This field displays the number of drop frames transmitted until the latest second.

Receive Frames: This field displays the number of frames received until the latest second.

Receive Error Frames: This field displays the number of error frames received until the latest second.

Receive Drop Frames: This field displays the number of drop frames received until the latest second.

Refresh: Press this button to refresh the statistics.

DHCP Table

DHCP table displays the devices connected to the router with clear information.

Status
DHCP Table List
#	Host Name	IP Address	MAC Address	Expire Time
1	billion-17bc6f1	192.168.1.104	18:49:05:38:04:03	0days 23:37:51

Index #: The index identifying the connected devices.

Host Name: Show the hostname of the PC.

IP Address: The IP allocated to the device.

MAC Address: The MAC of the connected device.

Expire Time: The total remaining interval since the IP assignment to the PC.

Disk Status

Partition: Display the USB storage partition.

Disk Space (KB): Display the total storage space of the NAS in Kbytes unit.

Free Space (KB): Display the available space in Kbytes unit.

VoIP Status

VoIP Status

VoIP status gives you a directive picture on the registered VoIP accounts.

Phone Number: The number you use to register in the Basic page of VoIP.

Host: Show the IP address and port number of SIP Registrar.

Status: The status of the registered SIP account.

Registered Time: The duration the account has been successfully registered to the SIP registrar.

VoIP Call Log

VoIP call log records all inbound / outbound calls in details within your VoIP accounts. You can quickly view the call date, time, incoming/outgoing/missed call telephone number, and more.

Phone Number: The number you use to register in the Basic page of VoIP.

Incoming / Outgoing / Miss Call Log: Click the call log you want to view.

Start-Time: The start time of the call

Caller/Called Name: Display the caller ID of the dialing party / the party you dialed to reach to.

Caller/Called Number: Display caller telephone number / telephone number you dialed to reach to

Answer Time: The answer time of phone call

End Time: The end time of the call

Talk Duration: Time duration of individual calls from dial/call to hang-up.

Status: Current call status if phones are off hook or in a call.

Quick Start

This is a useful and easy utility to help you to setup the router quickly and to connect to your ISP (Internet Service Provider) with only a few steps. It will guide you step by step to setup time zone and WAN settings of your device. The Quick Start Wizard is a helpful guide for the first-time users to the device.

For detailed instructions on configuring WAN settings, see refer to the Interface Setup section.

Click NEXT to move on to Step 1.

Step 1 – Password

Set new password of the "admin" account to access for router management. The default is "admin". Once changed, please use this new password next time when accessing to the router. Click NEXT to continue.

Step 2 – Time Zone

Choose your time zone. Click NEXT to continue.

Step 3 – Wireless

Set up your wireless connection if you want to connect to the Internet wirelessly on your PCs. Click NEXT to continue.

Step 4 – ISP Connection Type

Set up your Internet connection.

4.1 Select an appropriate WAN connection protocol then click NEXT to continue.

4.2 If selected 3G/4G-LTE or 3G/4G-LTE USB (for example).

Input all relevant 3G/4G-LTE parameters from your ISP.

Click Next to save changes.

4.2 If selected EWAN / PPPoE, please enter PPPoE account information provided by your ISP. Click NEXT to continue.

Step 5 – Quick Start Completed

The Setup Wizard has completed. Click on BACK to modify changes or mistakes. Click NEXT to save the current settings.

Switch to Status > Device Info to view the status.

Configuration

Click to access and configure the available features in the following: Interface Setup, Advanced Setup, VoIP, Access Management, and Maintenance.

These functions are described in the following sections.

Interface Setup

Here are the features under Interface Setup: Internet, LAN, Wireless and Wireless MAC Filter.

Restart

Logout

Copyright @ BEC Technologies Inc. All rights reserved

Internet

EWAN

Multi Service

Service Index: The index marks the EWAN interface of different ISP type, ranging from 0-7.

Service Summary: The overall service information.

Service Information Summary
WAN 0	Active	ISP	IP Address
0	Yes	PPPoE	Dynamic
1	Yes	Bridge	N/A
2	No	Bridge	N/A
3	No	Bridge	N/A
4	No	Bridge	N/A
5	No	Bridge	N/A
6	No	Bridge	N/A
7	No	Bridge	N/A

Status: Select whether to enable the service.

IPv4/IPv6

IP Version: Choose IPv4, IPv4/IPv6, IPv6 based on your environment. If you don't know which one to choose from, please choose IPv4/IPv6 instead.

ISP Connection Type:

ISP: Select the encapsulation type your ISP uses.

▶ Dynamic IP: Select this option if your ISP provides you an IP address automatically.
Static IP: Select this option to set static IP information. You will need to enter in the Connection type, IP address, subnet mask, and gateway address, provided to you by your ISP. Each IP address entered in the fields must be in the appropriate IP form. IP address from by four IP octets separated by a dot (xx.xx.xx.xx). The Router will not accept the IP address if it is not in this format.
▶ PPPoE: Select this option if your ISP requires you to use a PPPoE connection.
Bridge: Select this mode if you want to use this device as an OSI Layer 2 device like a switch.

802.1q Options

802.1q: When activated, please enter a VLAN ID.

VLAN ID: It is a parameter to specify the VLAN which the frame belongs. Enter the VLAN ID identification, tagged: 0-4095.

PPPoE (If selected PPPoE as WAN Connection Type; otherwise, skip this part)

Username: Enter the user name provided by your ISP.

Password: Enter the password provided by your ISP.

Bridge Interface for PPPoE: When "Activated", the device will gain WAN IP from your ISP with the PPPoE account. But if your PC is connected to the router working as a DHCP client, in this mode, the

device acts as a NAT router; while if you dial up with the account within your PC, the device will then work as a bridge forwarding the PPPoE information to the PPPoE server and send the response to your PC, thus your PC gets a WAN IP working in the internet.

Connection Setting

Connection:

▶ Always On: Click on Always On to establish a PPPoE session during start up and to automatically re-establish the PPPoE session when disconnected by the ISP.
Connect Manually: Select Connect Manually when you don't want the connection up all the time.

TCP MSS Option: Enter the maximum size of the data that TCP can send in a segment. Maximum Segment Size (MSS).

IP Common Options

Default Route: Select Yes to use this interface as default route interface.

TCP MTU Option: Enter the maximum packet that can be transmitted. Default MTU 0 means it is set to 1492 bytes.

IPv4 Options

Get IP Address: Choose Static or Dynamic

Static IP Address: If Static is selected in the above field, please enter the specific IP address you get from ISP and the following IP subnet mask and gateway address.

IP Subnet Mask: The default is 0.0.0.0. User can change it to other such as 255.255.255.0. Type the subnet mask assigned to you by your ISP (if given).

Gateway: Enter the specific gateway IP address you get from ISP.

NAT: Select Enable if you use this router to hold a group of PCs to get access to the internet.

Dynamic Route:

▶ RIP Version: (Routing Information protocol) Select this option to specify the RIP version, including RIP-1, RIP-2.
▶ RIP Direction: Select this option to specify the RIP direction.

• None is for disabling the RIP function.
• Both means the router will periodically send routing information and accept routing information then incorporate into routing table.
• IN only means the router will only accept but will not send RIP packet.
• OUT only means the router will only send but will not accept RIP packet.

IGMP Proxy: IGMP (Internet Group Multicast Protocol) is a network-layer protocol used to establish membership in a Multicast group. Choose whether enable IGMP proxy.

IPv6 options (only when choose IPv4/IPv6 or just IPv6 in IP version field above):

IPv6 Address: Type the WAN IPv6 address from your ISP.

Obtain IPv6 DNS: Choose if you want to obtain DNS automatically.

Primary/Secondary: if you choose Disable in the Obtain IPv6 DNS field, please type the exactly primary and secondary DNS.

MLD Proxy: MLD (Multicast Listener Discovery Protocol) is to IPv6 just as IGMP to IPv4. It is a Multicast Management protocol for IPv6 multicast packets.

When router's Internet configuration is finished successfully, you can go to status to get the connection information.

3G/4G-LTE

Status: Choose Activated to enable the 3G/4G-LTE connection.

IP Pass-Through Mode: When enabled, BEC 6300VNL is in bridge mode and will not obtain a WAN IP address, features such as routing capabilities, NAT, firewall, etc., will be disabled by default. However, the client router behind the BEC 6300VNL can get a WAN IP address instead.

When disabled, BEC 6300VNL is in router mode that it handles a WAN IP address and all routing-related features become available.

LTE Mode (This feature is not supported in some LTE modules): Display current selected LTE frequency band. To change the band, please click "LTE Band" to access to the band selection page.

LTE Band

LTE Band: A list of available LTE bands to choose from.

LTE Antenna Diversity (This feature is not supported in some LTE modules): When enabled, the auxiliary antenna will be activated. With disabled, only the primary antenna is receiving and transmitting data.

To change it, please click "LTE Antenna Diversity" to access to the LTE antenna diversity selection page.

NOTE: When using Yagi antenna, please DISABLE the Antenna Diversity feature for utmost performance.

LTE Antenna Diversity

To enable or disable the LTE antenna diversity feature.

PLMN (Public Land Mobile Network) Selection:

TEL No.: The dial string to make a GPRS / 3G/4G-LTE user internetworking call. It may provide by your mobile service provider.

Dual APN: BEC 6300VNL can support up to two (2) APNs. Select Single or Dual.

APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The service provider is able to attach anything to an APN to create a data connection, requirements for APNs varies between different service providers. Most service providers have an internet portal which they use to connect to a DHCP Server, thus giving you access to the internet i.e. some 3G operators use the APN ‘internet’ for their portal. The default value is “internet”.

Username/Password: Enter the username and password provided by your service provider. The username and password are case sensitive.

PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM card until you enter the correct code. If you enter the PIN code incorrectly into the phone 3 times in a row, then the SIM card will be blocked and you will require a PUK code from your network/service provider.

Connection: Default set to Always on to keep an always-on 3G/4G-LTE connection.

Keep Alive: Select Yes to keep the 3G/4G-LTE connection always on.

Keep Alive IP: Enter the IP address that the router can ping the IP to find whether the connection is on or not, if not, router will recover the connection.

Default Route: Select Yes to use this interface as default route interface.

NAT: Select this option to Disabled/Enable the NAT (Network Address Translation) function. Enable NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP.

SMS Control: Enable to send a SMS message to reboot or get the current 3G/4G LTE status information from the 6300VNL.

NOTE: You must obtain the phone number on the SIM card. Please contact with your network / service provider for more information.

SMS Control

SMS Control: Check to enable this feature.

Control Password: Pre-config a password to automatically reboot 6300VNL via a SMS message.

Password length is up to 10 characters. (Valid characters: 0\~9, A\~Z and a\~z)

Example:

6300VNL obtains the phone number, [phone], on the SIM card

1. Send a text message, reboot#, to [phone]. 6300VNL will reboot the system upon receiving of this text message.
2. Send a text message, *60, to [phone]. 6300VNL will send the current 3G/4G status information back including IMEI number, System up time, Network mode, Signal strength, WAN IP, and Connection time.

When router's Internet configuration is finished successfully, you can go to the Status to check connection information.

Device Configuration Interface Setup – Internet (3G/4G\_LTE via USB Port)

3G/4G-LTE via USB

Configuration

Status: Choose Activated to enable the 3G/4G-LTE connection.

IP Pass-Through Mode: When enabled, BEC 6300VNL is in bridge mode and will not obtain a WAN IP address, features such as routing capabilities, NAT, firewall, etc., will be disabled by default. However, the client router behind the BEC 6300VNL can get a WAN IP address instead.

When disabled, BEC 6300VNL is in router mode that it handles a WAN IP address and all routing-related features become available.

Network Mode: There are 8 options of service standards: "Automatic", "UMTS 3G only", "GSM 2G Only", "UMTS 3G Preferred", "GSM 2G Preferred", "GSM and UMTS Only", "LTE Only", "GSM, UMTS, LTE". If you are not sure which mode to use, you may select Automatic to auto detect the best mode for you.

TEL No.: The dial string to make a GPRS / 3G/4G-LTE user internetworking call. It may provide by your mobile service provider.

Dual APN: BEC 6300VNL can support up to two (2) APNs. Select Single or Dual APN.

APN: An APN is similar to a URL on the WWW, it is what the unit makes a GPRS / UMTS call. The service provider is able to attach anything to an APN to create a data connection, requirements for APNs varies between different service providers. Most service providers have an internet portal which they use to connect to a DHCP Server, thus giving you access to the internet i.e. some 3G operators use the APN 'internet' for their portal. The default value is "internet".

Username/Password: Enter the username and password provided by your service provider. The username and password are case sensitive.

PIN: PIN stands for Personal Identification Number. A PIN code is a numeric value used in certain

Device Configuration Interface Setup – Internet (3G/4G\_LTE via USB Port)

systems as a password to gain access, and authenticate. In mobile phones a PIN code locks the SIM card until you enter the correct code. If you enter the PIN code incorrectly into the phone 3 times in a row, then the SIM card will be blocked and you will require a PUK code from your network/service provider.

Connection: Default set to Always on to keep an always-on 3G/4G-LTE connection.

Keep Alive: Select Yes to keep the 3G/4G-LTE connection always on.

Keep Alive IP: Enter the IP address that the router can ping the IP to find whether the connection is on or not, if not, router will recover the connection.

Default Route: Select Yes to use this interface as default route interface.

NAT: Select this option to Disabled/Enable the NAT (Network Address Translation) function. Enable NAT to grant multiples devices in LAN to access to the Internet through a single WAN IP.

When router's Internet configuration is finished successfully, you can go to the Status to check connection information.

LAN

A Local Area Network (LAN) is a shared communication system to which many computers are attached and is limited to the immediate area, usually the same building or floor of a building.

IPv4 Parameters

IP Address: Enter the IP address of Router in dotted decimal notation, for example, 192.168.1.254 (factory default).

IP Subnet Mask: The default is 255.255.255.0. User can change it to other such as 255.255.255.128.

Alias IP Address: This is for local networks virtual IP interface. Specify an IP address on this virtual interface.

Alias IP Subnet Mask: Specify a subnet mask on this virtual interface.

IGMP Snooping: Select Activated to enable IGMP Snooping function, Without IGMP snooping, multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group.

Dynamic Route:

RIP Version: (Routing Information protocol) Select this option to specify the RIP version, including RIP-1, RIP-2.

RIP Direction: Select this option to specify the RIP direction.

• None is for disabling the RIP function.
• Both means the router will periodically send routing information and accept routing information then incorporate into routing table.
• IN only means the router will only accept but will not send RIP packet.
• OUT only means the router will only send but will not accept RIP packet.

DHCPv4 Server

DHCP (Dynamic Host Configuration Protocol) allows individual clients to obtain TCP/IP configuration at start-up from a server.

DHCPv4 Server: If set to Enabled, your BEC 6300VNL can assign IP addresses, default gateway and DNS servers to the DHCP client.

If set to Disabled, the DHCP server will be disabled.

If set to Relay, the BEC 6300VNL acts as a surrogate DHCP server and relays DHCP requests and responses between the remote server and the clients. Enter the IP address of the actual, remote DHCP server in the Remote DHCP Server field in this case.

When DHCP is used, the following items need to be set.

Start IP: This field specifies the first of the contiguous addresses in the IP address pool.

IP Pool Count: This field specifies the count of the IP address pool.

Lease Time: The current lease time of client.

Physical Ports: Select to determine if the DHCPv4 server is applicable to the specific port or ports. By default, all ports can obtain local IP from DHCPv4 server.

DNS Relay:

Select Automatic detection or

Manually specific Primary and Secondary DNS IP addresses

Primary / Secondary DNS Server: Enter the IP addresses of the DNS servers. The DNS servers are passed to the DHCP clients along with the IP address and the subnet mask.

Fixed Host

In this field, users can map the specific IP (must in the DHCP IP pool) for some specific MAC, and this information can be listed in the following table.

Fixed Host
IP Address
MAC Address

IP Address: Enter the specific IP. For example: 192.168.1.110.

MAC Address: Enter the responding MAC. For example: 00:0A:F7:45:6D:ED

When added, you can see the ones listed as showed below:

Fixed Host Litsing
Index	IP	MAC	Drop
1	192.168.1.102	23:24:5B:4B:22:33

IPv6 parameters

The IPv6 address composes of two parts, thus, the prefix and the interface ID.

IPv6 Parameters
Interface Address/Prefix Length	/
MLD Snooping	○ Activated ● Deactivated
DHCPv6 Server
DHCPv6 Server	○ Disable ● Enable
DHCPv6 Server Type	● Stateless ○ Stateful
Start Interface ID
End Interface ID
Lease Time	seconds(0 sets to default value of 4800)
Router Advertisements	○ Disable ● Enable

Interface Address / Prefix Length: Enter a static LAN IPv6 address. If you are not sure what to do with this field, please leave it empty as if contains false information it could result in LAN devices not being able to access other IPv6 device. Router will take the same WAN's prefix to LAN side if the field is empty.

MLD Snooping: Similar to IGMP Snooping, but applicable for IPv6.

DHCPv6 Server

There are two methods to dynamically configure IPv6 address on hosts, Stateless and Stateful.

Stateless auto-configuration requires no manual configuration of hosts, minimal (if any) configuration of routers, and no additional servers. The stateless mechanism allows a host to generate its own addresses using a combination of locally available information (MAC address) and information (prefix) advertised by routers. Routers advertise prefixes that identify the subnet(s) associated with a link, while hosts generate an "interface identifier" that uniquely identifies an interface on a subnet. An

address is formed by combining the two. When using stateless configuration, you needn't configure anything on the client.

Stateful configuration, for example using DHCPv6 (which resembles its counterpart DHCP in IPv4.) In the stateful auto configuration model, hosts obtain interface addresses and/or configuration information and parameters from a DHCPv6 server. The Server maintains a database that keeps track of which addresses have been assigned to which hosts.

DHCPv6 Server: Check whether to enable DHCPv6 server.

DHCPv6 Server Type: Select Stateless or Stateful. When DHCPv6 is enabled, this parameter is available.

▶ Stateless: If selected, the PCs in LAN are configured through RA mode, thus, the PCs in LAN are configured through RA mode, to obtain the prefix message and generate an address using a combination of locally available information (MAC address) and information (prefix) advertised by routers, but they can obtain such information like DNS from DHCPv6 Server.
▶ Stateful: If selected, the PCs in LAN will be configured like in IPv4 mode, thus obtain addresses and DNS information from DHCPv6 server.

Start interface ID: enter the start interface ID. The IPv6 address composed of two parts, thus, the prefix and the interface ID. Interface is like the Host ID compared to IPv4.

End interface ID: enter the end interface ID.

Leased Time (hour): the leased time, similar to leased time in DHCPv4, is a time limit assigned to clients, when expires, the assigned ID will be recycled and reassigned.

Router Advertisement: Check to Enable or Disable the Issue Router Advertisement feature. This feature is to send Router Advertisement messages periodically which would multicast the IPv6 Prefix information (similar to v4 network number 192.168.1.0) to all LAN devices if the field is enabled. We suggest enabling this field.

Wireless

This section introduces the wireless LAN and some basic configurations. Wireless LANs can be as complex as a number of computers with wireless LAN cards communicating through access points which bridge network traffic to the wired LAN.

Access Point Settings

Access Point: Default setting is set to Activated. If you want to close the wireless interface, select Deactivated.

AP MAC Address: The MAC address of wireless AP.

Wireless Mode: The default setting is 802.11b+g+n (Mixed mode). If you do not know or have both 11g and 11b devices in your network, then keep the default in mixed mode. From the drop-down manual, you can select 802.11g if you have only 11g card. If you have only 11b card, then select 802.11b and if you only have 802.11n then select 802.11n.

Channel: The range of radio frequencies used by IEEE 802.11b/g/n wireless devices is called a channel. There are Regulation Domains and Channel ID in this field. The Channel ID will be different based on Regulation Domains. Select a channel from the drop-down list box.

Beacon interval: The Beacon Interval value indicates the frequency interval of the beacon. Enter a value between 20 and 1000. A beacon is a packet broadcast by the Router to synchronize the wireless network.

RTS/CTS Threshold: The RTS (Request To Send) threshold (number of bytes) for enabling RTS/CTS handshake. Data with its frame size larger than this value will perform the RTS/CTS handshake. Enter a value between 1500 and 2347.

Fragmentation Threshold: The threshold (number of bytes) for the fragmentation boundary for directed messages. It is the maximum data fragment size that can be sent. Enter a value between 256 and 2346, even number only.

DTIM Interval: This value, between 1 and 255, indicates the interval of the Delivery Traffic Indication Message (DTIM).

TX Power: The transmission power of the antennas, ranging from 1-100, the higher the more powerful of the transmission performance.

IGMP Snooping: Enable or disable the IGMP Snooping function for wireless. Without IGMP snooping, multicast traffic is treated in the same manner as broadcast traffic - that is, it is forwarded to all ports. With IGMP snooping, multicast traffic of a group is only forwarded to ports that have members of that group."

11n Settings

Channel Bandwidth: Select either 20 MHz or 20/40 MHz for the channel bandwidth. The wider the Channel bandwidth the better the performance will be.

Extension Channel: This is for the 40MHz clients to use and is predefined to “Above the control channel”, not configurable.

Guard Interval: Select either 400nsec or 800nsec for the guard interval. The guard interval is here to ensure that data transmission do not interfere with each other. It also prevents propagation delays, echoing and reflections. The shorter the Guard Interval, the better the performance will be. We recommend users to select Auto.

MCS (Modulation and Coding Scheme): There are options 0\~15 and AUTO to select from. AUTO is recommended.

SSID Settings

Available SSID: User can determine how many virtual SSIDs to be used. Default is 1, maximum is 4.

SSID Index: Select the number of SSIDs you want to use; up to 4 SSIDs are available in the list.

SSID: The SSID is the unique name of a wireless access point (AP) to be distinguished from another. For security propose, change the default wlan-ap to a unique ID name to the AP which is already built-in to the router's wireless interface. Make sure your wireless clients have exactly the SSID as the device, in order to get connected to your network.

Broadcast SSID: Select Yes to make the SSID visible so a station can obtain the SSID through passive scanning. Select No to hide the SSID in so a station cannot obtain the SSID through passive scanning.

Client Isolation: (Known as AP Isolation) After enabling this feature, all Wi-Fi clients connect to the same Access Point, in the same local wireless network, cannot interact with each another.

SSID Activated: Select the time period during which the SSID is active. Default is always which means the SSID will be active all the time without time control. See Time Schedule to set the timeslot to flexibly control when the SSID functions.

WPS Settings

WPS (Wi-Fi Protected Setup) feature is a standard protocol created by Wi-Fi Alliance. This feature greatly simplifies the steps needed to create a Wi-Fi network for a residential or an office setting. WPS supports 2 types of configuration methods which are commonly known among consumers: PIN Method (Personal Information Number) & PBC Method (Push Button Configuration).

Use WPS: Enable this feature by choosing "YES" radio button.

WPS State: Display whether the WPS is configured or unconfigured.

WPS Mode: Select the mode which to start WPS, choose between PIN Code and PBC (Push Button). Selecting Pin Code mode will require you to know the enrollee PIN code.

To future understand the two modes of configuration; please refer to the example of the Wi-Fi Protected Setup.

Security Settings

Security Type: You can disable or enable wireless security for protecting wireless network. The default type of wireless security is OPEN and to allow all wireless stations to communicate with the access points without any data encryption.

To prevent unauthorized wireless stations from accessing data transmitted over the network, the router offers secure data encryption, known as WEP and WPA.

There are five alternatives to select from: WEP 64-bit, WEP 128-bit, WPA-PSK, WPA2-PSK, and Mixed WPA/WPA2-PSK. If you require high security for transmissions, please select WPA-PSK, WPA2-PSK or WPA/WPA2-PSK.

WEP

WEP Authentication Method: WEP authentication method, there are two methods of authentication used, Open System authentication (OPENWEB) and Share Key authentication (SHAREDWEB). We suggest you select OPENWEB.

Key 1 to Key 4: Enter the key to encrypt wireless data. To allow encrypted data transmission, the WEP Encryption Key values on all wireless stations must be the same as the router. There are four keys for your selection. The input format is in HEX style, 5 and 13 HEX codes are required for 64-bitWEP and 128-bitWEP respectively.

If you chose WEP 64-bit, then enter any 5 ASCII characters or 10 hexadecimal characters ("0-9", "A-F").

If you chose WEP 128-bit, then enter 13 ASCII characters or 26 hexadecimal characters ("0-9", "A-F").

You must configure all four keys, but only one key can be activated at any one time. The default key is key 1.

NOTE: When you enable WPS function, this WEP function will be invalid. And if you select one of WEP-64Bits/WEP-128Bits, the following prompt box will appear to notice you.

WPA-PSK & WPA2-PSK

WPA Algorithms: TKIP (Temporal Key Integrity Protocol) or AES (Advanced Encryption System) utilizes a stronger encryption method and incorporates Message Integrity Code (MIC) to provide protection against hackers.

Pre-Shared key: The key for network authentication. The input format should be 8-63 ASKII characters or 64 hexadecimal characters

Key Renewal Interval: The time interval for changing the security key automatically between wireless client and AP.

WDS Settings

WDS (Wireless distributed system) is a wireless access point mode that enables wireless link and communication with other access point. It is easy to be installed, just define the peer's MAC of the connected AP.

WDS Mode: select Activated to enable WDS feature and Deactivated to disable this feature.

MAC Address: Enter the AP MAC addresses (in XX:XX:XX:XX:XX format) of the peer connected AP.

WDS Settings
WDS Mode	Activated Deactivated
WDS Peer MAC #1	00:00:00:00:00:00
WDS Peer MAC #2	00:00:00:00:00:00
WDS Peer MAC #3	00:00:00:00:00:00
WDS Peer MAC #4	00:00:00:00:00:00

Example: WPS using PIN Method (Personal Information Number)

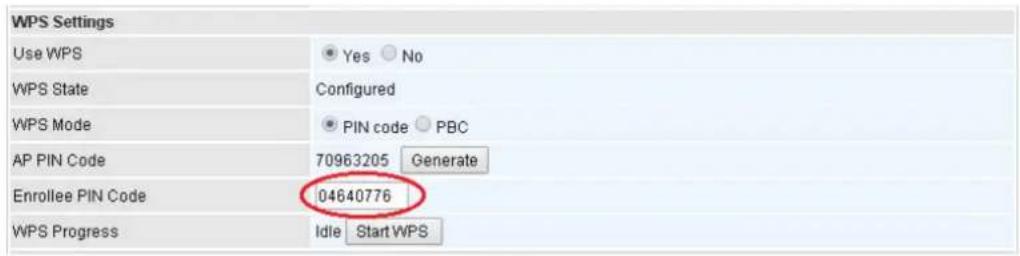

PIN Method – Configure 6300VNL as a Registrar

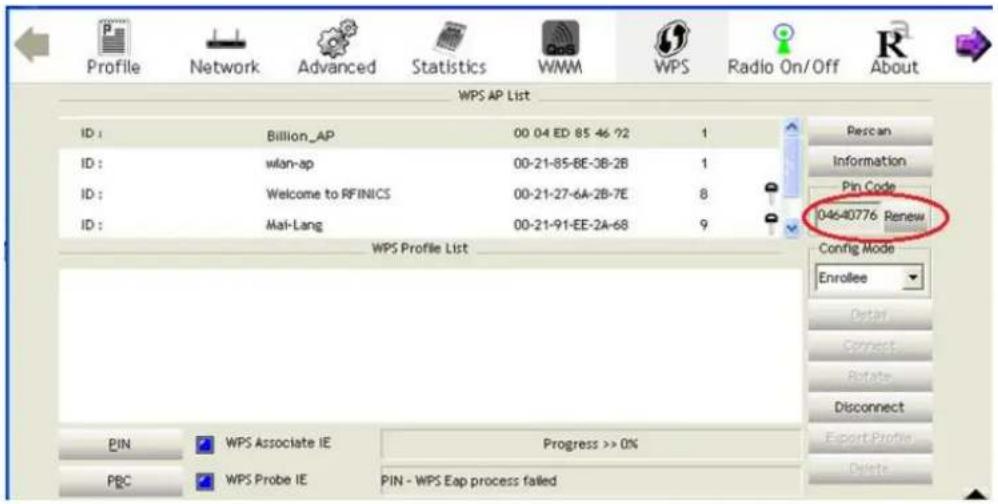

1. Jot down the client's Pin (e.g. 04640776) from the WPS utility (e.g. Ralink Utility)

1. Enter the Enrollee (Client) PIN code and then press Start WPS.

1. Go back to the wireless client's WPS utility (e.g. Ralink Utility).

Set the Config Mode as Enrollee, press the WPS button on the top bar, select the AP (e.g. Billion_AP) from the WPS AP List column. Then press the PIN button located on the middle left of the page to run the scan.

1. The client's SSID and security setting will now be configured to match the SSID and security setting of the registrar, the 6300VNL router.

PIN Method – Configure 6300VNL as an Enrollee

1. Jot down the AP PIN Code (e.g. 03454435) from the BEC 6300VNL. Press Start WPS.

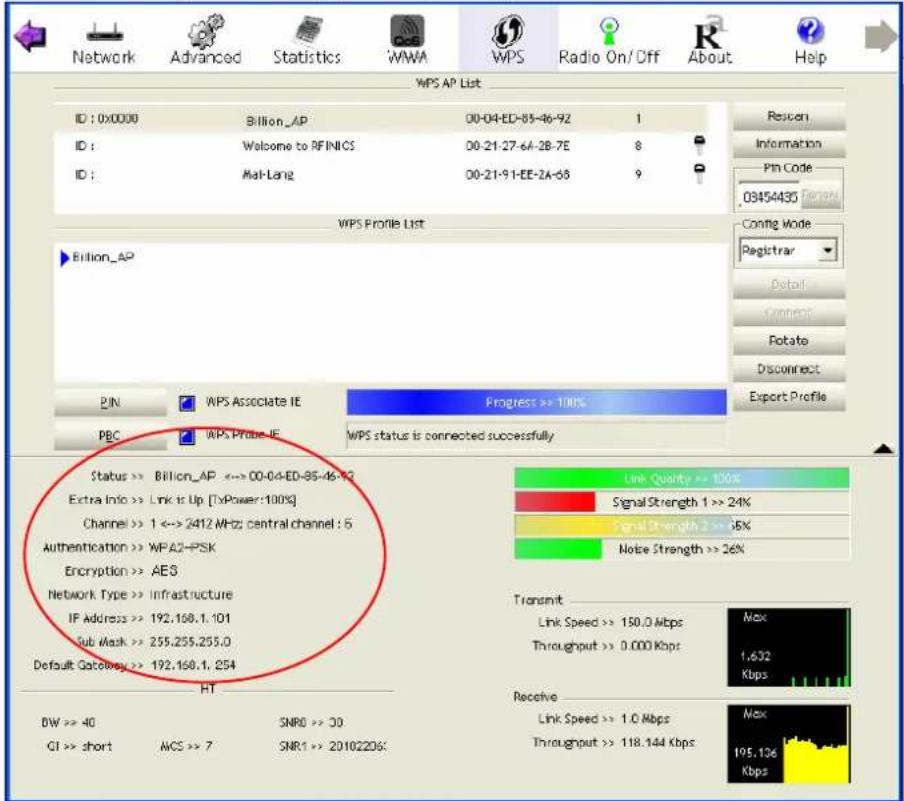

1. Launch the wireless client's WPS utility (e.g. Ralink Utility). Set the Config Mode as Registrar. Enter the PIN number in the PIN Code (e.g. 03454435) column then choose the correct AP (e.g. Billion_AP) from the WPS AP List before pressing the PIN button to run the scan.

1. The router's (AP's) SSID and security setting will now be configured to match the SSID and security setting of the registrar (client).

Example: WPS using PBC Method (Push Button Configuration)

1. Click the PBC radio button and click Save to apply the settings

1. Launch the wireless client's WPS Utility (e.g. Ralink Utility). Set the Config Mode as Enrollee. Then press the WPS button and choose the correct AP (e.g. Billion_AP) from the WPS AP List section before pressing the PBC button to run the scan.

1. When the PBC button is pushed, a wireless communication will be established between your router and the PC. The client's SSID and security setting will now be configured to match the SSID and security setting of the router.

Wireless MAC Filter

The MAC filter screen allows you to configure the router to give exclusive access to up to 8 devices (Allow Association) or exclude up to 8 devices from accessing the router (Deny Association). Every Ethernet device has a unique MAC (Media Access Control) address. The MAC address is assigned at the factory and consists of six pairs of hexadecimal characters, for example, 00:AA:BB:00:00:02.

You need to know the MAC address of the devices you wish to filter.

SSID Index: Select the targeted SSID you want the MAC filter rules to apply to.

Active: Select Activated to enable MAC address filtering.

Action: Define the filter action for the list of MAC addresses in the MAC address filter table.

Select Deny to block access to the AP, MAC addresses not listed will be allowed to access the router. Select Allow to permit access to the router, MAC addresses not listed will be denied access to the router.

MAC Address: Enter the MAC addresses (in XX:XX:XX:XX:XX format) of the wireless station that are allowed or denied access to the specified in these address fields.

Advanced Setup

Advanced Step provides advanced features including Firewall, Routing, NAT, Static DNS, QoS, Internet Grouping, and Time Schedule for advanced users.

Firewall

Your router includes a firewall for helping to prevent attacks from hackers. In addition to this, when using NAT (Network Address Translation) the router acts as a “natural” Internet firewall, since all PCs on your LAN use private IP addresses that cannot be directly accessed from the Internet.

Firewall: To automatically detect and block Denial of Service (DoS) attacks, such as Ping of Death, SYN Flood, Port Scan and Land Attack.

▶ Enabled: It activates your firewall function.
▶ Disabled: It disables the firewall function.

SPI: If you enabled SPI, all traffics initiated from WAN would be blocked, including DMZ, Virtual Server, and ACL WAN side.

▶ Enabled: It activates your SPI function.
▶ Disabled: It disables the SPI function.

Routing

This is static route feature. You are equipped with the capability to control the routing of all the traffic across your network. With each routing rule created, user can specifically assign the destination where the traffic will be routed to.

: Item number

Destination IP Address: IP address of the destination network

Subnet Mask: The subnet mask of destination network.

Gateway IP Address: IP address of the gateway or existing interface that this route uses.

Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15.

Interface: Media/channel selected to append the route.

Edit: Edit the route; this icon is not shown for system default route.

Drop: Drop the route; this icon is not shown for system default route.

Add Route

Destination IP Address: This is the destination subnet IP address.

Destination Subnet Mask: The subnet mask of destination network.

Gateway IP Address/Interface: This is the gateway IP address or existing interface to which packets are to be forwarded.

Metric: It represents the cost of transmission for routing purposes. The number need not be precise, but it must be between 1 and 15.

NAT

The NAT (Network Address Translation) feature transforms a private IP into a public IP, allowing multiple users to access the internet through a single IP account, sharing the single IP address. NAT break the originally envisioned model of IP end-to-end connectivity across the internet so NAT can cause problems where IPSec/ PPTP encryption is applied or some application layer protocols such as SIP phones are located behind a NAT. And NAT makes it difficult for systems behind a NAT to accept incoming communications.

NAT Status: Enabled. (Disabled if WAN connection is in BRIDGE mode)

VPN Passthrough: VPN pass-through is a feature of routers which allows VPN client on a private network to establish outbound VPNs unhindered.

SIP ALG: Enable the SIP ALG when SIP phone needs ALG to pass through the NAT. Disable the SIP ALG when SIP phone includes NAT-Traversal algorithm.

Interface: Select a WAN interface connection to allow external access to your internal network.

Service Index: Associated to EWAN interface marking each EWAN service (0-7), to select which EWAN service the DMZ and Virtual server are applied to.

Click DMZ Edit or Virtual Server Edit to move on to set the DMZ or Virtual Server parameters, which are represented in the following scenario.

DMZ

NOTE: This feature disables automatically if WAN connection is in BRIDGE mode.

The DMZ Host is a local computer exposed to the Internet. When setting a particular internal IP address as the DMZ Host, all incoming packets will be checked by the Firewall and NAT algorithms then passed to the DMZ host, when a packet received does not use a port number used by any other Virtual Server entries.

DMZ for (via a WAN Interface): Allows outside network to connect in and communicate with internal LAN devices via this WAN interface

Note: Here you can see the Multiple IPs Account/EWAN Service ID 0. It is the interface set in the previous NAT page.

DMZ:

▶ Enabled: Activate the DMZ function.
▶ Disabled: Deactivate the DMZ function.

DMZ Host IP Address: Give a static IP address to the DMZ Host when Enabled radio button is checked. Be aware that this IP will be exposed to the WAN/Internet.

Select the Save button to apply your changes.

Virtual Server

NOTE: This feature disables automatically if WAN connection is in BRIDGE mode.

Virtual Server is also known as Port Forwarding that allows 6300VNL to direct all incoming traffic to the servers on the LAN.

Configure a virtual rule in 6300VNL for remote users accessing services such as Web or FTP services via the public (WAN) IP address that can be automatically redirected to local servers in the LAN network. Depending on the requested service (TCP/UDP port number), the device redirects the external service request to the appropriate server within the LAN network.

Virtual Server for: Indicate the related WAN interface which allows outside network to connect in and communicate.

Protocol: Choose the application protocol.

Start / End Port Number: Enter a port or port range you want to forward.

(Example: Start / End: 1000 or Start: 1000, End: 2000).

The starting port must be greater than zero (0). The end port must be greater than or equal to the start port.

Local IP Address: Enter your server IP address in this field.

Start / End Port Number (Local): Enter the start / end port number of the local application (service).

Examples of well-known and registered port numbers are shown below. For further information, please see IANA's website at http://www.iana.org/assignments/port-numbers

Well-known and Registered Ports

Port Number	Protocol	Description
21	TCP	FTP Control
22	TCP & UDP	SSH Remote Login Protocol
23	TCP	Telnet
25	TCP	SMTP (Simple Mail Transfer Protocol)
53	TCP & UDP	DNS (Domain Name Server)
69	UDP	TFTP (Trivial File Transfer Protocol)
80	TCP	World Wide Web HTTP
110	TCP	POP3 (Post Office Protocol Version 3)
443	TCP & UDP	HTTPS
1503	TCP	T.120
1720	TCP	H.323
7070	UDP	RealAudio

Using port forwarding does have security implications, as outside users will be able to connect to PCs on your network. For this reason you are advised to use specific Virtual Server entries just for the ports your application requires, instead of using DMZ. As doing so will result in all connections from the WAN attempt to access to your public IP of the DMZ PC specified.

Attention

If you have disabled the NAT option in the WAN-ISP section, the Virtual Server function will hence be invalid.

If the DHCP server option is enabled, you have to be very careful in assigning the IP addresses of the virtual servers in order to avoid conflicts. The easiest way of configuring Virtual Servers is to manually assign static IP address each virtual server PC, with an address that does not fall into the range of IP addresses that are to be issued by the DHCP server. You can configure the virtual server IP address manually, but it must still be in the same subnet as the router.

Example: How to setup Port Forwarding for port 21 (FTP server)

If you have a FTP server in your LAN network and want others to access it through WAN.

Step 1: Assign a static IP to your local computer that is hosting the FTP server.

Step 2: Login to the Gateway and go to Configuration / Advanced Setup / NAT / Virtual Server.

FTP server uses TCP protocol with port 21.

Enter "21" to Start and End Port Number. BEC 6300VNL will accept port 21 requests from WAN side.

Enter the static IP assigned to the local PC that is hosting the FTP server. Ex: 192.168.1.102

Enter "21" to Local Start and End Port number. BEC 6300VNL will forward port 21 request from WAN to the specific LAN PC (ex:192.168.1.102) in the network.

Step 3: Click Save to save settings.

Static DNS

The Domain Name System (DNS) is a hierarchical naming system built on a distributed database for computers, services, or any resource connected to the Internet or a private network associates various information with domain names assigned to each of the participating entities. Most importantly, it translates domain names meaningful to humans into the numerical identifiers associated with networking equipment for the purpose of locating and addressing these devices worldwide.

An often-used analogy to explain the Domain Name System is that it serves as the phone book for the Internet by translating human-friendly computer hostnames into IP addresses. For example, the domain name www.example.com can be translated into the addresses 192.0.32.10 (IPv4).

Static DNS is a concept relative to Dynamic DNS, in static DNS system, the IP mapped is static without change.

IP Address: The IP address you are going to give a specific domain name.

Domain Name: The friendly domain name for the IP address.

Press Save button to apply your settings.

QoS

QoS helps you control the upload traffic of each application from LAN (Ethernet and/or Wireless) to WAN (Internet).

It facilitates you the features to control the quality of throughput for each application. This is useful when there on certain types of data you want giver higher priority to, such as voice data packets given higher priority than web data packets.

Click SETTING to add QoS rules (up to 16 QoS rules).

Rule Index: Index marking for each rule up to maximum of 16.

Active: Select whether to activate the rule.

Destination IPv4/IPv6: Set the IPv4/IPv6 address that you want to filter on destination side.

Destination Subnet Mask / IPv6 Prefix: Specify the Destination Subnet Mask for IPv4 or prefix for IPv6.

Destination Port Range: Set the port range value that you want to filter on destination side.

Source IPv4/IPv6 Address: Set the IP address value that you want to filter on source side in IPv4 or IPv6.

Source Subnet Mask / IPv6 Prefix: Specify the Source Subnet Mask for IPv4 or prefix for IPv6.

Source Port Range: Set the port range value that you want to filter on source side.

Protocol ID: Set the protocol ID type of packets that you want to filter (TCP, UDP, ICMP, and IGMP).

Priority: Select to prioritize the traffic which the rule categorizes, High or Low.

Interface Grouping

Interface grouping is a function to group interfaces, known as VLAN. A Virtual LAN, commonly known as a VLAN, is a group of hosts with the common set of requirements that communicate as if they were attached to the same broadcast domain, regardless of the physical location. A VLAN has the same attributes as a physical LAN, but it allows for end stations to be grouped together even if they are not located on the same network switch. Similarly, they may also have been split into two different groups, even if they are on the same switch.

Each group will perform as an independent network. To support this feature, you must create mapping groups with appropriate LAN and WAN interfaces using the Save button.

Interface Grouping: Select Yes to enable Interface Grouping feature.

Group Index: The index number indicating the current group ranging from 0 to 15.

EWAN Service: The available EWAN interface. Move to Interface Setup to add other EWAN interface.

3G/4G-LTE: The available 3G/4G-LTE interfaces.

Ethernet LAN: The available Ethernet interfaces.

Wireless LAN: The available wireless interfaces.

Group Summary: Click Group Summary to check current group information.

Example: Create two EWAN services, Service0 (PPPoE) and Service1 (Bridge).

Service Information Summary
WAN 0	Active	ISP	IP Address
0	Yes	Dynamic	Dynamic
1	Yes	Bridge	N/A
2	No	Bridge	N/A
3	No	Bridge	N/A
4	No	Bridge	N/A
5	No	Bridge	N/A
6	No	Bridge	N/A
7	No	Bridge	N/A

You are going to group the ports and services into two working groups, as shown below.

Group Index	Group Port
0	EWAN0,LAN1, LAN2, WLAN1
1	EWAN1, LAN3

Click Group Summary to show the configuration results.

Group ID	Group port
0	wan0_0,e1,e2,w1
1	wan0_1,e3

Time Schedule

The Time Schedule supports up to 16 timeslots which helps you to manage your Internet connection. In each time profile, you may schedule specific day(s) i.e. Monday through Sunday to restrict or allowing the usage of the Internet by users or applications.

This Time Schedule correlates closely with router's time, since router does not have a real time clock on board; it uses the Simple Network Time Protocol (SNTP) to get the current time from an SNTP server from the Internet.

Time Index: The rule index (0-15) for identifying each timeslot.

Name: User-defined identification for each time period.

Day of Week / Start Time / End Time: Mon. to Sun. Specify the time interval for each timeslot from "Day of Week". For example, user can add a timeslot named "TimeSlot1" which features a period from 9:00 of Monday to 18:00 of Tuesday.

Another TimeSlot2 spanning from 09:00 to 18:00 of Friday

VoIP

VoIP, or Voice over Internet Protocol, enables telephone calls through existing internet connections instead of going through the traditional PSTN (Public Switched Telephone Network). It is not only cost-effective, especially for a long-distance call, but also top quality voice calls over the internet.

This section covers Basic, Media, Advanced, Speed Dial, Dial Plan, Call Features, and NAT Traversal.

Basic

Register to a SIP/VoIP service provider is an essential step before making the VoIP call. You can find out this information from your SIP/VoIP service provider.

Local SIP Port: Set the local SIP port. This setting applies to both phone ports, Phone_1 and Phone_2, and these phone ports share the same local SIP port.

Local RTP (voice) Port: Set the local RTP port range used to receive voice packet. This setting applies to both the phone ports, Phone_1 and Phone_2, and these phone ports share the same local RTP port.

Interface: Select a WAN interface for Phone_1 and Phone_2.

Phone: Select "1", the following parameters will be applicable to Phone1. In BEC 6300VNL, Phone_1 and Phone_2 are allowed to be of different characteristics, including different SIP registrar. You need to configure individually for phone1 and phone 2 and can have up to 2 different VoIP accounts.

Phone Number: Set your phone number or outgoing call number, which is usually obtained when registering in your ITSP. It is used for destination to identify which this call is made from.

Display Name: A user-friendly display name for the phone number to be easily identified.

Authentication Name: Enter a valid name for account authentication purpose. It is usually the Phone Number received from the VoIP service provider. If you have concerns, please contact your SIP/VoIP service provider for more information. Checkmark The same as Phone Number box if Authentication Name is identical as the phone number.

Password: Set the registering account password.

User Domain: Set the SIP Registrar Domain name you are going to register to, usually just the SIP registrar address.

SIP Registrar Address: Enter the SIP registrar address where offers the service of registering the VoIP account. It is definitely a VoIP server.

SIP Registrar Port: Type the port; it will listen to register requests from VoIP devices.

SIP Registration Expire: Set the time interval. The device can update (usually re-login the account) the VoIP account information with the SIP server very the time interval.

SIP Proxy Address: Enter the SIP proxy address provided by your ITSP. When destination and source phones are not sharing the same SIP registrar domain, the SIP proxy is needed to deliver call information and make the communication through.

SIP Proxy Port: Set the SIP proxy port.

SIP Outbound Proxy Address: Set the SIP outbound proxy address. It is usually used to realize the communication between two phones when at least one of them is located behind a NAT router.

SIP Outbound Proxy Port: Set the SIP Outbound proxy port.

Media

Media offers for kinds of codec, G.711 u-law, G.711 A-law, G.729, G.726, from greatest to lowest in priority.

Phone: Select to set the following configurations for Phone_1 or Phone_2. When phone1 is selected, the following set media codec will be applied to phone_1.

T.38: T.38 relay is a way to permit faxes to be transported across IP networks between existing fax terminals. Click Enable to allow transmission of fax over IP network between two fax machines. If T.38 is disabled, the analog fax signal is transmitted as the normal audio data. If T.38 relay is enabled, the fax signal is converted to T.38 signal.

G.711u-Law: It is a basic non-compressed encoder and decoder technique. μ-LAW uses pulse code modulation (PCM) encoder and decoder to convert 14-bit linear sample.
G.711A-LAW: It is a basic non-compressed encoder and decoder technique. A-LAW uses pulse code modulation (PCM) encoder and decoder to convert 13-bit linear sample into 8-bit value.
G.729: It is used to encoder and decoder voice information into a single packet which reduces the bandwidth consumption.
G.726: It is an ITU-T ADPCM speech codec standard covering the transmission of voice at rates of 32kbit/s.

Advanced

Advance section equipment the users with the ability to do some advanced settings to each phone port. Go on to see.

Region: Select the exact region from the drop-down menu to adjust the phone custom in the exact region, like ring tone, busy tone, dial tone, etc., as different regions may have different phone using traditions. The setting is to be applied to both phone 1 and phone 2.

Phone: Select the phone 1 or Phone 2 to have the following configurations applied to the phone.

Silence Suppression (VAD): Enable to minimize the use of bandwidth by automatically decreasing transmission of background noise when the device detects on voice input by the user on the phone.

Echo Cancellation: Enable to cancel echo for the other side in communication so as to make a clear listening environment. In order to avoid the other side in communication hearing the echo, please enable echo cancellation.

DTMF Transport Mode: Select the DTMF mode.

Listening Volume: Adjust the volume of listener, -6 to 6, from lowest to highest.

Speaking Volume: Adjust the volume of microphone; -6 to 6, from lowest to highest.

Speed Dial

Speed Dial comes at hand to store frequently used telephone number(s) that you can press set 'speed dial number' instead of the exact dialing-out number on the phone keyboard to make a quick dialing.

Index: The index to mark the speed dial number mapping, 0-9.

Phone: Select Phone 1 or Phone 2 to have your set speed dial number applied to the phone. If Phone_1 is selected, your set speed dial number is about to be applied to Phone_1.

Speed Dial Number: Set an easily remembered and simple number to replace the Phone number, it can be a sequence in varying length from 0, 1, 2, 3, 4, 5, 6, 7, 8, and 9^* . #, but note * or # must be included in the sequence.

Phone Number: The complete destination number

Example: Save phone number 83455301 to the speed dial list.

When you want call 83455301 through phone 1, you can simply dial 301# to make your desired call.

Dial Plan

Dial Plan helps you to make a number dial via VoIP. You no longer need to memorize a long dial string or number for making a VoIP call.

Phone: Set the phone the VoIP dial rule relates to. When phone port is set to Phone-1, the rules will apply to phone1.

Click Add to create new rules.

Prefix Processing:

▶ Prepend xxx unconditionally: xxx number is appended unconditionally to the front of the dialing number when making a call. Prefix can also be included with any number and/or character such as *, #.
If Prefix is xxx, delete it: Prefix xxx is removed from the dialed numbers before making a call.
If Prefix is xxx, replace with yyy: Prefix xxx is replaced with yyy when making a call.
No prefix: No prefix is appended to the front of the dialed numbers. It is set as in default settings.

Note: For special service with *, #, you may need to check with your VoIP or Local Telephone Service Provider for information.

Main Digit Sequence: The call(s) can be called out via SIP.

@ : This is used for the Intelligent Call Routing feature where you need to set up SIP account on the VoIP User-defined Profiles link on the VoIP Basic page.

@ or @@IP address or Domain>: : This is used to call the desired party under a specified SIP server, also the SIP port number can be specified.

Digit Sequence Example:

x.	'x' specifies one digit between 0 and 9. 'x.' specifies any sequence of digits in variable length at least 2. Maximum length is 32.
xxx	Any sequence of digits in fixed length. Total length is 3.
xx.	Any sequence of digits in variable length at least 3 digits. Maximum Length is 32.
123	Sequence of digits 123.
123.	Any sequence of digits starting with 123 and with variable length at least 4. Maximum length is 32.
123x.	Any sequence of digits starting with 123 and with variable length at least 5. Maximum length is 32.
[124]x.	Any sequence of digits starting with 1 or 2 or 4. Minimal length is 3, maximum length is 32.
[1-3]x.	Any sequence of digits starting with 1 to 3 and with variable length. Maximum length is 32.
9[4-6]8x.	Any sequence of digits starting with first digit 9, the second digit between 4 to 6, and third digit 8. Length is variable, maximum length is 32.

Example:

Current Digit Map : x | 1[38]x. | <:03>[2-5]x. | <#2:>x.@10.1.1.20| <#3:233>x.@10.1.1.30:5800
Index	Rule Name	Delete
0	x.	✕
1	1[38]x.	✕
2	<:03>[2-5]x.	✕
3	<#2:>x.@10.1.1.20	✕
4	<#3:233>x.@10.1.1.30:5800	✕

Rule 0, Any sequence of digits in variable length at least 2. Maximum length is 32.

This is default rule \~ x.

Rule 1, Want to route all 13, 1300 & 1800 numbers via my provider which is configured on VoIP Basic page.

▶ Enter 1[38]x. in the 'Main Digit Sequence' box
▶ Then end up with the following rule \~ 1[38]x.

Rule 2, Want to prefix area code (03) to all local calls starting with 2,3,4,5

▶ Type 03 in the 'Prepend \~ unconditionally' box
▶ Type [2-5]x. in the 'Main Digit Sequence' box.
▶ Then end up with the following rule \~ <:03>[2-5]x.

Rule 3, Want to create a prefix (#2) that when dialed can be remove (#2) digit sequence and used to

manually route a call via a specific provider (10.1.1.20):

▶ Type #2 in the 'if prefix is \~, delete it' field
▶ Type x. in the 'Main Digit Sequence' box
▶ Enter 10.1.1.20 in '@' box
▶ Then have the following rule \~ <#2:>x.@10.1.1.20

Now when you prefix number with #2 the call will route via selected provider 10.1.1.20

The # is not dialed, only the digits following

Rule 4, Want to create a prefix (#3) that when dialed can be remove (#3), replace with 233 and used to manually route a call via a specific provider (IP: 10.1.1.30, UDP port: 5800):

▶ Type #3 in the 'if prefix is \~, replace with' field
▶ Type 233 in the 'replace with' field
▶ Type x. in the 'Main Digit Sequence' box
▶ Enter 10.1.1.30:5800 in @ box
▶ Then have the following rule \~ <#3:233>x.@10.1.1.30:5800

Now when you prefix number with #3 the call will route via selected provider 10.1.1.30:5800

The #3 is not dialed, only replace with the digits 233 and following

Call Features

Call Features provides users with some advanced phone characteristics, including Hot-line/Warm-Lin, Call Forwarding, Call Transfer, Call waiting, Conference Call, etc.

Phone: Select the phone 1 or Phone 2 to have the following characteristics applied to the phone.

Hot-line: Pre-selected a phone number and set the delay time to 0 to active the Hot-line feature. When taking the telephone off hook, this outgoing call will route to the pre-selected number without dialing the number.

To make an outgoing call: Not allowed! Once the Hot-line is being turned ON, no any other outgoing calls are allowed except the hot-line number.
Receive Incoming Call: Yes. No affected by this feature.

Warm-line: Pre-selected a phone number and pre-configure the delay time between 1\~15 seconds to active the Warm-line feature. When the time delay has elapsed after taking the phone off hook, this outgoing call will route to the pre-selected number, no dialing is required.

To make an outgoing call: Allowed! Replace a call before the delay time has elapsed.
Receive Incoming Call: Yes. No affected by this feature.

Call Forwarding: All incoming can redirect to any phone number, a mobile number or landline telephone number, to get picked up.

▶ Unconditional forwarding to: Forward all incoming calls to a pre-selected phone number automatically. Input a phone number in the given space.
On Busy forwarding to: Forward incoming calls to a pre-selected phone number when the line is busy. Input a phone number in the given space

On No Answer forwarding to ... No Answer Time (Seconds): Forward incoming calls to a pre-selected t phone number when calls are not answered within a certain time in seconds. Input a phone number and time in seconds in the given spaces.

Blind Call Transfer (Flash: *21 + number): A direct call transfer to the second party without speaking to the party. Enable to activate the feature.

1. Hold the original call
2. Press the "Transfer" or "hook flash" button, or quickly tap the on-hook sensor on the phone until you hear the dial tone
3. Then dial *21 and the number of the second party.

Attended Call Transfer (Flash: *22 + number): Need to consult with the second party before transferring the call. Enable to activate the feature.

1. Hold the original call
2. Press the "Transfer" or "hook flash" button, or quickly tap the on-hook sensor on the phone until you hear the dial tone
3. Dial *22 and the number of the second party.
4. After speaking with the second party
5. Then press the "Transfer" or "hook flash" button, or quickly tap the on-hook sensor on the phone again to complete the transfer.

Call Waiting: Enable to activate Call Waiting feature. When you are busy on a call with, for example, A, and another call comes in, B, while the Call Waiting feature is enabled, you can hear a hint sound indicating there is another call in for you to decide to answer B by pressing the "flash" button on the phone to keep the original call with A.

Conference Call: Enable to allow 3-way conference call. Please note, only 3 parties are allowed (device, A, and B).

MWI (Message Waiting Indicator): After enabling this feature, users will get notified the presence of a new voice message in the following ways:

▶ Stutter dial tone
Blinking LED
▶ Feeding Caller ID signal to phone sets

NOTE:

▶ The SIP server needs to support MWI
▶ Phone set must support MWI CallerID in FSK, if users hope the phone to show the notification of Voice Mails

Anonymous Call: This feature enables you to restrict your phone number from displaying to the called party. When enabled, your phone number will be withheld and not be revealing to the called party.

Block Anonymous Call: All calls from people who have withheld their phone number can get rejected. After enabling this feature, BEC 6300VNL will reject calls with no phone number.

Distinctive Ring: This call feature is only available from a VoIP Service Provider which enables each telephone number to have a distinctive ring sound.

Note: Before enabling this feature, please consult with your VoIP Service Provide to be sure it can be supported.

There is a ringtone list available in the BEC 6300VNL, after enabling this feature, your BEC 6300VNL will adapt a specific ring pattern on the list requested by your VoIP Service Provider for a specific

telephone number.

When it is being disabled, all income calls will adapt the default ringtone for all telephone lines.

Immediate Call Out (Phone number +"#"): Dial your phone number plus '#' to immediately send the call out without waiting for the dialout delay time-out.

Example: Dial 5131234567# to place this call immediately.

Pass VSC to Softswitch:

• Enable to pass VSC(Vertical Service Code) to the SIP server of ITSP which allows the SIP server to handle all its unique calling features such as Return Call, Call Redial, Don't Disturb, etc. Under this circumstance, users need to pay for such service, please ensure you check with your SIP provider for more information.
  ▶ Disable to let the BEC 6300VNL to handle all available call features.

Return Call (Dial number: *69): Dial *69 to redial the latest incoming call number.

Redial (Dial number: *68): Dial *68 to redial the latest outgoing call number.

Don't Disturb (Enable: *78, Disable: *79): Press *78 to enable Don't Disturb feature so as to make it not ring when a call comes in; while press *79 to disable Don't Disturb feature, if a call comes with a ringing indication.

NAT Traversal for VoIP

BEC 6300VNL VoIP adapts SIP technology as main telephony protocol to provide voice call services over the Internet. This NAT Transversal of SIP feature resolves common NAT / firewall problem when 6300VNL VoIP is behind the NAT / another router to ensure all incoming calls (anyone from outside to place calls) can get picked up and protect the SIP network as well.

NOTE: Use this feature if your BEC 6300VNL is behind another router on a private network and does not obtain a public IP address.

STUN (Simple Traversal of UDP through NATs) Server: Input STUN server IP address and port number in the given space. STUN server not only checks and discovers the Public WAN IP and port of an external router but also determine the kind of NAT the BEC 6300VNL is behind.

Note: STUN server normally operates on port 3478. If your STUN server uses other port than 3478, make sure you update this information.

External IP: Input a Public WAN IP address of the router in front of the BEC 6300VNL in the given space.

Note: If router's WAN / Public IP changes all the time, it is ideal to use STUN server or consult with your Service Provide if getting a static IP address if feasible; otherwise, manual updating your external router IP address would be required.

Phone: Choose which phone to use NAT traversal when behind another router on a private network.

NAT Traversal Method:

▶ None to disable the feature
▶ Use STUN server to do resolve NAT/firewall issue and ensure you input the STUN server IP address in the given space above.
▶ Use External IP of the router which is in front of the BEC 6300VNL. Please make sure this external router obtains a public WAN IP address then input this IP address in the given space above.

Example: Making 3-way Calling

Case 1: Bill and Larry are talking. Bill wants to invite Mark to join a conference call.

Step - 1: Billy and Larry are discussing on the phone. Bill tells Larry that he wants to set up a conference call with Mark.

Step - 2: Bill presses flash (hold original call), and Bill hears the dial tone.

Step - 3: Bill calls Mark. Bill and Mark are on a new call.

Step - 4: Bill tells Mark that Mark is invited to join a conference call.

Step - 5: Bill presses flash (hold new call) and return to original call.

Step - 4: Bill tells Larry that Mark is on the phone.

Step - 6: Bill presses flash again to merge all 3 calls.

Step - 7: Bill, Larry and Mark hold a 3-way conference call from now on.

Case 2: When Bill and Larry are talking on the phone, Bill received a phone call from Mark. Bill decided to ask Mark to join the conference call.

Step - 1: Bill and Larry on a call, then Mark dials Bill and Bill hears a waiting tone.

Step - 2: Bill presses flash and picks up the call waiting call.

Step – 3: Bill tells Mark that he and Larry are talking on the phone; they can have a conference call.

Step - 4: Bill presses flash to hold the call with Mark and return to original call with Larry.

Step - 5: Bill tells Larry that it is Mark and he wants to set up a conference with Mark.

Step - 6: Bill presses flash again to merge all 3 calls.

Step - 7: Bill, Larry and Mark hold a 3-way conference call from now on.

Access Management

Device Management

Device management offers users a way to change the embedded web server accessing port, default 80. User can change the http port to 8080 or something else here.

SNMP

Simple Network Management Protocol (SNMP) is a protocol used for exchanging management information between network devices. SNMP is a member of the TCP/IP protocol suite. BEC 6300VNL serves as a SNMP agent which allows a manager station to manage and monitor the router through the network.

SNMP: Select to enable SNMP feature.

Get Community: Type the Get Community, which is the password for the incoming Get-and-GetNext requests from the management station.

Set Community: Type the Set Community, which is the password for incoming Set requests from the management station.

Trap Manager IP: Enter the IP of the server receiving the trap message (when some exception occurs) sent by this SNMP agent.

SNMPv3: Enable to activate the SNMPv3.

User Name: Enter the name allowed to access the SNMP agent.

Access Permissions: Set the access permissions for the user; RO--read only and RW--read and writer.

Authentication Protocol: Select the authentication protocol, MD5 and SHA. SNMP agent can communicate with the manager station through authentication and encryption to secure the message exchange. Set the authentication and encryption information here and below.

Authentication Key: Set the authentication key, 8-31 characters.

Privacy Protocol: Select the privacy mode, DES and AES.

Privacy Key: Set the privacy key, 8-31 characters.

Remote Syslog

Remote Syslog allows users to set up an isolated external syslog server to receive system logs from the router for convenient view.

Remote Log: Select whether to activate to use remote syslog service.

Server IP Address: Enter your syslog server IP address.

Server UDP Port: The syslog service UDP port, default is 514.

Universal Plug & Play

UPnP offers peer-to-peer network connectivity for PCs and other network devices, along with control and data transfer between devices. UPnP offers many advantages for users running NAT routers through UPnP NAT Traversal, and on supported systems makes tasks such as port forwarding much easier by letting the application control the required settings, removing the need for the user to control advanced configuration of their device.

Both the user's Operating System and the relevant application must support UPnP in addition to the router. Windows XP and Windows ME natively support UPnP (when the component is installed), and Windows 98 users may install the Internet Connection Sharing client from Windows XP in order to support UPnP. Windows 2000 does not support UPnP.

UPnP: Select this checkbox to activate UPnP. Be aware that anyone could use a UPnP application to open the web configuration's login screen without entering the BEC 6300VNL' IP address

Auto-configured: Select this check box to allow UPnP-enabled applications to automatically configure the BEC 6300VNL so that they can communicate through the BEC 6300VNL, for example by using NAT traversal, UPnP applications automatically reserve a NAT forwarding port in order to communicate with another UPnP enabled device; this eliminates the need to manually configure port forwarding for the UPnP enabled application.

Dynamic DNS

The Dynamic DNS function allows you to alias a dynamic IP address to a static hostname, allowing users whose ISP does not assign them a static IP address to use a domain name. This is especially useful for hosting servers via your internet connection, so that anyone wishing to connect to you may use your domain name, rather than having to use your dynamic IP address, which changes from time to time. This dynamic IP address is the WAN IP address of the router, which is assigned to you by your ISP.

Here users can register different WAN interfaces with different DNS(es). But note that first users have to go to the Dynamic DNS registration service provider to register an account.

Dynamic DNS: Select this check box to activate Dynamic DNS.

Service Provider: Select from drop-down menu for the appropriate service provider, for example: www.dyndns.org.

My Host Name: Type the domain name assigned to your BEC 6300VNL by your Dynamic DNS provider.

Username: Type your user name.

Password: Type the password.

Wildcard support: Select this check box to enable DYNDNS Wildcard.

Period: Set the time period between updates, for the Router to exchange information with the DDNS server. In addition to updating periodically as per your settings, the router will perform an update when your dynamic IP address changes.

Example: How to register a DDNS account

Note first users have to go to the Dynamic DNS registration service provider to register an account.

User test1 register a Dynamic Domain Names in DDNS provider http://www.dyndns.org/.

DDNS: www.hometest.com using username/password test/test

Access Control

Access Control Listing allows you to determine which services/protocols can access BEC 6300VNL interface from which computers. It is a management tool aimed to allow IPs (set in secure IP address) to access specified embedded applications (Web, etc., user can set) through some specified interface (LAN, WAN or both). User can have an elaborate understanding in the examples below.

The maximum number of entries is 16.

Access Control: Select whether to make Access Control function available.

Rule Index: The numerical indication of the rules

Active: Select to activate the rule.

Secure IP Address: The default 0.0.0.0 allows any client to use this service to manage the BEC 6300VNL. Type an IP address range to restrict access to the client(s) without a matching IP address.

Application: Choose a service that you want to all access to all the secure IP clients. The drop-down menu lists all the common used applications.

Interface: Select the access interface. Choices are LAN, WAN and Both.

By default, the "Access Control" has two default rules.

Default Rule 1: (Index 1), a rule to allow only clients from LAN to have access to all embedded applications (Web, FTP, etc.). Under this situation, clients from WAN cannot access the router even from Ping.

Default Rule 2: (Index 2), an ACL rule to open Ping to WAN side.

Packet Filter

You can filter the packages by MAC address, IP address, Protocol, Port number and Application or URL.

Packet Filter - IP & MAC Filter

Packet Filter

Filter Type: There are three types "IP & MAC Filter", "Application Filter", and "URL Filter" that user can select for this filter rule. Here we set IP & MAC Filter.

IP & MAC Filter Editing

Rule Index: The numerical indication of the rules.

Individual Active: Select Yes to activate the rule.

Action: This is how to deal with the packets matching the rule. Allow please select White List or block selecting Black List.

Interface: Select which interface the rule will be applied to.

Direction: Select if the rule applies to outgoing packets, incoming packets or both directions.

Type: Choose type of field you want to specify to monitor. Select "IPv4" for IPv4 address, port number and protocol. Select "IPv6" for IPv6 address, port number and protocol. Select "MAC" for MAC address.

Source IP Address: The source IP address of packets to be monitored. 0.0.0.0 means "Don't care".

Source Subnet Mask: Enter the subnet mask of the source network.

Source Port Number: The source port number of packets to be monitored. 0 means "Don't care".

Destination IP Address: The destination IP address of packets to be monitored. 0.0.0.0 means "Don't care".

Destination Subnet Mask: Enter the subnet mask of the destination network.

Destination Port Number: This is the Port that defines the application. (E.g. HTTP is port 80.)

DSCP: DSCP: Differentiated Services Code Point, it is recommended that this option be configured by an advanced user or keep 0. (0 means Don't care.)

Protocol: Specify the packet type (TCP, UDP, ICMP, and ICMPv6) that the rule applies to.

IP/MAC Filter Listing

: Item number.

Active: Whether the connection is currently active.

Interface: show the interface the rule applied to.

Direction: show the direction the rule applied to.

Source IP (IPv6) Address/Mask (Prefix): The source IP address or range of packets to be monitored.

Destination IP (IPv6) Address/Mask (Prefix): This is the destination subnet IP address.

Source MAC Address: show the MAC address of the rule applied.

Source Port: The source port number of packets to be monitored.

Destination Port: This is the Port or Port Ranges that defines the application.

DSCP: show the set DSCP.

Protocol: It is the packet protocol type used by the application. Select either TCP or UDP or ICMP or ICMPv6

Packet Filter - Application Filter

Application Filter: Select this option to Activated/Deactivated the Application filter.

ICQ: Select this option to Allow/Deny ICQ.

MSN: Select this option to Allow/Deny MSN.

YMSG: Select this option to Allow/Deny Yahoo messenger.

Real Audio/Video (RTSP): Select this option to Allow/Deny Real Audio/Video (RTSP).

Packet Filter - URL Filter

URL Filter: Select Activated to enable URL Filter.

URL Filter Rule Index: The numerical indication of the rules.

Individual Active: To give control to the specific URL access individually, for example, you want to prohibit access to www.yahoo.com, please first press Activated in "URL Filter" field, and also Yes in "Individual Active" field; if some time you want to allow access to this URL, you simply select No in individual active field. In a word, the command serves as a switch to the access of some specific URL with the filter on.

URL (Host): Specified URL which is prohibited from accessing.

CWMP (TR-069)

CWMP, short for CPE WAN Management Protocol, also called TR069 is a Broadband Forum technical specification entitled CPE WAN Management Protocol (CWMP). It defines an application layer protocol for remote management of end-user devices. It defines an application layer protocol for remote management of end-user devices.

As a bidirectional SOAP/HTTP based protocol it can provides the communication between customer premises equipment (CPE) and Auto Configuration Server (ACS). It includes both a safe configuration and the control of other CPE management functions within an integrated framework. In the course of the booming broadband market, the number of different internet access possibilities grew as well (e.g. modems, routers, gateways, set-top box, VoIP-phones). At the same time the configuration of this equipment became more complicated –too complicated for end-users. For this reason, TR-069 was developed. It provides the possibility of auto configuration of the access types. Using TR-069 the terminals can get in contact with the Auto Configuration Servers (ACS) and establish the configuration automatically and let ACS configure CPE automatically.

CWMP: Select activated to enable CWMP.

ACS Login Information

URL: Enter the ACS server login URL.

User Name: Specify the ACS User Name for ACS authentication to the connection from CPE.

Password: Enter the ACS server login password.

Connection Request Information

Path: Local path in HTTP URL for an ACS to make a Connection Request notification to the CPE.

Username: Username used to authenticate an ACS making a Connection Request to the CPE.

Password: Password used to authenticate an ACS making a Connection Request to the CPE.

Periodic Inform Config

Periodic Inform: Select Activated to authorize the router to send an Inform message to the ACS automatically.

Interval(s): Specify the inform interval time (sec) which CPE used to periodically send inform message to automatically connect to ACS. When the inform interval time arrives, the CPE will send inform message to automatically connect to ACS.

NATT Config - This is a proprietary feature provided by BEC. May leave them in blank, no configuration is required.

NATT Server: By BEC administrator only.

NATT Period: By BEC administrator only.

Parental Control

With this feature, router can reject to provide Internet services to the specified computer during some specified time interval. This can be very useful for parents to give control to children using computer without restraint.

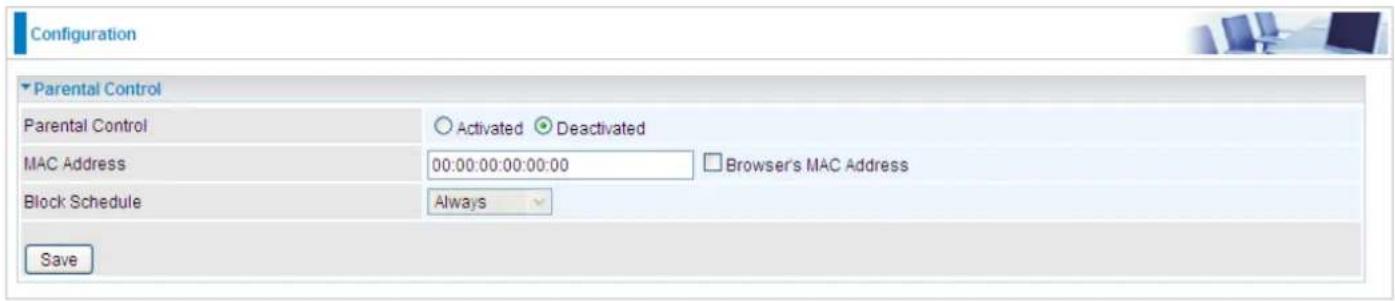

Parent Control: Select Activated to enable this feature.

MAC Address: Type the MAC address(es) you want to block to access the internet (access to the router is sustained). The format of MAC address could be: xx:xx:xx:xx:xx: . If you want to set restriction to the Browser PC, you can directly check the checkbox of Browser's MAC Address.

Block Schedule: Select a timeslot throughout which the above set MAC is restricted to access internet. See Time Schedule to set the exact timeslot.

Timeslot1 at Time Schedule:

SAMBA & FTP Server

Samba and FTP are served as network sharing.

SAMBA Server: Activated to enable SAMBA sharing.

Work Group: The same mechanism like in Microsoft work group, please set the Work Group name.

NetBIOS Name: The sharing NetBIOS name.

FTP Server: Activated to enable FTP sharing.

FTP Server Port: Set the working port. Well-known one is 21. User can change it.

SAMBA/FTP login account:

Default user: admin/admin, it is the administrative user and a super user; it has the full authority of SAMBA /FTP access and operation permission of objects in SAMBA and FTP server.
New user: users can create new user(s) to grant it (them) access and permission to the SAMBA & FTP server.

Please see User Management.

Example: How to setup Samba

1. Go directly to Start > Run (enter \192,168,1,254 (from LAN side), \SambaSvr, but if you enter \SambaSvr, please be sure your working PC is in the same workgroup as set in the samba server set above.)

1. Enter the Username and password.

1. Users can browse and access USB storage.

Example: How to setup FTP :

1. Access via FTP tools

Take popular FTP tool of FlashFXP for example:

1) Open FlashFXP
2) Create ftp sites (LAN IP / WAN IP, 192.168.1.254, and set the account, port).
3) Connect to the ftp site.

2. Web FTP access

1) Enter ftp://192.168.1.254 at the address bar of the web page.
2) Enter the account's username and password.

Maintenance

Maintenance gives users the ability to maintain the device as well as examine the connectivity of the WAN connections, including User Management, Time Zone, Firmware & Configuration, System Restart, and Diagnostic Tool.

User Management

User Management controls the Router Web GUI permission, FTP/SAMBA access to the specific account.

In factory setting, the default accounts are admin/admin and user/user. The default root account admin has been authorized to web access of router, Samba access, and FTP access. user/user is equipment with limited access (specified by advanced users with admin account) to router web, and FTP/SAMBA. A total of 6 other accounts can be created to grant access to the access of Samba and FTP and web page (need to be specified).

Note: Please go to SAMBA & FTP Server to re-activate FTP and SAMBA server to enable the changes to the FTP and SAMBA account set here.

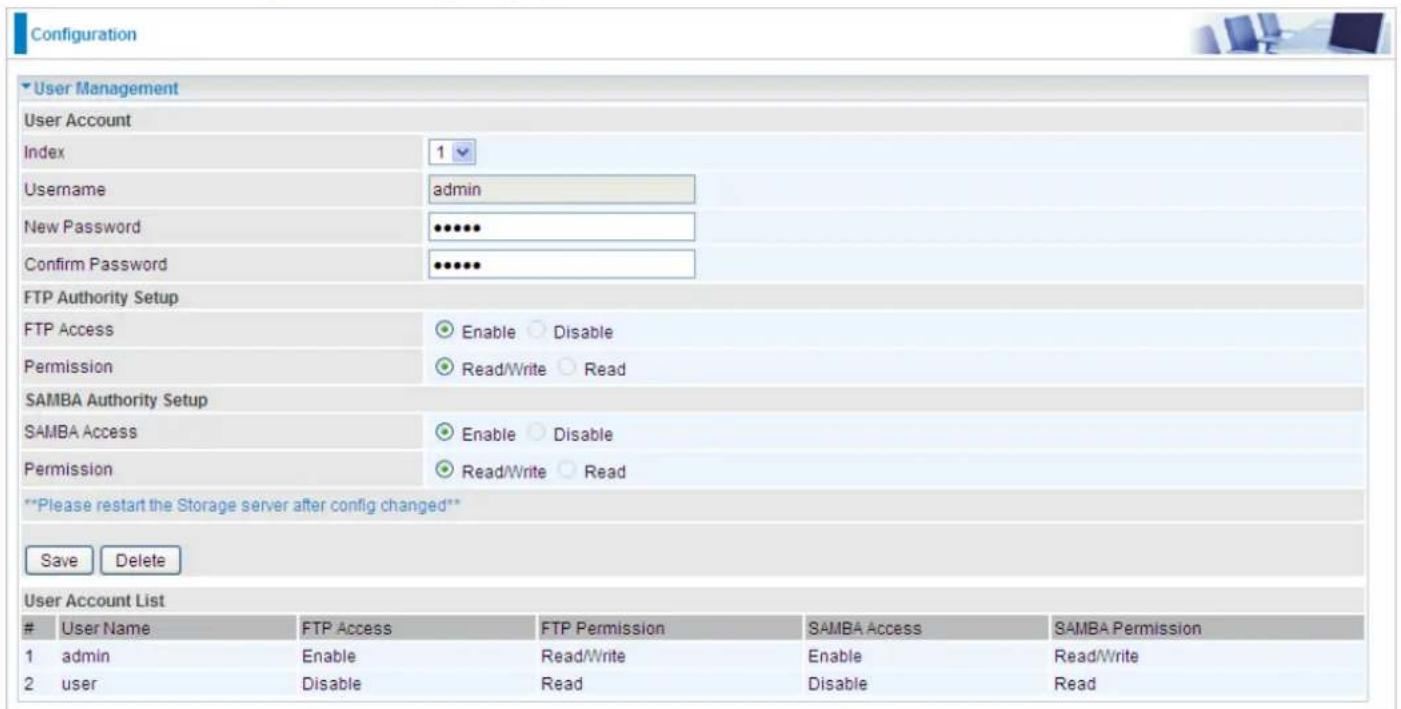

Administrator Account

admin/admin is the root account provided by our router.

Note: This username / password may vary by different Internet Service Providers.

User Setup

Index: The numeric account indicator. The maximum entry is up to 8 accounts.

User Name: Create account(s) user name for GUI management.

New Password: Enter a new password for this user account.

Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field

FTP Authority Setup

FTP Access: Enable to grant the user access to the FTP server.

Permission: Set the operation permission for the user, Read/Write or Read.

SAMBA Authority

SAMBA Access: Enable to grant the user access to the SAMBA server.

Permission: Set the operation permission for the user, Read/Write or Read.

Web GUI Permission

Login using the Administrator account, you will have the full accessibility to manage & control your BEC 6300VNL device and can also create user accounts for others to control some of the open configuration settings.

User Account (Adding additional user accounts)

user/user is the default user account username and password

NOTE: This username / password may vary by different Internet Service Providers.

User Setup

Index #: The numeric account indicator. The maximum entry is up to 8.

User Name: Create account(s) user name for GUI management.

New Password: Enter a new password for this user account.

Confirmed Password: Re-enter the new password again; you must enter the password exactly the same as in the previous field

FTP Authority Setup

FTP Access: Enable to grant the user access to the FTP server.

Permission: Set the operation permission for the user, Read/Write or Read.

SAMBA Authority

SAMBA Access: Enable to grant the user access to the SAMBA server.

Permission: Set the operation permission for the user, Read/Write or Read.

Web GUI Permission

Guest Account: Enable to create this new guest account.

Interface Setup / Advanced Setup / Access Management Setup / Maintenances: Enable to grant this user access to these features.

When someone accesses to the 6300VNL using this "user" account, he/she can only manage and configure the features that is pre-selected in Web GUI Permission for this account..

Click Save to apply the settings.

Time Zone

With default, 6300VNL does not contain the correct local time and date.

There are several options to setup, maintain, and configure current local time/date on the 6300VNL. If you plan to use Time Schedule feature, it is extremely important you set up the Time Zone correctly.

Synchronize time with: Select the methods to synchronize the time.

▶ NTP Server automatically: To synchronize time with the SNTP servers to get the current time from an SNTP server outside your network then choose your local time zone. After a successful connection to the Internet, 6300VNL will retrieve the correct local time from the SNTP server this is specified.
PC's Clock: To synchronize time with the PC's clock.
▶ Manually: Select this to enter the SNMP server IP address manually.

Time Zone: Choose the time zone of your location. This will set the time difference between your time zone and Greenwich Mean Time (GMT).

Daylight Saving: Select this option if you use daylight savings time.

NTP Server Address: Enter the IP address of your time server. Check with your ISP/network administrator if you are unsure of this information.

Firmware & Configuration

Firmware is the software that controls the hardware and provides all functionalities which are available in the GUI. This software may be improved and/or modified; your BEC 6300VNL provides an easy way to update the code to take advantage of the changes.

To upgrade the firmware of BEC 6300VNL, you should download or copy the firmware to your local environment first. Press the “Browse...” button to specify the path of the firmware file. Then, click “Upgrade” to start upgrading. When the procedure is completed, BEC 6300VNL will reset automatically to make the new firmware work.

Upgrade: Choose Firmware or Configuration you want to update.

System Restart with:

• Current Settings: Restart the device with the current settings automatically when finishing upgrading.
  ▶ Factory Default Settings: Restart the device with factory default settings automatically when finishing upgrading.

File: Type in the location of the file you want to upload in this field or click Browse to find it.

Browse: Click Browse... to find the configuration file or firmware file you want to upload. Remember that you must extract / decompress / unzip the .zip files before you can upload them.

Backup Configuration: Click Backup button to back up the current running configuration file and save it to your computer in the event that you need this configuration file to be restored back to your BEC 6300VNL device when making false configurations and want to restore to the original settings.

Upgrade: Click "Upgrade" to begin the upload process. This process may take up to two minutes.

DO NOT turn off / power off the device or interrupt the firmware upgrading while it is still in process. Improper operation could damage your BEC 6300VNL.

System Restart

Click System Restart with option Current Settings to reboot your router.

If you wish to restart the router using the factory default settings (for example, after a firmware upgrade or if you have saved an incorrect configuration), select Factory Default Settings to restore to factory default settings.

You may also restore your router to factory settings by holding the small Reset pinhole button on the back of your router in about more than 6s seconds whilst the router is turned on.

Diagnostics Tool

The Diagnostic Test page shows the test results for the connectivity of the physical layer and protocol layer for both LAN and WAN sides.

3G/4G-LTE or 3G/4G-LTE USB

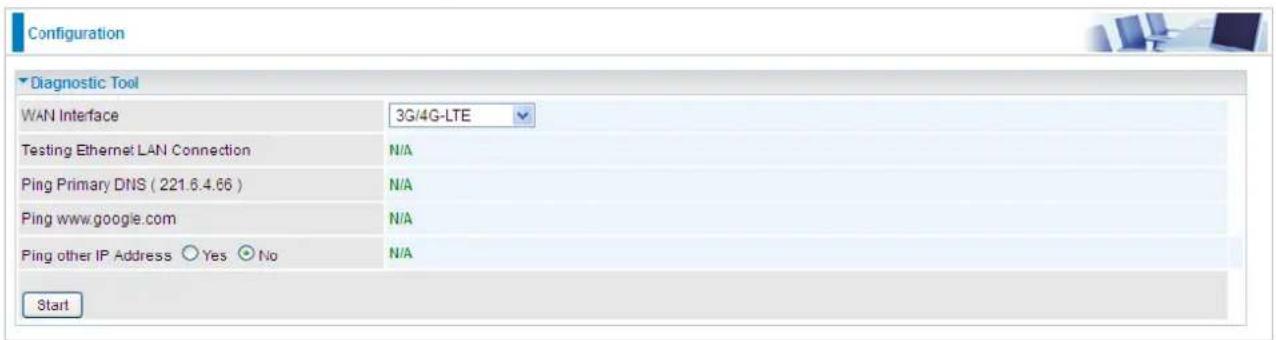

Click START to begin to diagnose the connection.

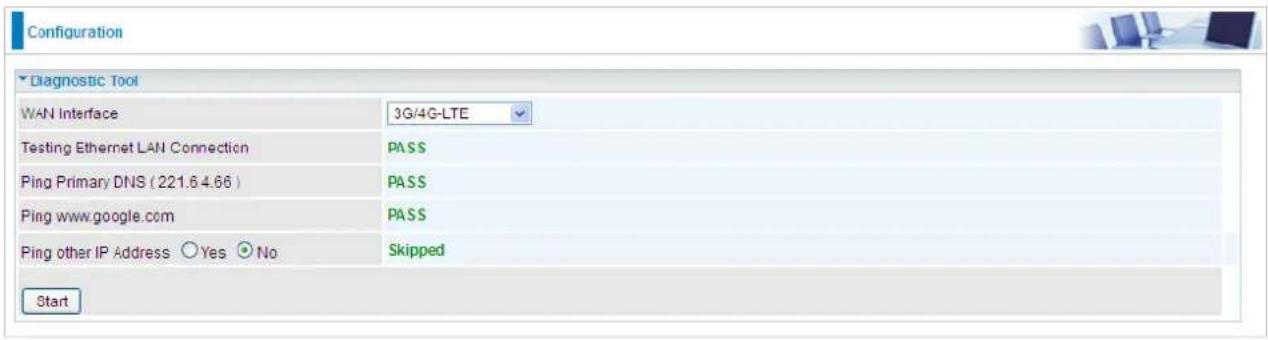

EWAN

Configuration

Diagnostic Tool

WAN Interface	EWAN
Testing Ethernet LAN Connection	N/A
Ping Primary DNS (218.2.135.1)	N/A
Ping www.google.com	N/A
Ping other IP Address ○ Yes ● No	N/A
Start

Click START to begin to diagnose the connection.

Configuration

Diagnostic Tool

WAN Interface	EWAN
Testing Ethernet LAN Connection	PASS
Ping Primary DNS (218.2.135.1)	PASS
Ping www.google.com	PASS
Ping other IP Address ○ Yes ☑ No	Skipped
Start

CHAPTER 5: TROUBLESHOOTING

If your BEC 6300VNL is not functioning properly, you can refer to this chapter for simple troubleshooting before contacting your service provider support. This can save you time and effort but if symptoms persist, consult your service provider.

Problems with the Router

Problem	Suggested Action
None of the LEDs is on when you turn on the router	Check the connection between the router and the adapter. If the problem persists, most likely it is due to the malfunction of your hardware. Please contact your service provider or BEC for technical support.
You have forgotten your login username or password	Try the default username "admin" and password "admin". If this fails, you can restore your router to its factory settings by pressing the reset button on the device rear side.

Problem with LAN Interface

Problem	Suggested Action
Cannot PING any PC on LAN	Check the Ethernet LEDs on the front panel. The LED should be on for the port that has a PC connected. If it does not lit, check to see if the cable between your router and the PC is properly connected. Make sure you have first uninstalled your firewall program before troubleshooting.
	Verify that the IP address and the subnet mask are consistent for both the router and the workstations.

Recovery Procedures

Problem

Suggested Action

- The front LEDs display incorrectly- Still cannot access to the router management interface after pressing the RESET button.- Software / Firmware upgrade failure

1. Power on the router, once the Power LED lit red, please press this reset button using the end of paper clip or other small pointed object immediately.2. The router's emergency-reflash web interface will then be accessible via http://192.168.1.1 where you can upload a firmware image to restore the router to a functional state, Please note that the router will only respond with its web interface at this address (192.168.1.1), and will not respond to ping request from your PC or other telnet operations.

APPENDIX: PRODUCT SUPPORT & CONTACT

If you come across any problems please contact the dealer from where you have purchased the product.

Contact BEC @ http://www.bectechnologies.net

MAC OS is a registered Trademark of Apple Computer, Inc.

Windows 7/98, Windows NT, Windows 2000, Windows ME, Windows XP, and Windows Vista are registered Trademarks of Microsoft Corporation.

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

♦ Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference
(2) This device must accept any interference received, including interference that may cause undesired operation.

Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. . This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

Co-location statement

This device and its antenna(s) must not be co-located or operating in conjunction with any other antenna or transmitter.

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
