Product Type	Corded Drill
Model	GBM 13 RE Professional
Brand	Bosch
Power Input	850 W
No-Load Speed	0 – 2800 rpm
Rated Torque	40 Nm
Chuck Capacity	1.5 – 13 mm
Chuck Type	Keyless
Drilling Diameter in Steel	13 mm
Drilling Diameter in Wood	30 mm
Weight	1.8 kg
Dimensions (L × W × H)	320 × 70 × 200 mm
Power Supply	230 V, 50/60 Hz
Protection Class	II (Double Insulated)
Key Features	Variable Speed Trigger, Lock-On Button, Soft Grip
Maintenance	Clean with dry cloth; check carbon brushes periodically
Safety	Use eye protection; disconnect before adjustments
Spare Parts	Chuck, carbon brushes, switch – available from Bosch service
Repairability	High – modular design; spare parts available for 10+ years
General Information	Professional grade; made in Germany

Frequently Asked Questions - GBM 13 RE Professional BOSCH

How do I change the speed of the GBM 13 RE Professional?

The drill has a variable speed trigger. Press lightly for low speed and harder for high speed. There is also a speed pre-selector dial near the trigger for precise control.

What type of chuck does the drill use and how do I replace it?

It uses a keyless chuck. To replace, hold the spindle lock button, turn the chuck counterclockwise to remove. Install the new chuck by screwing clockwise until tight.

Why does my drill stop during operation?

This may be due to overheating or carbon brush wear. Let the tool cool down for 10 minutes. If the problem persists, check or replace the carbon brushes.

Can I use the GBM 13 RE for masonry drilling?

Yes, but only with carbide-tipped masonry bits. The drill does not have a hammer function, so it works by rotation alone – suitable for brick or soft stone, not reinforced concrete.

How do I clean and maintain the drill?

Keep ventilation slots clear. Wipe the housing with a dry cloth. Periodically inspect carbon brushes; replace them when shorter than 5 mm. Do not use solvents.

Is the GBM 13 RE suitable for continuous industrial use?

It is a professional-grade drill designed for heavy duty. However, for continuous high-load applications, allow the tool to cool after 20 minutes of use to prolong motor life.

What is the maximum drilling capacity in wood?

The maximum drilling capacity in wood is 30 mm with twist bits. Use flat bits or hole saws for larger diameters, but reduce speed to avoid overheating.

How do I reverse the drill direction?

Use the forward/reverse switch located above the trigger. Push it left for forward (drilling) and right for reverse (screw removal). Never change direction while the motor is running.

What accessories are included with the drill?

The package typically includes the drill, a depth stop, an auxiliary handle, and a keyless chuck. Some bundles may include a carrying case and a set of drill bits.

Where can I find spare parts for the GBM 13 RE?

Spare parts such as carbon brushes, chucks, and switches are available from Bosch authorized service centers and online retailers. Use genuine parts for safety and performance.

USER MANUAL GBM 13 RE Professional BOSCH

OBJ_DOKU-32326-002.fm Page 1 Thursday, November 9, 2017 4:12 PM

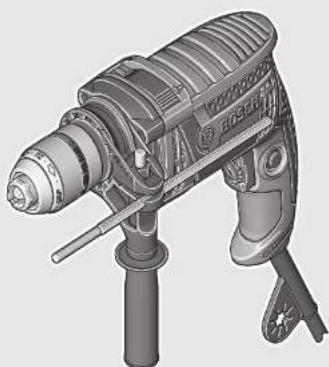

3D illustration of a mechanical drill bit with visible blade and handle (no text or symbols)

Robert Bosch Power Tools GmbH

70538 Stuttgart

GERMANY

www.bosch-pt.com

1609 92A 411 (2017.11) O/40

GSB Professional

13|13 RE|16|16 RE

BOSCH

en Original instructions
cn 正本使用说明书
tw原始使用說明書
ko사용 성명시 원부
th หนังคือห์มือการใช้งานฉบับดังเบบ
id Pelangiuk-Pelangiuk untuk Progsunaan Orisinal
vi Bán gốc hướng dẫn sử dụng

2|

English....Page 6

中文 页 12

中文 页 16

한국어 ⋰ 페이지 21

ภาษาไทย.... ทัน 25

6 | English

English

Safety Notes

General Power Tool Safety Warnings

WARNING

Read all safety warnings and all instructions. Failure to follow the warnings and

instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless power tool.

Work area safety

• Keep work area clean and well lit. Cluttered or dark areas invite accidents.
  ▶ Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
  ▶ Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

Electrical safety

▶ Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
▶ Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
▶ Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
▶ Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges and moving parts. Damaged or entangled cords increase the risk of electric shock.
- When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
▶ If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

Personal safety

Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
▶ Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.

▶ Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
▶ Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
▶ Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
▶ If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

Power tool use and care

Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
▶ Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
▶ Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
▶ Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
- Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
▶ Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
▶ Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

Service

▶ Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

English|7

Safety Warnings for Drills

▶ Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
▶ Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
▶ Use suitable detectors to determine if utility lines are hidden in the work area or call the local utility company for assistance. Contact with electric lines can lead to fire and electric shock. Damaging a gas line can lead to explosion. Penetrating a water line causes property damage or may cause an electric shock.
▶ Switch off the power tool immediately when the tool insert jams. Be prepared for high reaction torque that can cause kickback. The tool insert jams when:
- the power tool is subject to overload or - it becomes wedged in the workpiece.
When working with the machine, always hold it firmly with both hands and provide for a secure stance. The power tool is guided more secure with both hands.
▶ Secure the workpiece. A workpiece clamped with clamping devices or in a vice is held more secure than by hand.
▶ Always wait until the machine has come to a complete stop before placing it down. The tool insert can jam and lead to loss of control over the power tool.

Products sold in GB only: Your product is fitted with a BS 1363/A approved electric plug with internal fuse (ASTA approved to BS 1362).

If the plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place by an authorised customer service agent. The replacement plug should have the same fuse rating as the original plug.

The severed plug must be disposed of to avoid a possible shock hazard and should never be inserted into a mains socket elsewhere.

Product Description and Specifications

Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

Intended Use

The machine is intended for impact drilling in brick, concrete and stone as well as for drilling in wood, metal and plastic. Machines with electronic control and right/left rotation are also suitable for screwdriving and thread-cutting.

Product Features

The numbering of the product features refers to the illustration of the machine on the graphics page.

1 Keyless chuck*

2 Front sleeve

3 Rear sleeve

4 "Drilling/Impact Drilling" selector switch

5 Lock-on button for On/Off switch

6 On/Off switch

7 Thumbwheel for speed preselection (GSB 16 RE)

8 Rotational direction switch (GSB 13 RE/GSB 16 RE)

9 Auxiliary handle (insulated gripping surface)*

1.0 Handle (insulated gripping surface)

1 Depth stop*

12 Chuck key*

13 Key type drill chuck*

14 Universal bit holder*

15 Screwdriver bit*

16 Hex key ^44

17 Open-end spanner**

*Accessories shown or described are not part of the standard delivery scope of the product. A complete overview of accessories can be found in our accessories program.

*Commercially available (not included in the delivery scope)

Technical Data

Impact Drill	GSB ...	13	13 RE	16	16 RE
Article number	3 601 ... B27 0.. B27 1.. B28 0.. B28 1..
Rated power input	W	6	5	0	650 750 750
Output power	W	3	5	3	353 456 456
No-load speed	min^-1	3150 3150 3250 3250
Impact rate	min^-1	47000 47000 48500 48500
Rated torque	Nm	1.8	1.8	2.1	2.1
Speed preselection		-	-	-	●
Right/left rotation		-	●	-	●
Spindle collar dia.	mm 43	43	43 43

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.
Bosch Power Tools 1 609 92A 411 | (9.11.17)

8 | English

Impact Drill	GSB ...	13	13 RE	16	16 RE
Max. drilling dia.
- Concrete	mm	13	13	16	16
- Steel	mm	10	10	12	12
- Wood	mm	20	20	25	25
Chuck clamping range	m m 1.5 - 13 1.5 - 13 1.5 - 13 1.5 - 13
Weight according to EPTA-Procedure 01:2014	kg 1.6 1.6 1.8 1.8
Protection class		☐/II	☐/II	☐/II	☐/II

The values given are valid for a nominal voltage [U] of 230 V. For different voltages and models for specific countries, these values can vary.

Assembly

▶ Before any work on the machine itself, pull the mains plug.

Auxiliary Handle (see figure A)

▶ Operate your machine only with the auxiliary handle 9.

The auxiliary handle 9 can be set to any position for a secure and low-fatigue working posture.

Turn the bottom part of the auxiliary handle 9 in anticlockwise direction and insert the depth stop 11.

Pull out the depth stop until the distance between the tip of the drill bit and the tip of the depth stop corresponds with the desired drilling depth X.

Afterwards, tighten the bottom part of the auxiliary handle 9 again by turning in clockwise direction.

The knurled surface of the depth stop 11 must face upward.

Changing the Tool

Keyless Chuck (see figure B)

Hold the rear sleeve 3 of the keyless chuck 1 tight and turn the front sleeve 2 in rotation direction ①, until the tool can be inserted. Insert the tool.

Hold the rear sleeve 3 of the keyless chuck 1 tight and firmly turn the front sleeve 2 in rotation direction ② by hand until the locking action is no longer heard. This automatically locks the drill chuck.

The locking is released again to remove the tool when the front sleeve 2 is turned in the opposite direction.

Key Type Drill Chuck (see figure C)

▶ Wear protective gloves when changing the tool. The drill chuck can become very hot during longer work periods.

Open the key type drill chuck 13 by turning until the tool can be inserted. Insert the tool.

Insert the chuck key 12 into the corresponding holes of the key type drill chuck 13 and clamp the tool uniformly.

Screwdriver Tools (see figure D)

When working with screwdriver bits 15, a universal bit holder 14 should always be used. Use only screwdriver bits that fit the screw head.

For driving screws, always position the "Drilling/Impact Drilling" selector switch 4 to the "Drilling" symbol.

Replacing the Drill Chuck

Removing the Drill Chuck (see figure E)

To dismount the keyless chuck 1, clamp a Hex key 16 into the keyless chuck 1 and position an open-end spanner 17 (size 14) against the spanner flats of the drive spindle. Place the machine on a firm support, e.g., a workbench. Hold the open-end spanner 17 firmly and loosen the keyless chuck 1 by turning the Hex key 16 in rotation direction ①. Loosen a tight seated keyless chuck by giving the long end of the Hex key 16 a blow. Remove the Hex key from the keyless chuck and completely unscrew the keyless chuck.

The key type drill chuck 13 is removed in the same manner as the keyless chuck.

Mounting the Drill Chuck (see figure F)

The keyless chuck/key type drill chuck is mounted in reverse order.

The drill chuck must be tightened with a tightening torque of approx. 33–39 Nm.

Dust/Chip Extraction

▶ Dust from materials such as lead-containing coatings, some wood types, minerals and metal can be harmful to one's health. Touching or breathing-in the dust can cause allergic reactions and/or lead to respiratory infections of the user or bystanders.
Certain dust, such as oak or beech dust, is considered carcinogenic, especially in connection with wood-treatment additives (chromate, wood preservative). Materials containing asbestos may only be worked by specialists.
- Provide for good ventilation of the working place.
- It is recommended to wear a P2 filter-class respirator. Observe the relevant regulations in your country for the materials to be worked.

▶ Prevent dust accumulation at the workplace. Dust can easily ignite.

Operation

Starting Operation

▶ Observe correct mains voltage! The voltage of the power source must agree with the voltage specified on the nameplate of the machine. Power tools marked with 230 V can also be operated with 220 V.

English|9

Products sold in AUS and NZ only: Use a residual current device (RCD) with a rated residual current of 30 mA or less.

Reversing the rotational direction (see figures G-H) (GSB 13 RE/GSB 16 RE)

▶ Actuate the rotational direction switch 8 only when the machine is at a standstill.

The rotational direction switch 8 is used to reverse the rotational direction of the machine. However, this is not possible with the On/Off switch 6 actuated.

Right Rotation: For drilling and driving in screws, push the rotational direction switch 8 upward on the left side and at the same time downward on the right side.

Left Rotation: For loosening and unscrewing screws and nuts, push the rotational direction switch 8 downward on the left side and at the same time upward on the right side.

Setting the operating mode

Drilling and Screwdriving

Set the selector switch 4 to the "Drilling" symbol.

Impact Drilling

Set the selector switch 4 to the "Impact drilling" symbol.

The selector switch 4 engages noticeably and can also be actuated with the machine running.

Switching On and Off

To start the machine, press the On/Off switch 6 and keep it pressed.

To lock the pressed On/Off switch 6, press the lock-on button 5.

To switch off the machine, release the On/Off switch 6 or when it is locked with the lock-on button 5, briefly press the On/Off switch 6 and then release it.

Adjusting the Speed/Impact Rate (GSB 13 RE/GSB 16 RE)

The speed/impact rate of the switched on power tool can be variably adjusted, depending on how far the On/Off switch 6 is pressed.

Light pressure on the On/Off switch 6 results in low speed/impact rate. Further pressure on the switch increases the speed/impact rate.

Preselecting the Speed/Impact Rate (GSB 16 RE)

With the thumbwheel for speed preselection 7, the required speed/impact rate can be preselected even during operation. The required speed/impact rate depends on the material and the working conditions, and can be determined through practical testing.

Working Advice

▶ Apply the power tool to the screw/nut only when it is switched off. Rotating tool inserts can slip off.

After longer periods of working at low speed, allow the machine to cool down by running it for approx. 3 minutes at maximum speed with no load.

For drilling in tiles, set the selector switch 4 to the "Drilling" symbol. Do not switch over to the symbol "Impact Drilling" or work with impact until after drilling through the tile.

Use carbide tipped drill bits when working in concrete, masonry and brick wall.

For drilling in metal, use only perfectly sharpened HSS drill bits (HSS=high-speed steel). The appropriate quality is guaranteed by the Bosch accessories program.

Twist drills from 2.5–10 mm can easily be sharpened with the drill bit sharpener (see accessories).

GSB 16 RE

We recommend the use of a drill stand (see accessories) for work where greater precision is particularly required.

The machine vice, which is available as an accessory, enables secure clamping of workpieces. This prevents the workpiece from turning and any accidents this would cause.

Maintenance and Service

Maintenance and Cleaning

▶ Before any work on the machine itself, pull the mains plug.
For safe and proper working, always keep the machine and ventilation slots clean.

If the replacement of the supply cord is necessary, this has to be done by Bosch or an authorized Bosch service agent in order to avoid a safety hazard.

After-sales Service and Application Service

Our after-sales service responds to your questions concerning maintenance and repair of your product as well as spare parts. Exploded views and information on spare parts can also be found under:

www.bosch-pt.com

Bosch's application service team will gladly answer questions concerning our products and their accessories.

In all correspondence and spare parts orders, please always include the 10-digit article number given on the nameplate of the product.

Cambodia

Robert Bosch (Cambodia) Co., Ltd

Unit 8BC, GT Tower, 08th Floor, Street 169,

Czechoslovakia Blvd, Sangkat Veal Vong

Khan 7 Makara, Phnom Penh

VATTIN: 100 169 511

Tel.: [phone]

Tel.: [phone]

www.bosch.com.kh

10 | English

People's Republic of China

China Mainland

Bosch Power Tools (China) Co., Ltd.

1. Bin Kang Road

Bin Jiang District 310052

Hangzhou, P.R.China

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.cn

HK and Macau Special Administrative Regions

Robert Bosch Co. Ltd

21st Floor, 625 King's Road

North Point, Hong Kong

Customer Service Hotline: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.bosch-pt.com.hk

India

Bosch Service Center

69, Habibullah Road, (Next to PSBB School), T. Nagar

Chennai-600077

Phone: [phone]

Bosch Service Center Rishyamook

85A, Panchkuin Road

New Delhi-110001

Phone: [phone]

Bosch Service Center

79, Crystal Bldg., Dr. Annie Besant Road, Worli

Mumbai-400018

Phone: [phone] /

[phone] / [phone]

Indonesia

PT Robert Bosch

Palma Tower 10 ^th Floor

Jalan RA Kartini II-S Kaveling 6

Pondok Pinang, Kebayoran Lama

Robert Bosch Middle East FZE – Pakistan Liaison Office

2nd Floor Plaza # 10, CCA Block, DHA Phase 5

Lahore, 54810

Phone: [phone]

Email: [e-mail]

Philippines

Robert Bosch, Inc.

28th Floor Fort Legend Towers,

3rd Avenue corner 31st Street,

Fort Bonifacio, Global City,

1634 Taguig City

Tel.: [phone]

Fax:[phone]

www.bosch-pt.com.ph

Singapore

Powerwell Service Centre Ptd Ltd

Bosch Authorised Service Centre (Power Tools)

4012 Ang Mo Kio Ave 10, #01-02 TECHplace

Singapore 569628

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

www.powerwellsc.com

www.bosch-pt.com.sg

Thailand

Robert Bosch Ltd.

Liberty Square Building

No. 287, 11 Floor

Silom Road, Bangrak

Bangkok 10500

Tel.: [phone]

Fax: [phone]

Robert Bosch Ltd., P. O. Box 2054

Bangkok 10501

www.bosch.co.th

Bosch Service – Training Centre

La Salle Tower Ground Floor Unit No.2

10/11 La Salle Moo 16

Srinakharin Road

Bangkaew, Bang Plee

Samutprakarn 10540

Tel.: [phone]

Fax:[phone]

Vietnam

Branch of Bosch Vietnam Co., Ltd in HCMC

Floor 10, 194 Golden Building

473 Dien Bien Phu Street

Ward 25, Binh Thanh District, Ho Chi Minh City

Tel.: [phone]

Fax: [phone]

Hotline: [phone]

www.bosch-pt.com.vn

Armenia, Azerbaijan, Georgia, Kyrgyzstan, Mongolia, Tajikistan, Turkmenistan, Uzbekistan

TOO "Robert Bosch" Power Tools, After Sales Service

Rayimbek Ave., 169/1

050050, Almaty, Kazakhstan

Service Email: [e-mail]

Official Website: www.bosch.com, www.bosch-pt.com

Bahrain

Hatem Al Juffali Technical Equipment Establishment.

Kingdom of Bahrain, Setra Highway, Al Aker Area

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Egypt

Unimar

20 Markaz kadmat

El tagmoa EL Aoul - New Cairo

Phone: [phone]

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Iran

Robert Bosch Iran

3rd Floor, No 3, Maadiran Building

Aftab St., Khodami St., Vanak Sq.

Tehran 1994834571

Phone: [phone]

Iraq

Sahba Technology Group

Al Muthana airport road

Baghdad

Phone: [phone]

Phone Dubai: [phone]

Email: [e-mail]

Jordan

Roots Arabia – Jordan

Nasser Bin Jameel street, Building 37 Al Rabiah

11194 Amman

Phone: [phone]

Email: [e-mail]

Kuwait

Al Qurain Automotive Trading Company

Shuwaikh Industrial Area, Block 1, Plot 16, Street 3rd

P.O. Box 164 - Safat 13002

Phone: [phone]

Fax: [phone]

E-mail: [e-mail]

Lebanon

Tehini Hana & Co. S.A.R.L.

P.O. Box 90-449

Jdeideh

Dora-Beirut

Phone: [phone]

Email: [e-mail]

Libya

El Naser for Workshop Tools

Swanee Road, Alfalah Area

Tripoli

Phone: [phone]

Oman

Malatan Trading & Contracting LLC

P.O. Box 131

Ruwi, 112 Sultanate of Oman

Phone: [phone]

Email: [e-mail]

Qatar

International Construction Solutions W L L

P. O. Box 51, Doha

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Saudi Arabia

Juffali Technical Equipment Co. (JTECO)

Kilo 14, Madinah Road, Al Bawadi District

Jeddah 21431

Phone: [phone] Ext. 1528

Fax: [phone]

Email: [e-mail]

Syria

Dallal Establishment for Power Tools

P.O. Box 1030

Aleppo

Phone: [phone]

Email: [e-mail]

United Arab Emirates

Central Motors & Equipment LLC, P.O. Box 1984

Al-Wahda Street – Old Sana Building

Sharjah

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Yemen

Abualrejal Trading Corporation

Sana'a Zubiery St. Front to new Parliament Building

Phone: [phone]

Fax: [phone]

Email: [e-mail]

Ethiopia

Forever plc

Kebele 2,754, BP 4806,

Addis Ababa

Phone: [phone]

Email: [e-mail]

Ghana

C.WOERMANN LTD.

Nsawam Road/Avenor Junction, P.O. Box 1779

Accra

Phone: [phone]

Kenya

Robert Bosch East Africa Ltd

Mpaka Road P.O. Box 856

00606 Nairobi

12|中文

Nigeria

Robert Bosch Nigeria Ltd.

52-54 Isaac John Street P.O. Box

GRA Ikeja - Lagos

Republic of South Africa

Customer service

Hotline: [phone]

Gauteng - BSC Service Centre

35 Roper Street, New Centre

Johannesburg

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

KZN - BSC Service Centre

Unit E, Almar Centre

143 Crompton Street

Pinetown

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Western Cape - BSC Service Centre

Democracy Way, Prosperity Park

Milnerton

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Bosch Headquarters

Midrand, Gauteng

Tel.: [phone]

Fax: [phone]

E-Mail: [e-mail]

Tanzania

Diesel & Autoelectric Service Ltd.

117 Nyerere Rd., P.O. Box 70839

Vingunguti 12109, Dar Es Salaam

Phone: [phone]

Australia, New Zealand and Pacific Islands

Robert Bosch Australia Pty. Ltd.

Power Tools

Locked Bag 66

Clayton South VIC 3169

Customer Contact Center

Inside Australia:

Phone: [phone]

Fax: [phone]

Inside New Zealand:

Phone: [phone]

Fax: [phone]

Outside AU and NZ:

Phone: [phone]

www.bosch-pt.com.au

www.bosch-pt.co.nz

Disposal

The machine, accessories and packaging should be sorted for environmental-friendly recycling.

Do not dispose of power tools into household waste!

Subject to change without notice.

中文

安全规章

电动工具通用安全警告

Mechanics and Electronics Ltd. PT/SAX-ASA

298 Bojeong-dong Giheung-gu

Yongin-si, Gyeonggi-do, 446-913

080-955-0909

처리
