Product Type	Desktop Computer
Brand	Mach Power
Model	EB-MP2940
Form Factor	Tower
Dimensions (W x D x H)	175 x 385 x 410 mm
Weight	Approx. 8 kg
Power Supply	400W
Operating System	Windows 10 / 11
Processor	Intel Core i5 or equivalent
Memory (RAM)	8 GB DDR4
Storage	256 GB SSD + 1 TB HDD
Graphics	Integrated Intel UHD Graphics
Connectivity	USB 3.0, USB 2.0, HDMI, VGA, Ethernet, Audio jacks
Cleaning	Use a soft, dry cloth. Avoid liquids.
Safety	Keep away from heat sources; ensure proper ventilation.
Spare Parts	Available through authorized service centers.
Repair	User-replaceable: RAM, storage, power supply.
Warranty	2 years

Frequently Asked Questions - EB-MP2940 Mach Power

How do I connect the computer to a monitor?

Use an HDMI or VGA cable to connect the monitor to the corresponding port on the back of the computer.

Can I upgrade the RAM?

Yes, the RAM is user-accessible. Open the side panel and insert compatible DDR4 modules into the available slots.

How do I clean the computer?

Power off and unplug the computer. Use a soft dry cloth to wipe the exterior. For internal dust, use compressed air.

What should I do if the computer does not turn on?

Check the power cable connection and ensure the power supply switch is on. Try a different outlet.

How do I perform a factory reset?

Go to Settings > Update & Security > Recovery and select 'Reset this PC'. Follow the on-screen instructions.

Can I connect multiple monitors?

Yes, if your graphics card supports it. Use the available HDMI and VGA ports to connect additional monitors.

What is the recommended way to shut down the computer?

Always use the Start menu to shut down properly to avoid data loss or system errors.

How do I access the BIOS?

Restart the computer and press F2 or Delete repeatedly during startup to enter the BIOS setup.

Where can I find spare parts?

Spare parts are available through authorized Mach Power service centers. Check the warranty card for details.

How do I update the drivers?

Use Windows Update or download the latest drivers from the manufacturer's website.

USER MANUAL EB-MP2940 Mach Power

User manual

Mini PC

EB-MPI5 / EB-MP2940

INDEX

Product Description ..... 5
Installation ..... 6
Installation with VESA support ..... 6
Vertical installation ..... 7
Trouble shooting ..... 8

Thank you for purchasing one of our products.

Before using the Mini Pc, it is advisable to read this manual carefully.

Our company believes in the sustainable development strategy. The manual can be updated aperiodically without notice. The user's manual is for reference only, there is no commitment or statement for it.

Back up all important data saved on this device. Data may be lost during use, repair, or battery replacement. We take no responsibility for any data lost while using the device. Except for the mini pc hardware, we have no express or implied representations or warranties. Including (but not limited to) ownership of the software's operating system, marking, suitability for specific use and not being accused of infringement of any third party's proprietary, patent, trademark or warranty rights for other rights.

Without the written permission of our company, any copying, transmission or storage of any content of the manual is not permitted.

Safety

Before using your mini pc, please read these safety instructions and keep them for reference.

Note:

1. To ensure safety, please use the recommended power adapter.
2. When the mini pc is running, do not unplug the power supply to avoid damage caused by sudden shutdown.
3. Keep the device away from high temperatures or direct sunlight and avoid dusty and mechanical vibration environments. This device is not waterproof to use in dry and ventilated environments.
4. Do not drop, hit or shake the device, please do not disassemble the device without any guidance and only rely on experienced personnel, improper use can damage the product.
5. Do not overload the sockets, it may result in fire or short circuit.
6. Do not insert anything into the device, it may cause short circuit, fire or electric shock.
7. Do not use harsh chemicals or detergents to clean the device.
8. Remove the power adapter if the mini PC is not used for a long time, and to avoid damage caused by electric shock during thunderstorm or abnormal voltage.
9. Electrostatic disturbance is a normal phenomenon if the device is used in a dry place in autumn and winter and it is advisable not to touch the device during use.
10. Please connect the power plug to the nearest power outlet.

PRODUCT DESCRIPTION

Model: EB-MP2940

1 LAN 5 USB 3.0
2 LED indicator 6 HDMI
3 DC 7 VGA
4 ON / OFF 8 Reset

Model: EB-MPI5

1 Mouse Port 6 VGA
2 COM 7 LAN
3 USB 3.0 8 DC
4 USB 2.0 9 ON / OFF
5 HDMI

INSTALLATION

1. Monitor

Connect the mini PC via cable to the monitor using the HDMI or VGA port. For example if you are using an HD monitor connect via the HDMI port.

2. Internet

Connect one end of the Lan cable to the mini pc, via the Lan port, the other end to the switch or router.

3. Mouse and Keyboard

Connect the mouse and keyboard to the mini pc via the USB ports.

4. Audio

Connect audio devices (headphones or speakers) to the mini pc via the Audio In / Out ports. Note: Green for the audio output, red for the input (microphone).

5. Power supply

Connect the device to the power supply, green indicator, you can use the mini pc. Notes: use standard power adapters, ask your dealer for any spare parts.

INSTALLATION WITH VESA SUPPORT

(Make sure your monitor has standard VESA mounts)

Monitor Mini PC

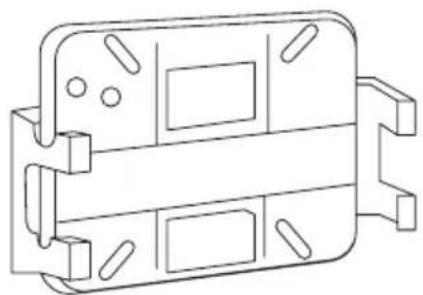

VESA mounth bracket

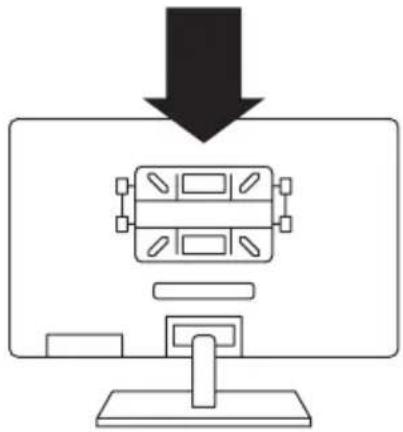

Step 1: Use the screws to fix the Vesa holder to the back of the Monitor.

Step 2: As shown, insert the mini pc from above and fix it with the screws.

Step 3: Complete the installation of the VESA support

VERTICAL INSTALLATION

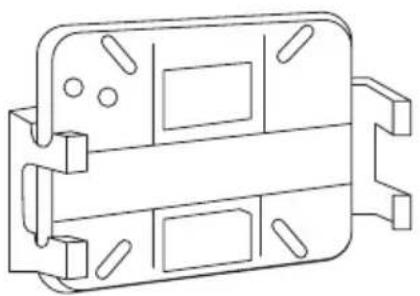

Step 1: Attach the Vesa holder to the table with screws

Step 2: Insert the device and fix it with screws

TROUBLE SHOOTING

Sound Alarm Resolution
One short beep Start normally
Two short beeps	Common mistake, go into CMOS and change settings
One long beep + one short beep Memory or motherboard error
One short beep + one long beep Keyboard error
One short beep + 3 long beeps Monitor or video error
Long beep + 9 short beeps Damage to the motherboard BIOS
Constant long beep Memory error
Constant short beep (bee - bee - bee - bee...)	Power / Monitor / Video disconnected
Regular short beep (bee bee bee - bee bee bee...)	Power supply error

Problem description

Keyboard error or keyboard not present, it is shown on the screen after startup, the Mini PC cannot access the operating system.

Resolution

keyboard error or keyboard not present. Connect the keyboard again. If it doesn't fix, re-start the Mini pc and press (Delete) to enter the BIOS, go to HALT ON in the SETUP BIOS STANDARD and set ALL BUT KEYBOARD.

Problem description

After startup, the low CMOS battery level appears on the display.

Resolution

CMOS low battery level. Replace the CMOS battery.

Problem description

Nothing is displayed on the screen and with constant audio beep (bee-bee-bee). When the mini PC is started after a long period of inactivity.

Resolution

Check if the memory is disconnected or not connected well. If yes but still not solved, check if the capacitor is not bad. If it is not faulty, change the CMOS battery.

Problem description

when the mini PC suddenly shuts down due to a loss of power, it will automatically turn on again when the power supply is reconnected.

Resolution

Enter the BIOS, go to (Advanced Power Management), set RESTORE ON AC POWER LOSS as POWER OFF.

Problem description

during a long period of operation the mini pc has problems with crashes, blue screen or other malfunctions.

Resolution

Reinstall the operating system. If after reinstalling the operating system the problems are not solved, there may be too much dust on the surface of the motherboard which can cause short circuits. Remove the dust with a blower or brush.

Problem description

the mini pc turns off automatically during use, and does not turn on again by pressing the power button, black screen but light indicator on.

Resolution

Try reinserting the memory. If the problem persists download CMOS and restart the mini pc.

Problem description

The mini pc does not start and there is a constant beep.

Resolution

Reinsert the memory.

INDICE

1 LAN 5 USB 3.0
2 Indicatori LED 6 HDMI
3 DC 7 VGA
4 ON / OFF 8 Reset

Modello: EB-MPI5

1 Porta Mouse 6 VGA
2 COM 7 LAN
3 USB 3.0 8 DC
4 USB 2.0 9 ON / OFF
5 HDMI

INSTALLAZIONE

1. Monitor

Monitor Mini PC

1 LAN 5 USB 3.0
2 Indicadores LED 6 HDMI
3 DC 7 VGA
4 ON / OFF 8 Reiniciar

Modelo: EB-MPI5

1 Porta Ratón 6 VGA
2 COM 7 LAN
3 USB 3.0 8 DC
4 USB 2.0 9 ON / OFF
5 HDMI

INSTALACIÓN

1. Supervisar

Supervisar Mini PC

VESA Soporte de mont

Step 2: Inserte el dispositivo y fijelo con tornillos.
