DES-330 - Hedge Trimmer Truper - Free user manual and instructions

Product Type	Gasoline Hedge Trimmer / Brush Cutter
Brand	Truper
Model	DES-330
Code	11029
Motor Type	2-stroke, air-cooled
Motor Displacement	33 cc
Rated Power	1.4 Hp
Fuel	Unleaded gasoline (87+ octane) mixed with 2-cycle oil
Fuel Mixture Ratio	40:1 (gasoline:oil)
Fuel Tank Capacity	0.23 gal (0.87 L)
No-Load Speed	9000 RPM
Cutting System	Nylon line and blade
Cutting Width	18" (45.7 cm)
Blade Diameter	Outer 10", Inner 1"
Nylon Line Diameter	0.09" - 0.14" (2.3 - 3.6 mm)
Shaft Length	5.2 ft (1.6 m)
Handle Type	Bicycle handle
Net Weight	19.8 lb (9 kg)
Spark Plug	NGK BPMR7A (gap 0.025")
Work Cycle	20 min rest per tank, max 6 hours daily
Warranty	1 year

Frequently Asked Questions - DES-330 Truper

What type of fuel should I use?

Use unleaded gasoline with an octane rating of 87 or higher, mixed with high-quality 2-cycle oil at a ratio of 40:1 (gasoline:oil). Do not use pre-mixed fuel from service stations or automotive oil.

How do I start the hedge trimmer?

For a cold start: set the switch to ON, press and release the primer bulb 10 times, move the choke lever upwards, press the trigger release and throttle trigger simultaneously, then pull the starter handle up to 4 times. If the engine doesn't start, move the choke lever downwards and pull up to 6 times.

How do I switch between blade and nylon line?

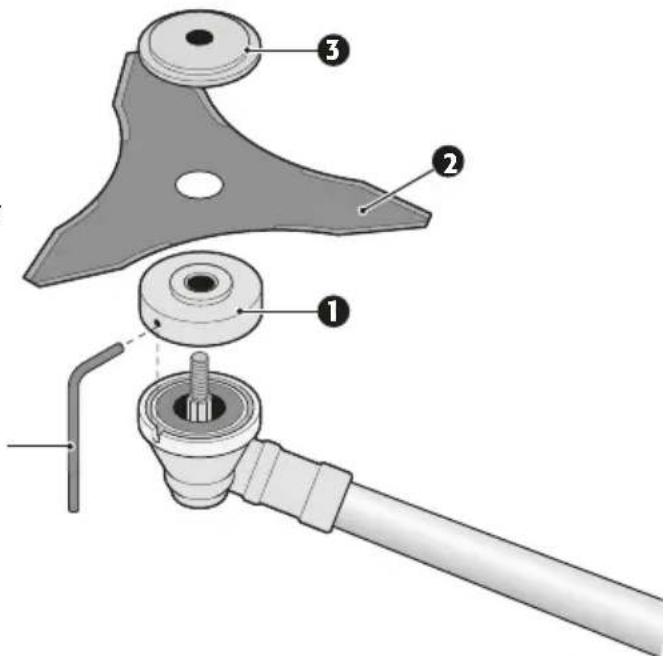

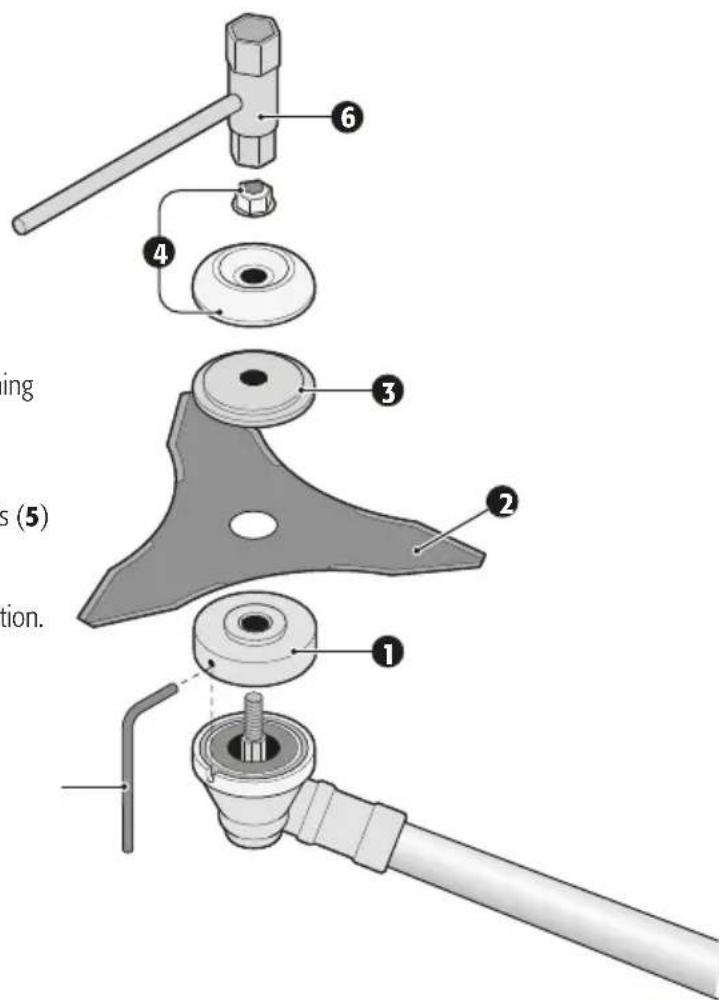

To install the blade: press the turn table onto the cutter head, set the blade with correct rotation direction, add flange, cover, and lock nut, then tighten counterclockwise using the included wrench while blocking the axis with an Allen key. For the nylon line spool: press the turn table onto the cutter head, add flange, block the axis, and screw the spool on counterclockwise. Use the guard with protection for line mode, and remove the protection for blade mode.

How often should I clean the air filter?

Clean the air filter as frequently as necessary to keep it always clean. Tap it lightly against a flat surface or use compressed air on both sides. For thorough cleaning, wash in soapy water, rinse, and let it dry completely before reinstalling.

What spark plug does the DES-330 use?

The engine uses a NGK BPMR7A spark plug with an electrode gap of 0.025 inches. Replace it once a year with an identical plug.

How do I lubricate the gearbox?

Add lithium-based multiple use grease every 25 hours of operation. Insert the grease device into the nipple and pump twice.

What should I do if the engine won't start?

Check for spark by removing the spark plug, connecting the cable, and pulling the starter handle. If no spark, replace the spark plug. Check for fuel by pressing the primer bulb; if fuel doesn't appear, the system may be blocked. If the engine is flooded, remove the spark plug, set choke down, and pull the starter 15-20 times to clear excess fuel, then reinstall the plug and try starting.

Can I use the hedge trimmer in wet conditions?

The manual does not specify wet conditions, but it is designed for outdoor use. However, always avoid contact with power lines and water sources to reduce the risk of electric shock or damage. Use caution on wet grass as it may be slippery.

How do I store the hedge trimmer for long periods?

Drain the fuel tank into an approved container. Run the engine until it stops to burn residual fuel. Clean the tool thoroughly and store it in a ventilated area away from corrosive agents and out of reach of children.

Where can I get service or repairs?

Service must be carried out by TRUPER Authorized Service Centers. Refer to the list in the manual or visit www.truper.com for an updated list. You can also call toll-free numbers 01(800) 690-6990 or 01(800) 018-7873 for information.

USER MANUAL DES-330 Truper

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Medical procedure illustration showing a surgical tool inserted into a patient's chest with catheter placement (no text or labels)

Silhouette of a humanoid robot with a lever and labeled point A (no text or symbols on the robot or background)

Diagram of a humanoid robot with a lever and a 20 cm distance measurement indicator (no text or symbols on the diagram itself)

Mechanical assembly diagram showing a component with a valve and connector (no visible text or symbols)

Encendido

Operación

Mechanical assembly diagram showing a cylindrical component mounted on a base with a circular inset view of a ring (no text or symbols)

S.A. DE C.V. BLVD. HAROLD R. PAPF No. 1000. COL

CENTRO C.P. 25700 MONCLOVA, COAH

TEL: [phone] FAX: [phone]

COLIMA

671242 SURTIDORA DE FERRETERÍA AV. ANTONIO

LEANO ALVAREZ No. 527 COL. PONCIANO ARRIAGA.

TECOMÁN, TEL.: [phone] y 7666 FAX: [phone]

CHIAPAS

671770 TORNILLOS Y HERRAMIENTAS PINEDA 17

PONIENTE No. 20-4 COL CENTRO TAPACHULA

CHIAPAS

TEL: [phone]

671709 FERRETERA MANDIOLA, S.A. DE C.V. 5a

NORTE PONIENTE No. 1615-B. COL. MOCTEZUMA.

CENTRO, CT.2520, CHIS

671730 MATERIALES Y ACEROS BALAM S.A.

PERIFFERICO NORTE-PONIENTE No. 50 COL BISMAR SN

CRISTOBAL DE LAS CASAS TEL : [phone] y

7422

670781 PREFABRICADOS DE PALENQUE, S.A. DE

C.V. km 1 CARRETERA PALENOUE - PAKAL-NA S/N

ENTRADA LIENZO CHARRO C P. 22960 PALENQUE

CHIS TEL · 01 [phone] | 345-153

AV. TEXCOCO No. 354, COL. METROPOLITANA 2A

LAS PALMERAS No. 48 COL. CENTRO, COYUCA DE

BENÍTEZ, GRO. TEL.: [phone]

671677

MARIANO ABASOLO S/N COL. OMETEPEC CENTRO.

OMETEPEC, GRO.TEL.: [phone]

670915 MUNDO TOOL MÉXICO, S.A.

ALLENDE No. 320, COL CENTRO C.P. 42000, PACHUCA,

HGO. TEL. Y FAX: [phone]

670640 SAN ANTONIO MATERIALES PARA

AV. LA PAZ No.1180, COL. CENTRO, GUADALAJARA, JAL.

TEL: [phone] v 59

FAX: [phone]

670770 ACEROS Y MATERIALES DIAZ S.A. DE C.V.

AV. FRANCISCO ZARCO No. 755, COL FLORIDA C.P.

1. OCOTLAN. JAL. TEL.: [phone] | 922-0177

C.V. IGNACIO ZARAGOZA No. 187 B, COL. CENTRO,

C.P. 61650 TACÁMBARO MICH TEL: [phone]

FAX: [phone]

CARR. COSTERA DEL PACÍFICO No. 300, COL. LOS

RIVERA ATOYAC No. 325, COL. SANTA CRUZ BUENA

VISTA C.P. 72810 SAN ANDRES CHOLILA PUE TEL /

FAX: [phone]

671211 SERVITEC

AV. DE LA IUVENTUD No. 1103 ESQ. 7 SUR,COI

NICÓLAS BRAVO C.P. 75790, TEHUACAN, PUE, TEL /

FAX: [phone]

671822 TIENDA FIX TEHUACAN

AV. SEGUNDA DE MORELOS No. 303. COL. CENTRO.

TEHUACAN, TEL.: [phone]

QUERÉTARO

670402 MOTORES Y HERRAMIENTAS ELÉCTRICAS

AV. 6 No. 1004-B ESQ. CALLE 19, COL. LOMAS DE CASA

BLANCA C.P. 76080, QUERETARÓ, ORO.

TEL Y FAX : [phone]

ATENAS No. 71, COL. NUEVA MINA C.P. 96760

MINATITLAN, VER. TEL. / FAX : [phone]

571605

HUMBOLT SUR No. 49, COL. CENTRO C.P. 91270

PEROTE VER TEL: [phone] | 825-6408

670397 LA CASA DISTRIBUIDORA TRUPER CALLE

URUGUAY No. 713, COL. 27 DE SEPTIEMBRE C.P. 93320.

POZA RICA, VER. TÉL / FAX: [phone] | 826-8484

671535 DISTRIBUIDORA SANVER S.A. DE C.V.

CARRETERA NAL TUXPAN-TAMPICO km 64 COL LA

MORITA, TANTOYUCA, C.P. 92101 TEL.: [phone]

671451 MAYORISTAS JAGUAR S.A. DE C.V. AV

IGNACIO ALLENDE No. 2377 COL CENTRO VERACRUZ

TEL: [phone]

671781 MATERIALES Y ACEROS TUCÁN S.A. DE C.V.

PROL. AV. MIGUEL ALEMAN No. 3800 COL. ARTICULO

123, VERACRUZ, TEL.: [phone]

671452 COMERCIALIZADORA FERRESMAR

CAYETANO RIVERA No. 47 COL. DEL MAESTRO,

VERACRUZ, TEL. [phone]

TEL./FAX:[phone]

SUCURSAL CENTRO FORÁNEO

AV. PARQUE INDUSTRIAL No. 1-A, JILOTEPEC, ESTADO DE MÉXICO, C.P. 54240 CONMUTADOR: 01(761) 782-9101 EXT. 5728 y 5102

SUCURSAL CENTRO

CALLE D No. 31-A, COL. MODELO DE ECHEGARAY, NAUCALPAN, EDO. DE MÉXICO, C.P. 53330 TEL.: [phone]

SUCURSAL CHIHUAHUA

AV. SILVESTRE TERRAZAS No. 128-11 PARQUE INDUSTRIAL BAFAR, CARRETERA MÉXICO CUAUHTEMOC, CHIHUAHUA, CHIH. TEL.: [phone]

SUCURSAL CULIACAN

LIBRAMIENTO BENITO JUÁREZ No. 5599 B4, EJIDO DE LAS FLORES (LA COSTERITA), CULIACÁN, SINALOA, C.P. 80296 CONMUTADOR: 01(667) 760-5747

SUCURSAL GUADALAJARA

ADOLF BERNARD HORN No. 6800, TLAJOMULCO DE ZUÑIGA, JALISCO, C.P. 45655 CONMUTADOR: 01(33) 3606-5290

SUCURSAL LAGUNA

CALLE METAL MECÁNICA No. 280, PARQUE INDUSTRIAL ORIENTE, TORREÓN, COAHUILA, C.P. 27278 CONMUTADOR: 01(871) 209-6823

SUCURSAL MÉRIDA

CALLE 33 No. 600 y 602 LOCALIDAD ITZINCAB Y MULSAY, MUNICIPIO UMAN, MÉRIDA, YUCATÁN, C.P. 97390 CONMUTADOR: 01(999) 912-2451

SUCURSAL MONTERREY

AV. STIVA No. 275, PARQUE INDUSTRIAL STIVA BARRAGÁN, SAN NICÓLAS DE LOS GARZAS, MONTERREY, NUEVO LEÓN, C.P. 66420 TELS.: 01(81) 8352-8791 y 8790

SUCURSAL PUEBLA

AV. PERIFÉRICO No. 2-A, SAN LORENZO ALMECATLA, COL. CUAUTLALCINGO, PUEBLA, PUEBLA, C.P. 72710 CONMUTADOR: 01(222) 2-82-82-82

SUCURSAL TIJUANA

AV. LA ENCANTADA, LOTE NO. 5, PARQUE INDUSTRIAL EL FLORIDO II TIJUANA, BAJA CALIFORNIA, C.P. 22241, CONMUTADOR: 01 [phone]

SUCURSAL VILLAHERMOSA

CALLE HELIO LOTES 1, 2 Y 3 MZNA. No. 1, COL. INDUSTRIAL, 2A ETAPA, VILLAHERMOSA, TAB. C.P. 86010 CONMUTADOR : 01(993) 353-7244

Modelo Código

DES-330 11029

Marca

TRUPER

Póliza de Garantía

Technical illustration of a mechanical engine assembly with hoses and components (no text or symbols)

33 cc

Motor

Technical Data....3

Fuel Specifications 3

Safety warnings for motor tools 4

Safety warnings for grass trimmers 5

Parts 6

Assembly 7

Fuel supply 9

Tuning on 9

Operation 10

Maintenance....11

Troubleshooting 12

Notes 13

Authorized service centers 15

Branches 16

Warranty policy 16

WARNING

To gain the best performance of the tool, prolong the duty life, make the Warranty valid if necessary, and to avoid hazards of fatal injuries please read and understand this Manual before using the tool.

Keep this manual for future references.

The illustrations in this manual are for reference only. They might be different from the real tool.

DES-330

Code	11029
Description	Gasoline grass trimmer
Net weight	19.8 lb
Motor	33 cc
Motor rated power	1.4 Hp
Fuel tank	0.23 gal
Speed	9000 RPM
Cutting capacity	18"
Axis length	5.2 ft
Cutting systems	Nylon line spool and blade
Blade diameter	Outer: 10" Inner: 1"
Nylon line diameter	From 0.09" to 0.14" (recommended)
Type of handle	"Bicycle" type
Work cycle	20 minutes rest per each tank consumed.Maximum 6 hours daily.

Fuel specifications

• The grass trimmer has an air-cooled 2-cycle motor using a mix of unleaded gasoline and high quality self-propulsion oil with fuel stabilizer specified for air-cooled two-cycle motors.
• The motor is certified to run with unleaded gasoline for vehicles with 87 or more ([R+M]) octane level.
• Do not use any type of gasoline premixed with oil bought in service stations such as gasoline for motorcycles.
• Do not use automotive oil or oil for 2-cycle outboard motors oil.

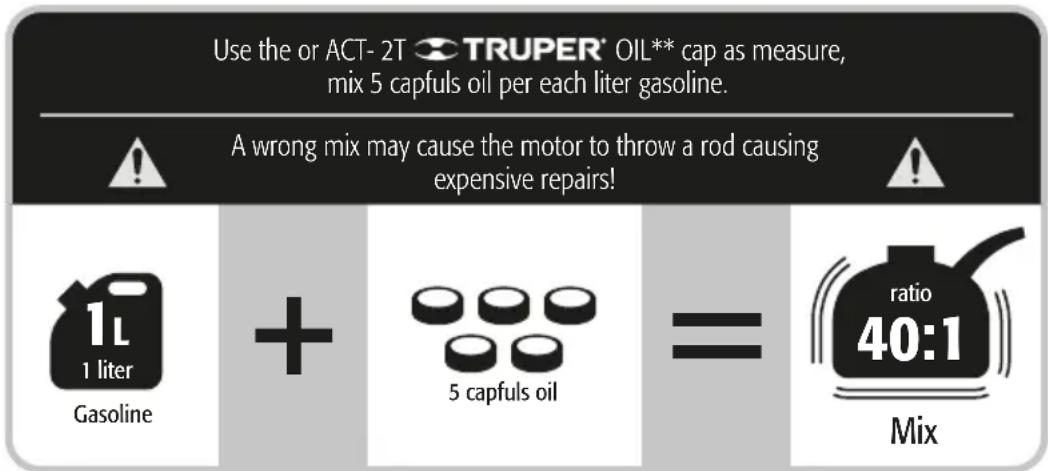

• The mix ratio should be 40 parts gasoline per 1 part oil (40:1 ratio). Prepare the mix in a gasoline-approved container. Always mix thoroughly before pouring in the motor tank.

CAUTION

Do not use fuel mix stored longer than 7 days. Make small amounts of mix.

WARNING

Never smoke near fuel, the gasoline filling up area or where the oil mix is being prepared or when ol.

WARNING

Any attempt to start the grass trimmer with no oil added to the fuel mix will damage to the grass

To prolong the useful life of the motor use TRUPER ^® two-cycle synthetic motor oil.

* 1 gallon = 3.78 liter

** Not included

Keep your work area clean, tidy and well lit.

CAUTION Cluttered and dark areas may cause accidents.

Never use the grass trimmer in explosive areas or in the presence of flammable liquids.

DANGER Before starting the motor keep the grass trimmer at least

9 meters (30 feet) away from the fill up area.

Keep children and passersby at a safe distance while operating the grass trimmer.

WARNING Distractions could cause loosing control and cause

accidents.

Avoid contact with power lines and circuits.

DANGER Find and avoid power lines and circuits, especially

hidden wiring as well as any grounded object.

Stay alert, use care and common sense.

CAUTION Familiarity with the grass trimmer operation could lead to

distractions. It could cause accidents.

Refrain from using the grass trimmer if tired or under the influence of drugs, alcohol or medication.

DANGER Being momentarily distracted while using the grass

trimmer could cause severe personal injury.

Operate the grass trimmer with guards and protection devices in place and in good working condition.

WARNING Failure to comply with this warning is a hazard of severe

personal injury.

Do not force the grass trimmer.

CAUTION Working within the tool's working design assures

a better and safer job.

Keep the grass trimmer in a safe place and out of the reach of children.

WARNING Motor powered tools are dangerous to

inexperienced people.

Wear proper clothes.

WARNING Loose clothes, jewelry or long hair could get

caught in the mobile parts.

Keep hands away from rotating and/or mobile parts.

WARNING Failure to comply with this warning is a hazard

of severe personal injury.

Do not operate the grass trimmer in enclosed areas.

DANGER Avoid breathing accumulated carbon monoxide, a

potentially deadly odorless toxic gas.

Wear adequate protective safety accessories.

CAUTION Wear eye protection, dust mask, non-skid safety shoes, helmet and ear plugs. These safety gears reduce the risk of injury.

Turn off the grass trimmer before adjusting, changing accessories or storin.

WARNING Double check the grass trimmer switch is in the off position.

Refrain from operating the grass trimmer if the switch is not working or is not properly assembled.

WARNING Failure to complain with this warning is a hazard of personal injury. Immediately send it to a

TRUPER Authorized Service Center.

Do not overreach.

CAUTION Good balance and support lead to better controlling the tool

in unexpected situations.

Avoid the grass trimmer to unintentionally start.

WARNING Double-check the grass trimmer motor is off

before maintenance or putting it away.

Remove brackets before turning on the grass trimmer.

DANGER Additional tools or vices installed in a rotating part could

cause severe personal injury.

Service the grass trimmer and double-check it is in good working conditions before operating.

CAUTION Carefully check mobile parts, alignment and assembly.

Do it periodically. Look for any damaged element or part

not working properly. Repair immediately in a

TRUPER Authorized Service Center.

Accessories.

CAUTION Use only accessories or spare parts indicated in this

Manual or certified by TRUPER:

Never leave a running grass trimmer unattended.

DANGER Turn off and disconnect the grass trimmer after using. Set

it in a safe position to avoid severe injury.

Never smoke in the proximity of fuel.

DANGER Do not smoke in the proximity of the fuelling

area or when using the grass trimmer.

Safety warnings for grass trimmers

Fuel handling

• Never smoke near fuel or where gasoline is supplied. Or where the oil mix is prepared or while operating the grass trimmer.
• Handle fuel with care to reduce risk of fire or burns. Fuel is very flammable.
• Do not allow gasoline or oil getting contact with your skin.
• Protect your eyes. Avoid spilling oil or gasoline. In the event of accidental contact, wash eyes immediately with clean water. If irritation persists, see a doctor.
• Mix and store fuel in a labeled container.

WARNING • Mix fuel outdoors away from flames or sparks.

- Before refueling the grass trimmer turn off the motor. Set the grass trimmer in the ground in a clear surface. Wait for the motor to cool down.

CAUTION • Clean all the fuel that might have been spilled before operating the grass trimmer.
CAUTION • Verify there are no leaks. If so, correct them before using the grass trimmer to prevent fire or burns.
- Move the grass trimmer at least 30 feet away from the fuel filling up site before starting the motor.
- Under no circumstance burn spilled fuel.
- Under no circumstance, use any other type of fuel different from the specified in this Manual.

Before operating the grass trimmer

- Wear the right clothes to operate the grass trimmer. Tight fitting clothes, strong pants, anti-skid safety boots, heavy-duty protecting gloves and safety glasses with side protection complying with ANSI Z87.1. Standard.

WARNING • Remove any accessory or loose clothes that could get caught by the moving cutter head. Fasten your long hair above your shoulders.

• Verify the grass trimmer is in perfect working conditions. Do not turn on is not properly adjusted or fully assembled to work in a safe manner, or if the fuel tank shows leakage or loose screws.
• Verify the cutter head stops moving when the throttle trigger is released. If it does not stop shut off the grass trimmer. Go to a TRUPER Authorized Service Center to solve the problem.
• Verify the grass trimmer is clean, dry and free of oil or fuel.
• Double-check the work area is in an open area and is well ventilated.
• Check the work area. Remove stones, pieces of broken glass, nails, wire or rope. They could be soot out or be tangled in the grass trimmer.

• In extreme temperatures verify there are no ice formations or condensation in the grass trimmer.
• Verify visibility and light condition are adequate to see clearly. Otherwise do not use the grass trimmer.
• Do not use the grass trimmer with any guards in place. Or if the guards show any type of damage or they have missing parts.

When operating the grass trimmer

CAUTION • Keep passersby, children and animals away no less than 50 feet away.
- Verify the cutter head is not making contact with any object before starting the motor.
WARNING • Keep both feet firmly set on the ground and both hands holding the grass trimmer by the handles. Never operate the grass trimmer single-handed. Otherwise the operator and any other person present may be injured.
- Keep all your body away from the cutter head when the motor is running.
- Always keep the cutting head pointed downwards, below your waist level. Never raise it above 2.4 feet from the ground.
- Keep all your body parts away from the muffler. Otherwise severe burns can occur.
- Keep the grass trimmer away from flammable materials.
- The blades are designed to cut grass and vines no thicker than 0.5" in diameter.
- Do not use the grass trimmer to cut woody shrubs.
- Be alert to surrounding risks. The grass trimmer noise could prevent you from noticing them.
DANGER • If making jobs near traffic roads, stop cutting until there are no vehicles in sight. The grass trimmer could shoot particles towards the moving vehicles and produce a severe accident.

After operating the grass trimmer

WARNING • Do not try to stop the cutter head rotating movement in any other way than releasing the switch. Wait for the cutter head stop after shutting off the grass trimmer. It will take a couple of seconds.
CAUTION • Always carry the grass trimmer with the motor off and the muffler away from your body. Before putting the grass trimmer in a vehicle, drain the fuel tank.
WARNING • Turn off the motor before idling the grass trimmer. DO NOT leave the motor running unattended. Wait for the grass trimmer to cool off before storing.
CAUTION • Highly trained personnel of a TRUPER® Authorized Service Center should only carry out service and repairs.

Handle

• Separate the hinge bracket from the straight axis frame loosening the easy adjusting knob (a).
• Set the handle in the straight axis frame.
• Secure the handle in place and tighten the easy adjusting knob firmly.

- To rotate the handle, loosen the easy adjusting knob and turn the handle (b) 90^ . This is useful to store and transport the grass trimmer.

Mechanical assembly diagram showing a lever mechanism with no visible text or symbols

Blade installation

• Press the turn table onto the cutter head (1).
• Set the blade onto the pressed turn table making sure the turning direction is the same as the sense labeled on the guard (2).
• Set the flange onto the blade (3).
• Set the cover and the lock nut (4).
• Insert the Allen key in the pressed turn table to block the axis (5) and tighten the lock nut counterclockwise using the included wrench (6).
• Use the guard with the protection removed. See the guard section.

Guard

• Fasten the guard into the cutting head using the bracket and the bolts included (A).
• If using the line spool, use the guard with the protection (B) included.

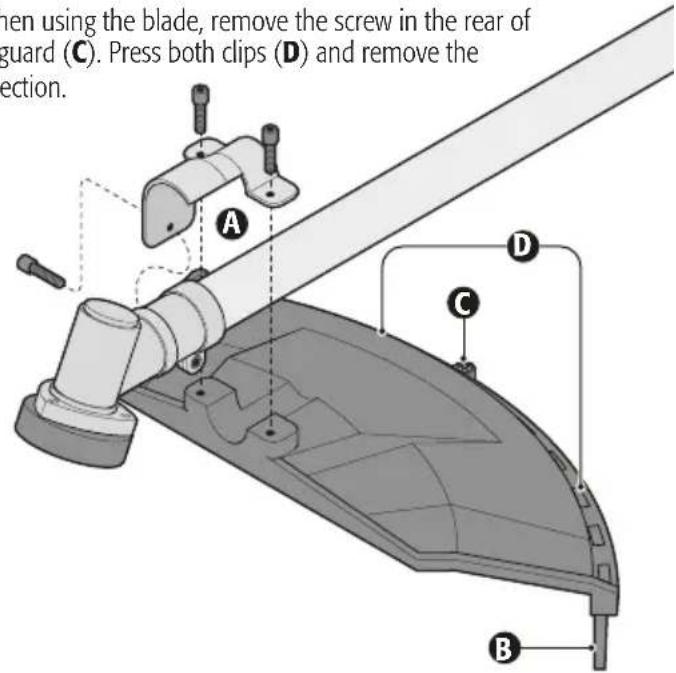

• When using the blade, remove the screw in the rear of the guard (C). Press both clips (D) and remove the protection.

Line spool installation

• Set the pressure turn table onto the cutter head (7).
• Set the flange onto the turn table (8).
• Insert the Allen key into the turn table side to block the axis.
• Place the threaded spool in the axis and tighten counterclockwise using your hand (9).
• Use the guard with the protection. See the guard section.

Balancing the grass trimmer

• Wear the harness and adjust to set it firmly and comfortably.

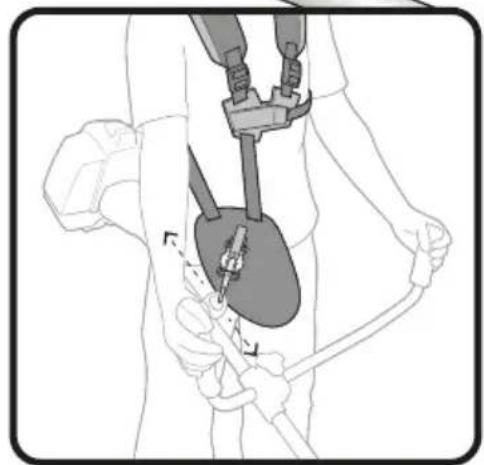

• Join the harness into the harness ring of the straight axis of the grass trimmer.
• Travel the ring upwards and downwards until the grass trimmer is balanced and the cutter head points down, below the user's waist and no more than 30" away from the ground.
• When using the line spool, the cutter head shall touch the ground slightly (A).
• When using the blade, the cutter head shall be approximately 8" away from the ground (B).

Medical illustration showing a surgical procedure on a patient's abdomen with catheter and tubing (no text or labels)

Silhouette of a humanoid robot pulling a long pole with a small object nearby, labeled 'A' (no text or symbols on the robot or background)

Fuel supply

TRUPER®

• Follow the safety standards for handling fuel (page 5).
• Wait until the motor has cooled down completely before supplying fuel.
• Set the grass trimmer onto a flat surface.
• Wipe clean around the fuel tank cap to prevent contamination.
• Slowly loosen the fuel tank cap.
• Use care to prevent spills. Pour the fuel mix into the tank. ⚠ CAUTION Follow the fuel specifications (page 3).
• Before capping the fuel tank check and clean the joints.
• Set immediately the fuel tank cap and tighten with your hand.
• Clean all fuel spilled.

CAUTION In a new motor smoke emissions are normal during and after using for the first time.

Mechanical assembly diagram showing a motor, gear, and valve components (no text or labels)

Turning on

Start up with a cold motor

• Set the grass trimmer on level ground where the blade or spool will not make contact with any obstacle.

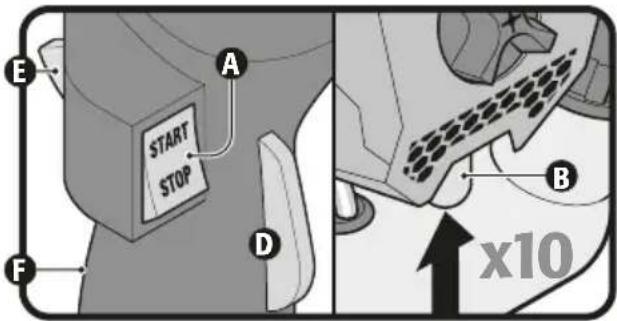

• Set the switch into the ON position (A).
• Press and release the primer bulb 10 times (B).
• Move the choke lever upwards (C).
• Press simultaneously the trigger release (D) and the throttle trigger (E). Keep the trigger depressed.
• Pull the starter handle (G) to start the motor. Do NOT pull more than 4 times to avoid flooding the motor.
• If the motor is not starting, move the choke lever downwards (H). Pull again the starter handle (I) until the motor starts. DO NOT pull more than 6 times (although in cold climate you may need to pull the starter handle more times).
• If the motor is not starting still, repeat steps from (B) and on.
• Once the motor starts, leave it running a few seconds in that position.
• Press and release the throttle trigger to set the motor idle (K).
• The grass trimmer is now ready to operate. Hold both handles using both hands and lift it to start the job.

Start up with a hot motor

• Set the grass trimmer on level ground where the blade or spool will not make contact with any obstacle.
• Set the switch into the ON position (A).
• Press and release the primer bulb 10 times (B).
• Press simultaneously the trigger release (D) and the throttle trigger (E). Keep the trigger depressed.
• Pull the starter handle (G) to start the motor.
• Press and release the throttle trigger to set the motor idle (K).

Turning off

- Press and hold the switch into the OFF position (E) until the motor stops.

Operation

CAUTION • Remember, you as the grass trimmer operator is responsible of your own safety as well as people close to the work area. Follow all safety warnings (pages 4 and 5) before operating the grass trimmer.

• Keep a balanced stance with both feet firmly set onto the ground.
• Hold the grass trimmer firmly in front of you; one hand holds the handle and the other holds the auxiliary handle so that the grass trimmer is aligned to your body and pointing the cutter head 30^ downwards, away from your feet.

DANGER • Do not start the grass trimmer in a different position.

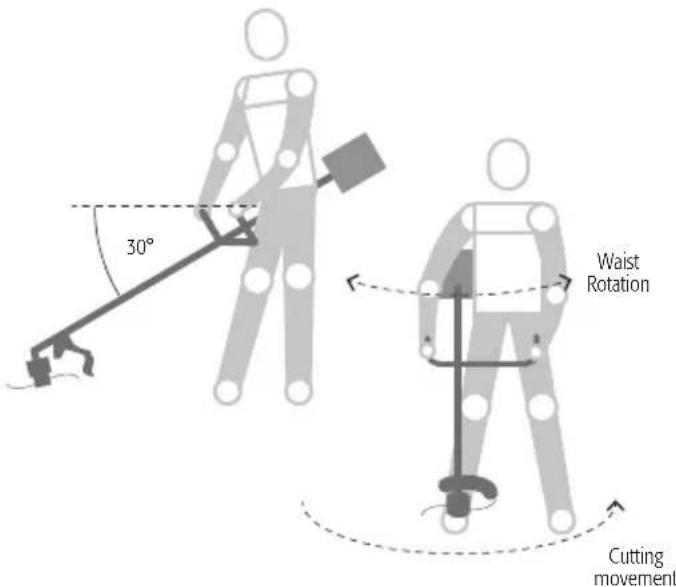

• Turn ON the grass trimmer and cut from left to right rotating your waist and keeping the grass trimmer position.
• As the cut is performed, the cutting line wears out and will be detached. To release more line from the spool, press the grass trimmer slightly downwards. The ground will depress the retention cap against the spool and will release more line. The guard blade will cut the remaining line. Then, stop pushing the grass trimmer against the ground to save line lengths.
• To cut brush or grass, cut gradually. Do not try to cut in one movement from the base because the residues may clog the cutting head or can go out of control from the operator.

- Before inspecting, cleaning or servicing the tool turn the motor off, wait for all the mobile parts to stop, disconnect the spark plug cable and set it away from the spark plug. Otherwise, the operator may suffer severe burns and / or damage the tool.

General cleansing

• Using a brush or compressed air, clean and clear the ventilation slots from the starter unit when necessary.
• Likewise, clean periodically the motor cylinder and fan blades to remove debris. Otherwise the motor may get damaged do to overheating.

Air filter cleansing

• Remove the air filter cover loosening the cap knob.
• Remove the air filter.
• Depending on how long the machine is used, you may clean the filter by superficially tapping it lightly against a flat surface to displace most of the particles.
• You may also use compressed air on both sides of the filter to blow away dirt.
• For a more thorough cleansing clean the air filter in soapy water. Rinse and let it dry completely before installing it back into the grass trimmer.
• Set back the filter. Verify it is flush in place.
• Clean the air filter as frequently as necessary to keep it always clean. Otherwise the motor efficiency may lessen.

Fuel filter

• Check the gasoline filter frequently.
• If the filter is dirty, replace it.
• If the gasoline tank is dirty inside, rinse with gasoline.

Carburetor adjustment

• It is recommended to carry out the carburetor adjustment in a TRUPER Authorized Service Center.
• A faulty adjustment can damage the motor and makes warranty void.

Blade

• Check and maintain the blade always in the best condition.

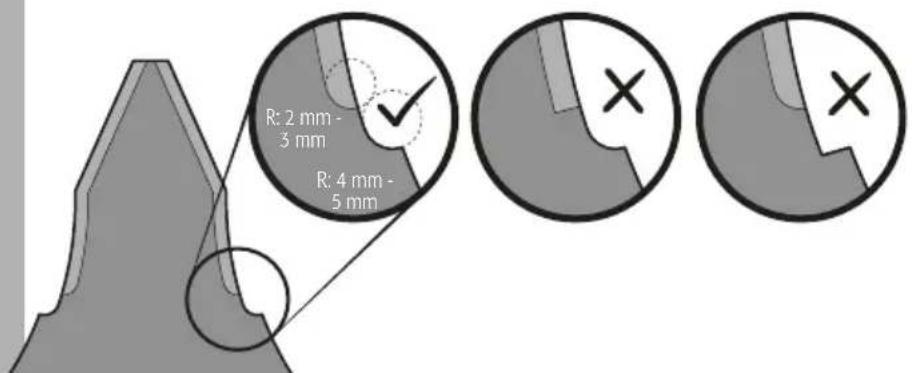

• Sharpen if necessary with a flat file. Use care not to change the blade profile and the sharpness to assure the best performance of the grass trimmer.

Spark plug replacement

• The motor runs with a NGK BPMR7A spark plug with 0.025" electrode gap. Replace the spark plug once a year with and identical spark plug.
• With the motor totally cold, loosen the worn spark plug towards the left using a spark plug wrench and remove it.
• Insert the new spark plug and using your hand tighten towards the right.

DANGER • Use care not to damage the spark plug thread. Otherwise it can damage the motor.

- Give the spark plug half-a turn more using the spark plug wrench included.

Muffler and exhaust cleansing

- The muffler and exhaust can get clogged with carbon deposits dependent of type of fuel, amount of oil used and / or conditions of the use of the grass trimmer. If there is power loss, deposits shall need to be removed to improve performance. Go to a TRUPER Authorized Service Center to carry out the service. - The muffler is built with a spark-arrest screen inside the muffler. After long periods of use the screen gets dirty and the muffler needs replacement. Go to a

TRUPER® Authorized Service Center to carry out the replacement.

DANGER • Check often that the muffler has the fasteners perfectly secured and that there is no damage or corrosion. In the event of leaks stop the grass trimmer and take it immediately to a TRUPER Authorized Service Center to repair.

Lubrication

• The inside of the cutting head gearbox is lubricated with lithium-based multiple use grease. Add grease every 25 hours use.
• To add grease set the grease device into the nipple (A) and pump twice.

Mechanical assembly diagram showing a cylindrical component mounted on a base with a circular inset view of a bracket (no text or symbols)

Grass trimmer storage

When the tool is stored one month or longer consider the following:

• Drain the fuel tank contents into a gasoline designated container. All the remaining fuel shall be re-used in other equipment using 2-stroke motors with 40:1 ratio.
• Run the motor until burning the rest of the fuel and it off. This way all residual fuel will be eliminated and will prevent gum deposit build up that damages the fuel system.
• Clean the tool thoroughly.
• Store the unit in a ventilated area, away from corrosive agents such as garden chemical products or de-icing salt. Keep it away from the reach of children.
• Obey all the government regulations concerning fuel handling and management.

Troubleshooting

Problem Cause Solution

Motor does not start.	·There is no spark.	·Check the spark. Remove the motor cover. Remove the spark plug from the cylinder. Connect the spark plug cable and set it onto the motor cylinder with the metallic side touching the cylinder. Pull the starter handle and watch the spark in the spark plug electrode. If there is no spark, repeat the test with a new spark plug.
	·No fuel.	·Press the primer bulb until the fuel is visible in the choke. If the fuel is not visible, it means that the fuel primary supply system is blocked. Contact a TRUPER® Authorized Service Center. If the primer bulb is filled with fuel, it means the motor is flooded.
	·The motor is flooded.	·With the switches in the OFF position, remove the spark plug. Set the choke lever downwards and pull the choke lever 15 to 20 times to eliminate the excessive fuel from the motor. Clean the spark plug and set it back. Follow the normal start up procedure (see page 9). If the motor is not starting, move the choke lever downwards and repeat the starting procedure. If the motor is still not starting, repeat the procedure with a new spark plug.
	·The starter handle is difficult to pull out when new.	·Take the tool to a TRUPER® Authorized Service Center.
The motor starts but does not accelerate.	·The motor need a couple of minutes to warm up.	·Allow the motor to warm up completely. If there is no throttle after three minutes contact a TRUPER® Authorized Service Center.
The motor starts bur runs only at high speed with half- a choke.	·Carburetor need adjustment.	·Take the tool to a TRUPER® Authorized Service Center.
	·Check the oil / fuel mix.	·Use new fuel and the right oil mix for 2-cycle motors.
The motor does not get to full speed and has too much smoke emissions.	·The air filter is dirty.	·Clean the air filter. See page 11
	·The spark arrest screen is dirty.	·Take the tool to a TRUPER® Authorized Service Center.
The motor starts, runs and accelerates but there is no idle speed.	·The idle speed screw in the carburetor needs adjustment.	·Turn the idle screw clockwise to increase speed.

In the event of any problem contacting a Service Center, please see our webpage www.truper.com to get an updated list, or call our toll-free numbers 01(800) 690-6990 or 01 [phone] to get information about the nearest TRUPER Authorized Service Center.

AGUASCALIENTES

671615 SUPER TOOLS

ZARAGOZA NO. 1205, COL. EL SOL, AGUASCALIENTES, AGS. TEL.: [phone]

BAJA

670796 CONTRURENTAS

CALIFORNIA SUR

This product, its parts and components have a one year cover against any defects in material and/or workmanship as well as its function, without expense for the customer. This warranty excludes the following: 1) when product is used under different from normal conditions; 2) usage in breach of the operating manual furnished or; 3) when this product has been altered or repaired by personnel not certified by TRUPER:

This warranty shall be effective with the supplier selling the product, or at TRUPER Authorized Service Centers listed in this manual.

This warranty shall be effective when presenting the product and the valid Warranty policy duly stamped by the supplier or the proof of purchase.

To comply with this warranty, Truper will cover transportation expenses in case consumer's address is out of range from TRUPER® Authorized Service Centers listed herein or at the website www.truper.com or at our toll-free numbers: 01 [phone] or 01(800) 018-7873.

In the event of any problem regarding the validity of this warranty please call toll-free numbers mentioned above.

Parts, components, consumables and accessories when applicable may be acquired at TRUPER Authorized Service Centers listed herein.

Stamp of business:

1 YEAR

Date of purchase:

Imported by: TRUPER, S.A. de C.V.

Parque Industrial No.1, Jilotepec, C.P. 54240, Estado de México, Phone: [phone], (TIN) R.F.C.: THE-791105-HP

www.truper.com
