| Type | In-ceiling speaker |
| Brand | ELAC |
| Model | Vertex III IC-VJ63-W |
| Driver Size | 6.5 inches (woofer) |
| Tweeter | 1 inch soft dome |
| Frequency Response | 38 Hz – 25 kHz |
| Impedance | 8 ohms |
| Sensitivity | 86 dB (2.83V/1m) |
| Power Handling (RMS) | 60 watts |
| Power Handling (Peak) | 120 watts |
| Cutout Dimensions | 7.9 inches (200 mm) diameter |
| Mounting Depth | 3.9 inches (100 mm) |
| Overall Dimensions (H x W x D) | 9.4 x 9.4 x 4.3 inches (239 x 239 x 109 mm) |
| Weight | 5.5 lbs (2.5 kg) |
| Grille | Magnetic, paintable |
| Enclosure Material | ABS plastic with mineral-filled polypropylene cone |
| Power Source | Passive (amplifier required) |
| Connection Type | Spring-loaded terminals |
| Installation | Ceiling mount with dogleg clamps |
| Frequency Crossover | 3 kHz |
| Recommended Amplifier Power | 20-100 watts per channel |
| Warranty | 5 years (limited) |
Frequently Asked Questions - Vertex III IC-VJ63-W ELAC
Can I paint the grille of the ELAC Vertex III IC-VJ63-W?
Yes, the grille is paintable. Use a thin coat of spray paint to avoid clogging the holes.
What is the recommended amplifier power for this speaker?
The recommended amplifier power is between 20 and 100 watts per channel for optimal performance.

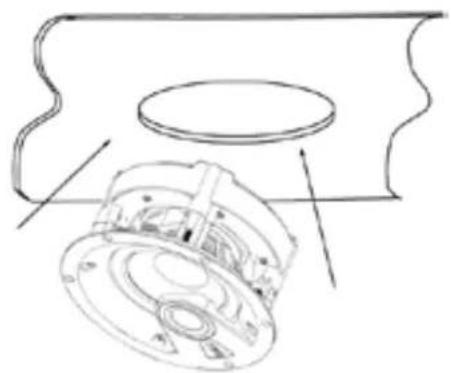

How do I install the ELAC Vertex III in-ceiling speaker?
Cut a 7.9-inch (200 mm) hole in the ceiling, run speaker wire, connect to spring terminals, and secure with dogleg clamps.
Is the ELAC Vertex III suitable for use in bathrooms or high-humidity areas?
No, it is not rated for outdoor or high-humidity use. Install only in dry indoor locations.
What is the impedance of the ELAC Vertex III IC-VJ63-W?
The impedance is 8 ohms, compatible with most home amplifiers and receivers.
Can I use this speaker for surround sound in a home theater?
Yes, it works well as a surround or ceiling channel speaker for home theater setups.
How do I clean the ELAC Vertex III speaker?
Use a dry or slightly damp cloth to wipe the grille and frame. Avoid liquids entering the driver.
What tools are needed for installation?
You will need a drywall saw for cutting the hole, a screwdriver for tightening clamps, and a wire stripper for speaker wire.
Does the speaker come with a mounting template?
Yes, a cutout template is included in the box for easy installation.
What is the frequency response of the ELAC Vertex III IC-VJ63-W?
The frequency response is 38 Hz to 25 kHz, providing deep bass and clear highs.
