NUJC360B - Solar panel SHARP - Free user manual and instructions

Product Type	Monocrystalline Solar Panel
Brand	SHARP
Model	NUJC360B
Power Output (Pmax)	360 W
Cell Technology	PERC Half-Cut Monocrystalline
Number of Half-Cells	120
Module Efficiency	19.7%
Maximum System Voltage	1000 V DC
Dimensions (L x W x H)	1765 x 1048 x 35 mm
Weight	21.0 kg
Frame	Black Anodized Aluminum
Backsheet	Black (All-Black Design)
Junction Box	3 Small Junction Boxes with Bypass Diodes
Connector Type	MC4 Compatible
Maximum Series Fuse Rating	20 A
Operating Temperature Range	-40°C to +85°C
Maximum Snow Load	5400 Pa (Tested)
Product Warranty	10 Years
Linear Power Output Guarantee	25 Years (98% in Year 1, 0.45% degr./year)
Certifications	IEC 61215, IEC 61730, ISO 14001, PID Free, Ammonia, Salt Mist, Sand/Dust
Key Features	Half-Cell Technology for Reduced Resistance Losses, Higher Yield in Shading, Lower Hot Spot Risk

Frequently Asked Questions - NUJC360B SHARP

What is the power output of the SHARP NUJC360B solar panel?

The SHARP NUJC360B has a maximum power output of 360 W under standard test conditions.

What is the warranty for this solar panel?

SHARP offers a 10-year product guarantee and a 25-year linear power output guarantee, starting at 98% of nominal power in year 1 and degrading no more than 0.45% per year.

What is the module efficiency of the NUJC360B?

The module efficiency is 19.7%, ensuring high energy conversion.

Can the NUJC360B be used in partial shade conditions?

Yes, thanks to half-cell technology, the panel is divided into two halves. If one half is shaded, the other can still produce about 50% of power, significantly better than full-cell panels.

What are the dimensions and weight of the panel?

The panel measures 1765 x 1048 x 35 mm and weighs 21.0 kg, making it suitable for rooftop and ground-mounted installations.

Is the NUJC360B suitable for residential use?

Absolutely. Its all-black design and compact size make it aesthetically pleasing for homes, and its high efficiency suits residential rooftops.

How should I clean and maintain the solar panel?

Clean the panel with water and a soft cloth or sponge when needed. Avoid abrasive materials and high-pressure water. Regular cleaning ensures optimal performance.

What certifications does the NUJC360B hold?

It is certified to IEC 61215 and IEC 61730, ISO 14001, and passes PID, ammonia, salt mist, and sand/dust tests, ensuring reliability in harsh environments.

What is the maximum system voltage?

The maximum system voltage is 1000 V DC, allowing flexible string configurations.

Does the panel come with connectors?

Yes, it is equipped with MC4 compatible connectors for easy and secure installation.

USER MANUAL NUJC360B SHARP

Outdoor construction site with solar panel array, a large tree, and workers on dirt paths under a partly cloudy sky (no text or symbols visible)

SHARP Energy Solutions

Your Solar Partner for Life

Be ahead of your competition with advanced products.

Leverage the industry's longest-standing experience

Long-term partnerships are built on trust, strength, and reliability. When our competitors started entering the market in the late 1990s, SHARP already had about 40 years of experience with a wide range of solar panel applications. We are proud of this long heritage and the many successful projects made possible by SHARP solar panels around the globe.

60

YEARS

Solar Expertise

1 TIER

Bloomberg

Secure your customers investment

As part of a corporation whose diverse portfolio includes a broad range of consumer electronics, we rely on a stable financial backbone for our solar PV business, confirmed by Bloomberg's Tier 1 listing. In contrast to pure solar manufacturers, we can withstand the fluctuations of the highly volatile solar markets. For our partners and customers, this means that we will be around and by your side for a long time.

Net Sales comparison with main competitors (pure PV companies) in 2019

Benefit from a well known consumer brand

100+ years of company history and six decades of PV experience

PV competitors
starting from 1997

Open up every market segment to generate new business

Half-cut cell PERC mono line-up

Power 540 W (front) 540 W 450 W 410 W 400 W 375 W 365 W

Model NB-JD540 NU-JD540 NU-JD450 NU-JC410 NU-JC400B NU-JC375 NU-JC365B

Half-cells	144 144		144 108 108 120 120
Busbars (round ribbons)	10 BB 10 BB 9 BB 10 BB 10 BB 9 BB						9 BB
Wafer type M10 M10 M6 M10 M10		M6	M6
Module efficiency	20.9 %	20.9 %	20.4%	21.0%	20.5%	20.3%	19.7%
System voltage	1,500 V	1,500 V	1,500 V	1,000 V	1,000 V	1,000 V	1,000 V
Size	2,278 x 1,134 x 30 mm	2,279 x 1,134 x 35 mm	2,108 x 1,048 x 35 mm	1,722 x 1,134 x 35 mm	1,722 x 1,134 x 35 mm	1,765 x 1,048 x 35 mm	1,765 x 1,048 x 35 mm
Weight	32.5 kg	27.8 kg	25.0 kg	21.8 kg	21.8 kg	21.0 kg	21.0 kg
Pallet	36 pcs	31 pcs	31 pcs	31 pcs	31 pcs	31 pcs	31 pcs
Truck (40 feet)	720 pcs	620 pcs	682 pcs	806 pcs	806 pcs	806 pcs	806 pcs

Go Online!

Select a module and see the datasheets and certificates www.sharp.eu/solar-panels

Achieve ROIs quickly

Highest-yielding half-cell PV panels

The main benefits of the half-cell modules for users are a 2-3% higher module performance and higher total yields. In a half-cell module, standard full cells are cut into two equal halves. In addition, the module is also divided into an upper and a lower half and the half-cells arranged thereon.

By dividing the cells, the power generated per cell is halved and resistance losses on cell and module level are reduced to one quarter. In addition, the halved current can significantly reduce the temperature in the cells and therefore reduce the risk of hot spot effects. The three small junction boxes, each fitted with only one bypass diode, are transferring less heat to the cells below as well. These factors also boost the longevity of the overall system and dividing the module in half will also have an impact on the overall performance. The path of the generated current is shortened by dividing the module, further reducing resistance losses. Mounting the module vertically will also prove beneficial in shading situations. For example, if the lower half of the module is shaded, users can still generate a 50% performance with the upper half, while the production of a full cell module completely breaks away. This could be the case with inter-row shading for free-field or tilt-mounted roof installations. With half-cell modules, therefore, higher wattage classes and higher yields per system can be achieved.

5% is more than 5W

SHARP is the only company with up to 5% more power than specified on the datasheet. The power tolerance of other companies is 0/5 W.

Engineered for low LCOE

Our monocrystalline PV modules are optimised to achieve low LCOE (Levelised Cost of Electricity) so that you can maximise your return on investment. Your choice of PV panel affects LCOE in three ways.

Bifacial Technology

The additional gain of bifacial modules is coming from irradiance received on the back of the module. This can be reflected direct sunlight, reflected diffuse sunlight or diffuse light that is not reflected. Instead of an opaque backsheet on the back of the PV panel the back of our bifacial panels has a glass layer that allows light to reach the back of the cells. This additionally generated energy is the main benefit of bifacial technology over monofacial technology.

Illustration of a laptop displaying an envelope with a paper airplane flying overhead (no text or symbols)

Subscribe to our newsletter for business customers

Register here!

www.sharp.eu/solar-newsletter

Best guarantees

These guarantees are granted to the first buyer and managed from our offices in Hamburg, Germany.

10

YEARS

Product

Guarantee

25

YEARS

Linear Power

Output Guarantee

10 year product guarantee and 25 year linear power output guarantee on monofacial panels\*

SHARP offers a 10-year product guarantee and 25-year linear power output guarantee for monofacial PV panels in our current line up.

*Applicable for NU-JC365B, NU-JC375, NU-JC400B, NU-JC410, NU-JD450 and NU-JD540 installed in Africa and additional listed countries. Please check the guarantee conditions for your area before purchasing.

12

YEARS

Product

Guarantee

30

YEARS

Linear Power

Output Guarantee

12 year product guarantee and 30 year linear power output guarantee on bifacial panels\*\*

The bifacial panel we currently offer comes with a 12-year product guarantee and a 30-year linear power output guarantee (starting with 98% of Pnom and ending with 85% min. in year 30. 0.45% maximum annual degradation after the first year).

**Applicable for NB-JD540 installed outside of the EU and additional listed countries. Please check the guarantee conditions for your area before purchasing.

Proven quality

Provide reliable products which passed the hardest tests

Our extensive, discerning tests are based on decades of industry experience and are up to five times stricter than IEC standards demand. We know the typical module failures and can test new production materials accordingly to ensure our modules' top quality. From compliance with international standards to endurance under extreme conditions: our PV modules have been tested, certified and awarded by a number of independent institutions. Please check the current specific data sheet and related documents for available certificates for each product.

Close-up of a solar panel array under a transparent roof structure (no visible text or symbols)

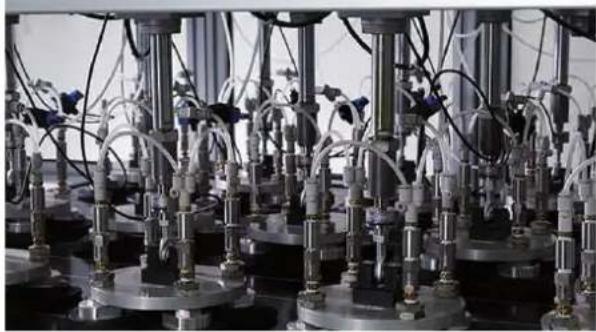

Industrial bottling machine with multiple metal components and piping (no visible text or labels)

Sleek black designs

Satisfy your style conscious customers

With their black frames and black back sheets, our all-black monocrystalline panels offer a homogeneous and sleek design that blends in with a building's architecture.

for Solar

Certified Joint Forces

Certified

ISO14001
certified

Top Brand
PV Award

PID

free

(IEC TS62804)

5,400 Pa

Tested Snow Load

(IEC 61215)

Ammonia Test

(IEC62716)

Salt Mist Test

(IEC61701)

Sand / Dust Test

(IEC60068)

Trust in over 50 million SHARP panels installed in every environment

SHARP PV products are being used around the world, in a wide range of applications and environments. From the mountains to the desert, from icy climates to extreme humidity and heat, our PV modules have proven robust and reliable, contributing to a better energy future everywhere.

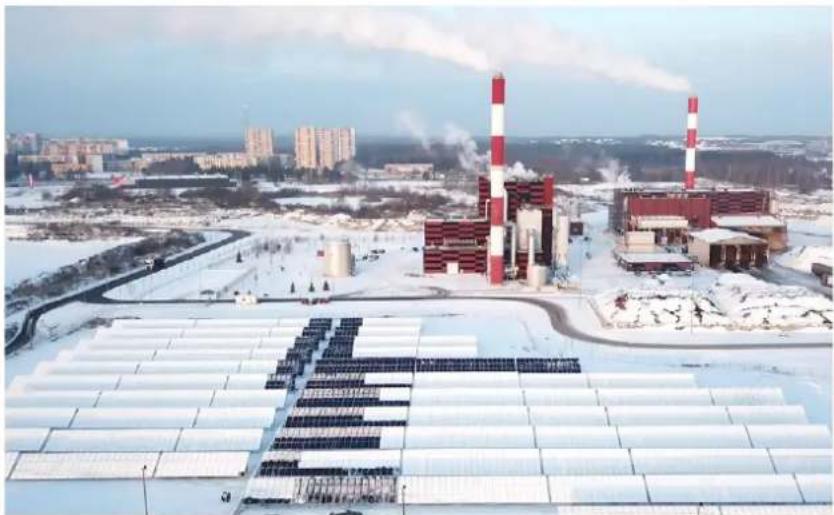

Aerial view of a large industrial facility with red-and-white smokestacks emitting steam, surrounded by snow-covered greenhouses and distant urban buildings (no visible text or symbols).

Large scale projects

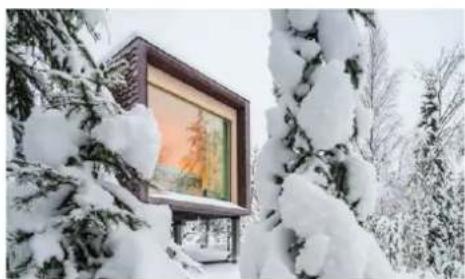

Snow-covered tree branches in the foreground with a wooden-framed display wall showing autumn foliage (no text or symbols visible)

Nordic installations (heavy snow loads and up to -15°C)

Exterior view of a modern solar-powered parking roof structure with parked cars in the foreground (no signage or text visible)

Solar car parks

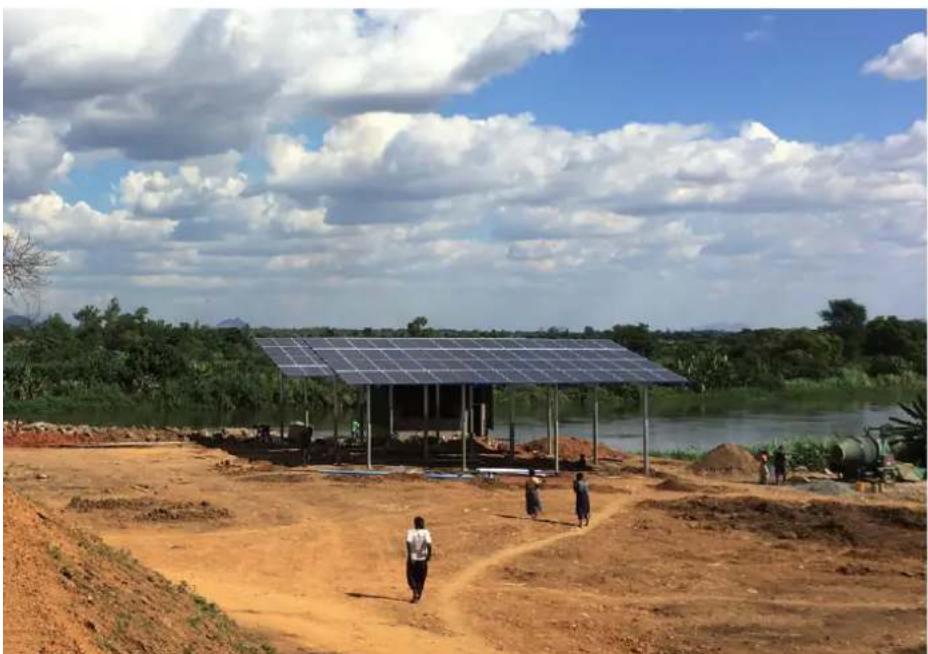

Exterior view of a solar-powered building with people walking on a dirt path beside a body of water under a partly cloudy sky (no signage or text visible)

Solar powered irrigation projects

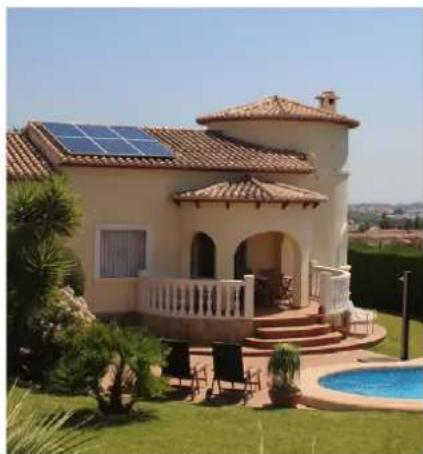

Exterior view of a two-story residential house with solar panels on the roof, surrounded by lawn and a pool (no signage or text visible)

Residential installations

Solar panel array installed in a desert landscape under clear blue sky (no text or symbols visible)

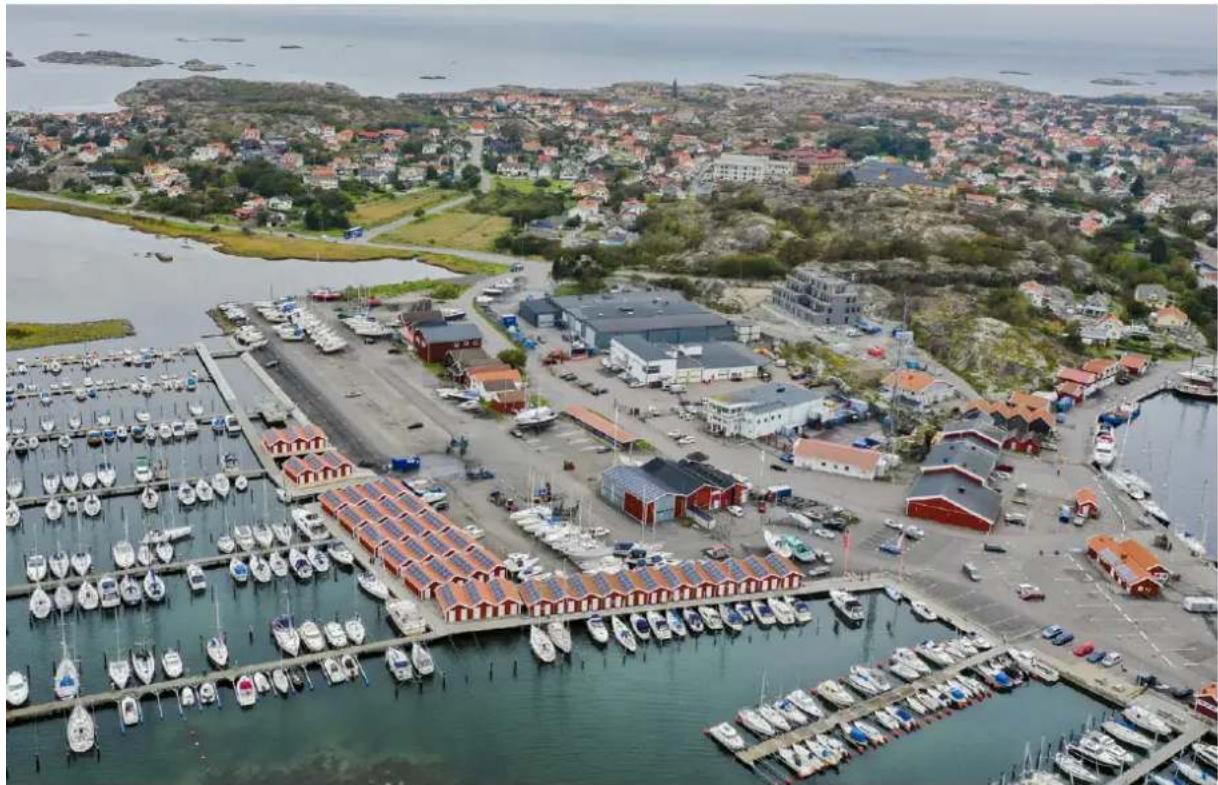

Aerial view of a coastal town with numerous boats docked, solar panels on the pier, and industrial buildings along the shoreline (no visible text or signage).

Seafront installations

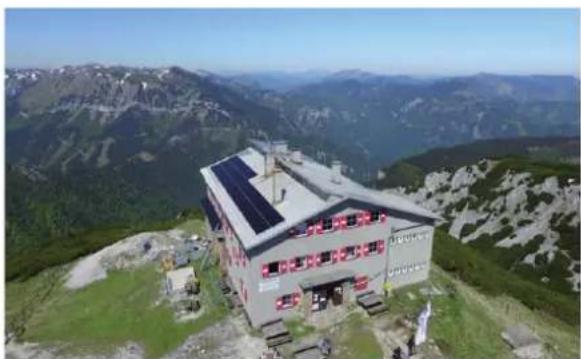

Aerial view of a mountain cabin with solar panels on top, surrounded by forested slopes and snow-capped peaks (no visible text or symbols)

Mountain installations (strong wind pressure)

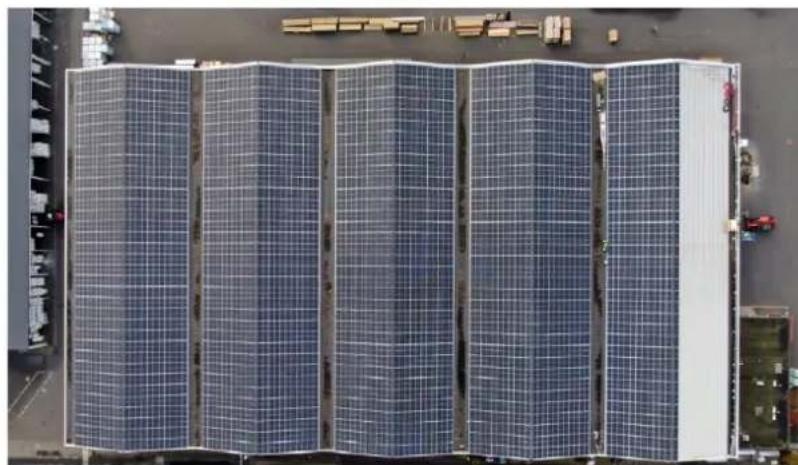

Aerial view of a large industrial warehouse with multiple solar panels installed on the roof (no visible text or symbols)

Industrial installations

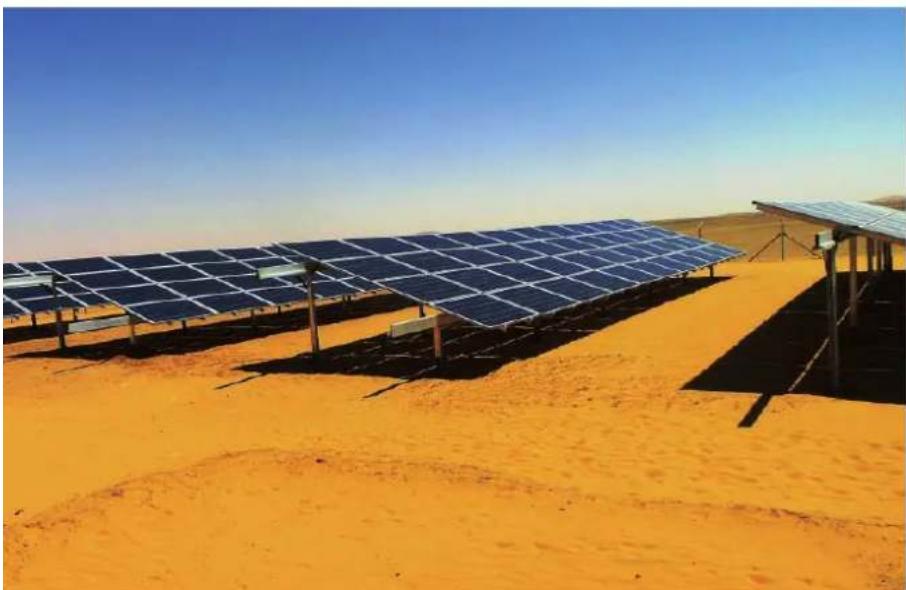

Solar panel array installed in a desert landscape under clear blue sky (no text or symbols visible)

Desert installations (up to 50°C)

View case studies!

www.sharp.eu/case-studies

Follow us!

@SHARPSolarEMEA

Contact us and we will be happy to assist

Superior service based in Europe

Our solar service, sales, and support teams are based in Hamburg, Germany for more than 20 years. We like to be close to our customers and partners and have our stock close, too. That is why we operate from offices in Europe and have a warehouse here.

Go Online!

Get in touch with us now and meet the team. www.sharp.eu/contact-us

See what our clients have to say:

"We chose SHARP for the sake of product quality, performance and guarantee. Its performance in our demanding and harsh weather conditions in Finland guarantees the best possible energy production compared to any other product we have used so far."

Antti Kostainen

PlayGreen, Finland

"SHARP modules have proved highly dependable in the past, with a very good price-performance ratio. Over the almost seven years of our partnership with SHARP, they have been consistently reliable and supportive. It is clearly a win-win situation."

"We've done more than 70 projects with SHARP modules so far. Their high quality and reliable guarantees give us great peace of mind." Joan Gri Seine Te

Joan Grifé Singla

Seine Tech, Spain

"Our relationship with SHARP Service can be described best by the number of issues we have had with SHARP products in the past 18 years: ZERO! This is statistically impossible and yet, true!"

Christos Pronios

Eurosol

"All panels were delivered on time, which helped adhering our time schedule a lot and is required when installing 43,000 modules. Furthermore, the SHARP modules have exceeded our expectations in terms of quality and reliability. This was also confirmed by the great yields we generated so far."

Aldo Enerji

Akin Yalçin, Turkey
