Type de produit	In-ceiling speaker
Marque	Russound
Modèle	IC-605
Catégorie	Enceinte
Dimensions hors tout (diamètre)	9.1 in (231 mm)
Diamètre de découpe	7.5 in (191 mm)
Profondeur de montage	3.6 in (91 mm)
Poids	4.5 lb (2.04 kg)
Impédance	8 ohms
Puissance admissible (RMS)	60 W
Puissance admissible (crête)	120 W
Réponse en fréquence	50 Hz – 20 kHz
Sensibilité	88 dB
Haut-parleur grave	6.5 in polypropylène
Haut-parleur aigu	1 in (25 mm) pivotant
Grille	Peignable, amovible
Matériau du châssis	Plastique ABS
Utilisation recommandée	Intérieur, plafond
Connexion	Bornes à ressort
Accessoires inclus	Grille, gabarit de découpe, vis
Entretien	Nettoyer avec un chiffon sec
Température de fonctionnement	0°C à 40°C

Frequently Asked Questions - IC-605 Russound

What is the recommended amplifier power for the IC-605?

The IC-605 handles up to 60W RMS (120W peak). Use an amplifier with 20-80W per channel for best results.

Can the grille be painted to match my ceiling?

Yes, the grille is paintable. Remove the grille before painting, use thin coats, and ensure paint does not clog the perforations.

What size cutout is required for installation?

The required cutout diameter is 7.5 inches (191 mm). Use the included template for precise cutting.

Are these speakers suitable for outdoor use?

No, the IC-605 is designed for indoor ceiling installation only. Exposure to moisture or extreme temperatures may damage it.

How do I wire the speaker?

Connect the amplifier's positive wire to the red terminal and negative to the black terminal. Observe polarity for proper stereo imaging.

What is the frequency response of the IC-605?

The frequency response is 50 Hz to 20 kHz, providing balanced sound for music and home theater.

Can I use these speakers in a 70V system?

No, the IC-605 is an 8-ohm speaker for standard low-impedance systems. For 70V, use a transformer or Russound's AW series.

Does the tweeter pivot for directional sound?

Yes, the 1-inch tweeter can be angled up to 15° to direct sound towards the listening area.

What is the mounting depth required?

The minimum mounting depth is 3.6 inches (91 mm). Ensure ceiling cavity has enough clearance.

How do I clean the speaker?

Wipe the grille and frame with a soft dry cloth. Do not use water, solvents, or abrasive cleaners. Dust the cone gently.

USER MANUAL IC-605 Russound

CUT-OUT TEMPLATE SIZE for artwork

Creation:

Cut-out diameter: 8.25" (20.96 cm)

DWG Revision: Rev-F0

Date: 9.5.20

Drawn by: ACI / John Tchilinguirian

6.5" Round Speaker Hole Cutout Template

• Hole Cut Diameter: 8.25" (20.96 cm)

Figure 1

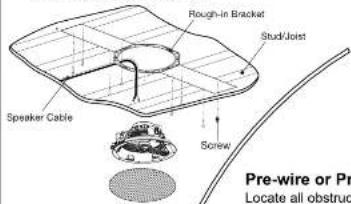

In-ceiling bracket Installation

Installation Instructions

Pre-wire or Pre-construction

Locate all obstructions (AC wiring, plumbing, duct work, studs, and joists). Route the speaker wire to the speaker location avoiding all obstacles.

Russound offers Speaker Rough-In Brackets that can be fastened to the adjacent studs. Once the dry wall is installed, the opening is cut-out. There are holes molded into the bracket for speaker wire tie-off to keep the wire from being lost during construction. Make sure the speaker cut-out (hole) doesn't extend further than 1/4" (0.6cm from the inside of the mounting bracket.

See Figure 1 for In-ceiling bracket installation.

See Figure 2 for In-wall bracket installation

Retrofit Installation

Locate all existing pipes, duct work, and AC wiring before cutting any holes in the ceiling.

1. Center the cardboard template between adjacent joists, avoiding all wiring, pipes, duct work, and lightly mark the outline with a pencil. Then use a keyhole/drywall saw or motorized spiral-cut tool to make the opening. See Figure 3
2. Score the outline of the template with a utility knife to prevent chipping. If dealing with lath and plaster or thick paneling, drill 1" (2.5cm) holes in several places around the pencil outline. Use a fine-toothed keyhole saw or hacksaw blade with slow strokes to saw through and remove the inner surface. See Figure 3
3. Center the Speaker in the cutout. Rotate the frame as needed before tightening the screws. Tighten the screws equally until clamps secure the frame. Do not overtighten. See Figure 4

Figure 2
In-wall bracket installation

Technical line drawing of a mechanical component with grid and flange (no text or symbols)

Magnetic square grille ICG-6S (solid separately)

10.15.20 | Rev 1

Attach Speaker Wire To Speakers

Attach the speaker wires to the red and black speaker terminals. Connect the Positive (+) conductor to the Red terminal and the Negative (-) conductor to the Black terminal. Make sure that no stray strands of wire are touching the other conductor or terminal. See Figure 5

For warranty information go to www.russound.com/warranty-registration

Figure 5

[11.417] 290

Russound a sound relationship

Figure 3

Note: Drill shallow to avoid damage to varying, pipes & ductwork

Figure 4

Technical diagram of a mechanical device with internal components and a magnified inset (no text or symbols)

russound.com

Engineered Innovation

Extraordinary Sound

Close-up of a black speaker with visible sound waves and blue buttons (no text or symbols)

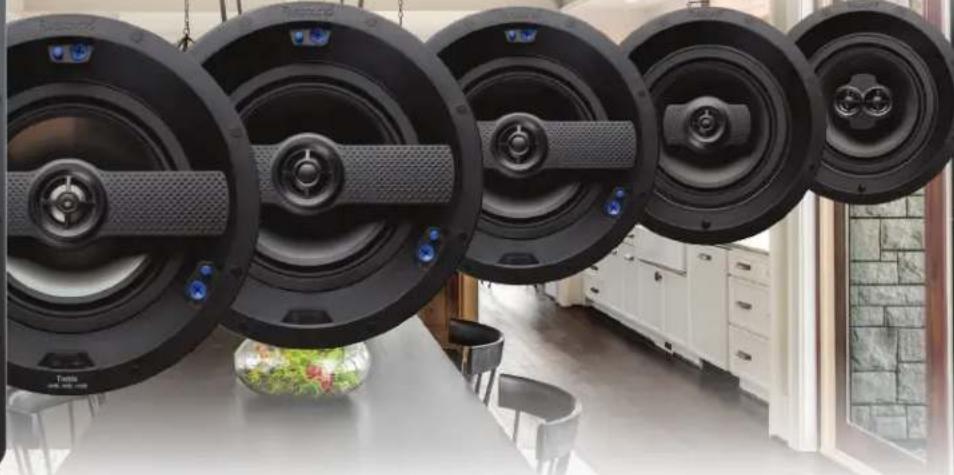

Row of black speaker lamps in a kitchen setting, no visible text or symbols on the lamps or background

The All New Architectural Speakers from Russound

The innovative IC-Series of Architectural Speakers from Russound incorporates the latest advances in material technologies and audio engineering to provide the best sounding speaker lineup in Russound's 50-year history. Each of these new speakers has been designed, manufactured and tuned with great care so that your listening experience is truly exceptional. Our range of speaker solutions provide excellent choices in any application - from background music listening to premium performance in your favorite listening areas at home.

While designed for premium sound quality, Russound also included features that will make these easier to install, saving time and money for all involved. For that, Russound included its unique Easygrip™ tweeter posts and bridges to make all of the IC-Series speakers easy to hold at the top of a ladder, and most importantly, for its premium models, the IC-620, IC-620T, IC-820, IC-820T, IC-630 and IC-830, as well as the in-wall IW-620 and IW-630, Russound incorporated its proprietary, patented SwiftLock® technology for effortless installation at the push of a button.

Close-up of a blue plastic mechanical component with no visible text or symbols

SWIFTLOCK BY SWARM

The IC-Series of speakers provides excellent options for all of the speakers in the home, from complete multi-room audio solutions to dedicated home theaters and everything in between. From the kitchen to the living room to the bedroom, there is a perfect speaker for every room.

a sound relationship Russound

IC-Series Loudspeakers

IC-605
Contractor Grade Loudspeakers
Two-way In-ceiling / 4-Pack

• Designed for background listening applications
• Pin-Cushion, EasyGripTM Design for easily holding the speaker with one hand even at the top of a ladder
• Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass

IC-610
Perfect For All Background Music Applications
Two-way In-ceiling

• Your new go-to speaker for distributed audio systems
• Pin-Cushion, EasyGrip™ Design for easily holding the speaker with one hand even at the top of a ladder
• Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass

IC-610T
Stereo Sound From A Single Speaker
Single Point Stereo In-ceiling

• Designed for small rooms, hallways, or anywhere that stereo speaker installation is difficult
  • Dual Tweeter and Dual Voice-Coil Woofer
• Pin-Cushion, EasyGripTM Design for easily holding the speaker with one hand even at the top of a ladder

IC-620
Designed for Primary Listening
Areas Two-way In-ceiling

• Use instead of the IC-620 for larger rooms, rooms with higher ceilings, or for deeper bass response
• Acoustically matched with the IC-620 - mix and match in a home as needed
• SwiftLock® tool-less quick and easy installation

IC-620T
Designed for Primary Listening Areas
Single Point Stereo In-ceiling

• Designed for small rooms, hallways, or anywhere that stereo speaker installation is difficult
  • Dual Tweeter and Dual Voice-Coil Woofer
  • Enhanced frequency response for superb sound
• SwiftLock* tool-less quick and easy installation

Close-up of a black circular speaker or audio device with a central knob and blue buttons (no visible text or symbols)

IC-820
Designed for Primary Listening Areas
Two-way In-ceiling

- Use instead of the IC-620 for larger rooms, rooms with higher ceilings, or for deeper bass response

- Acoustically matched with the IC-620, IC-620T, IC-820T & IW-620 - mix and match in a home as needed

- SwiftLock® tool-less quick and easy installation

IC-820T
D esigned for Primary Listening Areas Single Point Stereo In-ceiling

• Designed for anywhere that stereo speaker installation is difficult
  • Dual Tweeter and Dual Voice-Coil Woofer
  • Enhanced frequency response for superb sound
• SwiftLock® tool-less quick and easy installation

IC-630
Ideal For Critical Listening Areas & Home Theaters Two-way In-ceiling

• Enhanced frequency response for superb sound
• Excellent for both music and TV/movie/home theater use
• SwiftLock® tool-less quick and easy installation

IC-830
Ideal For Critical Listening Areas & Home Theaters Two-way In-ceiling

• Use instead of the IC-630 for larger rooms, rooms with higher ceilings, or for deeper bass response
  • Acoustically matched with the IC-630 & IW-630 - mix and match in a home as needed
• SwiftLock* tool-less quick and easy installation

Close-up of a black audio speaker with visible sound waves and buttons (no text or symbols)

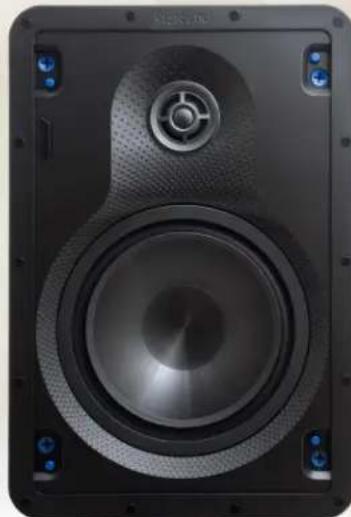

IW-620
Designed for Primary Listening Areas
Two-way In-wall

- Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass

• Acoustically matched with the IC-620, IC-620T, IC-820, and IC-820T - mix and match in a home asneeded

• SwiftLock® tool-less quickand easy installation

Close-up of a black speaker with a circular head and blue buttons (no visible text or symbols)

IW-630
Ideal For Critical Listening Areas & Home Theaters Two-way In-wall

• Integrated one-piece baffle /woofer basket design for enhanced rigidity and more efficient bass
  • Acoustically matched with the IC-630 and IC-830-mix and match in a home asneeded
• SwiftLock* tool-less quickand easy installation

Optional Square Grilles available for in-ceiling speakers (not included)
Optional Rough-in-Brackets for in-ceiling speakers (not included)

• Quick and easy
• Tool-less Installation
  • Available on all 20 &
  30 Series Loudspeakers
• install at the push of a button
  • US Patent 1 0,024,493

SWIFTLOCK BY SWARM

a sound relationship Russound

IC-Series Loudspeakers

Comparison Chart

Model IC-610	IC-610T105820				IC-620T	IC-630
Part Number	3175-853586	3175-537141 3175-587189 3175-537158			3175-853616	3175-537165
Description	6.5" Contractor Grade Loudspeakers	6.5" All-Purpose Ceiling Loudspeakers	6.5" Single Point Stereo Loudspeaker	6.5" Enhanced Performance Loudspeakers	6.5" Enhanced Performance Single Point Stereo Loudspeaker	6.5" Premium Performance Loudspeakers
Unit of Measure	4-Pack	Pair	Each	Pair	Each	Pair
SwiftLock®	No	No No Yes			Yes	Yes
Woofer	6.5" / (16.51 cm) Polypropylene cone	6.5" / (16.51 cm) Polypropylene cone	6.5" / (16.51 cm) Dual Voice-Coil Injection-Molded Polypropylene cone	6.5" / (16.51 cm) Injection-Molded Polypropylene cone	6.5" / (16.51 cm) Injection-Molded Polypropylene cone	6.5" / (16.51 cm) IM Polypropylene cone with vapor deposited Titanium
Tweeter	0.5" / (13 mm) Fixed PEI	0.75" / (19 mm) Pivoting Silk	Dual 0.5" / (13 mm) Fixed PEI	1" / (25 mm) Pivoting Silk	2 x 0.75" / (19 mm) Fixed Silk	1" / (25 mm) Pivoting Titanium
Recommended Power	5 - 80 watts	5 - 90 watts 5 - 90 watts 5 - 100 watts			5 - 100 watts	5 - 110 watts
Frequency Response	55 Hz - 20 kHz	50 Hz - 20 kHz	40 Hz - 20 kHz	47 Hz - 20 kHz	40 Hz - 20 kHz	45 Hz - 25 kHz
Sensitivity	87 dB @ 1w/1m	88 dB @ 1w/1m	90 dB @ 1w/1m	90 dB @ 1w/1m	91 dB @ 1w/1m	90 dB @ 1w/1m
Nominal Impedance	8 ohms	8 ohms 8 ohms 8 ohms			8 ohms	8 ohms
Magnet Structure	11 oz (0.312 kg)	11 oz (0.312 kg)	11 oz (0.312 kg)	11 oz (0.312 kg)	11 oz (0.312 kg)	11 oz (0.312 kg)
Overall Dimensions	9.37" (23.8 cm) diameter	9.37" (23.8 cm) diameter	9.37" (23.8 cm) diameter	9.37" (23.8 cm) diameter	9.37" (23.8 cm) diameter	9.37" (23.8 cm) diameter
Mounting Depth	3.98" (10.1 cm)	3.98" (10.1 cm)	3.98" (10.1 cm)	3.69" (9.37 cm)	3.98" (10.11 cm)	3.69" (9.37 cm)
Cut-Out Dimensions	8.375" (21.27 cm) diameter	8.375" (21.27 cm) diameter	8.375" (21.27 cm) diameter	8.375" (21.27 cm) diameter	8.375" (21.27 cm) diameter	8.375" (21.27 cm) diameter
Speaker Weight	2.6 lbs (1.179 kg)	2.6 lbs (1.179 kg)	2.8 lbs (1.27 kg)	2.6 lbs (1.179 kg)	2.6 lbs (1.179 kg)	1.8 lbs (0.816 kg)
Packaging Dimensions L x W x H	11.75" (29.85 cm) x 10.75" (27.31 cm) x 12" (30.48 cm)	11.75" (29.85 cm) x 10.75" (27.31 cm) x 12" (30.48 cm)	11.75" (29.85 cm) x 11.75" (29.85 cm) x 5.75" (14.61 cm)	11.75" (29.85 cm) x 10.75" (27.31 cm) x 12" (30.48 cm)	11.75" (29.85 cm) x 11.75" (29.85 cm) x 5.75" (14.61 cm)	11.75"(29.85 cm)x 10.75"(27.31 cm)x 12"(30.48 cm)
Shipping Weight	17 lbs (7.711 kg)	8 lbs (3.629 kg)	5 lbs (2.268 kg)	8 lbs (3.629 kg)	5 lbs (2.268 kg)	8 lbs (3.629 kg)

a sound relationship Russound

IC-Series Loudspeakers Comparison Chart

Close-up of a black circular mechanical component with a central knob and blue buttons (no visible text or symbols)

Close-up of a black circular speaker grille with two speakers and a central grille (no visible text or symbols)

Close-up of a black circular speaker or audio component with no visible text or symbols

Close-up of a black audio speaker with a speaker grille and blue buttons (no visible text or symbols)

Close-up of a black audio speaker with a circular head and blue buttons (no visible text or symbols)

Model IC-820T	IW-630-820		IC-830	IW-620
Part Number	3175-537172	3175-853623 3175-8	536098175-853593	3175-537196
Description	8" Enhanced Performance Loudspeakers	8" Enhanced Performance Single Point Stereo Loudspeaker	8" Premium Performance Loudspeakers	6.5" In-Wall Enhanced Performance Loudspeakers	6.5" Premium Performance Loudspeakers
Unit of Measure	Pair	Each PairPair Pair
SwiftLock®	Yes	Yes Yes	Yes	Yes
Woofer	8" (20.32 cm) Injection-Molded Polypropylene Cone	8" (20.32 cm) Injection-Molded Polypropylene Cone	8" / (20.33 cm) IM Polypropylene cone with vapor deposited Titanium	6.5" / (16.51 cm) Injection-Molded Polypropylene cone	6.5" / (16.51 cm) IM Polypropylene cone with vapor deposited Titanium
Tweeter	1" / (25 mm) Pivoting Silk	2 x 1" / (25 mm) Fixed Silk	1" / (25 mm) Pivoting Titanium	1" / (25 mm) Pivoting Silk	1" / (25 mm) Pivoting Titanium
Recommended Power	5 - 120 watts	5 - 120 watts 5 - 110 watts	5 - 130 watts	5 - 100 watts
Frequency Response	42 Hz - 20 kHz	38 Hz - 20 kHz	38 Hz - 25 kHz	47 Hz - 20 kHz	42 Hz - 25 kHz
Sensitivity	92dB @ 1w/1m	92dB @ 1w/1m	93 dB @ 1w/1m	90 dB @ 1w/1m	90 dB @ 1w/1m
Nominal Impedance	8 ohms	8 ohms 8 ohms	8 ohms	8 ohms
Magnet Structure	11 oz (0.312 kg)	11 oz (0.312 Kg)	11 oz (0.312 kg)	13 oz (0.383 kg)	13 oz (0.383 kg)
Overall Dimensions	11.04" (28.1 cm) diameter	11.04" (28.1 cm) diameter	11.04" (28.1 cm) diameter	H=12.81" (32.54 cm) x W=8.71" (22.13 cm)	H=12.81" (32.54 cm) x W=8.71" (22.13 cm)
Mounting Depth	5.06" (12.84 cm)	5.06" (12.84 cm) 3.63"	(9.810cm)(12.84 cm)	3.63" (9.21 cm)
Cut-Out Dimensions	9.875" (25 cm) diameter	9.875" (25 cm) diameter	9.875" (25 cm) diameter	H=11.75" (29.85 cm) x W=7.64" (19.4 cm)	H=11.75" (29.85 cm) x W=7.64" (19.4 cm)
Speaker Weight	3.4 lbs (1.542 kg)	3.4 lbs (1.542 kg) 3.4 lbs (1.542 kg)		3.4 lbs (1.542 kg)
Packaging Dimensions L x W x H	14" (35.56 cm) x 12.75" (32.39 cm) x 13.75" (34.93 cm)	14" (35.56 cm) x 14" (35.56 cm) x 6.75" (17.16 cm)	14" (35.56 cm) x 12.75" (32.39 cm) x 13.75" (34.93 cm)	14.41" (36.6 cm) x 9.76" (24.79 cm) x 10.39" (26.39 cm)	14.41" (36.6 cm) x 9.76" (24.79 cm) x 10.39" (26.39 cm)
Shipping Weight	9.6 lbs (4.354 kg)	5.6 lbs (2.54 kg)	9.6 lbs (4.354 kg)	9.6 lbs (4.354 kg)	9.6 lbs (4.354 kg)
